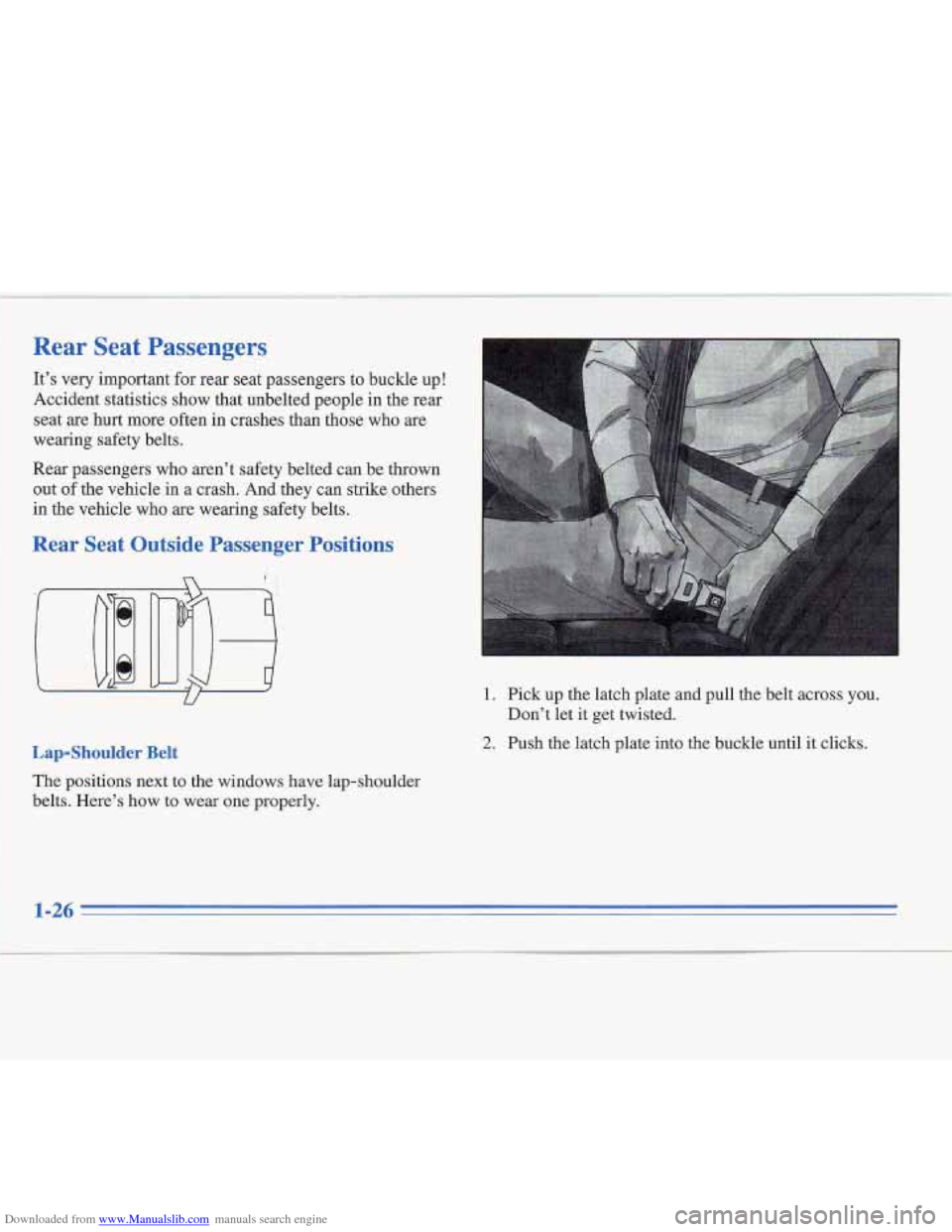

Downloaded from www.Manualslib.com manuals search engine Rear Seat Passengers
It's very important for rear seat passengers to buckle up!
Accident statistics show that unbelted people in the rear
seat
are hurt more often in crashes than those who are
wearing safety belts.
Rear passengers who aren't safety belted can be thrown
out of the vehicle
in a crash. And they can strike others
in the vehicle
who are wearing safety belts.
Rear Seat Outside Passenger Positions
Lap-Shoulder Belt
The positions next to the windows have lap-shoulder
belts. Here's how to wear one properly.
I. Pick up the latch plate and pull the belt across you.
Don't let it get twisted.
2. Push the latch plate into the buckle until it clicks.
1-26
Page 42 of 306

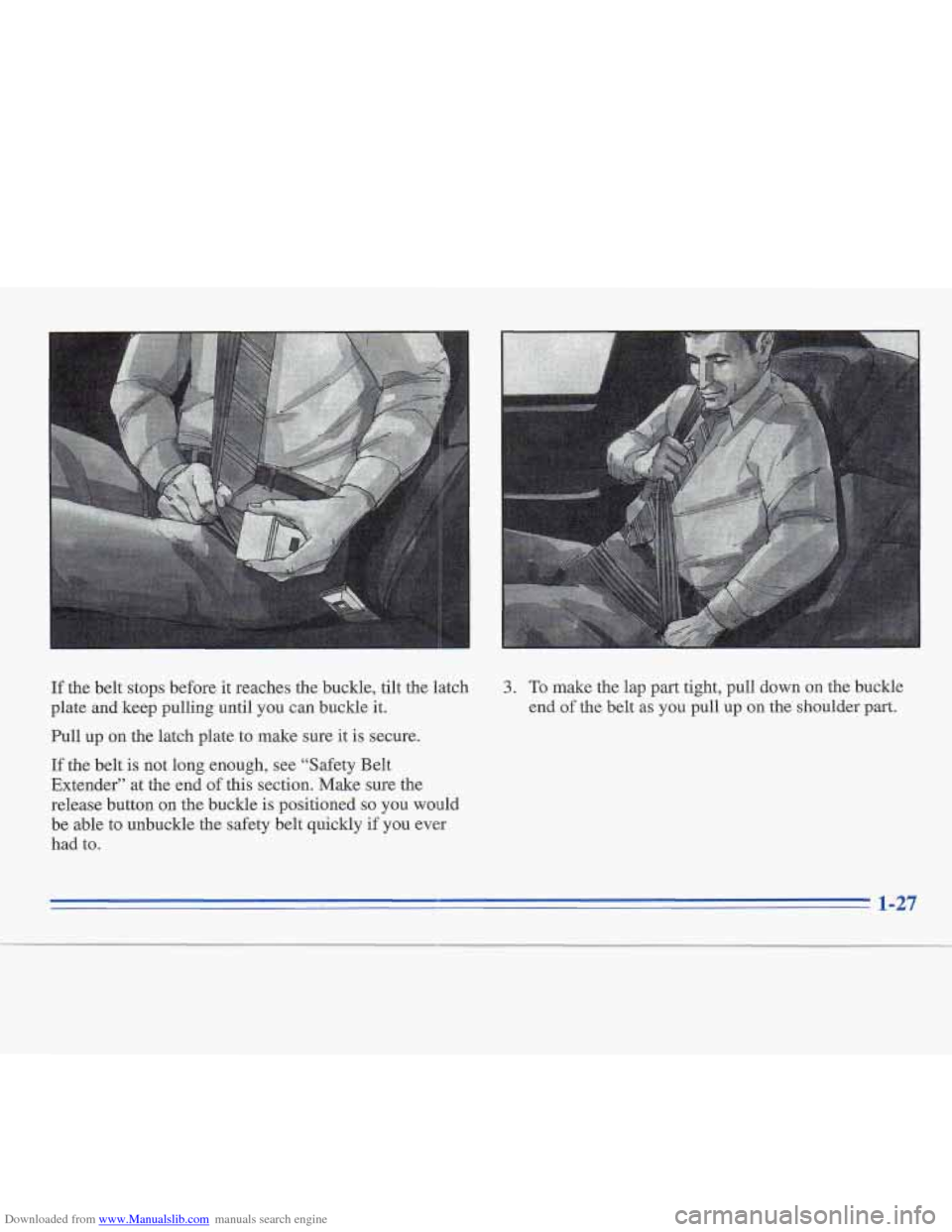

Downloaded from www.Manualslib.com manuals search engine If the belt stops before it reaches the buckle, tilt the latch
plate and keep pulling until you can buckle
it.
Pull up on the latch plate to make sure it is secure.
If the belt is not long enough, see “Safety Belt
Extender” at the end of this section. Make sure the
release button on the buckle is positioned
so you would
be able to unbuckle the safety belt quickly if you ever
had to.
3. To make the lap part tight, pull down on the buckle
end
of the belt as you pull up on the shoulder part.
Page 43 of 306

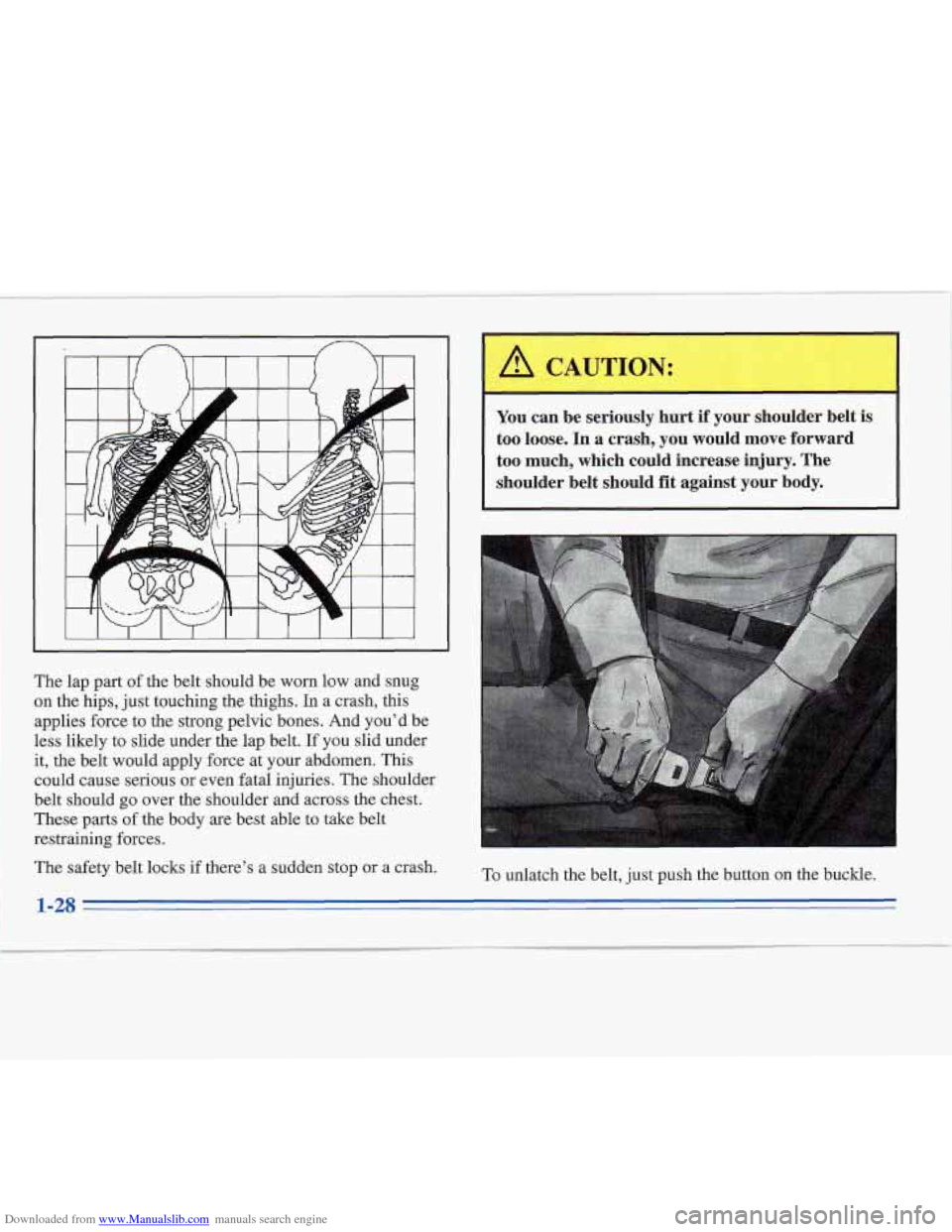

Downloaded from www.Manualslib.com manuals search engine The lap part of the belt should be worn low and snug
on the hips, just touching the thighs. In a crash, this
applies force to the strong pelvic bones. And you’d be
less likely to slide under the lap belt. If you slid under
it, the belt would apply force at your abdomen. This
could cause serious or even fatal injuries. The shoulder
belt should
go over the shoulder and across the chest.
These parts of the body are best able to take belt
restraining forces.
The safety belt locks if there’s a sudden stop or a crash.
You can be seriously hurt if your shoulder belt is
too loose. In
a crash, you would move forward
too much, which could increase injury. The
shoulder belt should fit against your body.
To unlatch the belt, just push the button on the buckle.
1-28
Page 44 of 306

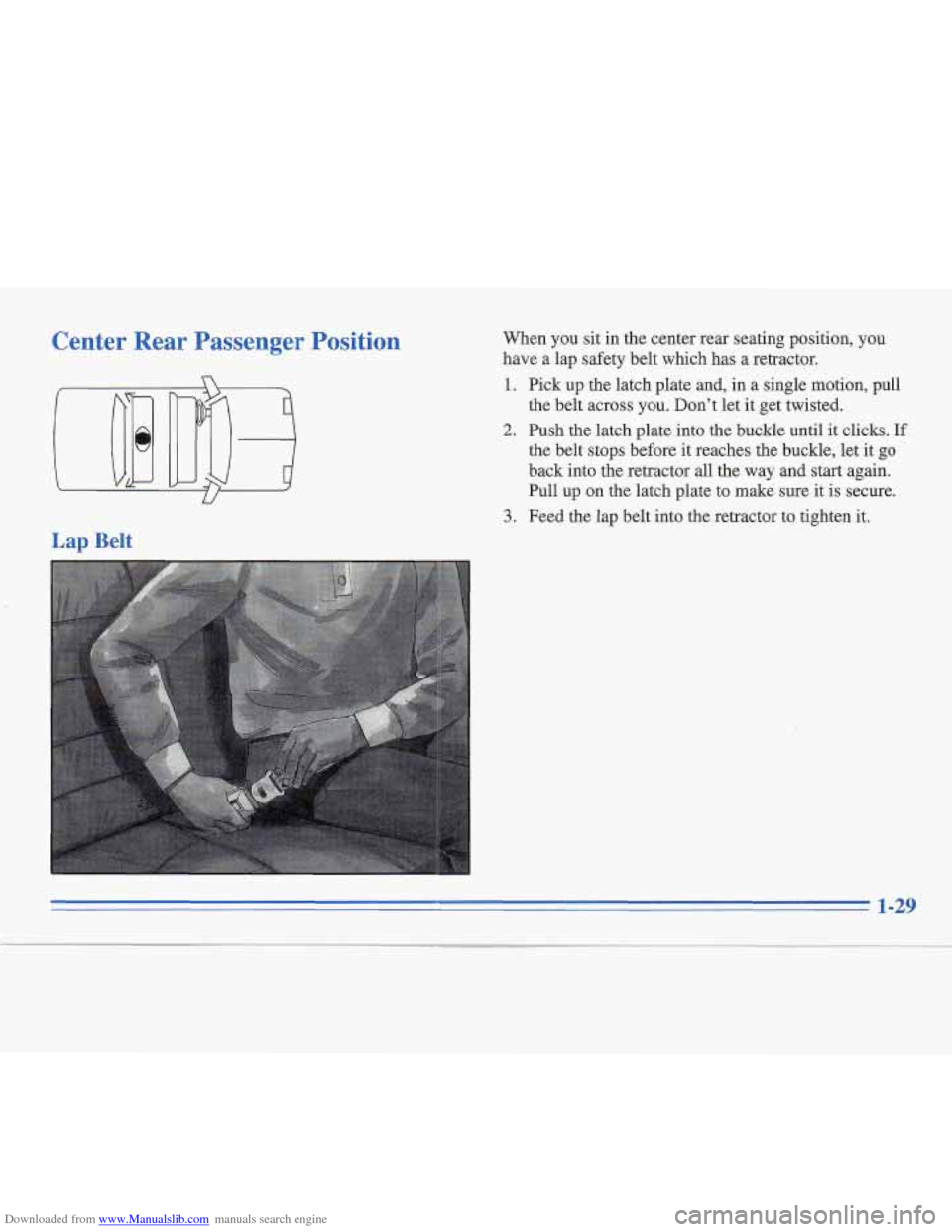

Downloaded from www.Manualslib.com manuals search engine Center Rear Passenger Position
Lap Belt
When you sit in the center rear seating position, you
have a lap safety belt which has a retractor.
1. Pick up the latch plate and, in a single motion, pull
the belt across you. Don’t let it get twisted.
2. Push the latch plate into the buckle until it clicks. If
the belt stops before it reaches the buckle, let it go
back into the retractor
all the way and start again.
Pull up on the latch plate to make sure it is secure.
3. Feed the lap belt into the retractor to tighten it.
1-29
Page 45 of 306

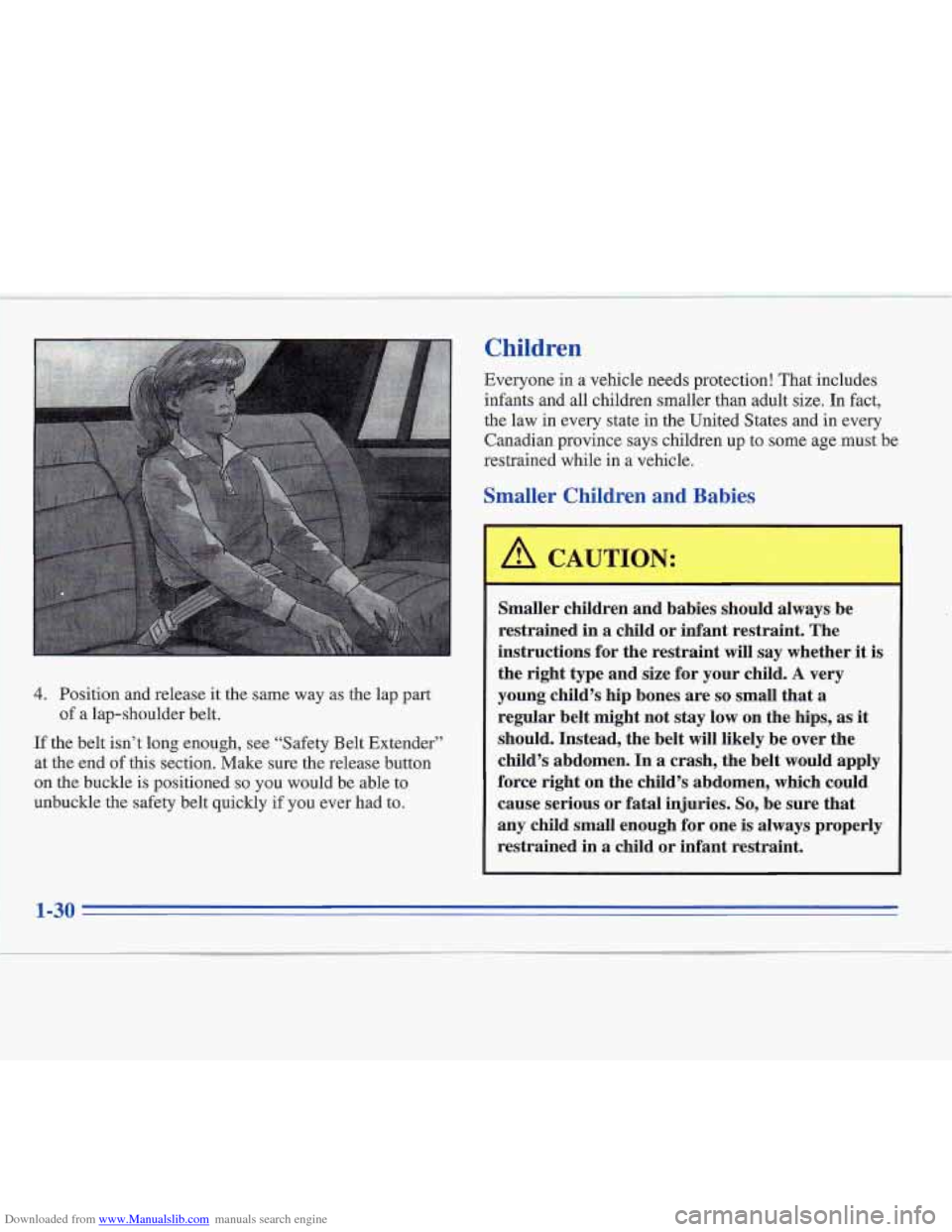

Downloaded from www.Manualslib.com manuals search engine 4. Position and release it the same way as the lap part
of a lap-shoulder belt.
If the belt isn’t long enough, see “Safety Belt Extender”
at the end of this section. Make sure the release button
on the buckle is positioned
so you would be able to
unbuckle the safety belt quickly if you ever had to.
Children
Everyone in a vehicle needs protection! That~includes
infants and all children smaller than adult
size. In fact,
the law in every state in the United States and in every
Canadian province says children up to some age
must be
restrained while in a vehicle.
Smaller Children and Babies
A CAUTION:
Smaller children and babies should always be
restrained in a child or infant restraint. The
instructions for the restraint will say whether
it is
the right type and size for your child. A very
young child’s hip bones are so small that a
regular belt might not stay low on the hips, as it
should. Instead, the belt will likely be over the
child’s abdomen. In
a crash, the belt would apply
force right on the child’s abdomen, which could
cause serious or fatal injuries.
So, be sure that
any child small enough for one is always properly
restrained in
a child or infant restraint.
Page 46 of 306

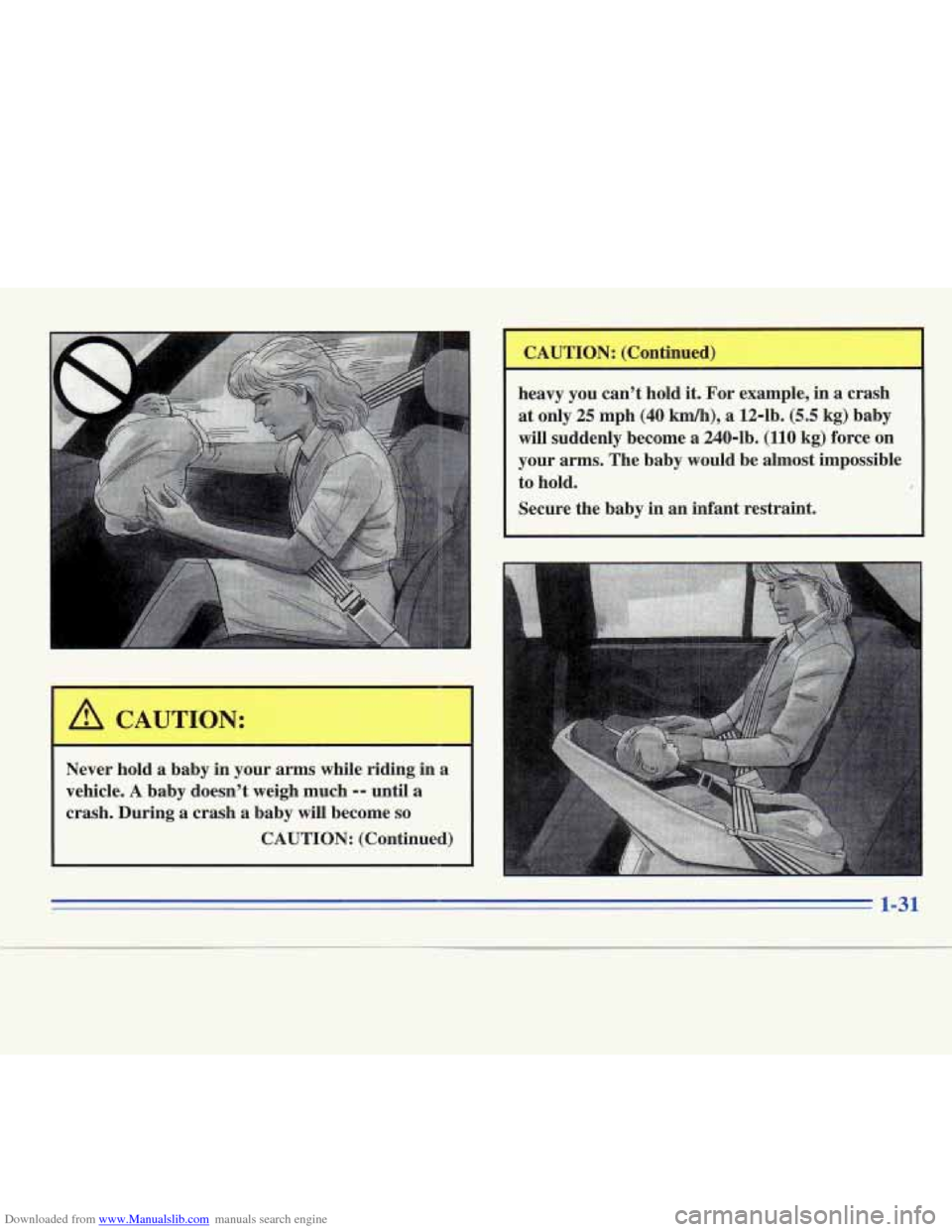

Downloaded from www.Manualslib.com manuals search engine Never hold a baby in your arms while riding in a
vehicle.
A baby doesn't weigh much -- until a
crash. During a crash a baby
will become so
CAUTION: (Continued)
I CAUTION: (Continued) I
heavy you can't hold it. For example, in a crash
at only
25 mph (40 km/h), a 12-1b. (5.5 kg) baby
will suddenly become a 240-lb. (110
kg) force on
your arms. The baby would be almost impossible
to hold.
,
Secure the baby in an infant restraint.
1-31
Page 47 of 306

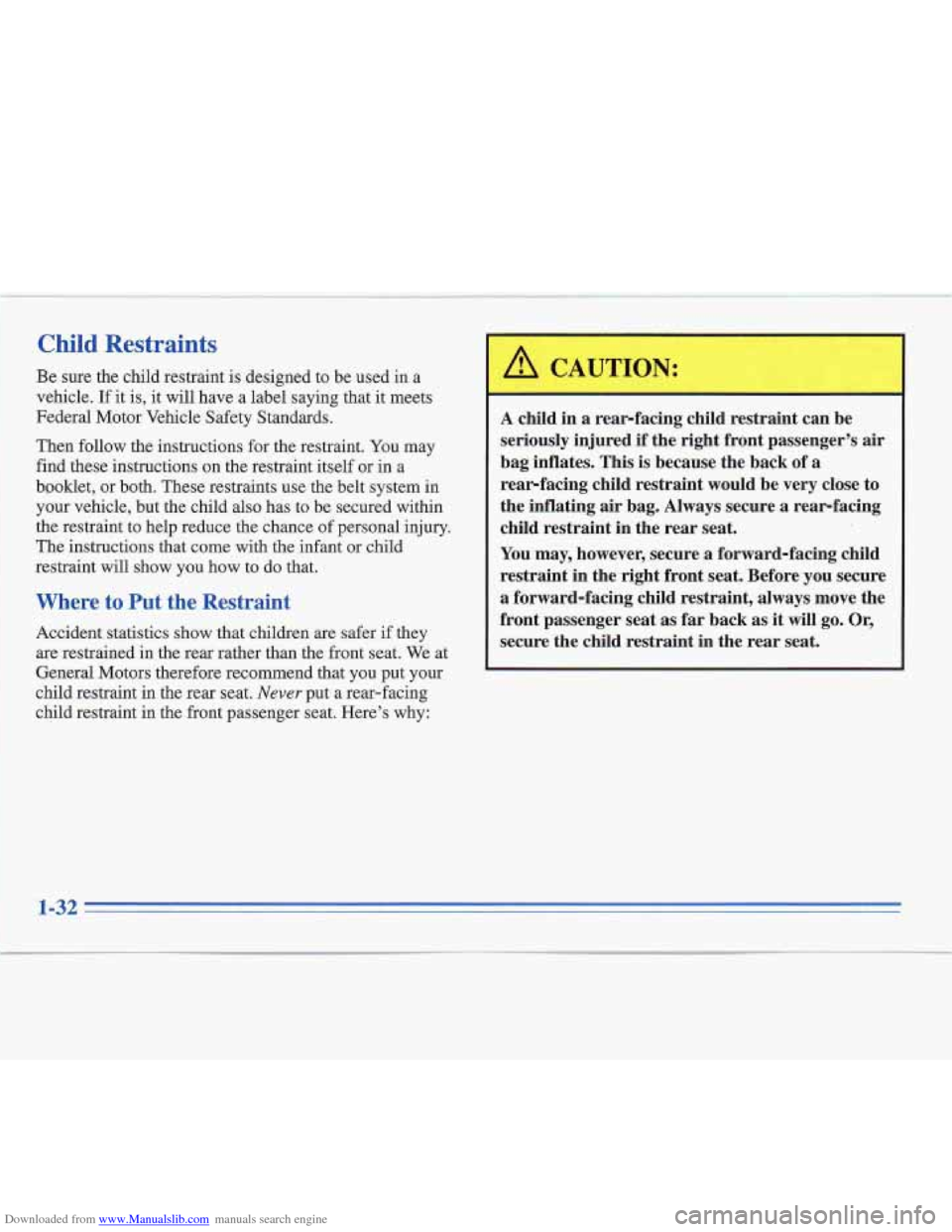

Downloaded from www.Manualslib.com manuals search engine Child Restraints
Be sure the child restraint is designed to be used in a
vehicle. If it is, it will have a label saying that it meets
Federal Motor Vehicle Safety Standards.
Then follow the instructions far the restraint.
You may
find these instructions on the restraint itself or in
a
bQoklet, or both. These restraints use the belt system in
your vehicle, but the child also has to be secured within
the restraint to help reduce the chance
of personal injury.
The instructions that come with the infant or child
restraint will show you how to do that.
‘ Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat. We at
General Motors therefore recommend that you put your
child restraint in the rear seat.
Never put a rear-facing
child restraint in the front passenger seat. Here’s why:
A GArnIONr
A child in a rear-facing child restraint can be
seriously injured if the right front passenger’s air
bag inflates.
This is because the back of a
rear-facing child restraint would be very close to
the inflating air bag. Always secure a rear-facing
child restraint in the rear seat.
You may, however, secure a forward-facing child
restraint in the right front seat. Before you secure
a forward-facing child restraint, always move the
front passenger seat as far back as it will go. Or,
secure the child restraint in the rear seat.
a
Page 48 of 306
Downloaded from www.Manualslib.com manuals search engine
Page 49 of 306

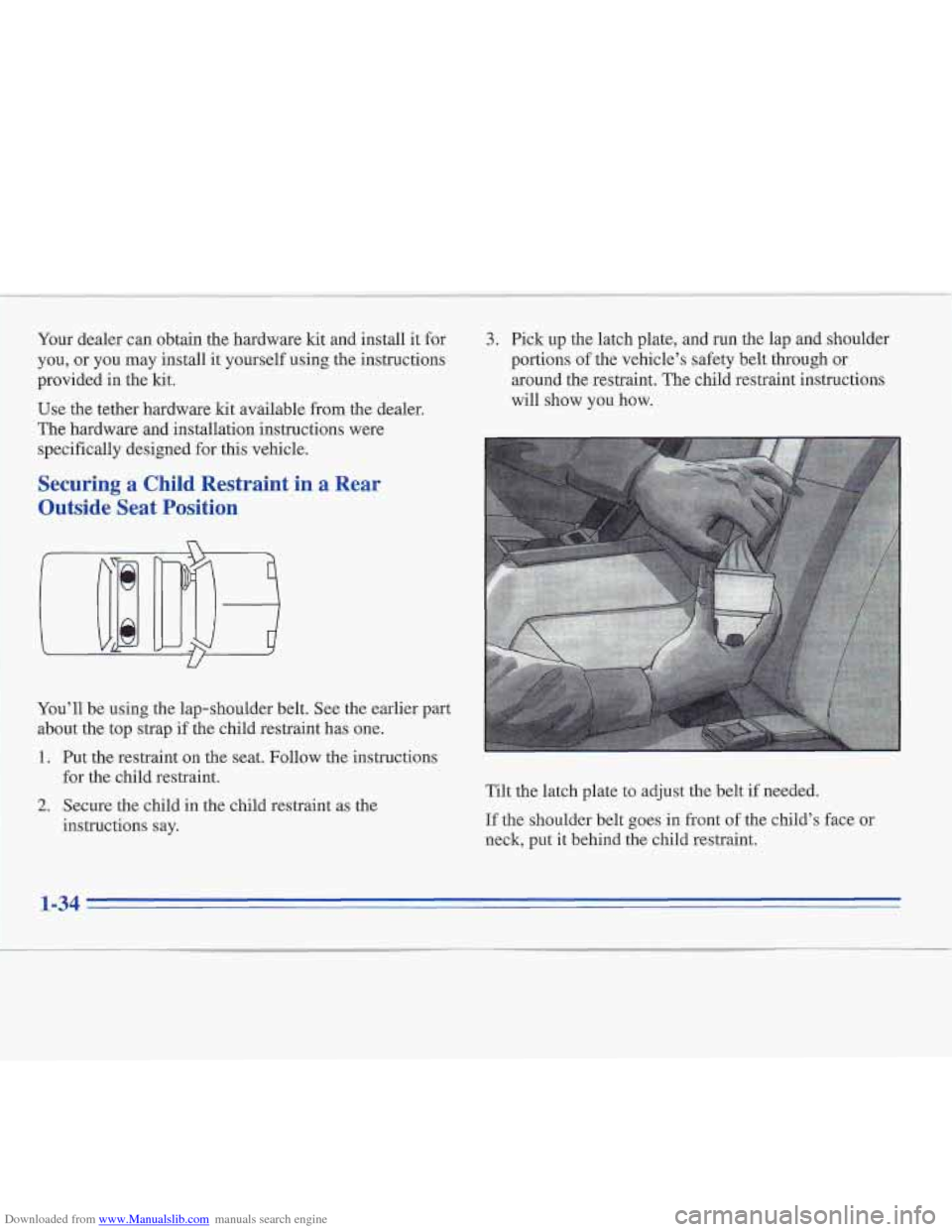

Downloaded from www.Manualslib.com manuals search engine Your dealer can obtain the hardware ‘kt and install it for
you, or you may install
it yourself using the instructions
provided in the kit.
Use the tether hardware kit available from the dealer.
The hardware and installation instructions were
specifically designed for this vehicle.
Securing a Child Restraint in a Rear
Outside Seat Position
I
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
2. Secure the child in the child restraint as the
instructions say.
3. Pick up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
Tilt the latch plate to adjust the belt if needed.
If the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint.
1-34
