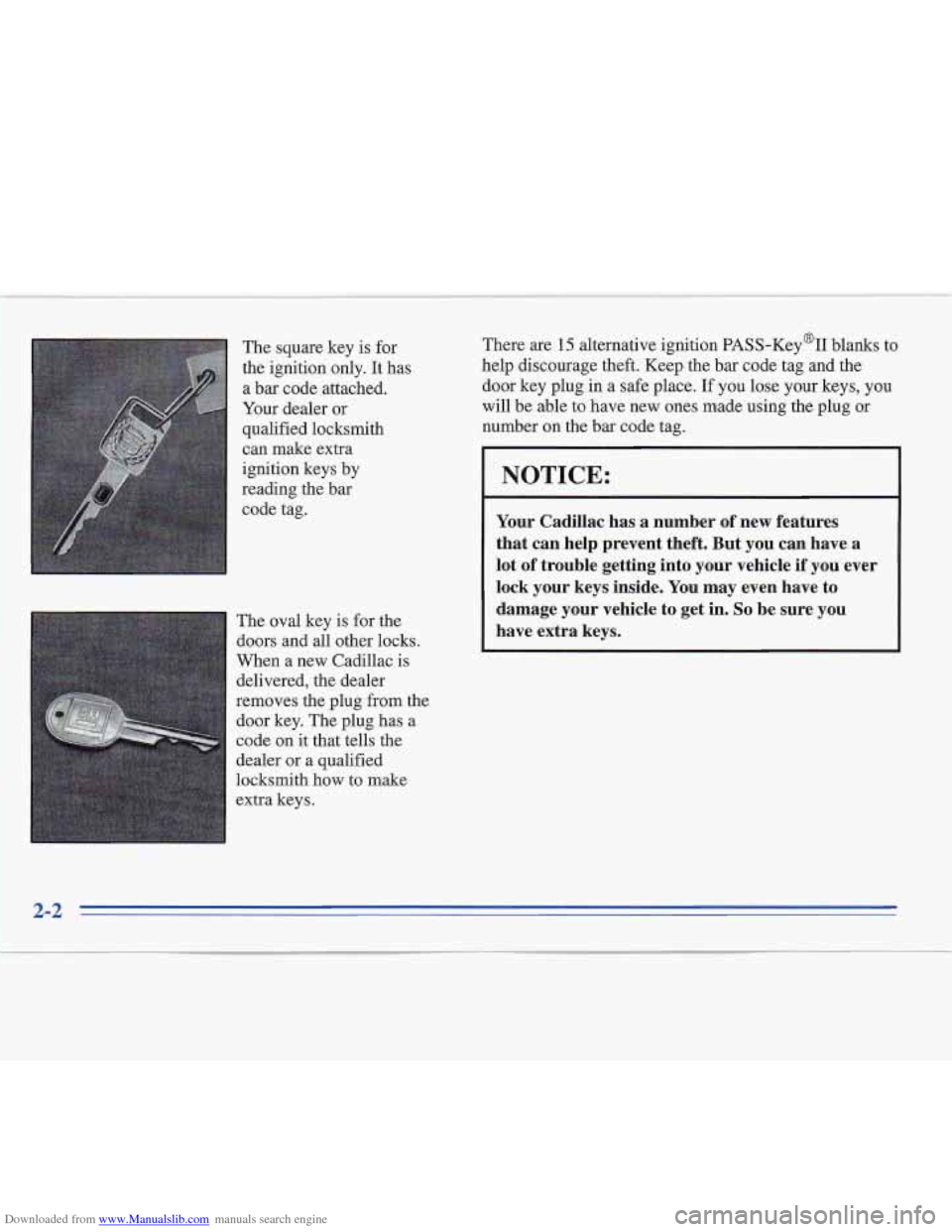

Downloaded from www.Manualslib.com manuals search engine The square key is for
the ignition only.
It has
a bar code .attached.
Your dealer or
qualified locksmith
can make extra
ignition keys by
reading the bar
code tag.
The oval key is for the
doors and all other locks.
When a new Cadillac is
delivered, the dealer
removes
the plug from the
door key. The plug has a
code on
it that tells the
dealer or a qualified
locksmith how to make
extra keys. There are
15 alternative ignition
PASS-Key%I blanks to
help discourage theft. Keep the bar code tag and the
door key plug in a safe place.
If you lose your keys, you
will be able
to have new ones made using the plug or
number on the bar code tag.
NOTICE:
Your Cadillac has a number of new features
that can help prevent theft. But you can have a
lot of trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in.
So be sure you
have extra keys.
Page 62 of 306
Downloaded from www.Manualslib.com manuals search engine
Page 63 of 306

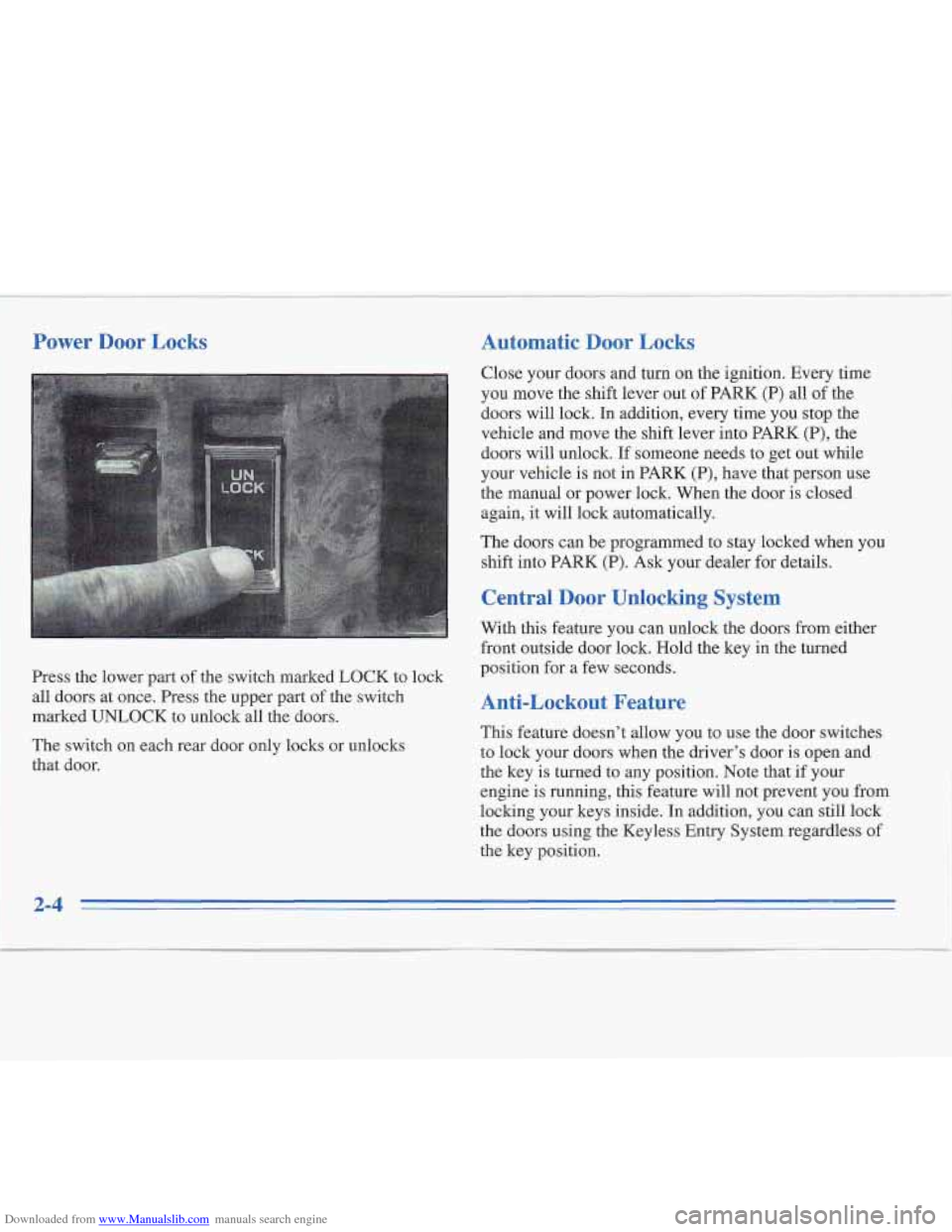

Downloaded from www.Manualslib.com manuals search engine Power Door Locks Automatic Door Locks
I
rress the lower part of the switch marked LOCK to lock
all doors at once. Press the upper part of the switch
marked UNLOCK to unlock all the doors.
The switch on each rear door only locks or unlocks
that door. Close
your doors and turn on the ignmon. Every time
you move the shift lever out of PARK
(P) all of the
doors will lock. In addition, every time you stop the
vehicle and move the shift lever into PARK
(P), the
doors will unlock. If someone needs to get out while
your vehicle is not in PARK
(P), have that person use
the manual or power lock. When the door
is closed
again, it will lock automatically.
The doors can be programmed to stay locked when you
shift into PARK
(P). Ask your dealer for details.
Central Door Unlocking System
With this feature you can unlock the doors from either
front outside door lock. Hold the key in the turned
position for a few seconds.
Anti-Lockout Feature
This feature doesn’t allow you to use the door switches
to lock your doors when the driver’s door is open and
the key is turned to any position. Note that if your
engine is running, this feature will not prevent you from
locking your keys inside. In addition, you can still lock
the doors using the Keyless Entry System regardless
of
the key position.
2-4
Page 64 of 306

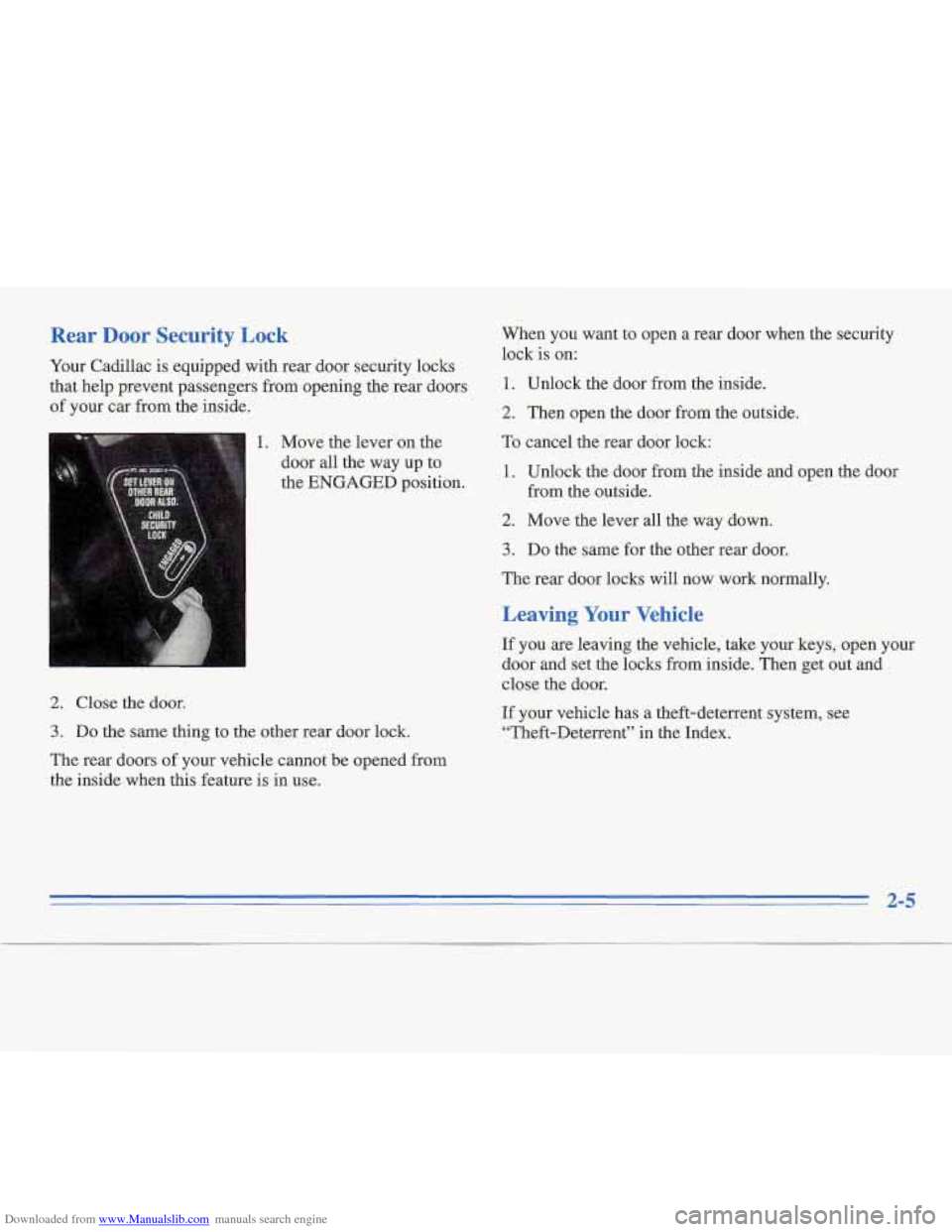

Downloaded from www.Manualslib.com manuals search engine Rear Door Security Lock
Your Cadillac is equipped with rear door security locks
that help prevent passengers from opening the rear doors
of your car from the inside. When you want to
open a rear door when the security
lock is on:
1. Unlock the door from the inside.
2. Then open the door from the outside.
1. Move the lever on the
I door all the way up to
the ENGAGED position.
To cancel the rear door lock:
1. Unlock the door from the inside ana open the door
from the outside.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors
of your vehicle cannot be opened from
the inside when this feature is in use.
2. Move the lever all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
If your vehicle has a theft-deterrent system, see
“Theft-Deterrent” in the Index.
2-5
Page 65 of 306
Downloaded from www.Manualslib.com manuals search engine 'Keyless Entry System
With this feature you can
turn on your interior lamps,
lock and unlock your doors
or unlock your trunk G-om
up
to 30 feet (9 m) away
using the key chain
transmitter supplied with
your vehicle.
Your Keyless Entry System operates on
a radio
frequency subject to Federal Communications
Commission (FCC) Rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Should interference
to this system occur, try this:
0 Check to determine if battery replacement is necessary.
See the instructions on battery replacement.
0 Check the distance. You may be too far from your
vehicle. This product has a maximum range.
Check the location. Other vehicles or objects may be
blocking the signal.
See your Cadillac dealer or a qualified technician
for service.
Changes or modifications to this system by other than an authorized service facility could void authorization to
use this equipment.
2-6
Page 66 of 306
Downloaded from www.Manualslib.com manuals search engine Operation
Press the unlock symbol to unlock the driver’s door.
Press
it again within five seconds to unlock the other
doors. Pressing this symbol will also disarm the optional
Theft-Deterrent System and
turn on the interior lamps.
Press the lock symbol to lock your doors. This also arms
the optional Theft-Deterrent System.
Press the opened trunk symbol to open the trunk.
Press the lamp symbol to turn on the interior lamps only.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle.
If a transmitter
is lost or stolen,
a replacement can be purchased through
your dealer. Remember to bring any remaining
transmitters with you when you go to your dealer. When
the dealer matches the replacement transmitter to your
vehicle, any remaining transmitters must also be
matched. Once the new transmitter is coded, the lost
transmitter will not unlock your vehicle. Each vehicle
can have only two transmitters matched to it.
Battery Replacement
Under normal use, the batteries in your key chain
transmitter should last about two years.
You can tell the batteries are weak if the transmitter
won’t work at the normal range in any location. If you
have to get close to your vehicle before the transmitter
works, it’s probably time to change the batteries.
1. Use the round end of the door key or a quarter to
rotate the cover slightly counterclockwise.
Page 67 of 306
Downloaded from www.Manualslib.com manuals search engine I
0
0
0

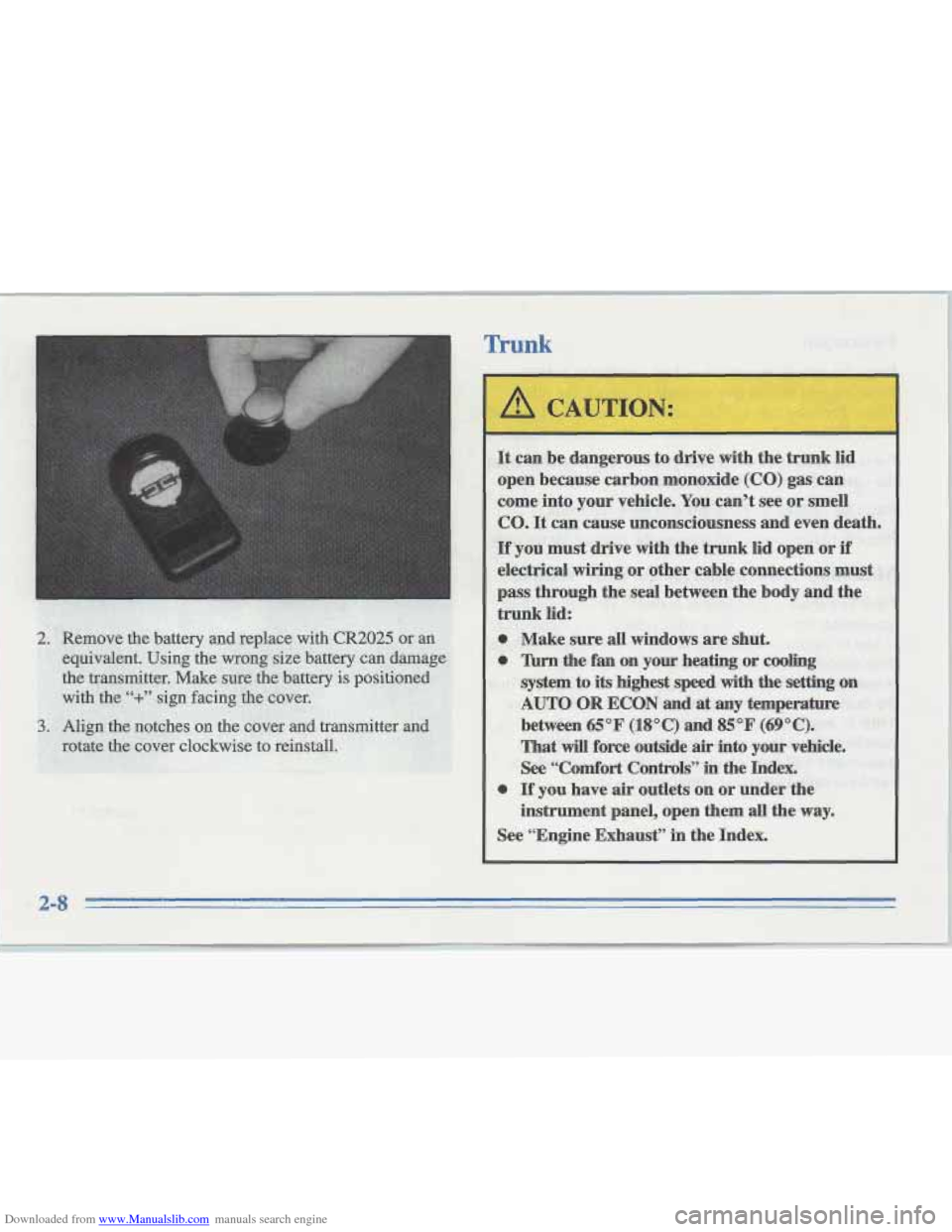

See “Engine Exhaust” in the Index.
Page 68 of 306

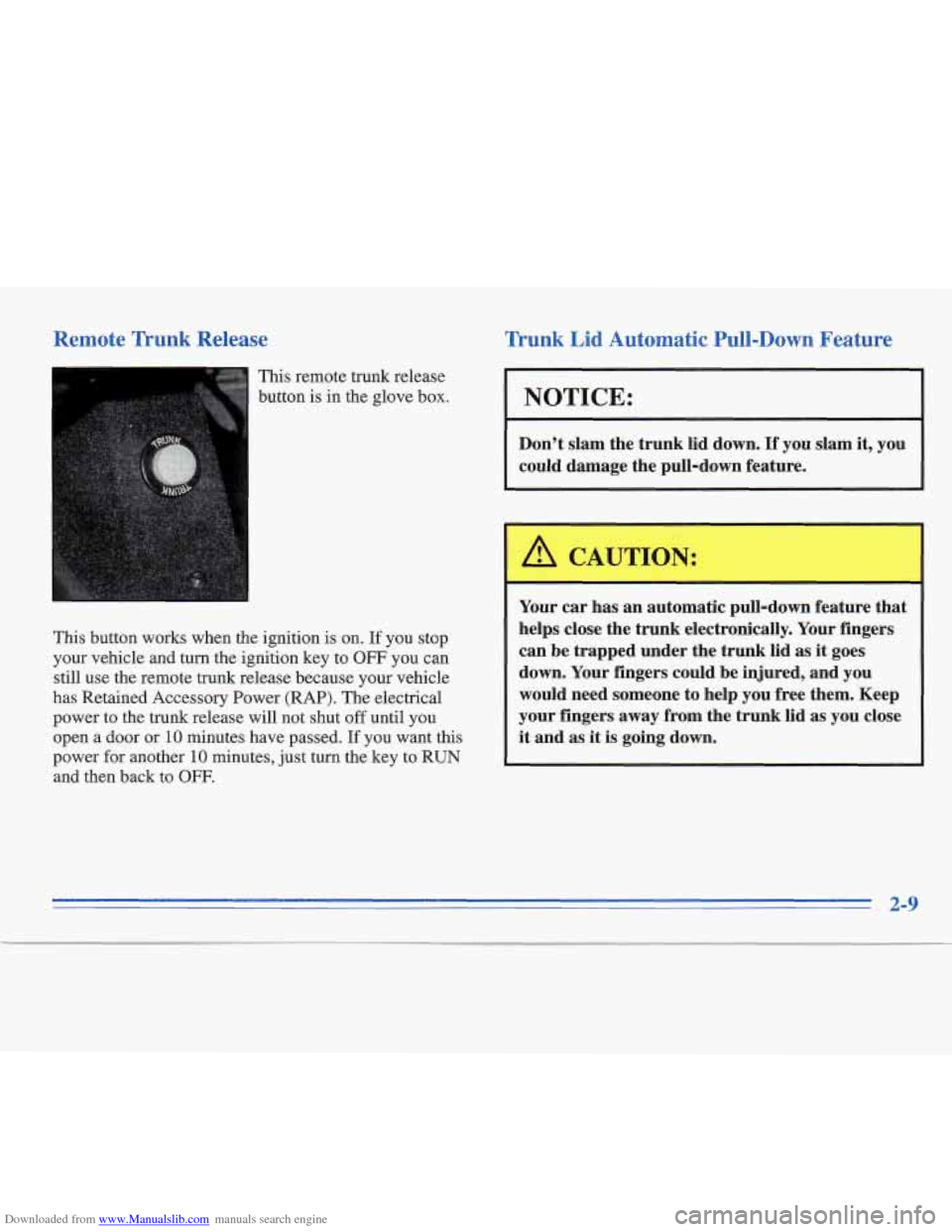

Downloaded from www.Manualslib.com manuals search engine Remote Trunk Release
This remote trunk release
button is in the glove box.
This button works when the ignition is on.
If you stop
your vehicle and
turn the ignition key to OFF you can
still use the remote trunk release because your vehicle
has Retained Accessory Power (RAP).
The electrical
power to the
trunk release will not shut off until you
open a door or
10 minutes have passed. If you want this
power for another
10 minutes, just turn the key to RUN
and then back to
OFF.
Trunk Lid Automatic Pull-Down Feature
NOTICE:
Don’t slam the trunk lid down. If you slam it, you
could damage the pull-down feature.
Your car has an automatic pull-down feature that
helps close the trunk electronically. Your fingers
can be trapped under the trunk lid
as it goes
down. Your fingers could be injured, and you
would need someone to help you free them. Keep
your fingers away from the trunk lid as you close
it and as it is going down.
Page 69 of 306

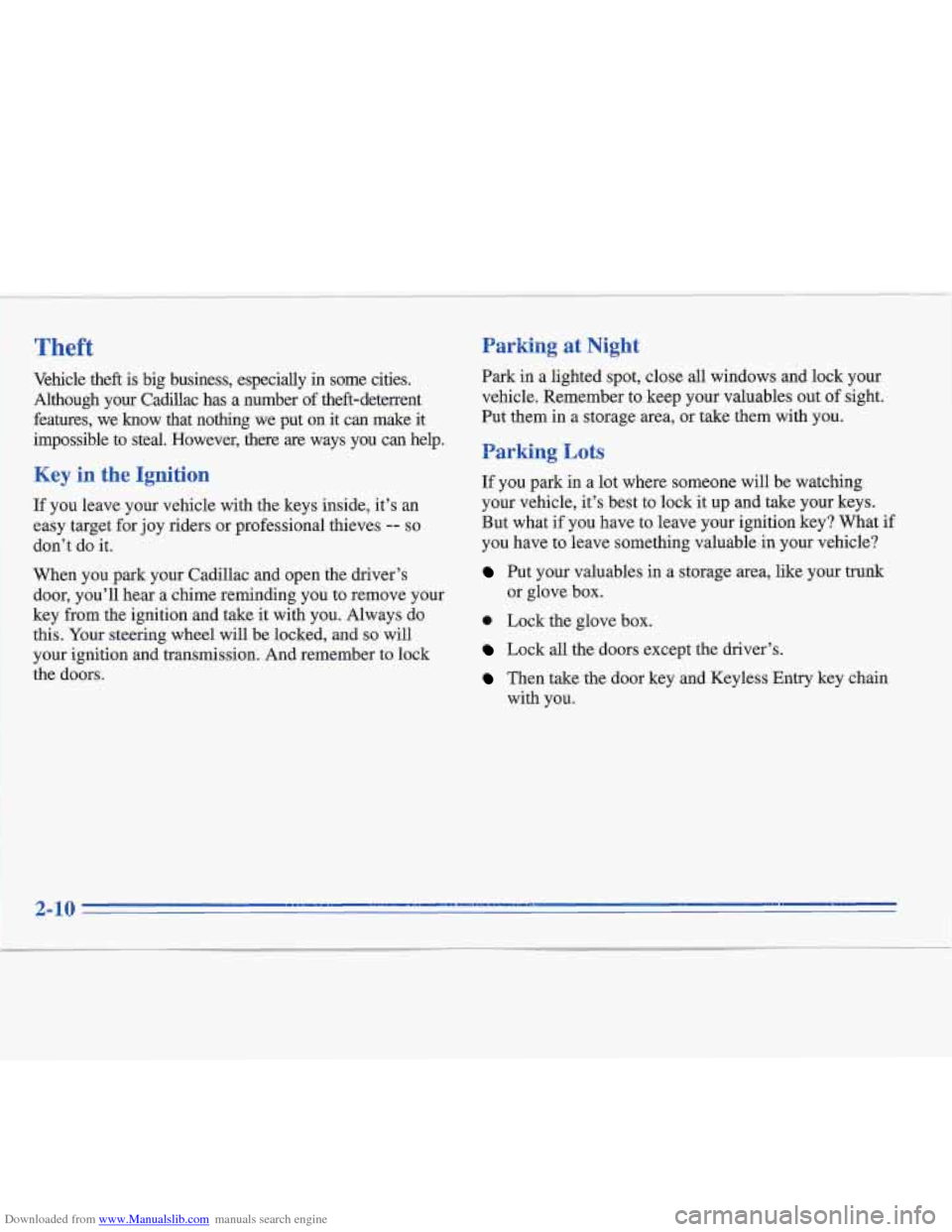

Downloaded from www.Manualslib.com manuals search engine Theft Parking at Night
Vehicle theft is big business, especially in some cities.
Although your Cadillac has a number of theft-deterrent
features, we know that nothing we put
on it can make it
impossible to steal. However, there are ways you can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it’s an
easy target for joy riders or professional thieves
-- so
don’t do it.
When you park your Cadillac and open the driver’s
door, you’ll hear a chime reminding you to remove your
key from the ignition and take it with you. Always do
this. Your
steering wheel will be locked, and so will
your ignition and transmission. And remember to lock
the doors. Park in
a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best to lock
it up and take your keys.
But what if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?
Put your valuables in a storage area, like your trunk
or glove box.
0 Lock the glove box.
Lock all the doors except the driver’s.
Then take the door key and Keyless Entry key chain
with you.
Page 70 of 306

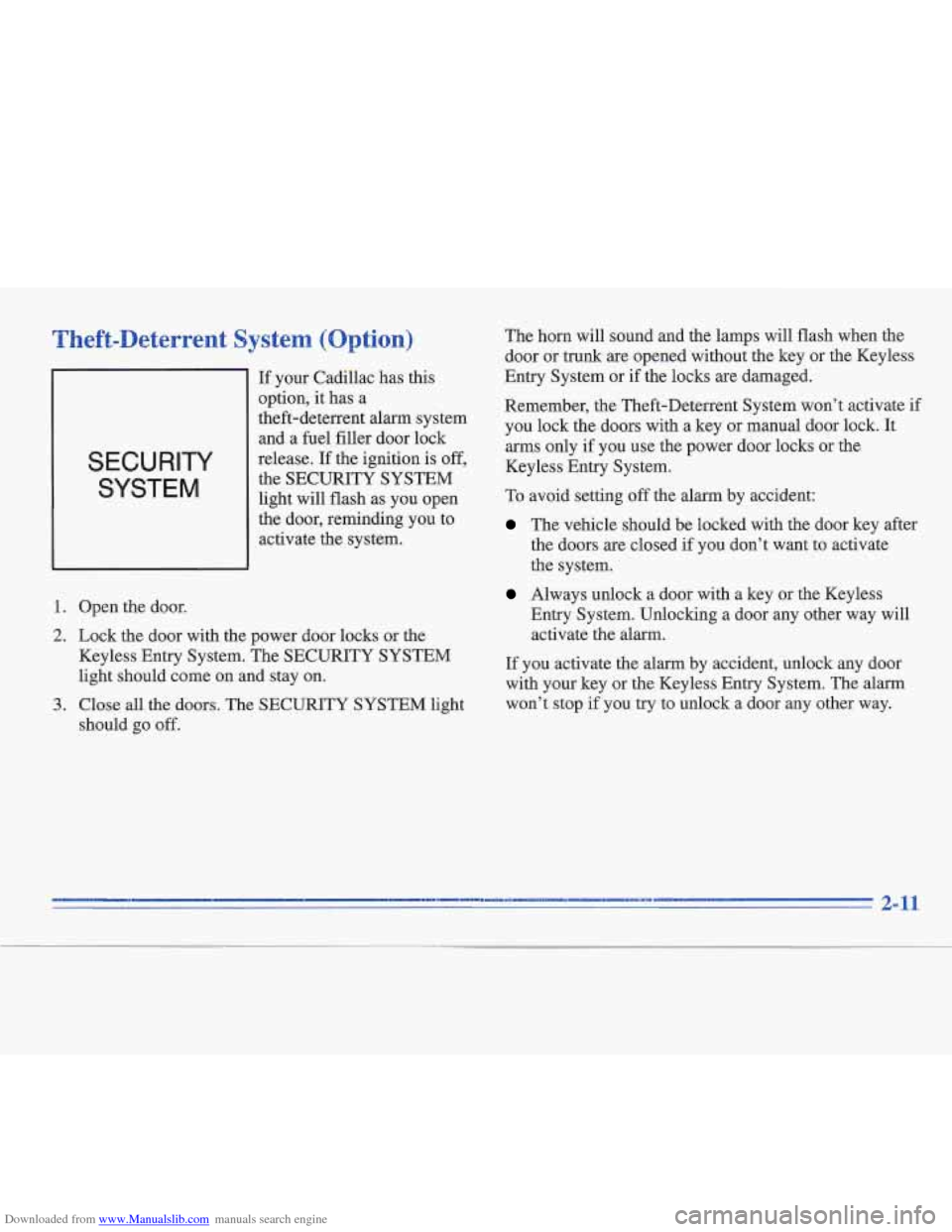

Downloaded from www.Manualslib.com manuals search engine Tbeft-Deterrent System (Option)
SECURITY
SYSTEM
If your Cadillac has this
option, it has a
theft-deterrent alarm system
and a
fuel filler door lock
release.
If the ignition is off,
the SECURITY SYSTEM
light will flash as you open
the door, reminding you to
activate the system.
1. Open the door.
2. Lock the door with the power door locks or the
Keyless Entry System. The SECURITY SYSTEM
light should come on and stay on.
3. Close all the doors. The SECURITY SYSTEM light
should go
off.
The horn will sound and the lamps will flash when the
door or trunk are opened without the key or the Keyless
Entry System or if the locks are damaged.
Remember, the Theft-Deterrent System won’t activate if
you lock the doors with a key or manual door lock. It
arms only
if you use the power door locks or the
Keyless Entry System.
To avoid setting off the alarm by accident:
The vehicle should be locked with the door key after
the doors are closed
if you don’t want to activate
the system.
Always unlock a door with a key or the Keyless
Entry System. Unlocking a door any other way will
activate the alarm.
If you activate the alarm by accident, unlock any door
with your key or the Keyless Entry System. The alarm
won’t
stop if you try to unlock a door any other way.
