Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

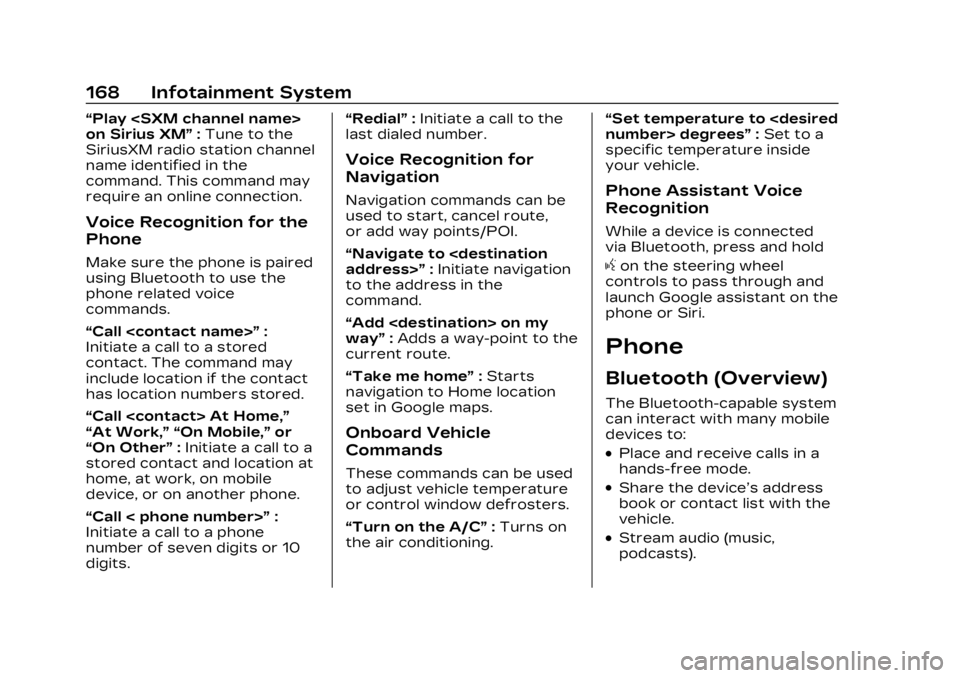

168 Infotainment System
“Play
on Sirius XM”:Tune to the
SiriusXM radio station channel
name identified in the
command. This command may
require an online connection.
Voice Recognition for the
Phone
Make sure the phone is paired
using Bluetooth to use the
phone related voice
commands.
“Call ” :
Initiate a call to a stored
contact. The command may
include location if the contact
has location numbers stored.
“Call At Home,”
“At Work,” “On Mobile,” or
“On Other” :Initiate a call to a
stored contact and location at
home, at work, on mobile
device, or on another phone.
“Call < phone number>” :
Initiate a call to a phone
number of seven digits or 10
digits. “Redial”
:Initiate a call to the
last dialed number.
Voice Recognition for
Navigation
Navigation commands can be
used to start, cancel route,
or add way points/POI.
“Navigate to address>” :Initiate navigation
to the address in the
command.
“Add on my
way” :Adds a way-point to the
current route.
“Take me home” :Starts
navigation to Home location
set in Google maps.
Onboard Vehicle
Commands
These commands can be used
to adjust vehicle temperature
or control window defrosters.
“Turn on the A/C” :Turns on
the air conditioning. “Set temperature to number> degrees”
:Set to a
specific temperature inside
your vehicle.
Phone Assistant Voice
Recognition
While a device is connected
via Bluetooth, press and hold
gon the steering wheel
controls to pass through and
launch Google assistant on the
phone or Siri.
Phone
Bluetooth (Overview)
The Bluetooth-capable system
can interact with many mobile
devices to:
.Place and receive calls in a
hands-free mode.
.Share the device’s address
book or contact list with the
vehicle.
.Stream audio (music,
podcasts).

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 3/2/22
Customer Information 399
OnStar
If the vehicle is equipped with
OnStar and has an active
service plan, additional data
may be collected and
transmitted through the
OnStar system. This includes
information about the vehicle’s
operation; collisions involving
the vehicle; the use of the
vehicle and its features,
including infotainment; and the
location and approximate GPS
speed of the vehicle. Refer to
the OnStar Terms and
Conditions and Privacy
Statement on the OnStar
website.
See OnStar Additional
Information0402.
Infotainment System
If the vehicle is equipped with
a navigation system as part of
the infotainment system, use
of the system may result in
the storage of destinations,
addresses, telephone
numbers, and other trip information. See the
infotainment section for
information on stored data
and for deletion instructions.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
400 OnStar
OnStar
OnStar Overview
OnStar Overview . . . . . . . . . 400
OnStar Services
Emergency . . . . . . . . . . . . . . . . . . . 401
Security . . . . . . . . . . . . . . . . . . . . . . . 401
OnStar Additional
Information
OnStar AdditionalInformation . . . . . . . . . . . . . . . . 402
OnStar Overview
=Voice Command Button
QBlue OnStar Button
>Red Emergency Button
This vehicle may be equipped
with a comprehensive,
in-vehicle system that can
connect to an OnStar Advisor
for Emergency, Security,
Navigation, Connections, and
Diagnostics Services. OnStar
services may require a paid
service plan and data plan.
OnStar requires the vehicle
battery and electrical system,
cellular service, and GPS
satellite signals to be available
and operating. OnStar acts as
a link to existing emergency
service providers. OnStar may
collect information about you and your vehicle, including
location information. See
OnStar User Terms, Privacy
Statement, and Software
Terms for more details
including system limitations at
www.onstar.com (U.S.) or
www.onstar.ca (Canada).
The OnStar system status
light is next to the OnStar
buttons. If the status light is:.Solid Green: System is ready.
.Flashing Green: On a call.
.Red: Indicates a problem.
.Off: System is off. PressQ
twice to speak with an
OnStar Advisor.
Press
Qor call
1-888-4ONSTAR
(1-888-466-7827) to speak to
an Advisor.
Functionality of the Voice
Command button may vary by
vehicle and region.
Press
=to answer or hang up
an Advisor-initiated call.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
OnStar 403
hardware. OnStar or
connected services may not
work if the OnStar equipment
is not properly installed or it
has not been properly
maintained. If equipment or
software is added, connected,
or modified, OnStar or
connected services may not
work. Other problems beyond
the control of OnStar—such
as hills, tall buildings, tunnels,
weather, electrical system
design and architecture of the
vehicle, damage to the vehicle
in a crash, or wireless phone
network congestion or
jamming —may prevent
service.
See Radio Frequency
Statement 0395.
Services for People with
Disabilities
Advisors provide services to
help with physical disabilities
and medical conditions. Press
Qto help:
.Find a hotel, restaurant, etc.,
that meets accessibility
needs.
.Provide directions to the
closest hospital or pharmacy
in urgent situations.
TTY Users
OnStar has the ability to
communicate to deaf,
hard-of-hearing,
or speech-impaired customers
while in the vehicle. The
available TTY system provides
in-vehicle access to all OnStar
services, except Virtual
Advisor and OnStar
Turn-by-Turn Navigation.
If equipped, access TTY by
touching Settings > System>
TTY from the infotainment
home screen. When TTY mode
is active, you can make and
receive phone calls using the
infotainment display.
OnStar Personal
Identification
Number (PIN)
A PIN is needed to access
some OnStar services. The
PIN will need to be changed
the first time when speaking
with an Advisor. To change the
OnStar PIN, contact an
OnStar Advisor by pressing
Q
or calling 1-888-4ONSTAR.
Warranty
OnStar equipment may be
warranted as part of the
vehicle warranty.
Languages
The vehicle can be
programmed to respond in
multiple languages. Press
Q
and ask for an Advisor.
Advisors are available in
English, Spanish, and French.
Available languages may vary
by country.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

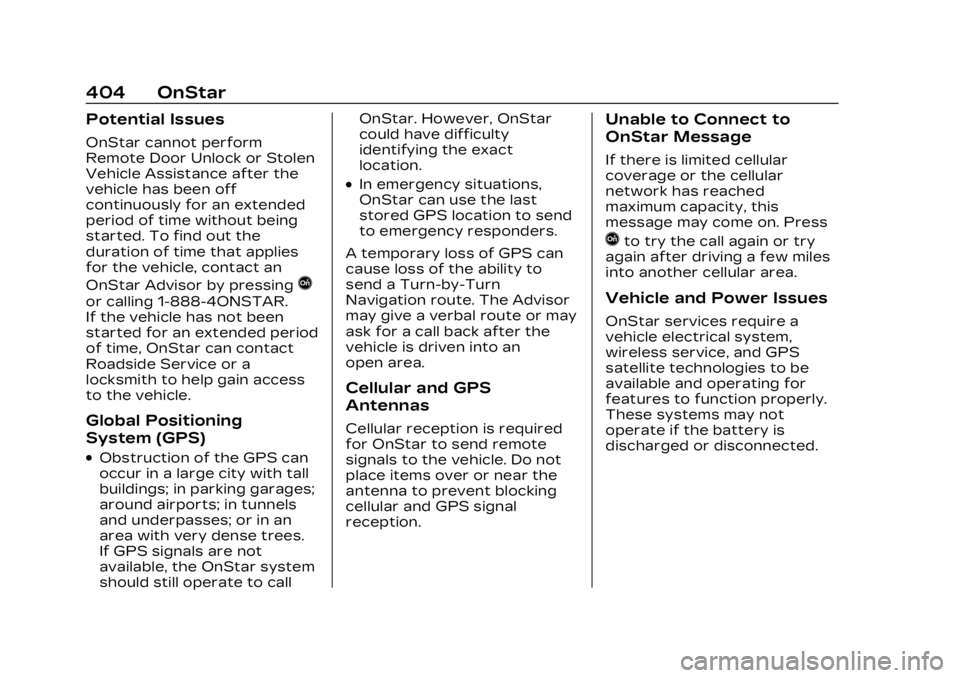

404 OnStar
Potential Issues
OnStar cannot perform
Remote Door Unlock or Stolen
Vehicle Assistance after the
vehicle has been off
continuously for an extended
period of time without being
started. To find out the
duration of time that applies
for the vehicle, contact an
OnStar Advisor by pressing
Q
or calling 1-888-4ONSTAR.
If the vehicle has not been
started for an extended period
of time, OnStar can contact
Roadside Service or a
locksmith to help gain access
to the vehicle.
Global Positioning
System (GPS)
.Obstruction of the GPS can
occur in a large city with tall
buildings; in parking garages;
around airports; in tunnels
and underpasses; or in an
area with very dense trees.
If GPS signals are not
available, the OnStar system
should still operate to callOnStar. However, OnStar
could have difficulty
identifying the exact
location.
.In emergency situations,
OnStar can use the last
stored GPS location to send
to emergency responders.
A temporary loss of GPS can
cause loss of the ability to
send a Turn-by-Turn
Navigation route. The Advisor
may give a verbal route or may
ask for a call back after the
vehicle is driven into an
open area.
Cellular and GPS
Antennas
Cellular reception is required
for OnStar to send remote
signals to the vehicle. Do not
place items over or near the
antenna to prevent blocking
cellular and GPS signal
reception.
Unable to Connect to
OnStar Message
If there is limited cellular
coverage or the cellular
network has reached
maximum capacity, this
message may come on. Press
Qto try the call again or try
again after driving a few miles
into another cellular area.
Vehicle and Power Issues
OnStar services require a
vehicle electrical system,
wireless service, and GPS
satellite technologies to be
available and operating for
features to function properly.
These systems may not
operate if the battery is
discharged or disconnected.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

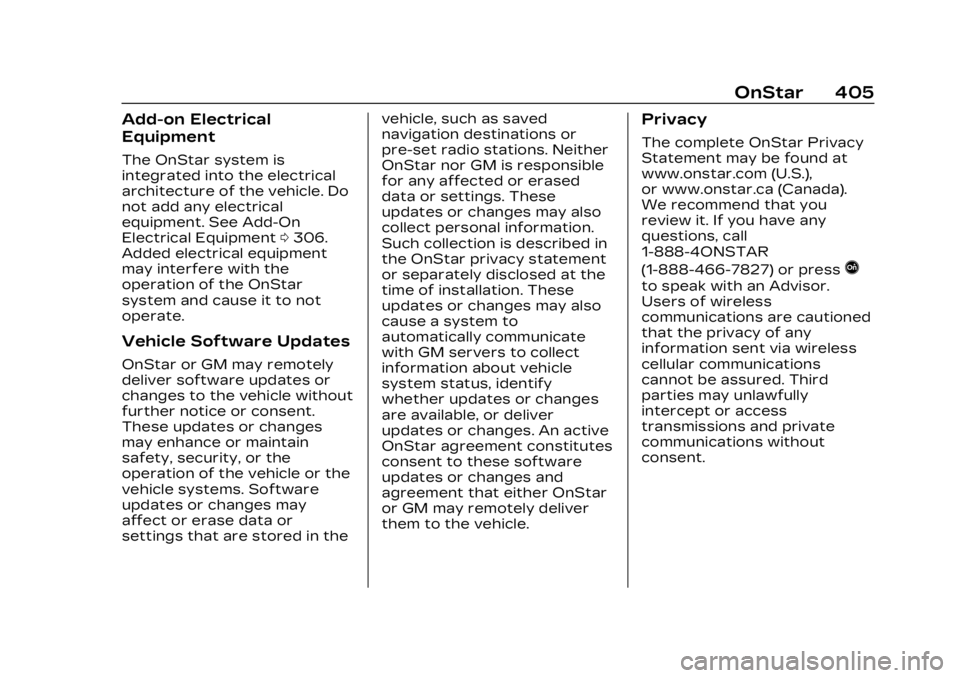

OnStar 405
Add-on Electrical
Equipment
The OnStar system is
integrated into the electrical
architecture of the vehicle. Do
not add any electrical
equipment. See Add-On
Electrical Equipment0306.
Added electrical equipment
may interfere with the
operation of the OnStar
system and cause it to not
operate.
Vehicle Software Updates
OnStar or GM may remotely
deliver software updates or
changes to the vehicle without
further notice or consent.
These updates or changes
may enhance or maintain
safety, security, or the
operation of the vehicle or the
vehicle systems. Software
updates or changes may
affect or erase data or
settings that are stored in the vehicle, such as saved
navigation destinations or
pre-set radio stations. Neither
OnStar nor GM is responsible
for any affected or erased
data or settings. These
updates or changes may also
collect personal information.
Such collection is described in
the OnStar privacy statement
or separately disclosed at the
time of installation. These
updates or changes may also
cause a system to
automatically communicate
with GM servers to collect
information about vehicle
system status, identify
whether updates or changes
are available, or deliver
updates or changes. An active
OnStar agreement constitutes
consent to these software
updates or changes and
agreement that either OnStar
or GM may remotely deliver
them to the vehicle.
Privacy
The complete OnStar Privacy
Statement may be found at
www.onstar.com (U.S.),
or www.onstar.ca (Canada).
We recommend that you
review it. If you have any
questions, call
1-888-4ONSTAR
(1-888-466-7827) or press
Q
to speak with an Advisor.
Users of wireless
communications are cautioned
that the privacy of any
information sent via wireless
cellular communications
cannot be assured. Third
parties may unlawfully
intercept or access
transmissions and private
communications without
consent.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Connected Services 407
Connected
Services
Connected Services
Navigation . . . . . . . . . . . . . . . . . . . 407
Connections . . . . . . . . . . . . . . . . 407
Diagnostics . . . . . . . . . . . . . . . . . 409
Connected
Services
Navigation
Navigation requires a specific
OnStar or connected
service plan.
Press
Qto receive
Turn-by-Turn directions or
have them sent to the vehicle
navigation screen, if equipped.
A destination transfer from
OnStar will show the detail
view of the destination when it
is transferred from OnStar to
the Navigation application. See
www.onstar.com for a
coverage map. Services vary
by model. Map coverage is
available in the United States
and Canada.
Turn-by-Turn Navigation
1. PressQto connect to an
Advisor.
2. Request directions to be downloaded to the vehicle. Send Destination to Vehicle
Directions can be sent to the
vehicle navigation screen,
if equipped.
Press
Q, then ask the Advisor
to download directions to the
vehicle navigation system,
if equipped. After the call
ends, the navigation screen
will provide prompts to begin
driving directions. Routes that
are sent to the navigation
screen can only be canceled
through the navigation
system.
See www.onstar.com (U.S.) or
www.onstar.ca (Canada).
Connections
The following services help
with staying connected.
For coverage maps, see
www.onstar.com (U.S.) or
www.onstar.ca (Canada).

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
412 INDEX
CaliforniaPerchlorate Materials
Requirements . . . . . . . . . . . . . 308
California Proposition 65 Warning . . . . . . . . . . . . . . . . 1, 356
Camera Rear Vision (RVC) . . . . . . . . . . 257
Canadian Vehicle Owners . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . 383
Car Wash Mode . . . . . . . . . . . . . . . .211
Carbon Monoxide
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Winter Driving . . . . . . . . . . . . . . . 201
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Management System . . . . . . 97
Tie-Downs . . . . . . . . . . . . . . . . . . . . . 97
Caution, Danger, and Warning . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Center Console
Storage . . . . . . . . . . . . . . . . . . . . . . . . 95
Chains, Tire . . . . . . . . . . . . . . . . . . . 355
Charge Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Charge Cord Connected Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Charging . . . . . . . . . . . . . . . . . . . . . . . . 123 Charging (cont'd)
Delay Override . . . . . . . . . . . . . 289
Plug-In . . . . . . . . . . . . . . . . . . . . . . . . 285
Status Feedback . . . . . . . . . . 289
System Light . . . . . . . . . . . . . . . . 114
Utility Interruption . . . . . . . . 294
Wireless . . . . . . . . . . . . . . . . . . . . . . . 104
Child Restraints Infants and YoungChildren . . . . . . . . . . . . . . . . . . . . . . . 75
Lower Anchors and Tethers for Children . . . . . . 80
Older Children . . . . . . . . . . . . . . . . 73
Securing . . . . . . . . . . . . . . . . . . 88, 90
Systems . . . . . . . . . . . . . . . . . . . . . . . . 77
Child Safety Locks . . . . . . . . . . . . 20
Circuit Breakers . . . . . . . . . . . . . 325
Cleaning
Exterior Care . . . . . . . . . . . . . . . 364
Interior Care . . . . . . . . . . . . . . . . 369
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . 185
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Cluster, Instrument . . . . . . . . . . 108
Collision Damage Repair . . . . . . . . . . . . . . . . . . . . . . . . . 392
Compartment Underhood . . . . . . . . . . . . . . . . . . . 312 Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . . 94
Compass . . . . . . . . . . . . . . . . . . . . . . . . 102
Connected Services Connections . . . . . . . . . . . . . . . . 407
Diagnostics . . . . . . . . . . . . . . . . . . 409
Navigation . . . . . . . . . . . . . . . . . . . 407
Connections Connected Services . . . . . . 407
Control Traction and
Electronic Stability . . . . . . . 221
Control of a Vehicle . . . . . . . . . 196
Controls Steering Wheel . . . . . . . . . . . . . 152
Convex Mirrors . . . . . . . . . . . . . . . . 28
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Cooling System . . . . . . . . . . . . . . . 313
Cornering Lamps . . . . . . . . . . . . . 146
Courtesy Transportation
Program . . . . . . . . . . . . . . . . . . . . . . . 391
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Cruise Control
Adaptive . . . . . . . . . . . . . . . . . . . . . 225
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Super . . . . . . . . . . . . . . . . . . . . . . . . . 236

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
INDEX 417
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . 381
Maintenance Schedule . . . . 376 Recommended Fluids
and Lubricants . . . . . . . . . . . 379
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Massage Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Media
Avoiding UntrustedDevices . . . . . . . . . . . . . . . . . . . . . . 160
Memory Seats . . . . . . . . . . . . . . . . . . 42
Messages Propulsion Power . . . . . . . . . . 135
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 134
Vehicle Speed . . . . . . . . . . . . . . . 136
Mirrors Automatic Dimming
Rearview . . . . . . . . . . . . . . . . . . . . . 30
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 28
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Interior Rearview . . . . . . . . . . . . 30
Manual Rearview . . . . . . . . . . . . 30
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Rear Camera . . . . . . . . . . . . . . . . . . 30 Mode
Car Wash . . . . . . . . . . . . . . . . . . . . . . 211
Driver Control . . . . . . . . . . . . . . 223
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . 343
Multi-band Antenna . . . . . . . . . . 160
Multi-Point Vehicle Inspection (MPVI) . . . . . . . . . . .377
N
NavigationConnected Services . . . . . . 407
Destination . . . . . . . . . . . . . . . . . . . 164
Symbols . . . . . . . . . . . . . . . . . . . . . . . 164
Using the System . . . . . . . . . . 162
New Vehicle Break-In . . . . . . 206
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 110 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . 198
Older Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 73
One-Pedal Driving . . . . . . . . . . . . 214
One-Pedal Driving Light . . . . .121
Online Account . . . . . . . . . . . . . . . 387
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . 399 Additional Information . . . 402 OnStar (cont'd)
Overview . . . . . . . . . . . . . . . . . . . . . 400
OnStar Emergency . . . . . . . . . . 401
OnStar Security . . . . . . . . . . . . . . 401
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Overview . . . . . . . . . . . . . . . . . . . . . . . . .151
Instrument Panel . . . . . . . . . . . . . . 5
Owner Checks and Services . . . . . . . . . . . . . . . . . . . . . . 378
P
ParkAssist . . . . . . . . . . . . . . . . . . 257, 260
Shifting Into . . . . . . . . . . . . . . . . . 209
Shifting Out of . . . . . . . . . . . . . . 210
Parking
Brake and P (Park)Mechanism Check . . . . . . . 320
Extended . . . . . . . . . . . . . . . . . . . . . 210
Parking Assist Automatic . . . . . . . . . . . . . . . . . . . . 262
Parking or Backing Assistance Systems . . . . . . . 257
Passenger Airbag Status Indicator . . . 113
Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
420 INDEX
Service (cont'd)Maintenance, General
Information . . . . . . . . . . . . . . . . 375
Parts Identification . . . . . . . 382
Scheduling Appointments . . . . . . . . . . . . . 390
Vehicle Soon Light . . . . . . . . . 115
Servicing the Airbag . . . . . . . . . . . 71
Settings . . . . . . . . . . . . . . . . . . . . . . . . . 176
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . 209
Out of Park . . . . . . . . . . . . . . . . . . . 210
Side Blind Zone Alert (SBZA) . . . . . . . . . . . . . . . . . . 277
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . 146
Software Updates . . . . . . . . . . . 155
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . 383
Speedometer . . . . . . . . . . . . . . . . . . 110
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . 119
Start Remote . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Start Assist, Hill . . . . . . . . . . . . . . . 218
Starting and Stopping the Vehicle . . . . . . . . . . . . . . . . . . . 208 Status
Charging Feedback . . . . . . . 289
Steering . . . . . . . . . . . . . . . . . . . . . . . . . 197 Assist, BlindZone (BZSA) . . . . . . . . . . . . . . . . 279
Heated Wheel . . . . . . . . . . . . . . . . 99
Wheel Adjustment . . . . . . . . . . 99
Wheel Controls . . . . . . . . . . . . . 152
Storage Center Console . . . . . . . . . . . . . . 95
Compartments . . . . . . . . . . . . . . . 94
Cupholders . . . . . . . . . . . . . . . . . . . . 95
Glove Box . . . . . . . . . . . . . . . . . . . . . . 94
Instrument Panel Areas . . . 94
Storage Areas Cargo Cover . . . . . . . . . . . . . . . . . . 95
Cargo Management
System . . . . . . . . . . . . . . . . . . . . . . . . 97
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
Stuck Vehicle . . . . . . . . . . . . . . . . . 202
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 35
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Super Cruise . . . . . . . . . . . . . . . . . . 236
Surround Video
Recorder . . . . . . . . . . . . . . . . . . . . . 282
Surround Vision System . . . . . . . . . . . . . . . . . . . . . . . . 258 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Navigation . . . . . . . . . . . . . . . . . . . . 164
System Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Driver Assistance . . . . . . . . . 255
Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . 270
Global Positioning . . . . . . . . . . 165
Infotainment . . . . . . . . . . . . . . . . 399
Rear Cross Traffic Alert . . . . . . . . . . . . . . . . . . . . . . . . . 269
Surround Vision . . . . . . . . . . . . 258
T
Teen Driver . . . . . . . . . . . . . . . . . . . . . 178
Text Telephone (TTY) Users . . . . . . . . . . . . . . . . . . . . . . . . . . 387
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . . . . . . . 27
Immobilizer . . . . . . . . . . . . . . . . . . . . 27
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
All-Season . . . . . . . . . . . . . . . . . . . 335
Buying New Tires . . . . . . . . . . 350
Chains . . . . . . . . . . . . . . . . . . . . . . . . 355
Designations . . . . . . . . . . . . . . . . 338
Different Size . . . . . . . . . . . . . . . 352
If a Tire Goes Flat . . . . . . . . . 355
