fuse box CADILLAC LYRIC 2023 Owners Manual

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 3/2/22
6 Introduction
1. Air Vents0189.
2. Turn Signal Lever. See Turn and Lane-Change Signals
0146.
Windshield Wiper/Washer
0 100.
3. Shift Lever. See Electric Drive Unit 0211.
4. Light Sensor. See Automatic Headlamp
System 0143.
5. Infotainment Display. See Introduction 0150.
Instrument Cluster 0108.
6. Instrument Panel Fuse Block 0331.
7. Glove Box 094.
8. Dual Automatic Climate Control System 0185.
9. Sliding Storage Tray. See Instrument Panel Storage
094 (If Equipped).
10. Lower Storage. See Instrument Panel Storage
094 (If Equipped).
11. Wireless Charging 0104.
12. Infotainment Controls. 13. Power Button
0206 (Out
of View).
14. Radio Controls. See Steering Wheel Controls
0152.
15. Horn 0100.
16. Steering Wheel Adjustment 099 (Out of View).
17. Adaptive Cruise Control (Advanced) 0225.
Super Cruise 0236.
Forward Collision Alert
(FCA) System 0270 (If
Equipped).
Heated Steering Wheel
0 99.
18. Hood Release. See Hood 0310.
19. Electric Parking Brake 0217.
Lane Keep Assist (LKA)
0 280 (If Equipped).
Automatic Vehicle Hold
(AVH) 0219.
Instrument Panel
Illumination Control 0146.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

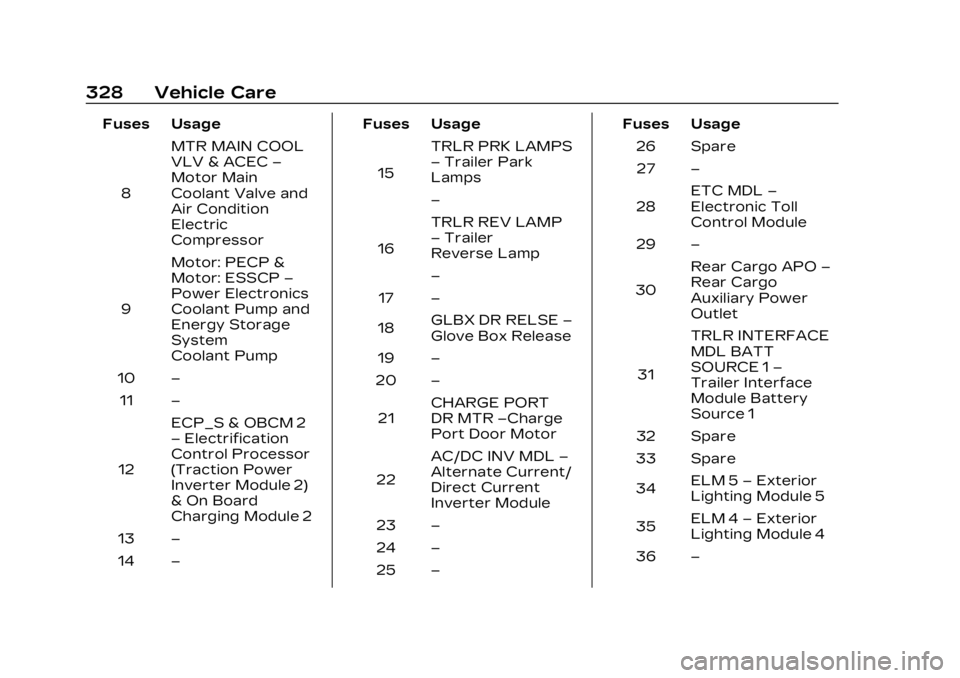

328 Vehicle Care
Fuses Usage8 MTR MAIN COOL
VLV & ACEC
–
Motor Main
Coolant Valve and
Air Condition
Electric
Compressor
9 Motor: PECP &
Motor: ESSCP
–
Power Electronics
Coolant Pump and
Energy Storage
System
Coolant Pump
10 –
11 –
12 ECP_S & OBCM 2
–
Electrification
Control Processor
(Traction Power
Inverter Module 2)
& On Board
Charging Module 2
13 –
14 – Fuses Usage
15 TRLR PRK LAMPS
–
Trailer Park
Lamps
–
16 TRLR REV LAMP
–
Trailer
Reverse Lamp
–
17 –
18 GLBX DR RELSE
–
Glove Box Release
19 –
20 –
21 CHARGE PORT
DR MTR
–Charge
Port Door Motor
22 AC/DC INV MDL
–
Alternate Current/
Direct Current
Inverter Module
23 –
24 –
25 – Fuses Usage
26 Spare27 –
28 ETC MDL
–
Electronic Toll
Control Module
29 –
30 Rear Cargo APO
–
Rear Cargo
Auxiliary Power
Outlet
31 TRLR INTERFACE
MDL BATT
SOURCE 1
–
Trailer Interface
Module Battery
Source 1
32 Spare
33 Spare
34 ELM 5
–Exterior
Lighting Module 5
35 ELM 4
–Exterior
Lighting Module 4
36 –

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 331
Fuses Usage79 REAR HTD/SEAT 1
–
Rear Heated
Seat 1
80 FRT HTD/SEAT 2
–
Front Heated
Seat 2
81 OUT OF PRK
DSBL
–Out of
Park Disable
82 Wash Pump
(Front)
83 Camera Wash

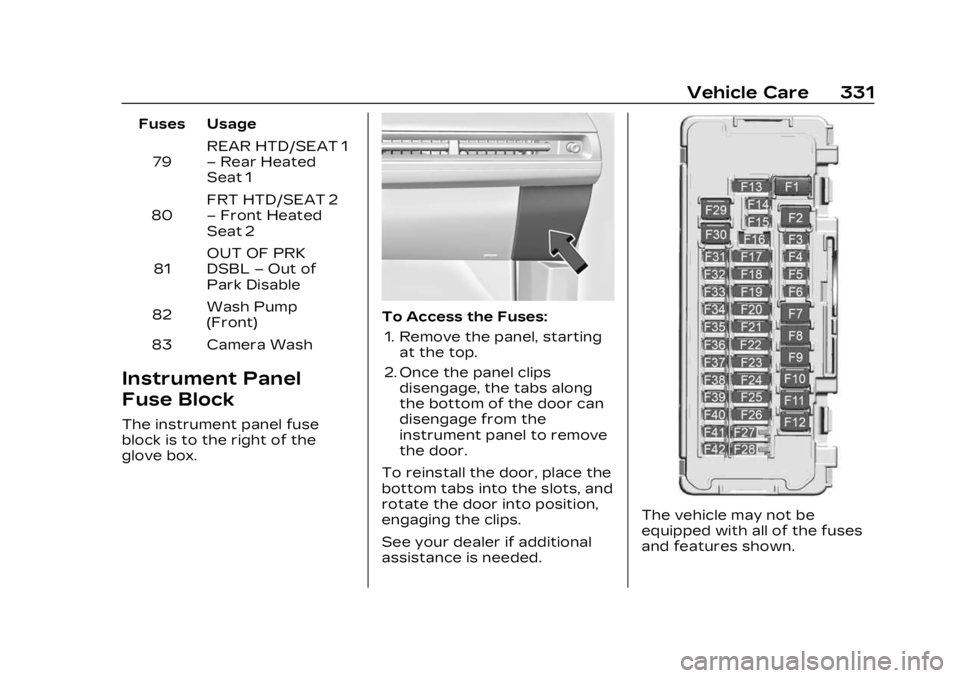

Instrument Panel
Fuse Block
The instrument panel fuse
block is to the right of the
glove box.
To Access the Fuses: 1. Remove the panel, starting at the top.
2. Once the panel clips disengage, the tabs along
the bottom of the door can
disengage from the
instrument panel to remove
the door.
To reinstall the door, place the
bottom tabs into the slots, and
rotate the door into position,
engaging the clips.
See your dealer if additional
assistance is needed.
The vehicle may not be
equipped with all of the fuses
and features shown.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
414 INDEX
Electrical (cont'd)System Overload . . . . . . . . . . 323
Electrical System Fuses and CircuitBreakers . . . . . . . . . . . . . . . . . . . . 325
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 401
Energy Efficiency Driving . . . . . . . . . . . . . . . . . . . . . . . . . 193
Engine
Cooling System . . . . . . . . . . . . . 313
Entry Lighting . . . . . . . . . . . . . . . . . 147
Equipment, Towing . . . . . . . . . 303
Event Data Recorders . . . . . 398
Exit Lighting . . . . . . . . . . . . . . . . . . . 148
Extended Parking . . . . . . . . . . . . 210
Extender, Seat Belt . . . . . . . . . . . 58
Exterior Lamp Controls . . . . . . . . . . . . . . 139
Lamps Off Reminder . . . . . . 142
Lighting Battery Saver . . . 149F
Flash-to-Pass . . . . . . . . . . . . . . . . . . 142
Flashers, Hazard
Warning . . . . . . . . . . . . . . . . . . . . . . . 145
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 355
Floor Mats . . . . . . . . . . . . . . . . . . . . . 373
Fluid
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . 316
Washer . . . . . . . . . . . . . . . . . . . . . . . . 314
Folding Mirrors . . . . . . . . . . . . . . . . . 28
Forward
Collision Alert (FCA)System . . . . . . . . . . . . . . . . . . . . . . 270
Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 395
Front Heated and VentilatedSeats . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Pedestrian Braking
(FPB) System . . . . . . . . . . . . . . 274
Fuses Fuses and CircuitBreakers . . . . . . . . . . . . . . . . . . . . 325
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Underhood Compartment . . . . . . . . . . . . . 326
G
Garage Door Opener . . . . . . . . 136Programming . . . . . . . . . . . . . . . . 136
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 321
Gauges Battery . . . . . . . . . . . . . . . . . . . . . . . . 110
Odometer . . . . . . . . . . . . . . . . . . . . . 110
Power Indicator . . . . . . . . . . . . . . 111
Speedometer . . . . . . . . . . . . . . . . 110
Trip Odometer . . . . . . . . . . . . . . 110
Warning Lights andIndicators . . . . . . . . . . . . . . . . . . . 108
General Information Service and
Maintenance . . . . . . . . . . . . . . 375
Towing . . . . . . . . . . . . . . . . . . . . . . . . 295
Vehicle Care . . . . . . . . . . . . . . . . 308
Global Positioning System (GPS) . . . . . . . . . . . . . . . . 165
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . 94
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . 388
Guidance
Problems with theRoute . . . . . . . . . . . . . . . . . . . . . . . . . 166
