CADILLAC SEVILLE 1995 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine To Check Brake Fluid
Remove the cap.
The fluid level must be to the maximum
fill line at the base of the neck as
shown. c_
When your brake fluid falls to a low level, your brake warning light will
come on. See “Brake System Warning Light”
in the Index.
Wat to Add
When you do need brake fluid, use only DOT-3 brake fluid -- such as Delco
Supreme
ll@ (GM Part No. 1052535). Use new brake fluid from a sealed
container only, and always clean the brake fluid reservoir cap before
removing
it.
NOTICE:
Don’t let someone put in the wrong kind of fluid. For
example, just
a few drops of mineral-based oil, such as
engine oil, in your brake system can damage brake system
parts
so badly that they’ll have to be replaced.
Brake fluid can damage paint, so be careful not to spill brake
fluid on your vehicle.
If you do, wash it off immediately. See
‘!Appearance Care” in the Index.
I-
--
I-
6-30

Downloaded from www.Manualslib.com manuals search engine Brake Wear
C
Your Cadillac has four-wheel disc brakes.
Disc brake pads have built-in wear indicators that make a high-pitched
warning sound when the brake pads are worn and new pads are needed.
The sound may come and go or be heard all the time your vehicle is
moving (except when you are pushing on the brake pedal firmly).
NOTICE:
Continuing to drive with worn-out brake pads could result in
costly brake repair.
Some driving conditions or climates may cause a brake squeal when the
brakes are first applied or lightly applied. This does not mean somethine
is wrong with your brakes.
Brake linings should always be replaced as complete axle sets.
r Brake Pedal Travel
See your dealer if the brake pedal does not return to normal height, or if
there is a rapid increase in pedal travel. This could be a sign of brake
trouble.
Brake Adjustment
Every time you apply the brakes, with or without the vehicle moving, your
brakes adjust for wear.
P
6-3 1

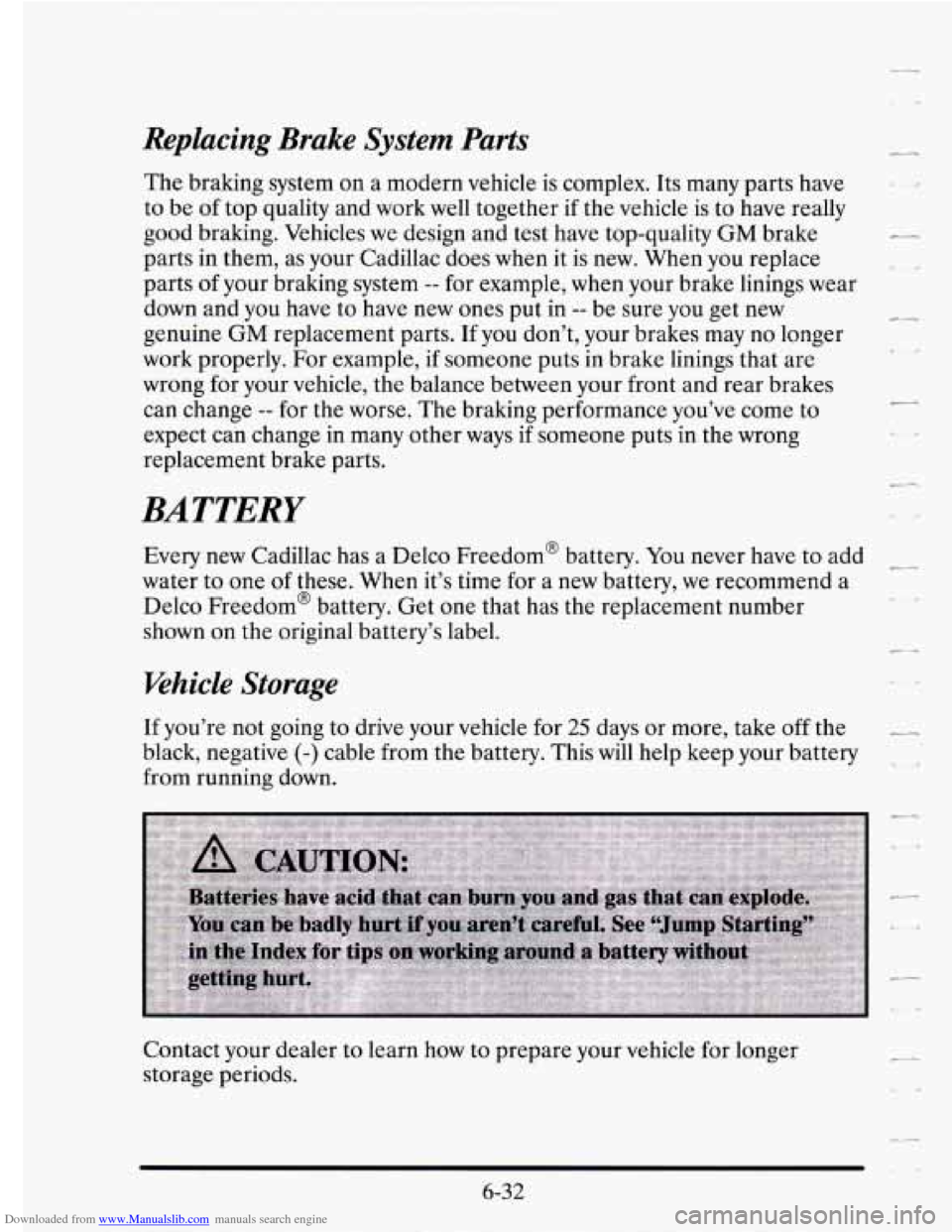

Downloaded from www.Manualslib.com manuals search engine Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its many parts have
to be of top quality and work well together if the vehicle is to have really
good braking. Vehicles we design and test have top-quality
GM brake
parts in them, as your Cadillac does when it is new. When you replace
parts
of your braking system -- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure you get new
genuine
GM replacement parts. If you don’t, your brakes may no longer
work properly. For example, if someone puts in brake linings that are
wrong for your vehicle, the balance between your front and rear brakes
can change
-- for the worse. The braking performance you’ve come to
expect can change in many other ways
if someone puts in the wrong
replacement brake parts.
BATTERY
Every new Cadillac has a Delco Freedom@ battery. You never have to add
water to one
of these. When it’s time for a new battery, we recommend a
Delco Freedom@ battery. Get one that has the replacement number
shown on the original battery’s label.
-
Whicle Storage
If you’re not going to drive your vehicle for 25 days or more, take off the I_
black, negative (-) cable from the battery. This will help keep your battery
from running down.
Contact your dealer to learn
how to prepare your vehicle for longer
storage periods. 1-4
6-32

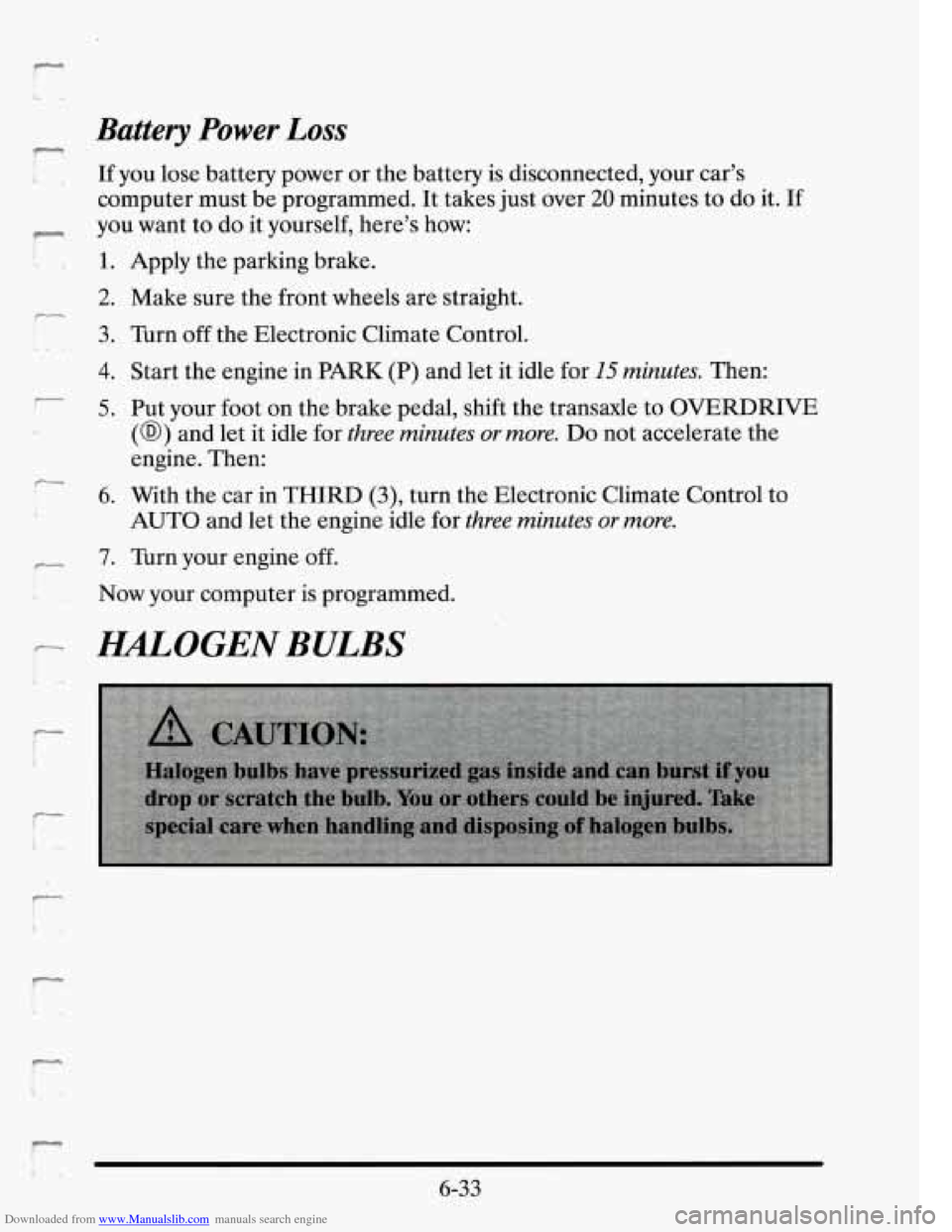

Downloaded from www.Manualslib.com manuals search engine Battery Power Loss
If you lose battery power or the battery is disconnected, your car’s
computer must be programmed.
It takes just over 20 minutes to do it. If
you want to do it yourself, here’s how:
1.
2.
3.
4.
5.
6.
7.
Apply the parking brake.
Make sure the front wheels are straight.
Turn
off the Electronic Climate Control.
Start the engine in PARK (P) and let it idle for
15 minutes. Then:
Put your foot on the brake pedal, shift the transaxle to OVERDRIVE
(@) and let it idle for three minutes or more. Do not accelerate the
engine. Then:
With the car in THIRD
(3), turn the Electronic Climate Control to
AUTO and let the engine idle for
three minutes or more.
Turn your engine off.
Now your computer is programmed.
H2UOGEN BULBS
6-33

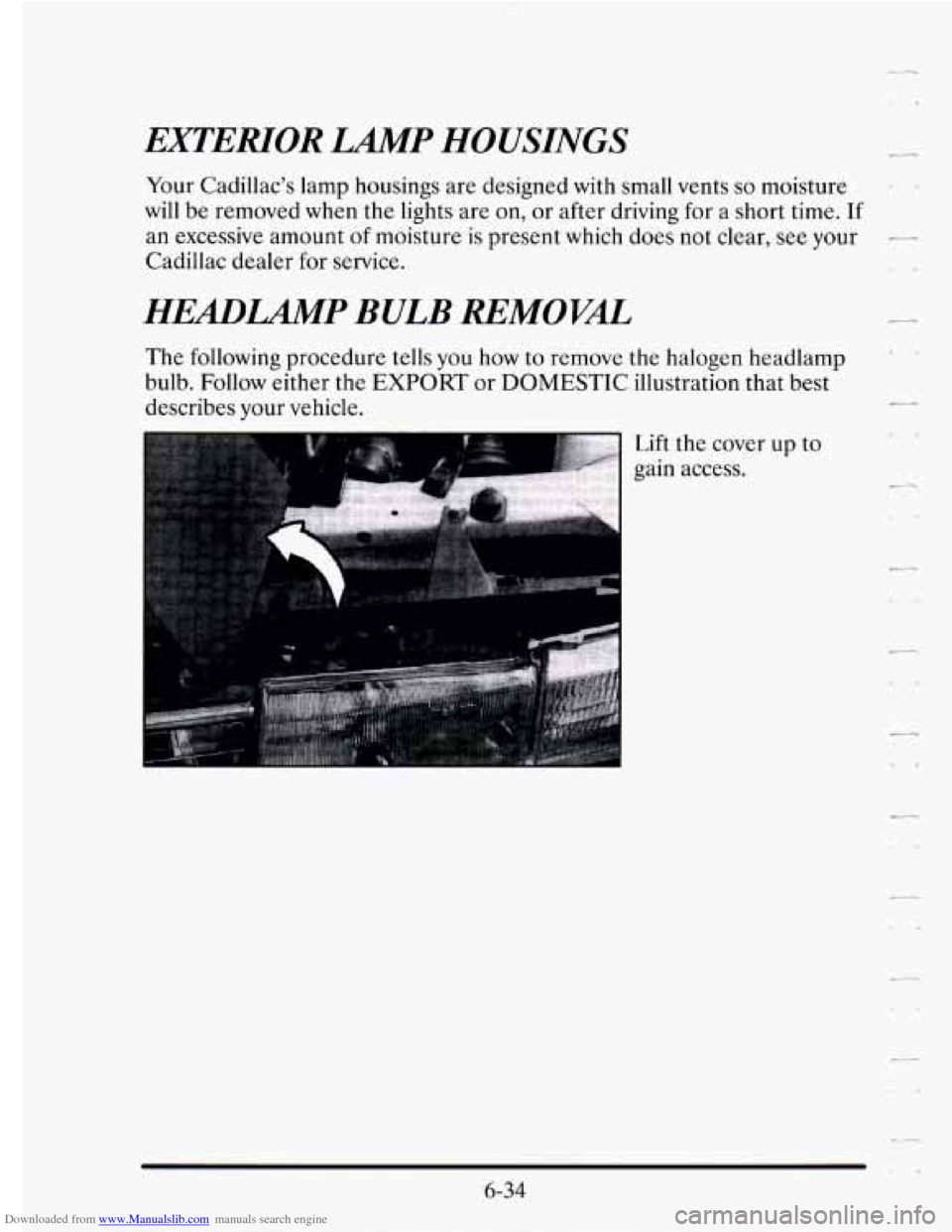

Downloaded from www.Manualslib.com manuals search engine EXTElUOR LA2MP HOUSINGS
Your Cadillac’s lamp housings are designed with small vents so moisture *- 1
will be removed when the lights are on, or after driving for a short time. If
an excessive amount of moisture is present which does not clear, see your -
Cadillac dealer for service.
HEmMP BULB REMOVL
The following procedure tells you how to remove the halogen headlamp
bulb. Follow either the
EXPORT or DOMESTIC illustration that best
describes your vehicle.
1
bJ
6-34

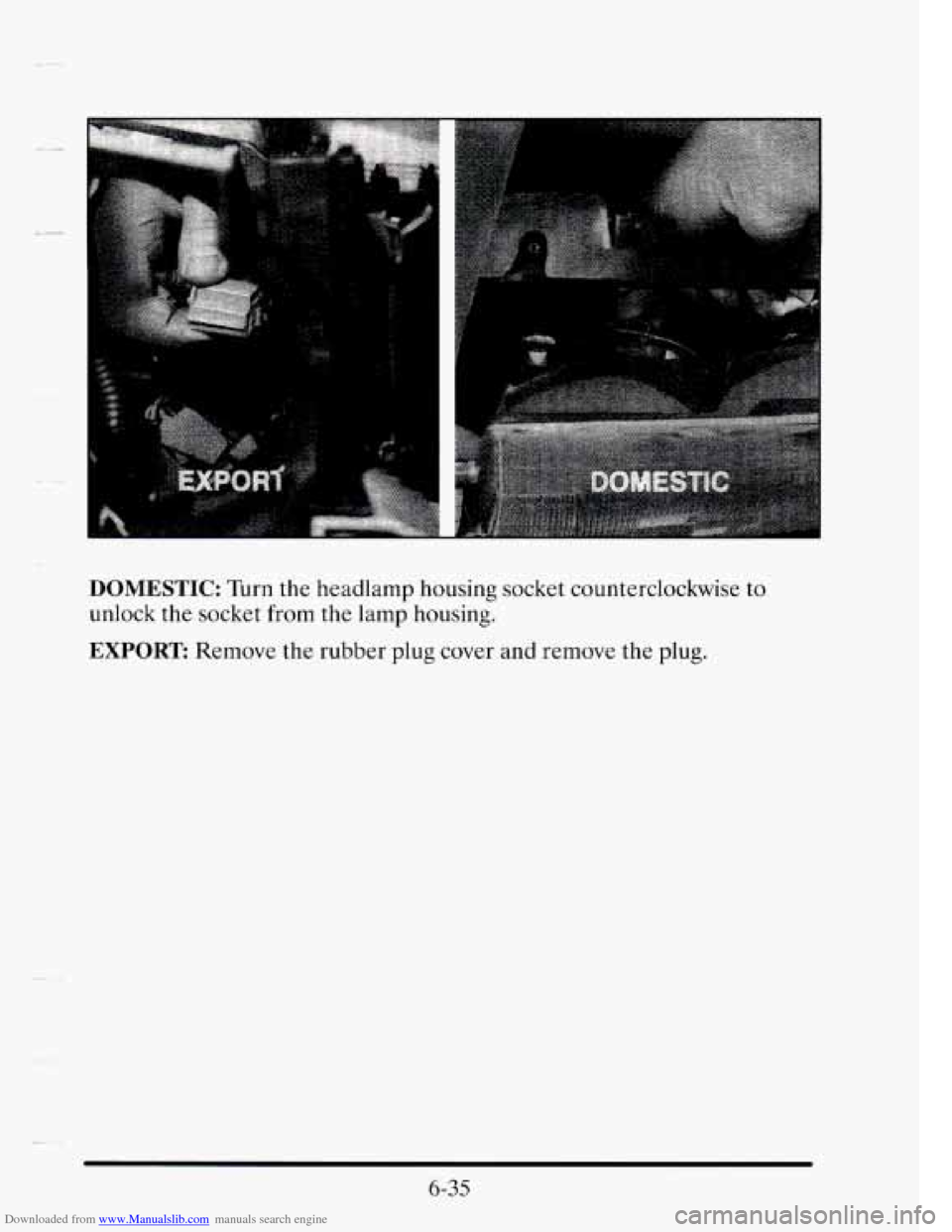

Downloaded from www.Manualslib.com manuals search engine DOMESTIC: Turn the headlamp housing socket counterclockwise to
unlock the socket from the lamp housing.
EXPORT Remove the rubber plug cover and remove the plug.
6-35

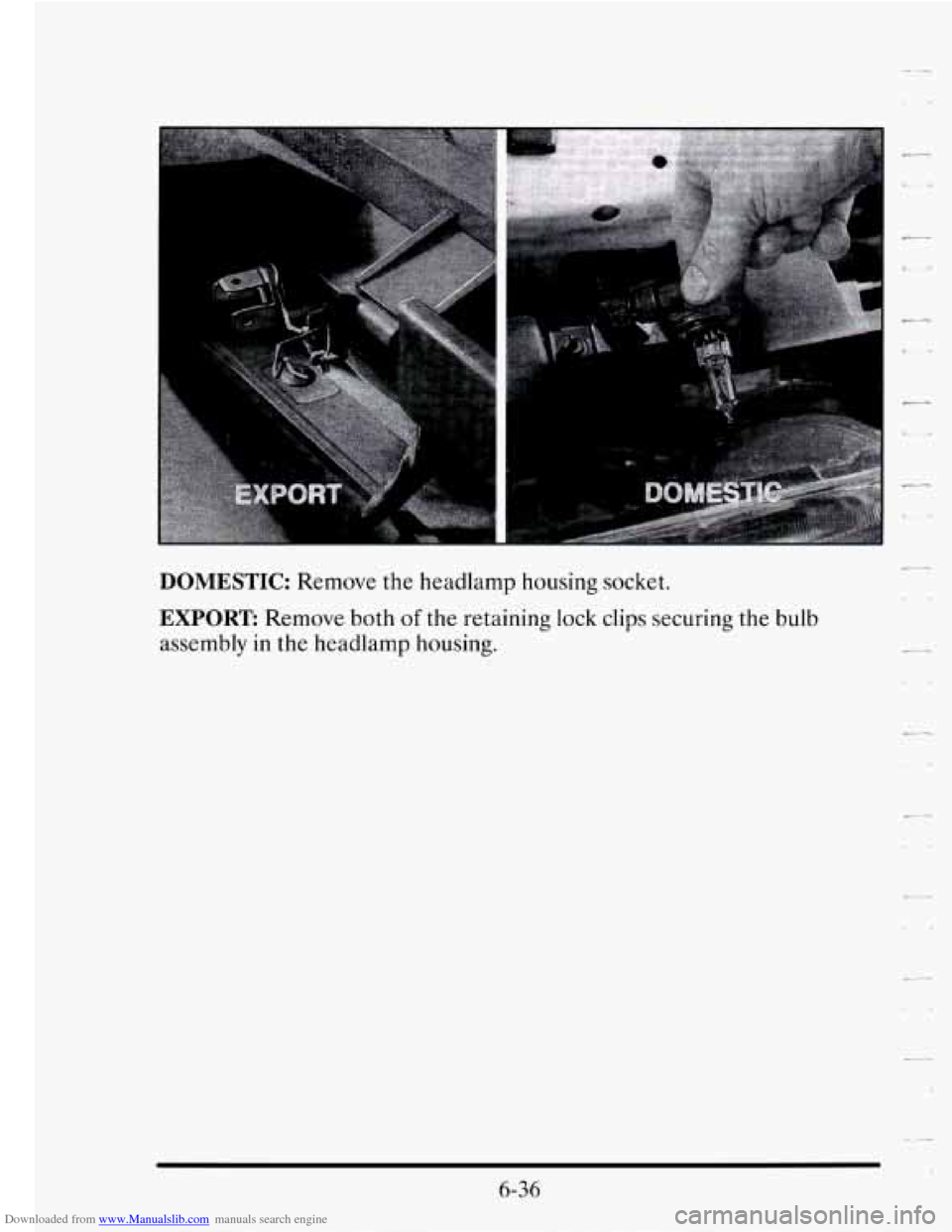

Downloaded from www.Manualslib.com manuals search engine DOMESTIC: Remove the headlamp housing socket.
EXPORT Remove both of the retaining lock clips securing the bulb
assembly in the headlamp housing.

Downloaded from www.Manualslib.com manuals search engine .. .
7

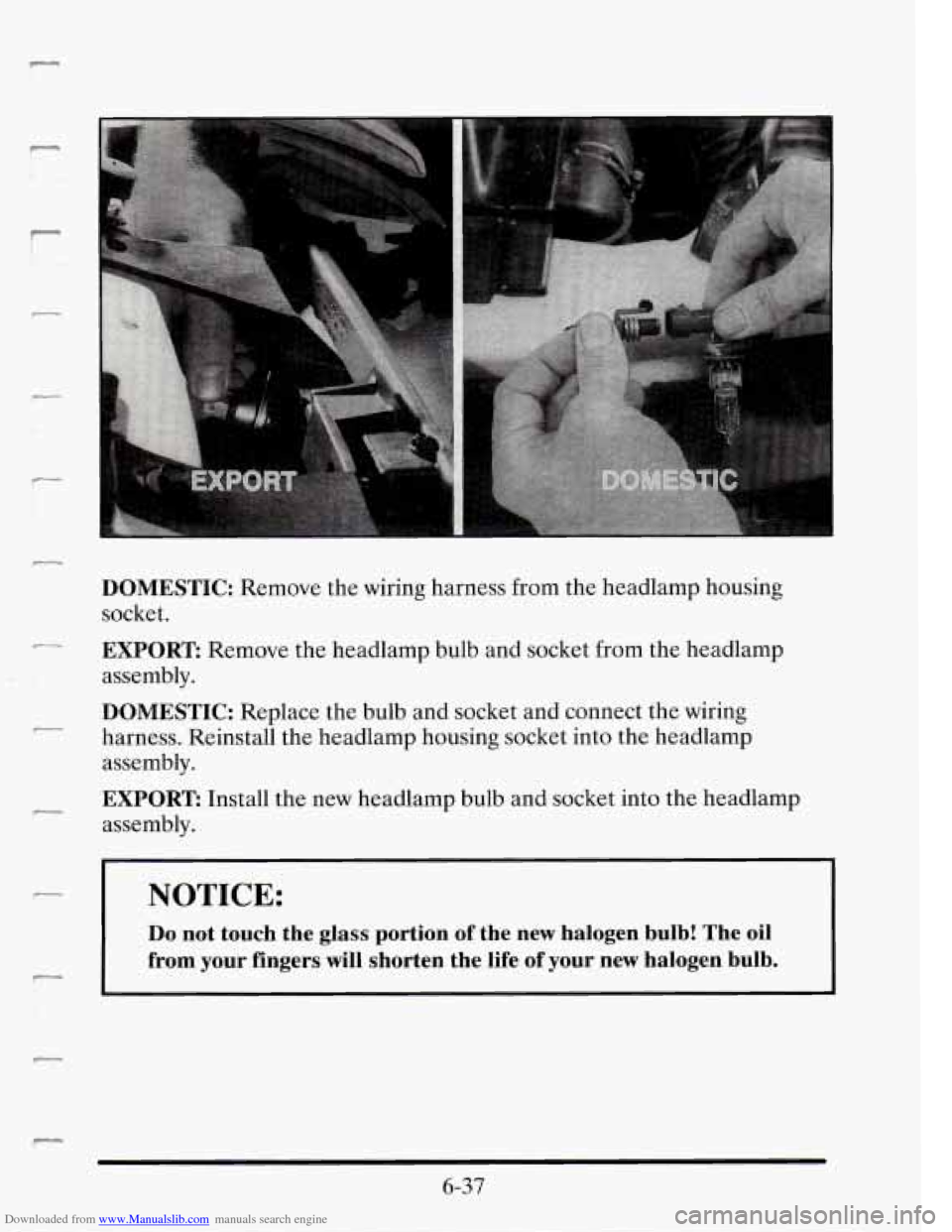

DOMESTIC: Remove the wiring harness from the headlamp housing
socket.
r EXPORT Remove the headlamp bulb and socket from the headlamp
assembly.
DOMESTIC: Replace the bulb and socket and connect the wiring
harness. Reinstall the headlamp housing socket into the headlamp
assembly. P-
EXPORT: Install the new headlamp bulb and socket into the headlamp
assembly. *---.
- NOTICE:
Do not touch the glass portion of the new halogen bulb! The oil
from your fingers will shorten the life of your new halogen bulb. r
r
i.
6-37

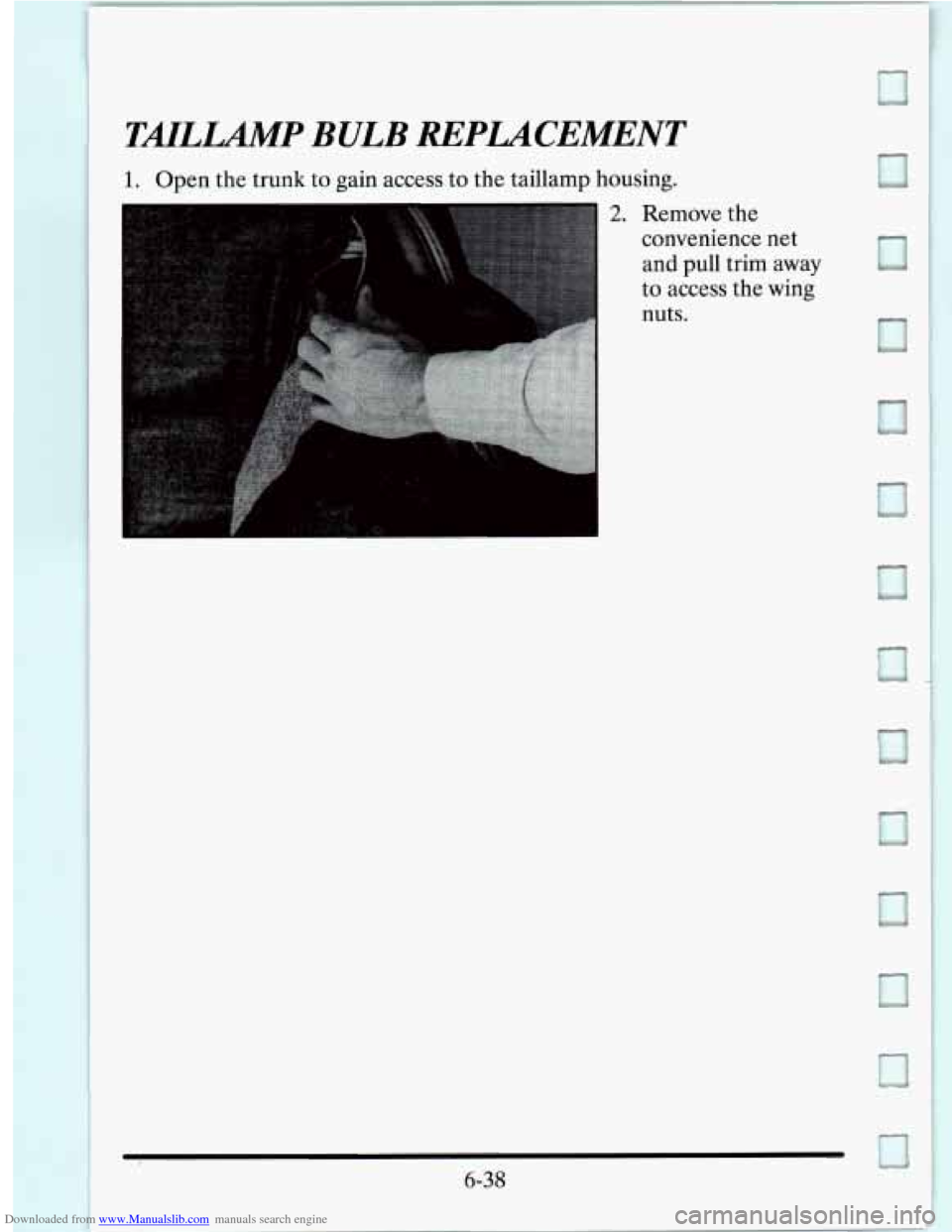

Downloaded from www.Manualslib.com manuals search engine TMLLAlUP BULB REPLACEMENT
1. Open the trunk to gain access to the taillamp housing.
2. Remove
the
convenience net
and pull trim away
to access the wing
nuts.
G
6-38
,d

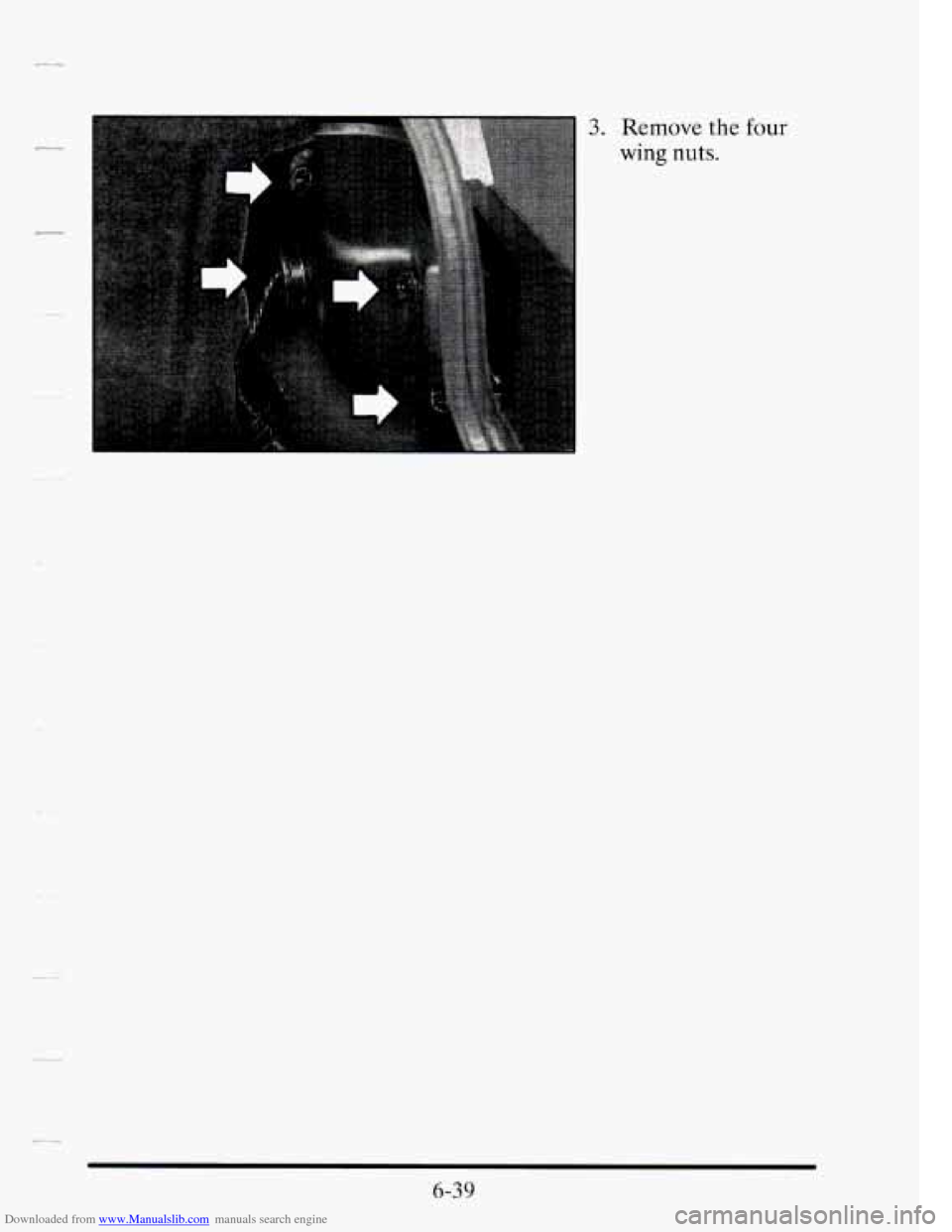

Downloaded from www.Manualslib.com manuals search engine 3. Remove the four
wing nuts.
6-39
