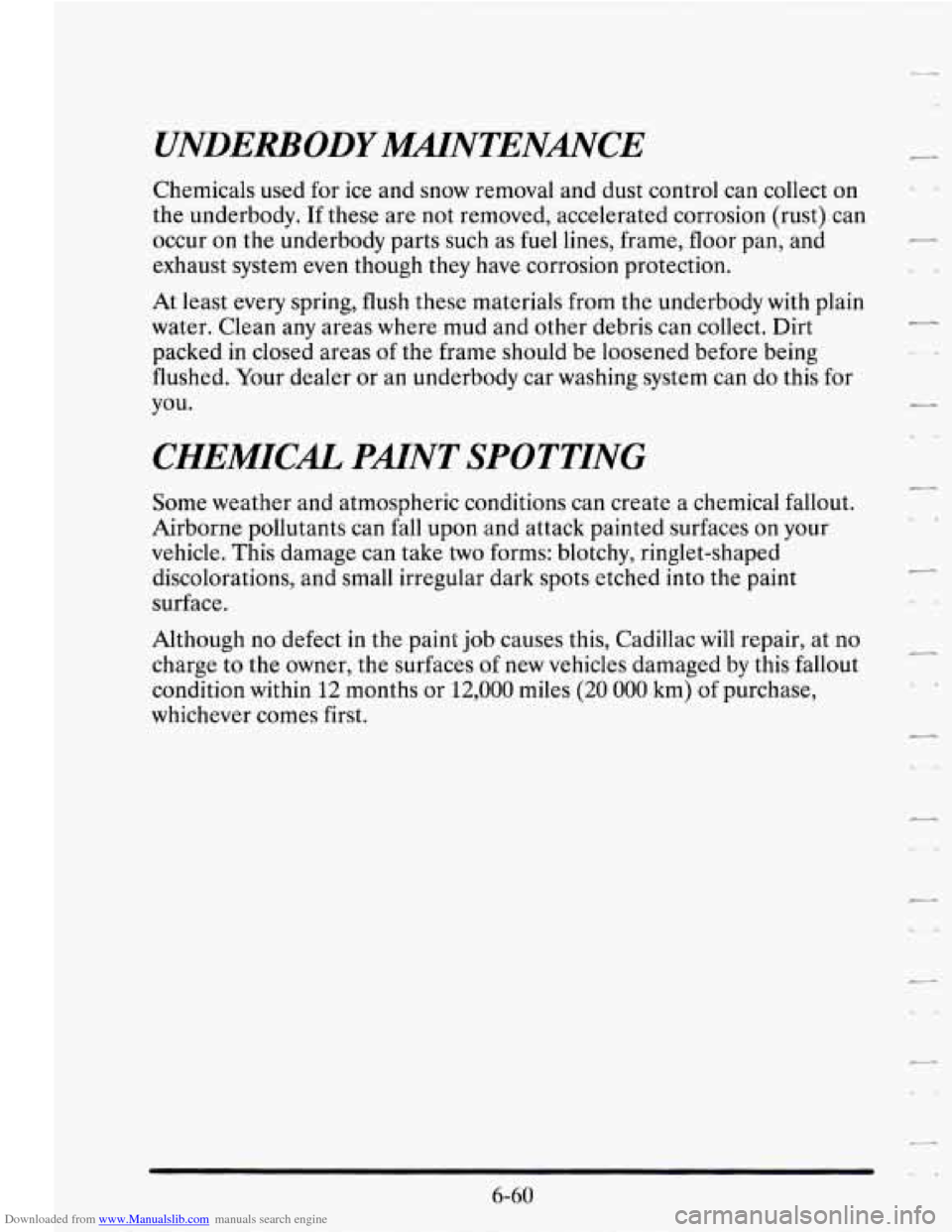

Chemicals used for ice and snow removal and dust control can collect on
the underbody. If these are not removed, accelerated corrosion (rust) can
occur on the underbody parts such as fuel lines, frame, floor pan, and
exhaust system even though they have corrosion protection.
At
least every spring, flush these materials from the underbody with plain
water. Clean any areas where
mud and other debris can collect. Dirt
packed
in closed areas of the frame should be loosened before being
flushed. Your dealer or an underbody car washing system can do this for
you.
CHEMICAL PMNT SPOTTING
Some weather and atmospheric conditions can create a chemical fallout.
Airborne pollutants can fall upon and attack painted surfaces on your
vehicle. This damage can take
two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into the paint
surface.
Although no defect
in the paint job causes this, Cadillac will repair, at no
charge to the owner, the surfaces of new vehicles damaged by this fallout
condition
within 12 months or 12,000 miles (20 000 km) of purchase,
whichever comes first.
6-60

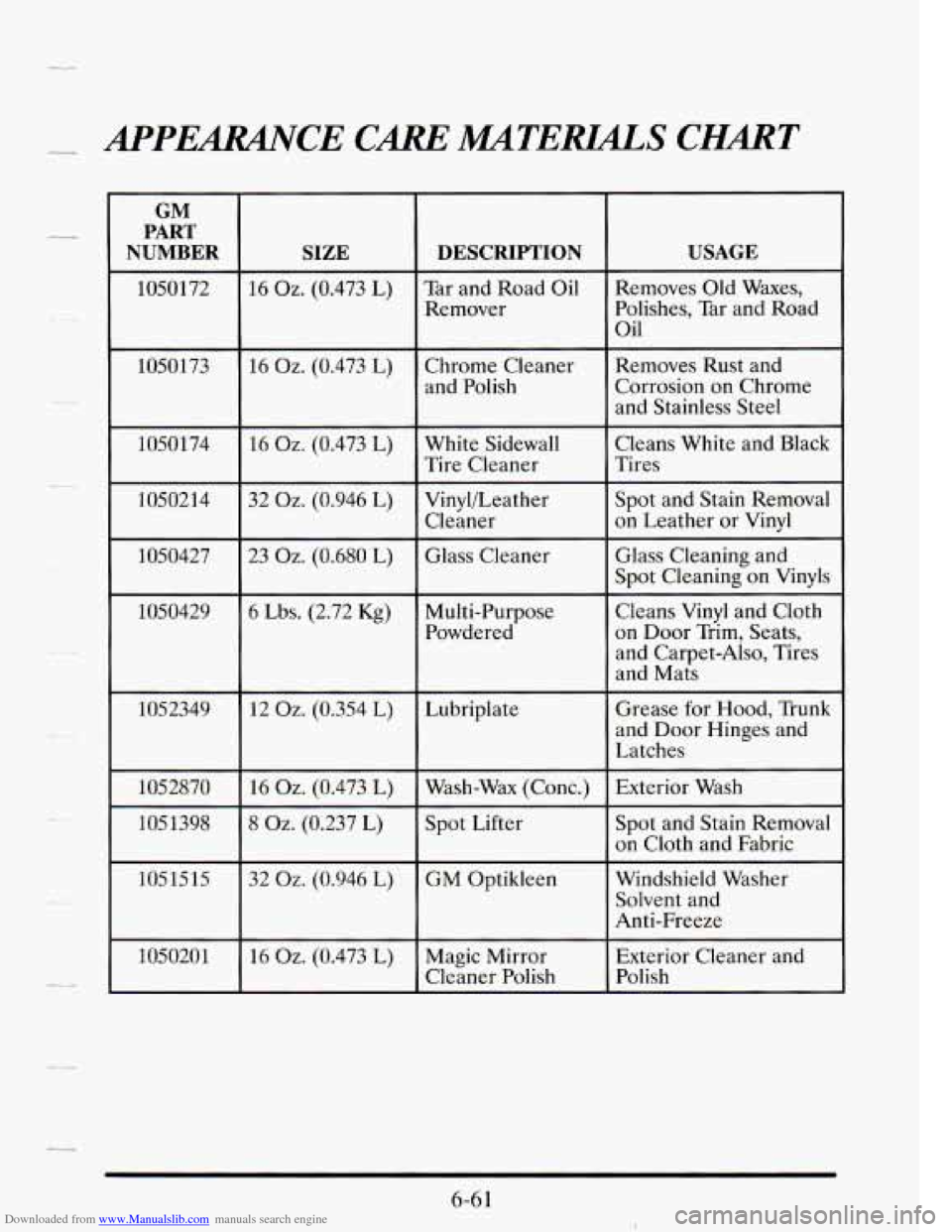

Downloaded from www.Manualslib.com manuals search engine - 4PPEARANCE CAREiWTERLU,S CIiART
GM
PART
NUMBER f- DESCRIPTION USAGE
I 1050172 I 16 Oz. (0.473 L) Tar and Road Oil
Remover Removes Old
Waxes,
Polishes, Tar and Road
Oil
___~ ~
Chrome Cleaner
and Polish Removes
Rust and
Corrosion on Chrome
and Stainless Steel
1050173 16 Oz. (0.473 L)
1050174 16 Oz. (0.473 L)
1050214
32 Oz. (0.946 L)
1050427 23 Oz. (0.680 L)
-
White Sidewall
Tire Cleaner Cleans
White and Black
Tires
Vinyb'Leather Cleaner Spot
and Stain Removal
on Leather or Vinyl
Glass Cleaner
~ ~~
Glass Cleaning and
Spot Cleaning on Vinyls
Cleans Vinyl and Cloth
on Door Trim, Seats,
and Carpet-Also, Tires
and Mats
Multi-Purpose
Powdered
1050429
6 Lbs. (2.72 Kg)
1052349 12
Oz. (0.354 L) Lubriplate Grease for Hood, Trunk
and Door Hinges and
Latches
I 1052870 I 16 Oz. (0.473 L) Wash-Wax
(Conc.)
Spot Lifter Spot and Stain Removal
on Cloth and Fabric
1051398
32
Oz. (0.946 L) 1051515
8 02. (0.237 L)
1050201 16
Oz. (0.473 L)
GM Optikleen Windshield Washer
Solvent and
Anti-Freeze
Magic Mirror
Cleaner Polish Exterior Cleaner and
Polish
6-61

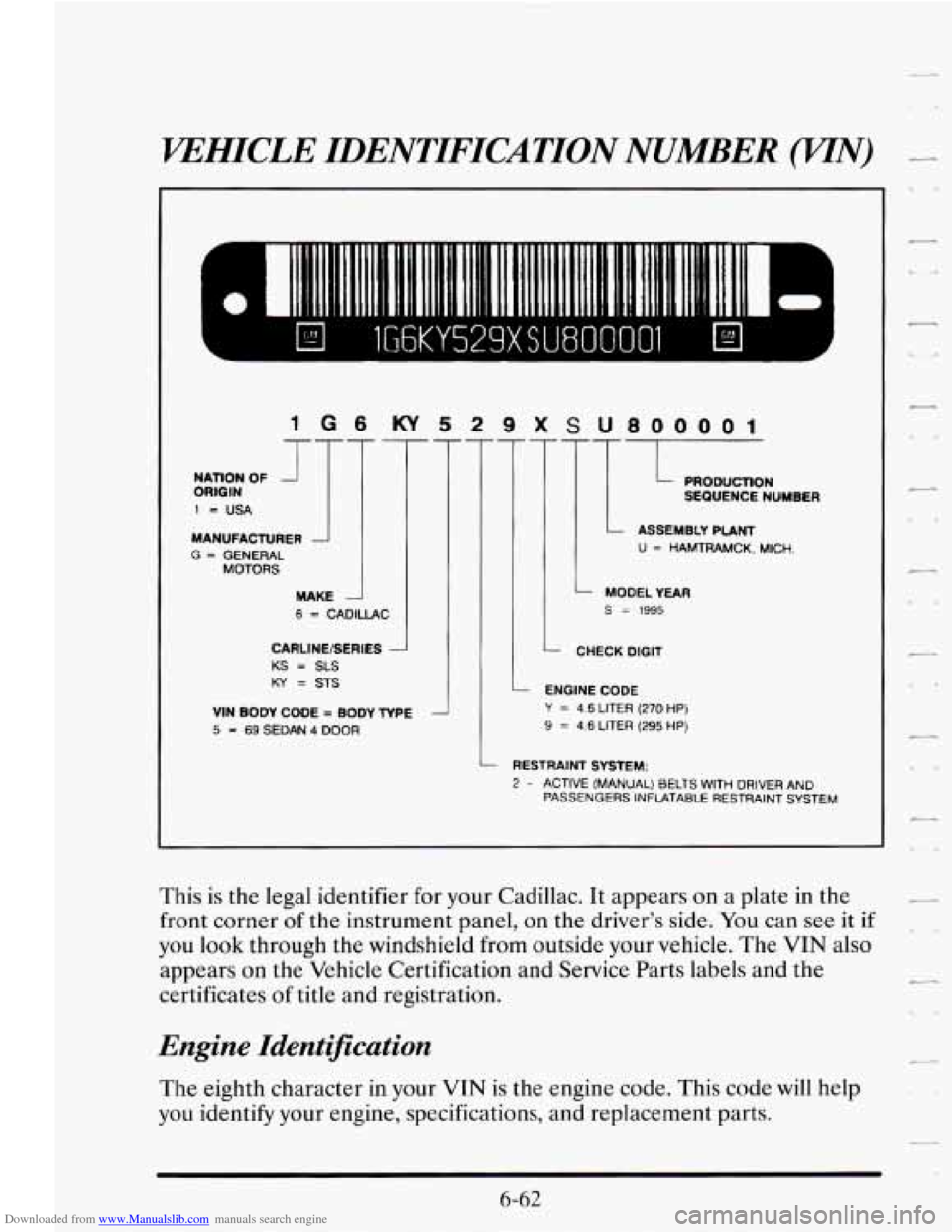

Downloaded from www.Manualslib.com manuals search engine W3HICLE IDENTIFICATION NUMBER (WN)
lG6KY529XSU800001 A
1 G 6 KY 5 2 9 X S U800001
7
-
NATION OF ORIGIN
1 E. USA
MANUFACTURER
G = GENERAL MOTORS MAKE
-
6 = CADILLAC
CARLINEISERIES -
KS = SLS
KY = STS
VIN BODY CODE = BODY TVPE -
5 = 69 SEDAN 4 DOOR
r -TI PRODUCTION
SEQUENCE NUYBCR
ASSEMBLY PLANT
U = HAMTRAMCK. MlCH
- MODELYEAR S = 1995
- CHECK DIGIT
- ENGINE CODE
Y = 4.6 LITER (270 HP)
9 = 4.6 LITER (295 HP)
RESTRAINT SYSTEM:
2 - ACTIVE (MANUAL) BELTS WITH DRIVER AND
PASSENGERS INFLATABLE RESTRAINT SYSTEM
This is the legal identifier for your Cadillac. It appears on a plate in the
front corner
of the instrument panel, on the driver’s side. You can see it if
you
look through the windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts labels and the
certificates
of title and registration.
Engine Identiflcation
The eighth character in your VIN is the engine code. This code will help
you identify your engine, specifications, and replacement parts.

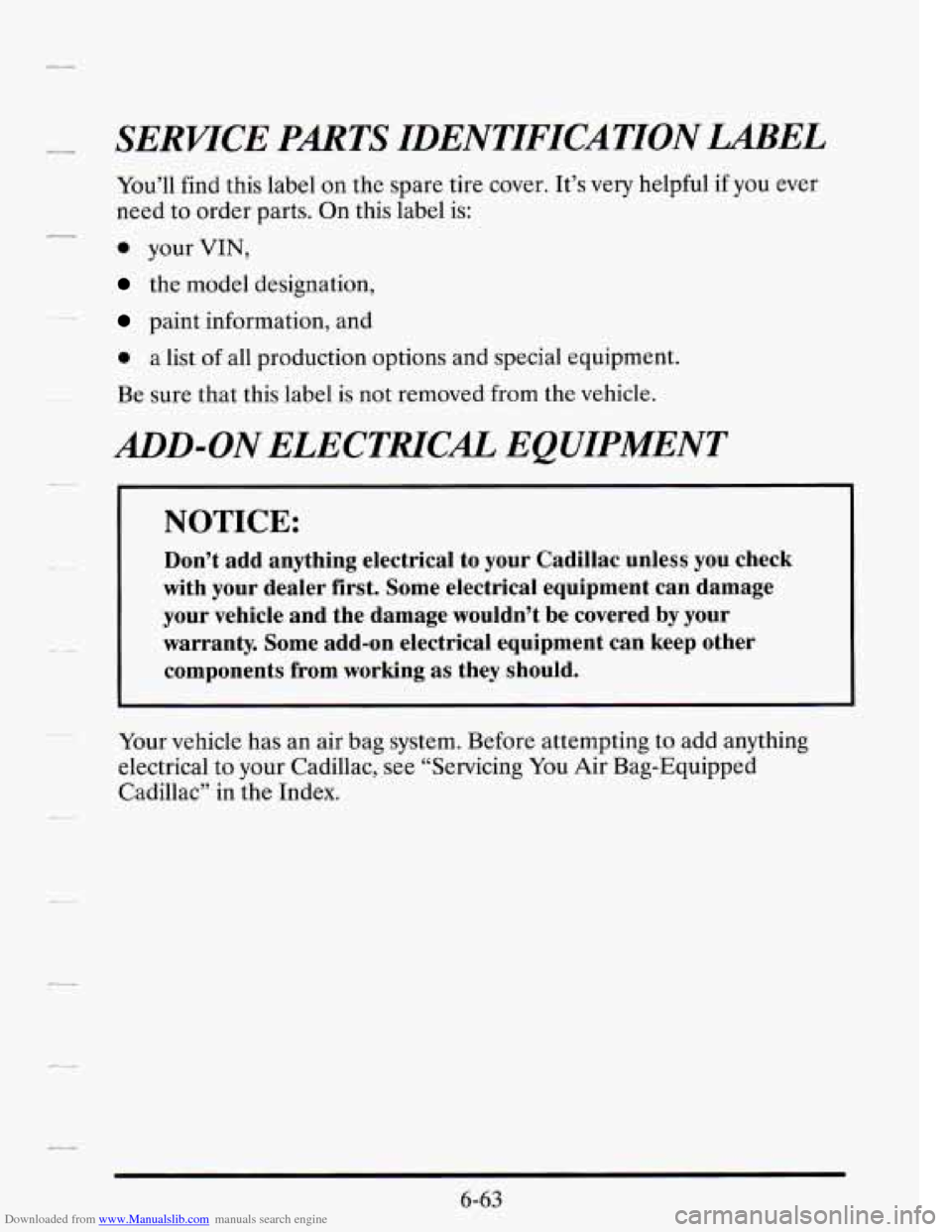

Downloaded from www.Manualslib.com manuals search engine SERPTCE PARTS IDENTIFICATION LABEL
You’ll find this label on the spare tire cover. It’s very helpful if you ever
need to order parts. On this label is:
0 your VIN,
the model designation,
paint information, and
0 a list of all production options and special equipment.
Be sure that this label
is not removed from the vehicle.
ADD-ON ELECTMCAL EQUIPMENT
NOTICE:
Don’t add anything electrical to your Cadillac unless you check
with your dealer first. Some electrical equipment can damage
your vehicle and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an air bag system. Before attempting to add anything
electrical to your Cadillac, see “Servicing You Air Bag-Equipped
Cadillac” in the Index.
6-63

Downloaded from www.Manualslib.com manuals search engine Retained Accessory Power

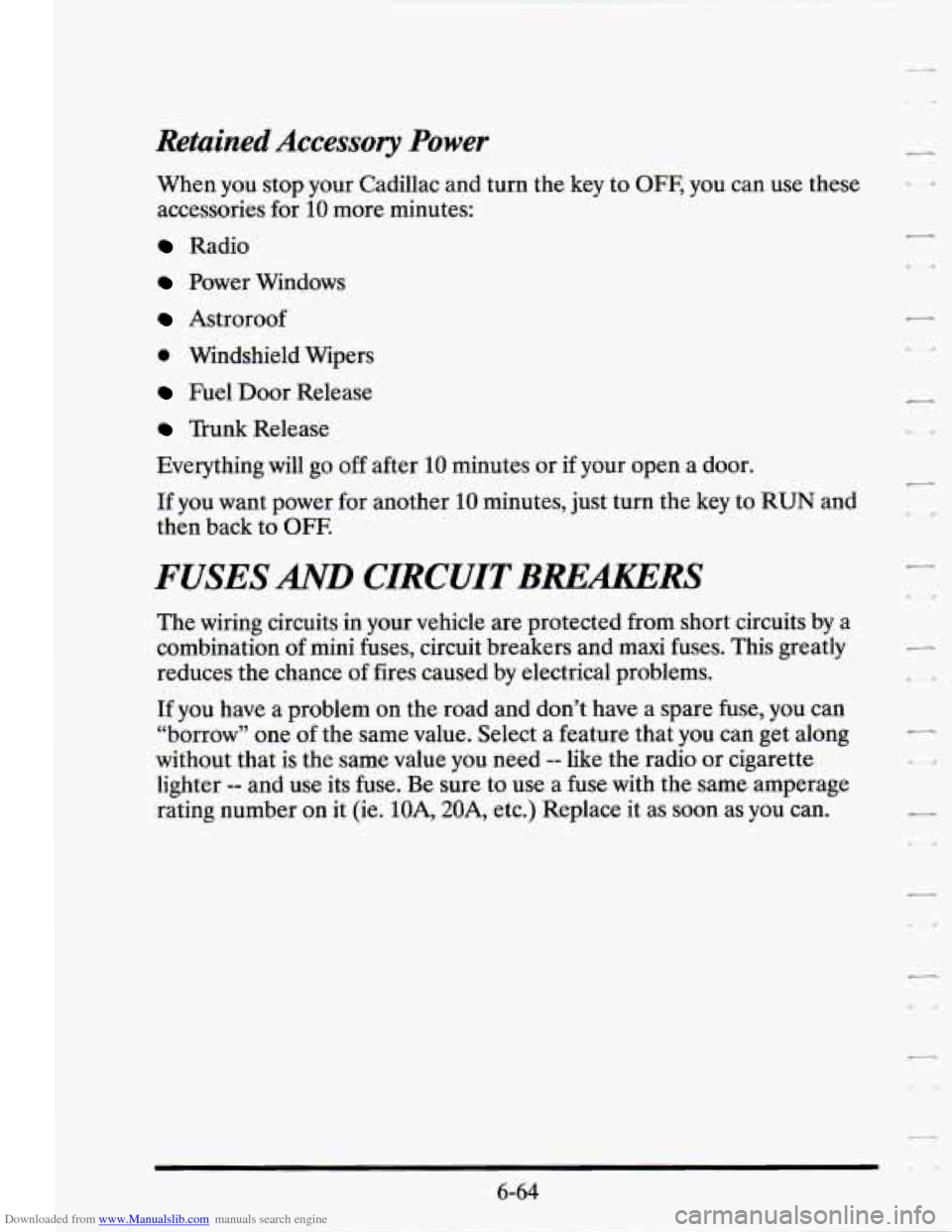

When you stop your Cadillac and turn the key to OFF, you can use these
accessories for
10 more minutes:
Radio
Power Windows
Astroroof
0 Windshield Wipers
Fuel Door Release
Trunk Release
Everything will go off after
10 minutes or if your open a door.
If you want power for another 10 minutes, just turn the key to RUN and
then back to
OW.
FUSES AND CIRCUIT BREAKERS
The wiring circuits in your vehicle are protected from short circuits by a
combination of mini fuses, circuit breakers and maxi fuses. This greatly
reduces the chance of fires caused by electrical problems.
If you have a problem on the road and don’t have a spare fuse, you can
“borrow” one of the same value. Select a feature that you can get along
without that is the same value you need
-- like the radio or cigarette
lighter
-- and use its fuse. Be sure to use a fuse with the same amperage
rating number on it (ie.
lOA, 20A, etc.) Replace it as soon as you can.
6-64

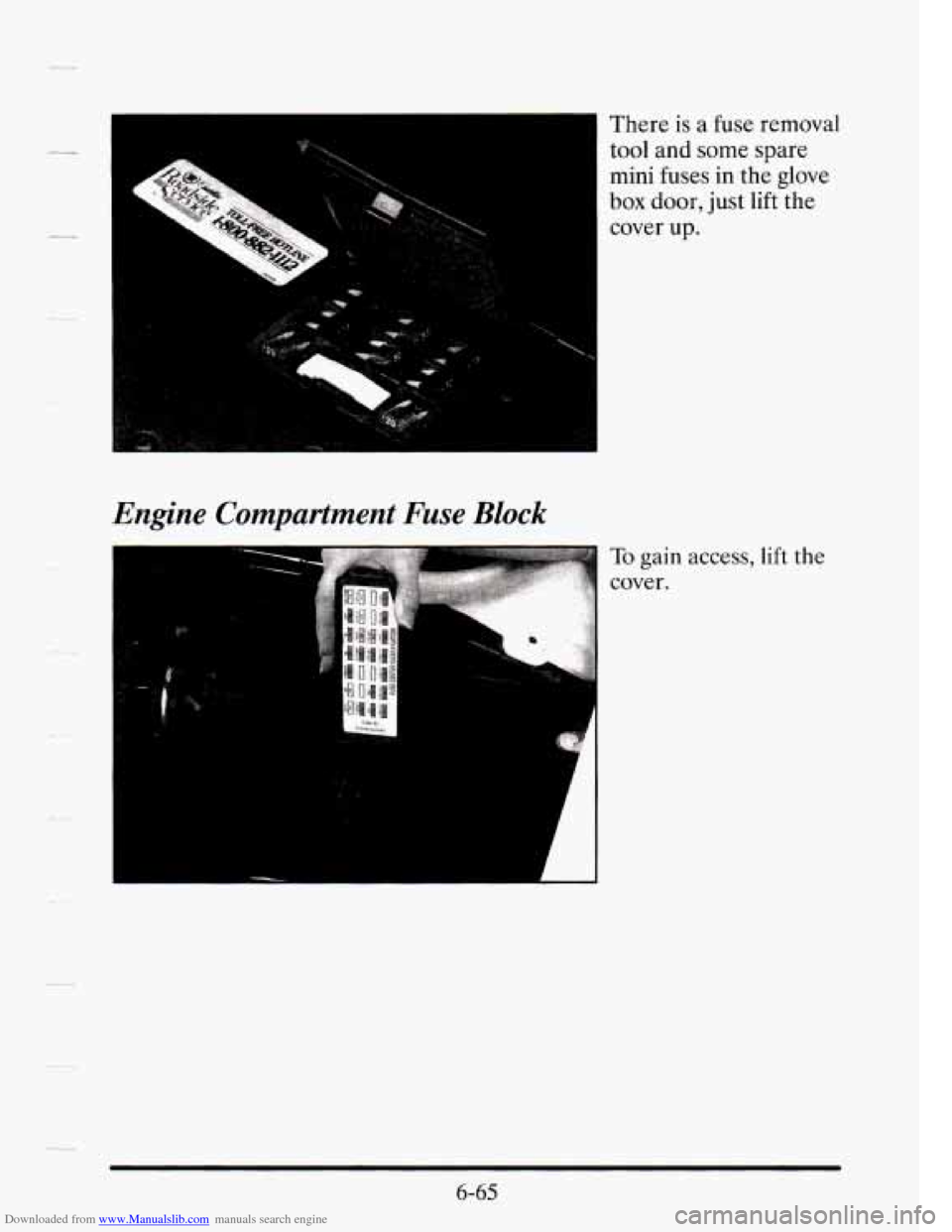

Downloaded from www.Manualslib.com manuals search engine There is a fuse removal
tool and some spare
mini fuses in the glove
box door, just lift the
cover up.
Engine Compartment Fuse Block
- ... .,
To gain access, lift the
cover.
6-65

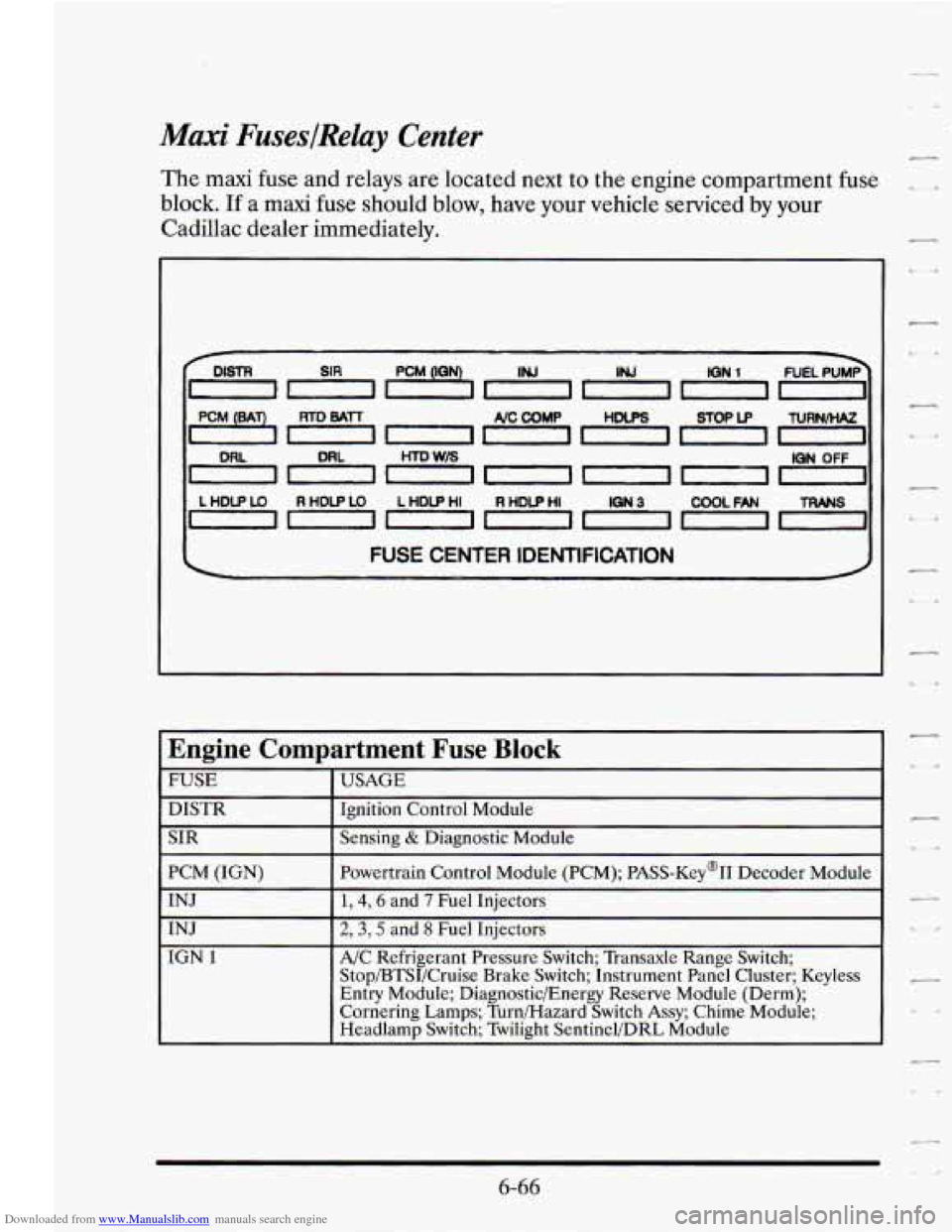

Downloaded from www.Manualslib.com manuals search engine Mai FuseslRelay Center
The maxi fuse and relays are located next to the engine compartment fuse
block.
If a maxi fuse should blow, have your vehicle serviced by your
Cadillac dealer immediately.
OlsfA , , SIR I , PCM (ION) I I INJ I I INJ , I ION 1 , ,FUEL PUMP]
I FUSE CENTER IDENTIF GATION I
Engine Compartment Fuse Block
FUSE I USAGE I I
DISTR I Ignition Control Module I I
SIR I Sensing & Diagnostic Module I
PCM (IGN) I Powertrain Control Module (PCM); PASS-Key% Decoder Module I
INJ 1,4,6 and 7 Fuel Injectors
INJ
2,3,5 and 8 Fuel Injectors
IGN 1 A/C Refrigerant Pressure Switch; Transaxle Range Switch;
Stop/BTSI/Cruise Brake Switch; Instrument Panel Cluster; Keyless
Entry Module; DiagnosticEnergy Reserve Module (Derm);
Cornering Lamps; Turn/Hazard Switch Assy; Chime Module;
Headlamp Switch; Twilight SentineUDRL Module
6-66
1
IC--
L-
.*

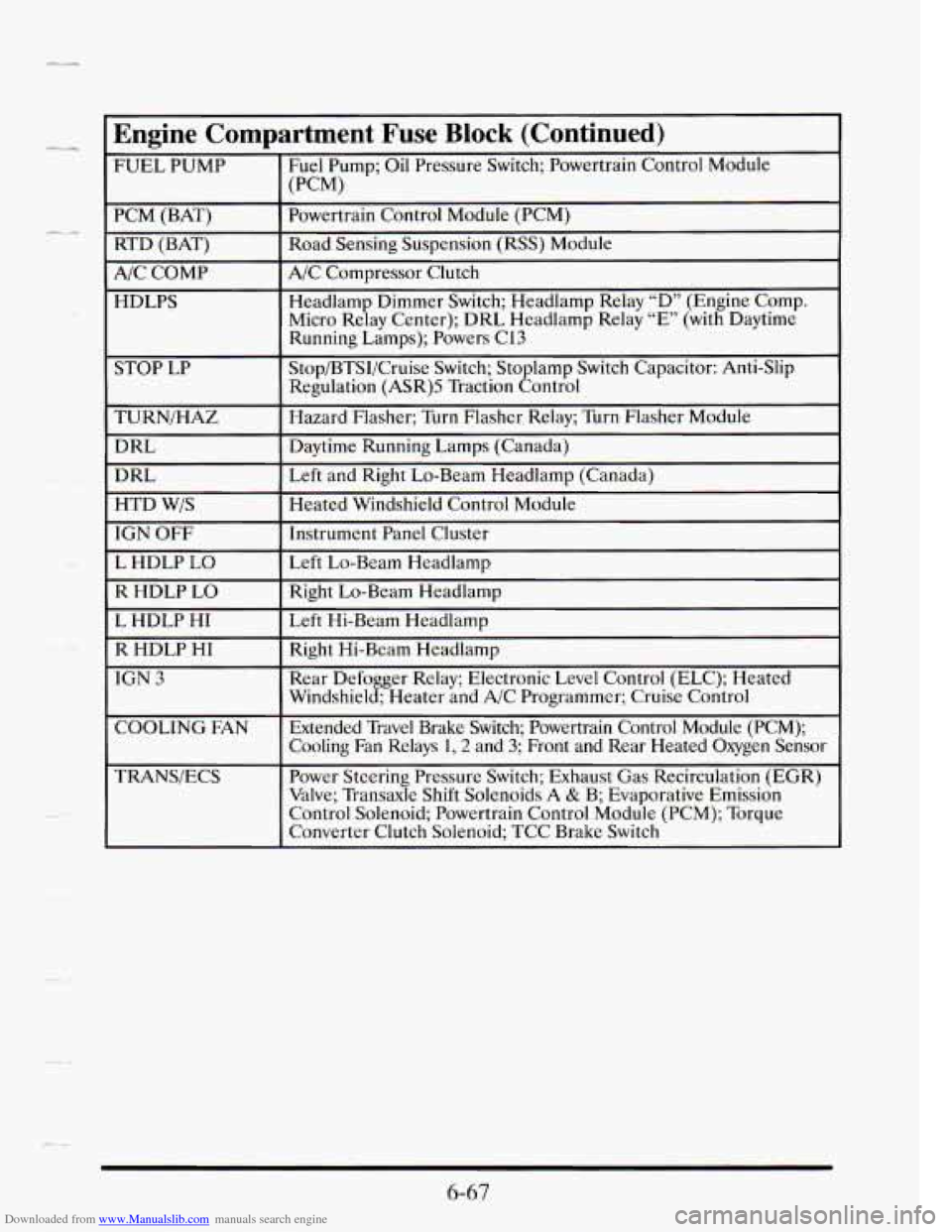

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block (Continued)
FUEL PUMP Fuel Pump; Oil
Pressure Switch; Powertrain Control Module
(PW
PCM (BAT)
Headlamp Dimmer Switch; Headlamp Relay “D” (Engine Comp.
HDLPS A/C
Compressor Clutch
A/C COMP Road Sensing
Suspension (RSS) Module
RTD (BAT) Powertrain Control
Module (PCM)
Micro Relay Center); DRL Headlamp Relay
“E” (with Daytime
Running Lamps); Powers C13
STOP LP Stop/BTSI/Cruise
Switch; Stoplamp Switch Capacitor: Anti-Slip
Regulation (ASR)S Traction Control
I
TURN/HAZ I Hazard Flasher; Turn Flasher Relay; Turn Flasher Module
DRL
Rear Defogger Relay; Electronic Level Control (ELC); Heated
IGN 3 Right Hi-Beam Headlamp
R HDLP HI Left Hi-Beam Headlamp
L HDLP
HI Right Lo-Beam Headlamp
R HDLP LO Left Lo-Beam Headlamp
L HDLP
LO
Instrument Panel Cluster IGN OFF
Heated Windshield Control Module
HTD W/S
Left and Right Lo-Beam Headlamp (Canada) DRL
Daytime
Running Lamps (Canada)
Windshield; Heater and
A/C Programmer; Cruise Control
COOLING
FAN Extended Travel Brake Switch; Powertrain Control Module (PCM); \
Cooling
Fan Relays 1,2 and 3; Front and Rear Heated Oxygen Sensor
TRANS/ECS Power
Steering Pressure Switch; Exhaust Gas Recirculation (EGR)
Valve; Transaxle Shift Solenoids
A & B; Evaporative Emission
Control Solenoid; Powertrain Control Module (PCM); Torque
Converter Clutch Solenoid; TCC Brake Switch
6-67

Downloaded from www.Manualslib.com manuals search engine c .-
0

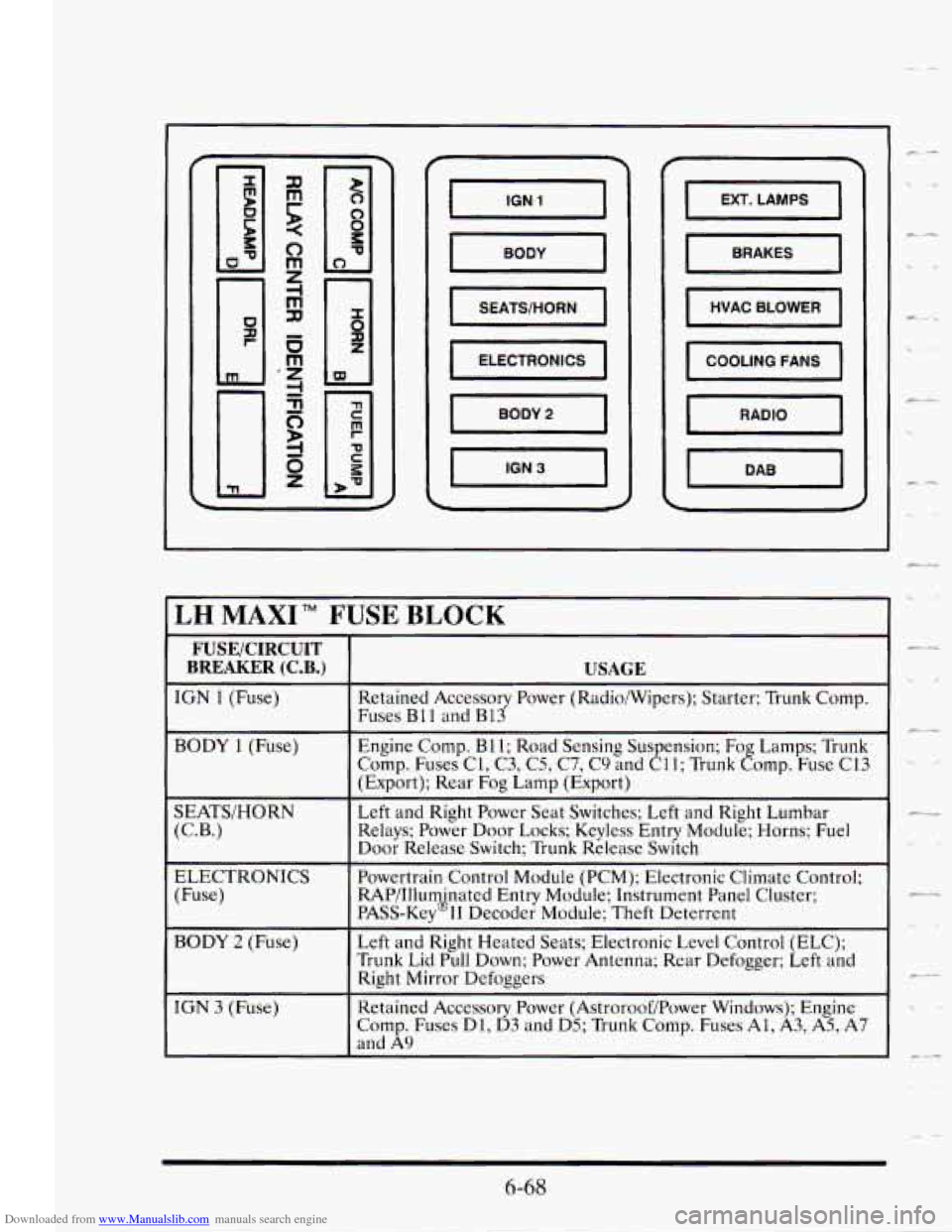

LH MAXI" FUSE BLOCK
FUSE/CIRCUIT I
BREAKER (C.B.) USAGE
IGN 1 (Fuse) Retained Accessory Power (Radiomipen); Starter; Trunk Comp.
Fuses
B 1 1 and B 13
BODY 1 (Fuse) Engine Comp. Bll; Road Sensing Suspension; Fog Lamps; Trunk
Comp. Fuses Cl, C3, C5, C7, C9 and C11; Trunk Comp. Fuse C13
(Export); Rear Fog Lamp (Export)
SEATS/HORN Left and Right Power Seat Switches; Left and Right \
Lumbar (C.B.) Relays; Power Door Locks; Keyless Entry Module; Horns; \
Fuel
ELECTRONICS Powertrain Control Module (PCM); Electronic Climate \
Control;
(Fuse) RAP/Illuminated Entry Module; Instrument Panel Cluster;
BODY 2 (Fuse) Left and Right Heated Seats; Electronic Level Control (ELC);
Door Release Switch;
Trunk Release
Switch
PASS-Key@% Decoder Module; Theft Deterrent
Trunk Lid Pull Down; Power Antenna; Rear Defogger; Left and
Right Mirror Defoggers
IGN 3 (Fuse) Retained Accessory Power (Astroroof/Power Windows); Engine
Comp. Fuses Dl, D3 and D5; Trunk Comp. Fuses Al, A3, A5, A7
and A9
6-68
c-
L.
c- -

Downloaded from www.Manualslib.com manuals search engine .--

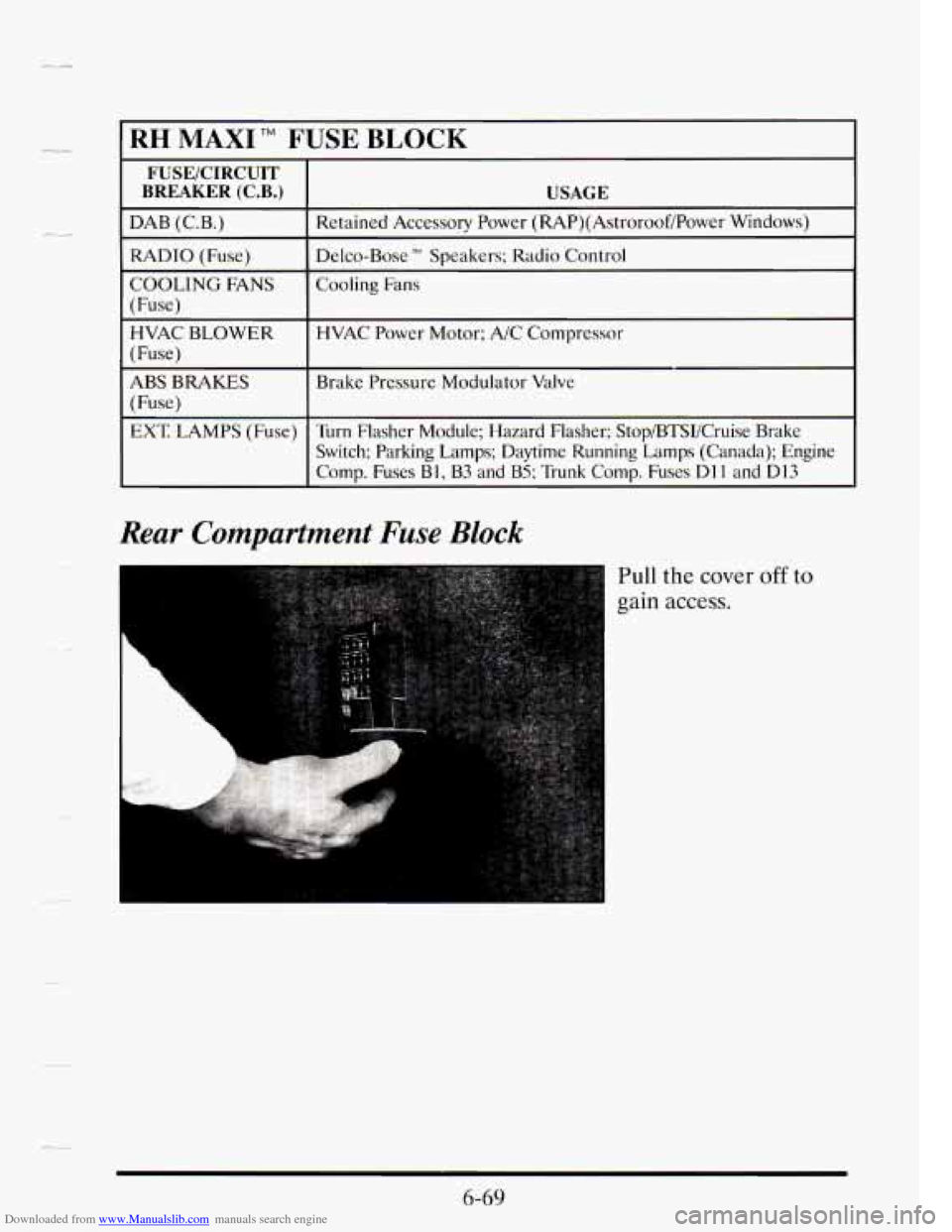

RH MAXI TM FUSE BLOCK
FUSE/CIRCUIT
BREAKER (C.B.) USAGE
DAB (C.B.) Retained Accessory Power (RAP)(Astroroof/Power Windows)
RADIO (Fuse) Delco-Bose Speakers;
Radio Control
COOLING
FANS
(Fuse)
Cooling Fans
HVAC BLOWER HVAC Power
Motor;
A/C Compressor
(Fuse)
ABS BRAKES Brake Pressure
Modulator Valve
(Fuse)
EXT LAMPS (Fuse) Turn Flasher Module; Hazard Flasher; Stop/BTSI/Cruise Brake
Switch; Parking Lamps; Daytime Running Lamps (Canada); Engine
Comp. Fuses B1,
B3 and B5; Trunk Comp. Fuses Dl 1 and Dl 3
Rear Compartment Fuse Block
Pull the cover off to
gain access.
