CADILLAC SEVILLE 1995 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine IGN 1 HDLP WASH SUSPENSION IPC (IGN) CNSL.W
, WIPER , , RAD (1GN) I , R DEFOG I , HTDMIRR I I IPC (BA rr), , THEFT , ,H!IACDABIE,
REARFOG FOGLP CNSL FAN CIGAR Bow 2 BODY 1 READ LP
000~000
L PRK LP R PRKLP RAD (BAT) ANt/TRK PLD RHTDSEAT LHTDSEAT

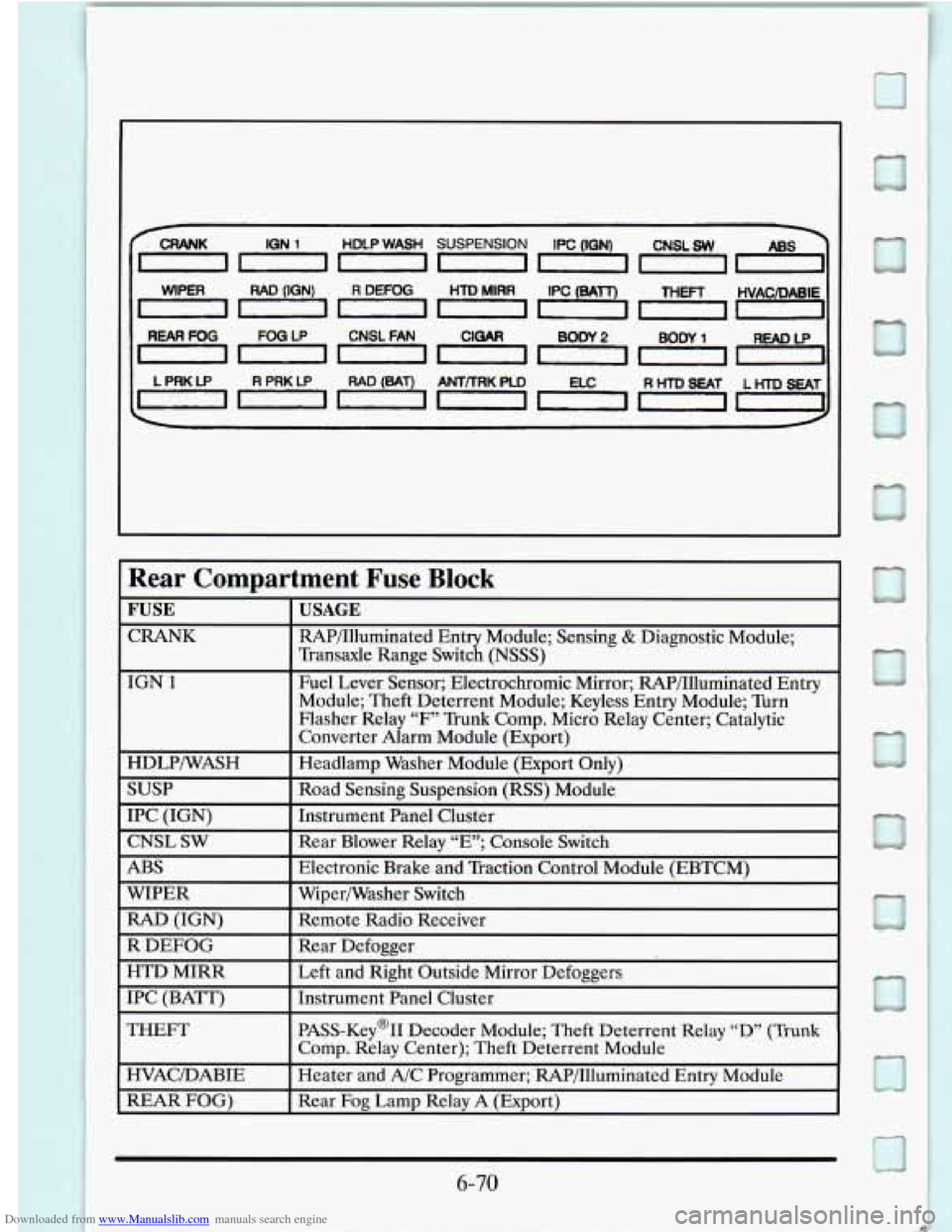

Rear Compartment Fuse Block
FUSE USAGE
CRANK RAP/Illuminated Entry Module; Sensing & Diagnostic Module;
IGN
1 Fuel Lever Sensor; Electrochromic Mirror; RAP/Illuminated Entry
Transaxle
Range Switch (NSSS)
Module: Theft Deterrent Module: Kevless Entrv Module; Turn
Flasher Relay
“F” Trunk Comp. Micr6 Relay C&ter;-Catalytic
Converter
Alarm Module (Export)
HDLPWASH Headlamp Washer Module (Export Only)
SUSP Road Sensing Suspension (RSS) Module
IPC (IGN) Instrument Panel Cluster
CNSL
SW Rear Blower Relay “E; Console Switch
ABS Electronic Brake and Traction Control Module (EBTCM)
WIPER Wipermasher Switch
RAD (IGN) Remote Radio Receiver
R DEFOG Rear Defogger
HTD MIRR Left and Right Outside Mirror Defoggers
IPC (BAn) Instrument Panel Cluster
THEFT PASS-Key@II Decoder Module; Theft Deterrent Relay “D” (Trunk
Como. Relav Center); Theft Deterrent Module
HVAC/DABIE Heater and
A/C Programmer; RAP/Illuminated Entry Module
REAR FOG) Rear Fog Lamp Relay A (Export)
,I
6-70

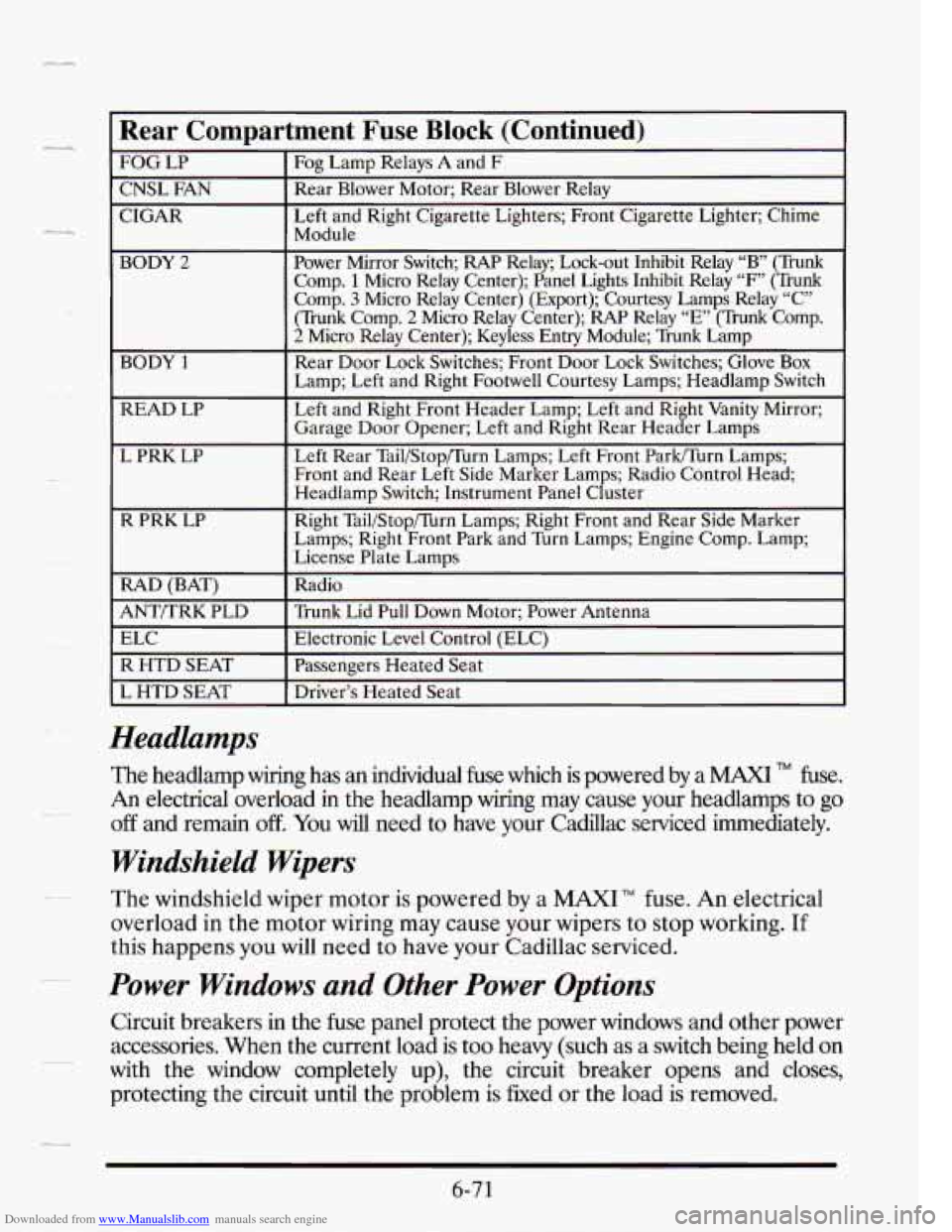

Downloaded from www.Manualslib.com manuals search engine wmpartment Fuse Block (Continued) 1
c-
I FOG LP
F
CNSL FAN
CIGAR
BODY
2
BODY 1
READ LP
L PRK LP
R PRK LP
RAD (BAT)
ANT/TRK PLD
ELC
R HTD
SEAT
L HTD SEAT r
Headlamps
Fog Lamp Relays A and F
Rear Blower Motor; Rear Blower Relay
Left and Right Cigarette Lighters; Front Cigarette Lighter; Chime
Module
Power Mirror Switch;
RAP Relay; Lock-out Inhibit Relay “B” (Trunk
Comp.
1 Micro Relay Center ; Panel Lights Inhibit Relay “F” (Trunk
Comp.
3 Micro Relay Center 1 (Export); Courtesy Lamps Relay “C”
(Trunk Comp.
2 Micro Relay Center); RAP Relay “E’ (Trunk Comp.
2 Micro Relay Center); Keyless Entry Module; Trunk Lamp
Rear Door Lock Switches; Front Door Lock Switches; Glove
Box
Lamp; Left and Right Footwell Courtesy Lamps; Headlamp Switch .- -
Left and Right Front Header Lamp; Left and Right Vanity Mirror;
Garage Door Opener; Left and Right Rear Header Lamps
- -
Left Rear Tail/Stop/Turn Lamps; Left Front Parkflurn Lamps;
Front and Rear Left Side Marker Lamps; Radio Control Head;
Headlamp Switch; Instrument Panel Cluster
Right Tail/Stop/Turn Lamps; Right Front and Rear Side Marker
Lamps; Right Front Park and Turn Lamps; Engine Comp. Lamp;
License Plate Lamps
Radio
Trunk Lid Pull Down Motor; Power Antenna
Electronic Level Control (ELC)
Passengers Heated Seat
Driver’s Heated Seat
The headlamp wiring has an individual fuse which is powered by a MAXI TM fuse.
An electrical overload in the headlamp wiring may cause your headlamps to go
off and remain off. You will need to have your Cadillac serviced immediately.
Windshield Wipers
The windshield wiper motor is powered by a MAXI fuse. An electrical
overload in the motor wiring may cause your wipers to stop working.
If
this happens you will need to have your Cadillac serviced.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other power
accessories. When the current load is too heavy (such as a switch being held on
with the window completely up), the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or the load is removed.
6-71

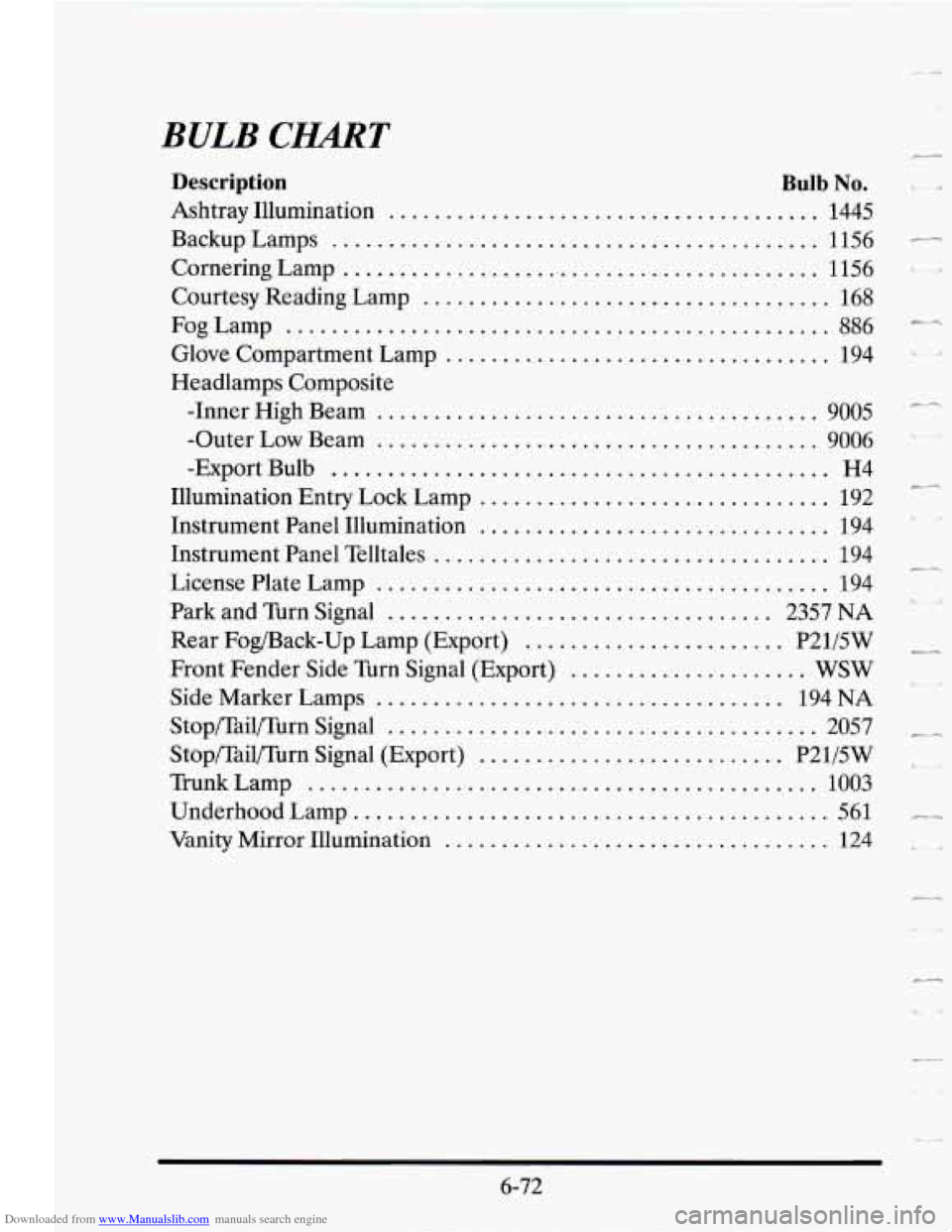

Downloaded from www.Manualslib.com manuals search engine BULB CHART
Description Bulb No.
Ashtray Illumination ...................................... 1445
BackupLamps
........................................... 1156
Cornering Lamp
.......................................... 1156
Courtesy Reading Lamp .................................... 168
FogLamp ................................................ 886
Glove Compartment Lamp .................................. 194
Headlamps Composite
-Inner High Beam
....................................... 9005
-Outer Low Beam
....................................... 9006
-Export Bulb
............................................ H4
Instrument Panel Illumination
............................... 194
Instrument Panel Telltales
................................... 194
License Plate Lamp
........................................ 194
Park and Turn Signal
.................................. 2357 NA
Rear Fog/Back-Up Lamp (Export) ....................... P21/5W
Front Fender Side Turn Signal (Export)
..................... WSW
Side Marker Lamps .................................... 194 NA
Stop/Tail/Turn Signal ...................................... 2057
Trunk Lamp ............................................. 1003
Underhood Lamp
.......................................... 561
Vanity Mirror Illumination
.................................. 124
Illumination Entry Lock Lamp ............................... 192
Stop/Tail/Turn Signal (Export) ........................... P21/5W
6-72

Downloaded from www.Manualslib.com manuals search engine r C' I

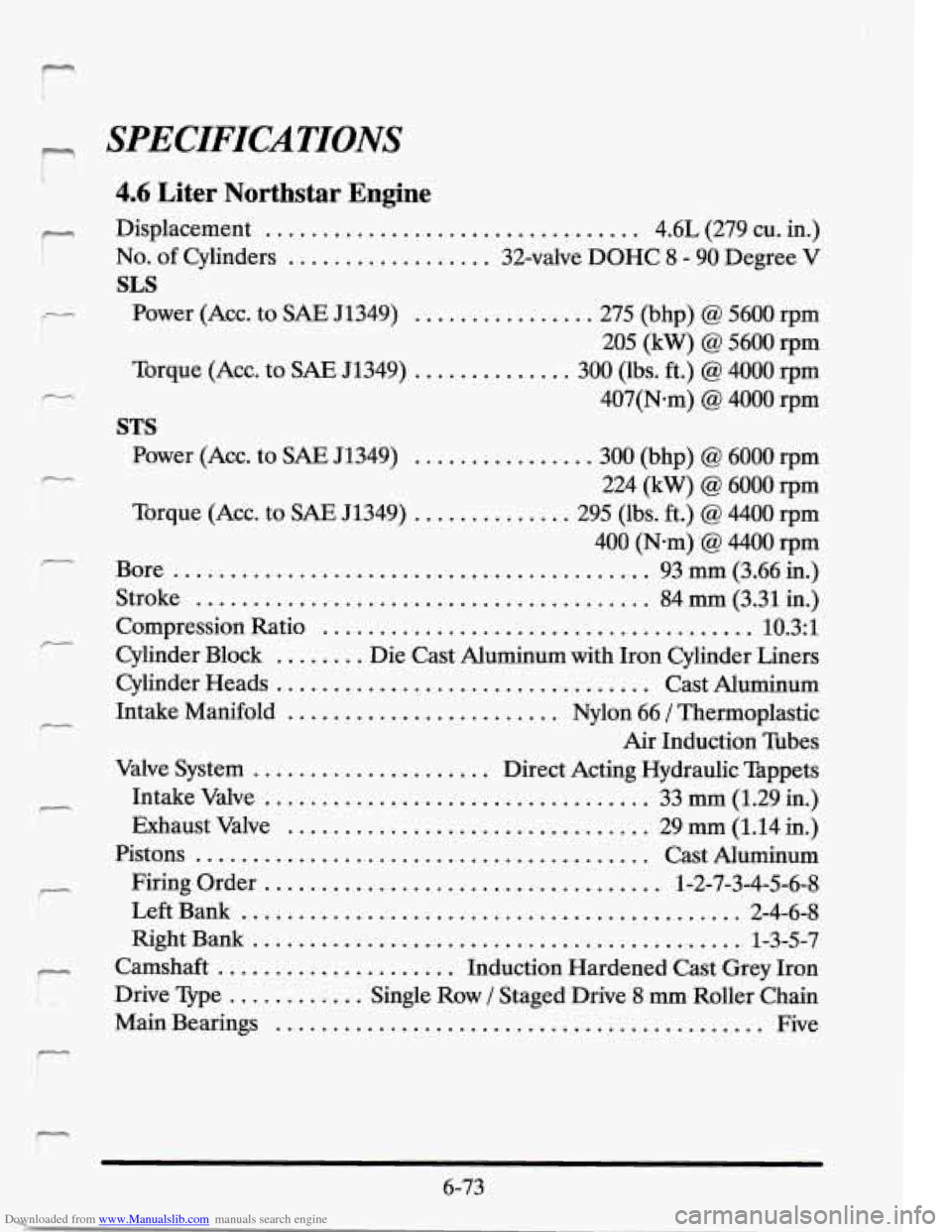

m SPECIFICATIONS
r
f- !
r
i
F
4.6 Liter Northstar Engine
Displacement ................................. 4.6L (279 cu. in.)
No.
of Cylinders .................. 32-valve DOHC 8 - 90 Degree V
SLS
Power (ACC. to SAE 51349) ................ 275 (bhp) @ 5600 rpm
205 (kW)
@ 5600 rpm
407(N.m) @ 4000 rpm
Torque
(ACC. to
SAE 51349) .............. 300 (lbs. ft.) @ 4000 rpm
Power (ACC. to
SAE 51349) ................ 300 (bhp) @ 6000 rpm
Torque (ACC. to
SAE J1349) .............. 295 (lbs. ft.) @ 4400 rpm
Bore
.......................................... 93 mm (3.66 in.)
Stroke
........................................ 84 mm (3.31 in.)
Compression Ratio
...................................... 10.3:l
Cylinder Block
........ Die Cast Aluminum with Iron Cylinder Liners
Cylinder Heads
................................. Cast Aluminum
Intake Manifold
........................ Nylon 66 / Thermoplastic
Valve System
..................... Direct Acting Hydraulic Tappets
Intake Valve
.................................. 33 mm (1.29 in.)
Exhaust Valve
................................ 29 mm (1.14 in.)
Pistons
........................................ Cast Aluminum
Firing Order
................................... 1-2-7-3-4-5-6-8
Left Bank
............................................ 2-4-6-8
Right Bank
........................................... 1-3-5-7
Camshaft ..................... Induction Hardened Cast Grey Iron
Drive Type
............ Single Row / Staged Drive 8 mm Roller Chain
Main Bearings
........................................... Five
STS
224 (kW) @ 6000 rpm
400 (N-m)
@ 4400 rpm
Air Induction Tubes
6-73

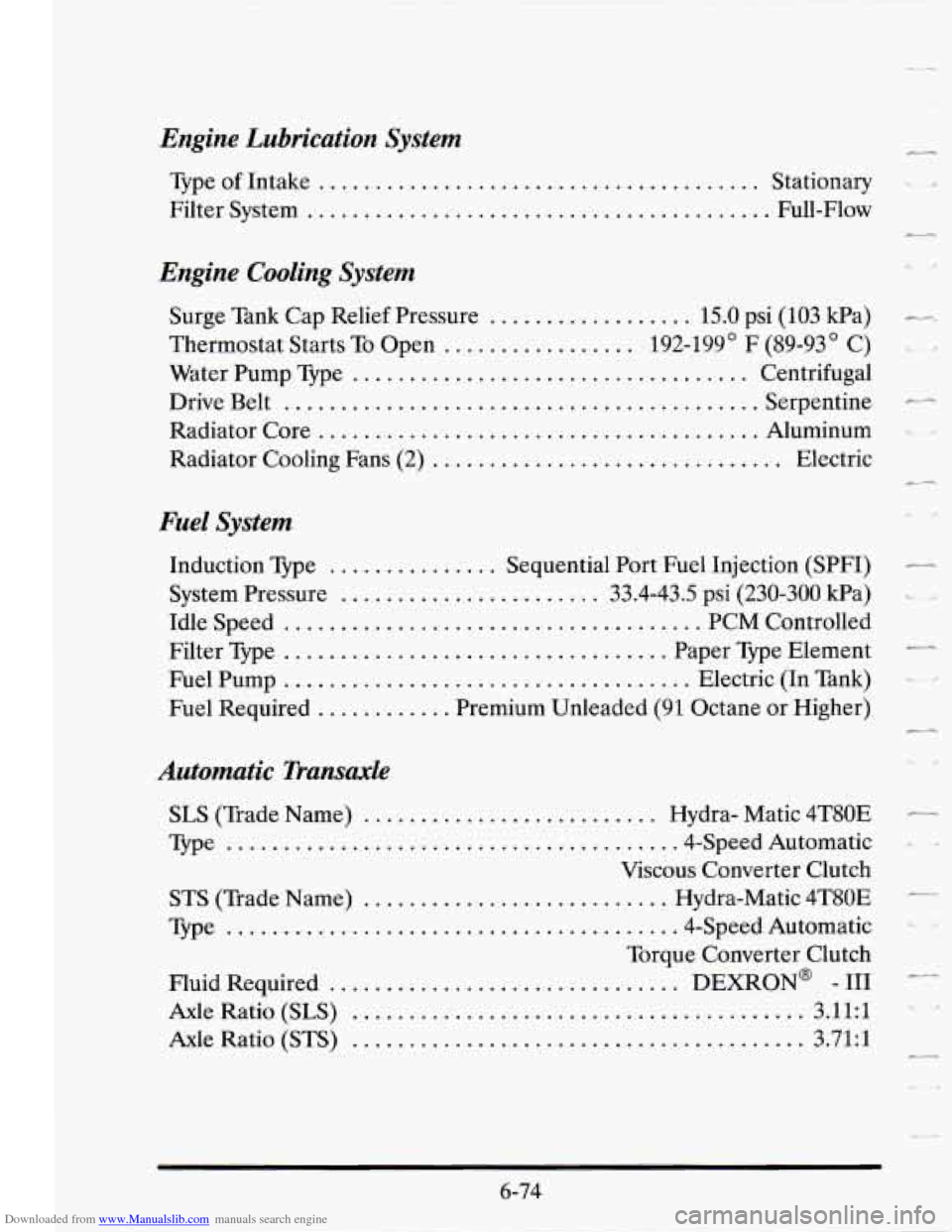

Downloaded from www.Manualslib.com manuals search engine Engine Lubrication System
Type of Intake ....................................... Stationary
Filter System
......................................... Full-Flow
Engine Cooling System
Surge Tank Cap Relief Pressure .................. 15.0 psi (103 kPa)
Thermostat Starts
To Open ................. 192-199" F (89-93' C)
Water Pump Type ................................... Centrifugal
Drive Belt
.......................................... Serpentine
Radiator Core
....................................... Aluminum
Radiator Cooling Fans
(2) ............................... Electric
Fuel System
Induction Type ............... Sequential Port Fuel Injection (SPFI)
System Pressure
....................... 33.4-43.5 psi (230-300 kPa)
Idle Speed
..................................... PCM Controlled
Filter Type
.................................. Paper Type Element
Fuel Pump
.................................... Electric (In Tank)
Fuel Required
............ Premium Unleaded (91 Octane or Higher)
Automatic Transaxle
SLS (Trade Name)
Type ............
STS (Trade Name)
Type
............
Fluid Required ...
Axle Ratio (SLS) .
Axle Ratio (STS) .
.......................... Hydra- Matic 4T80E
........................... .4-Speed Automatic
Viscous Converter Clutch
........................... Hydra-Matic 4T80E
........................... .4-Speed Automatic
Torque Converter Clutch
....................................... 3.11:l
....................................... 3.71:l
............................ DEXRON~ - 111
6-74
1
r

Downloaded from www.Manualslib.com manuals search engine Emission Control Systems
C.._
Exhaust Gas Recirculation ....................... Controlled Flow
Catalytic Converter ........................... Ceramic Monolith
Evaporative Emission Control
.................. Charcoal Canister
Crankcase Emission Control
........................... PCV Valve
Electronic System
......................... Open and Closed Loop
Exhaust System
Type ................................ Crossunder Pipe and Y Pipe
Muffler
........................................ Dual, Tri-Flow
Resonator
............................... Straight-Through Bottle
Exhaust Pipe
..................................... Stainless Steel
Intermediate Pipe
................................. Stainless Steel
Tail Pipe
......................................... Stainless Steel
Electrical System
Voltage ................................................... 12
Ground
.............................................. Negative
Alternator
........................................... 140Amp
Air Conditioning System
Refrigerant-R134a ............................... 2.0 lbs. (.91 kg)
Fluid Capacities
Transaxle (4T80E) ................................ .30 pts. (14 L)
Engine Oil with Filter Change ...................... 7.5 qts. (7.2 L)
Engine Cooling System .......................... 12.5 qts. (1 1.8 L)
Fuel Tank. ....................................... 20 gals. (76 L)
Power Steering ................................... 1.3 qts. (1.2 L)
Windshield Washer Reservoir ....................... 4.2 qts. (4.1 L)

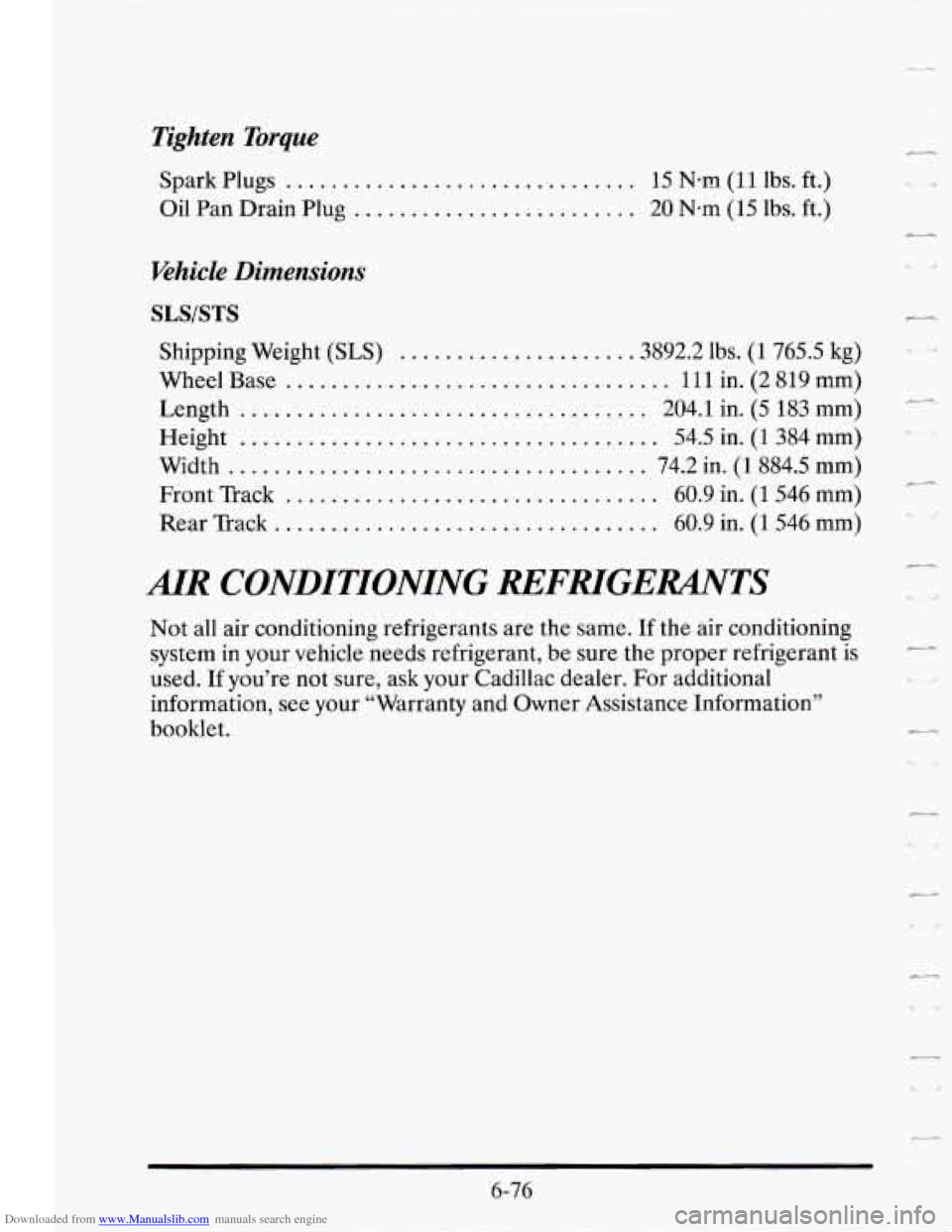

Downloaded from www.Manualslib.com manuals search engine Tighten Torque
Spark Plugs ............................... 15 Nm (11 lbs. ft.)
Oil Pan Drain Plug
......................... 20 N-m (15 lbs. ft.)
Vehicle Dimensions
SLSfSTS
Shipping Weight (SLS) .................... .3892.2 lbs. (1 765.5 kg)
Wheel Base
.................................. 111 in. (2 819 mm)
Length .................................... 204.1 in. (5 183 mm)
Height
..................................... 54.5 in. (1 384 mm)
Width
..................................... 74.2 in. (1 884.5 mm)
Front Track ................................. 60.9 in. (1 546 mm)
Rear Track
.................................. 60.9 in. (1 546 mm)
AIR CONDITIONING REFHGERANTS
Not all air conditioning refrigerants are the same. If the air conditioning
system in your vehicle needs refrigerant, be sure the proper refrigerant is
used.
If you’re not sure, ask your Cadillac dealer. For additional
information, see your “Warranty and Owner Assistance Information”
booklet.
6-76
r
L

Downloaded from www.Manualslib.com manuals search engine _4 NOW MNTENMCE REPLACEMENT
PARTS
-c
-_
Air Cleaner Element ........................... AC Type S1096C
25096932
Battery
................................................ 78A-72
1981590
Fuel Filter Element ............................ AC Type GF-580
25121468
25014377
PCVValve
................................... AC Type CV-774C
06487779
5614236
Serpentine Drive Belt
.................................. 3530814
6410665
3531407
Upper Radiator Hose
.................................. 3521504
Lower Radiator Hose
.................................. 3521505
Transaxle Screen Rt. Scavenger
.......................... 8679416
Engine
Oil Filter
................................ AC Type PF-58
Spark Plugs
.................................... AC Type 41-900
Surge Tank Cap
................................. AC Type RC 33
Thermostat
.................................... AC Type 131-66
Transaxle Screen Lt. Scavenger
........................... 8680700
Transaxle Pan Screws (16)
............................... 8682650
Transaxle Pan Gasket
................................... 8681 197

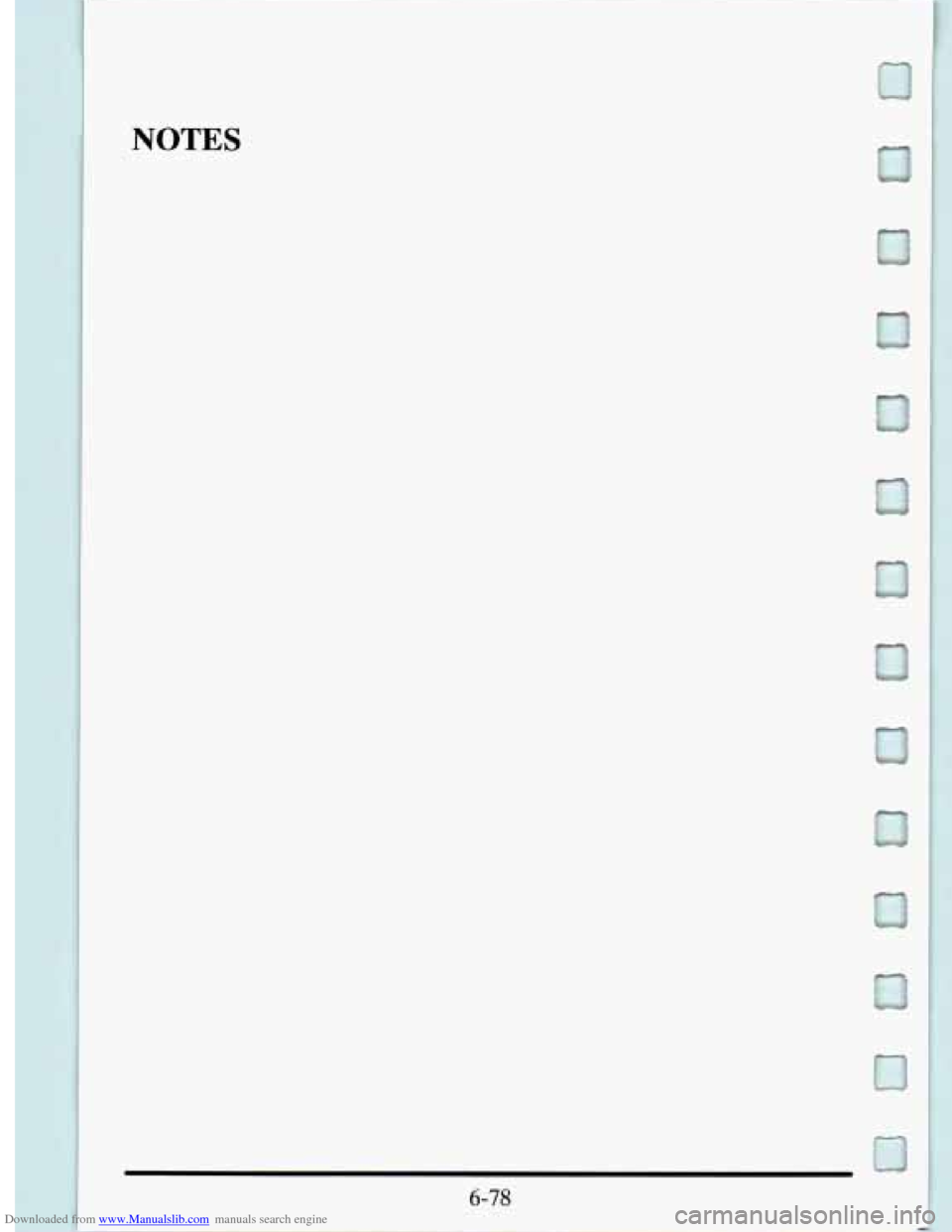

Downloaded from www.Manualslib.com manuals search engine NOTES
n
6-78

Downloaded from www.Manualslib.com manuals search engine I
r

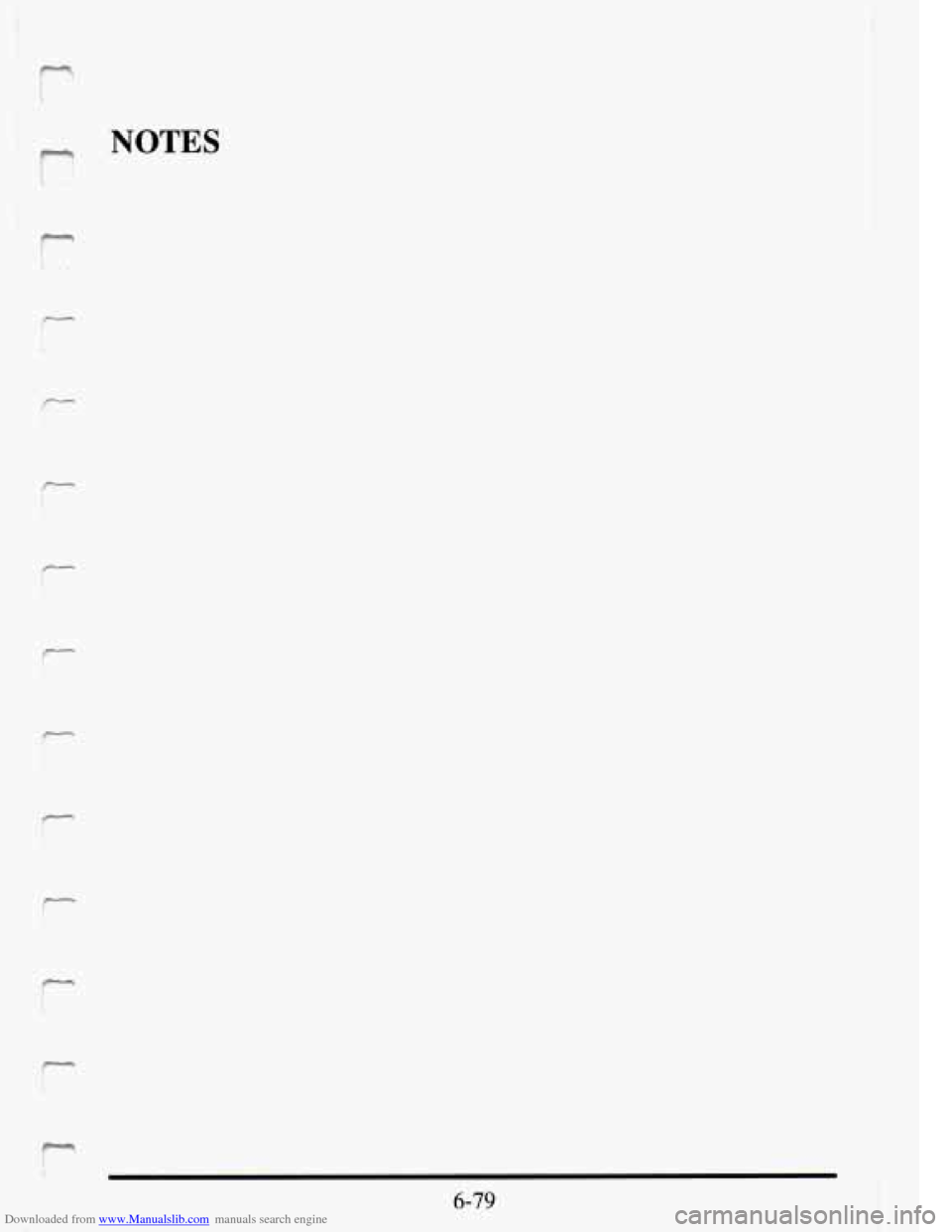

NOTES
6-79
