CADILLAC SEVILLE 1997 4.G User Guide
Manufacturer: CADILLAC, Model Year: 1997, Model line: SEVILLE, Model: CADILLAC SEVILLE 1997 4.GPages: 370, PDF Size: 20.52 MB
Page 11 of 370

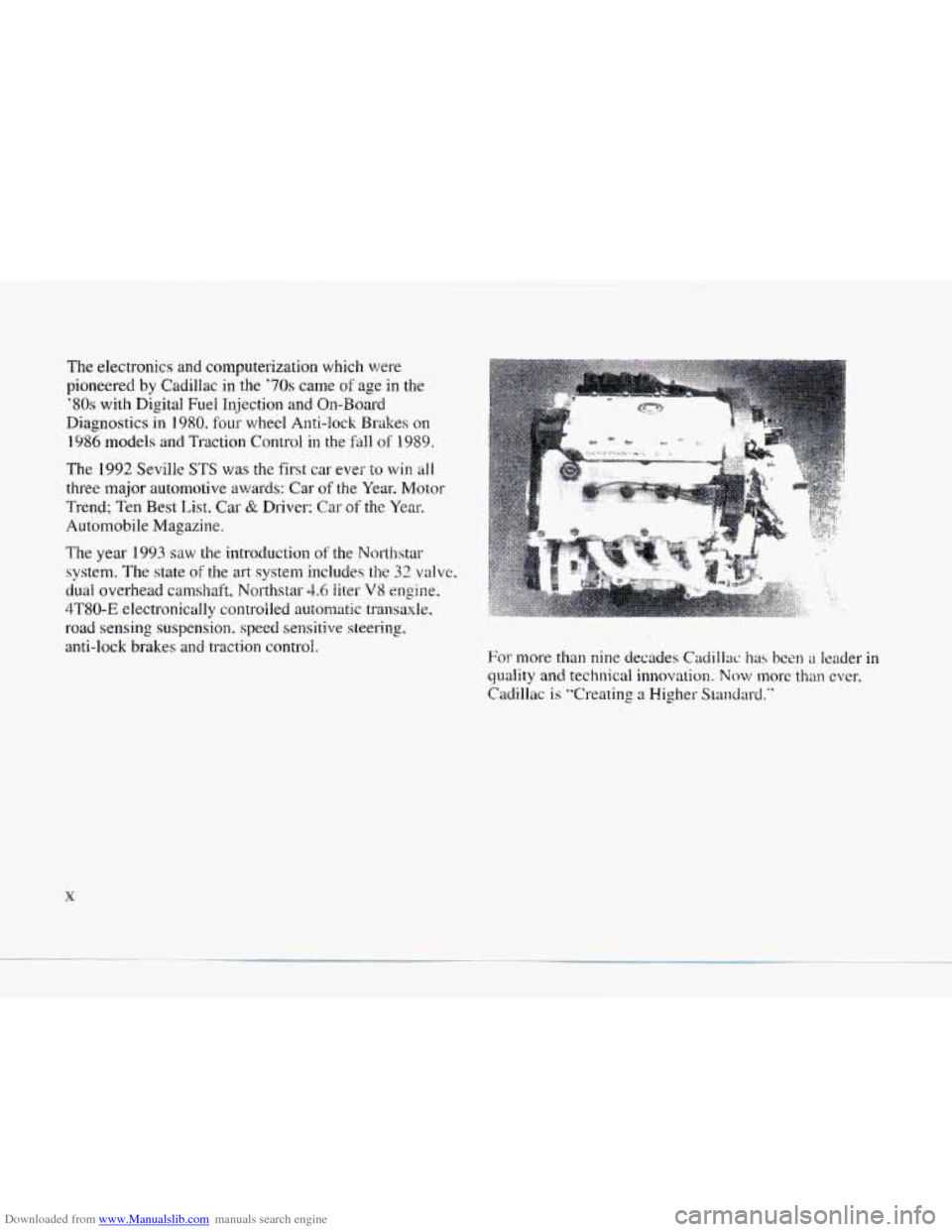

Downloaded from www.Manualslib.com manuals search engine The electronics and computerization which were
pioneered
by Cadillac in the '70s came of age in the
'80s with Digital Fuel Injection and On-Board
Diagnostics
in 1980, four wheel Anti-lock Brakes on
I486 models and Traction Control in the fdl of 1989.
The 1992 SevilIe S'TS was the first car ever to win all
three major automotive awards: Car of the Year. Motor
Trend; Ten Best I..& Car & Driver; Car of the Yeac
Automobile Magazine.
The year I993 saw the introduction of the Northstar.
system. The state
of the art system includes the 32 valve.
dual overhead camshaft, Northstar 4.6 liter VX engine.
47'80-E electronically controlled automatic transaxle.
road sensing suspension.
speed sensitive steering,
anti-lock brakes and traction control.
For inore than nine decades Cadillac has been a leader in
quality
and technical innovation. Now nlorc than ever.
Cadillac is
"Creating a Higher- Standard."
*-
x
Page 12 of 370
Downloaded from www.Manualslib.com manuals search engine r
r
r
r
r
r
r
r

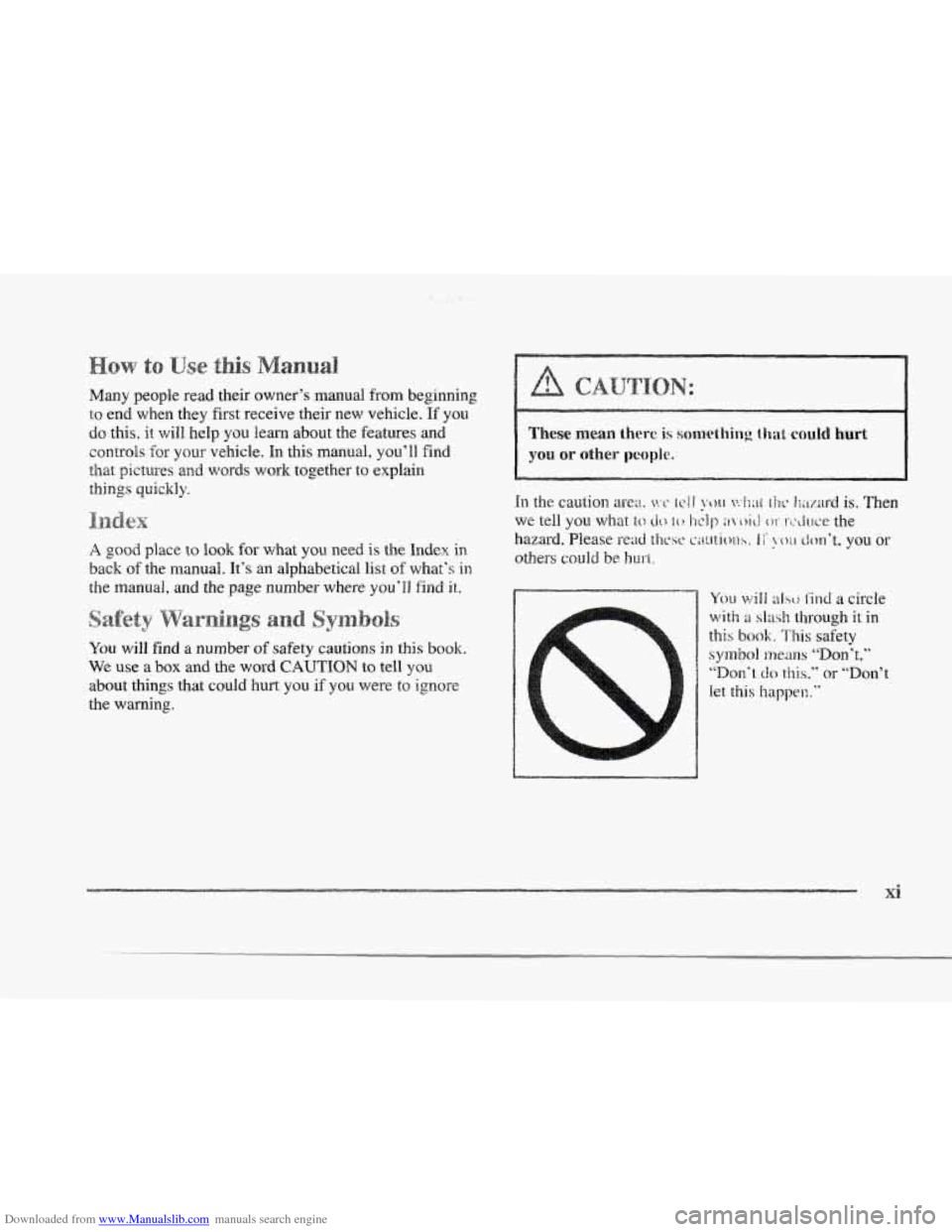

Many people read their owner’s manual from beginning
to end when they first receive their new vehicle.
If you
do this. it will help you learn about the features and
controls for your vehicle. In this manual, you’ll find
that pictures and words work together to explain
things quickly.
x
A good place to look for what you need is the Irldex in
back
of the manual. It’s an alphabetical list of what’s in
the manual, and the
page number where you’ll find it.
s s
You will find a number of safety cautions in this book.
We use a
box and the word CAUTION to tell you
about things that could hurt you if you were to ignore
the warning.
You will alw find a circle
with
a slash through it in
this
book. This safety
sylnbol mems “Don’t,”
“DQII’~ do this,” or “Don’t
let this happen.”
Xi
Page 13 of 370

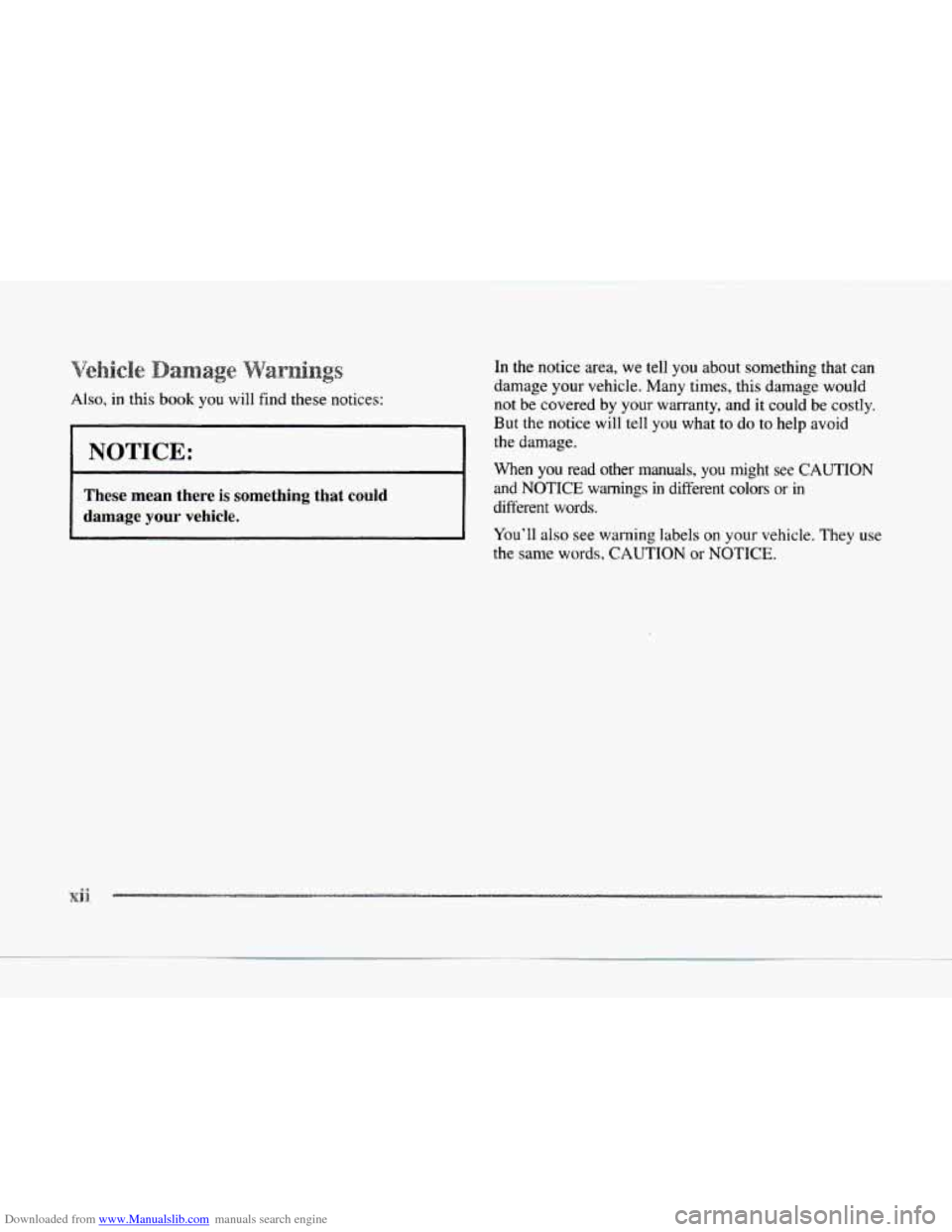

Downloaded from www.Manualslib.com manuals search engine ic e In the notice area, we tell you about something that can
damage your vehicle. Many times, this damage would
But the notice will
tell you what to do to help avoid
the damage.
and
NOTICE warnings in different colors or in
different words.
Also,
in this
book you will find these notices: not be covered by your warranty, and it could be costly.
NOTICE:
I When you read other mmuals, you might see CAUTION
These mean there is something that could
damage
your vehicle.
> You’ll also see warning labels on your vehicle. They use
the
same words, CAUTION or NOTICE.
Page 14 of 370
Downloaded from www.Manualslib.com manuals search engine c
c
c
c
c

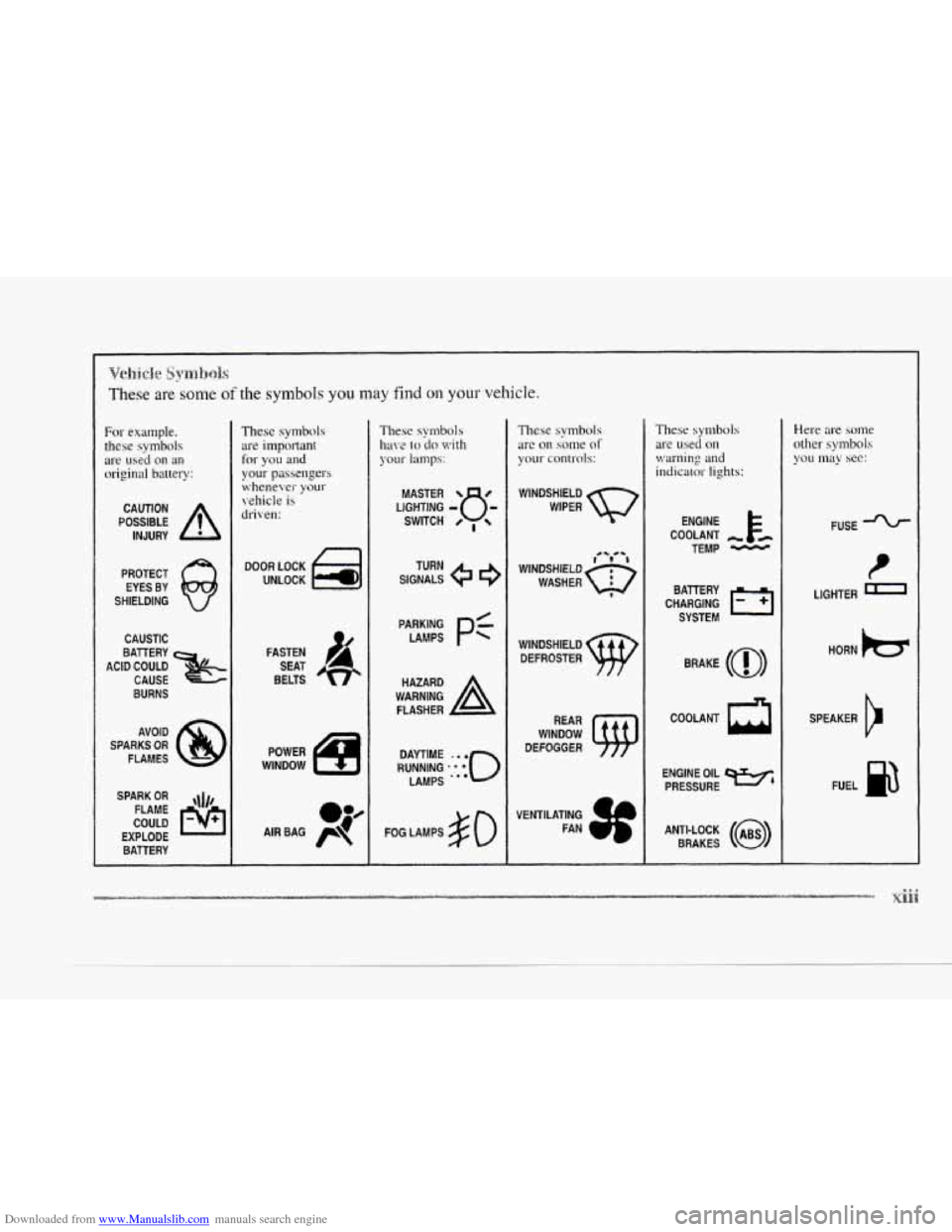

VeSnicle Synb&
These are some of the symbols you may find 011 your vehicle.
For example.
these symbols
are used on
an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES
BY
SHIELDING
CAUSTIC
ACID COULD
x
BATTERY
CAUSE
BURNS
SPARK
OR ,\I/,
COULD FLAME
EXPLODE BATTERY
These symbols
arc
important
for you and
your passengers
u:henever your
\.chicle is
driven:
n
DOOR LOCK
UNLOCK
FASTEN BELTS SEAT
.;$-
e;/
AIR
BAG f!! FOG
LAMPS # 0
These symbols
are
on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
DEFROSTER
VENTILATING FAN
These symbols
are used on
warning and
indicator lights:
COOLANT -
TEMP -
BRAKE (0)
COOLANT
a
ENGINE OIL w,
PRESSURE
ANTI-LOCK
(@)
BRAKES
Here are some
other symbols
you may see:
FUSE -%-
t
LIGHTER m
HORN kz7
SPEAKER
b
FUEL p3
Page 15 of 370
Downloaded from www.Manualslib.com manuals search engine -*
Page 16 of 370
Downloaded from www.Manualslib.com manuals search engine f
f 1.
I
r

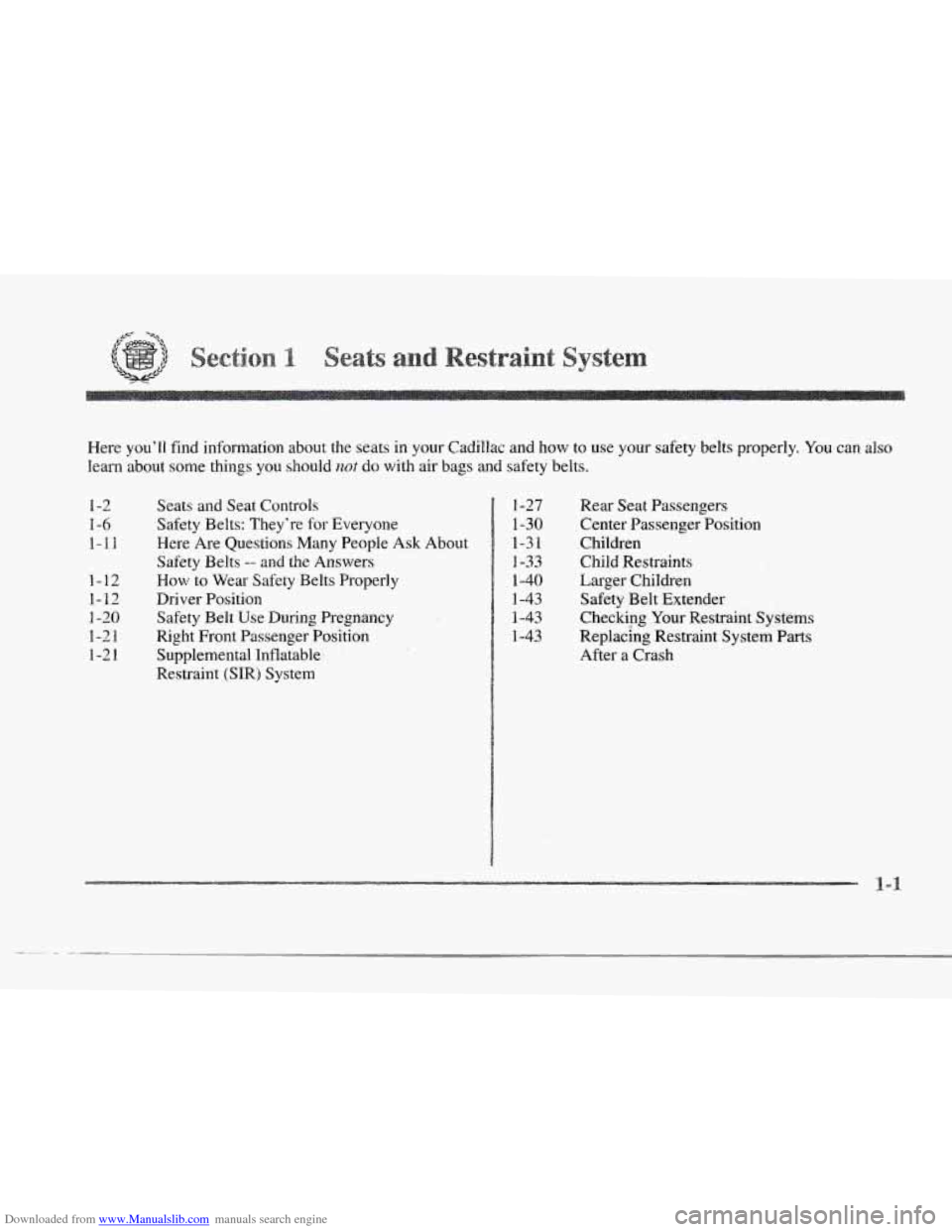

Here you'll find information about the seats in your Cadillac \
and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1-2
1-6
1-1 1
Seats and Seat Controls
Safety Belts: They're for Everyone
Here Are Questions Many People
Ask About
Safety Belts
-- and the Answers
1-12 How to Wear Safety Belts Properly
1-12 Driver Position
1-20 Safety Belt Use During Pregnancy
1-21 Right Front Passenger Position 1-2
1 Supplemental Inflatable
Restraint (SIR) System 1-27 Rear Seat Passengers
1-30 Center Passenger Position
1-3
1 Children
1-33 Child Restraints
1-40 Larger Children 1-43 Safety Belt Extender
' 1-43 Checking Your Restraint Systems
1-43 Replackg Restraint System Parts
After
a Crash
Page 17 of 370

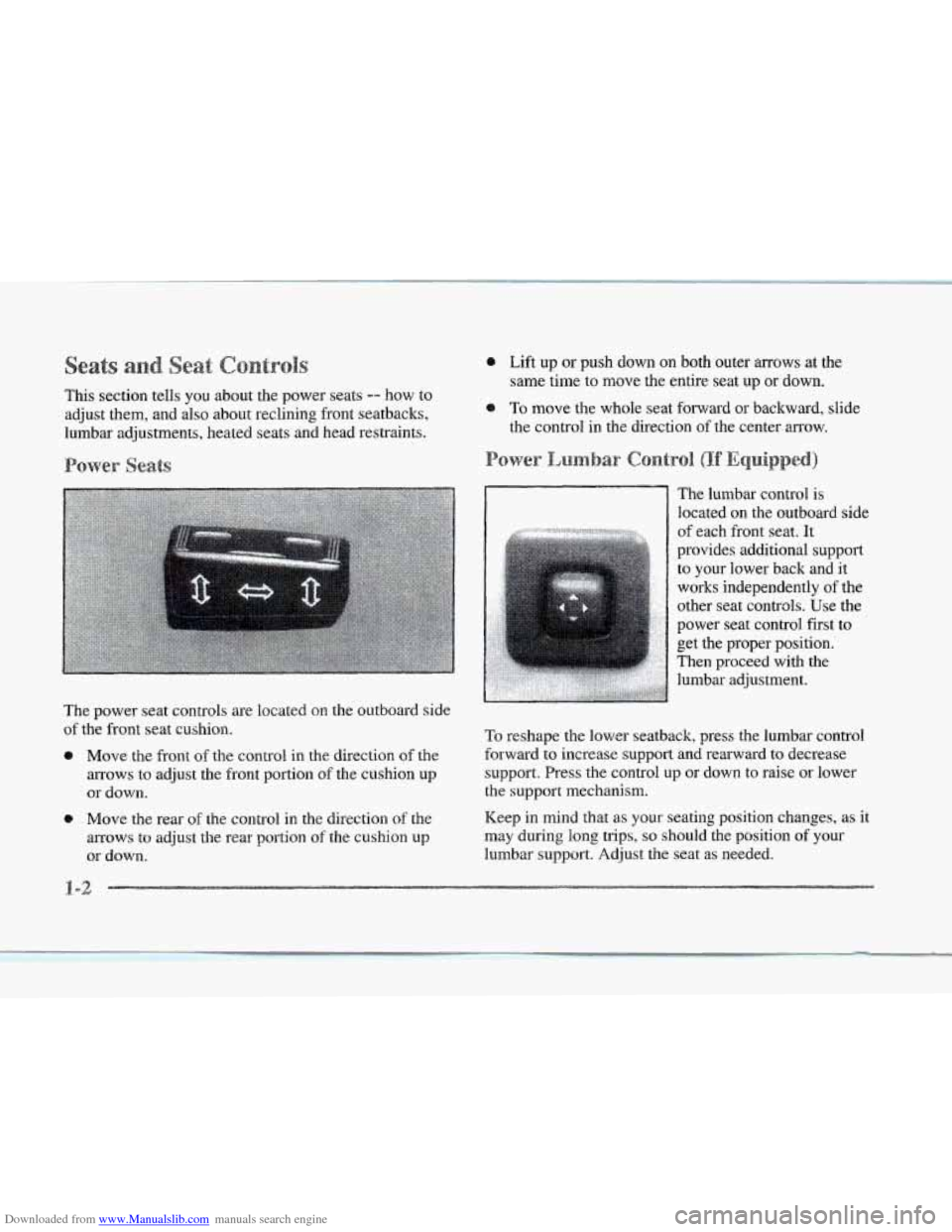

Downloaded from www.Manualslib.com manuals search engine This section tells you about the power seats -- how to
adjust them, and also about reclining front seatbacks,
lumbar adjustments, heated seats and head restraints.
The power seat controls are located
on the outboard side
of the front seat cushion.
0 Move the front of the control in the direction of the
arrows to adjust the front portion of the cushion up
or down.
Move
the rear of the control in the direction of the
arrows
to adjust the rear portion of the cushion up
or down.
@ Lift up or push down on both outer arrows at the
same time
to move the entire seat up or down.
0 To move the whole seat forward or backward, slide
the control in the direction of the center arrow.
The lumbar control is
located on the outboard side
of each front seat. It
provides additional
support
to your lower back and it
works independently
of the
other seat controls. Use the
power seat control first
to
get the proper position.
Then proceed with the
lumbar adjustment.
To reshape the lower seatback, press the lumbar control
forward to increase support and rearward to decrease
support. Press the control up or down to raise or lower
the support mechanism.
Keep in mind that
as your seating position changes, as it
may during long trips,
so should the position of your
lumbar support. Adjust the seat
as needed.
Page 18 of 370
Downloaded from www.Manualslib.com manuals search engine c
.-
c

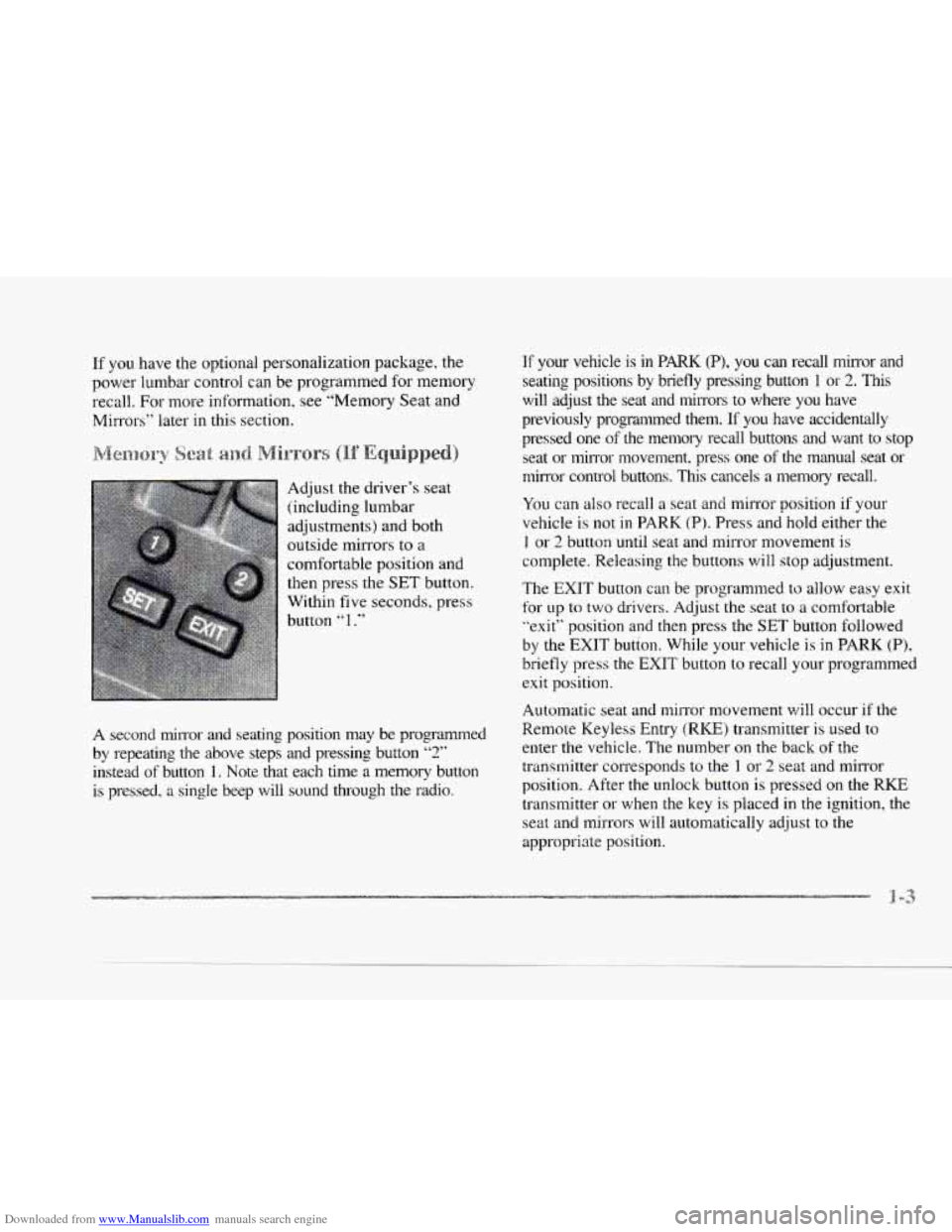

If you have the optional personalization package, the
power lumbar control can be programmed for memory
recall. For more information, see "Memory Seat and
Mirrors'' later in this section.
Adjust the driver's seat
(including lumbar
adjustments) and both
outside mirrors
to a
comfortable position and
then press the
SET button.
Within
five seconds, press
button
"1 ."
A second mi~ror and seating position may be programmed
by repeating the above steps and pressing button
"3''
instead of button 1. Note that each time a memory button
is pressed.
a single becp will sound through the radio.
If your vehicle is in PARK (P), you can recall mirror and
seating positions by briefly pressing button
1 or 2. This
will adjust the seat and nlirrors
to where you have
previously programmed them.
If you have accidentally
pressed one
of the memoly recall buttons and want to stop
seat or mirror movement, press one
of the manual seat or
mirror control buttons. This cancels a memory recall.
You can also recall a seat and mirror position if your
vehicle is
not in PARK (P). Press and hold either the
1 or 2 button until seat and mirror movement is
complete. Releasing the buttons will stop adjustment.
The
EXIT button can be programmed to allow easy exit
for up to
two drivers. Adjust the seat to a comfortable
"exit" position and then press the
SET button followed
by the
EXIT button. While your vehicle is in PARK (P).
briefly press the
EXIT button to recall your programmed
exit position.
Automatic seat and mirror movement will occur if the
Remote Keyless Entry (RKE) transmitter is used to
enter the vehicle. The number
on the back of the
transmitter corresponds to the
1 or 2 seat and mixl-or
position. After the unlock button is pressed on the
RKE
transmitter or when the key is placed in the ignition, the
seat and mirrors will automatically adjust to the
appropriate position.
Page 19 of 370

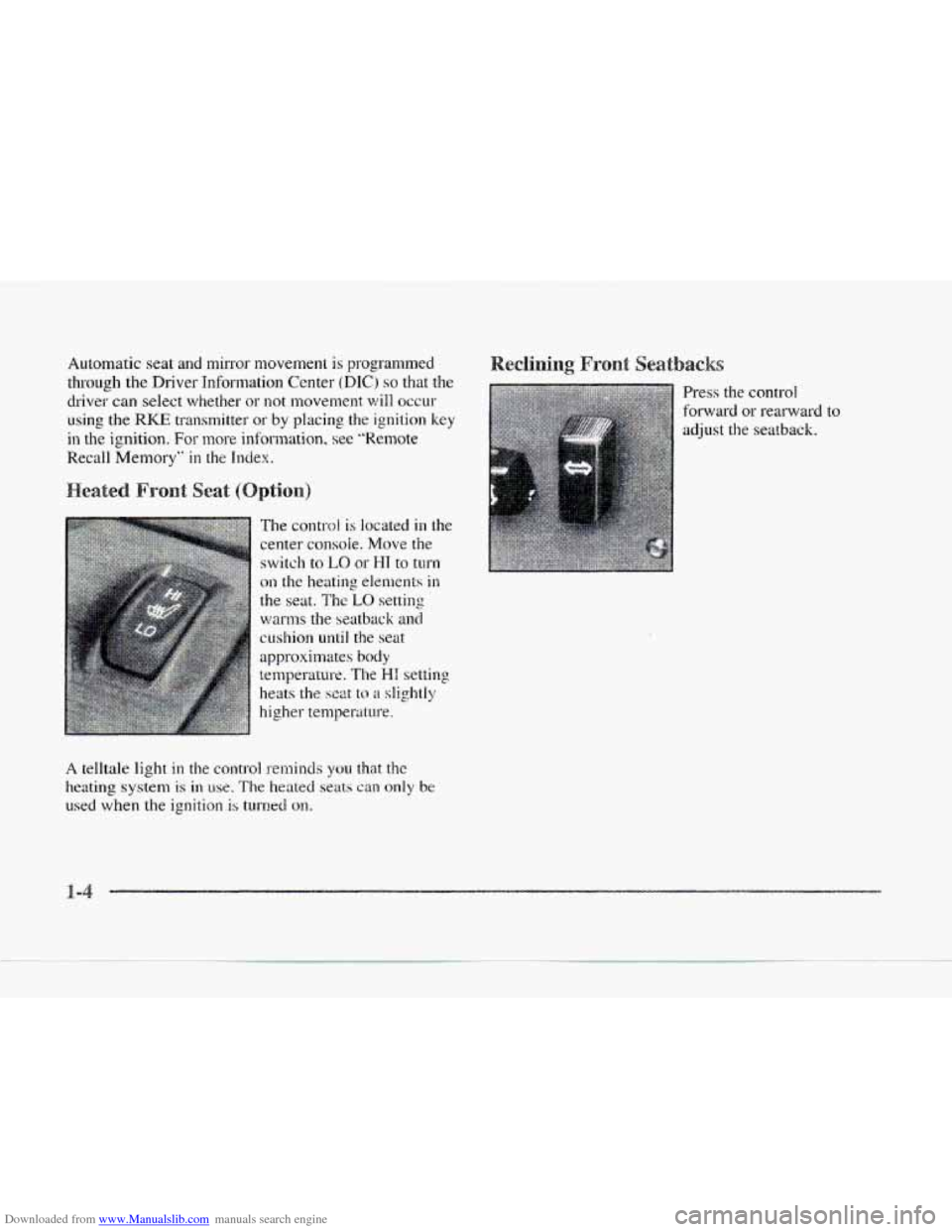

Downloaded from www.Manualslib.com manuals search engine Automatic seat and mirror movement is programmed
through the Driver Information Center
(DIC j so that the
driver can select whether or
not n~ove~nent will occur
using the RKE transmitter or by placing the ignition key
in the ignition. For more information, see "Remote
Recall Memory"
in the Index.
The control is located in the
center
console. Move the
switch
to LO or HI to turn
on the heating elements
in
the seat. The LO setting
warms the seatback and
cushion until the seat
A telltale light in the control reminds you that the
heating system
is in use. The heated seats can only be
used when the ignition is turned on.
Press the control
forward
or reatward
adjust the
seatback.
to
Page 20 of 370
Downloaded from www.Manualslib.com manuals search engine ; .. .
r
r c
F
r
r

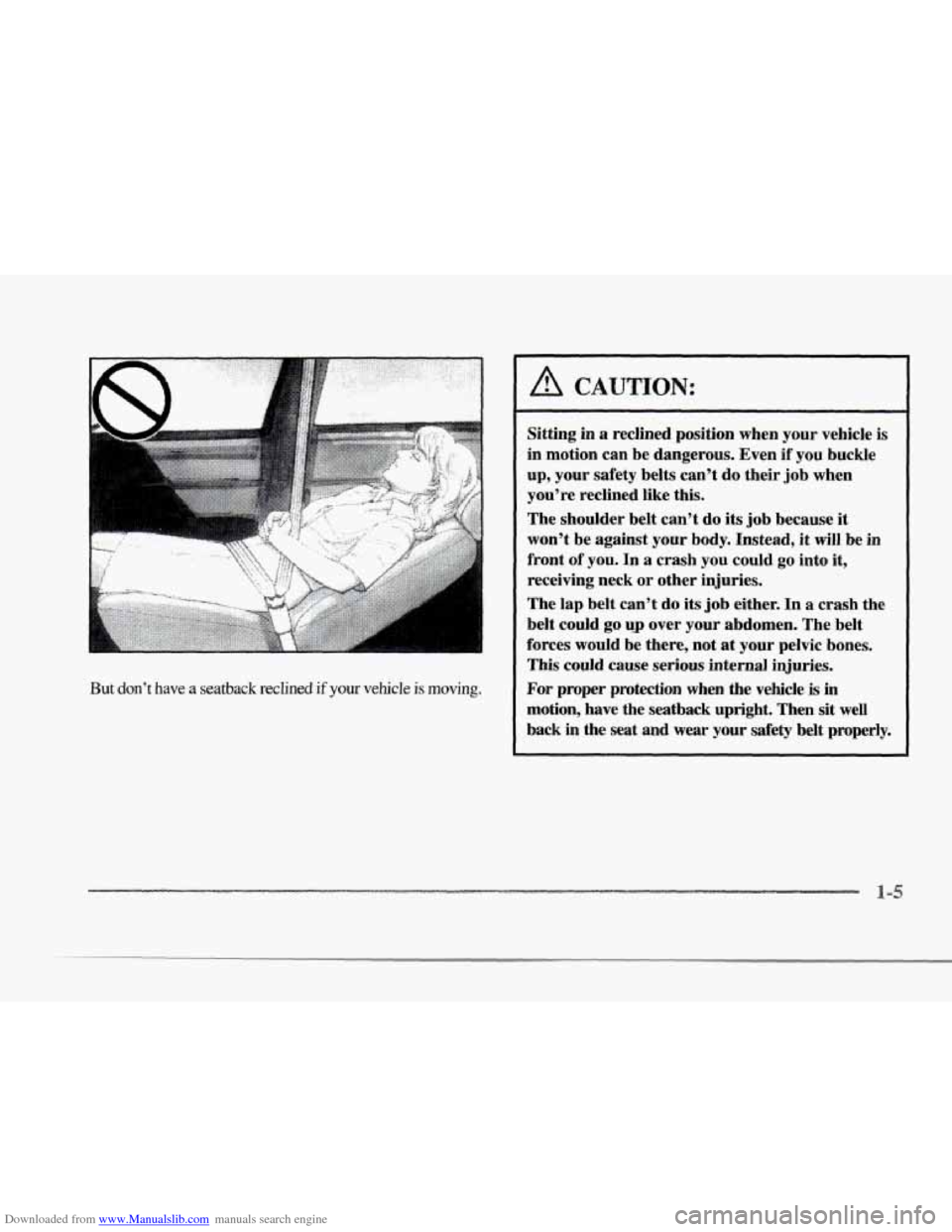

But don’t have a seatback reclined if your vehicle is moving.
A CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can’t
do their job when
you’re reclined like this.
The shoulder belt can’t
do its job because it
won’t be against your body. Instead, it will be in
front of
you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can’t do
its job either. In a crash the
belt could
go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back
in the seat and wear your safety belt properly.
