Page 161 of 371

2-94
CHECK FUEL GAGE - 50: This message will appear
when the fuel supply is less than 5 gallons (18.9 L) and
the display is turned off. A single chime will also sound
when this message is displayed.
CHECK GAS CAP
- 61: This message will appear if
the gas cap has not been fully tightened. You should
recheck your gas cap to ensure that it's fully tightened.
CHECK OIL LEVEL
- 36: For correct operation of
the low oil sensing system, your vehicle should be on a
level surface. A false CHECK OIL LEVEL message
may appear if the vehicle is parked on grades. The oil
level sensing system does not check for actual oil level
if the engine has been off for a short period of time, and
the oil level is never sensed while the engine is running.
If the CHECK OIL LEVEL message appears, and your
vehicle has been parked on level ground with the engine
off for at least 30 minutes, the oil level should be
checked by observing the oil dipstick. Prior to checking
the oil level, be sure the engine has been off for a few
minutes and your vehicle is on a level surface.
Then check the dipstick and add oil if necessary.
See ªEngine Oilº in the Index.CHECK TIRE PRESSURE
- 144: This message is
displayed when the Tire Pressure Monitor (TPM) system
detects a low or high tire pressure condition in one or
more of the road tires. By pressing the INFO button up
or down the DIC display will show which tire or tires do
not have the correct inflation pressure. A ªLOW TIREº
condition exists when the tire's air pressure is under
24 psi (165 kPa) and a ªHIGH TIREº condition exists
when the tire's air pressure is above 36 psi (248 kPa).
The system will display the air pressure, the tire location
(LF, RF, RR or LR) and if the air pressure is low or
high. The tire pressure information is available in
English or metric measurements. For example, a driver's
side front tire that is low may be shown as: 22 PSI LF
TIRE LOW.
The correct tire inflation pressure should be set to those
shown on the Tire Loading
-Information Label, located on
the rear edge of the driver's door. For more information
regarding proper tire inflation, see ªInflation
-- Tire
Pressureº in the Index. If a tire is low, you should stop
as soon as possible and inspect your tire(s) for damage.
If a tire is flat, see ªIf a Tire is Flatº in the Index.
Page 162 of 371

2-95
Once the TPM system detects the low or high tire
pressure condition, the message ªCHECK TIRE
PRESSUREº will be displayed whenever you start the
engine or the ignition is in the ON position. To remove
or clear the CHECK TIRE PRESSURE message, you
will need to set the tire(s) to the proper tire pressure.
See ªInflation
-- Tire Pressureº in the Index.

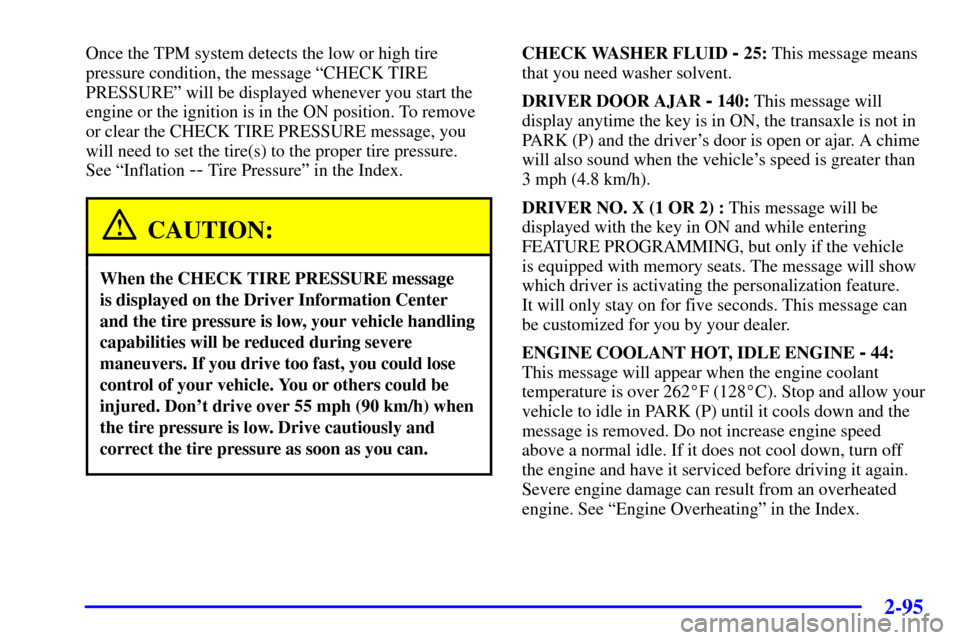

CAUTION:
When the CHECK TIRE PRESSURE message
is displayed on the Driver Information Center
and the tire pressure is low, your vehicle handling
capabilities will be reduced during severe
maneuvers. If you drive too fast, you could lose
control of your vehicle. You or others could be
injured. Don't drive over 55 mph (90 km/h) when
the tire pressure is low. Drive cautiously and
correct the tire pressure as soon as you can.
CHECK WASHER FLUID - 25: This message means
that you need washer solvent.
DRIVER DOOR AJAR
- 140: This message will
display anytime the key is in ON, the transaxle is not in
PARK (P) and the driver's door is open or ajar. A chime
will also sound when the vehicle's speed is greater than
3 mph (4.8 km/h).
DRIVER NO. X (1 OR 2) : This message will be
displayed with the key in ON and while entering
FEATURE PROGRAMMING, but only if the vehicle
is equipped with memory seats. The message will show
which driver is activating the personalization feature.
It will only stay on for five seconds. This message can
be customized for you by your dealer.
ENGINE COOLANT HOT, IDLE ENGINE
- 44:
This message will appear when the engine coolant
temperature is over 262F (128C). Stop and allow your
vehicle to idle in PARK (P) until it cools down and the
message is removed. Do not increase engine speed
above a normal idle. If it does not cool down, turn off
the engine and have it serviced before driving it again.
Severe engine damage can result from an overheated
engine. See ªEngine Overheatingº in the Index.
Page 163 of 371

2-96
ENGINE HOT-AC OFF - 16: This message displays
when the engine coolant becomes hotter than the normal
operating temperature. To avoid added strain on a hot
engine, the air conditioning compressor is automatically
turned off. When the coolant temperature returns to
normal, the A/C operation will automatically resume.
You can continue to drive your vehicle. If this message
continues to appear, have the system repaired as soon as
possible to avoid compressor damage.
ENGINE OVERHEATED, STOP ENGINE
- 42: This
message will appear when the engine has overheated.
Stop and turn the engine off immediately to avoid severe
engine damage. See ªEngine Overheatingº in the Index.
A multiple chime will also sound when this message
is displayed.
ENGINE POWER REDUCED
- 41: This message
informs you that the vehicle is reducing engine power
because the transaxle is being placed in gear under
conditions that may cause damage to the vehicle's
engine, transaxle or ability to accelerate.
FUEL LEVEL LOW
- 11 : This message serves as
a warning that the fuel level in the tank is critically low.
Stop for fuel soon. A single chime will also sound when
this message is displayed.HEADLAMPS SUGGESTED
- 23: If it's dark enough
outside and the headlamps and the Twilight Sentinel
controls are off, a HEADLAMPS SUGGESTED
message will display on the DIC. This message
informs the driver that turning on the exterior lamps is
recommended even though the Daytime Running Lamps
(DRL) are still illuminated. It has become dark enough
outside to require the headlamps and/or other exterior
lamps. This message will also appear if the optional
Rainsense wiping feature is on and the Twilight
Sentinel
is off.
ICE POSSIBLE
- 13: This message appears when
the outside air temperature is cold enough to create icy
road conditions.
LEFT REAR DOOR AJAR
- 142: The left rear door
is open or ajar when this message appears. The ignition
must be in ON and the transaxle not in PARK (P) for
this message to display. A chime will also sound when
the vehicle's speed is greater than 3 mph (4.8 km/h).
OIL PRESSURE LOW STOP ENGINE
- 35: If this
message appears while the engine is running, stop the
engine and do not operate it until the cause of low oil
pressure is corrected. Severe damage to the engine can
result. A multiple chime will also sound when this
message is displayed.
Page 164 of 371

2-97
PASSENGER DOOR AJAR - 141: The passenger's
door is open or ajar when this message appears.
The ignition must be in ON and the transaxle not in
PARK (P) for this message to display. A chime will
also sound when the vehicle's speed is greater
than 3 mph (4.8 km/h).
RIGHT REAR DOOR AJAR
- 143: The right
rear door is open or ajar when this message appears.
The ignition must be in ON and the transaxle not in
PARK (P) for this message to display. A chime will
also sound when the vehicle's speed is greater
than 3 mph (4.8 km/h).
SERVICE AC SYSTEM
- 14: This message appears
when the electronic sensors that control the air
conditioning and heating systems are no longer working.
Have the climate control system serviced if you notice a
drop in heating and air conditioning efficiency.
SERVICE AIR BAG
- 83: There is a problem with the
supplemental inflatable restraint (air bag) system when
this message appears. Let only a qualified technician
work on your vehicle. See your dealership for service
at once.SERVICE CHARGING SYS
- 102: This message
will display when a problem with the charging system
has been detected. Have your vehicle serviced at
your dealership.
SERVICE ELECTRICAL SYS
- 106: This message
will display if an electrical problem has occurred within
the Powertrain Control Module (PCM) or the ignition
switch. Have your vehicle serviced by your dealership.
SERVICE FUEL SYSTEM
- 101: The Powertrain
Control Module (PCM) has detected a problem within
the fuel system when this message appears. See your
dealership for service.
SERVICE IDLE CONTROL
- 107: A problem with
the idle control has occurred when this message displays.
Take your vehicle to your dealership for service.
SERVICE STABILITY SYS
- 54: If you ever see
the SERVICE STABILITY SYS message, it means
there may be a problem with your stability enhancement
system. If you see this message, try to reset the system
(stop; turn off the engine; then start the engine again).
If the SERVICE STABILITY SYS message still
comes on, it means there is a problem. You should see
your dealer for service. Reduce your speed and drive
accordingly. A single chime will also sound when this
message is displayed.
Page 165 of 371

2-98
STABILITY SYS ENGAGED - 55: You may see
the STABILITY SYS ENGAGED message on the
Driver Information Center. It means that an advanced,
computer
-controlled system has come on to help your
vehicle continue to go in the direction in which you're
steering. This stability enhancement system activates
when the computer senses that your vehicle is just
starting to spin, as it might if you hit a patch of ice or
other slippery spot on the road. When the system is on,
you may hear a noise or feel a vibration in the brake
pedal. This is normal.
When the STABILITY SYS ENGAGED message is on,
you should continue to steer in the direction you want to
go. The system is designed to help you in bad weather or
other difficult driving situations by making the most of
whatever road conditions will permit. If the STABILITY
SYS ENGAGED message comes on, you'll know that
something has caused your vehicle to start to spin,
so you should consider slowing down.
SERVICE STEERING SYS
- 127: This message
is displayed when a problem has been detected in the
Magnasteer
variable effort steering system. Service
is required.SERVICE SUSPENSION SYS
- 84: This message is
displayed to indicate that the suspension system is not
operating properly. To correct this problem, have your
vehicle serviced at your dealership.
SERVICE THEFT SYSTEM
- 34: This message
means there is a problem in the Personalized
Automotive Security System (PASS
-Key III).
A fault has been detected in the system which means
that the PASS
-Key III system is disabled and is not
protecting the vehicle. The vehicle usually restarts,
however, you may want to take your vehicle to a proper
service center before turning off the engine.
SERVICE TPM SYSTEM
- 51: When this message is
displayed, the Tire Pressure Monitor (TPM) system is
not working properly. See your dealer for service.
SERVICE TRANSMISSION
- 100: See your dealer
for repair.
SERVICE VEHICLE SOON
- 3: This message is
displayed when a non
-emissions related powertrain
malfunction occurs. Have your vehicle serviced by a
technician as soon as possible.
Page 166 of 371

2-99
SPEED LIMITED TO 90 - 113: A failure in the
suspension control system has occurred when this
message appears. The Powertrain Control Module
(PCM) determines the speed to which your vehicle
is limited. Have your vehicle serviced if this
message appears.
STARTING DISABLED REMOVE KEY
- 33: This
message will appear when the Personalized Automotive
Security System (PASS
-Key III) senses that an
improper ignition key is being used to try to start the
vehicle. Check the ignition key for damage. If it is
damaged, it may need to be replaced. If you see no
damage, remove the key and try to start the vehicle
again. If it still does not start, try another ignition key.
THEFT ATTEMPTED
- 40: This message is
displayed if the theft system has detected a break
-in
attempt while you were away from your vehicle.
TOP SPEED FUEL CUT
-OFF - 111 : This message
will appear when the Powertrain Control Module (PCM)
senses that the maximum speed for your vehicle has
been reached. The speed of your vehicle will surge as
the fuel supply is cut off. This allows your vehicle to
stay in a safe tire operating range. The top speed is set
based on the top speed rating of the tires.TRACTION ENGAGED
- 91: When your traction
control system is limiting wheel spin, the TRACTION
ENGAGED message will be displayed. Slippery road
conditions may exist if this message is displayed, so
adjust your driving accordingly. This message will stay
on for a few seconds after the traction control system
stops limiting wheel spin.
TRACTION OFF
- 89: This message will be displayed
after the traction control has been turned off by the
button on the center console.
TRACTION READY
- 90: This message informs
the driver that the traction control system is available.
This occurs when the traction control switch on the
console has been returned to ON (pressing the button
once turns the traction control system off: pressing the
button again turns the system back on). This message
will automatically disappear from the display after
five seconds.
TRACTION SUSPENDED
- 56: This message
displays when the traction control system has been
temporarily shut off because your vehicle's brakes have
overheated. This message does not indicate a problem
with your vehicle's traction control system. After a few
minutes, the traction control system will be available
again and the TRACTION READY message will appear.
Page 167 of 371

2-100
TRANS HOT IDLE ENGINE - 112: This message
indicates that the transaxle fluid in your vehicle is too
hot. Stop and allow your vehicle to idle until it cools
down or until this message is removed.
TRUNK OPEN
- 24: This message indicates that the
trunk is open when the ignition is on.
TURN SIGNAL ON
- 20: This message is a reminder,
after driving about a mile, that you have the turn signal
on. A multiple chime will also sound when this message
is displayed.
VEHICLE OVERSPEED
- 52: This message is
displayed when the vehicle speed exceeds a certain limit
as required by some export countries. A continuous
chime will also sound when this message is displayed.
Vehicle Programming and
Personalization Features
(If Equipped)
If your vehicle is equipped with personalization,
you can program certain features to a preferred setting
for up to two people. If your vehicle does not have
personalization, then some of the features on your
vehicle have been programmed for all drivers.
On all vehicles, certain features such as climate control
settings, radio preset settings, exterior lighting at
unlock, remote lock and unlock confirmation and
automatic door locks have already been programmed
for your convenience. If the vehicle is equipped with
Personalization, then the seat position, steering column
position (if equipped) and the outside mirror positions
can also be programmed. The navigation screen
preferences (if equipped) will remain at the last
set position.
Page 168 of 371

2-101
If your vehicle is equipped with personalization, the
driver's preferences are recalled by pressing the unlock
button on the Remote Keyless Entry (RKE) transmitter
or by pressing the appropriate memory button ª1º or ª2º
located on the driver's door. Certain features can be
programmed not to recall until the key is placed in the
ignition. To change feature preferences you must enter
FEATURE PROGRAMMING (see below).
Entering FEATURE PROGRAMMING
To begin programming, the ignition must be in ON
and your vehicle in PARK (P). If your vehicle has
memory, you must press the appropriate memory
button ª1º or ª2º, located on the driver's door panel
before programming. Press the INFO button one or
more times until the FEATURE PROGRAMMING
prompt appears on the DIC display. Press the ON/OFF
button to enter FEATURE PROGRAMMING. To exit,
press the INFO RESET button.
Remote Recall Memory (If Equipped)
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow
on the INFO button one or more times until the
REMOTE RECALL MEMORY prompt appears.
To turn the feature on, press the ON/OFF button
until ON is displayed on the DIC. The seat and mirror
memory settings that have been previously programmed
can be recalled by pressing the unlock button on the
RKE transmitter. The steering column will move when
the key is inserted in the ignition and turned to ON.
To turn the feature off, press the ON/OFF button
until OFF is displayed.
Key in Recall (If Equipped)
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the KEY IN
RECALL prompt appears on the DIC display. To turn
the feature on, press the ON/OFF button until ON
appears. The seat and mirror memory settings that
have been previously programmed will be recalled when
the key is inserted in the ignition. The power steering
column (if equipped) will move when the key is turned
to ON. To turn the feature off, press the ON/OFF button
until OFF appears.
Page 169 of 371

2-102
Auto Exit Seat (If Equipped)
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the AUTO
EXIT SEAT prompt shows on the DIC display. This
feature will move the seat to the driver's exit position
that was previously programmed when the ignition is
turned off and the driver's door is opened. To turn this
feature on, press the ON/OFF button until ON appears
on the DIC. To turn this feature off, press the ON/OFF
button until OFF shows.
Auto Exit Steering Wheel (If Equipped)
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the AUTO
EXIT STRG WHEEL prompt appears on the DIC
display. This feature will move the column to the
driver's previously stored exit position when the ignition
is turned off and the driver's door is opened.
Lights Flash at Unlock
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the LIGHTS
FLASH AT UNLOCK prompt appears. To turn this
feature on, press the ON/OFF button until ON is
displayed on the DIC. If all the doors are closed, the
parking lamps will flash twice when the unlock button
on the RKE transmitter is pressed. The lamps will not
flash if the manual parking lamps or headlamps are
active. To turn the feature off, press the ON/OFF button
until the OFF prompt appears.
This feature will not work if any door is open.
Lights Flash at Lock
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the LIGHTS
FLASH AT LOCK prompt appears on the DIC display.
To turn the feature on, press the ON/OFF button until
ON appears. If all the doors are closed, the parking
lamps will flash once when the lock button on the RKE
transmitter is pressed. The lamps will not flash if the
manual parking lamps are active. To turn the feature off,
press the ON/OFF button until OFF appears.
This feature will not work if any door is open.
Page 170 of 371

2-103
Horn Sounds at Lock
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the HORN
SOUNDS AT LOCK prompt appears on the DIC
display. To turn the feature on, press the ON/OFF button
until ON appears. If all the doors are closed, the horn
will sound once when the lock button on the RKE
transmitter is pressed. To turn the feature off, press the
ON/OFF button until OFF appears.
This feature will not work if any door is open.
Exterior Lights at Unlock
This personalization feature enables the driver to
program the exterior lamps to turn on or to remain off
when using the RKE transmitter to unlock the vehicle.
During dark or night conditions, if exterior lighting is
selected, the parking lamps, taillamps, reverse lamps,
high
-beam headlamps, etc. will turn on for about
20 seconds or until a door is opened, the key is turned
out of OFF or the RKE transmitter is used to lock
the vehicle.Enter FEATURE PROGRAMMING by following
the previous instructions and then press the
INFO button one or more times until the FEATURE
PROGRAMMING prompt appears on the DIC display.
Press the ON/OFF button to enter FEATURE
PROGRAMMING. To exit, press the INFO RESET
button. Press the down arrow on the INFO button one
or more times until the EXT LIGHTS AT UNLOCK
prompt appears.
To turn the feature on, press the ON/OFF button until
ON is displayed. To turn the feature off, press the
ON/OFF button until OFF is displayed.
Doors Lock in Gear
Enter FEATURE PROGRAMMING by following the
previous instructions and then press the down arrow on
the INFO button one or more times until the DOORS
LOCK IN GEAR prompt appears. This feature will
automatically lock all doors when the vehicle is shifted
out of PARK (P) and all the doors are closed. To turn the
feature on, press ON/OFF until ON is displayed on the
DIC. To turn the feature off, press ON/OFF until OFF
is displayed.
