3-12
SOURCE: Press this button to select a source. Sources
include cassette and compact disc. The audio source
must be loaded to play. Available loaded sources are
shown on the display. If a source is being used, it will be
underlined on the display. If none of the audio sources
are loaded, NO SOURCE LOADED will appear on the
display. Press this button again or press BAND to switch
back to the radio.
MUTE: Press this button to silence the system. Press it
again to turn on the sound.
Finding a Station
BAND: Press this button to select AM, FM1 or FM2.
TUNE SEEK: When this button is pressed it has
two positions. Press this button to the first position to
manually tune to higher or lower stations. If this button
is held at the first position for a few seconds, the radio
will continue tuning until this button is released. Press
this button to the second position and release to seek to
the next higher or lower radio station.
SCAN: Press this button for less than two seconds to
scan radio stations and associated tone settings. The
radio will go to a station, stop for five seconds, then
go on to the next station. Press this button again to
stop scanning.PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press BAND to select AM, FM1 or FM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered buttons for
more than two seconds until you hear a beep.
Whenever you press that numbered button for less
than two seconds, the station you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied, you
will not have to reset your radio presets because the
radio remembers them.
PRESET SCAN: Press and hold SCAN for more than
two seconds until you hear a beep to listen to each of
your preset stations for five seconds. The radio will go
to the first preset station stored on your pushbuttons,
stop for five seconds, then go on to the next preset
station. Press SCAN again to stop scanning. If a preset
station has weak reception, the radio will not stop at the
preset station.

3-13
Setting the Tone
TONE: Press and release this button until the desired
tone control (BASS, TREBLE or MIDRANGE) is
found. The radio keeps separate tone settings for each
band, each preset and each source.
LEVEL: After selecting the desired tone control, press
the plus (+) or minus (
-) symbol on this button to select
the desired level.
To save the tone settings for your presets, press and hold
the numbered button for the desired preset for more than
two seconds until you hear a beep.
Adjusting the Speakers
SPEAKER: Press and release this button until the
desired BALANCE or FADE control is found.
LEVEL: After selecting the desired BALANCE or
FADE control, press the plus (+) or minus (
-) symbol
on this button to select the desired level.
Playing a Cassette Tape
With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted. When one side of
your cassette tape is done playing, auto reverse plays theother side of your cassette tape. Cassette tapes may be
loaded with the radio off but they will not start playing
until the radio is on. If you want to insert a cassette tape
when the ignition is off, first press the eject button.
While the tape is playing, use the VOL, TONE, LEVEL,
and SPEAKER controls just as you do for the radio.
Other controls may have different functions when a tape
is inserted. The display will show an underlined tape
symbol. TAPE PLAY will appear on the display when a
tape is playing, with an arrow to indicate which side of
the tape is playing.
If an error occurs while trying to play a cassette tape, it
could be that:

The cassette tape is tight and the cassette player
cannot turn the hubs of the tape. Hold the cassette
tape with the open end down and try turning the right
hub counterclockwise with a pencil. Flip the tape
over and repeat. If the hubs do not turn easily, your
cassette tape may be damaged and should not be
used in the player. Try a new tape to be sure your
player is working properly.

The cassette tape is broken. (Check to see if your
tape is broken. Try a new tape.)

3-14
RW: Press the left arrow to rewind the tape rapidly.
The radio will play while the tape rewinds. You may use
your station pushbuttons to tune to another radio station
while in RW mode. Press the left arrow again to return
to playing speed.
FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances.
You may use your station pushbuttons to tune to another
radio station while in FF mode. Press the right arrow
again to return to playing speed.
TUNE SEEK: When this button is pressed, it has two
positions. This button works the same, whether it is
pressed to the first or second position. Press this button
to seek to the next or previous selection on the tape.
Your tape must have at least three seconds of silence
between each selection for TUNE SEEK to work. The
sound will mute while seeking.
SCAN: Press this button to listen to selections for a few
seconds. The tape will go to a selection, stop for a few
seconds, then go on to the next selection. Press this
button again to stop scanning.
SIDE: Press this button to change the side of the tape
that is playing. EJECT: Press the upward triangle button to the
right of the cassette tape player to remove a tape. The
radio will play. Eject may be activated with the radio off
and/or the ignition off.
CLEAN TAPE: If this message appears on the display,
the cassette tape player needs to be cleaned. It will still
play tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you clean
the player, press and hold the eject button for three
seconds to reset the CLEAN TAPE indicator.
Your cassette tape player automatically reduces
background noise. Dolby Noise Reduction is
manufactured under a license from Dolby Laboratories
Licensing Corporation. Dolby and the double
-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
Auto CrO
2 allows the cassette tape player to adjust
to the type of cassette tape for clearer sound for
CrO
2 cassette tapes.

3-15
Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will pull it in. If the ignition and the radio are on
and the underlined compact disc symbol appears on the
display, the disc will begin playing. Compact discs may
be loaded with the radio off but they will not start
playing until the radio is on. If you want to insert a disc
when the ignition is off, first press the eject button.
The integral CD player can play the smaller 8 cm
compact discs. Full
-size compact discs and the smaller
compact discs are loaded in the same manner.
If you're driving on a very rough road or if it's very
hot, the disc may not play. If the disc comes out, it could
be that:

The disc is upside down.

It is dirty, scratched or wet.

The air is very humid. (If so, wait about an hour and
try again.)
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.RW: Press and hold the left arrow to reverse the
compact disc. Release it to return to playing speed.
FF: Press and hold the right arrow to fast forward to
another part of the compact disc. Release it to return to
playing speed.
TUNE SEEK: When this button is pressed, it has
two positions. This button works the same, whether it
is pressed to the first or second position. Press this
button to seek to the next or previous selection on the
compact disc.
SCAN: Press this button to listen to selections for a few
seconds. The compact disc will go to a selection, stop
for a few seconds, then go on to the next selection. Press
this button again to stop scanning.
RDM: Press this button to hear the tracks in random,
rather than sequential, order. Press RDM again to turn
off random play.
EJECT: Press the upward triangle button to the
right of the CD player to remove a compact disc. The
radio will play. Eject may be activated with the radio off
and/or the ignition off.

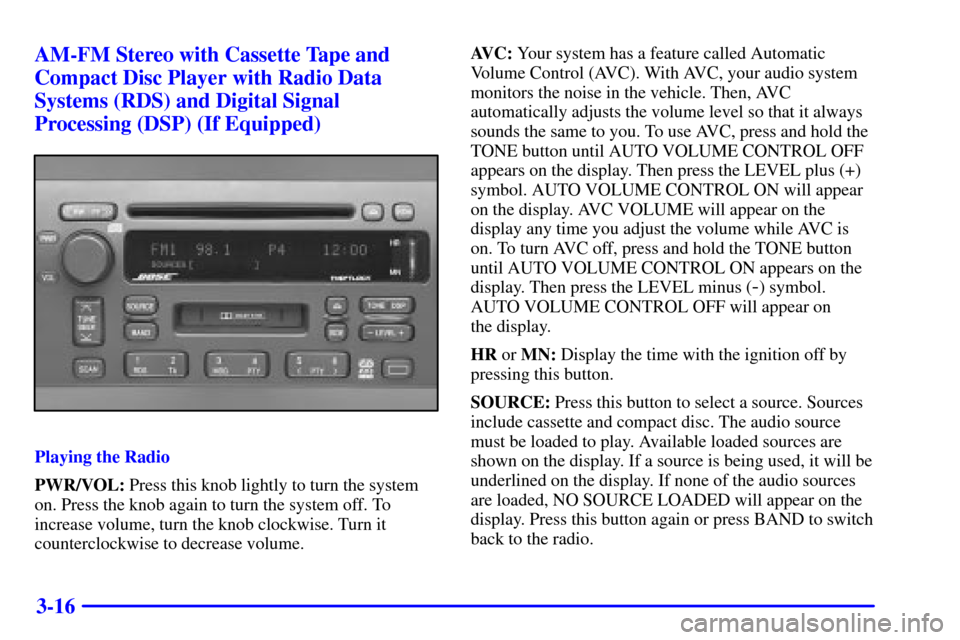

3-16 AM-FM Stereo with Cassette Tape and
Compact Disc Player with Radio Data
Systems (RDS) and Digital Signal
Processing (DSP) (If Equipped)
Playing the Radio
PWR/VOL: Press this knob lightly to turn the system
on. Press the knob again to turn the system off. To
increase volume, turn the knob clockwise. Turn it
counterclockwise to decrease volume.AVC: Your system has a feature called Automatic
Volume Control (AVC). With AVC, your audio system
monitors the noise in the vehicle. Then, AVC
automatically adjusts the volume level so that it always
sounds the same to you. To use AVC, press and hold the
TONE button until AUTO VOLUME CONTROL OFF
appears on the display. Then press the LEVEL plus (+)
symbol. AUTO VOLUME CONTROL ON will appear
on the display. AVC VOLUME will appear on the
display any time you adjust the volume while AVC is
on. To turn AVC off, press and hold the TONE button
until AUTO VOLUME CONTROL ON appears on the
display. Then press the LEVEL minus (
-) symbol.
AUTO VOLUME CONTROL OFF will appear on
the display.
HR or MN: Display the time with the ignition off by
pressing this button.
SOURCE: Press this button to select a source. Sources
include cassette and compact disc. The audio source
must be loaded to play. Available loaded sources are
shown on the display. If a source is being used, it will be
underlined on the display. If none of the audio sources
are loaded, NO SOURCE LOADED will appear on the
display. Press this button again or press BAND to switch
back to the radio.

3-17
Finding a Station
BAND: Press this button to select AM, FM1, FM2
or weather.
TUNE SEEK: When this button is pressed it has two
positions. Press this button to the first position to
manually tune to higher or lower stations. If this button
is held at the first position for a few seconds, the radio
will continue tuning until this button is released. Press
this button to the second position and release to seek to
the next higher or lower radio station.
SCAN: Press this button for less than two seconds to
scan radio stations. The radio will go to a station, stop
for five seconds, then go on to the next station. Press
this button again to stop scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations and associated tone
and DSP settings. The RDS PTY mode must be off to
use this mode. You can set up to 24 stations (six AM,
six FM1, six FM2 and six weather). Just:
1. Turn the radio on.
2. Press BAND to select AM, FM1, FM2 or weather.3. Tune in the desired station.
4. Press and hold one of the six numbered buttons for
more than two seconds. Whenever you press that
numbered button for less than two seconds, the
station you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied, you
will not have to reset your radio presets because the
radio remembers them.
PRESET SCAN: Press and hold SCAN for more than
two seconds until you hear a beep to listen to each of
your preset stations for five seconds. The radio will go
to the first preset station stored on your pushbuttons,
stop for five seconds, then go on to the next preset
station. Press SCAN again to stop scanning. If a preset
station has weak reception, the radio will not stop at the
preset station.

3-18
Using RDS Mode
Your audio system is equipped with Radio Data Systems
(RDS). RDS mode gives you many useful new features.
When RDS is on, the radio can:

seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies,

receive and display messages from radio stations and

search for a stronger station when a station is too
weak for listening.
RDS features are only available for use on FM stations
which broadcast RDS information.
RDS SELECT: Press this button to use the
alternate RDS functions (RDS, TA, MSG, PTY and

PTY) located on the six numbered pushbuttons.
RDS SELECT: will appear on the display. The alternate
RDS functions are only available when you are using
the FM band of your radio.RDS (1): With RDS off, press the RDS SELECT button,
followed by this button to turn RDS on. The RDS
display will turn on. You must have RDS on to use the
new RDS functions. The RDS display will also turn on
if one of the other RDS function buttons has been
pressed on. If you are tuned to a station broadcasting
RDS information, the station's call letters and Program
Type (PTY) will replace the station's frequency on the
display. After five seconds, the program type will be
replaced on the display by the station's program type
name. The program type and program type name may be
the same or different. Press BAND to recall the
frequency and program type displays. If the radio is
tuned to a station that is not broadcasting RDS
information, the station's frequency will remain on the
display. While RDS is on, the radio will search for a
stronger station in the network when a station gets too
weak for listening. Press the RDS SELECT button,
followed by this button again to turn RDS off. All RDS
functions will be turned off.

3-19
REGION: You can also use the RDS button to access
the region function. When an RDS station becomes
weak, this function searches for a stronger station within
the same network. A network can span a great distance.
One network can have stations spread across a country
or continent. Each network breaks down into regions.
With regions, local news items like weather and traffic
are available to you. When the region function is on, the
radio only searches for stations in the same network and
region. You can only use the region function when
RDS is already on. Press the RDS SELECT button.
Then press and hold the RDS button for two seconds.
REGION: ON will appear on the display. While
REGION: ON appears on the display, press the RDS
button again to turn the region function off. REGION:
OFF will appear on the display. The region function can
be turned on again by pressing the RDS button.
TA (2): Press the RDS SELECT button, followed by
this button to receive traffic announcements. The radio
will turn on the TA display. TP will appear on the
display if the tuned station broadcasts traffic
announcements. You may also receive traffic
announcements from stations in the network related to
the tuned station. If the current tuned station does not
broadcast traffic announcements, the radio will seek to astation which does. When the radio finds a station which
broadcasts traffic announcements, it will stop. If no
station is found, NONE FOUND will appear on the
display and the TA icon will turn off. When SEEK or
SCAN is pressed with the traffic announcement function
on, the radio will only stop at stations which broadcast
traffic announcements.
While a traffic announcement plays, the radio uses a
special type of volume called TA volume. To increase
TA volume, turn the PWR/VOL knob clockwise.
Turn it counterclockwise to decrease volume. TA
VOLUME will appear on the display while the volume
is being adjusted.
When a traffic announcement comes on the tuned radio
station or a related network station, you will hear it,
even if the volume is muted or a cassette tape or
compact disc is playing. If the radio tunes to a related
network station for a traffic announcement, it will return
to the original station when the announcement is
finished. If the cassette tape or compact disc player was
being used, the tape or compact disc will stay in the
player and resume play at the point where it stopped.
Press the RDS SELECT button, followed by this button
again to turn TA off.

3-20
MSG (3): When RDS is on, if the current station has a
message, MSG will appear on the display. Press the
RDS SELECT button, followed by this button to see the
message. If the whole message does not appear on the
display, parts of the message will appear every three
seconds until the message is completed. To see the parts
of the message faster than every three seconds, press this
button again. A new group of words will appear on the
display. Once the complete message has been displayed,
MSG will disappear from the display until another new
MSG is received.
PTY (4): This button is used to turn on and off Program
Type (PTY) seeks and scans. Press the RDS SELECT
button, followed by this button. The PTY display will
turn on. RDS SELECT: PTY NEWS will appear on
the display for three seconds. (The PTY shown will be
the last PTY selected.) Press the RDS SELECT
button, followed by this button again to turn the PTY
display off.
PTY (5) (6): With RDS on, press the RDS
SELECT button, followed by

or . The PTY
display will turn on, if it is not already on. RDS
SELECT: PTY NEWS will appear on the display for
three seconds. (The PTY shown will be the last PTY
selected.) While this message is displayed, use

and
 to move up and down the PTY list. If you pause on
a PTY for three seconds, PRESET PTY: NEWS will
appear on the display. While this message is displayed,
you can save the PTY in a preset by pressing one of the
six numbered pushbuttons until you hear a beep. Allow
three seconds for the message to disappear if you do not
want to save the PTY in a preset. See ªRadio Data
Systems (RDS) Program Type (PTY) Selectionsº in
the Index.
When the PTY display is on, press SEEK and SCAN to
find radio stations of the PTY you want to listen to. The
last PTY selected will be used for seek and scan modes.
If a station with the selected PTY is not found, NONE
FOUND will appear on the display. If both PTY and TA
are on, the radio will search for stations with traffic
announcements and the selected PTY.

3-21
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite Program Types (PTYs).
These buttons have factory PTY presets. See ªRadio
Data Systems (RDS) Program Type (PTY) Selectionsº
in the Index. You can set up to 12 PTYs (six FM1 and
six FM2). Just:
1. Turn PTY on.
2. Press BAND to select FM1 or FM2.
3. Tune in an RDS station with the PTY you desire.
4. Press and hold one of the six numbered buttons for
more than two seconds until you hear a beep.
Whenever you press that numbered button for less
than two seconds, the PTY you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied, you
will not have to reset your RDS presets because the
radio remembers them.
HR or MN: Press the RDS SELECT button, followed
by one of these buttons to display the time for the
current station. STATION TIME IS will be displayed.
If a time has not been sent to the radio, NO STATION
TIME will be displayed. If you have recently tuned to
the station, you may need to wait a minute before thetime is available to the radio. To set the clock to the
current displayed station time, press and hold HR or MN
until TIME UPDATED is displayed. There is a two
second delay before the time is updated. RDS mode
does not have to be on to use this function, but you must
be tuned to an FM RDS station.
ALERT: This type of announcement warns of national
or local emergencies. You will not be able to turn off
alert announcements. Alert announcements will come on
even if RDS mode is turned off. ALERT appears on the
display when an alert announcement plays. The radio
uses TA volume during these announcements. To
increase volume, turn the PWR/VOL knob clockwise.
Turn it counterclockwise to decrease volume. TA
VOLUME will appear on the display while the volume
is being adjusted. When an alert announcement comes
on the tuned radio station or a related network station,
you will hear it, even if the volume is muted or a
cassette tape or compact disc is playing. If the radio
tunes to a related network station for an alert
announcement, it will return to the original station when
the announcement is finished. If the cassette tape or
compact disc player is playing, play will stop for the
announcement and resume when the announcement
is finished.
