CADILLAC SEVILLE 2002 5.G Owners Manual

2-34 Leaving Your Vehicle With the
Engine Running
CAUTION:
It can be dangerous to leave your vehicle with
the engine running. Your vehicle could move
suddenly if the shift lever is not fully in PARK (P)
with the parking brake firmly set. And, if you
leave the vehicle with the engine running, it could
overheat and even catch fire. You or others could
be injured. Don't leave your vehicle with the
engine running unless you have to.
If you have to leave your vehicle with the engine
running, be sure your vehicle is in PARK (P) and
your parking brake is firmly set before you leave it.
Torque Lock
If you are parking on a hill and you don't shift your
transaxle into PARK (P) properly, the weight of the
vehicle may put too much force on the parking pawl in
the transaxle. You may find it difficult to pull the shift
lever out of PARK (P). This is called ªtorque lock.º
To prevent torque lock, set the parking brake and then
shift into PARK (P) properly before you leave the
driver's seat. To find out how, see ªShifting Into
PARK (P)º in the Index.
If torque lock does occur, you may need to have
another vehicle push yours a little uphill to take some
of the pressure from the parking pawl in the transaxle,
so you can pull the shift lever out of PARK (P).

2-35
Shifting Out of PARK (P)
Your vehicle has an automatic transaxle shift lock
control system. You have to fully apply your regular
brakes before you can shift from PARK (P) when the
ignition is ON. See ªAutomatic Transaxleº in the Index.
If you cannot shift out of PARK (P), ease the pressure
on the shift lever. Push the shift lever all the way into
PARK (P) as you maintain brake application. Then
move the shift lever into the gear you want. If you
ever hold the pedal down but still can't shift out of
PARK (P), try the following:
1. Turn the ignition key to ACC. Open and close the
driver's door to turn off the RAP feature.
2. Apply and hold the brake until the end of Step 4.
3. Shift to NEUTRAL (N).
4. Start the vehicle and then shift to the drive gear
you want.
5. Have the vehicle fixed as soon as you can.
Parking Over Things That Burn
CAUTION:
Things that can burn could touch hot exhaust
parts under your vehicle and ignite. Don't park
over papers, leaves, dry grass or other things that
can burn.

2-36

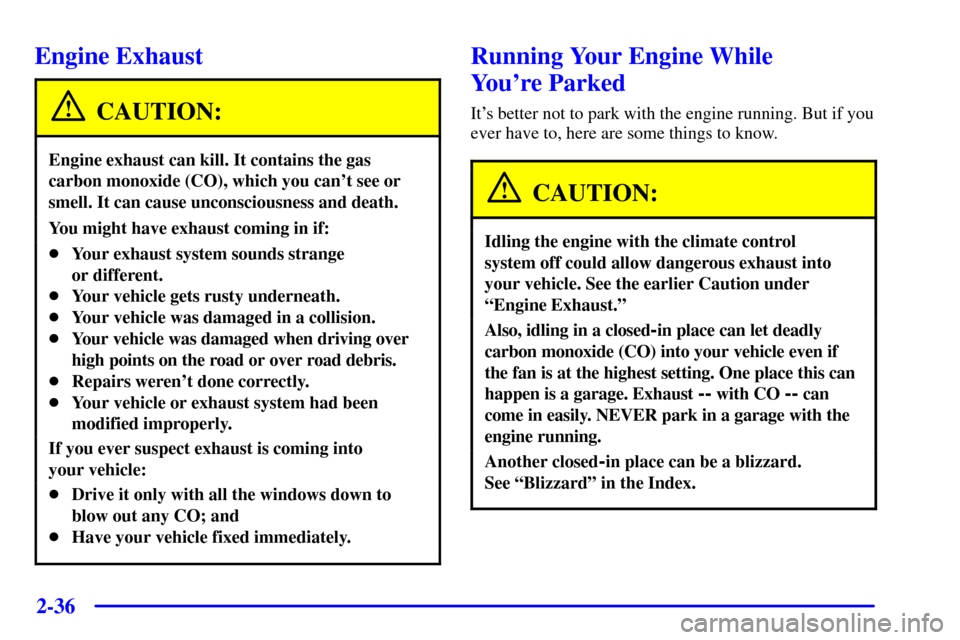

Engine Exhaust
CAUTION:
Engine exhaust can kill. It contains the gas
carbon monoxide (CO), which you can't see or
smell. It can cause unconsciousness and death.
You might have exhaust coming in if:

Your exhaust system sounds strange
or different.

Your vehicle gets rusty underneath.

Your vehicle was damaged in a collision.

Your vehicle was damaged when driving over
high points on the road or over road debris.

Repairs weren't done correctly.

Your vehicle or exhaust system had been
modified improperly.
If you ever suspect exhaust is coming into
your vehicle:

Drive it only with all the windows down to
blow out any CO; and

Have your vehicle fixed immediately.
Running Your Engine While
You're Parked
It's better not to park with the engine running. But if you
ever have to, here are some things to know.
CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust into
your vehicle. See the earlier Caution under
ªEngine Exhaust.º
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the fan is at the highest setting. One place this can
happen is a garage. Exhaust
-- with CO -- can
come in easily. NEVER park in a garage with the
engine running.
Another closed-in place can be a blizzard.
See ªBlizzardº in the Index.

2-37
CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you've left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake after
you move the shift lever to PARK (P).
Follow the proper steps to be sure your vehicle won't
move. See ªShifting Into PARK (P)º in the Index.
If you are parking on a hill and if you're pulling a
trailer, also see ªTowing a Trailerº in the Index.
Horn
The horn can be sounded by pressing on the center
of the steering wheel pad.
Tilt Wheel
A tilt wheel allows you to adjust the steering wheel
before you drive. You can raise the steering wheel to
the highest level to give your legs more room when
you enter and exit the vehicle.
The lever that allows you to tilt the steering wheel is
located on the left side of the steering column.
To tilt the wheel, hold the wheel and pull the lever.
Then move the wheel to a comfortable position and
release the lever to lock the wheel in place.

2-38 Power Tilt and Telescopic Wheel
(If Equipped)
The power tilt wheel control
is located on the outboard
side of the steering column.
To operate the power tilt feature, push the control up and
the steering wheel will tilt up. Push the control down
and the steering wheel will go down.If the power tilt control is pressed up or down and held
in that position, there will be a slight movement and a
slight pause followed by a continuous movement in the
direction the control is being pressed. This allows very
fine control of the steering wheel position. If the control
is bumped, the steering wheel moves approximately
one degree in the direction commanded.
Push the control forward and the steering wheel moves
toward the front of the vehicle. Push the control
rearward and the steering wheel moves toward the
rear of the vehicle. To set the memory position, see
ªVehicle Programming and Personalization Featuresº
and ªMemory Seat, Mirrors and Steering Wheelº in
the Index.

2-39
Turn Signal/Multifunction Lever
The lever located on the left side of the steering column
includes the following:

Turn and Lane Change Signals

Headlamp High/Low
-Beam Changer

Flash
-To-Pass Feature
For information on the exterior lamps, see ªExterior
Lampsº later in this section.
Turn and Lane-Change Signals
To signal a turn, move the lever on the left side of the
steering wheel all the way up or down. The lever returns
automatically when the turn is complete.
An arrow located on the
instrument panel cluster
will flash in the direction
of the turn or lane change.
Raise or lower the lever until the arrow starts to flash to
signal a lane change. Hold it there until the lane change
is complete. The lever returns when it is released.
If the turn signal is left on, a warning chime will sound
and the Driver Information Center (DIC) will display
TURN SIGNAL ON after driving about a mile to
remind you to turn it off.
Arrows that flash rapidly when signaling for a turn or
lane change may be caused by a burned
-out signal bulb.
Other drivers won't see the turn signal.
Replace burned
-out bulbs to help avoid possible
accidents. Check the fuse (see ªFuses and Circuit
Breakersº in the Index) and for burned
-out bulbs
if the arrow fails to work when signaling a turn.

2-40 Headlamp High/Low-Beam Changer
When the low-beam headlamps are on, push the turn
signal lever away from you to change the headlamps
to high beam.
This light on the
instrument panel cluster
will be on, indicating
high
-beam usage.
Pull the turn signal lever toward you to return to
low
-beam headlamps.
Flash-To-Pass
This feature lets you use the high-beam headlamps to
signal the driver in front of you that you want to pass.
Pull the turn signal lever toward you briefly to
flash
-to-pass. When you do, the following will occur:

If the headlamps are either off or in the Daytime
Running Lamps (DRL) mode, the high
-beam
headlamps will turn on. They'll stay on as long
as you hold the lever there. Release the lever to
turn them off.

If the headlamps are on low beam, they will remain
active and the high beam will also illuminate until
you release the lever.

2-41 Windshield Wipers
You can control the windshield wipers by moving
the lever with the wiper symbol on it. This lever is
located on the right side of your steering column.
For information on wiper
-activated headlamp operation,
refer to ªWiper
-Activated Headlampsº in the Index.The following is a list of the available settings:
LO or HI: Move the lever up to LO for steady wiping
at a slow speed. Move the lever higher to HI for steady
wiping at a high speed.
INT (Delay): Move the lever up to the INT position,
then turn the INT ADJ band, which is located on the
lever, to adjust the delay time. The higher you turn
the INT ADJ band, the more frequent the wipers
will operate.
OFF: Lower the lever to its resting position (OFF) to
turn off the wipers.
MIST: Pull the lever down once and release it for a
single wipe cycle. For more cycles, hold the lever down
in the MIST position longer.
To wash the windshield, press the button located at
the tip of the lever.
Be sure to clear ice and snow from the wiper blades
before using them. If they're frozen to the windshield,
carefully loosen or thaw them. If the blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it cools.
Clear away snow or ice to prevent an overload.

2-42 Rainsense II
Wipers
The moisture sensor is mounted on the interior side
of the windshield below the rearview mirror and is used
to automatically operate the wipers by monitoring the
amount of moisture build
-up on the windshield.
Wipes occur as needed to clear the windshield depending
on driving conditions and the sensitivity setting. In light
rain or snow, fewer wipes will occur. In heavy rain or
snow, wipes will occur more frequently. The Rainsense
wipers operate in a delay mode as well as a continuous
low or high speed as needed. If the system is left on
for long periods of time, occasional wipes may occur
without any moisture on the windshield. This is normal
and indicates that the Rainsense system is activated.
The Rainsense system can be activated by moving
the wiper stalk up to the INT position and turning
the INT ADJ band to one of the five sensitivity levels.
The bottom INT ADJ position is the lowest sensitivity
setting, level one. This allows more rain or snow to
collect on the windshield between wipes. Turning the
INT ADJ band away from you to the higher sensitivity
levels allows less rain or snow to collect on the
windshield between wipes.The top position is the highest sensitivity setting,
level five. A single wipe will occur each time you turn
the INT ADJ band to a higher sensitivity level to
indicate that the sensitivity level has been increased.
NOTICE:
The wipers must be turned off when going
through a car wash to avoid damage.
The MIST and ªwashº cycles operate as normal and are
not affected by the Rainsense function. The Rainsense
system can be overridden at any time by manually
changing the wiper control to LO or HI speed.
NOTICE:
Do not place stickers or other items on the
exterior glass surface directly in front of the
moisture sensor. Doing this could cause the
moisture sensor to malfunction.

2-43 Windshield Washer
The windshield washer has both a ªdemandº mode and
a ªprogrammedº mode, depending on the amount of
windshield washer fluid you need.
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
To spray washer fluid on the windshield in the
programmed mode, press and release the button on
the tip of the lever. The washer will provide a measured
amount of fluid to the windshield and the wiper will
either stop or return to your original wiping speed.
To spray washer fluid on the windshield in the demand
mode, press and hold the button until you have enough
fluid, and the wipers will either stop or return to your
original wiping speed.
CHECK WASHER FLUID will be displayed on the
Driver Information Center (DIC) when the washer fluid
reaches a low level.
Cruise Control
The buttons to operate cruise control are located on the
steering wheel.
With cruise control, you can maintain a speed of
approximately 25 mph (40 km/h) or more without
keeping your foot on the accelerator. This is helpful on
long trips. Cruise control does not work at speeds below
about 25 mph (40 km/h). When cruise control is on, you
will see a CRUISE light on the instrument panel cluster.
