Section 2 Features and Controls
2-1

Outside Automatic Dimming Mirror
If your vehicle is equipped with this feature, the
driver's side mirror will adjust for the glare of headlamps
behind you. This feature is controlled by the on and
off settings on the automatic dimming rearview mirror.
See
Automatic Dimming Rearview Mirror with OnStarž
on page 2-37.
Outside Curb View Assist Mirror
If your vehicle is equipped with memory mirrors, it will
also be capable of performing the curb view assist mirror
feature. This feature will cause the passenger's mirror
to tilt to a factory programmed position when the vehicle
is in REVERSE (R). This feature may be useful in
allowing you to view the curb when you are parallel
parking.
When the vehicle is shifted out of REVERSE (R) and a
®ve-second delay has occurred, the passenger's
mirror will return to its original position.
If further adjustment is needed after the mirror is tilted,
the mirror switch may be used.
This feature can be enabled/disabled through the Driver
Information Center (DIC). See
DIC Vehicle
Personalization on page 3-64for more information.
Outside Convex Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from the
driver's seat. This mirror does not have a dimming
feature.
{CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
Outside Heated Mirrors
When you operate the rear window defogger, it also
warms both outside mirrors to help clear them of fog or
ice. See
Dual Climate Control System on page 3-28for more information.
2-41

Programming the HomeLinkž
Transmitter
Do not use the HomeLinkžTransmitter with any garage
door opener that does not have the ªstop and reverseº
feature. This includes any garage door opener model
manufactured before April 1, 1982. If you have a newer
garage door opener with rolling codes, please be
sure to follow steps 6 through 8 to complete the
programming of your HomeLink
žTransmitter.
Read the instructions completely before attempting to
program the HomeLink
žTransmitter. Because of
the steps involved, it may be helpful to have another
person available to assist you in programming the
transmitter.
Keep the original transmitter for use in other vehicles as
well as for future HomeLink
žprogramming. It is also
recommended that upon the sale of the vehicle,
the programmed HomeLink
žbuttons should be erased
for security purposes. Refer to ªErasing HomeLinkž
Buttonsº or, for assistance, contact HomeLinkžon the
internet at: www.homelink.com or by calling
1-800-355-3515.Be sure that people and objects are clear of the garage
door or gate operator you are programming. When
programming a garage door, it is advised to park outside
of the garage.
It is recommended that a new battery be installed in
your hand-held transmitter for quicker and more
accurate transmission of the radio frequency.
Your vehicle's engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. Press and hold down the two outside buttons,
releasing only when the indicator light begins to
¯ash, after 20 seconds. Do not hold down the
buttons for longer than 30 seconds and do not
repeat this step to program a second and/or third
transmitter to the remaining two HomeLink
žbuttons.
2. Position the end of your hand-held transmitter about
1 to 3 inches (3 to 8 cm) away from the HomeLink
ž
buttons while keeping the indicator light in view.
3. Simultaneously press and hold both the desired
button on HomeLink
žand the hand-held transmitter
button. Do not release the buttons until Step 4
has been completed.
Some entry gates and garage door openers may
require you to substitute Step 3 with the procedure
noted in ªGate Operator and Canadian
Programmingº later in this section.
2-45

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-7
Horn.............................................................3-7
Tilt Wheel.....................................................3-7
Turn Signal/Multifunction Lever.........................3-9
Exterior Lamps.............................................3-16
Interior Lamps..............................................3-21
Ultrasonic Rear Parking
Assist (URPA)...........................................3-24
Accessory Power Outlets...............................3-26
Ashtrays and Cigarette Lighter........................3-27
Climate Controls............................................3-28
Dual Climate Control System..........................3-28
Outlet Adjustment.........................................3-33
Rear Climate Control System.........................3-34
Passenger Compartment Air Filter...................3-35
Steering Wheel Climate Controls.....................3-35
Climate Controls Personalization.....................3-36
Warning Lights, Gages and Indicators.............3-37
Instrument Panel Cluster................................3-38
Speedometer and Odometer...........................3-39
Tachometer.................................................3-41Safety Belt Reminder Light.............................3-41
Air Bag Readiness Light................................3-42
Charging System Light..................................3-43
Brake System Warning and Parking Brake
Indicator Light...........................................3-43
Anti-Lock Brake System Warning Light.............3-44
Traction Control System (TCS)
Warning Light...........................................3-45
Engine Coolant Temperature Warning Light......3-46
Engine Coolant Temperature Gage..................3-46
Malfunction Indicator Lamp.............................3-47
Oil Pressure Light.........................................3-50
Security Light...............................................3-51
Fog Lamp Light............................................3-51
Lights On Reminder......................................3-51
Cruise Control Light......................................3-51
Fuel Gage...................................................3-52
Driver Information Center (DIC).......................3-53
DIC Controls and Displays.............................3-53
DIC Warnings and Messages.........................3-56
Climate Controls and Radio System
Personalization..........................................3-63
DIC Vehicle Personalization............................3-64
Section 3 Instrument Panel
3-1

Ultrasonic Rear Parking
Assist (URPA)
Ultrasonic Rear Parking Assist can help you to
determine how close an object is to your rear bumper
within a given area, making parking easier.
{CAUTION:
Even with the Ultrasonic Rear Park Assist
system, the driver must check carefully before
backing up. The system does not operate
above typical backing speeds of 3 mph
(5 km/h) while parking. And, the system
doesn't detect objects that are more than
5 feet (1.5 meters) behind the vehicle.
So, unless you check carefully behind you
before and when you back up, you could strike
children, pedestrians, bicyclists or pets behind
you, and they could be injured or killed.

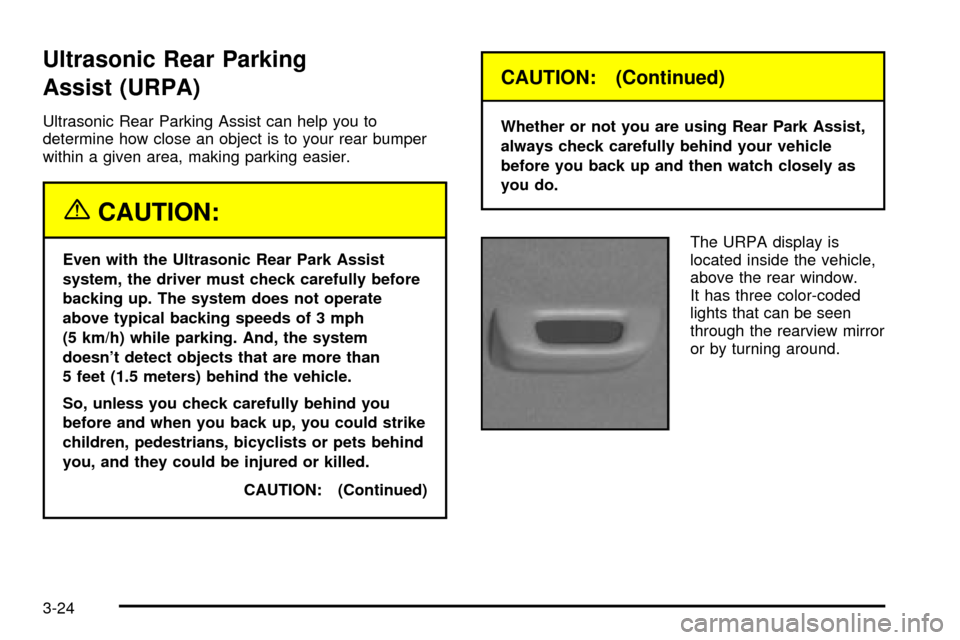

CAUTION: (Continued)
CAUTION: (Continued)
Whether or not you are using Rear Park Assist,
always check carefully behind your vehicle
before you back up and then watch closely as
you do.
The URPA display is
located inside the vehicle,
above the rear window.
It has three color-coded
lights that can be seen
through the rearview mirror
or by turning around.
3-24

Magnetic Ride Control
Magnetic Ride Control automatically adjusts the ride of
your vehicle. Automatic ride control is achieved
through a computer used to control and monitor the
suspension system. The controller receives input from
various sensors to determine the proper system
response. If the controller detects a problem within the
system, the DIC will display a SERVICE SUSPENSION
SYS message. See
DIC Warnings and Messages
on page 3-56for more information. See your dealer for
service.
Steering
Power Steering
If you lose power steering assist because the engine
stops or the system is not functioning, you can steer but
it will take much more effort.
Magnetic Speed Variable Assist
Steering
Your vehicle may be equipped with a steering system
that continuously adjusts the effort you feel when
steering at all vehicle speeds. It provides ease when
parking, yet a ®rm, solid feel at highway speeds.
Steering Tips
Driving on Curves
It's important to take curves at a reasonable speed.
A lot of the ªdriver lost controlº accidents mentioned on
the news happen on curves. Here's why:
Experienced driver or beginner, each of us is subject to
the same laws of physics when driving on curves.
The traction of the tires against the road surface makes
it possible for the vehicle to change its path when
you turn the front wheels. If there's no traction, inertia
will keep the vehicle going in the same direction. If
you've ever tried to steer a vehicle on wet ice, you'll
understand this.
4-11

Reporting Safety Defects to the
Canadian Government
If you live in Canada, and you believe that your vehicle
has a safety defect, you should immediately notify
Transport Canada, in addition to notifying General
Motors of Canada Limited. You may write to:
Transport Canada
330 Sparks Street
Tower C
Ottawa, Ontario K1A 0N5
Reporting Safety Defects to
General Motors
In addition to notifying NHTSA (or Transport Canada) in
a situation like this, we certainly hope you'll notify us.
Please call us at 1-800-458-8006, or write:
Cadillac Customer Assistance Center
Cadillac Motor Car Division
P.O. Box 33169
Detroit, MI 48232-5169
In Canada, please call us at 1-800-263-3777 (English)
or 1-800-263-7854 (French). Or, write:
Customer Communication Centre, 163-005
General Motors of Canada Limited
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on engines, transmission, axle, suspension,
brakes, electrical, steering, body, etc.
RETAIL SELL PRICE: $120.00
Transmission, Transaxle, Transfer
Case Unit Repair Manual
This manual provides information on unit repair service
procedures, adjustments and speci®cations for GM
transmissions, transaxles and transfer cases.
RETAIL SELL PRICE: $50.00
Service Bulletins
Service Bulletins give technical service information
needed to knowledgeably service General Motors cars
and trucks. Each bulletin contains instructions to
assist in the diagnosis and service of your vehicle.
In Canada, information pertaining to Product Service
Bulletins can be obtained by contacting your General
Motors dealer or by calling 1-800-GM-DRIVE
(1-800-463-7483).
7-10

Automatic Transaxle........................................5-21
Fluid..........................................................5-21
Operation...................................................2-28
B
Backing Up....................................................4-40
Battery Load Management...............................3-23
Battery Replacement......................................... 2-8
Battery..........................................................5-43
Before Leaving on a Long Trip.........................4-23
Body Lubrication Service..................................6-10
Brake Adjustment............................................5-42
Brake Fluid....................................................5-40
Brake Pedal Travel.........................................5-42
Brake Wear...................................................5-42
Brake............................................................2-31
Parking......................................................2-31
System Inspection.......................................6-14
System Warning and Parking Brake
Indicator Light..........................................3-43
Brakes..........................................................5-40
Braking in Emergencies..................................... 4-9
Braking........................................................... 4-6
Break-In, New Vehicle.....................................2-23
Bulb Replacement...........................................5-55
Center High-Mounted Stoplamp (CHMSL)........5-60
Front Turn Signal Lamps..............................5-59
Halogen Bulbs............................................5-56Bulb Replacement (cont.)
Headlamp Aiming........................................5-51
Headlamps.................................................5-56
High Intensity Discharge (HID) Lighting...........5-55
Replacement Bulbs......................................5-61
Taillamps and Turn Signal Lamps..................5-60
Buying New Tires...........................................5-68
C
Cadillac Owner PrivilegesŸ............................... 7-6
California Fuel.................................................. 5-5
Canada ± Customer Assistance.......................... 7-4
Canadian Owners................................................ ii
Capacities and Speci®cations..........................5-100
Carbon Monoxide...................4-26, 4-35, 2-12, 2-35
Care of.........................................................5-86
Safety Belts................................................5-86
Your Cassette Tape Player..........................3-104
Your CD Player.........................................3-105
Your CDs .................................................3-105
Cassette Tape Messages.........................3-85, 3-96
Cassette Tape Player Service............................. 6-9
CD Changer, Console-Mounted.........................3-99
Cellular Phone Usage....................................3-104
Cellular Telephone, Storage Area......................2-48
Center Console Storage Area...........................2-49
Center High-Mounted Stoplamp (CHMSL)...........5-60
Chains, Tires..................................................5-72
2

Coolant (cont.)
Engine Temperature Warning Light.................3-46
Heater, Engine............................................2-26
Surge Tank Pressure Cap.............................5-28
Cooling System..............................................5-31
Cornering Lamps............................................3-19
Cruise Control Light........................................3-51
Cruise Control................................................3-13
Current and Past Model Order Forms................7-11
Customer Assistance Information........................ 7-7
Courtesy Transportation.................................. 7-7
Customer Assistance for Text Telephone
(TTY) Users.............................................. 7-4
Customer Assistance Offices........................... 7-4
Customer Satisfaction Procedure..................... 7-2
GM Mobility Program for Persons with
Disabilities................................................ 7-5
Reporting Safety Defects to General Motors....7-10
Reporting Safety Defects to the
Canadian Government..............................7-10
Reporting Safety Defects to the United
States Government.................................... 7-9
Roadside Service.......................................... 7-6
Service Publications Ordering Information........7-10
D
Daytime Running Lamps..................................3-17
Defensive Driving............................................. 4-2Defogging and Defrosting.................................3-32
Dinghy Towing................................................4-32
Display Mode.................................................3-40
Diversity Antenna System...............................3-106
Doing Your Own Service Work........................... 5-3
Dolly Towing..................................................4-32
Door.............................................................2-10
Central Door Unlocking System.....................2-10
Locks.......................................................... 2-9
Power Door Locks.......................................2-10
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-11
Doors Lock in Gear.........................................3-71
Doors Unlock in PARK (P)................................3-73
Doors Unlock Key Off......................................3-74
Driver Information Center (DIC).........................3-53
Climate Controls and Radio System
Personalization........................................3-63
DIC Controls and Displays............................3-53
DIC Vehicle Personalization..........................3-64
DIC Warnings and Messages........................3-56
Driver Unlock in PARK (P)................................3-71
Driver Unlock Key Off......................................3-72
Driver............................................................1-12
Position, Safety Belt.....................................1-12
Driver's Name Set/Recall.................................3-76
Driving on Grades...........................................4-41
Driving on Snow or Ice....................................4-27
Driving Through Deep Standing Water...............4-20
Driving Through Flowing Water.........................4-20
4

Mirrors (cont.)
Memory.....................................................2-51
Outside Automatic Dimming Mirror.................2-41
Outside Convex Mirror.................................2-41
Outside Curb View Assist Mirror....................2-41
Outside Heated Mirrors................................2-41
Outside Power Mirrors..................................2-40
MyGMLink.com................................................ 7-3
N
Navigation/Radio System..................................3-98
New Vehicle Break-In......................................2-23
Normal Maintenance Replacement Parts...........5-101
O
Odometer......................................................3-39
Off-Road Recovery..........................................4-14
Oil ................................................................5-13
Engine.......................................................5-13
Life Indicator...............................................3-77
Pressure Light.............................................3-50
Older Children, Restraints................................1-24
Online Owner Center........................................ 7-3
OnStar
žPersonal Calling.................................2-43
OnStaržServices............................................2-42
OnStaržSteering Wheel Controls......................2-43
OnStaržSystem.............................................2-42OnStar
žVirtual Advisor....................................2-43
Other Warning Devices...................................... 3-7
Outlet Adjustment............................................3-33
Outside.........................................................2-41
Automatic Dimming Mirror.............................2-41
Convex Mirror.............................................2-41
Curb View Assist Mirror................................2-41
Heated Mirrors............................................2-41
Power Mirrors.............................................2-40
Overheated Engine Protection
Operating Mode..........................................5-28
Overseas ± Customer Assistance........................ 7-5
Owners, Canadian............................................... ii
Owner's Information........................................7-11
P
Parade Dimming.............................................3-22
Park Aid........................................................3-24
Park (P)........................................................2-32
Shifting Into................................................2-32
Shifting Out of............................................2-34
Parking Brake and Automatic Transaxle Park (P)
Mechanism Check.......................................6-12
Parking on Hills..............................................4-41
Parking.........................................................3-24
Assist........................................................3-24
Brake Indicator Light....................................3-43
10
