CADILLAC SRX 2007 1.G Owners Manual

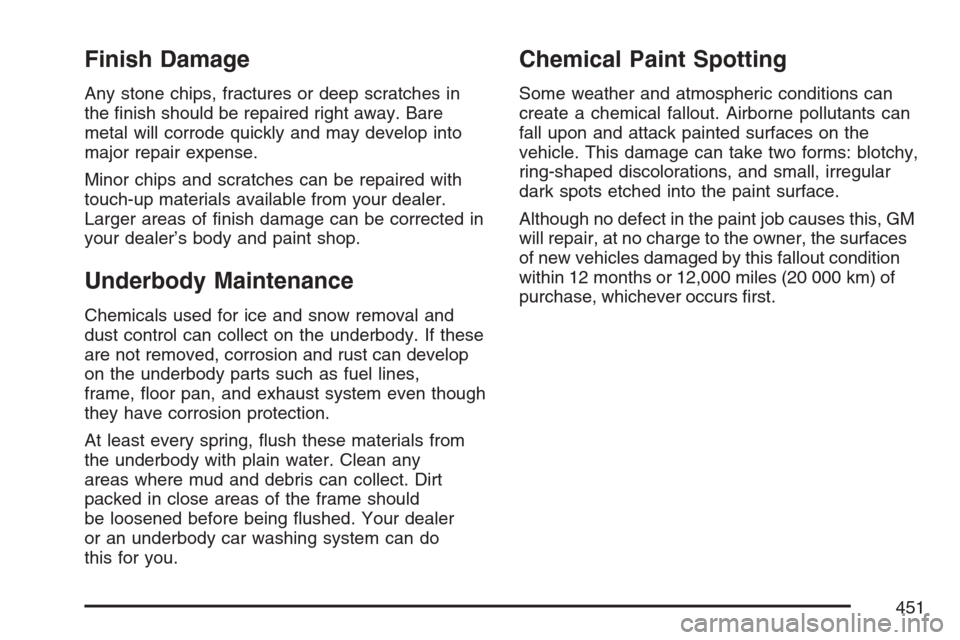

Finish Damage
Any stone chips, fractures or deep scratches in
the nish should be repaired right away. Bare
metal will corrode quickly and may develop into
major repair expense.
Minor chips and scratches can be repaired with
touch-up materials available from your dealer.
Larger areas of nish damage can be corrected in
your dealer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and
dust control can collect on the underbody. If these
are not removed, corrosion and rust can develop
on the underbody parts such as fuel lines,
frame, oor pan, and exhaust system even though
they have corrosion protection.
At least every spring, ush these materials from
the underbody with plain water. Clean any
areas where mud and debris can collect. Dirt
packed in close areas of the frame should
be loosened before being ushed. Your dealer
or an underbody car washing system can do
this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can
create a chemical fallout. Airborne pollutants can
fall upon and attack painted surfaces on the
vehicle. This damage can take two forms: blotchy,
ring-shaped discolorations, and small, irregular
dark spots etched into the paint surface.
Although no defect in the paint job causes this, GM
will repair, at no charge to the owner, the surfaces
of new vehicles damaged by this fallout condition
within 12 months or 12,000 miles (20 000 km) of
purchase, whichever occurs rst.
451

Vehicle Care/Appearance Materials
Description Usage
Polishing Cloth
Wax-TreatedInterior and exterior
polishing cloth.
Tar and Road
Oil RemoverRemoves tar, road oil,
and asphalt.
Chrome Cleaner
and PolishUse on chrome or
stainless steel.
White Sidewall
Tire CleanerRemoves soil and black
marks from whitewalls.
Vinyl Cleaner Cleans vinyl.
Glass CleanerRemoves dirt, grime,
smoke and ngerprints.
Chrome and Wire
Wheel CleanerRemoves dirt and grime
from chrome wheels and
wire wheel covers.
Finish EnhancerRemoves dust,
ngerprints, and surface
contaminants. Spray on
and wipe off.
Description Usage
Swirl Remover PolishRemoves swirl marks, ne
scratches, and other light
surface contamination.
Cleaner WaxRemoves light scratches
and protects nish.
Foaming Tire Shine
Low GlossCleans, shines, and
protects in one step. No
wiping necessary.
Wash Wax ConcentrateMedium foaming
shampoo. Cleans and
lightly waxes.
Biodegradable and
phosphate free.
Spot LifterQuickly removes spots
and stains from carpets,
vinyl, and cloth upholstery.
Odor EliminatorOdorless spray odor
eliminator used on fabrics,
vinyl, leather and carpet.
452

Vehicle Identication
Vehicle Identication Number (VIN)
This is the legal identier for your vehicle. It
appears on a plate in the front corner of the
instrument panel, on the driver side. You can see
it if you look through the windshield from outside
your vehicle. The VIN also appears on the Vehicle
Certication and Service Parts labels and the
certicates of title and registration.
Engine Identication
The eighth character in the VIN is the engine
code. This code helps you identify your vehicle’s
engine, specications, and replacement parts.
Service Parts Identication Label
This labelis in the passenger side rear storage
compartment or at the lower edge of the liftgate. It
is very helpful if you ever need to order parts.
The label has the following information:
Vehicle Identication Number (VIN)
Model designation
Paint information
Production options and special equipment
Do not remove this label from the vehicle.
453

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer
rst. Some electrical equipment can damage
your vehicle and the damage would not
be covered by your warranty. Some add-on
electrical equipment can keep other
components from working as they should.
Add-on equipment can drain your vehicle’s battery,
even if your vehicle is not operating.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 87.
Windshield Wiper Fuses
The windshield wiper motor is protected by an
internal circuit breaker. If the wiper motor
overheats due to heavy snow, the wipers will stop
until the motor cools and will then restart.
Power Windows and Other Power
Options
Circuit breakers protect the power windows and
power seats. When the current load is too
heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is xed or
goes away.
454

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses
and circuit breakers. This greatly reduces
the chance of res caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse.
Be sure you replace a bad fuse with a new
one of the identical size and rating. If a fuse blows,
see your dealer for service immediately.
If you ever have a problem on the road and
don’t have a spare fuse, you can “borrow” one
that has the same amperage. Pick some
feature of your vehicle that you can get along
without – like the radio or cigarette lighter – and
use its fuse, if it is the correct amperage. Replace
it as soon as you can.
The fuses are located in three fuse blocks, one
located in the engine compartment on the
passenger’s side and the other two under the
rear seat.
Underhood Fuse Block
The underhood fuse block is located in the engine
compartment on the right side of the vehicle.
SeeEngine Compartment Overview on page 356
for more information on location.
To access the fuses, push in the two tabs located
on each side of the fuse block cover. Then lift
the cover off.
455

Relays Usage
FAN 2 HC
MICRORight Side Engine Cooling
Fan Motors
FAN S/P HC
MICROSeries/Parallel Engine
Cooling FanRelays Usage
FRNT
WASHER SS
MICROFront Washer Pump
FAN 1 HC
MICROLeft Side Engine Cooling
Fan Motors
456

Relays Usage
FOG LAMP SS
MICROFront Fog Lamps
SPARE Spare
IGN MAIN SS
MICROIgnition Switch (ON)
STRTR HC
MICROStarter Solenoid
PWR/TRN HC
MICROPowertrain/Engine Control Module
HI BEAM SS
MICROHigh-Beam Headlamps
BLWR HC
MICROFront Blower Motor Assembly
WPR HC
MICROWindshield Wiper System - On/Off
WPR HI HC
MICROWindshield Wiper System -
Low/High
HEAD LAMP
WASH HC
MICROHeadlamp Washer Pump (Option)
LO BEAM-LP
MICRO/HID-HC
MICROLow-Beam Headlamps
REAR WASH
SS MICRORear Washer PumpRelays Usage
HORN SS
MICROHorn
A/C CMPRSR
CLTCH SS
MICROAir Conditioning Compressor Clutch
FUEL PUMP
SS MICROFuel Pump
ACCY SS
MICROAccessory Power (Rear Wipers,
Inside Rearview Mirror)
J Case Fuses Usage
FAN 2 Right Cooling Fan Motor
SPARE Spare
FAN 1 Left Cooling Fan Motor
SPARE Spare
STRTR Starter Solenoid
LPDB 2LRPDB (Left Side Rear
Power Distribution Box)
ABS MOTOR Anti-lock Brake System Module
LPDB 1LRPDB (Left Side Rear
Power Distribution Box)
RPDB 1RRPDB (Right Side Rear
Power Distribution Box)
SPARE Spare
457

J Case Fuses Usage
BLWR Front Blower Motor Assembly
RPDB 2RRPDB (Right Side Rear
Power Distribution Box)
Mini Fuses Usage
FRNT
WASHERFront Washer Pump
SPARE Spare
SPARE Spare
AIRBAGSensing Diagnostic Module (SDM),
Occupant Sensor Display,
Instrument Cluster
ABS IGNAnti-lock Braking System Ignition,
Variable Effort Steering
IGN SW Ignition Switch, Immobilizer Module
ECM/TCM IGNEngine Control Module/Transmission
Control Module Ignition Power
MISC IGN Air Quality Sensor
EMISSION 1Pre 02 Sensors, Cam Phasor (V6),
Canister Purge (V6), Intake Manifold
Tuning Valve (V6)
SPARE Spare
Mini Fuses Usage
DISPLAYInstrument Panel Cluster, Climate
Control Module, Front Blower Relay,
Diagnostic Link Connector
BCM 2LED Instrument Panel Dimming,
Overhead Lamps, Vanity Lamps
EVEN COILSEven Ignition Coils, Even Fuel
Injectors
BCM 6Right Side Rear Stoplamp, Turn
Lamps, Key Capture Solenoid
RADIO Radio
ODD COILSOdd Ignition Coils, Odd Fuel
Injectors
BCM 1 Body Control Module (BCM) Power
LT HI BEAM Left Side High-Beam Headlamp
BCM 7/CLOCK Switch Dimming, Analog Clock
SPARE Spare
EMISSION 2Cooling Fan Relays, Air
Conditioning Clutch Relay, Post O2
Sensors, Mass Airow Sensor,
Canister Purge (V8)
ECM BATT Engine Control Module (ECM)
458

Mini Fuses Usage
RT HI BEAM Right Side High-Beam Headlamp
RVC SNSRBattery Regulated Voltage
Control Sense
FOG LAMP Front Fog Lamps
ECM 1 Engine Control Module (ECM)
BCM 5Left Side Front Turn Lamps,
Rear Stoplamps, Turn Lamps
WPR Windshield Wiper Motor
SPARE Spare
BCM 4Center High-Mounted Stoplamp
(CHMSL), Back-up Lamps
CIGInstrument Panel Accessory Power
Outlet (Cigarette Lighter)
RT LO BEAM Right Side Low-Beam Headlamp
AUX OUTLETCenter Console Accessory
Power OutletMini Fuses Usage
LT LO BEAM Left Side Low-Beam Headlamp
TCM BATT Transmission Control Module (TCM)
ACCY WPRRear Wiper Motor & Switch,
Inside Rearview Mirror
SPARE Spare
SPARE Spare
REAR WASH Rear Washer Pump
HORN Horn Assembly
A/C CLTCH Air Conditioning Compressor Clutch
FUEL PUMP Fuel Pump
Circuit Breaker Usage
HEADLAMP
WASHHeadlamp Washer Pump (Optional)
459

Rear Underseat Fuse Block
(Left Side)
The left side rear fuse block is located under the
rear seat on the left side of the vehicle. The carpet
must be lifted up to access the rear fuse block.
To access the fuse block, push in the two tabs
located at each end of the fuse block cover.
Then lift the cover off.
Relays Usage
STOP RELAY
MININot Used
ELC RELAY
MINIElectronic Level Control (ELC)
Compressor Motor
PRK LAMP
RELAY MICROLicense Lamps
REAR FOG
LAMP RLY
MICRONot Used
SPARE Spare
R POSITION
RELAY MICRONot Used
LH POS PRK
LAMP RELAY
MICROFront & Rear Park Lamps
SPARE Not Used
Mini Fuses Usage
SWC Steering Wheel Controls
RSA/RSERear Seat Entertainment, Rear Seat
Audio
ONSTAR
TV/XMOnStar
®Module, XM Radio
3RD ROW
SW/RFAFlip Fold Seat Switches, Remote
Keyless Entry System Module
AMP Audio Amplier
460
