Windshield Wipers
The lever on the right side of the steering column
operates the windshield wipers.
7(Mist):Pull the lever down and release it for
a single wiping cycle. The lever will return to its
original position. For more cycles, hold the
lever down before releasing it.
9(Off):Put the lever in this position to turn off
the wipers.
&(Delay):Put the lever in this position to set a
delay between wipes. Turn the delay adjustment
band to set the length of the delay.
6(Delay Adjustment):Use this band to set the
length of the delay between wipes when using the
delay feature.The closer you move the band toward mist, the
longer the delay. The windshield wiper lever must
be in delay for this feature to work.
6(Low Speed):Put the lever in this position
for slow, steady wiping cycles.
1(High Speed):Put the lever in this position
for rapid wiping cycles.
If the windshield wipers are in use for about
six seconds while you are driving, the exterior
lamps will come on automatically if the exterior
lamp control is in AUTO. SeeWiper Activated
Headlamps on page 178for more information.
Be sure to clear ice and snow from the wiper
blades before using them. If they are frozen to the
windshield, gently loosen or thaw them. If the
blades do become damaged, install new blades.
For more information, seeWindshield Wiper Blade
Replacement on page 397.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it
cools down. Clear away snow or ice to prevent an
overload.
170

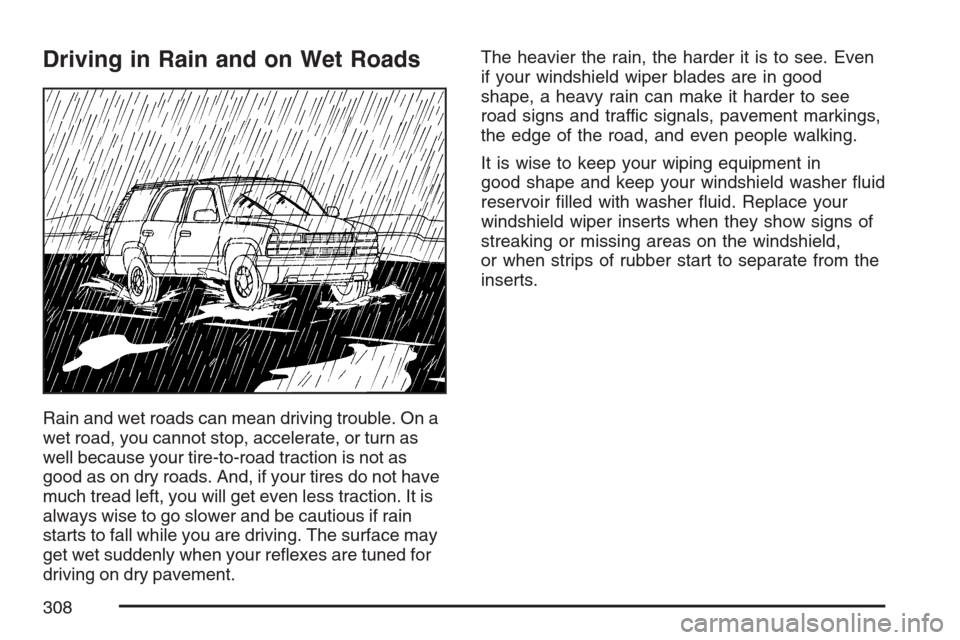

Driving in Rain and on Wet Roads
Rain and wet roads can mean driving trouble. On a
wet road, you cannot stop, accelerate, or turn as
well because your tire-to-road traction is not as
good as on dry roads. And, if your tires do not have
much tread left, you will get even less traction. It is
always wise to go slower and be cautious if rain
starts to fall while you are driving. The surface may
get wet suddenly when your reexes are tuned for
driving on dry pavement.The heavier the rain, the harder it is to see. Even
if your windshield wiper blades are in good
shape, a heavy rain can make it harder to see
road signs and traffic signals, pavement markings,
the edge of the road, and even people walking.
It is wise to keep your wiping equipment in
good shape and keep your windshield washer uid
reservoir lled with washer uid. Replace your
windshield wiper inserts when they show signs of
streaking or missing areas on the windshield,
or when strips of rubber start to separate from the
inserts.
308

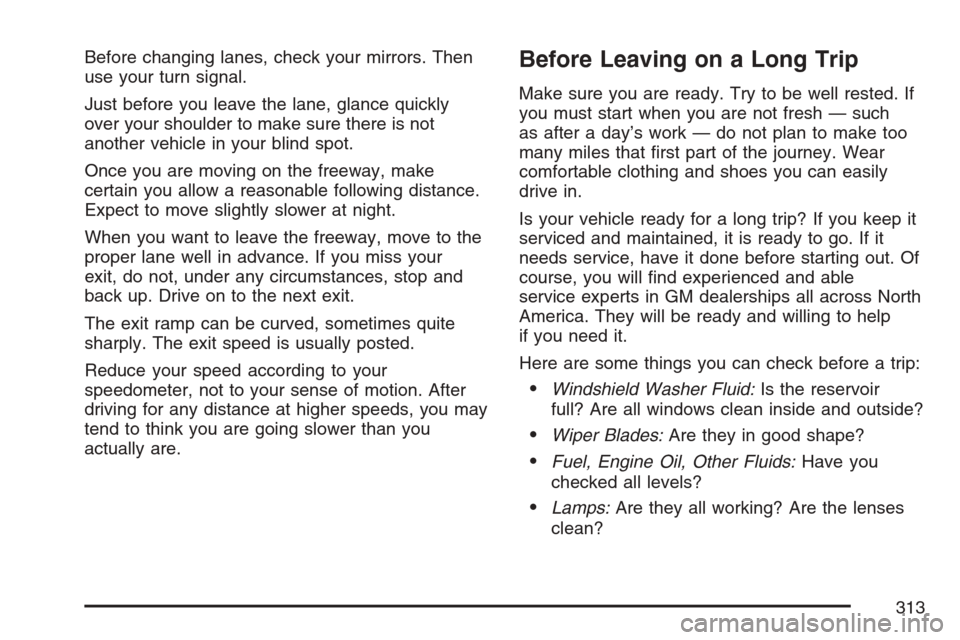

Before changing lanes, check your mirrors. Then
use your turn signal.
Just before you leave the lane, glance quickly
over your shoulder to make sure there is not
another vehicle in your blind spot.
Once you are moving on the freeway, make
certain you allow a reasonable following distance.
Expect to move slightly slower at night.
When you want to leave the freeway, move to the
proper lane well in advance. If you miss your
exit, do not, under any circumstances, stop and
back up. Drive on to the next exit.
The exit ramp can be curved, sometimes quite
sharply. The exit speed is usually posted.
Reduce your speed according to your
speedometer, not to your sense of motion. After
driving for any distance at higher speeds, you may
tend to think you are going slower than you
actually are.Before Leaving on a Long Trip
Make sure you are ready. Try to be well rested. If
you must start when you are not fresh — such
as after a day’s work — do not plan to make too
many miles that rst part of the journey. Wear
comfortable clothing and shoes you can easily
drive in.
Is your vehicle ready for a long trip? If you keep it
serviced and maintained, it is ready to go. If it
needs service, have it done before starting out. Of
course, you will nd experienced and able
service experts in GM dealerships all across North
America. They will be ready and willing to help
if you need it.
Here are some things you can check before a trip:
Windshield Washer Fluid:Is the reservoir
full? Are all windows clean inside and outside?
Wiper Blades:Are they in good shape?
Fuel, Engine Oil, Other Fluids:Have you
checked all levels?
Lamps:Are they all working? Are the lenses
clean?
313

Tires............................................................ 398
Winter Tires.............................................. 400
Tire Sidewall Labeling............................... 401
Tire Terminology and Denitions............... 404
Ination - Tire Pressure............................. 407
High-Speed Operation............................... 409
Tire Pressure Monitor System................... 410
Tire Inspection and Rotation...................... 414
When It Is Time for New Tires.................. 416
Buying New Tires...................................... 416
Different Size Tires and Wheels................ 418
Uniform Tire Quality Grading..................... 419
Wheel Alignment and Tire Balance............ 420
Wheel Replacement.................................. 421
Tire Chains............................................... 422
If a Tire Goes Flat.................................... 423
Changing a Flat Tire................................. 424
Removing the Spare Tire and Tools.......... 426
Removing the Flat Tire and Installing
the Spare Tire....................................... 429
Secondary Latch System........................... 436
Storing a Flat or Spare Tire and Tools...... 439
Compact Spare Tire.................................. 442Appearance Care........................................ 443
Cleaning the Inside of Your Vehicle.......... 443
Fabric/Carpet............................................. 445
Leather...................................................... 446
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 446
Wood Panels............................................. 447
Speaker Covers........................................ 447
Care of Safety Belts.................................. 447
Weatherstrips............................................ 447
Washing Your Vehicle............................... 447
Cleaning Exterior Lamps/Lenses................ 448
Finish Care............................................... 448
Windshield and Wiper Blades.................... 449
Aluminum or Chrome-Plated Wheels......... 449
Tires......................................................... 450
Sheet Metal Damage................................. 450
Finish Damage.......................................... 451
Underbody Maintenance............................ 451
Chemical Paint Spotting............................ 451
Vehicle Care/Appearance Materials............ 452
Section 5 Service and Appearance Care
344

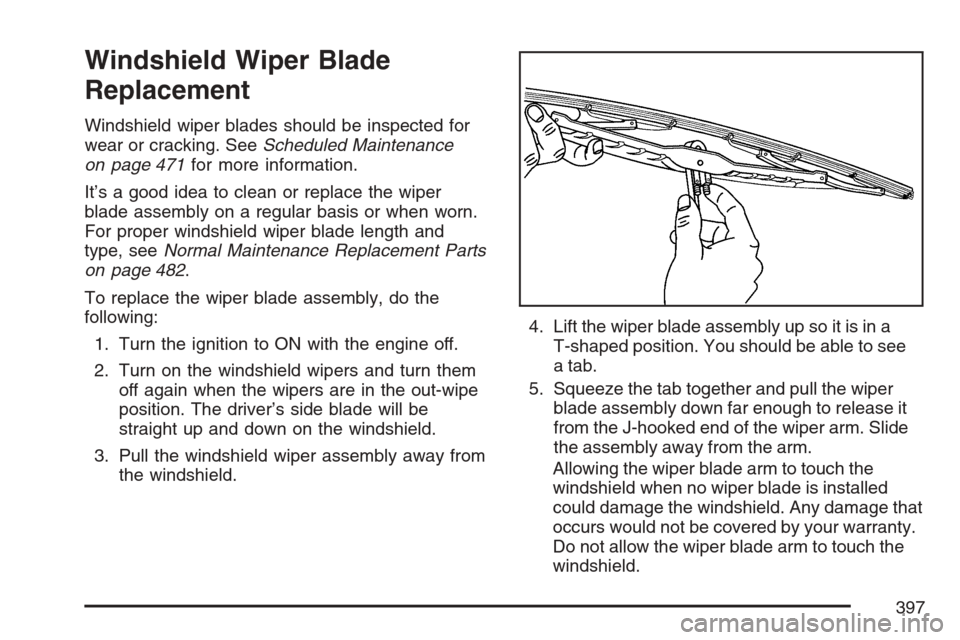

Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear or cracking. SeeScheduled Maintenance
on page 471for more information.
It’s a good idea to clean or replace the wiper
blade assembly on a regular basis or when worn.
For proper windshield wiper blade length and
type, seeNormal Maintenance Replacement Parts
on page 482.
To replace the wiper blade assembly, do the
following:
1. Turn the ignition to ON with the engine off.
2. Turn on the windshield wipers and turn them
off again when the wipers are in the out-wipe
position. The driver’s side blade will be
straight up and down on the windshield.
3. Pull the windshield wiper assembly away from
the windshield.4. Lift the wiper blade assembly up so it is in a
T-shaped position. You should be able to see
a tab.
5. Squeeze the tab together and pull the wiper
blade assembly down far enough to release it
from the J-hooked end of the wiper arm. Slide
the assembly away from the arm.
Allowing the wiper blade arm to touch the
windshield when no wiper blade is installed
could damage the windshield. Any damage that
occurs would not be covered by your warranty.
Do not allow the wiper blade arm to touch the
windshield.
397

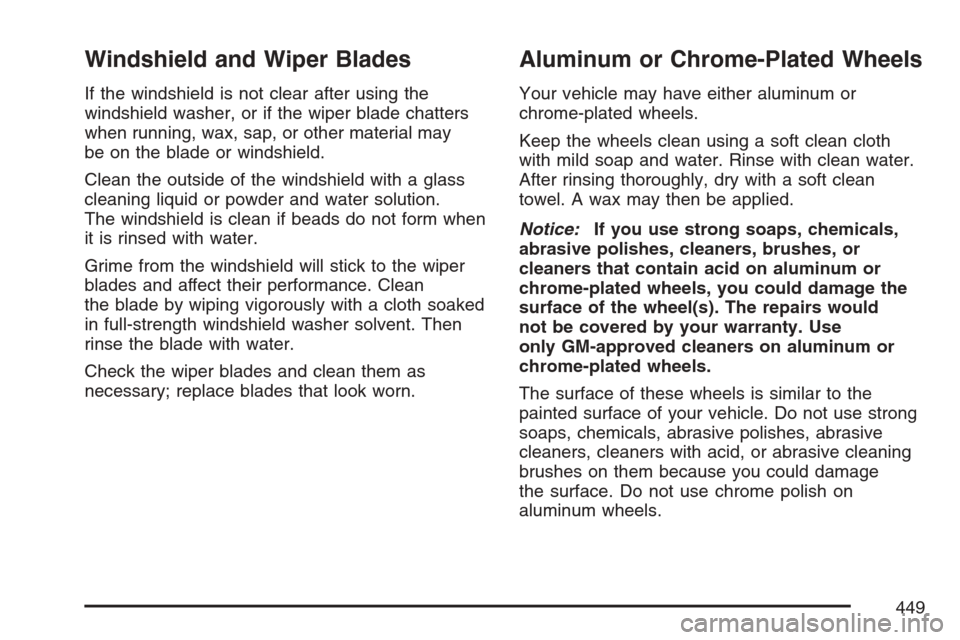

Windshield and Wiper Blades
If the windshield is not clear after using the
windshield washer, or if the wiper blade chatters
when running, wax, sap, or other material may
be on the blade or windshield.
Clean the outside of the windshield with a glass
cleaning liquid or powder and water solution.
The windshield is clean if beads do not form when
it is rinsed with water.
Grime from the windshield will stick to the wiper
blades and affect their performance. Clean
the blade by wiping vigorously with a cloth soaked
in full-strength windshield washer solvent. Then
rinse the blade with water.
Check the wiper blades and clean them as
necessary; replace blades that look worn.
Aluminum or Chrome-Plated Wheels
Your vehicle may have either aluminum or
chrome-plated wheels.
Keep the wheels clean using a soft clean cloth
with mild soap and water. Rinse with clean water.
After rinsing thoroughly, dry with a soft clean
towel. A wax may then be applied.
Notice:If you use strong soaps, chemicals,
abrasive polishes, cleaners, brushes, or
cleaners that contain acid on aluminum or
chrome-plated wheels, you could damage the
surface of the wheel(s). The repairs would
not be covered by your warranty. Use
only GM-approved cleaners on aluminum or
chrome-plated wheels.
The surface of these wheels is similar to the
painted surface of your vehicle. Do not use strong
soaps, chemicals, abrasive polishes, abrasive
cleaners, cleaners with acid, or abrasive cleaning
brushes on them because you could damage
the surface. Do not use chrome polish on
aluminum wheels.
449

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 360. Reset oil life system.
SeeEngine Oil Life System on page 363.An Emission Control Service.••
Lubricate chassis components.See footnote #.••
Visually check for any leaks or damage.See footnote (g).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 365.See footnote (k).•
Check tires for ination pressures and wear. SeeTires on page 398.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid as
needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Replace passenger compartment air lter.See footnote (j).•
472

(c)Visually inspect hoses and have them replaced
if they are cracked, swollen, or deteriorated.
Inspect all pipes, ttings and clamps; replace with
genuine GM parts as needed. To help ensure
proper operation, a pressure test of the cooling
system and pressure cap and cleaning the outside
of the radiator and air conditioning condenser is
recommended at least once a year.
(d)Visually inspect wiper blades for wear or
cracking. Replace wiper blades that appear worn
or damaged or that streak or miss areas of
the windshield.
(e)Make sure the safety belt reminder light and all
your belts, buckles, latch plates, retractors, and
anchorages are working properly. Look for
any other loose or damaged safety belt system
parts. If you see anything that might keep a safety
belt system from doing its job, have it repaired.
Have any torn or frayed safety belts replaced. Also
look for any opened or broken airbag coverings,
and have them repaired or replaced. The
airbag system does not need regular maintenance.(f)Lubricate all key lock cylinders, hood latch
assemblies, secondary latch, pivots, spring anchor,
release pawl, hood hinges, body door hinges,
rear compartment hinges, sunroof tracks, and any
folding seat hardware. More frequent lubrication
could be required when exposed to a corrosive
environment. Applying silicone grease on
weatherstrips with a clean cloth will make them
last longer, seal better, and not stick or squeak.
See Weatherstrips on page 447.
(g)A uid loss in any vehicle system could
indicate a problem. Have the system inspected
and repaired and the uid level checked. Add uid
if needed.
(h)Change automatic transmission uid and lter
if the vehicle is mainly driven under one or
more of these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C) or
higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
475

Appearance Care (cont.)
Tires........................................................ 450
Underbody Maintenance........................... 451
Vehicle Care/Appearance Materials.......... 452
Washing Your Vehicle.............................. 447
Weatherstrips........................................... 447
Windshield and Wiper Blades................... 449
Wood Panels........................................... 447
Ashtray(s).................................................... 187
Audio System(s).......................................... 240
Audio Steering Wheel Controls................. 269
Care of Your CD Player........................... 271
Care of Your CDs.................................... 271
Diversity Antenna System......................... 272
Navigation/Radio System,
see Navigation Manual......................... 266
Radio with CD......................................... 246
Rear Seat Audio (RSA)............................ 266
Setting the Time..............................242, 244
Theft-Deterrent Feature............................ 268
Understanding Radio Reception............... 270
XM™ Satellite Radio Antenna System...... 272
Automatic Transmission
Fluid........................................................ 367
Operation................................................. 122B
Battery........................................................ 385
Electric Power Management..................... 183
Exterior Lighting Battery Saver................. 181
Before Leaving on a Long Trip.................... 313
Brake
Anti-Lock Brake System (ABS)................. 279
Emergencies............................................ 281
Panic Assist............................................. 284
Parking.................................................... 127
System Warning Light.............................. 204
Brake Pedal, Throttle................................... 120
Brakes........................................................ 381
Braking....................................................... 278
Braking in Emergencies............................... 281
Break-In, New Vehicle................................. 116
Bulb Replacement....................................... 396
Halogen Bulbs......................................... 396
High Intensity Discharge (HID)
Lighting................................................ 396
Buying New Tires........................................ 416
508

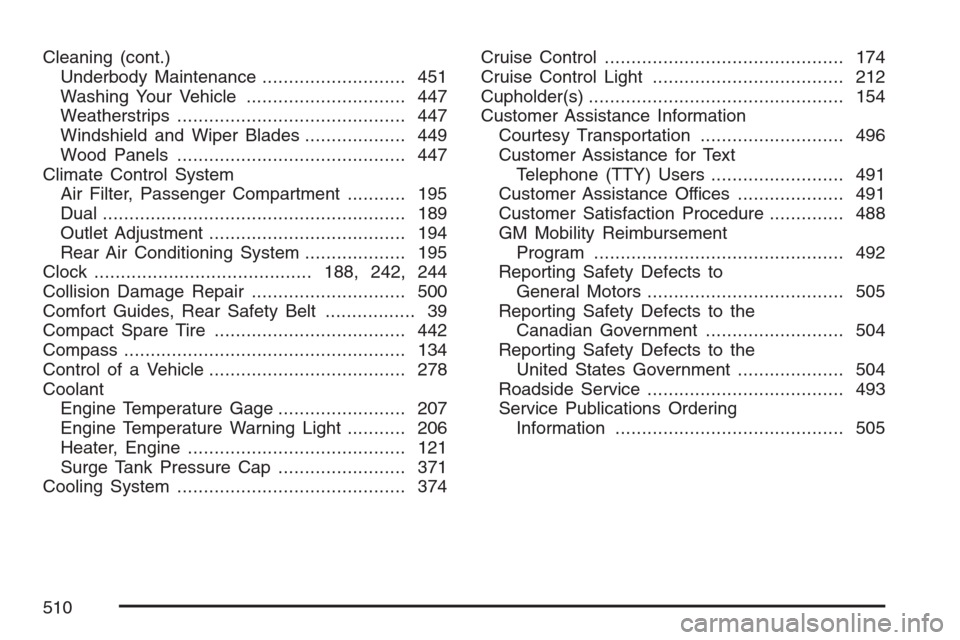

Cleaning (cont.)
Underbody Maintenance........................... 451
Washing Your Vehicle.............................. 447
Weatherstrips........................................... 447
Windshield and Wiper Blades................... 449
Wood Panels........................................... 447
Climate Control System
Air Filter, Passenger Compartment........... 195
Dual......................................................... 189
Outlet Adjustment..................................... 194
Rear Air Conditioning System................... 195
Clock.........................................188, 242, 244
Collision Damage Repair............................. 500
Comfort Guides, Rear Safety Belt................. 39
Compact Spare Tire.................................... 442
Compass..................................................... 134
Control of a Vehicle..................................... 278
Coolant
Engine Temperature Gage........................ 207
Engine Temperature Warning Light........... 206
Heater, Engine......................................... 121
Surge Tank Pressure Cap........................ 371
Cooling System........................................... 374Cruise Control............................................. 174
Cruise Control Light.................................... 212
Cupholder(s)................................................ 154
Customer Assistance Information
Courtesy Transportation........................... 496
Customer Assistance for Text
Telephone (TTY) Users ......................... 491
Customer Assistance Offices.................... 491
Customer Satisfaction Procedure.............. 488
GM Mobility Reimbursement
Program............................................... 492
Reporting Safety Defects to
General Motors..................................... 505
Reporting Safety Defects to the
Canadian Government.......................... 504
Reporting Safety Defects to the
United States Government.................... 504
Roadside Service..................................... 493
Service Publications Ordering
Information........................................... 505
510
