CADILLAC SRX 2008 1.G Owners Manual

Programming Universal Home
Remote — Fixed Code
If you have questions or need help programming
the Universal Home Remote System, call
1-866-572-2728 or go to www.learcar2u.com.
Most garage door openers sold before 1996 are
Fixed Code units.
Programming a garage door opener involves
time-sensitive actions, so read the entire procedure
before you begin. If you do not follow these actions,
the device will time out and you will have to repeat
the procedure.To program up to three devices:
1. To verify if you have a Fixed Code garage door
opener, remove the battery cover on your hand
held transmitter supplied by the manufacturer
of your garage door opener motor. If you see a
row of dip switches similar to the graphic above,
you have a Fixed Code garage door opener.
If you do not see a row of dip switches, return to
the previous section for Programming Universal
Home Remote – Rolling Code.
Your hand held transmitter may have between
eight to 12 dip switches depending on the brand
of transmitter.
2-53

Your garage door opener receiver (motor head unit)
may also have a row of dip switches that can be
used when programming the Universal Home
Remote. If the total number of switches on the
motor head and hand held transmitter are different,
or if the dip switch settings are different, use the
dip switch settings on the motor head unit to
program your Universal Home Remote. The motor
head dip switch settings can also be used when
you do not have the original hand held transmitter.
Your panel of switches may not appear exactly as
they do in the examples above, but they should
be similar.
The switch positions on your hand-held transmitter
may be labeled, as follows:
A switch in the up position may be labeled
as “Up,” “+,” or “On.”
A switch in the down position may be labeled
as “Down,” “−,” or “Off.”
A switch in the middle position may be labeled
as “Middle,” “0,” or “Neutral.” Example of Eight Dip Switches with Two Positions
Example of Eight Dip Switches with Three Positions
2-54

2. Write down the eight to 12 switch settings from
left to right as follows:
When a switch is in the up position,
write “Left.”
When a switch is in the down position,
write “Right.”
If a switch is set between the up and down
position, write “Middle.”
The switch settings that you wrote down in
Step 2 will now become the button strokes
you enter into the Universal Home Remote in
Step 4. Be sure to enter the switch settings
that you wrote down in Step 2, in order from
left to right, into the Universal Home Remote,
when completing Step 4.
3. From inside your vehicle, rst rmly press all
three buttons at the same time for about
three seconds. Release the buttons to put the
Universal Home Remote into programming mode.4. The indicator lights will blink slowly. Enter each
switch setting from Step 2 into your vehicle’s
Universal Home Remote. You will have two and
one-half minutes to complete Step 4. Now press
one button on the Universal Home Remote for
each switch setting as follows:
If you wrote “Left,” press the left button in
the vehicle.
If you wrote “Right,” press the right button in
the vehicle.
If you wrote “Middle,” press the middle button
in the vehicle.
2-55

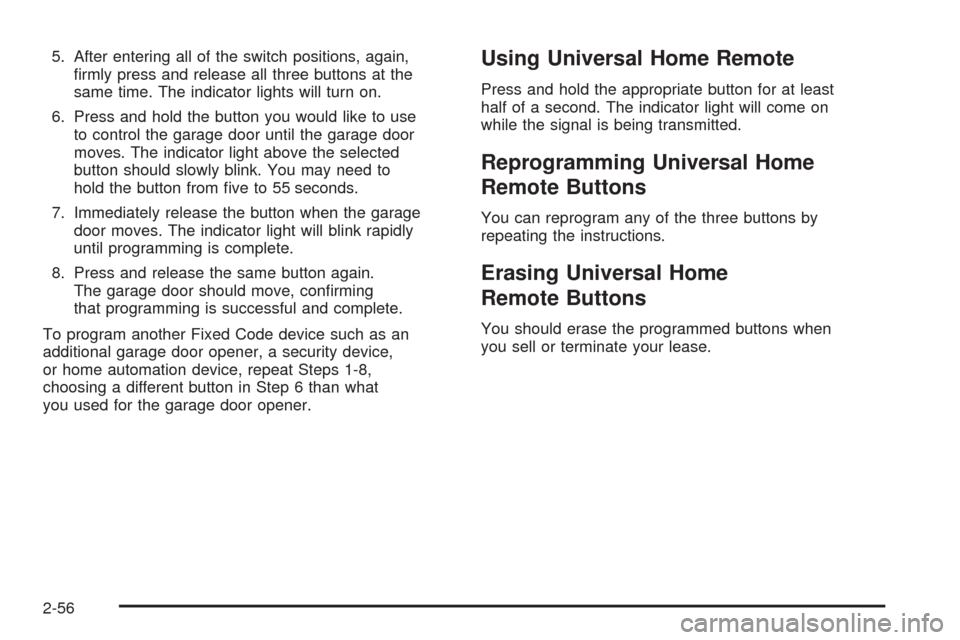

5. After entering all of the switch positions, again,
rmly press and release all three buttons at the
same time. The indicator lights will turn on.
6. Press and hold the button you would like to use
to control the garage door until the garage door
moves. The indicator light above the selected
button should slowly blink. You may need to
hold the button from ve to 55 seconds.
7. Immediately release the button when the garage
door moves. The indicator light will blink rapidly
until programming is complete.
8. Press and release the same button again.
The garage door should move, conrming
that programming is successful and complete.
To program another Fixed Code device such as an
additional garage door opener, a security device,
or home automation device, repeat Steps 1-8,
choosing a different button in Step 6 than what
you used for the garage door opener.Using Universal Home Remote
Press and hold the appropriate button for at least
half of a second. The indicator light will come on
while the signal is being transmitted.
Reprogramming Universal Home
Remote Buttons
You can reprogram any of the three buttons by
repeating the instructions.
Erasing Universal Home
Remote Buttons
You should erase the programmed buttons when
you sell or terminate your lease.
2-56

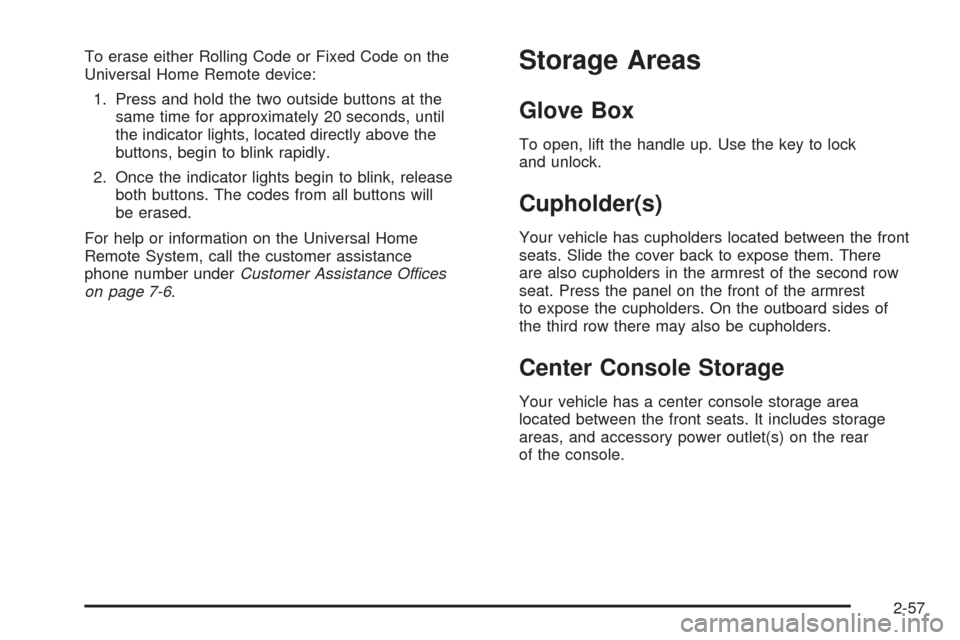

To erase either Rolling Code or Fixed Code on the
Universal Home Remote device:
1. Press and hold the two outside buttons at the
same time for approximately 20 seconds, until
the indicator lights, located directly above the
buttons, begin to blink rapidly.
2. Once the indicator lights begin to blink, release
both buttons. The codes from all buttons will
be erased.
For help or information on the Universal Home
Remote System, call the customer assistance
phone number underCustomer Assistance Offices
on page 7-6.Storage Areas
Glove Box
To open, lift the handle up. Use the key to lock
and unlock.
Cupholder(s)
Your vehicle has cupholders located between the front
seats. Slide the cover back to expose them. There
are also cupholders in the armrest of the second row
seat. Press the panel on the front of the armrest
to expose the cupholders. On the outboard sides of
the third row there may also be cupholders.
Center Console Storage
Your vehicle has a center console storage area
located between the front seats. It includes storage
areas, and accessory power outlet(s) on the rear
of the console.
2-57

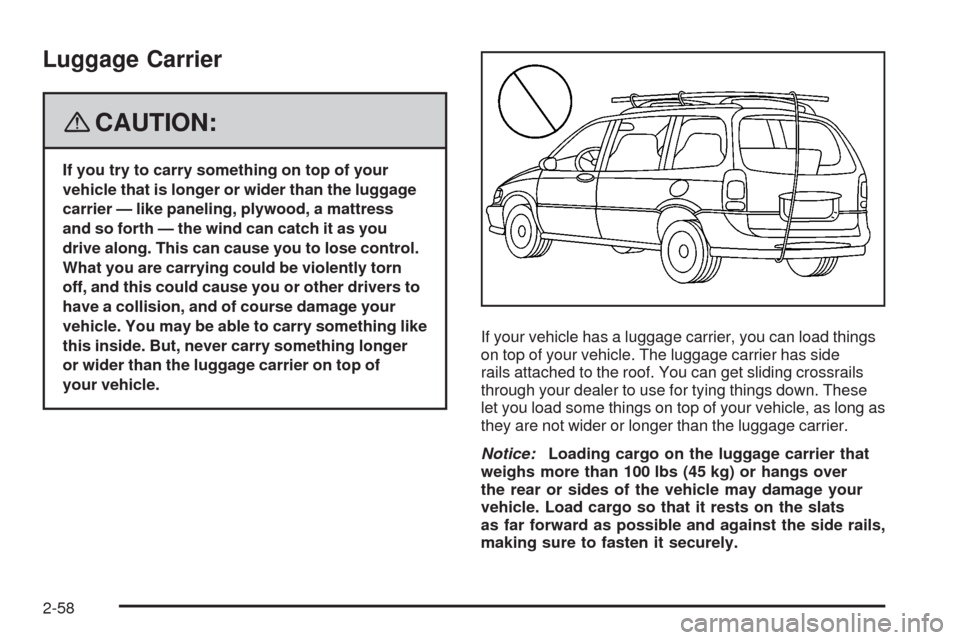

Luggage Carrier
{CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier — like paneling, plywood, a mattress
and so forth — the wind can catch it as you
drive along. This can cause you to lose control.
What you are carrying could be violently torn
off, and this could cause you or other drivers to
have a collision, and of course damage your
vehicle. You may be able to carry something like
this inside. But, never carry something longer
or wider than the luggage carrier on top of
your vehicle.If your vehicle has a luggage carrier, you can load things
on top of your vehicle. The luggage carrier has side
rails attached to the roof. You can get sliding crossrails
through your dealer to use for tying things down. These
let you load some things on top of your vehicle, as long as
they are not wider or longer than the luggage carrier.
Notice:Loading cargo on the luggage carrier that
weighs more than 100 lbs (45 kg) or hangs over
the rear or sides of the vehicle may damage your
vehicle. Load cargo so that it rests on the slats
as far forward as possible and against the side rails,
making sure to fasten it securely.
2-58

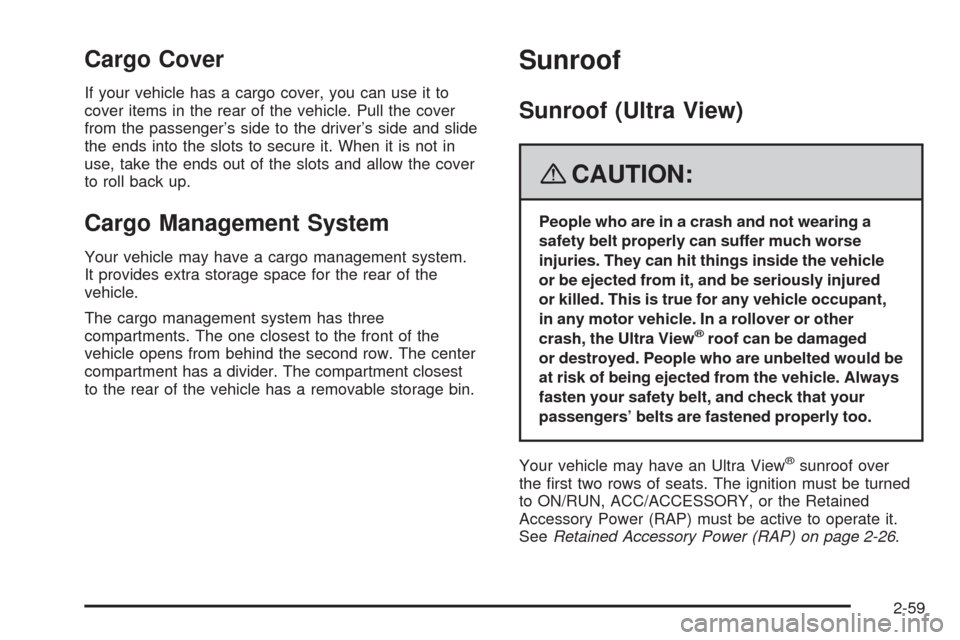

Cargo Cover
If your vehicle has a cargo cover, you can use it to
cover items in the rear of the vehicle. Pull the cover
from the passenger’s side to the driver’s side and slide
the ends into the slots to secure it. When it is not in
use, take the ends out of the slots and allow the cover
to roll back up.
Cargo Management System
Your vehicle may have a cargo management system.
It provides extra storage space for the rear of the
vehicle.
The cargo management system has three
compartments. The one closest to the front of the
vehicle opens from behind the second row. The center
compartment has a divider. The compartment closest
to the rear of the vehicle has a removable storage bin.
Sunroof
Sunroof (Ultra View)
{CAUTION:
People who are in a crash and not wearing a
safety belt properly can suffer much worse
injuries. They can hit things inside the vehicle
or be ejected from it, and be seriously injured
or killed. This is true for any vehicle occupant,
in any motor vehicle. In a rollover or other
crash, the Ultra View
®roof can be damaged
or destroyed. People who are unbelted would be
at risk of being ejected from the vehicle. Always
fasten your safety belt, and check that your
passengers’ belts are fastened properly too.
Your vehicle may have an Ultra View
®sunroof over
the rst two rows of seats. The ignition must be turned
to ON/RUN, ACC/ACCESSORY, or the Retained
Accessory Power (RAP) must be active to operate it.
SeeRetained Accessory Power (RAP) on page 2-26.
2-59

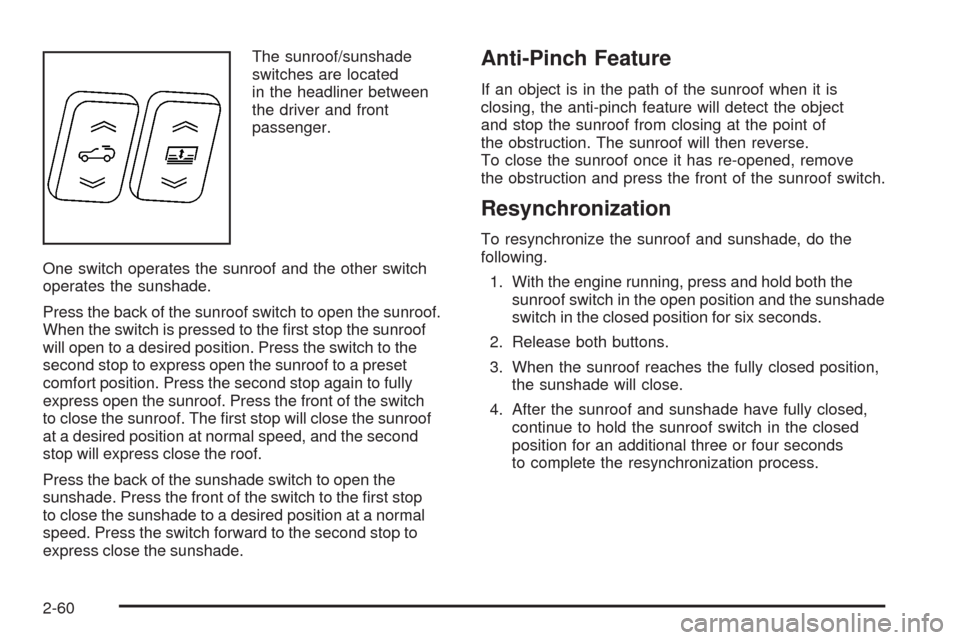

The sunroof/sunshade
switches are located
in the headliner between
the driver and front
passenger.
One switch operates the sunroof and the other switch
operates the sunshade.
Press the back of the sunroof switch to open the sunroof.
When the switch is pressed to the rst stop the sunroof
will open to a desired position. Press the switch to the
second stop to express open the sunroof to a preset
comfort position. Press the second stop again to fully
express open the sunroof. Press the front of the switch
to close the sunroof. The rst stop will close the sunroof
at a desired position at normal speed, and the second
stop will express close the roof.
Press the back of the sunshade switch to open the
sunshade. Press the front of the switch to the rst stop
to close the sunshade to a desired position at a normal
speed. Press the switch forward to the second stop to
express close the sunshade.Anti-Pinch Feature
If an object is in the path of the sunroof when it is
closing, the anti-pinch feature will detect the object
and stop the sunroof from closing at the point of
the obstruction. The sunroof will then reverse.
To close the sunroof once it has re-opened, remove
the obstruction and press the front of the sunroof switch.
Resynchronization
To resynchronize the sunroof and sunshade, do the
following.
1. With the engine running, press and hold both the
sunroof switch in the open position and the sunshade
switch in the closed position for six seconds.
2. Release both buttons.
3. When the sunroof reaches the fully closed position,
the sunshade will close.
4. After the sunroof and sunshade have fully closed,
continue to hold the sunroof switch in the closed
position for an additional three or four seconds
to complete the resynchronization process.
2-60

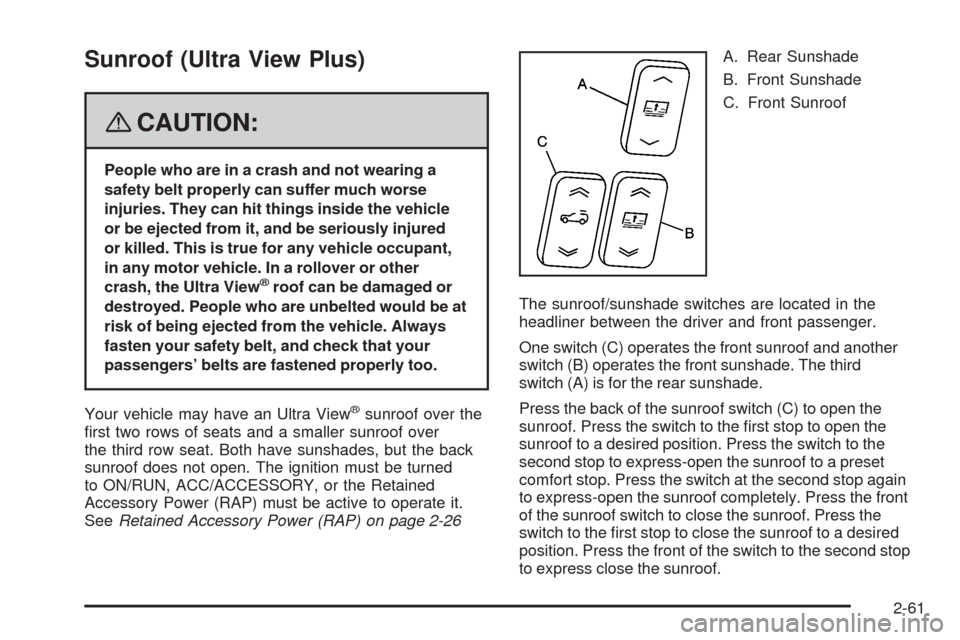

Sunroof (Ultra View Plus)
{CAUTION:
People who are in a crash and not wearing a
safety belt properly can suffer much worse
injuries. They can hit things inside the vehicle
or be ejected from it, and be seriously injured
or killed. This is true for any vehicle occupant,
in any motor vehicle. In a rollover or other
crash, the Ultra View
®roof can be damaged or
destroyed. People who are unbelted would be at
risk of being ejected from the vehicle. Always
fasten your safety belt, and check that your
passengers’ belts are fastened properly too.
Your vehicle may have an Ultra View
®sunroof over the
rst two rows of seats and a smaller sunroof over
the third row seat. Both have sunshades, but the back
sunroof does not open. The ignition must be turned
to ON/RUN, ACC/ACCESSORY, or the Retained
Accessory Power (RAP) must be active to operate it.
SeeRetained Accessory Power (RAP) on page 2-26A. Rear Sunshade
B. Front Sunshade
C. Front Sunroof
The sunroof/sunshade switches are located in the
headliner between the driver and front passenger.
One switch (C) operates the front sunroof and another
switch (B) operates the front sunshade. The third
switch (A) is for the rear sunshade.
Press the back of the sunroof switch (C) to open the
sunroof. Press the switch to the rst stop to open the
sunroof to a desired position. Press the switch to the
second stop to express-open the sunroof to a preset
comfort stop. Press the switch at the second stop again
to express-open the sunroof completely. Press the front
of the sunroof switch to close the sunroof. Press the
switch to the rst stop to close the sunroof to a desired
position. Press the front of the switch to the second stop
to express close the sunroof.
2-61

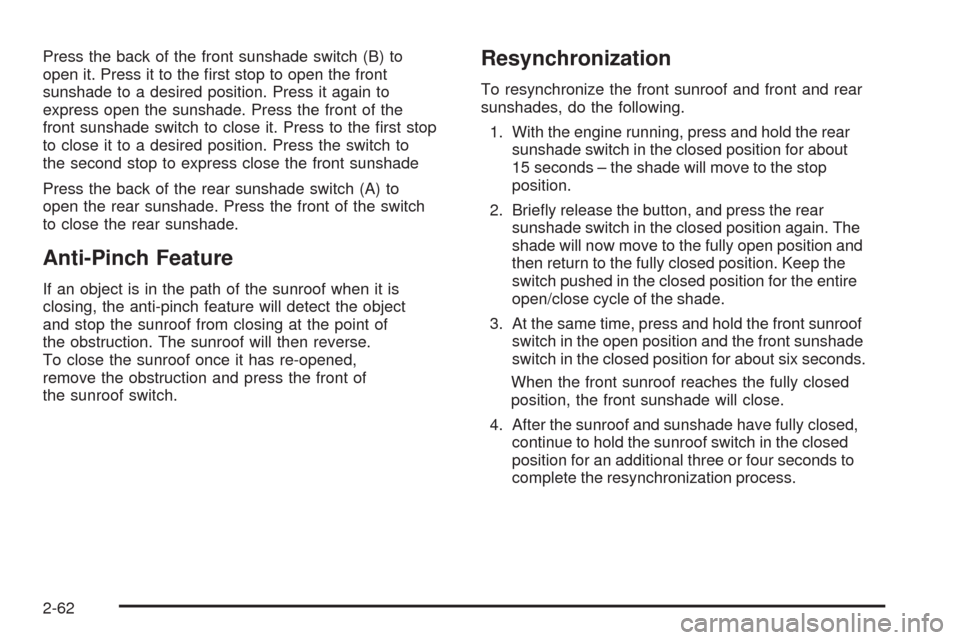

Press the back of the front sunshade switch (B) to
open it. Press it to the rst stop to open the front
sunshade to a desired position. Press it again to
express open the sunshade. Press the front of the
front sunshade switch to close it. Press to the rst stop
to close it to a desired position. Press the switch to
the second stop to express close the front sunshade
Press the back of the rear sunshade switch (A) to
open the rear sunshade. Press the front of the switch
to close the rear sunshade.
Anti-Pinch Feature
If an object is in the path of the sunroof when it is
closing, the anti-pinch feature will detect the object
and stop the sunroof from closing at the point of
the obstruction. The sunroof will then reverse.
To close the sunroof once it has re-opened,
remove the obstruction and press the front of
the sunroof switch.
Resynchronization
To resynchronize the front sunroof and front and rear
sunshades, do the following.
1. With the engine running, press and hold the rear
sunshade switch in the closed position for about
15 seconds – the shade will move to the stop
position.
2. Briey release the button, and press the rear
sunshade switch in the closed position again. The
shade will now move to the fully open position and
then return to the fully closed position. Keep the
switch pushed in the closed position for the entire
open/close cycle of the shade.
3. At the same time, press and hold the front sunroof
switch in the open position and the front sunshade
switch in the closed position for about six seconds.
When the front sunroof reaches the fully closed
position, the front sunshade will close.
4. After the sunroof and sunshade have fully closed,
continue to hold the sunroof switch in the closed
position for an additional three or four seconds to
complete the resynchronization process.
2-62
