3. Push the latch plate into the buckle until it clicks.
Make sure the release button is positioned so you
would be able to unbuckle the safety belt quickly
if necessary.4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-50

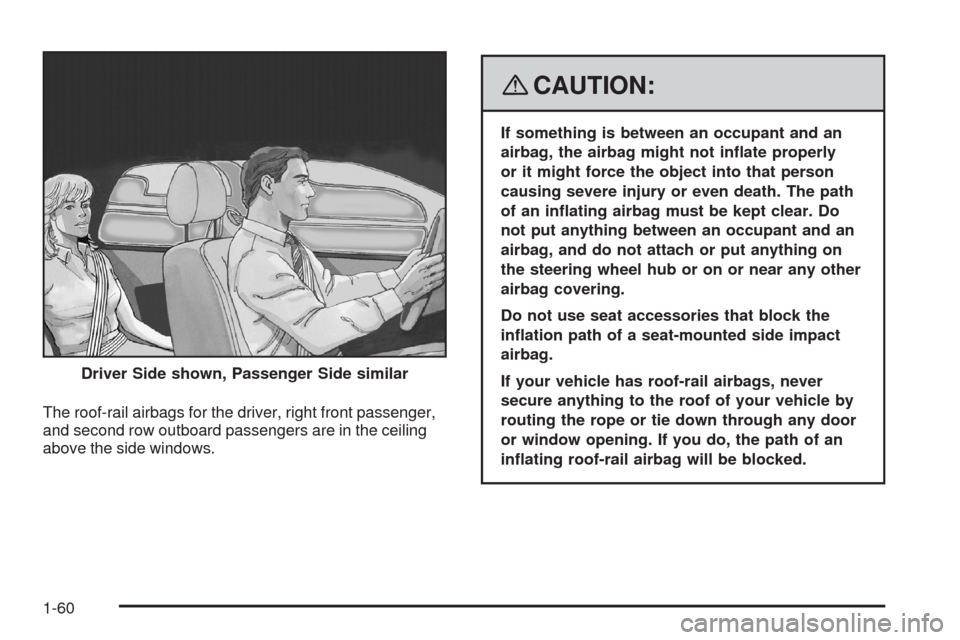

The roof-rail airbags for the driver, right front passenger,
and second row outboard passengers are in the ceiling
above the side windows.
{CAUTION:
If something is between an occupant and an
airbag, the airbag might not inate properly
or it might force the object into that person
causing severe injury or even death. The path
of an inating airbag must be kept clear. Do
not put anything between an occupant and an
airbag, and do not attach or put anything on
the steering wheel hub or on or near any other
airbag covering.
Do not use seat accessories that block the
ination path of a seat-mounted side impact
airbag.
If your vehicle has roof-rail airbags, never
secure anything to the roof of your vehicle by
routing the rope or tie down through any door
or window opening. If you do, the path of an
inating roof-rail airbag will be blocked. Driver Side shown, Passenger Side similar
1-60

What Will You See After an Airbag
Inates?
After the frontal airbags and seat-mounted side impact
airbags inate, they quickly deate, so quickly that some
people may not even realize an airbag inated. Roof-rail
airbags may still be at least partially inated for some
time after they deploy. Some components of the airbag
module may be hot for several minutes. For location of
the airbag modules, seeWhat Makes an Airbag Inflate?
on page 1-63.
The parts of the airbag that come into contact with you
may be warm, but not too hot to touch. There may be
some smoke and dust coming from the vents in the
deated airbags. Airbag ination does not prevent the
driver from seeing out of the windshield or being able to
steer the vehicle, nor does it prevent people from leaving
the vehicle.
{CAUTION:
When an airbag inates, there may be dust
in the air. This dust could cause breathing
problems for people with a history of asthma or
other breathing trouble. To avoid this, everyone
in the vehicle should get out as soon as it is
safe to do so. If you have breathing problems
but cannot get out of the vehicle after an airbag
inates, then get fresh air by opening a window
or a door. If you experience breathing problems
following an airbag deployment, you should
seek medical attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on, and turn
the hazard warning ashers on when the airbags inate.
You can lock the doors, turn the interior lamps off,
and turn the hazard warning ashers off by using the
controls for those features.
1-64

Keys...............................................................2-3
Remote Keyless Entry (RKE) System................2-4
Remote Keyless Entry (RKE) System
Operation...................................................2-5
Remote Vehicle Start......................................2-7
Doors and Locks............................................2-10
Door Locks..................................................2-10
Central Door Unlocking System......................2-10
Power Door Locks........................................2-10
Delayed Locking...........................................2-11
Programmable Automatic
Door Locks...............................................2-11
Rear Door Security Locks..............................2-12
Lockout Protection........................................2-12
Power Liftgate..............................................2-13
Windows........................................................2-16
Power Windows............................................2-17
Sun Visors...................................................2-20
Theft-Deterrent Systems..................................2-20
Theft-Deterrent System..................................2-20
PASS-Key
®III+............................................2-22
PASS-Key®III+ Operation..............................2-22Starting and Operating Your Vehicle................2-24
New Vehicle Break-In....................................2-24
Ignition Positions..........................................2-25
Retained Accessory Power (RAP)...................2-26
Starting the Engine.......................................2-26
Adjustable Throttle and Brake Pedal................2-28
Engine Coolant Heater..................................2-28
Automatic Transmission Operation...................2-30
Tow/Haul Mode............................................2-33
Parking Brake..............................................2-34
Shifting Into PARK (P)...................................2-36
Shifting Out of PARK (P)...............................2-38
Parking Over Things That Burn.......................2-38
Engine Exhaust............................................2-39
Running the Engine While Parked...................2-40
Mirrors...........................................................2-41
Automatic Dimming Rearview
Mirror with OnStar
®...................................2-41
Automatic Dimming Rearview Mirror with
OnStar
®and Compass...............................2-41
Outside Power Heated Mirrors........................2-43
Outside Automatic Dimming Mirror..................2-44
Park Tilt Mirrors............................................2-44
Outside Convex Mirror...................................2-44
Section 2 Features and Controls
2-1

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons, children
or others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
The windows will function with the keys in the
ignition and they could be seriously injured
or killed if caught in the path of a closing
window. Do not leave the keys in a vehicle
with children.
The key can be used for the ignition and door locks.
If you ever lose your keys, your dealer/retailer will
be able to assist you with obtaining replacements.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of your vehicle, contact Roadside
Service. SeeRoadside Service on page 7-8for more
information.
2-3

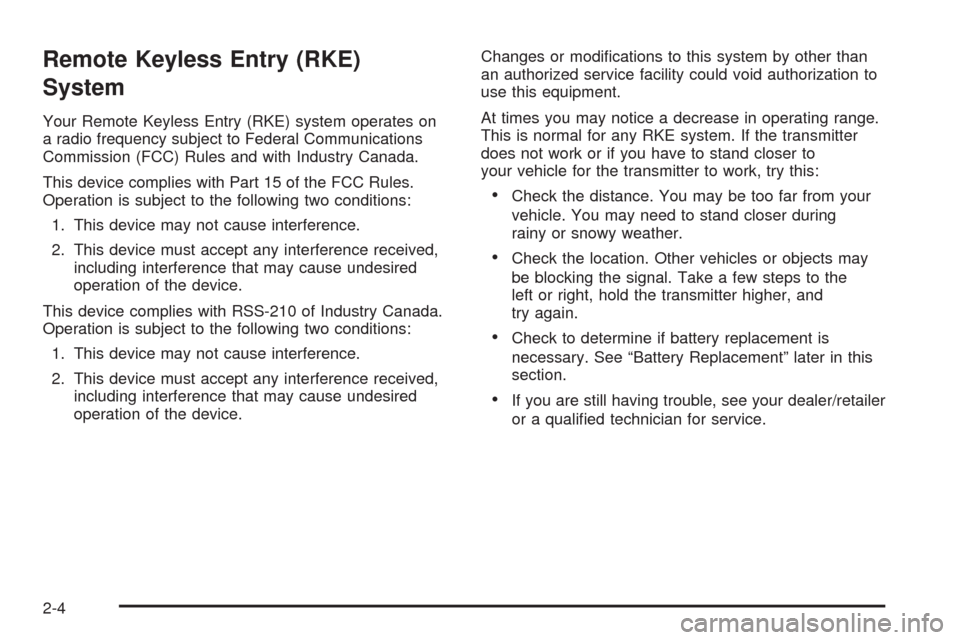

Remote Keyless Entry (RKE)
System
Your Remote Keyless Entry (RKE) system operates on
a radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in operating range.
This is normal for any RKE system. If the transmitter
does not work or if you have to stand closer to
your vehicle for the transmitter to work, try this:
Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement” later in this
section.
If you are still having trouble, see your dealer/retailer
or a qualied technician for service.
2-4

Remote Keyless Entry (RKE)
System Operation
The Remote Keyless Entry (RKE) transmitter functions,
including lock, unlock, power liftgate, vehicle locator/
panic alarm and remote vehicle start, if your vehicle has
this feature, will work up to 195 feet (60 m) away.
If your vehicle has the remote vehicle start feature,
you will be able start your vehicle with the RKE
transmitter. However, the range may be less while
the vehicle is running and you may need to be closer
to your vehicle to turn it off than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-4.
Q(Lock):Press this symbol on the RKE transmitter to
lock the doors. This also arms the theft-deterrent system.
SeeTheft-Deterrent System on page 2-20for additional
information.
You can program your vehicle so that the exterior lamps
will ash and/or the horn will sound when you lock the
doors with the RKE transmitter. SeeDIC Vehicle
Customization on page 3-62for more information on
programming this feature.
"(Unlock):Press this symbol on the RKE transmitter
to unlock the driver’s door. This also disarms the
theft-deterrent system. Press the button again, within
ve seconds, to unlock the rest of the doors.With Remote Start
(Without Remote Start
Similar)
2-5

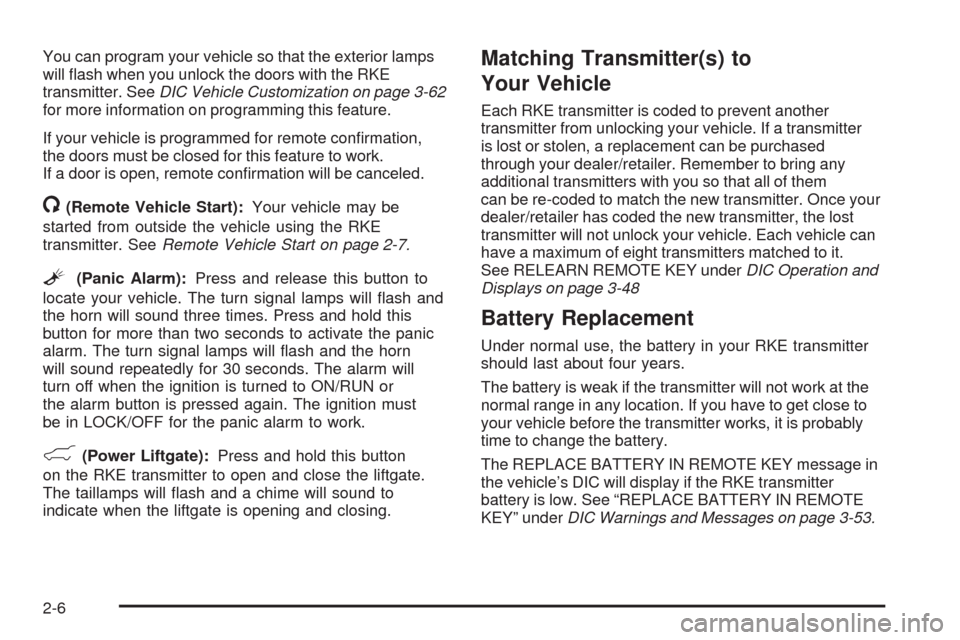

You can program your vehicle so that the exterior lamps
will ash when you unlock the doors with the RKE
transmitter. SeeDIC Vehicle Customization on page 3-62
for more information on programming this feature.
If your vehicle is programmed for remote conrmation,
the doors must be closed for this feature to work.
If a door is open, remote conrmation will be canceled.
/(Remote Vehicle Start):Your vehicle may be
started from outside the vehicle using the RKE
transmitter. SeeRemote Vehicle Start on page 2-7.
L(Panic Alarm):Press and release this button to
locate your vehicle. The turn signal lamps will ash and
the horn will sound three times. Press and hold this
button for more than two seconds to activate the panic
alarm. The turn signal lamps will ash and the horn
will sound repeatedly for 30 seconds. The alarm will
turn off when the ignition is turned to ON/RUN or
the alarm button is pressed again. The ignition must
be in LOCK/OFF for the panic alarm to work.
&(Power Liftgate):Press and hold this button
on the RKE transmitter to open and close the liftgate.
The taillamps will ash and a chime will sound to
indicate when the liftgate is opening and closing.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be purchased
through your dealer/retailer. Remember to bring any
additional transmitters with you so that all of them
can be re-coded to match the new transmitter. Once your
dealer/retailer has coded the new transmitter, the lost
transmitter will not unlock your vehicle. Each vehicle can
have a maximum of eight transmitters matched to it.
See RELEARN REMOTE KEY underDIC Operation and
Displays on page 3-48
Battery Replacement
Under normal use, the battery in your RKE transmitter
should last about four years.
The battery is weak if the transmitter will not work at the
normal range in any location. If you have to get close to
your vehicle before the transmitter works, it is probably
time to change the battery.
The REPLACE BATTERY IN REMOTE KEY message in
the vehicle’s DIC will display if the RKE transmitter
battery is low. See “REPLACE BATTERY IN REMOTE
KEY” underDIC Warnings and Messages on page 3-53.
2-6

Laws in some communities may restrict the use of
remote starters. For example, some laws may require
a person using remote start to have the vehicle in
view when doing so. Check local regulations for any
requirements on remote starting of vehicles.
Do not use the remote start feature if your vehicle is
low on fuel. Your vehicle may run out of fuel.
Your RKE transmitter, with the remote start button,
provides an increased range of operation. However,
the range may be less while the vehicle is running.
As a result, you may need to be closer to your vehicle
to turn it off than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeRemote Keyless
Entry (RKE) System Operation on page 2-5for
additional information./(Remote Start):This button will be on the RKE
transmitter if you have remote start.
To start the vehicle using the remote start feature:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button,
then immediately press and hold the transmitter’s
remote start button until the turn signal lights
ash or if the vehicle’s lights are not visible,
press and hold the remote start button for at
least four seconds. The vehicle’s doors will lock.
Pressing the remote start button again after
the vehicle has started will turn off the vehicle.
When the vehicle starts, the parking lamps will turn
on and remain on while the vehicle is running.
3. If it is the rst remote start since the vehicle has
been driven, repeat these steps, while the engine
is still running, to extend the engine running
time by 10 minutes. Remote start can be extended
one time.
After entering the vehicle during a remote start, insert
and turn the key to ON/RUN to drive the vehicle.
If the vehicle is left running it will automatically shut off
after 10 minutes unless a time extension has been done.
2-8

To manually shut off a remote start:
Aim the RKE transmitter at the vehicle and
press the remote start button until the
parking lamps turn off.
Turn on the hazard warning ashers.
Turn the ignition switch on and then off.
The remote vehicle start feature provides two separate
starts, each with 10 minutes of engine running, or it
provides one start with 10 minutes of engine running
that may be extended 10 more minutes. If you press
and release the transmitter lock button and then
press and hold the remote start button on the RKE
transmitter again before the rst 10 minutes of engine
running time has expired, 10 minutes are added to
the remaining minutes. For example, if the lock button
and then the remote start buttons are pressed again
after ve minutes of the engine run time, 10 minutes
are added and you now have 15 minutes of engine
running. The added ten minutes are considered
a second remote vehicle start.Once two remote starts or a single start with a time
extension have been used, the vehicle must be started
with the ignition key before you can use the remote
start feature again.
The remote vehicle start feature will not operate if the
key is in the ignition, the hood is not closed, or if there
is an emission control system malfunction.
The engine will turn off during a remote vehicle start
if the coolant temperature gets too high, or the oil
pressure is too low.
Your vehicle was shipped from the factory with the
remote vehicle start system enabled. The system may
be disabled through the Driver Information Center (DIC).
See “REMOTE START” underDIC Vehicle
Customization on page 3-62for additional information.
SeeEngine Exhaust on page 2-39for important
safety information when using remote start in a
closed garage.
2-9
