Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
..............................................1-11
Safety Belts
.............................................1-13
Child Restraints
.......................................1-32
Airbag System
.........................................1-55
Restraint System Check
............................1-72
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
......................................2-10
Windows
.................................................2-16
Theft-Deterrent Systems
............................2-20
Starting and Operating Your Vehicle
...........2-24
Mirrors
....................................................2-41
Object Detection Systems
..........................2-45
OnStar
®System
......................................2-47
Universal Home Remote System
................2-50
Storage Areas
.........................................2-57
Sunroof
..................................................2-59
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-23
Warning Lights, Gages, and Indicators
........3-31
Driver Information Center (DIC)
..................3-47
Audio System(s)
.......................................3-70Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-39
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-44
Rear Axle
...............................................5-46
Front Axle
...............................................5-46
Headlamp Aiming
.....................................5-47
Bulb Replacement
....................................5-47
Windshield Wiper Blade Replacement
.........5-49
Tires
......................................................5-51
Appearance Care
.....................................5-91
Vehicle Identication
.................................5-99
Electrical System
....................................5-100
Capacities and Specications
...................5-111
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-16
Vehicle Data Recording and Privacy
...........7-18
Index................................................................ 1
2008 Cadillac SRX Owner ManualM

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.To move a manual seat forward or rearward:
1. Lift the bar to unlock
the seat.
2. Slide the seat to the
desired position and
release the bar.
Try to move the seat with your body to be sure the seat
is locked in place.
1-2

Memory Seat and Mirrors
On vehicles with the memory feature the buttons are
located on the driver’s door.
1:Saves the seating position for driver 1.
2:Saves the seating position for driver 2.
S:Recalls the easy exit position.
To program the buttons:
1. Adjust the driver’s seat including the seatback
recliner, both outside mirrors, and the throttle
and brake pedals. SeeOutside Power Heated
Mirrors on page 2-43andAdjustable Throttle and
Brake Pedal on page 2-28for more information.
2. Press and hold button 1 for at least three seconds.
Two beeps conrm that the settings have been
saved.
3. Repeat the procedure for a second driver using
button 2.The vehicle must be in PARK (P) to recall the stored
settings.
Press either button to recall the stored setting.
Each time a memory button is pressed, a single beep
will sound.
To recall the stored positions when unlocking your
vehicle with the remote keyless entry transmitter,
seeDIC Vehicle Customization on page 3-62.
To stop recall movement of the memory feature,
press one of the power seat or mirror controls.
Easy Exit Seat
S
Press the exit button to recall the exit position when
the vehicle is in PARK (P). You will hear a beep.
The memory seat and easy exit features can also be
programmed using the Driver Information Center (DIC).
SeeDIC Vehicle Customization on page 3-62.
1-5

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
If your front passenger’s seat has a manual reclining
seatback, the lever used to operate it is located on the
outboard side of the seat.
1-6

To recline the seatback:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked.To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
2. Push and pull on the seatback to make sure it is
locked.
1-7

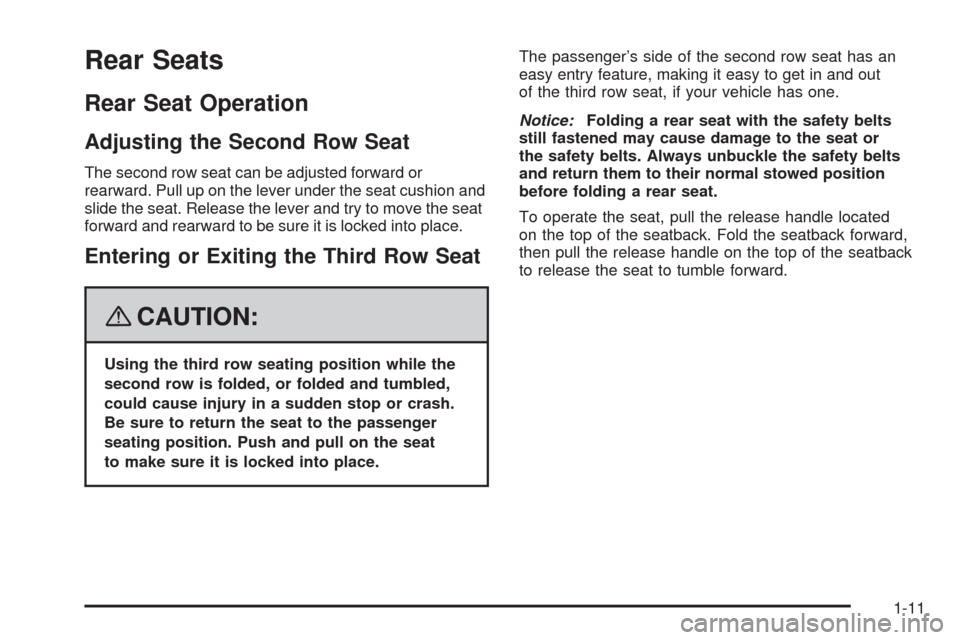

Rear Seats
Rear Seat Operation
Adjusting the Second Row Seat
The second row seat can be adjusted forward or
rearward. Pull up on the lever under the seat cushion and
slide the seat. Release the lever and try to move the seat
forward and rearward to be sure it is locked into place.
Entering or Exiting the Third Row Seat
{CAUTION:
Using the third row seating position while the
second row is folded, or folded and tumbled,
could cause injury in a sudden stop or crash.
Be sure to return the seat to the passenger
seating position. Push and pull on the seat
to make sure it is locked into place.The passenger’s side of the second row seat has an
easy entry feature, making it easy to get in and out
of the third row seat, if your vehicle has one.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or
the safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
To operate the seat, pull the release handle located
on the top of the seatback. Fold the seatback forward,
then pull the release handle on the top of the seatback
to release the seat to tumble forward.
1-11

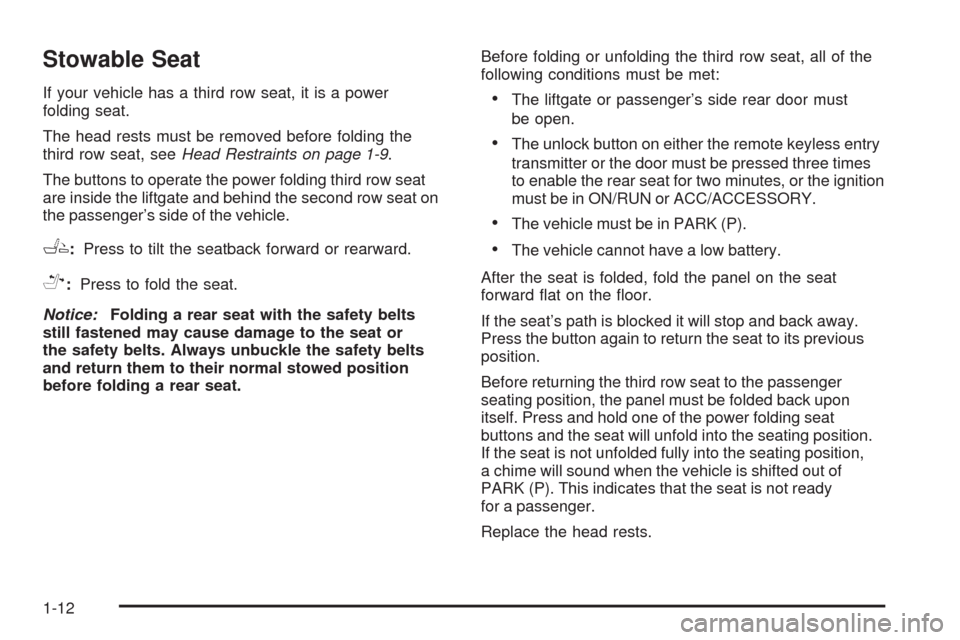

Stowable Seat
If your vehicle has a third row seat, it is a power
folding seat.
The head rests must be removed before folding the
third row seat, seeHead Restraints on page 1-9.
The buttons to operate the power folding third row seat
are inside the liftgate and behind the second row seat on
the passenger’s side of the vehicle.
e:Press to tilt the seatback forward or rearward.
f:Press to fold the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or
the safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.Before folding or unfolding the third row seat, all of the
following conditions must be met:
The liftgate or passenger’s side rear door must
be open.
The unlock button on either the remote keyless entry
transmitter or the door must be pressed three times
to enable the rear seat for two minutes, or the ignition
must be in ON/RUN or ACC/ACCESSORY.
The vehicle must be in PARK (P).
The vehicle cannot have a low battery.
After the seat is folded, fold the panel on the seat
forward at on the oor.
If the seat’s path is blocked it will stop and back away.
Press the button again to return the seat to its previous
position.
Before returning the third row seat to the passenger
seating position, the panel must be folded back upon
itself. Press and hold one of the power folding seat
buttons and the seat will unfold into the seating position.
If the seat is not unfolded fully into the seating position,
a chime will sound when the vehicle is shifted out of
PARK (P). This indicates that the seat is not ready
for a passenger.
Replace the head rests.
1-12

How to Wear Safety Belts Properly
This section is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different
rules for smaller children and babies. If a child will be
riding in your vehicle, seeOlder Children on page 1-32
orInfants and Young Children on page 1-35. Follow
those rules for everyone’s protection.
It is very important for all occupants to buckle up.
Statistics show that unbelted people are hurt more often
in crashes than those who are wearing safety belts.
Occupants who are not buckled up can be thrown out
of the vehicle in a crash. And they can strike others
in the vehicle who are wearing safety belts.
First, before you or your passenger(s) wear a safety
belt, there is important information you should know.
Sit up straight and always keep your feet on the oor in
front of you. The lap part of the belt should be worn low
and snug on the hips, just touching the thighs. In a crash,
this applies force to the strong pelvic bones and you
would be less likely to slide under the lap belt. If you slid
under it, the belt would apply force on your abdomen.
This could cause serious or even fatal injuries. The
shoulder belt should go over the shoulder and across the
chest. These parts of the body are best able to take belt
restraining forces.
The shoulder belt locks if there is a sudden stop or crash.
1-18

Lap-Shoulder Belt
All seating positions in your vehicle have a
lap-shoulder belt.
Here is how to wear a lap-shoulder belt properly.
1. Adjust the seat, if the seat is adjustable, so you
can sit up straight. To see how, see “Seats” in
the Index.
2. Pick up the latch plate and pull the belt across you.
Do not let it get twisted.
The lap-shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the belt
go back slightly to unlock it. Then pull the belt
across you more slowly.
3. If the belt stops before it reaches the buckle, tilt the
latch plate and keep pulling until you can buckle
the belt.
1-26

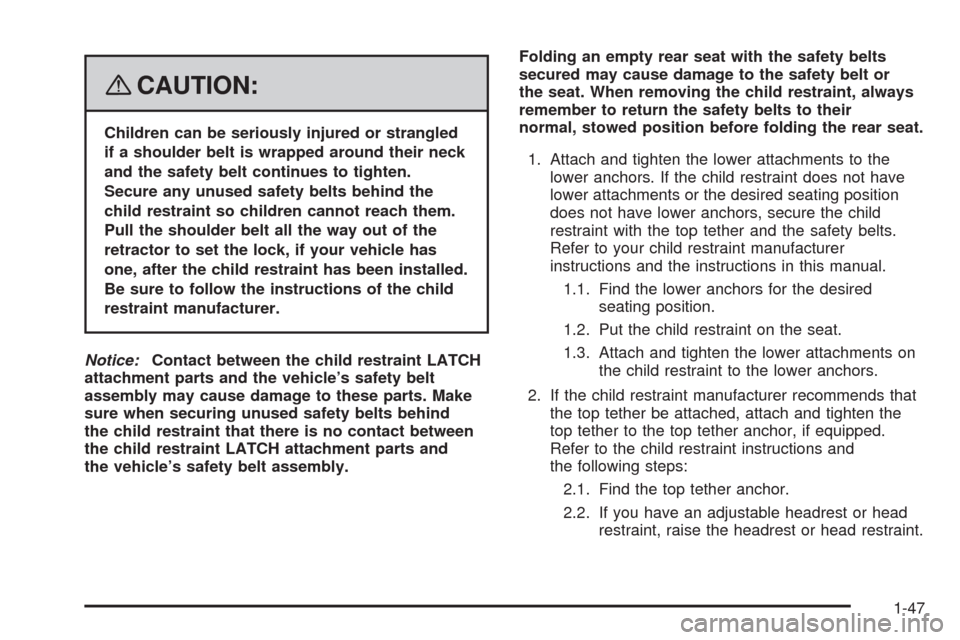

{CAUTION:
Children can be seriously injured or strangled
if a shoulder belt is wrapped around their neck
and the safety belt continues to tighten.
Secure any unused safety belts behind the
child restraint so children cannot reach them.
Pull the shoulder belt all the way out of the
retractor to set the lock, if your vehicle has
one, after the child restraint has been installed.
Be sure to follow the instructions of the child
restraint manufacturer.
Notice:Contact between the child restraint LATCH
attachment parts and the vehicle’s safety belt
assembly may cause damage to these parts. Make
sure when securing unused safety belts behind
the child restraint that there is no contact between
the child restraint LATCH attachment parts and
the vehicle’s safety belt assembly.Folding an empty rear seat with the safety belts
secured may cause damage to the safety belt or
the seat. When removing the child restraint, always
remember to return the safety belts to their
normal, stowed position before folding the rear seat.
1. Attach and tighten the lower attachments to the
lower anchors. If the child restraint does not have
lower attachments or the desired seating position
does not have lower anchors, secure the child
restraint with the top tether and the safety belts.
Refer to your child restraint manufacturer
instructions and the instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower attachments on
the child restraint to the lower anchors.
2. If the child restraint manufacturer recommends that
the top tether be attached, attach and tighten the
top tether to the top tether anchor, if equipped.
Refer to the child restraint instructions and
the following steps:
2.1. Find the top tether anchor.
2.2. If you have an adjustable headrest or head
restraint, raise the headrest or head restraint.
1-47
