CADILLAC SRX 2009 1.G Owners Manual

Your garage door opener receiver (motor head unit)
may also have a row of dip switches that can be used
when programming the Universal Home Remote.
If the total number of switches on the motor head and
hand held transmitter are different, or if the dip switch
settings are different, use the dip switch settings on
the motor head unit to program your Universal Home
Remote. The motor head dip switch settings can also
be used when you do not have the original hand held
transmitter.
Your panel of switches may not appear exactly as
they do in the examples above, but they should
be similar.
The switch positions on your hand-held transmitter
may be labeled, as follows:
A switch in the up position may be labeled
as “Up,” “+,” or “On.”
A switch in the down position may be labeled
as “Down,” “−,” or “Off.”
A switch in the middle position may be labeled
as “Middle,” “0,” or “Neutral.” Example of Eight Dip Switches with Two Positions
Example of Eight Dip Switches with Three Positions
2-51

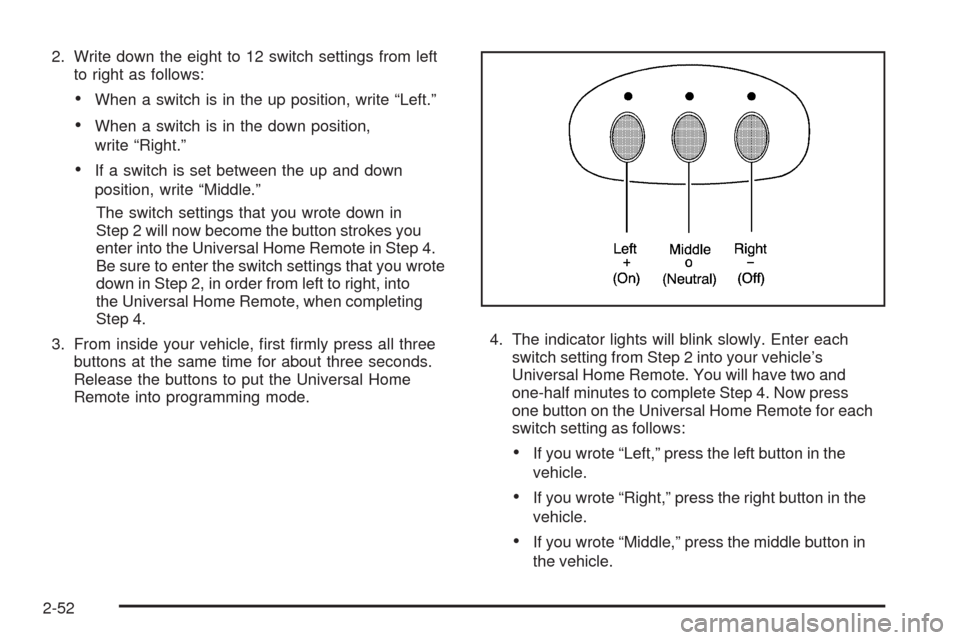

2. Write down the eight to 12 switch settings from left
to right as follows:
When a switch is in the up position, write “Left.”
When a switch is in the down position,
write “Right.”
If a switch is set between the up and down
position, write “Middle.”
The switch settings that you wrote down in
Step 2 will now become the button strokes you
enter into the Universal Home Remote in Step 4.
Be sure to enter the switch settings that you wrote
down in Step 2, in order from left to right, into
the Universal Home Remote, when completing
Step 4.
3. From inside your vehicle, rst rmly press all three
buttons at the same time for about three seconds.
Release the buttons to put the Universal Home
Remote into programming mode.4. The indicator lights will blink slowly. Enter each
switch setting from Step 2 into your vehicle’s
Universal Home Remote. You will have two and
one-half minutes to complete Step 4. Now press
one button on the Universal Home Remote for each
switch setting as follows:
If you wrote “Left,” press the left button in the
vehicle.
If you wrote “Right,” press the right button in the
vehicle.
If you wrote “Middle,” press the middle button in
the vehicle.
2-52

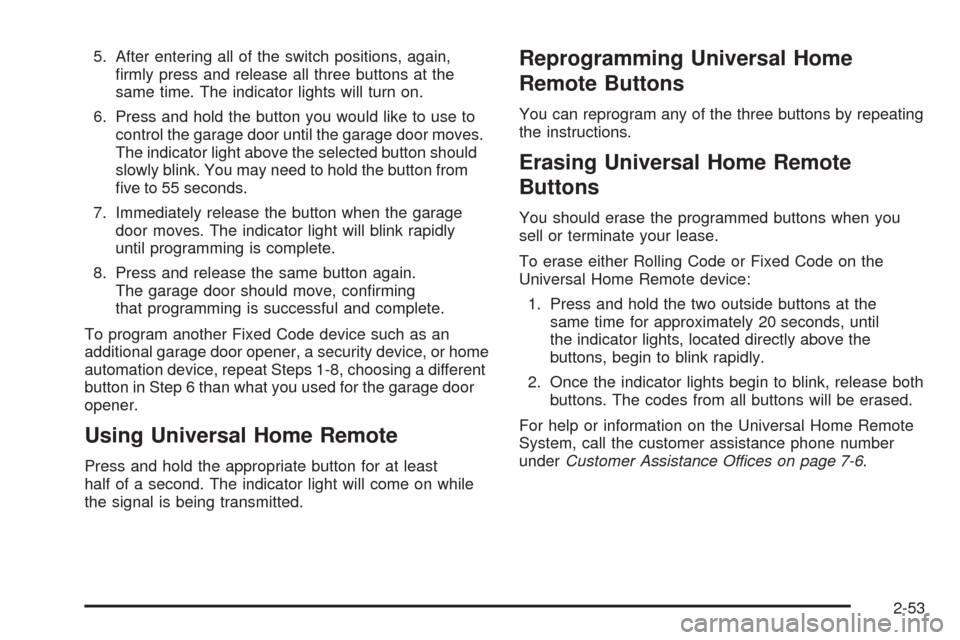

5. After entering all of the switch positions, again,
rmly press and release all three buttons at the
same time. The indicator lights will turn on.
6. Press and hold the button you would like to use to
control the garage door until the garage door moves.
The indicator light above the selected button should
slowly blink. You may need to hold the button from
ve to 55 seconds.
7. Immediately release the button when the garage
door moves. The indicator light will blink rapidly
until programming is complete.
8. Press and release the same button again.
The garage door should move, conrming
that programming is successful and complete.
To program another Fixed Code device such as an
additional garage door opener, a security device, or home
automation device, repeat Steps 1-8, choosing a different
button in Step 6 than what you used for the garage door
opener.
Using Universal Home Remote
Press and hold the appropriate button for at least
half of a second. The indicator light will come on while
the signal is being transmitted.
Reprogramming Universal Home
Remote Buttons
You can reprogram any of the three buttons by repeating
the instructions.
Erasing Universal Home Remote
Buttons
You should erase the programmed buttons when you
sell or terminate your lease.
To erase either Rolling Code or Fixed Code on the
Universal Home Remote device:
1. Press and hold the two outside buttons at the
same time for approximately 20 seconds, until
the indicator lights, located directly above the
buttons, begin to blink rapidly.
2. Once the indicator lights begin to blink, release both
buttons. The codes from all buttons will be erased.
For help or information on the Universal Home Remote
System, call the customer assistance phone number
underCustomer Assistance Offices on page 7-6.
2-53

Storage Areas
Glove Box
Lift the glovebox handle up to open it. Use the key to
lock and unlock the glovebox.
Cupholders
Your vehicle has cupholders located between the
front seats. Slide the cover back to expose them.
There are also cupholders in the armrest of the
second row seat. Press the panel on the front of the
armrest to expose the cupholders. On the outboard
sides of the third row there may also be cupholders.
Instrument Panel Storage
A storage area is located above the glove box. Press
the trim panel button located to the left of the storage
panel door, to automatically open upward.
For vehicles with a storage area, located below the
climate controls, press on the storage door to open it.
Center Console Storage
The vehicle has a center console storage area located
between the front seats. It includes storage areas, and
accessory power outlet(s) on the rear of the console.
Luggage Carrier
{CAUTION:
If something is carried on top of the vehicle that is
longer or wider than the luggage carrier — like
paneling, plywood, or a mattress — the wind can
catch it while the vehicle is being driven. This can
cause a driver to lose control. The item being
carried could be violently torn off, and this could
cause a collision, and damage the vehicle. Items
may be carried inside. Never carry something
longer or wider than the luggage carrier on top of
the vehicle.
2-54

If your vehicle has a luggage carrier, you can load
things on top of your vehicle. The luggage carrier has
side rails attached to the roof. You can get sliding
crossrails through your dealer to use for tying things
down. These let you load some things on top of
your vehicle, as long as they are not wider or
longer than the luggage carrier.
Notice:Loading cargo on the luggage carrier that
weighs more than 100 lbs (45 kg) or hangs over
the rear or sides of the vehicle may damage your
vehicle. Load cargo so that it rests on the slats
as far forward as possible and against the side
rails, making sure to fasten it securely.
Cargo Cover
If your vehicle has a cargo cover, you can use it to
cover items in the rear of the vehicle. Pull the cover from
the passenger’s side to the driver’s side and slide the
ends into the slots to secure it. When it is not in use,
take the ends out of the slots and allow the cover to
roll back up.
Cargo Management System
For vehicles with a cargo management system, it
provides extra storage space for the rear of the vehicle.
The cargo management system has three
compartments. The one closest to the front of the
vehicle opens from behind the second row. The center
compartment has a divider. The compartment closest
to the rear of the vehicle has a removable storage bin.
2-55

Sunroof
Sunroof (Ultra View)
{CAUTION:
People who are in a crash and not wearing a
safety belt properly can suffer much worse injuries.
They can hit things inside the vehicle or be ejected
from it, and be seriously injured or killed. This is true
for any vehicle occupant, in any motor vehicle. In a
rollover or other crash, the Ultra View
®roof can be
damaged or destroyed. People who are unbelted
would be at risk of being ejected from the vehicle.
Always fasten your safety belt, and check that your
passengers’ belts are fastened properly too.Your vehicle may have an Ultra View
®sunroof over
the rst two rows of seats. The ignition must be turned
to ON/RUN, ACC/ACCESSORY, or the Retained
Accessory Power (RAP) must be active to operate it.
SeeRetained Accessory Power (RAP) on page 2-24.
The sunroof/sunshade
switches are located in
the headliner between the
driver and front passenger.
One switch operates the sunroof and the other switch
operates the sunshade.
2-56

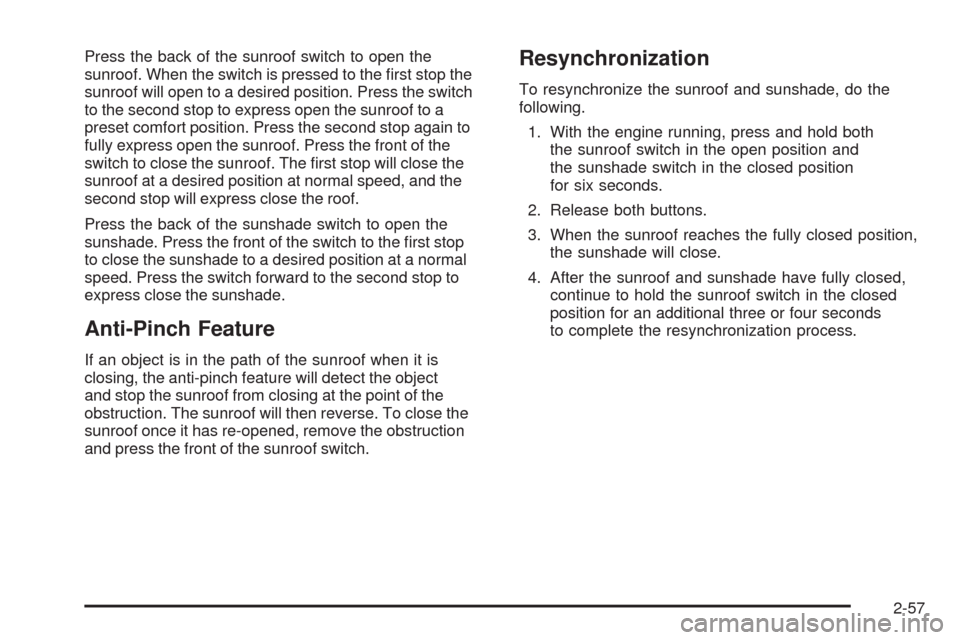

Press the back of the sunroof switch to open the
sunroof. When the switch is pressed to the rst stop the
sunroof will open to a desired position. Press the switch
to the second stop to express open the sunroof to a
preset comfort position. Press the second stop again to
fully express open the sunroof. Press the front of the
switch to close the sunroof. The rst stop will close the
sunroof at a desired position at normal speed, and the
second stop will express close the roof.
Press the back of the sunshade switch to open the
sunshade. Press the front of the switch to the rst stop
to close the sunshade to a desired position at a normal
speed. Press the switch forward to the second stop to
express close the sunshade.
Anti-Pinch Feature
If an object is in the path of the sunroof when it is
closing, the anti-pinch feature will detect the object
and stop the sunroof from closing at the point of the
obstruction. The sunroof will then reverse. To close the
sunroof once it has re-opened, remove the obstruction
and press the front of the sunroof switch.
Resynchronization
To resynchronize the sunroof and sunshade, do the
following.
1. With the engine running, press and hold both
the sunroof switch in the open position and
the sunshade switch in the closed position
for six seconds.
2. Release both buttons.
3. When the sunroof reaches the fully closed position,
the sunshade will close.
4. After the sunroof and sunshade have fully closed,
continue to hold the sunroof switch in the closed
position for an additional three or four seconds
to complete the resynchronization process.
2-57

✍NOTES
2-58

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Horn .............................................................3-6
Tilt Wheel.....................................................3-6
Heated Steering Wheel...................................3-7
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-8
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-9
Windshield Wipers..........................................3-9
Windshield Washer.......................................3-10
Rear Window Wiper/Washer...........................3-11
Headlamp Washer........................................3-12
Cruise Control..............................................3-12
Headlamps..................................................3-15
Wiper Activated Headlamps............................3-16
Headlamps on Reminder................................3-16
Daytime Running Lamps (DRL).......................3-16
Fog Lamps ..................................................3-17
Exterior Lighting Battery Saver........................3-18
Instrument Panel Brightness...........................3-18
Entry Lighting...............................................3-18
Parade Dimming...........................................3-18
Reading Lamps............................................3-19
Electric Power Management...........................3-19Accessory Power Outlet(s).............................3-20
Ashtray(s) and Cigarette Lighter......................3-20
Analog Clock...............................................3-21
Climate Controls............................................3-22
Dual Climate Control System..........................3-22
Outlet Adjustment.........................................3-26
Rear Air Conditioning System.........................3-27
Passenger Compartment Air Filter...................3-28
Warning Lights, Gages, and Indicators............3-29
Instrument Panel Cluster
................................3-30
Speedometer and Odometer...........................3-31
Tachometer.................................................3-31
Engine Speed Limiter....................................3-31
Safety Belt Reminders...................................3-31
Airbag Readiness Light..................................3-32
Passenger Airbag Status Indicator...................3-33
Charging System Light..................................3-35
Brake System Warning Light..........................3-36
Antilock Brake System (ABS) Warning Light.....3-37
Traction Control System (TCS) Warning Light . . .3-37
Engine Coolant Temperature Warning Light......3-38
Engine Coolant Temperature Gage..................3-38
Tire Pressure Light.......................................3-39
Malfunction Indicator Lamp.............................3-39
Section 3 Instrument Panel
3-1

Oil Pressure Light.........................................3-42
Security Light...............................................3-43
Fog Lamp Light............................................3-43
Lights On Reminder......................................3-43
Cruise Control Light......................................3-44
Highbeam On Light.......................................3-44
Tow/Haul Mode Light....................................3-44
Fuel Gage...................................................3-44
Driver Information Center (DIC).......................3-45
DIC Operation and Displays...........................3-46
DIC Warnings and Messages.........................3-51
DIC Vehicle Customization.............................3-60Audio System(s).............................................3-68
Setting the Clock..........................................3-69
Radio(s)......................................................3-72
Using an MP3..............................................3-81
XM Radio Messages.....................................3-87
Navigation/Radio System...............................3-88
Rear Seat Entertainment (RSE) System...........3-88
Rear Seat Audio (RSA).................................3-88
Theft-Deterrent Feature..................................3-90
Audio Steering Wheel Controls.......................3-90
Radio Reception...........................................3-91
Rear Side Window Antenna...........................3-92
XM™ Satellite Radio Antenna System.............3-92
Section 3 Instrument Panel
3-2
