Black plate (5,1)Cadillac SRX Owner Manual - 2011
In Brief 1-5
Remote Vehicle Start
With this feature the engine can be
started from outside of the vehicle.
Starting the Vehicle
1. PressQon the RKE transmitter.
2. Within two seconds, press and hold
/until the turn
signal lamps flash. Or for about
2 seconds if the vehicle is not
in view.
When the vehicle starts, the parking
lamps will turn on and remain on
as long as the engine is running.
The doors will be locked and
the climate control system may
come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start:
.Press and hold/until the
parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2‑10.
Door Locks
To lock or unlock a door, use
the Remote Keyless Entry (RKE)
transmitter from the outside.
From inside the vehicle with the
doors locked, pull once on the door
handle to unlock it, and a second
time to open it or use the power
door lock switch.
The power door lock switches are
on the instrument panel.
K: Press to unlock the doors.
Q:Press to lock the doors.
See Power Door Locks on
page 2‑12.

Black plate (6,1)Cadillac SRX Owner Manual - 2011
1-6 In Brief
Liftgate
Manual Liftgate Operation
For vehicles without keyless access,
unlock the vehicle before opening
the liftgate.
Press the touchpad located in the
handle of the liftgate, above the
license plate, and lift up to open.
Do not press the touchpad while
closing the liftgate. This will cause
the liftgate to be unlatched.
Power Liftgate Operation
On vehicles with a power liftgate the
switch is located on the driver door.
The vehicle must be in P (Park) to
use the power feature. The taillamps
flash when the power liftgate
moves.Choose the power liftgate mode
by turning the dial on the switch
until the indicator lines up with the
desired position. Press the center
of the switch.
See
Liftgate (Manual) on page 2‑14
or Liftgate (Power) on page 2‑15 for
more information.

Black plate (7,1)Cadillac SRX Owner Manual - 2011
In Brief 1-7

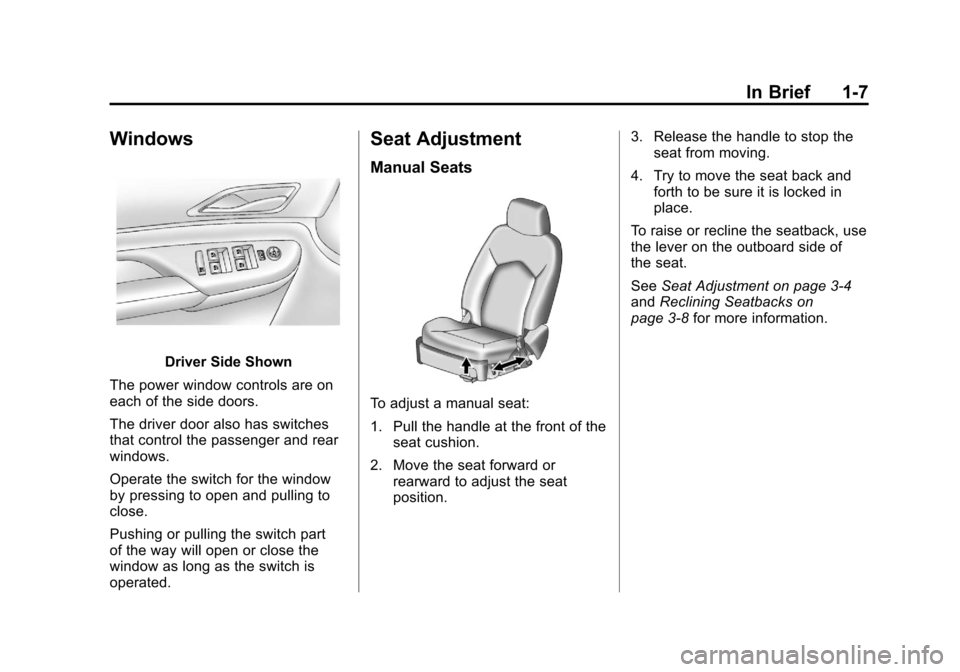

Windows
Driver Side Shown
The power window controls are on
each of the side doors.
The driver door also has switches
that control the passenger and rear
windows.
Operate the switch for the window
by pressing to open and pulling to
close.
Pushing or pulling the switch part
of the way will open or close the
window as long as the switch is
operated.
Seat Adjustment
Manual Seats
To adjust a manual seat:
1. Pull the handle at the front of the seat cushion.
2. Move the seat forward or rearward to adjust the seat
position. 3. Release the handle to stop the
seat from moving.
4. Try to move the seat back and forth to be sure it is locked in
place.
To raise or recline the seatback, use
the lever on the outboard side of
the seat.
See Seat Adjustment on page 3‑4
and Reclining Seatbacks on
page 3‑8 for more information.

Black plate (8,1)Cadillac SRX Owner Manual - 2011
1-8 In Brief
Power Seats
A. Power Seat Adjustment
B. Seatback Adjustment
C. Lumbar AdjustmentTo adjust a power seat, if equipped:
.Slide control (A) forward or
rearward, and up or down to
adjust the power seat.
See
Power Seat Adjustment on
page 3‑4.
.Raise or recline the seatback
by tilting control (B) forward or
rearward.
See Reclining Seatbacks on
page 3‑8.
.Increase or decrease the lumbar
support by pressing and holding
the front or rear of control (C).
See Lumbar Adjustment on
page 3‑7.
Memory Features
On vehicles with the memory
feature, the “1”and “2”buttons
on the outboard side of the driver
seat are used to manually save
and recall the positions of the
driver seat, outside mirrors, and
adjustable throttle and brake pedals,
if available. These manually stored
positions are referred to as Button
Memory positions.

Black plate (9,1)Cadillac SRX Owner Manual - 2011
In Brief 1-9
The vehicle will also automatically
save driver seat, outside mirror,
and adjustable throttle and brake
pedal positions to the current driver
Remote Keyless Entry (RKE)
transmitter when the ignition is
turned off. These automatically
stored positions are referred to
as RKE Memory positions.
Storing Button Memory Positions
To save positions into Button
Memory:
1. Adjust the driver seat,seatback recliner, both outside
mirrors, and adjustable pedals,
if available, to the desired driving
positions.
2. Press and release the MEM (Memory) button.
3. Press “1”until a beep sounds.
4. Repeat Steps 1 through 3 for a second driver using “2.”To recall the manually saved
Button Memory positions, press
and hold
“1”or“2.” The driver seat,
outside mirrors, and adjustable
pedals, if available, move to the
positions stored to those buttons
when pressed. Releasing “1”or“2”
before the stored positions are
reached stops the recall.
To automatically recall RKE Memory
positions, unlock the driver door
with the RKE transmitter, and open
the driver door. On vehicles with
Keyless Access, opening the driver
door when an RKE transmitter
is present will activate the RKE
Memory recall. If the driver door
is already open, pressing the
RKE transmitter Kbutton will also
activate the RKE Memory recall.
The driver seat, outside mirrors,
and pedals, if available, will move to
the previously saved RKE Memory
positions. See
“Memory Seats” underPower
Seat Adjustment on page 3‑4 for
more information.
Easy Exit Driver Seat
This feature moves the seat
rearward allowing the driver more
room to exit the vehicle.
To activate, place the ignition in
OFF and open the driver door. If the
driver door is already open, placing
the ignition in OFF will activate the
easy exit driver seat.
This feature is turned on or off using
the vehicle personalization menu.
See “Easy Exit Driver Seat” under
Vehicle Personalization on
page 5‑40 for more information.

Black plate (10,1)Cadillac SRX Owner Manual - 2011
1-10 In Brief

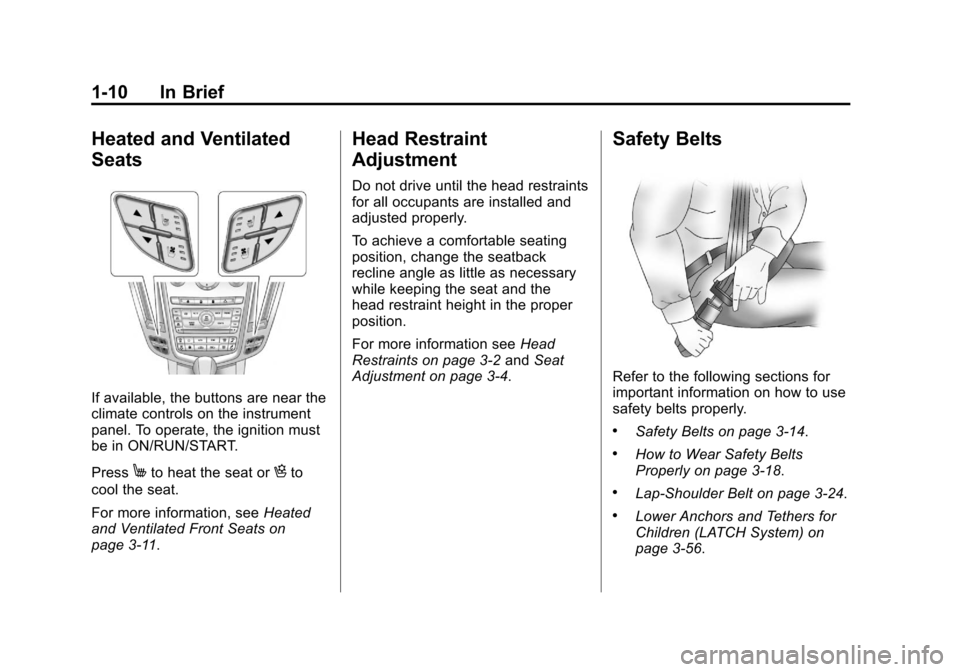

Heated and Ventilated
Seats
If available, the buttons are near the
climate controls on the instrument
panel. To operate, the ignition must
be in ON/RUN/START.
Press
Mto heat the seat orHto
cool the seat.
For more information, see Heated
and Ventilated Front Seats on
page 3‑11.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the
head restraint height in the proper
position.
For more information see Head
Restraints on page 3‑2 andSeat
Adjustment on page 3‑4.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑14.
.How to Wear Safety Belts
Properly on page 3‑18.
.Lap-Shoulder Belt on page 3‑24.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑56.

Black plate (11,1)Cadillac SRX Owner Manual - 2011
In Brief 1-11
Sensing System for
Passenger Airbag
United States
Canada and Mexico
The passenger sensing system will
turn off the right front passenger
frontal airbag and seat-mounted
side impact airbag under certain
conditions. The driver airbags and
roof‐rail airbags are not affected by
the passenger sensing system. The passenger airbag status
indicator will be visible on the
overhead console when the vehicle
is started. See
Passenger Sensing
System on page 3‑39 for more
information.
Mirror Adjustment
Exterior
Controls for the outside power
mirrors are on the driver door. To adjust the mirror:
1. Move the selector switch to
L (left) or R (right) to choose the
driver or passenger mirror.
2. Press the arrows on the control pad to move each mirror to the
desired position.
3. Return the selector switch to the center position.
See Power Mirrors on page 2‑22.
Manual Folding Mirrors
Vehicles with manual fold mirrors
are folded inward toward the vehicle
to prevent damage when going
through an automatic car wash.
Push the mirror outward to return
it to the original position.

Black plate (12,1)Cadillac SRX Owner Manual - 2011
1-12 In Brief
Power Folding Mirrors
Vehicles with power folding mirrors
have controls on the driver door.To fold the mirrors:
1. With the selector switch in
the O position, push the down
arrow on the control pad. Both
mirrors will automatically fold.
2. Push the down arrow on the control pad again to return the
mirrors to their original position.
See Folding Mirrors on page 2‑22.
Automatic Dimming Mirror
If the vehicle has the automatic
dimming mirror, the driver outside
mirror, and the inside rearview
mirror, automatically adjust for the
glare of headlamps behind you.
SeeAutomatic Dimming Mirror on
page 2‑23 orAutomatic Dimming
Rearview Mirror on page 2‑24.
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel up or down.

Black plate (13,1)Cadillac SRX Owner Manual - 2011
In Brief 1-13
3. Pull or push the steering wheelcloser or away from you.
4. Pull the lever up to lock the steering wheel in place.
Do not adjust the steering wheel
while driving.
Throttle and Brake Pedal
Adjustment
If the vehicle has this feature, the
position of the throttle and brake
pedals can be adjusted.
The switch used to adjust the
pedals is located on the right side
of the steering column, below the
wiper stalk. Pull the switch toward
you to move the pedals further from
the floor, or push the switch away
from you to move the pedals closer
to the floor.
See Adjustable Throttle and Brake
Pedal on page 9‑17.
Interior Lighting
Dome Lamps
The dome lamp controls are located
in the overhead console.
To change the dome lamp settings,
press the following:
*: Turns the lamp off, even when
a door is open.
1: The lamp comes on
automatically when a door is
opened.
+: Turns the dome lamp on.
Reading Lamps
There are reading lamps located on
the overhead console and over the
rear passenger doors. These lamps
come on automatically when any
door is opened. To manually turn the reading lamps
on or off:
For the overhead console reading
lamps, press the button next to
each lamp.
For the rear passenger reading
lamps, press the lamp lens.
For more information on interior
lighting, see:
.Instrument Panel Illumination
Control on page 6‑6.

Black plate (14,1)Cadillac SRX Owner Manual - 2011
1-14 In Brief
Exterior Lighting
The exterior lamps control is located
on the instrument panel to the left of
the steering column.
The exterior lamps control has four
positions:
O:Briefly turn to this position to
turn the automatic light control off
or on again. AUTO :
Turns the headlamps on
automatically at normal brightness,
together with the parking lamps,
taillamps, license plate lamps, and
instrument panel lights.
;: Turns the parking lamps on
together with the taillamps, license
plate lamps, and instrument panel
lights.
5: Turns the headlamps on
together with the parking lamps,
taillamps, license plate lamps and
instrument panel lights.
#: For vehicles with fog lamps,
press to turn the lamps on or off.
For more information, see:
.Exterior Lamp Controls on
page 6‑1.
.Daytime Running Lamps (DRL)
on page 6‑3.
Windshield Wiper/Washer
The windshield wiper/washer
lever is located on the right side
of the steering column. With the
ignition in ACC/ACCESSORY
or ON/RUN/START, move the
windshield wiper lever to select
the wiper speed.
2: Fast wipes.
1: Slow wipes.
