CADILLAC STS V 2007 1.G Owners Manual

Driver Selection Submenu Items
DRIVER 1/DRIVER 2
The numbers on the back of each keyless access
transmitter correspond to DRIVER 1 and
DRIVER 2. If you would like to recall or store
driver settings for the driver that does not
correspond to the number on the back of the
keyless access transmitter that you are using,
use the following procedure:
1. Enter the memory programming mode for
your driver settings by following the
instructions listed previously under “Entering
the Driver Selection Submenu.”
2. From the DRIVER SELECTION submenu,
turn the tune/select knob to highlight the
driver number that you want, either DRIVER 1
or DRIVER 2.
3. Set your choice by pressing in the
tune/select knob.
If you would like to recall or store driver settings for
the selected driver, see “RECALL DRIVER
SETTINGS” or “STORE DRIVER SETTINGS”
later in this section.
If you would like to recall or store exit settings for
the selected driver, see “RECALL EXIT SETTINGS”
or “STORE EXIT SETTINGS” later in this section.
RECALL DRIVER SETTINGS
To recall driver settings, use the following
procedure:
1. Enter the memory programming mode for
your driver settings by following the
instructions listed previously under “Entering
the Driver Selection Submenu.”
2. From the DRIVER SELECTION submenu, turn
the tune/select knob to scroll to RECALL
DRIVER SETTINGS and press in the knob.
If the vehicle is in PARK (P), one beep will
sound and your previously saved driving
position will then be recalled.
If the vehicle is not in PARK (P), three beeps
will sound and your previously saved
driving position will not be recalled.
A memory recall can be stopped by pressing any
memory seat or mirror position button.
If you would like the stored driving positions to be
recalled when unlocking your vehicle with the
keyless access transmitter or when starting your
vehicle, see “REMOTE RECALL MEMORY”
or “START BUTTON RECALL” underVehicle
Personalization on page 148.
171

STORE DRIVER SETTINGS
To store driver settings, use the following
procedure:
1. Adjust your settings for the driver’s seat, the
outside rearview mirrors, and the steering
column to a comfortable driving position.
2. Enter the memory programming mode for
your driver settings by following the
instructions listed previously under “Entering
the Driver Selection Submenu.”
3. From the DRIVER SELECTION submenu,
turn the tune/select knob to scroll to STORE
DRIVER SETTINGS and press in the
knob. Two beeps will sound to conrm that
your driver settings are saved.
4. Set the HUD position, if your vehicle has this
feature, the climate control temperature, fan
speed and mode settings, the radio presets,
tone, volume, playback mode (AM/FM,
XM™, or CD), and compact disc position.
Your memory settings are now programmed.
Any changes that are made to the HUD,
audio system, and climate controls while
driving will be automatically stored when the
ignition is turned off.
5. Repeat the procedure for a second driver by
programming the other driver number.
Entering the Driver Exit Settings
Submenu
To enter the memory programming mode for your
exit settings, use the following procedure:
1. Be sure the ignition is either on, in Acc., or in
RAP and place the transmission in PARK (P)
or make sure that the vehicle speed is
less than 6 mph (9 km/h).
2. Press any button on the appropriate keyless
access transmitter to identify yourself as
Driver 1 or Driver 2.
3. Turn on the radio by pressing the
power/volume knob.
4. Press the CNFG radio button to enter the
main menu of the radio.
5. Turn the tune/select knob and scroll to SETUP.
6. Press the tune/select knob to enter the
SETUP menu.
7. Turn the tune/select knob and scroll to
DRIVER EXIT SETTINGS.
8. Press the tune/select knob to enter the
DRIVER EXIT SETTINGS submenu.
The following items will appear:
RECALL EXIT SETTINGS
STORE EXIT SETTINGS
172

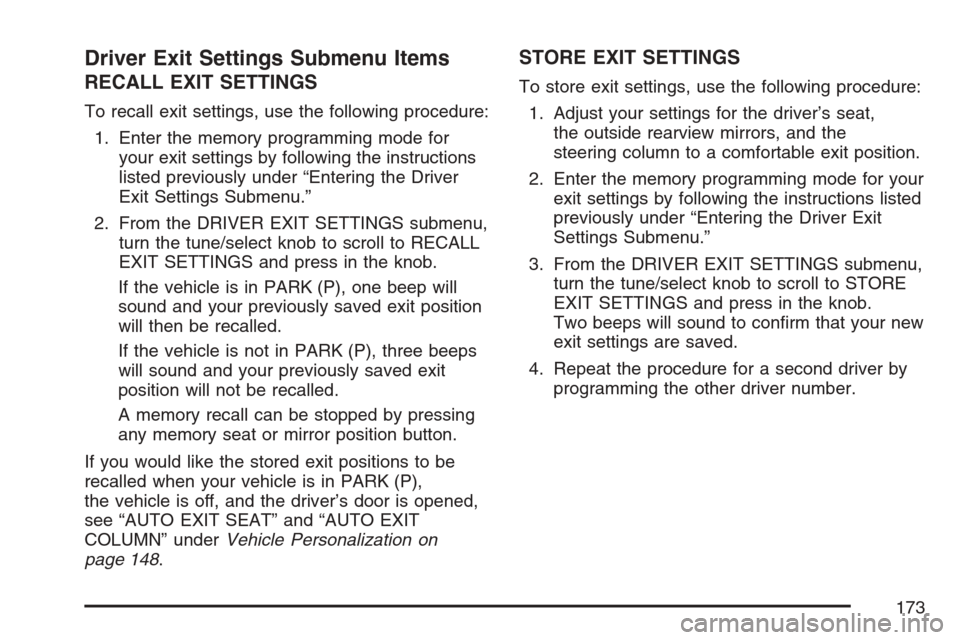

Driver Exit Settings Submenu Items
RECALL EXIT SETTINGS
To recall exit settings, use the following procedure:
1. Enter the memory programming mode for
your exit settings by following the instructions
listed previously under “Entering the Driver
Exit Settings Submenu.”
2. From the DRIVER EXIT SETTINGS submenu,
turn the tune/select knob to scroll to RECALL
EXIT SETTINGS and press in the knob.
If the vehicle is in PARK (P), one beep will
sound and your previously saved exit position
will then be recalled.
If the vehicle is not in PARK (P), three beeps
will sound and your previously saved exit
position will not be recalled.
A memory recall can be stopped by pressing
any memory seat or mirror position button.
If you would like the stored exit positions to be
recalled when your vehicle is in PARK (P),
the vehicle is off, and the driver’s door is opened,
see “AUTO EXIT SEAT” and “AUTO EXIT
COLUMN” underVehicle Personalization on
page 148.
STORE EXIT SETTINGS
To store exit settings, use the following procedure:
1. Adjust your settings for the driver’s seat,
the outside rearview mirrors, and the
steering column to a comfortable exit position.
2. Enter the memory programming mode for your
exit settings by following the instructions listed
previously under “Entering the Driver Exit
Settings Submenu.”
3. From the DRIVER EXIT SETTINGS submenu,
turn the tune/select knob to scroll to STORE
EXIT SETTINGS and press in the knob.
Two beeps will sound to conrm that your new
exit settings are saved.
4. Repeat the procedure for a second driver by
programming the other driver number.
173

✍NOTES
174

Instrument Panel Overview........................ 178
Hazard Warning Flashers.......................... 180
Other Warning Devices............................. 180
Horn.......................................................... 180
Power Tilt Wheel and Telescopic
Steering Column.................................... 181
Heated Steering Wheel............................. 181
Turn Signal/Multifunction Lever.................. 182
Turn and Lane-Change Signals................. 182
Headlamp High/Low-Beam Changer.......... 183
Forward Collision Alert (FCA) System.......... 184
Flash-to-Pass............................................ 188
Windshield Wipers..................................... 189
Rainsense™ II Wipers............................... 190
Windshield Washer.................................... 191
Headlamp Washer..................................... 192
Cruise Control........................................... 193
Adaptive Cruise Control............................. 197
Headlamps................................................ 211
Wiper Activated Headlamps....................... 215
Headlamps on Reminder........................... 216
Daytime Running Lamps (DRL)................. 216
Fog Lamps................................................ 217
Twilight Sentinel
®...................................... 218
Exterior Lighting Battery Saver.................. 219Instrument Panel Brightness...................... 220
Entry Lighting............................................ 220
Parade Dimming........................................ 220
Reading Lamps......................................... 221
Battery Load Management......................... 221
Electric Power Management...................... 221
Inadvertent Power Battery Saver............... 222
Head-Up Display (HUD)............................ 223
Ultrasonic Rear Parking
Assist (URPA)........................................ 226
Accessory Power Outlet(s)........................ 228
Ashtray(s) and Cigarette Lighter................ 229
Climate Controls......................................... 230
Dual Climate Control System..................... 230
Outlet Adjustment...................................... 237
Rear Climate Control System.................... 237
Passenger Compartment Air Filter............. 239
Warning Lights, Gages, and Indicators..... 241
Instrument Panel Cluster........................... 242
Speedometer and Odometer...................... 243
Tachometer............................................... 243
Safety Belt Reminder Light........................ 243
Passenger Safety Belt Reminder Light....... 244
Airbag Readiness Light............................. 244
Section 3 Instrument Panel
175

Passenger Airbag Status Indicator............. 245
Charging System Light.............................. 247
Brake System Warning Light..................... 248
Anti-Lock Brake System Warning Light...... 249
Low Tire Pressure Warning Light.............. 249
Traction Control System (TCS)
Warning Light........................................ 250
Engine Coolant Temperature
Warning Light........................................ 251
Engine Coolant Temperature Gage............ 251
Malfunction Indicator Lamp........................ 252
Oil Pressure Light..................................... 255
Security Light............................................ 256
Fog Lamp Light......................................... 256
Lights On Reminder.................................. 256
Cruise Control Light.................................. 256
Highbeam On Light................................... 257
Fuel Gage................................................. 257Driver Information Center (DIC).................. 258
DIC Controls and Displays........................ 258
DIC Warnings and Messages.................... 264
Other Messages........................................ 279
Audio System(s)......................................... 280
Setting the Time........................................ 281
Radio with CD........................................... 282
Using an MP3........................................... 297
XM Radio Messages................................. 303
Navigation/Radio System........................... 305
Radio Personalization................................ 305
Theft-Deterrent Feature............................. 309
Audio Steering Wheel Controls.................. 310
Radio Reception........................................ 312
Care of Your CDs..................................... 313
Care of the CD Player.............................. 313
Diversity Antenna System.......................... 314
XM™ Satellite Radio Antenna System....... 314
Section 3 Instrument Panel
176

✍NOTES
177

Instrument Panel Overview
178

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 237.
B. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 220.
Driver Information Center (DIC) Buttons. See
DIC Controls and Displays on page 258.
HUD Controls (If Equipped). SeeHead-Up
Display (HUD) on page 223.
C. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 182.
Headlamp Controls. SeeHeadlamps on
page 211. Cruise Control. SeeCruise Control
on page 193. Adaptive Cruise Control (If
Equipped). SeeAdaptive Cruise Control on
page 197. Forward Collision Alert (FCA)
(If Equipped). SeeForward Collision Alert
(FCA) System on page 184.
D. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 242.
E. Windshield Wiper/Washer Lever. See
Windshield Wipers on page 189.
F. Navigation/Radio System. SeeAudio System(s)
on page 280andNavigation/Radio System
on page 305.G. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on
page 310. Adaptive Cruise Control Gap Button
(If Equipped). SeeAdaptive Cruise Control
on page 197. Heated Steering Wheel Button (If
Equipped). SeeHeated Steering Wheel on
page 181.
H. Power Tilt Wheel and Telescopic Steering
Column.Power Tilt Wheel and Telescopic
Steering Column on page 181.
I. Horn. SeeHorn on page 180.
J. Ignition Switch. SeeIgnition Positions on
page 111.
K. Climate Control System. SeeDual Climate
Control System on page 230.
L. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 180.
M. Cupholders. SeeCupholder(s) on page 146.
N. Traction Control System Button. SeeTraction
Control System (TCS) on page 323.
O. Shift Lever. SeeAutomatic Transmission
Operation on page 116.
P. Glove Box. SeeGlove Box on page 146.
179

Hazard Warning Flashers
Your hazard warning ashers let you warn others.
They also let police know you have a problem.
Your front and rear turn signal lamps will ash on
and off.
The hazard warning
asher button is located
on the console, near
the shift lever. See
Instrument Panel
Overview on page 178.
Your hazard warning ashers work no matter what
position your key is in, and even if the key is
not in.Press the button to make the front and rear turn
signal lamps ash on and off. Press the button
again to turn the ashers off.
When the hazard warning ashers are on, your
turn signals will not work.
Other Warning Devices
If you carry reective triangles, you can set them up
at the side of the road about 300 feet (100 m)
behind your vehicle.
Horn
Press near or on the horn symbols on your
steering wheel pad to sound the horn.
180
