Adding Equipment to the Outside
of Your Vehicle
Things you might add to the outside of your
vehicle can affect the airow around it. This may
cause wind noise and affect windshield washer
performance. Check with your dealer before
adding equipment to the outside of your vehicle.
Fuel
Use of the recommended fuel is an important part
of the proper maintenance of your vehicle. To
help keep your engine clean and maintain optimum
vehicle performance, GM recommends the use
of gasoline advertised as TOP TIER Detergent
Gasoline.
The 8th digit of your Vehicle Identication
Number (VIN) shows the code letter or number
that identies your engine. You will nd the VIN at
the top left of the instrument panel. SeeVehicle
Identication Number (VIN) on page 485.
Gasoline Octane
If your vehicle has the 3.6L V6 engine
(VIN Code 7), use regular unleaded gasoline with
a posted octane rating of 87 or higher. For
best performance or trailer towing, you may
choose to use middle grade 89 octane unleaded
gasoline. If the octane rating is less than 87,
you may notice an audible knocking noise when
you drive, commonly referred to as spark knock. If
this occurs, use a gasoline rated at 87 octane
or higher as soon as possible. If you are using
gasoline rated at 87 octane or higher and you hear
heavy knocking, your engine needs service.
If your vehicle has the 4.6L V8 engine
(VIN Code A), use premium unleaded gasoline with
a posted octane rating of 91 or higher. You may
also use regular unleaded gasoline rated at
87 octane or higher, but your vehicle’s acceleration
may be slightly reduced, and you may notice a
slight audible knocking noise, commonly referred to
as spark knock.
365

The malfunction indicator lamp may turn on and
your vehicle may fail a smog-check test. See
Malfunction Indicator Lamp on page 252. If this
occurs, return to your authorized GM dealer for
diagnosis. If it is determined that the condition is
caused by the type of fuel used, repairs may not be
covered by your warranty.
Additives
To provide cleaner air, all gasolines in the United
States are now required to contain additives
that will help prevent engine and fuel system
deposits from forming, allowing your emission
control system to work properly. In most cases,
you should not have to add anything to your fuel.
However, some gasolines contain only the
minimum amount of additive required to meet U.S.
Environmental Protection Agency regulations.
To help keep fuel injectors and intake valves clean,
or if your vehicle experiences problems due to
dirty injectors or valves, look for gasoline that is
advertised as TOP TIER Detergent Gasoline. Also,
your dealer has additives that will help correct
and prevent most deposit-related problems.Gasolines containing oxygenates, such as ethers
and ethanol, and reformulated gasolines may
be available in your area. General Motors
recommends that you use these gasolines if they
comply with the specications described earlier.
However, E85 (85% ethanol) and other fuels
containing more than 10% ethanol must not be
used in vehicles that were not designed for
those fuels.
Notice:Your vehicle was not designed for
fuel that contains methanol. Do not use
fuel containing methanol. It can corrode metal
parts in the fuel system and also damage
plastic and rubber parts. That damage would
not be covered under your warranty.
Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing
additive called methylcyclopentadienyl manganese
tricarbonyl (MMT); ask the attendant where you
buy gasoline whether the fuel contains MMT.
General Motors recommends against the use of
such gasolines. Fuels containing MMT can reduce
the life of spark plugs and the performance of
the emission control system may be affected. The
malfunction indicator lamp may turn on. If this
occurs, return to your dealer for service.
367

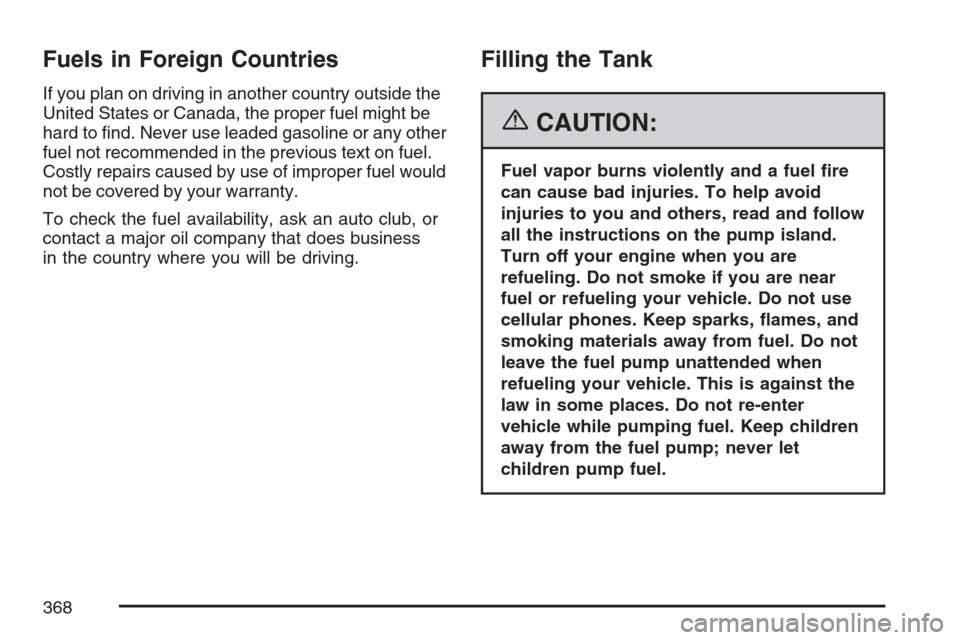

Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel might be
hard to nd. Never use leaded gasoline or any other
fuel not recommended in the previous text on fuel.
Costly repairs caused by use of improper fuel would
not be covered by your warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business
in the country where you will be driving.
Filling the Tank
{CAUTION:
Fuel vapor burns violently and a fuel re
can cause bad injuries. To help avoid
injuries to you and others, read and follow
all the instructions on the pump island.
Turn off your engine when you are
refueling. Do not smoke if you are near
fuel or refueling your vehicle. Do not use
cellular phones. Keep sparks, ames, and
smoking materials away from fuel. Do not
leave the fuel pump unattended when
refueling your vehicle. This is against the
law in some places. Do not re-enter
vehicle while pumping fuel. Keep children
away from the fuel pump; never let
children pump fuel.
368

Checking Things Under
the Hood
{CAUTION:
An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing, and tools
away from any underhood electric fan.
{CAUTION:
Things that burn can get on hot engine
parts and start a re. These include
liquids like fuel, oil, coolant, brake uid,
windshield washer and other uids, and
plastic or rubber. You or others could be
burned. Be careful not to drop or spill
things that will burn onto a hot engine.
Hood Release
To open the hood, do the following:
1. Pull the hood
release lever with
this symbol on
it. It is located inside
the vehicle on the
lower left side of the
instrument panel.
372

After you have removed the sight shields (if equipped) on the 3.6L V6 engine, here is what you will see:
A. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 488.
B. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 404.
C. Battery. SeeBattery on page 408.
D. Passenger Compartment Air Filter. See
Passenger Compartment Air Filter on page 239.
E. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 403.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 380.G. Engine Oil Dipstick (Out of View). See
“Checking Engine Oil” underEngine Oil on
page 380.
H. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 405.
I. Engine Coolant Surge Tank and Pressure Cap.
SeeCoolant Surge Tank Pressure Cap on
page 393andCooling System on page 396.
J. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 386.
375

After you have removed the sight shields (if equipped) on the 4.6L V8 engine, here is what you will see:
A. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 488.
B. Battery. SeeBattery on page 408.
C. Passenger Compartment Air Filter. See
Passenger Compartment Air Filter on page 239.
D. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 404.
E. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 403.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 380.G. Engine Oil Dipstick (Out of View). See
“Checking Engine Oil” underEngine Oil on
page 380.
H. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 405.
I. Engine Coolant Surge Tank and Pressure Cap.
SeeCoolant Surge Tank Pressure Cap on
page 393andCooling System on page 396.
J. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 386.
377

After you have removed the sight shields (if equipped) on the 4.4L V8 STS-V engine, here is what
you will see:
A. Battery. SeeBattery on page 408.
B. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 488.
C. Passenger Compartment Air Filter. See
Passenger Compartment Air Filter on page 239.
D. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 404.
E. Intercooler System Pressure Cap. SeeEngine
Coolant on page 389.
F. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 403.
G. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 380.
H. Engine Oil Dipstick (Out of View). See
“Checking Engine Oil” underEngine Oil on
page 380.I. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 405.
J. Engine Coolant Surge Tank and Pressure Cap.
SeeCoolant Surge Tank Pressure Cap on
page 393andCooling System on page 396.
K. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 386.
If your vehicle is equipped with front compartment
underhood sight shields, before closing the
hood be sure to reinstall the sight shields. To
reinstall the shields, locate the tabs on the left and
right sides and insert them into the openings in
the tower to tower brace. Then insert the fasteners
into the top of the shield and push the fasteners
back into place.
379

Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 373
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
When to Add Engine Oil
V6 Engine
V8 Engine
380

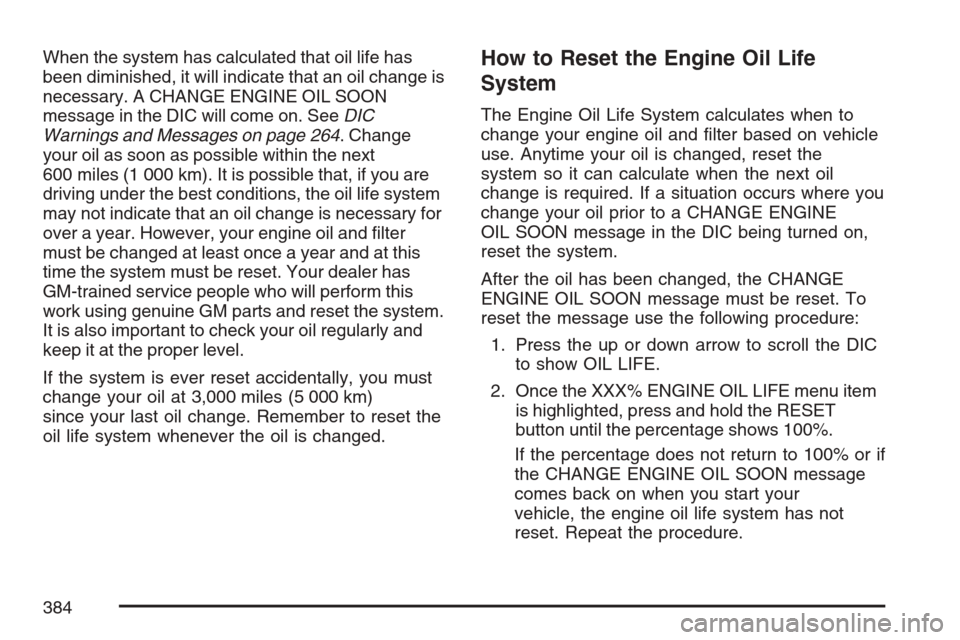

When the system has calculated that oil life has
been diminished, it will indicate that an oil change is
necessary. A CHANGE ENGINE OIL SOON
message in the DIC will come on. SeeDIC
Warnings and Messages on page 264. Change
your oil as soon as possible within the next
600 miles (1 000 km). It is possible that, if you are
driving under the best conditions, the oil life system
may not indicate that an oil change is necessary for
over a year. However, your engine oil and lter
must be changed at least once a year and at this
time the system must be reset. Your dealer has
GM-trained service people who will perform this
work using genuine GM parts and reset the system.
It is also important to check your oil regularly and
keep it at the proper level.
If the system is ever reset accidentally, you must
change your oil at 3,000 miles (5 000 km)
since your last oil change. Remember to reset the
oil life system whenever the oil is changed.How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change your engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the
system so it can calculate when the next oil
change is required. If a situation occurs where you
change your oil prior to a CHANGE ENGINE
OIL SOON message in the DIC being turned on,
reset the system.
After the oil has been changed, the CHANGE
ENGINE OIL SOON message must be reset. To
reset the message use the following procedure:
1. Press the up or down arrow to scroll the DIC
to show OIL LIFE.
2. Once the XXX% ENGINE OIL LIFE menu item
is highlighted, press and hold the RESET
button until the percentage shows 100%.
If the percentage does not return to 100% or if
the CHANGE ENGINE OIL SOON message
comes back on when you start your
vehicle, the engine oil life system has not
reset. Repeat the procedure.
384

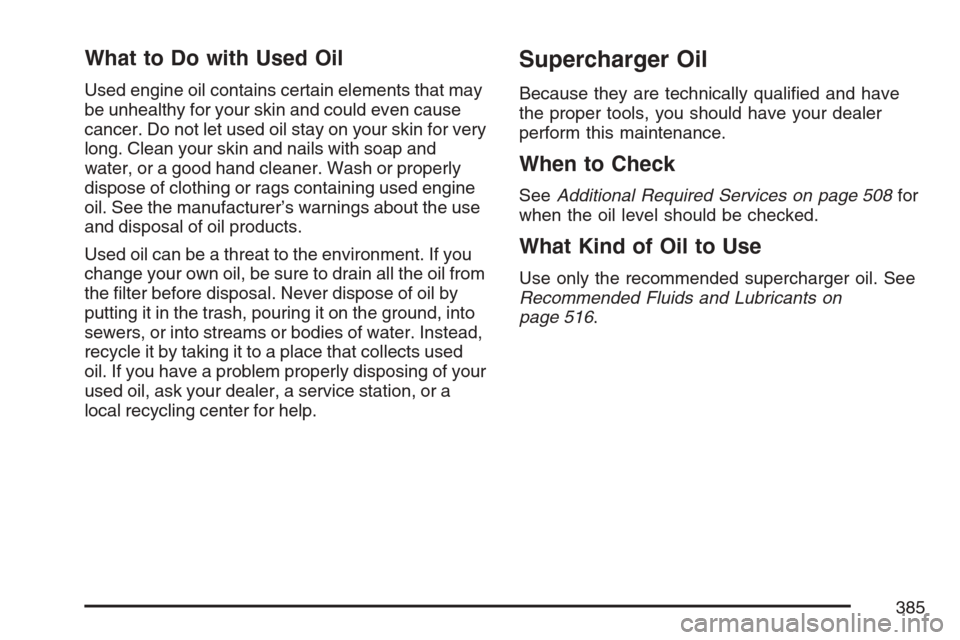

What to Do with Used Oil
Used engine oil contains certain elements that may
be unhealthy for your skin and could even cause
cancer. Do not let used oil stay on your skin for very
long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly
dispose of clothing or rags containing used engine
oil. See the manufacturer’s warnings about the use
and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from
the lter before disposal. Never dispose of oil by
putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle it by taking it to a place that collects used
oil. If you have a problem properly disposing of your
used oil, ask your dealer, a service station, or a
local recycling center for help.
Supercharger Oil
Because they are technically qualied and have
the proper tools, you should have your dealer
perform this maintenance.
When to Check
SeeAdditional Required Services on page 508for
when the oil level should be checked.
What Kind of Oil to Use
Use only the recommended supercharger oil. See
Recommended Fluids and Lubricants on
page 516.
385
