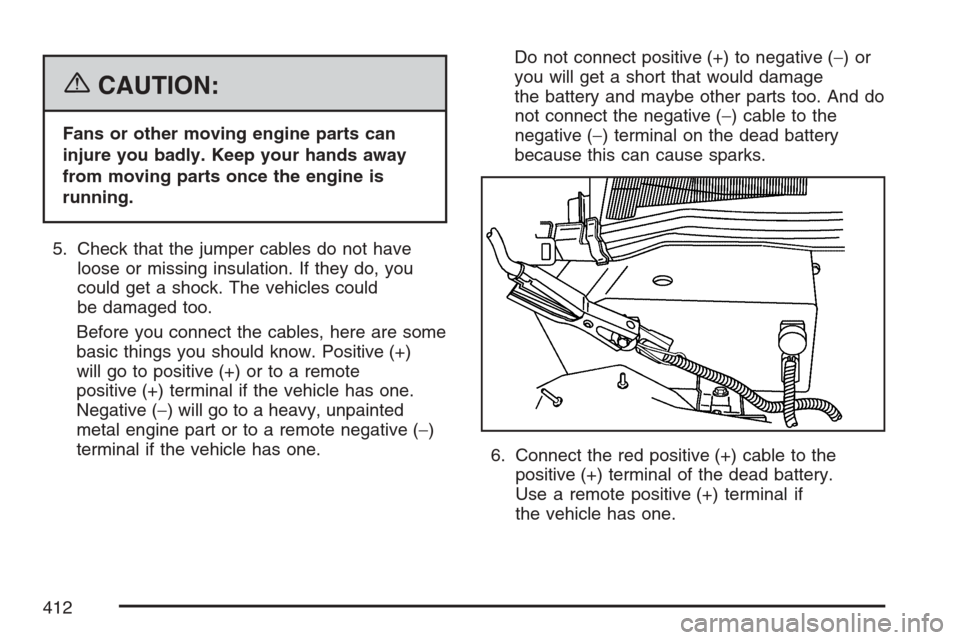

{CAUTION:
Fans or other moving engine parts can
injure you badly. Keep your hands away
from moving parts once the engine is
running.
5. Check that the jumper cables do not have
loose or missing insulation. If they do, you
could get a shock. The vehicles could
be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+)
will go to positive (+) or to a remote
positive (+) terminal if the vehicle has one.
Negative (−) will go to a heavy, unpainted
metal engine part or to a remote negative (−)
terminal if the vehicle has one.Do not connect positive (+) to negative (−)or
you will get a short that would damage
the battery and maybe other parts too. And do
not connect the negative (−) cable to the
negative (−) terminal on the dead battery
because this can cause sparks.
6. Connect the red positive (+) cable to the
positive (+) terminal of the dead battery.
Use a remote positive (+) terminal if
the vehicle has one.
412

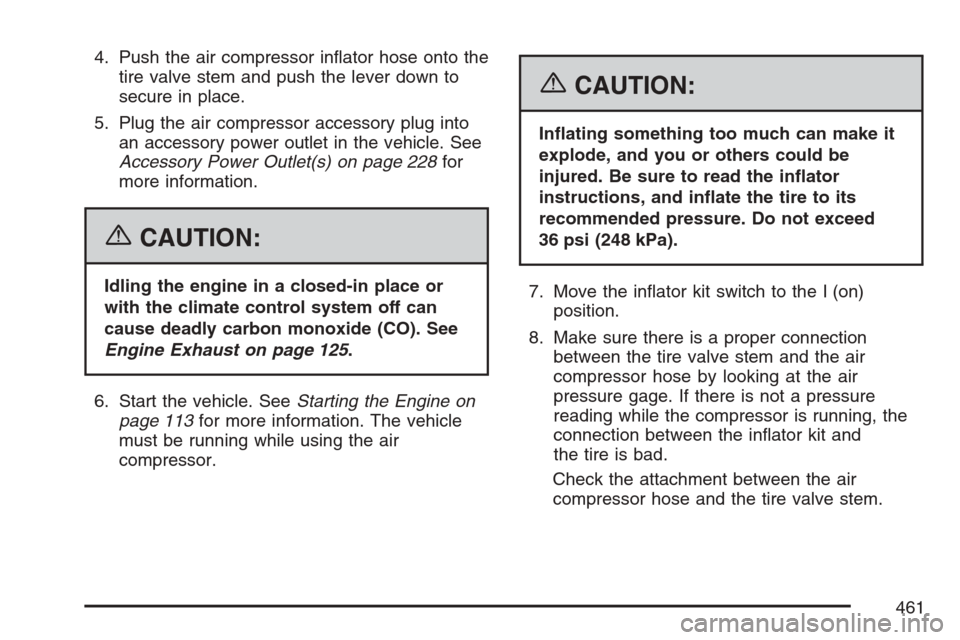

4. Push the air compressor inator hose onto the
tire valve stem and push the lever down to
secure in place.
5. Plug the air compressor accessory plug into
an accessory power outlet in the vehicle. See
Accessory Power Outlet(s) on page 228for
more information.
{CAUTION:
Idling the engine in a closed-in place or
with the climate control system off can
cause deadly carbon monoxide (CO). See
Engine Exhaust on page 125.
6. Start the vehicle. SeeStarting the Engine on
page 113for more information. The vehicle
must be running while using the air
compressor.
{CAUTION:
Inating something too much can make it
explode, and you or others could be
injured. Be sure to read the inator
instructions, and inate the tire to its
recommended pressure. Do not exceed
36 psi (248 kPa).
7. Move the inator kit switch to the I (on)
position.
8. Make sure there is a proper connection
between the tire valve stem and the air
compressor hose by looking at the air
pressure gage. If there is not a pressure
reading while the compressor is running, the
connection between the inator kit and
the tire is bad.
Check the attachment between the air
compressor hose and the tire valve stem.
461

The underhood fuse block is located in the front of
the engine compartment on the passenger’s
side of the vehicle. SeeEngine Compartment
Overview on page 373for more information
on location and removal procedure for the front
compartment underhood sights shields.
To access the fuses, push in the tabs located on
each side of the fuse block cover, then lift the
cover off.
Fuses Usage
BLOWER Blower Motor
R REAR Passenger’s Side Rear Fuse Block
I/P OUTLET Front Accessory Power Outlet
CCP Climate Control, Headlamp Leveling
PRE 02/CAMOxygen Sensor, Variable Intake (V6),
Purge Solenoid (V6), Camshaft
Phasers (V6)
R REAR Passenger’s Side Rear Fuse Block
WPR SW Wiper/Washer Switch
FOG LAMP Fog Lamps
OUTLET Rear Accessory Power Outlet
EVEN COILSEven Ignition Coils, Even Fuel
Injectors
Fuses Usage
L REAR Driver’s Side Rear Fuse Block
WPR MOD Wiper Module
POST 02 Oxygen Sensor
COMP CLTCH Air Conditioner Compressor Clutch
STARTER Starter Solenoid
ABS Anti-lock Brake Pump
L REAR Driver’s Side Rear Fuse Block
RAIN SSRRain Sensor, Headlamp Washer,
Tire Pressure Monitor
CCP Climate Control
SMT BM-OPT IntelliBeam™ Relay (If Equipped)
EXT LIGHTSLow Beam Relay, High Beam Relay,
Park Lamp Relay
VOLT CHECK Instrument Panel Module
ECM/TCMEngine Control Module (ECM),
Transmission Control Module (TCM),
Easy Key Module, Instrument Panel
Cluster
SPARE Spare
SPARE Spare
LT PARKDriver’s Side Park Lamp, Driver’s
Side Taillamp
489

ApplicationCapacities
English Metric
Transmission (Pan Removal and Filter Replacement)
5-Speed Automatic 7.4 qt 7.0 L
6-Speed Automatic 7.3 qt 6.9 L
6-Speed Automatic (V-Series) 6.5 qt 6.2 L
Wheel Nut Torque 100 lb ft
140Y
All capacities are approximate. When adding, be sure to ll to the approximate level as recommended in this
manual. Recheck the uid level after lling.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
3.6L DOHC V6 7 Automatic 0.044 inches (1.11 mm)
4.4L DOHC V8 (V-Series) D Automatic 0.040 inches (1.02 mm)
4.6L DOHC V8 A Automatic 0.050 inches (1.27 mm)
STS-V Engine Data
Engine Horsepower Torque Displacement Compression Ratio
4.4L V8 (V-Series)469hp (350 kW)
@ 6400 rpm439 lb ft (595 Nm)
@ 3800 rpm4.4L 9.0:1
499

Maintenance Schedule................................ 502
Introduction............................................... 502
Maintenance Requirements........................ 502
Your Vehicle and the Environment............ 503
Using the Maintenance Schedule............... 503
Scheduled Maintenance............................. 505
Additional Required Services..................... 508
Maintenance Footnotes.............................. 510
Owner Checks and Services..................... 512At Each Fuel Fill....................................... 513
At Least Once a Month............................. 513
At Least Once a Year............................... 514
Recommended Fluids and Lubricants........ 516
Normal Maintenance
Replacement Parts ................................. 518
Engine Drive Belt Routing......................... 519
Maintenance Record.................................. 521
Section 6 Maintenance Schedule
501

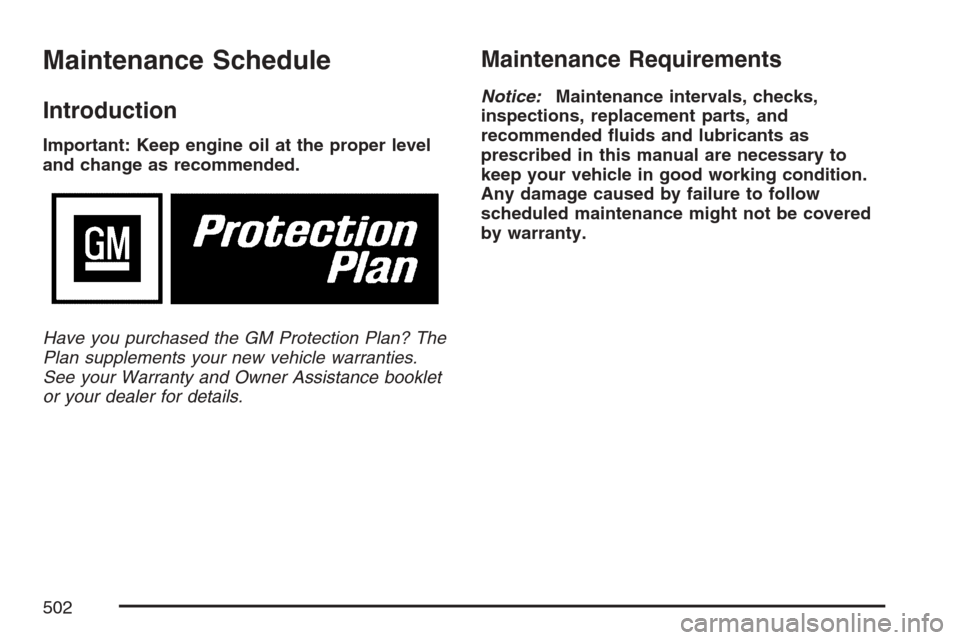

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to
keep your vehicle in good working condition.
Any damage caused by failure to follow
scheduled maintenance might not be covered
by warranty.
502

If you want to purchase service information, see
Service Publications Ordering Information on
page 543.
Owner Checks and Services on page 512tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 516andNormal
Maintenance Replacement Parts on page 518.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine GM parts.Scheduled Maintenance
When the CHANGE ENGINE OIL SOON message
in the Driver Information Center (DIC) comes on, it
means that service is required for your vehicle.
Have your vehicle serviced as soon as possible
within the next 600 miles (1 000 km). It is possible
that, if you are driving under the best conditions, the
engine oil life system may not indicate that vehicle
service is necessary for over a year. However, the
engine oil and lter must be changed at least once
a year and at this time the system must be reset.
Your GM Goodwrench
®dealer has GM-trained
service technicians who will perform this work using
genuine GM parts and reset the system.
505

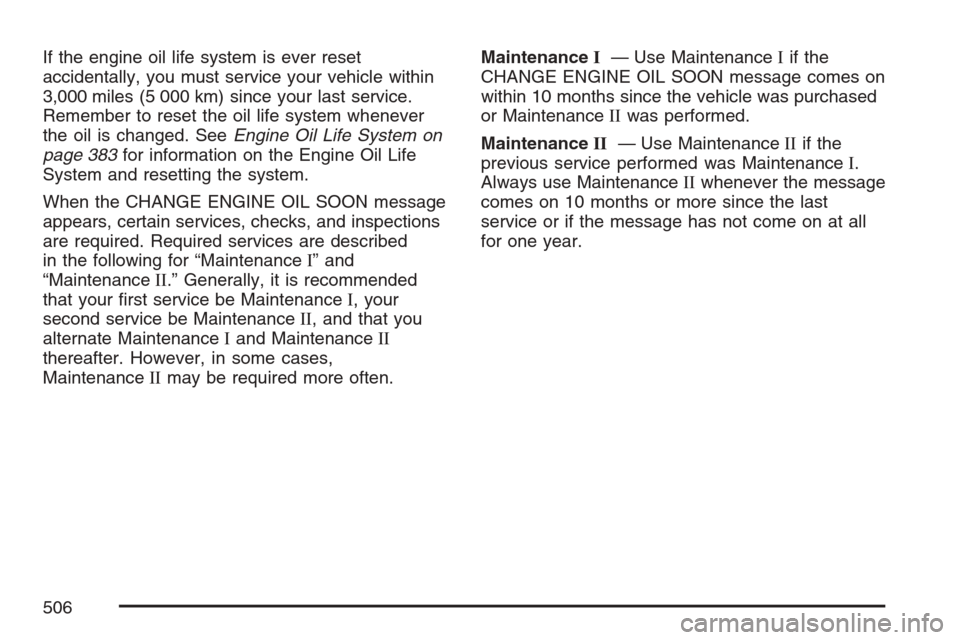

If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 383for information on the Engine Oil Life
System and resetting the system.
When the CHANGE ENGINE OIL SOON message
appears, certain services, checks, and inspections
are required. Required services are described
in the following for “MaintenanceI” and
“MaintenanceII.” Generally, it is recommended
that your rst service be MaintenanceI, your
second service be MaintenanceII, and that you
alternate MaintenanceIand MaintenanceII
thereafter. However, in some cases,
MaintenanceIImay be required more often.MaintenanceI— Use MaintenanceIif the
CHANGE ENGINE OIL SOON message comes on
within 10 months since the vehicle was purchased
or MaintenanceIIwas performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the message
comes on 10 months or more since the last
service or if the message has not come on at all
for one year.
506

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 380. Reset oil life system.
SeeEngine Oil Life System on page 383.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (k).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 386.See footnote (m).•
Check tires for ination pressures and wear. SeeTires on page 421. If tire
rotation is recommended for your vehicle, rotate tires. SeeTire Inspection and
Rotation on page 438and “Tire Wear Inspection” inAt Least Once a Month on
page 513.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels. If you have the
4.4L V8 supercharged engine, check intercooler uid level. Add uid as
needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Replace passenger compartment air lter.See footnote (g).•
507

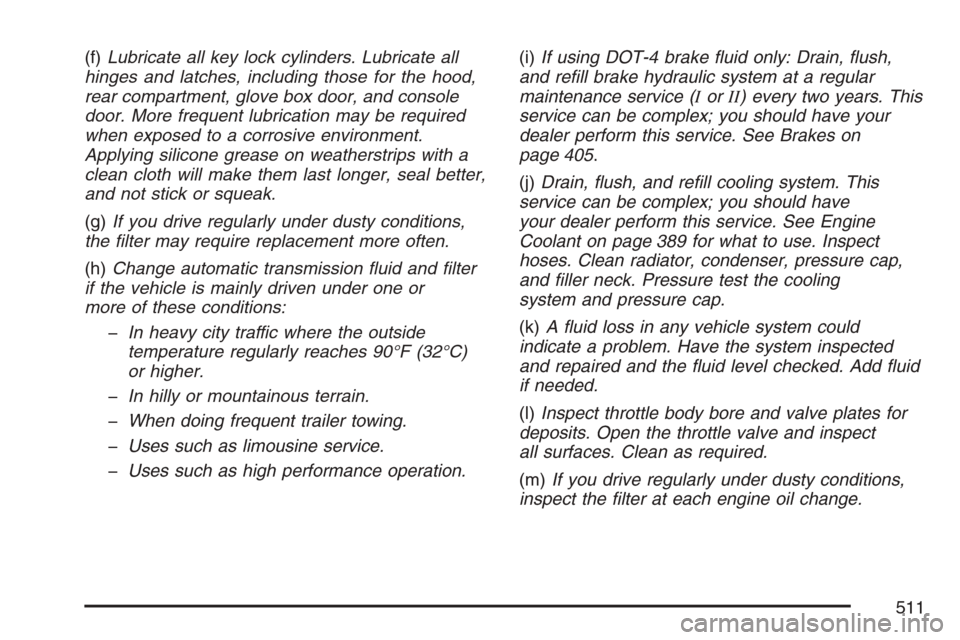

(f)Lubricate all key lock cylinders. Lubricate all
hinges and latches, including those for the hood,
rear compartment, glove box door, and console
door. More frequent lubrication may be required
when exposed to a corrosive environment.
Applying silicone grease on weatherstrips with a
clean cloth will make them last longer, seal better,
and not stick or squeak.
(g)If you drive regularly under dusty conditions,
the lter may require replacement more often.
(h)Change automatic transmission uid and lter
if the vehicle is mainly driven under one or
more of these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C)
or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as limousine service.
Uses such as high performance operation.(i)If using DOT-4 brake uid only: Drain, ush,
and rell brake hydraulic system at a regular
maintenance service (IorII) every two years. This
service can be complex; you should have your
dealer perform this service. See Brakes on
page 405.
(j)Drain, ush, and rell cooling system. This
service can be complex; you should have
your dealer perform this service. See Engine
Coolant on page 389 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and ller neck. Pressure test the cooling
system and pressure cap.
(k)A uid loss in any vehicle system could
indicate a problem. Have the system inspected
and repaired and the uid level checked. Add uid
if needed.
(l)Inspect throttle body bore and valve plates for
deposits. Open the throttle valve and inspect
all surfaces. Clean as required.
(m)If you drive regularly under dusty conditions,
inspect the lter at each engine oil change.
511
