engine CADILLAC STS V 2007 1.G Owner's Manual

If your vehicle has the V6 engine and 5-speed
transmission, when shifting manually, the number
displayed on the Driver Information Center (DIC)
indicates the highest gear allowed (1,2,3,4,5).
If First (1) or Second (2) gear is selected, the
transmission will stay in that gear. If a higher
gear position is selected, the transmission will
automatically shift between the Second (2) gear
position up to the selected gear.
If your vehicle has the V8 engine and 6-speed
transmission, when shifting manually, the number
displayed on the Driver Information Center (DIC)
indicates the gear that the transmission is in.
When starting the vehicle from a stopped condition,
only First (1) and Second (2) gear may be used.
While using the DSC feature the vehicle will
have rmer shifting and increased performance.
You can use this for sport driving or when
climbing/descending hills to stay in gear longer or
to down shift for more power or engine braking.The transmission will only allow you to shift into
gears appropriate for the vehicle speed and engine
Revolutions Per Minute (RPM). The transmission
will not automatically shift to the next higher
gear if the engine RPM is too high.
If shifting is prevented for any reason, the selected
gear will ash multiple times, indicating that the
transmission has not shifted gears.
The transmission will allow you to shift to the gear
selected and will automatically downshift when
the vehicle comes to a stop. This will allow
for more power during take-off and passing.
120

Shifting Into Park (P)
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
use the steps that follow. If you are
pulling a trailer, seeTowing a Trailer on
page 357.To shift into PARK (P), use the following steps:
1. Hold the brake pedal down with your right foot.
2. Move the shift lever into PARK (P) by
pressing the button on the front of the
shift lever while pushing the lever all the way
toward the front of the vehicle. Release
the button.
3. With your right foot still holding the brake
pedal down, set the parking brake with
your left foot. SeeParking Brake on page 121
for more information.
4. Turn the ignition off.
122

Leaving Your Vehicle With the Engine
Running
{CAUTION:
It can be dangerous to leave your vehicle
with the engine running. Your vehicle
could move suddenly if the shift lever is
not fully in PARK (P) with the parking
brake rmly set. And, if you leave the
vehicle with the engine running, it could
overheat and even catch re. You or
others could be injured. Do not leave your
vehicle with the engine running.
If you have to leave your vehicle with the engine
running, be sure your vehicle is in PARK (P)
and your parking brake is rmly set before you
leave it. After you have moved the shift lever into
PARK (P), hold the regular brake pedal down.Then, see if you can move the shift lever away
from PARK (P) without rst pushing the button on
the shift lever. If you can, it means that the
shift lever was not fully locked into PARK (P).
Torque Lock
If you are parking on a hill and you do not shift
your transmission into PARK (P) properly,
the weight of the vehicle may put too much force
on the parking pawl in the transmission. You
may nd it difficult to pull the shift lever out
of PARK (P). This is called “torque lock.” To
prevent torque lock, set the parking brake and then
shift into PARK (P) properly before you leave
the driver’s seat. To nd out how, see “Shifting Into
PARK (P)” listed previously.
If torque lock does occur, you may need to have
another vehicle push yours a little uphill to
take some of the pressure from the parking pawl
in the transmission, so you can pull the shift
lever out of PARK (P).
123

Shifting Out of Park (P)
Your vehicle has an automatic transmission shift
lock control system. You have to fully apply
your regular brake before you can shift from
PARK (P) when the vehicle is running. See
Automatic Transmission Operation on page 116.
If you cannot shift out of PARK (P), ease pressure
on the shift lever – push the shift lever all the
way into PARK (P) and release the shift lever
button as you maintain brake application. Then
press the shift lever button and move the
shift lever into the gear desired.
If you ever hold the brake pedal down but still
cannot shift out of PARK (P), try this:
1. Press the regular bake.
2. Press the Acc. button twice to place the
ignition in accessory mode.
3. Apply and hold the brake until the end of
Step 4.
4. Shift to NEUTRAL (N).
5. Start the engine and then shift to the drive
gear you want.
6. Have your vehicle inspected by your dealer
as soon as possible.
Parking Over Things That Burn
{CAUTION:
Things that can burn could touch hot
exhaust parts under your vehicle and
ignite. Do not park over papers, leaves,
dry grass, or other things that can burn.
124

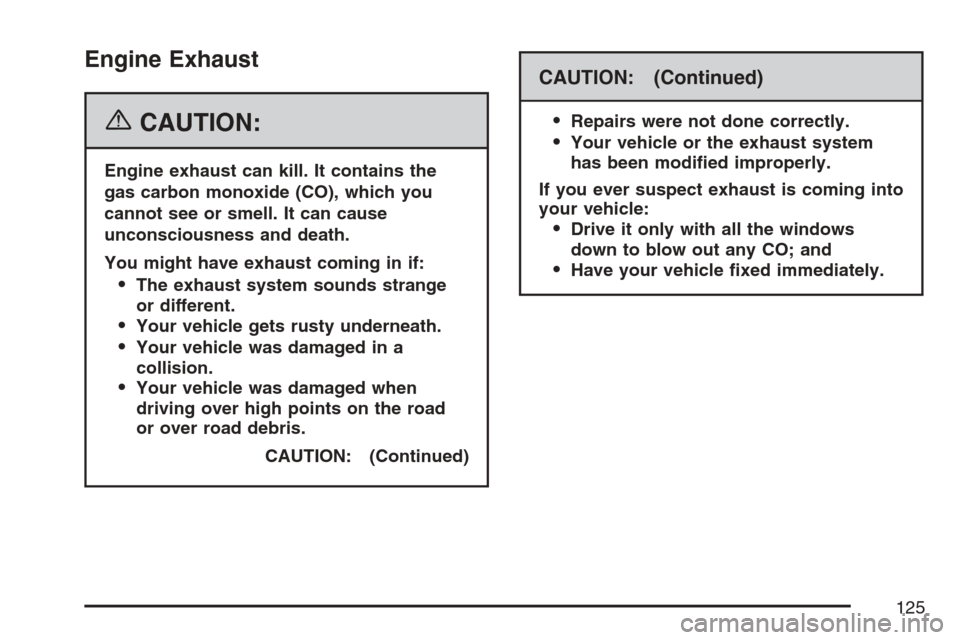

Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the
gas carbon monoxide (CO), which you
cannot see or smell. It can cause
unconsciousness and death.
You might have exhaust coming in if:
The exhaust system sounds strange
or different.
Your vehicle gets rusty underneath.
Your vehicle was damaged in a
collision.
Your vehicle was damaged when
driving over high points on the road
or over road debris.
CAUTION: (Continued)
CAUTION: (Continued)

Repairs were not done correctly.
Your vehicle or the exhaust system
has been modied improperly.
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows
down to blow out any CO; and
Have your vehicle xed immediately.
125

Running the Engine While Parked
It is better not to park with the engine running. But if
you ever have to, here are some things to know.
{CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust
into your vehicle. See the earlier caution
underEngine Exhaust on page 125.
Also, idling in a closed-in place can let
deadly carbon monoxide (CO) into your
vehicle even if the climate control fan is at
the highest setting. One place this can
happen is a garage. Exhaust — with
CO — can come in easily. NEVER park in
a garage with the engine running.
Another closed-in place can be a blizzard.
SeeWinter Driving on page 344.
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. Do not leave
your vehicle when the engine is running
unless you have to. If you have left the
engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
always set your parking brake after you
move the shift lever to PARK (P).
Follow the proper steps to be sure your vehicle
will not move. SeeShifting Into Park (P) on
page 122.
If you are parking on a hill and if you are pulling a
trailer, also seeTowing a Trailer on page 357.
126

Passenger Airbag Status Indicator............. 245
Charging System Light.............................. 247
Brake System Warning Light..................... 248
Anti-Lock Brake System Warning Light...... 249
Low Tire Pressure Warning Light.............. 249
Traction Control System (TCS)
Warning Light........................................ 250
Engine Coolant Temperature
Warning Light........................................ 251
Engine Coolant Temperature Gage............ 251
Malfunction Indicator Lamp........................ 252
Oil Pressure Light..................................... 255
Security Light............................................ 256
Fog Lamp Light......................................... 256
Lights On Reminder.................................. 256
Cruise Control Light.................................. 256
Highbeam On Light................................... 257
Fuel Gage................................................. 257Driver Information Center (DIC).................. 258
DIC Controls and Displays........................ 258
DIC Warnings and Messages.................... 264
Other Messages........................................ 279
Audio System(s)......................................... 280
Setting the Time........................................ 281
Radio with CD........................................... 282
Using an MP3........................................... 297
XM Radio Messages................................. 303
Navigation/Radio System........................... 305
Radio Personalization................................ 305
Theft-Deterrent Feature............................. 309
Audio Steering Wheel Controls.................. 310
Radio Reception........................................ 312
Care of Your CDs..................................... 313
Care of the CD Player.............................. 313
Diversity Antenna System.......................... 314
XM™ Satellite Radio Antenna System....... 314
Section 3 Instrument Panel
176

Unnecessary Warnings
FCA may occasionally provide an unnecessary
warning to guard rails, signs, and other stationary
objects. This is normal operation, your vehicle
does not need service.
Other Messages
There are three messages that may appear on the
Driver Information Center (DIC). They are
CLEAN RADAR, RADAR CRUISE NOT READY
and SERVICE RADAR CRUISE. SeeDIC
Warnings and Messages on page 264.
Cleaning the System
The radar can become blocked by snow, ice, or
dirt. If so, you may need to turn off the engine and
clean the lens. See “Cleaning the System”
underAdaptive Cruise Control on page 197.
Flash-to-Pass
This feature allows you to use the high-beam
headlamps to signal the driver in front of you that
you want to pass.
Pull and hold the turn signal/multifunction lever
toward you to use this feature. When you do this,
the following will occur:
If the headlamps are off, in low-beam or in
Daytime Running Lamps (DRL) mode, the
high-beam headlamps will turn on. They will
stay on as long as you hold the lever
there. Release the lever to turn them off.
If the headlamps are in high-beam mode, they
will switch to low beam. To return to
high-beam, push the lever away from you.
188

Other Messages
There are three messages that may appear on the
DIC. They are SERVICE RADAR CRUISE,
RADAR CRUISE NOT READY and CLEAN
RADAR. These messages will appear to indicate
a problem with the Adaptive Cruise Control.
SeeDIC Warnings and Messages on page 264
for more information.
Cleaning the System
The radar can become blocked by snow, ice or
dirt. If so, you may need to turn off the engine and
clean the lens. Remember, do not use Adaptive
Cruise Control in icy conditions, or when visibility is
low, such as in fog, rain or snow.
The emblem/lens is located in the center of
the grille.
To clean the emblem/lens, wipe the surface with a
soft cloth. After cleaning the emblem/lens,
engage the Adaptive Cruise Control. If you are
unable to do so, see your dealer.
Headlamps
The exterior lamp control is located in the middle
of the turn signal/multifunction lever.
O(Exterior Lamp Control):Turn the control
with this symbol on it to operate the exterior lamps.
The exterior lamp control has four positions:
O(On/Off):Turn the control to this position to
turn off all lamps and automatic lighting features
including Daytime Running Lamps (DRL) and
IntelliBeam™.
211

Reading Lamps
The reading lamps are located on the overhead
console. These lamps come on automatically when
any door is opened.
For manual operation, press the button next to
each lamp to turn it on or off.
If the reading lamps are left on, they automatically
shut off 10 minutes after the ignition has been
turned off.
Battery Load Management
The battery load management feature is designed
to monitor the vehicle’s electrical load and
determine when the battery is in a heavy discharge
condition. During times of high electrical loading,
the engine may idle at a higher
revolutions per minute (rpm) setting than normal to
make sure the battery charges. High electrical
loads may occur when several of the following are
on: headlamps, high beams, fog lamps, rear
window defogger, the climate control fan at high
speeds, heated seats and engine cooling fans.If the battery continues to discharge, even with the
engine idling at a higher rpm setting, some
electrical loads will automatically be reduced.
When this occurs, the rear window defogger may
take slightly longer to clear the glass and the
fan may cut back to a lower speed. For more
battery saving information, see “Battery Saver
Active Message” underDIC Warnings and
Messages on page 264.
Electric Power Management
The vehicle has Electric Power Management (EPM)
that estimates the battery’s temperature and state
of charge. It then adjusts the voltage for best
performance and extended life of the battery.
When the battery’s state of charge is low, the
voltage is raised slightly to quickly put the charge
back in. When the state of charge is high, the
voltage is lowered slightly to prevent overcharging.
If the vehicle has a voltmeter gage or voltage
display on the Driver Information Center (DIC), you
may see the voltage move up or down. This is
normal. If there is a problem, an alert will be
displayed.
221
