Retractable Hardtop
The following procedures explain the proper operation
of the retractable hardtop. The retractable hardtop
will not operate if the valet lockout switch is on.
If the retractable hardtop is lowered or raised multiple
times, the engine should be running while doing so
to prevent drain on the vehicle’s battery.
{CAUTION:
Moving parts of the retractable hardtop can
be dangerous. People can be injured by the
hardtop and its mechanism. Keep people away
from your vehicle when you are lowering or
raising the top.
Lowering the Retractable Hardtop
Notice:Leaving the retractable hardtop down and
exposing the interior of your vehicle to outdoor
conditions may cause damage. Always close
the retractable hardtop if leaving your vehicle
outdoors.
1. Park on a level surface and shift the transmission
into PARK (P).
2. The vehicle’s engine must be on or in ACC.
3. Lower both sun visors.
Notice:Raising or lowering the top while the vehicle
is in motion can cause damage to the top or top
mechanism. Make sure the vehicle is in PARK (P) to
lower or raise the top.
Notice:Lowering the top if it is damp, wet, or dirty
can cause stains, mildew, and damage to the inside
of your vehicle. Dry off the top before lowering it.
Notice:If you lower the retractable hardtop in cold
weather (0°F/−18°C or lower), you may damage
top components. Do not lower the retractable
hardtop in cold weather.
2-45

4. Make sure that nothing or no one is on or around
the top. Make sure the trunk cargo cover is in
place with nothing on top or in front of the cargo
cover. SeeRear Storage Area on page 2-44
for more information. Also, make sure the valet
lockout switch is off.
5. Push and hold the
bottom of the retractable
hardtop button located
on the console behind
the shifter lever.
The windows will
automatically lower and
the top will automatically
lower into the storage
area. A chime will sound
when the top has
lowered completely.
If the radio is on, the sound may be muted briey while
the retracable top is lowered. This occurs because a
new audio system equalization is being loaded.
Under certain conditions, the Driver Information Center
(DIC) may display a message regarding the retractable
hardtop. If this happens, seeDIC Warnings and
Messages on page 3-64for more information.Raising the Retractable Hardtop
1. Park on a level surface. Shift the transmission into
PARK (P).
2. The vehicle’s engine must be on or in ACC.
3. Lower both sun visors.
Notice:Raising or lowering the top while the vehicle
is in motion can cause damage to the top or top
mechanism. Make sure the vehicle is in PARK (P) to
lower or raise the top.
4. Make sure nothing or no one is on or around the
top. Make sure the trunk cargo cover is in place
with no cargo on top of or in front of the cargo
cover. SeeRear Storage Area on page 2-44for
more information. Also, be sure the valet lockout
switch is off.
2-46

5. Push and hold the top of
the retractable hardtop
button located behind the
shift lever. The windows
will automatically lower
and the top will raise.
A chime will sound
when the top has
raised completely.
After the top is fully raised, release the retractable
hardtop button. If you press the button again within ve
seconds, the windows will automatically close.
If your radio is on, you may notice a brief mute in
sound. This is normal and due to a new audio system
equalization being loaded for the vehicle with the
top raised.
Under certain conditions, the Driver Information Center
(DIC) may display a message regarding the retractable
hardtop. If this happens, seeDIC Warnings and
Messages on page 3-64for more information.If your vehicle has a power loss, such as a dead
battery, you can still raise the top manually by doing
the following:
1. Lower both sun visors and open both doors.
2. Use the key to open the trunk. SeeKeys on page 2-2
andTrunk on page 2-13for more information.
3. Raise the trunk by hand.
4. Remove the wrench located inside the passenger’s
side storage compartment.
5. Find the hydraulic pump
under the carpet on the
rear driver’s side of
the trunk. Open the
valve by turning it
counterclockwise with
your hand until it stops.
2-47

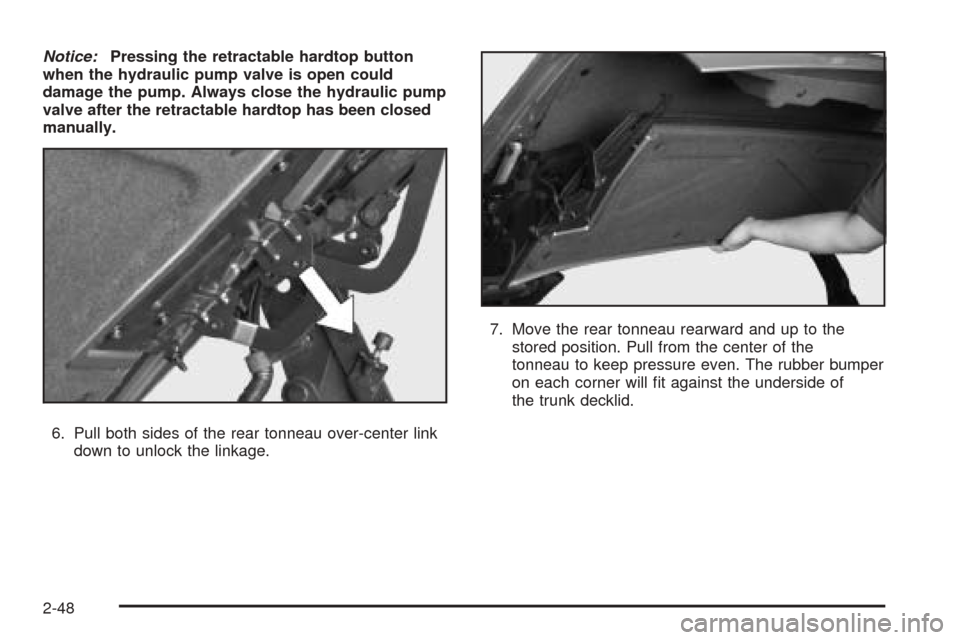

Notice:Pressing the retractable hardtop button
when the hydraulic pump valve is open could
damage the pump. Always close the hydraulic pump
valve after the retractable hardtop has been closed
manually.
6. Pull both sides of the rear tonneau over-center link
down to unlock the linkage.7. Move the rear tonneau rearward and up to the
stored position. Pull from the center of the
tonneau to keep pressure even. The rubber bumper
on each corner will t against the underside of
the trunk decklid.
2-48

8. Push both sides of the rear tonneau over-center link
up until they stop to lock the linkage.
9. Close the hydraulic pump valve by turning it
clockwise with your hand until it stops.10. Remove the upright center storage compartment.
Use the wrench to remove the four screws holding
the storage area in place.
2-49

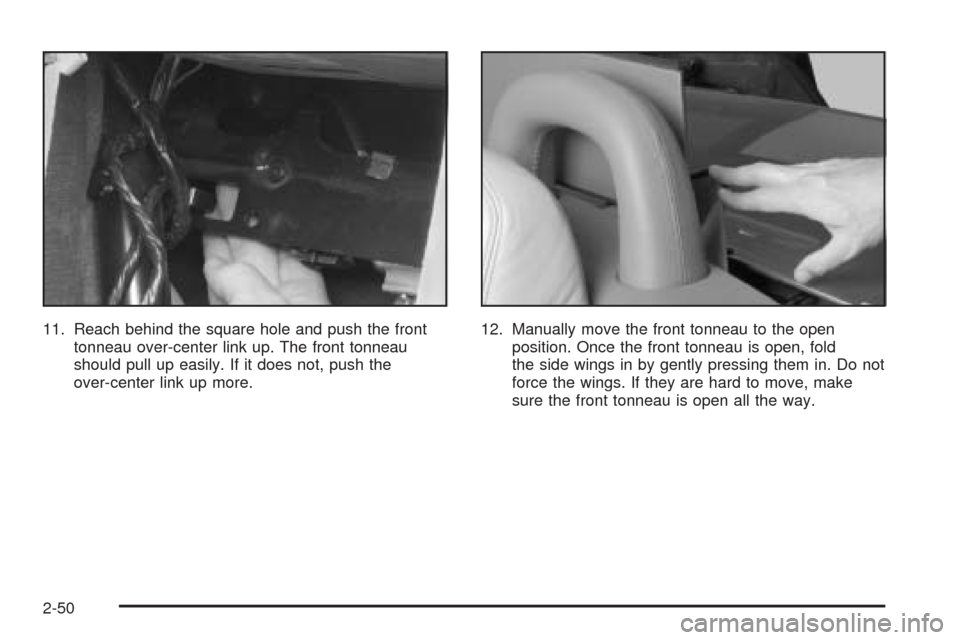

11. Reach behind the square hole and push the front
tonneau over-center link up. The front tonneau
should pull up easily. If it does not, push the
over-center link up more.12. Manually move the front tonneau to the open
position. Once the front tonneau is open, fold
the side wings in by gently pressing them in. Do not
force the wings. If they are hard to move, make
sure the front tonneau is open all the way.
2-50

13. Reach in from the side of the vehicle and under the
top to remove the headliner plug. The plug will be
located in the center of the top near the front.
14. Insert the wrench into the bolt beneath the plug
location. Turn the wrench about one-quarter turn
counterclockwise until it stops while gently pulling up
on the center of the top to release it.15. Hold the top in the front and side and lift the top out
of the stored position.
2-51

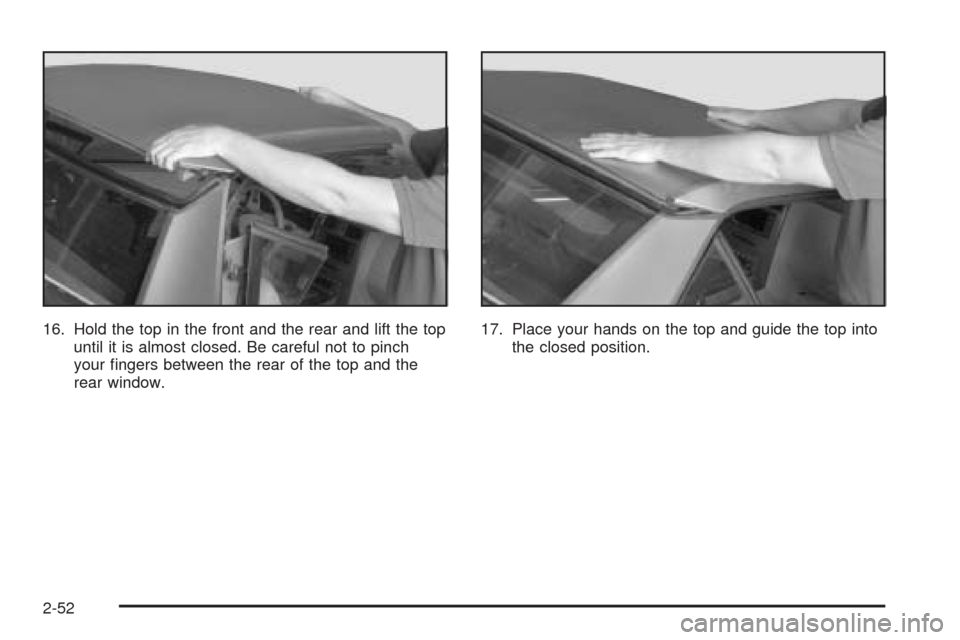

16. Hold the top in the front and the rear and lift the top
until it is almost closed. Be careful not to pinch
your ngers between the rear of the top and the
rear window.17. Place your hands on the top and guide the top into
the closed position.
2-52

18. While sitting in the driver’s seat, pull down on the
rear of the top.19. While holding the rear
of the top down, insert
the wrench into the
bolt in the plug opening
in the headliner.
Turn the wrench
counterclockwise until it
stops to fully open
the latch jaws around
the pins.
20. Pull down on the roof with the latch rotated open.
Turn the wrench clockwise until it stops to lock the
top into position. Push up on the roof. If it moves
away from the windshield header it is not latched
and you will need to repeat the previous steps.
2-53

21. From outside the vehicle, push down on both rear
corners of the top to make sure it is completely
locked into place.
22. From inside the vehicle, reach behind the headrest
and gently pull the wings out a small amount. Then,
fold the front tonneau to the closed position.
23. Manually close the trunk.
