radio controls CADILLAC XLR 2005 1.G Owners Manual

Ignition Positions
Your vehicle has an
electronic keyless ignition
with pushbutton start.
/(START):Press this button while your foot is on the
brake to start the engine. The keyless access transmitter
must be in the vehicle for the ignition to work.
9ACC (OFF/ACCESSORY):When the engine is on
or in accessory mode, press this button to turn the
engine off and place the vehicle in RAP. SeeRetained
Accessory Power (RAP) on page 2-22for more
information.When the engine is off, press this button to place the
vehicle in accessory mode. ACCESSORY MODE
ON will display on the Driver Information Center (DIC).
This mode allows you to use things like the radio
and the windshield wipers while the engine is off.
Use ACC if you must have your vehicle in motion while
the engine is off, for example, if your vehicle is being
pushed or towed.
After being in ACC for about 20 minutes, the vehicle will
automatically enter RAP or OFF, depending on if the
doors are opened or closed.
Retained Accessory Power (RAP)
The following accessories on your vehicle may be used
for up to 10 minutes after the engine is turned off:
Radio
Power Windows
Audio Steering Wheel Controls
Power to these accessories stops after 10 minutes or
if a door is opened. If you want power for another
10 minutes, close all the doors and press the ACC
button to place the vehicle in accessory mode. Press the
button again and the vehicle will return to RAP.
2-22

Security Light...............................................3-59
Fog Lamp Light............................................3-59
Lights On Reminder......................................3-59
Highbeam On Light.......................................3-59
Fuel Gage...................................................3-60
Driver Information Center (DIC).......................3-61
DIC Controls and Displays.............................3-61
DIC Warnings and Messages.........................3-64
Other Messages...........................................3-72
DIC Vehicle Personalization............................3-73Trip Computer................................................3-77
Oil Life Indicator...........................................3-77
Audio System(s).............................................3-78
Theft-Deterrent Feature..................................3-78
Audio Steering Wheel Controls.......................3-79
Radio Reception...........................................3-80
Care of Your CDs.........................................3-80
Care of Your CD Player................................3-80
Diversity Antenna System..............................3-81
XM™ Satellite Radio Antenna System.............3-81
Section 3 Instrument Panel
3-2

Head-Up Display (HUD)
{CAUTION:
If the HUD image is too bright, or too high in
your eld of view, it may take you more time to
see things you need to see when it is dark
outside. Be sure to keep the HUD image dim
and placed low in your eld of view.
The Head-Up Display (HUD) allows you to see some of
the driver information that appears on your instrument
panel cluster.
The information may be displayed in English or metric
units and appears as an image focused out toward the
front of your vehicle. To change from English to metric
units, seeDriver Information Center (DIC) on page 3-61.
The HUD consists of the following information:
Speedometer
Turn Signal Indicators
High-Beam Indicator Symbol
Tap-Up/Tap-Down Transmission Feature
Check Gages Icon
Adaptive Cruise Control Features and Indicators
Radio Features
Be sure to continue scanning your displays, controls
and driving environment just as you would in a vehicle
without HUD. If you never look at your instrument
panel cluster, you may not see something important,
such as a warning light. Under important warning
conditions, the CHECK GAGES message will display in
the HUD. View your Driver Information Center (DIC)
for more information.
3-34

Audio System(s)
Notice:Before adding any sound equipment to
your vehicle, like a tape player, CB radio, mobile
telephone, or two-way radio, make sure that it can
be added by checking with your dealer. Also,
check federal rules covering mobile radio and
telephone units. If sound equipment can be added,
it is very important to do it properly. Added
sound equipment may interfere with the operation
of your vehicle’s engine, radio, or other systems,
and even damage them. Your vehicle’s systems may
interfere with the operation of sound equipment
that has been added improperly.
Figure out which audio system is in your vehicle, nd
out what your audio system can do, and how to operate
all of its controls.
Your vehicle has a feature called Retained Accessory
Power (RAP). With RAP, the audio system can be
played even after the ignition is turned off. SeeRetained
Accessory Power (RAP) on page 2-22for more
information.
Theft-Deterrent Feature
THEFTLOCK®is designed to discourage theft of your
vehicle’s radio. The feature works automatically by
learning a portion of the Vehicle Identication
Number (VIN). If the radio is moved to a different
vehicle, it will not operate. If the radio is removed from
your vehicle, the original VIN in the radio can be
used to trace the radio back to your vehicle.
With THEFTLOCK
®activated, the radio will not operate
if stolen.
3-78

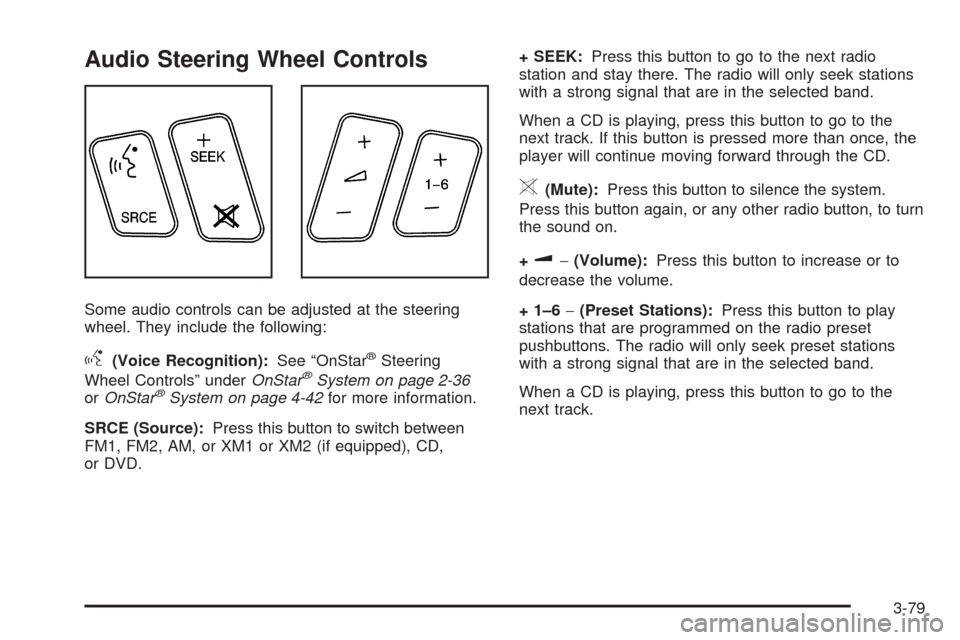

Audio Steering Wheel Controls
Some audio controls can be adjusted at the steering
wheel. They include the following:
g(Voice Recognition):See “OnStar®Steering
Wheel Controls” underOnStar®System on page 2-36
orOnStar®System on page 4-42for more information.
SRCE (Source):Press this button to switch between
FM1, FM2, AM, or XM1 or XM2 (if equipped), CD,
or DVD.+ SEEK:Press this button to go to the next radio
station and stay there. The radio will only seek stations
with a strong signal that are in the selected band.
When a CD is playing, press this button to go to the
next track. If this button is pressed more than once, the
player will continue moving forward through the CD.
>(Mute):Press this button to silence the system.
Press this button again, or any other radio button, to turn
the sound on.
+
u−(Volume):Press this button to increase or to
decrease the volume.
+ 1–6−(Preset Stations):Press this button to play
stations that are programmed on the radio preset
pushbuttons. The radio will only seek preset stations
with a strong signal that are in the selected band.
When a CD is playing, press this button to go to the
next track.
3-79

Overview.........................................................4-2
Navigation System Overview............................4-2
Getting Started...............................................4-4
Features and Controls......................................4-4
Using the Navigation System...........................4-4
Setup Menu...................................................4-7
Plan Route..................................................4-13
Edit Memory Point........................................4-13
Edit Waypoint...............................................4-17
Edit Avoid Point/Area....................................4-20
Enter Destination..........................................4-21
Route Preference..........................................4-31
Maps..........................................................4-33
Symbols......................................................4-36Remote Keyless Entry System........................4-42
OnStar®System...........................................4-42
Global Positioning System (GPS)....................4-42
Vehicle Positioning........................................4-43
Problems with Route Guidance.......................4-44
If the System Needs Service..........................4-45
Ordering Map DVDs......................................4-45
Database Coverage Explanations....................4-45
Navigation Audio System................................4-45
Six-Disc CD Changer....................................4-61
CD/DVD Player............................................4-63
Radio Personalization with Home and
Away Feature...........................................4-69
Voice Recognition..........................................4-69
Section 4 Navigation System
4-1

Tire Pressure Monitor System
The Tire Pressure Monitor (TPM) System on your vehicle,
uses radio and sensor technology to check tire pressure
levels. Sensors, mounted on each tire and wheel
assembly transmit tire pressure readings to a receiver
located in the vehicle. The TPM sensors transmit tire
pressure readings once every 60 seconds while the
vehicle is being driven and once every 60 minutes when
the vehicle is stationary for more than 15 minutes. Using
the Driver Information Center (DIC), tire pressure levels
can be viewed by the driver. The TPM system also uses
the DIC to warn the driver when air pressure, in one or
more tires, falls below 25 psi (172 kPa) or is above
42 psi (290 kPa). For additional information and details
about the DIC operation and displays seeDIC Controls
and Displays on page 3-61andDIC Warnings and
Messages on page 3-64.
A low tire warning light also appears on the instrument
panel cluster when a low tire condition exists. The
DIC message, CHECK TIRE PRESSURE and the low
tire pressure warning light will be shown each time
the engine is started and stay on until the low tire
condition is corrected.When the tire pressure
monitoring system warning
light is lit, one or more
of your tires is signicantly
under-inated.
You should stop and check your tires as soon as
possible, and inate them to the proper pressure as
indicated on the vehicle’s tire information placard.
Driving on a signicantly under-inated tire causes the
tire to overheat and can lead to tire failure. Under-ination
also reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability. Each
tire, including the spare, should be checked monthly
when cold and set to the recommended ination pressure
as specied in the vehicle placard and owner’s manual.
The Tire and Loading Information Label (tire information
placard) is on the rear edge of the driver’s door, below the
door latch. This label shows the size of your vehicle’s
original tires and the correct ination pressure for your
vehicle’s tires when they are cold. SeeLoading Your
Vehicle on page 5-30.
Your vehicle’s TPM system can alert you about a low or
high tire pressure condition but it does not replace
normal tire maintenance. SeeTire Inspection and
Rotation on page 6-57
6-55

Fuses Usage
21Adaptive Cruise Control (ACC),
Driver Door Switch
22Power Tilt Wheel, Telescopic
Steering Column, Memory Seat,
Driver Seat Switch, Retractable
Hardtop Switch
23 Ignition Switch, Intrusion Sensor
24 Stop Lamp
25Inside Rearview Mirror, Climate
Control System, Column Lock,
Power Sounder
26Instrument Panel Cluster, Head-Up
Display (HUD)
27 Radio, S-Band, CD Changer
28 Tap-Up/Tap-Down Switch
29Climate Control System, Power
Sounder
30Rear Fog Lamps, Diagnostic Link
Connector
31 Power Folding Mirror
32Trunk Close Button, Parking Brake
Solenoid B
33 Power SeatsFuses Usage
34 Door Controls
35 Run, Accessory Power
36 Not Used
37 Not Used
38 Rainsense™
39Steering Wheel Control Button
Lights
40 Power Lumbar
41 Passenger’s Side Heated Seat
42 Driver’s Side Heated Seat
43 Not Used
44 Retractable Hardtop, Trunk Latch
45 Auxiliary Power
46 Cigar Lighter
47 Park Brake Hold
48 Park Brake Release
49 Not Used
50 Not Used
51 Not Used
52 Fuel Door
6-82

A
Accessory Power Outlets.................................3-38
Adaptive Cruise Control...................................3-16
Additives, Fuel................................................. 6-6
Add-On Electrical Equipment............................6-80
Air Cleaner/Filter, Engine.................................6-18
Air Conditioning..............................................3-40
Airbag
Off Light.....................................................3-50
Readiness Light..........................................3-49
Airbag Sensing and Diagnostic Module (SDM)...... 8-9
Airbag System................................................1-36
Airbag Off Switch........................................1-44
How Does an Airbag Restrain?......................1-42
Servicing Your Airbag-Equipped Vehicle..........1-47
What Makes an Airbag Inate?......................1-42
What Will You See After an Airbag Inates?........1-43
When Should an Airbag Inate?....................1-41
Where Are the Airbags?...............................1-38
Antenna, Diversity Antenna System...................3-81
Antenna, XM™ Satellite Radio Antenna System.....3-81
Anti-Lock Brake System (ABS)........................... 5-6
Anti-Lock Brake, System Warning Light..............3-53
Appearance Care............................................6-70
Aluminum or Chrome-Plated Wheels..............6-76
Care of Safety Belts....................................6-73Appearance Care (cont.)
Chemical Paint Spotting...............................6-77
Cleaning Exterior Lamps/Lenses....................6-74
Fabric/Carpet..............................................6-70
Finish Care.................................................6-74
Finish Damage............................................6-77
Glass Surfaces............................................6-73
Instrument Panel.........................................6-72
Interior Plastic Components...........................6-72
Leather......................................................6-72
Sheet Metal Damage...................................6-77
Speaker Covers..........................................6-73
Tires..........................................................6-76
Underbody Maintenance...............................6-77
Vehicle Care/Appearance Materials................6-78
Vinyl..........................................................6-72
Washing Your Vehicle...................................6-74
Weatherstrips..............................................6-73
Windshield and Wiper Blades........................6-75
Wood Panels..............................................6-72
Ashtrays........................................................3-39
Audio System.................................................4-45
Audio System(s).............................................3-78
Audio Steering Wheel Controls......................3-79
Care of Your CD Player...............................3-80
Care of Your CDs........................................3-80
Diversity Antenna System.............................3-81
1
