If the word OFF or the off symbol is lit on the
passenger airbag status indicator, it means that
the passenger sensing system has turned off
the passenger’s airbags. SeePassenger Sensing
System on page 53for more on this, including
important safety information.
If, after several seconds, all status indicator lights
remain on, or if there are no lights at all, there
may be a problem with the lights or the passenger
sensing system. See your dealer for service.
{CAUTION:
If the airbag off indicator and the airbag
readiness light ever come on together, it
means that something may be wrong with
the airbag system. If this ever happens,
have the vehicle serviced promptly,
because an adult-size person sitting in the
right front passenger seat may not have
the protection of the airbag. SeeAirbag
Readiness Light on page 188.
Charging System Light
When you turn the
engine on, this light will
come on briey to
show that the generator
and battery charging
systems are working
properly.
If this light stays on, your vehicle needs service.
You should take your vehicle to the dealer at once.
To save your battery until you get there, turn off
all accessories. SeeDIC Controls and Displays on
page 204for more information.
191

Traction Control System (TCS)
Warning Light
This light should come
on briey as you start
the engine.
If the light does not come on then, have it xed so
it will be ready to warn you if there is a problem.
The light will also come on while the StabiliTrak
®
system warms up and the STABILITRAK
WARMING message will be displayed in the
Driver Information Center (DIC).
If it stays on, or comes on and the DIC shows a
SERVICE TRACTION SYS message when you are
driving, there is a problem with your Traction
Control System (TCS) and your vehicle needs
service. When this light is on, the system will not
limit wheel spin. Adjust your driving accordingly.If the driver turns off TCS by pressing the button
on the console, the TCS light will come on and the
TRACTION SYSTEM OFF message will show
on the DIC.
If the light stays on or comes on while you are
driving, a chime sounds and a SERVICE
STABILITRAK message appears on the DIC,
there is a problem with your StabiliTrak
®and the
vehicle needs service.
You can acknowledge this message by pressing
the RESET button. When the SERVICE
STABILITRAK message is displayed, the
StabiliTrak
®system will not assist you in
controlling the vehicle. You should have the
system serviced as soon as possible. Adjust your
driving accordingly.
When the system is working, you will see the
STABILITRAK ACTIVE message displayed in the
DIC. You may also feel of hear the system
working. This is normal.
194

If you turn off the StabiliTrak®system, by pressing
the front part of the button on the console for
ve seconds, the TCS light will come on, a chime
will sound and the TRAC/STABILITRAK OFF
message will be displayed in the DIC. The TCS
will also be turned off. SeeDIC Warnings and
Messages on page 206for more information.
If the StabiliTrak
®system and TCS are turned off,
pressing the console button momentarily will
turn both systems on. The DIC will display the
TRAC/STABILITRAK ON message, the instrument
cluster light will be off and a chime will sound.
SeeDIC Warnings and Messages on page 206for
more information.
Engine Coolant Temperature Gage
This gage shows the engine coolant temperature.
As the pointer nears 260°F (125°C), your
engine coolant temperature is high. A message
may display on the Driver Information Center (DIC)
depending on how high the temperature is. See
DIC Warnings and Messages on page 206
for more information.
SeeEngine Overheating on page 388for more
information.
United StatesCanada
195

Your vehicle will not pass this inspection if the
OBD (on-board diagnostic) system determines that
critical emission control systems have not been
completely diagnosed by the system. The vehicle
would be considered not ready for inspection.
This can happen if you have recently replaced the
battery or if the battery has run down. The
diagnostic system is designed to evaluate critical
emission control systems during normal driving.
This may take several days of routine driving.
If you have done this and your vehicle still does
not pass the inspection for lack of OBD system
readiness, your dealer can prepare the vehicle for
inspection.Engine Oil Pressure Gage
The engine oil pressure gage shows the engine oil
pressure in psi (pounds per square inch) or kPa
(kilopascals) when the engine is running.
Oil pressure should be 20 to 80 psi
(140 to 550 kPa). In certain situations such as
long, extended idles on hot days, it could read as
low as 6 psi (40 kPa) and still be considered
normal. It may vary with engine speed, outside
temperature and oil viscosity. The Driver
Information Center (DIC) may display messages
regarding the oil condition. SeeDIC Warnings and
Messages on page 206andEngine Oil on
page 377.
United StatesCanada
200

Lights On Reminder
This light comes on
whenever the
headlamps are on.
Highbeam On Light
This light comes on
when the high-beam
headlamps are in use.
SeeHeadlamp High/Low-Beam Changer on
page 143.
Fuel Gage
Your fuel gage tells you
about how much fuel
you have left when
the ignition is on.
When the needle approaches the low fuel symbol,
LOW FUEL will appear on the Driver Information
Center (DIC) display. At this time, you still have a
little fuel left, but you should get more soon.
Press RESET to acknowledge a DIC message(s).
Pressing RESET will also turn off a DIC message
but the LOW FUEL message will come on
again in 10 minutes if you have not added fuel to
the vehicle.
United States Only
202

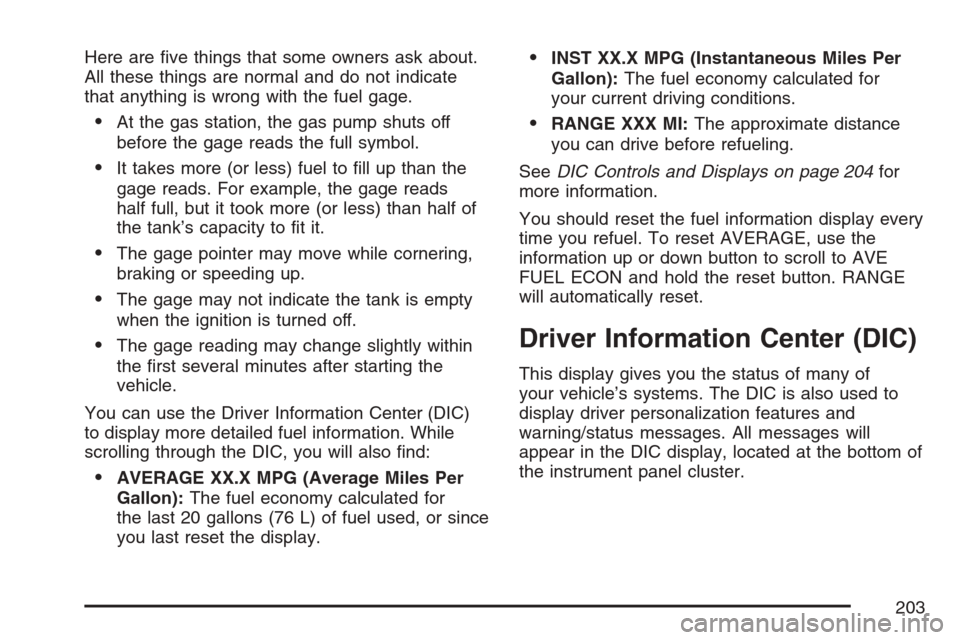

Here are ve things that some owners ask about.
All these things are normal and do not indicate
that anything is wrong with the fuel gage.
At the gas station, the gas pump shuts off
before the gage reads the full symbol.
It takes more (or less) fuel to ll up than the
gage reads. For example, the gage reads
half full, but it took more (or less) than half of
the tank’s capacity to t it.
The gage pointer may move while cornering,
braking or speeding up.
The gage may not indicate the tank is empty
when the ignition is turned off.
The gage reading may change slightly within
the rst several minutes after starting the
vehicle.
You can use the Driver Information Center (DIC)
to display more detailed fuel information. While
scrolling through the DIC, you will also nd:
AVERAGE XX.X MPG (Average Miles Per
Gallon):The fuel economy calculated for
the last 20 gallons (76 L) of fuel used, or since
you last reset the display.
INST XX.X MPG (Instantaneous Miles Per
Gallon):The fuel economy calculated for
your current driving conditions.
RANGE XXX MI:The approximate distance
you can drive before refueling.
SeeDIC Controls and Displays on page 204for
more information.
You should reset the fuel information display every
time you refuel. To reset AVERAGE, use the
information up or down button to scroll to AVE
FUEL ECON and hold the reset button. RANGE
will automatically reset.
Driver Information Center (DIC)
This display gives you the status of many of
your vehicle’s systems. The DIC is also used to
display driver personalization features and
warning/status messages. All messages will
appear in the DIC display, located at the bottom of
the instrument panel cluster.
203

DIC Controls and Displays
The Driver Information
Center (DIC) buttons
are located to the
right of the steering
wheel on the instrument
panel, near the air
outlets.
«4ª(Information):Press the top or bottom of
this button to scroll through the available features
which include the odometer, trip odometers,
fuel range, miles per gallon, average speed, timer,
tire pressure, and remaining oil life.
+(Interior Lamps):Press this button to turn
the interior lamps on and off.
OPTIONS:Press this button to choose personal
options that are available on your vehicle.RESET:Press this button to reset a feature. It is
also used to switch between English and Metric
options.
Use the information button to scroll through the
following options:
ODOMETER:This feature shows how far the
vehicle has been driven in either miles (mi)
or kilometers (km). Use the ENG/METRIC feature
to switch between English and Metric units.
TRIP A:This feature will record the distance
traveled since the last time it was reset. Press and
hold the RESET button to return to zero. If your
vehicle is rst sold in the United States, the
trip odometer will return to zero after 999.9 miles
(1 609 km). If your vehicle is rst sold in
Canada, the trip odometer will return to zero after
1,242 miles (1 999 km).
TRIP B:This feature allows you to record the
distance traveled during a second trip and
functions the same as TRIP A.
204

RANGE xxx MI:This feature shows about how
many miles (mi) or kilometers (km) you can
drive without relling your fuel tank. Once the
range drops below 40 miles (64 km) remaining, the
display will show LOW.
If the vehicle has been idling for a long time, the
range displayed on the DIC could be abnormally
low. The vehicle must be driven 5-10 miles
(8-16 km) to get an accurate reading.
AVERAGE xx.x MPG (Average Miles Per
Gallon):This feature shows the approximate fuel
economy the vehicle has averaged since the
last time the value was reset. To reset the average
miles per gallon, press the information button to
display AVERAGE xx.x MPG, then press and hold
the RESET button until AVERAGE 00.0 MPG is
displayed.
INST xx.x MPG (Instantaneous Miles Per
Gallon):This feature shows the instantaneous
fuel economy which varies with your driving
conditions, such as acceleration, braking, and the
grade of the road being traveled. The RESET
button does not function in this mode.AVERAGE SPEED:This feature shows the
average speed the vehicle has traveled since the
last time the value was reset. To reset the
value, press the information button to display
AVERAGE SPEED, then press and hold the
RESET button until AVERAGE SPEED 00.0 is
displayed.
ELAPSED TIME:This feature is like a stopwatch,
in that you can clock the time it takes to get
from one point to another.
To operate, press the information button to display
ELAPSED TIME. Each of the elds for the
hours, minutes, and seconds are two numeric
digits.
Once ELAPSED TIME 00:00:00 is displayed,
press the RESET button to start the timing feature.
Press the RESET button again to stop it. If you
will be starting and stopping your vehicle, during a
trip for instance, the ELAPSED TIME feature
will automatically start timing where it left off when
you last stopped. To reset it, press and hold
the RESET button until the display reads
ELAPSED TIME 00:00:00. Press the information
button to exit from the ELAPSED TIME display.
205

FRONT Lxx Rxx PSI:This feature shows the tire
pressure for the front left and right tires.
REAR Lxx Rxx PSI:This feature shows the tire
pressure for the rear left and right tires.
OIL LIFE:This feature shows the estimated oil
life remaining. SeeOil Life Indicator on page 224
for more information. To reset the engine oil
life system, seeEngine Oil Life System on
page 380. This only needs to be reset after you
have had the oil changed.
In addition to the engine oil life system monitoring
oil life, additional maintenance is recommended
in the Maintenance Schedule in this manual.
SeeScheduled Maintenance on page 465and
Engine Oil on page 377for more information.
ENG/METRIC (English/Metric):This feature
allows you to switch the DIC displays between
English and Metric. Press the RESET button
to switch the display between English and Metric.
There will be an arrow next to the option that
is selected.DIC Warnings and Messages
These messages appear if there is a problem
detected in one of your vehicle’s systems.
You must then press RESET to clear the display
screen for further use. However, be sure to
take any message that appears on the display
screen seriously and remember that pressing the
RESET button will only make the message
disappear, not the problem.
DIC messages can also be displayed in English,
French, German, Italian, Japanese, and Spanish.
ABS (Anti-Lock Brake System)
ACTIVE
This message displays when the Anti-lock Brake
System (ABS) is adjusting brake pressure to
help avoid a braking skid.
Slippery road conditions may exist if this message
displays, so adjust your driving accordingly.
The message may stay on for a few seconds after
the system stops adjusting brake pressure.
206

BUCKLE PASSENGER
This message reminds you to buckle the
passenger’s safety belt.
This message displays and a chime sounds when
the ignition is on, the driver’s safety belt is
buckled, the passenger’s safety belt is unbuckled
with the passenger airbag enabled, and the
vehicle is in motion. You should have the
passenger buckle their safety belt.
The reminder will be repeated if the ignition is on,
the vehicle is in motion, the driver is buckled
and the passenger is still unbuckled, and
the passenger airbag is enabled. If the
passenger’s safety belt is already buckled, this
message and chime will not come on.
BUCKLE SEAT BELT
This message reminds you to buckle the driver’s
safety belt.
This message displays and a chime sounds when
the ignition is on, the driver’s safety belt is
unbuckled, and the vehicle is in motion. You
should buckle your safety belt.If the driver remains unbuckled when the ignition
is on and the vehicle is in motion, the reminder
will be repeated. If the driver’s safety belt is
already buckled, this message and chime will not
come on.
This message is an additional reminder to the
Safety Belt Reminder Light in the instrument panel
cluster. SeeSafety Belt Reminder Light on
page 187for more information.
CHANGE OIL NOW
This message displays when the life of the engine
oil has expired. SeeScheduled Maintenance on
page 465. After an oil change, the Oil Life Indicator
must be reset. SeeOil Life Indicator on page 224
andEngine Oil Life System on page 380.
CHARGE SYSTEM FAULT
This message displays when a problem with the
charging system has been detected. Have
your vehicle serviced by your dealer.
CHECK GAS CAP
This message displays if the fuel cap has not
been fully tightened. Check the fuel cap to make
sure that it is on properly.
207
