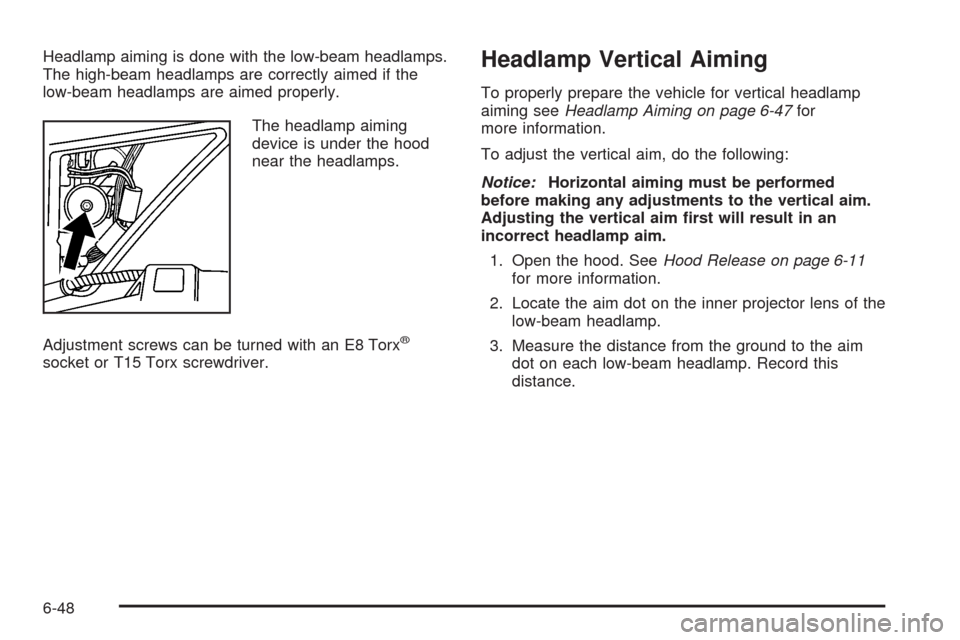

headlamp CADILLAC XLR 2008 1.G Owner's Manual

Headlamp aiming is done with the low-beam headlamps.
The high-beam headlamps are correctly aimed if the
low-beam headlamps are aimed properly.
The headlamp aiming
device is under the hood
near the headlamps.
Adjustment screws can be turned with an E8 Torx
®
socket or T15 Torx screwdriver.
Headlamp Vertical Aiming
To properly prepare the vehicle for vertical headlamp
aiming seeHeadlamp Aiming on page 6-47for
more information.
To adjust the vertical aim, do the following:
Notice:Horizontal aiming must be performed
before making any adjustments to the vertical aim.
Adjusting the vertical aim rst will result in an
incorrect headlamp aim.
1. Open the hood. SeeHood Release on page 6-11
for more information.
2. Locate the aim dot on the inner projector lens of the
low-beam headlamp.
3. Measure the distance from the ground to the aim
dot on each low-beam headlamp. Record this
distance.
6-48

4. At the wall or other at surface, measure from the
ground upward (A) to the recorded distance from
Step 3 and mark it.
Notice:Do not cover a headlamp to improve beam
cut-off when aiming. Covering a headlamp may
cause excessive heat build-up which may cause
damage to the headlamp.
5. Draw or tape a horizontal line (B) on the wall or at
surface the width of the vehicle at the height of the
mark in Step 4.6. Turn on the low-beam headlamps and place a
piece of cardboard in front of the headlamp not
being aimed. This should allow only the beam of
light from the headlamp being aimed to be seen on
the at surface.
7. Locate the vertical headlamp aiming screws, which
are under the hood near each headlamp assembly.
The adjustment screw can be turned with a 6 mm
male hex.
8. Turn the vertical
aiming screw until the
headlamp beam is
aimed to the horizontal
tape line.
6-49

9. The top edge of the cut-off should be positioned at
the bottom edge of the horizontal tape line.
10. Make sure that the light from the headlamp is
positioned at the bottom edge of the horizontal tape
line. The lamp on the left (A) shows the correct
headlamp aim. The lamp on the right (B) shows the
incorrect headlamp aim.
11. Repeat Steps 7 through 9 for the opposite
headlamp.Bulb Replacement
It is recommended that all bulbs be replaced by your
dealer/retailer.
Windshield Replacement
Your windshield is part of the Head-Up Display (HUD)
system. If you ever have to get your windshield
replaced, get one that is designed for HUD or your
HUD image may look out of focus.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear
and cracking. SeeScheduled Maintenance on page 7-4
for more information.
Replacement blades come in different types and are
removed in different ways. For proper type and length,
seeNormal Maintenance Replacement Parts on
page 7-13.
6-50

If you need to replace any of your wheels, wheel bolts or
wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts, and wheel nuts for your vehicle.
{CAUTION:
Using the wrong replacement wheels, wheel
bolts, or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts, and wheel nuts for replacement.
Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance, and tire clearance to
the body and chassis.
{CAUTION:
Rust or dirt on a wheel, or on the parts to
which it is fastened, can make wheel nuts
become loose after a time. The wheel
could come off and cause a crash. When
you change a wheel, remove any rust or
dirt from places where the wheel attaches
to the vehicle. In an emergency, you can
use a cloth or a paper towel to do this;
but be sure to use a scraper or wire brush
later, if you need to, to get all the rust or
dirt off.
{CAUTION:
Never use oil or grease on studs or the threads
of the wheel nuts. If you do, the wheel nuts
might come loose and the wheel could fall off,
causing a crash.
6-71

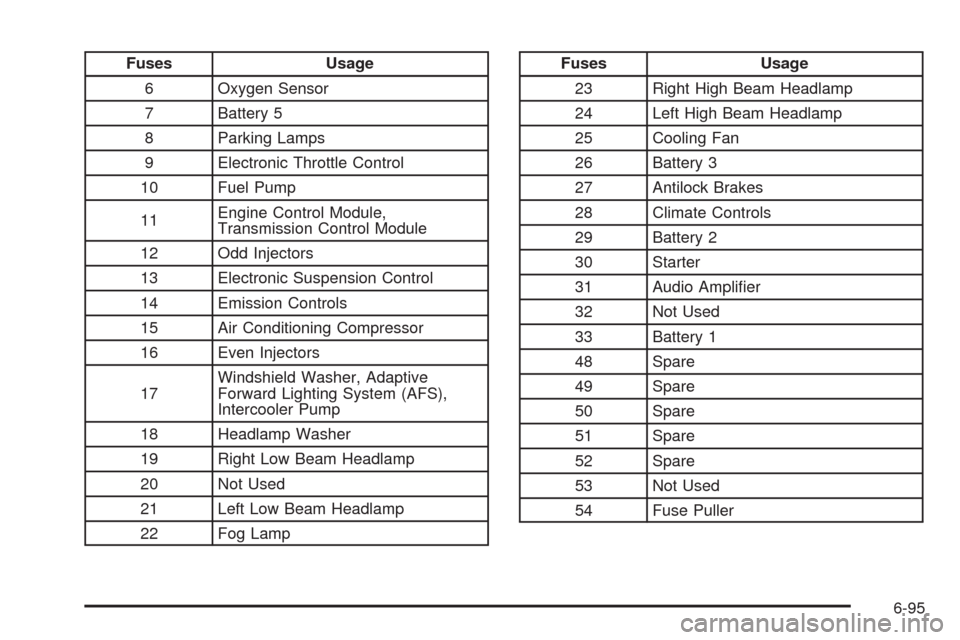

Fuses Usage
6 Oxygen Sensor
7 Battery 5
8 Parking Lamps
9 Electronic Throttle Control
10 Fuel Pump
11Engine Control Module,
Transmission Control Module
12 Odd Injectors
13 Electronic Suspension Control
14 Emission Controls
15 Air Conditioning Compressor
16 Even Injectors
17Windshield Washer, Adaptive
Forward Lighting System (AFS),
Intercooler Pump
18 Headlamp Washer
19 Right Low Beam Headlamp
20 Not Used
21 Left Low Beam Headlamp
22 Fog LampFuses Usage
23 Right High Beam Headlamp
24 Left High Beam Headlamp
25 Cooling Fan
26 Battery 3
27 Antilock Brakes
28 Climate Controls
29 Battery 2
30 Starter
31 Audio Amplier
32 Not Used
33 Battery 1
48 Spare
49 Spare
50 Spare
51 Spare
52 Spare
53 Not Used
54 Fuse Puller
6-95

Relays Usage
34 Horn
35 Air Conditioning Compressor
36 Windshield Washer
37 Parking Lamps
38 Fog Lamps
39 High Beam Headlamps
40 Rear Window Defogger
41 Windshield Wiper High/Low
42 Wiper RUN/ACCESSORY Power
43 Starter/Crank
44 Ignition 1Relays Usage
45 Windshield Wiper On/Off
46 Headlamp Washer
47 Low Beam Headlamps
55 Fuel Pump
Diodes Usage
§Diode 1
§Wiper Diode
§Diode 2
6-96
