CADILLAC XLR 2009 1.G Owners Manual

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
The rear window defogger only works when the engine
is running.
=(Rear Window Defogger):Press to turn the rear
window defogger on or off. Clear as much snow from the
rear window as possible.
The rear window defogger will turn off about 10 minutes
after the button is pressed when traveling less than
30 mph (48 km/h). If turned on again, the defogger
only runs for about ve minutes before turning off.
The defogger can also be turned off by turning off
the engine.
The heated outside rearview mirrors will heat to help
clear fog or frost from the surface of the mirrors
when the rear window defogger is on.
The rear window defogger and heated mirrors are
automatically disabled when the retractable hardtop
is moving or down.Notice:Do not use anything sharp on the inside of
the rear window. If you do, you could cut or damage
the warming grid, and the repairs would not be
covered by the vehicle warranty. Do not attach a
temporary vehicle license, tape, a decal or anything
similar to the defogger grid.((Heated/Cooled Seat):Press to turn the feature on.
It automatically turns off when the vehicle is turned
off. SeeHeated and Cooled Seats on page 1-3for
more information.
Sensors
There are several sensors on the vehicle that measure
the temperature and the sun’s effect on passenger
comfort.
The solar sensor is located on top of the instrument panel
near the windshield. It monitors the solar heat then uses
the information to maintain the selected temperature
when operating in AUTO mode by initiating needed
adjustments to the temperature, the fan speed and the air
delivery system. The system may also supply cooler air to
the side of the vehicle facing the sun. The recirculation
mode will also be activated, as necessary. Do not cover
the sensor or the system will not work properly.
3-39

There is also a sensor located behind the front bumper.
This sensor reads the outside air temperature and
helps maintain the temperature inside the vehicle.
The outside temperature will be displayed in the
navigation system only when the engine is running.
Any cover on the front of the vehicle could give a false
reading of the temperature.
If the outside temperature goes up, the display
temperature will not change until:
The vehicle’s speed is above 15 mph (24 km/h)
for ve minutes.
The vehicle’s speed is above 32 mph (51 km/h)
for two and one-half minutes.
These delays prevent false readings. If the temperature
goes down, the outside temperature will be shown
when the vehicle is started. If it has been turned off for
less than three hours, the temperature will be recalled
from the previous vehicle operation.
There is also an inside temperature sensor located to
the left of the ignition button. The automatic climate
control system uses this sensor to receive information,
so if it is blocked or covered, the system will not
function properly.
Outlet Adjustment
Use the thumbwheel to open or close the outlets.
Operation Tips

Clear away any ice, snow or leaves from the air
inlets at the base of the windshield that may
block the ow of air into the vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the system.
Keep the area around the base of the instrument
panel console and air path under the seats clear
of objects to help circulate the air inside of the
vehicle more effectively.
3-40

Passenger Compartment Air Filter
The passenger compartment air lter removes certain
particles from the air, including pollen and dust particles.
Reductions in airow, which may occur more often in
dusty areas, indicate that the lter may need to be
replaced early.
The lter should be replaced as part of the routine
scheduled maintenance. SeeScheduled Maintenance
on page 7-4for more information.
To check or replace the air lter, do the following:
1. With the hood open, unlatch and remove the
access panel.
The passenger compartment air lter and access
panel are located on the passenger side of the
engine compartment near the battery. SeeEngine
Compartment Overview on page 6-12for more
information on location.
2. Pull the old lter out of the housing.
3. Insert the new lter into the housing.
4. Reinstall the air lter access panel.
Warning Lights, Gages, and
Indicators
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause
an expensive repair or replacement. Paying attention
to the warning lights and gages could prevent injury.
Warning lights come on when there may be or is
a problem with one of the vehicle’s functions. Some
warning lights come on briey when the engine is started
to indicate they are working.
Gages can indicate when there may be or is a problem
with one of the vehicle’s functions. Often gages and
warning lights work together to indicate a problem with
the vehicle.
When one of the warning lights comes on and stays on
while driving, or when one of the gages shows there
may be a problem, check the section that explains
what to do. Follow this manual’s advice. Waiting to
do repairs can be costly and even dangerous.
3-41

Instrument Panel Cluster
The instrument panel cluster and Driver Information Center (DIC) are designed to show how the vehicle is running.
It shows how fast the vehicle is going, about how much fuel is left and many other things needed to drive safely and
economically. The instrument panel cluster indicator warning lights, gages and DIC messages are explained on
the following pages.
United States Base Cluster shown, Canada and Uplevel similar
3-42

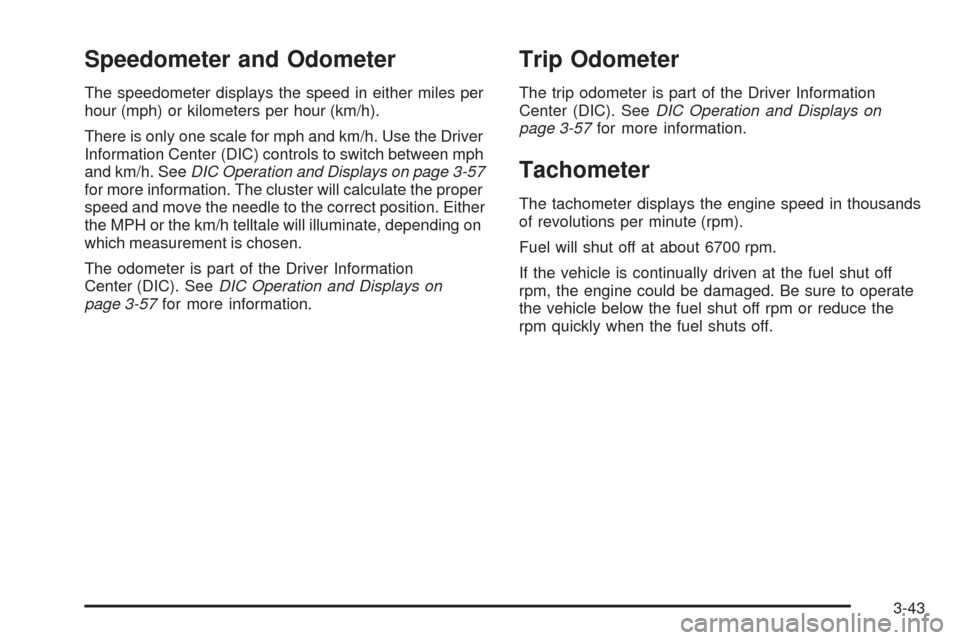

Speedometer and Odometer
The speedometer displays the speed in either miles per
hour (mph) or kilometers per hour (km/h).
There is only one scale for mph and km/h. Use the Driver
Information Center (DIC) controls to switch between mph
and km/h. SeeDIC Operation and Displays on page 3-57
for more information. The cluster will calculate the proper
speed and move the needle to the correct position. Either
the MPH or the km/h telltale will illuminate, depending on
which measurement is chosen.
The odometer is part of the Driver Information
Center (DIC). SeeDIC Operation and Displays on
page 3-57for more information.
Trip Odometer
The trip odometer is part of the Driver Information
Center (DIC). SeeDIC Operation and Displays on
page 3-57for more information.
Tachometer
The tachometer displays the engine speed in thousands
of revolutions per minute (rpm).
Fuel will shut off at about 6700 rpm.
If the vehicle is continually driven at the fuel shut off
rpm, the engine could be damaged. Be sure to operate
the vehicle below the fuel shut off rpm or reduce the
rpm quickly when the fuel shuts off.
3-43

Safety Belt Reminders
Safety Belt Reminder Light
When the engine is started, a chime comes on for
several seconds to remind people to fasten their safety
belts, unless the driver’s safety belt is already buckled.
The safety belt light also
comes on and stay on for
several seconds, then
it ashes for several more.
This chime and light is repeated if the driver remains
unbuckled and the vehicle is in motion. If the driver’s
safety belt is already buckled, neither the chime nor the
light comes on.
Airbag Readiness Light
The system checks the airbag’s electrical system for
possible malfunctions. If the light stays on it indicates
there is an electrical problem. The system check
includes the airbag sensor, the pretensioners, the
airbag modules, the wiring and the crash sensing
and diagnostic module. For more information on the
airbag system, seeAirbag System on page 1-38.The airbag readiness light
ashes for a few seconds
when the engine is
started. If the light does
not come on then, have it
xed immediately.
{CAUTION:
If the airbag readiness light stays on after the
vehicle is started or comes on while driving, it
means the airbag system might not be working
properly. The airbags in the vehicle might not
inate in a crash, or they could even inate
without a crash. To help avoid injury, have the
vehicle serviced right away.
If there is a problem with the airbag system, an airbag
Driver Information Center (DIC) message can also come
on. SeeDIC Warnings and Messages on page 3-60
for more information.
3-44

Passenger Airbag Status Indicator
The vehicle has a passenger sensing system.
SeePassenger Sensing System on page 1-45for
important safety information. The rearview mirror has
a passenger airbag status indicator.
When the vehicle is started, the passenger airbag status
indicator will light ON and OFF, or the symbol for on
and off, for several seconds as a system check. Then,
after several more seconds, the status indicator willlight either ON or OFF, or either the on or off symbol to
let you know the status of the right front passenger
frontal and seat-mounted side impact airbags.
If the word ON or the on symbol is lit on the passenger
airbag status indicator, it means that the right front
passenger frontal airbag and seat-mounted side impact
airbag are enabled (may inate).
If the word OFF or the off symbol is lit on the passenger
airbag status indicator, it means that the passenger
sensing system has turned off the right front passenger
frontal airbag and seat-mounted side impact airbag.
If, after several seconds, both status indicator lights
remain on, or if there are no lights at all, there may be a
problem with the lights or the passenger sensing
system. See your dealer/retailer for service.
{CAUTION:
If the airbag readiness light ever comes on and
stays on, it means that something may be wrong
with the airbag system. To help avoid injury to
yourself or others, have the vehicle serviced right
away. SeeAirbag Readiness Light on page 3-44
for more information, including important safety
information. United StatesCanada
3-45

Charging System Light
This light comes on briey
when the ignition key is
turned to START, but
the engine is not running,
as a check to show it
is working.
If it does not, have the vehicle serviced by your
dealer/retailer.
The light should go out once the engine starts. If it stays
on, or comes on while driving, there could be a problem
with the charging system. A charging system message
in the Driver Information Center (DIC) can also appear.
SeeDIC Warnings and Messages on page 3-60for more
information. This light could indicate that there are
problems with a generator drive belt, or that there is an
electrical problem. Have it checked right away. If the
vehicle must be driven a short distance with the light
on, turn off accessories, such as the radio and air
conditioner.
Voltmeter Gage
When the vehicle is in
accessory mode, the
voltmeter shows the
voltage output of the
battery. When the engine
is running, it shows
the voltage output of the
charging system.
The reading will change as the rate of charge changes
(with engine speed, for example), but if the voltmeter
reads at 9 volts or below, the instrument panel cluster
and other systems may shut down. The Driver
Information Center (DIC) will read LOW VOLTAGE
when the vehicle is at 10 volts or below. Have it checked
right away. Driving with the voltmeter reading at
10 volts or below could drain the battery and disable
the vehicle.
3-46

Brake System Warning Light
The vehicle’s hydraulic brake system is divided into
two parts. If one part is not working, the other part can
still work and stop the vehicle. For good braking,
though, both parts need to be working well.
This light should come on when the engine is started.
If it does not come on then, have it xed so it will
be ready to warn if there is a problem.
If this warning light stays on after the engine is started,
the parking brake may still be set or there could be
a brake problem. Refer toParking Brake on page 2-32
to see if it is set. If the parking brake is not set, have
the brake system inspected right away.If the light comes on while driving and a LOW BRAKE
FLUID message is showing on the DIC, pull off the road
and stop carefully. The pedal may be harder to push.
Or, the pedal may go closer to the oor and it may take
longer to stop. If the light is still on, have the vehicle
towed for service. SeeTowing Your Vehicle on
page 5-26.
{CAUTION:
The brake system might not be working properly if
the brake system warning light is on. Driving with
the brake system warning light on can lead to a
crash. If the light is still on after the vehicle has
been pulled off the road and carefully stopped,
have the vehicle towed for service. United States
Canada
3-47

Antilock Brake System (ABS)
Warning Light
For vehicles with the
Antilock Brake System
(ABS), this light comes on
briey when the engine
is started.
If it does not, have the vehicle serviced by your
dealer/retailer. If the system is working normally the
indicator light then goes off.
If the ABS light stays on, turn the ignition off. If the light
comes on while driving, stop as soon as it is safely
possible and turn the ignition off. Then start the engine
again to reset the system. If the ABS light stays on,
or comes on again while driving, the vehicle needs
service. If the regular brake system warning light is not
on, the vehicle still has brakes, but not antilock brakes.
If the regular brake system warning light is also on,
the vehicle does not have antilock brakes and there is a
problem with the regular brakes. SeeBrake System
Warning Light on page 3-47.
For vehicles with a Driver Information Center (DIC),
seeDIC Warnings and Messages on page 3-60for all
brake related DIC messages.
StabiliTrak®/Traction Control
System (TCS) Warning Light
The Traction Control
System (TCS)/StabiliTrak
system warning light
comes on briey as the
engine is started.
If it does not, have the vehicle serviced by your
dealer/retailer. If the system is working normally the
indicator lights go off.
If the light stays on, or comes on while driving and
the DIC shows a SERVICE TRACTION SYS or
a SERVICE STABILITRAK message, there is a
problem with the Traction Control System (TCS)
or the StabiliTrak
®system and the vehicle needs
service.
3-48
