CADILLAC XLR V 2007 1.G Owners Manual

Brake Wear
Your vehicle has four-wheel disc brakes.
Disc brake pads have built-in wear indicators that
make a high-pitched warning sound when the
brake pads are worn and new pads are needed.
The sound may come and go or be heard all
the time your vehicle is moving, except when you
are pushing on the brake pedal rmly.
{CAUTION:
The brake wear warning sound means that
soon the brakes will not work well. That
could lead to an accident. When you hear
the brake wear warning sound, have your
vehicle serviced.
Notice:Continuing to drive with worn-out
brake pads could result in costly brake repair.
Some driving conditions or climates may cause
a brake squeal when the brakes are rst applied or
lightly applied. This does not mean something is
wrong with your brakes.
Brake linings should always be replaced as
complete axle sets.
Brake Pedal Travel
See your dealer if the brake pedal does not return
to normal height, or if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
As you make brake stops, your disc brakes
automatically adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its
many parts have to be of top quality and work well
together if the vehicle is to have really good
braking. Your vehicle was designed and tested with
top-quality GM brake parts. When you replace parts
of your braking system — for example, when your
brake linings wear down and you need new ones
put in — be sure you get new approved GM
replacement parts. If you do not, your brakes may
no longer work properly. For example, if someone
puts in brake linings that are wrong for your vehicle,
the balance between your front and rear brakes can
change — for the worse. The braking performance
you have come to expect can change in many other
ways if someone puts in the wrong replacement
brake parts.
401

Battery
Your vehicle has a maintenance free battery.
When it is time for a new battery, get one that has
the replacement number shown on the original
battery’s label. We recommend an ACDelco
®
replacement battery.
For battery replacement, see your dealer or the
service manual. To purchase a service manual,
seeService and Owner PublicationsinService
Publications Ordering Information on page 497.
Warning:Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harm. Wash
hands after handling.
Vehicle Storage
If you are not going to drive your vehicle for 25 days
or more, remove the black, negative (−) cable from
the battery. This will help keep your battery from
running down.
{CAUTION:
Batteries have acid that can burn you and
gas that can explode. You can be badly
hurt if you are not careful. SeeJump
Starting on page 403for tips on working
around a battery without getting hurt.
You must close all doors and the trunk before
reconnecting the battery. After reconnecting
the battery, you must press the unlock button on
the keyless access transmitter. Failure to
follow this procedure may result in the alarm
sounding. Pressing unlock on the keyless access
transmitter would stop the alarm.
402

Jump Starting
If your vehicle’s battery has run down, you may
want to use another vehicle and some jumper
cables to start your vehicle. Be sure to use
the following steps to do it safely.
{CAUTION:
Batteries can hurt you. They can be
dangerous because:
They contain acid that can burn you.
They contain gas that can explode or
ignite.
They contain enough electricity to
burn you.
If you do not follow these steps exactly,
some or all of these things can hurt you.
Notice:If you try to start your vehicle by
pushing or pulling it, you could damage your
vehicle. Do not push or pull your vehicleto start it; instead, use the jump starting
procedure in this manual to start your vehicle
when the battery has run down.
1. Check the other vehicle. It must have a
12-volt battery with a negative ground system.
Notice:If the other vehicle’s system is not a
12-volt system with a negative ground,
both vehicles can be damaged. Only use
vehicles with 12-volt systems with negative
grounds to jump start your vehicle.
2. Get the vehicles close enough so the jumper
cables can reach, but be sure the vehicles are
not touching each other. If they are, it could
cause a ground connection you do not
want. You would not be able to start your
vehicle, and the bad grounding could damage
the electrical systems.
To avoid the possibility of the vehicles rolling,
set the parking brake rmly on both vehicles
involved in the jump start procedure. Put
an automatic transmission in PARK (P) or a
manual transmission in NEUTRAL before
setting the parking brake.
403

Notice:If you leave your radio or other
accessories on during the jump starting
procedure, they could be damaged. The repairs
would not be covered by your warranty.
Always turn off your radio and other
accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the
cigarette lighter or the accessory power outlet.
Turn off the radio and all lamps that are not
needed. This will avoid sparks and help save
both batteries. And it could save the radio!
4. Open the hoods and locate the batteries. Find
the positive (+) and negative (−) terminal
locations on each vehicle. SeeEngine
Compartment Overview on page 374for more
information on location.
{CAUTION:
An electric fan can start up even when the
engine is not running and can injure you.
Keep hands, clothing and tools away from
any underhood electric fan.
{CAUTION:
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a ashlight if you need more
light.
Be sure the battery has enough water.
You do not need to add water to the
battery installed in your new vehicle. But
if a battery has ller caps, be sure the
right amount of uid is there. If it is low,
add water to take care of that rst. If you
do not, explosive gas could be present.
Battery uid contains acid that can burn
you. Do not get it on you. If you
accidentally get it in your eyes or on your
skin, ush the place with water and get
medical help immediately.
404

{CAUTION:
Fans or other moving engine parts can
injure you badly. Keep your hands away
from moving parts once the engine is
running.
5. Check that the jumper cables do not have
loose or missing insulation. If they do, you
could get a shock. The vehicles could
be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+)
will go to positive (+) or to a remote positive (+)
terminal if the vehicle has one. Negative (−)
will go to a heavy, unpainted metal engine part
or to a remote negative (−) terminal if the
vehicle has one.
Do not connect positive (+) to negative (−)or
you will get a short that would damage
the battery and maybe other parts too. And do
not connect the negative (−) cable to the
negative (−) terminal on the dead battery
because this can cause sparks.6. Connect the red positive (+) cable to the
positive (+) terminal of the dead battery.
Use a remote positive (+) terminal if
the vehicle has one.
7. Do not let the other end touch metal. Connect
it to the positive (+) terminal of the good
battery. Use a remote positive (+) terminal if
the vehicle has one.
405

8. Now connect the black negative (−) cable to
the negative (−) terminal of the good battery.
Use a remote negative (−) terminal if the
vehicle has one.
Do not let the other end touch anything until
the next step. The other end of the negative (−)
cable does not go to the dead battery. It
goes to a heavy, unpainted metal engine part
or to a remote negative (−) terminal on the
vehicle with the dead battery.
9. Connect the other end of the negative (−) cable
at least 18 inches (45 cm) away from the dead
battery, but not near engine parts that move.
The electrical connection is just as good there,
and the chance of sparks getting back to the
battery is much less.
10. Now start the vehicle with the good battery
and run the engine for a while.
11. Try to start the vehicle that had the dead
battery. If it will not start after a few tries, it
probably needs service.Notice:If the jumper cables are connected or
removed in the wrong order, electrical
shorting may occur and damage the vehicle.
The repairs would not be covered by your
warranty. Always connect and remove
the jumper cables in the correct order, making
sure that the cables do not touch each other
or other metal.
A. Heavy, Unpainted Metal Engine Part
B. Good Battery
C. Dead Battery
Jumper Cable Removal
406

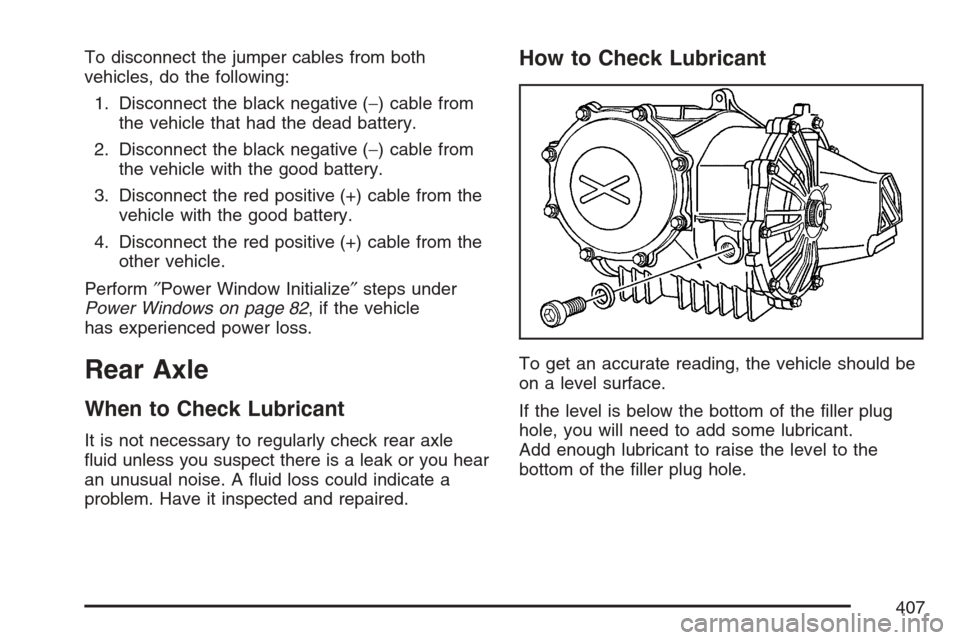

To disconnect the jumper cables from both
vehicles, do the following:
1. Disconnect the black negative (−) cable from
the vehicle that had the dead battery.
2. Disconnect the black negative (−) cable from
the vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the
other vehicle.
Perform″Power Window Initialize″steps under
Power Windows on page 82, if the vehicle
has experienced power loss.
Rear Axle
When to Check Lubricant
It is not necessary to regularly check rear axle
uid unless you suspect there is a leak or you hear
an unusual noise. A uid loss could indicate a
problem. Have it inspected and repaired.
How to Check Lubricant
To get an accurate reading, the vehicle should be
on a level surface.
If the level is below the bottom of the ller plug
hole, you will need to add some lubricant.
Add enough lubricant to raise the level to the
bottom of the ller plug hole.
407

What to Use
To add lubricant when the level is low, use
SAE 75W–90 Synthetic Gear Lubricant
(GM Part No. 89021677) or equivalent meeting
GM Specication 9986115. To completely
rell after draining, add 4 ounces (118 ml) of
Limited-Slip Differential Lubricant Additive
(GM Part No. 1052358) or equivalent. Then ll to
the bottom of the ller plug hole with the
Synthetic Gear Lubricant.
Headlamp Aiming
Your vehicle has high intensity discharge (HID)
visual optical aiming type headlamps. The aim has
been preset at the factory and should need no
further adjustment. If you suspect that the
headlamps need to be reaimed, it is recommended
that you contact your dealer for service. However,
it is possible for you to re-aim your headlamps
as described in the following procedure.
Notice:To make sure your headlamps are
aimed properly, read all the instructions before
beginning. Failure to follow these instructions
could cause damage to headlamp parts.
408

The vehicle should be properly prepared as
follows:
The vehicle should be placed so the
headlamps are 25 ft (7.6 m) from a light
colored wall.
The vehicle must have all four tires on a
perfectly level surface which is level all
the way to the wall.
The vehicle should be placed so it is
perpendicular to the wall.
The vehicle should not have any snow, ice or
mud attached to it.
The vehicle should be fully assembled and all
other work stopped while headlamp aiming is
being done.
The vehicle should be normally loaded with a
full tank of fuel and one person or 160 lbs
(75 kg) on the driver’s seat.
Tires should be properly inated.
Start the vehicle and rock it to level the
suspension.Headlamp aiming is done with the low-beam
headlamps. The high-beam headlamps are
correctly aimed if the low-beam headlamps are
aimed properly.
The headlamp aiming
device is under the
hood near the
headlamps.
Adjustment screws can be turned with an
E8 Torx
®socket or T15 Torx screwdriver.
409

Headlamp Vertical Aiming
To properly prepare the vehicle for vertical
headlamp aiming seeHeadlamp Aiming on
page 408for more information.
To adjust the vertical aim, do the following:
Notice:Horizontal aiming must be performed
before making any adjustments to the
vertical aim. Adjusting the vertical aim rst will
result in an incorrect headlamp aim.
1. Open the hood. SeeHood Release on
page 373for more information.
2. Locate the aim dot on the inner projector lens
of the low-beam headlamp.
3. Measure the distance from the ground to the
aim dot on each low-beam headlamp. Record
this distance.4. At the wall or other at surface, measure from
the ground upward (A) to the recorded
distance from Step 3 and mark it.
Notice:Do not cover a headlamp to improve
beam cut-off when aiming. Covering a
headlamp may cause excessive heat build-up
which may cause damage to the headlamp.
5. Draw or tape a horizontal line (B) on the wall
or at surface the width of the vehicle at the
height of the mark in Step 4.
6. Turn on the low-beam headlamps and place a
piece of cardboard in front of the headlamp
not being aimed. This should allow only
the beam of light from the headlamp being
aimed to be seen on the at surface.
410
