Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
50 Seats and Restraints
4. To turn massage off or toactivate massage at last
massage type and
intensity settings, press
massage on/off control (6).
The massage feature will turn
off after approximately
20 minutes. Press the
massage on/off control (6) to
restart the massage feature.
Memory Seats
Overview
If equipped, the memory seat
feature allows drivers to save
their unique driving positions and a shared exit position. See
“Saving Seating Positions”
later in this section. The saved
positions can be recalled
manually by all drivers, see
“Manually Recalling Seating
Positions”
later in this section,
and drivers with remote key
1 and 2 can also recall them
automatically. See “Auto Seat
Entry Memory Recall” or“Auto
Seat Exit Memory Recall” later
in this section. To enable
automatic recalls, turn on Seat
Entry Memory and/or Seat
Exit Memory. See “Enabling
Automatic Recalls” later in this
section. The memory recalls
may be canceled at any time
during the recall. See “Cancel
Memory Seating Recalls” later
in this section.
Identifying Driver Number
The vehicle identifies the
current driver by their remote
key number 1–8. The current
remote key number may be
identified by Driver
Information Center (DIC) welcome message,
“You are
driver x for memory recalls.”
This message is displayed the
first few times the vehicle is
turned on when a different
remote key is used. For Seat
Entry Memory to work
properly, save positions to the
1 or 2 memory button
matching the driver number of
this welcome message. To aid
in identifying remote key IDs, it
is recommended to only carry
one remote key when entering
the vehicle. Perform the
following if the welcome
message is not displayed:
1. Move all keys and remote keys away from the
vehicle.
2. Start the vehicle with another remote key. A DIC
welcome message should
display indicating the
driver number of the other
remote key. Turn the
vehicle off and remove the
other key or remote key
from the vehicle.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 51
3. Start the vehicle with theinitial key or remote key.
The DIC welcome message
should display the driver
number of the initial
remote key.
Saving Seating Positions
Read these instructions
completely before saving
memory positions.
To save preferred driving
positions to 1 and 2: 1. Turn the vehicle on or to accessory mode. A DIC
welcome message may
indicate the driver number
of the current remote key.
See “Identifying Driver
Number” previously in this
section.
2. Adjust all available memory features to the desired
driving position.
3. Press and release SET; a beep will sound.
4. Immediately upon releasing SET, press and hold
memory button 1 or 2 matching the current
Driver’s remote key
number until two beeps
sound. If too much time
passes between releasing
SET and pressing 1 or 2,
the two beeps will not
sound indicating memory
position were not saved.
Repeat Steps 3 and 4 to
try again.
5. Repeat Steps 1–4 for the other remote key 1 or 2
using the other 1 or
2 memory button.
It is recommended to save the
preferred driving positions to
both 1 and 2 if you are the only
driver.
To save the common exit
seating position to
Bthat is
used by all drivers for
Manually Recalling Seating
Positions and Auto Seat Exit
Memory Recall features,
repeat Steps 1–4 using
B, the
exit button. Manually Recalling Seating
Positions
Press and hold 1, 2, or
B
button until the recall is
complete, to recall the
positions previously saved to
that button.
Manual Memory recall
movement for 1, 2 or
B
buttons may be initiated and
will complete to the saved
memory position if the vehicle
is in or out of P (Park).
Enabling Automatic Recalls
.Seat Entry Memory moves
the driver seat to the
selected 1 or 2 position when
the vehicle is started. Select
Settings > Vehicle > Seating
Position > Seat Entry
Memory > ON or OFF. See
“Auto Seat Entry Memory
Recall”
later in this section.
.Seat Exit Memory moves the
driver seat to the preferred
exit position of the
Bbutton
when the vehicle is turned
off and the door is opened.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
52 Seats and Restraints
Select Settings > Vehicle >
Seating Position > Seat Exit
Memory > ON or OFF. See
“Auto Seat Exit Memory
Recall”later in this section.
Auto Seat Entry Memory
Recall
Seat Entry Memory will
automatically begin movement
to the seating positions of the
1 or 2 button corresponding to
the driver’s remote key
number 1 or 2 detected by the
vehicle when:
.The vehicle is turned ON.
.Seating positions have been
previously saved to the
same 1 or 2 button. See
“Saving Seating Positions”
previously in this section.
.Seat Entry Memory is
enabled. See “Enabling
Automatic Recalls”
previously in this section.
.The vehicle is in P (Park). Seat Entry Memory Recall will
continue if the vehicle is
shifted out of P (Park) prior to
reaching the saved memory
position.
If the saved memory seat
position does not
automatically recall, verify the
recall is enabled. See
“Enabling
Automatic Recalls” previously
in this section.
If the memory seat recalls to
the wrong position, the
driver’s remote key number 1
or 2 may not match the
memory button number
positions they were saved to.
Try the other remote key or
try saving the positions to the
other 1 or 2 memory button.
See “Saving Seating Positions”
previously in this section.
Automatic Seat Entry Memory
recalls are only available for
driver’s remote key numbers
1 and 2. Remote keys 3–8 will
not provide Seat Entry
Memory recalls. Auto Seat Exit Memory
Recall
Seat Exit Memory will begin
movement to the seating
position of the
B
button when:
.The vehicle is turned off and
the driver door is open or
opened within a short time.
.A seating position has been
previously been saved to the
Bmemory button. See
“Saving Seating Positions”
previously in this section.
.Seat Exit Memory is enabled.
See “Enabling Automatic
Recalls” previously in this
section.
.The vehicle is in P (Park).
Seat Exit Memory recall will
continue if the vehicle is
shifted out of P (Park) prior to
reaching the saved memory
position.
Seat Exit Memory is not linked
to the driver’s remote key. The
seating position saved to
Bis
used for all drivers.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 53
Cancel Memory Seating
Recalls
.During any memory recall:
Press a power seat control
Press SET memory button
.During Manual memory
recall:
Release 1, 2, or
Bmemory
button
.During Auto Seat Entry
Memory Recall:
Turn vehicle off
Press SET, 1, 2, or
B
memory buttons
.During Auto Seat Exit
Memory Recall:
Press SET, 1, 2, or
B
memory buttons
Obstructions
If something has blocked the
seat while recalling a memory
position, the recall may stop.
Remove the obstruction and
try the recall again. If the
memory position still does not
recall, see your dealer.
Heated and
Ventilated Front
Seats
{Warning
If temperature change or
pain to the skin cannot be
felt, the seat heater may
cause burns. To reduce the
risk of burns, use care when
using the seat heater,
especially for long periods of
time. Do not place anything
on the seat that insulates
against heat, such as a
blanket, cushion, cover,
or similar item. This may
cause the seat heater to
overheat. An overheated
seat heater may cause a
burn or may damage
the seat.
Uplevel Buttons Shown, Base Buttons Similar
If equipped, the buttons are
near the climate controls on
the center stack. To operate,
the engine must be running.
Press
Jorzto heat the
driver or passenger cushion
and seatback.
Press
Cor{to ventilate the
driver or passenger seat.
Press the button once for the
highest setting. With each
press of the button, the seat
will change to the next lower

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
54 Seats and Restraints
setting, and then to the off
setting. The indicator lights
above the buttons indicate
three for the highest setting
and one for the lowest. If the
front heated seats are on
high, the level may
automatically be lowered after
approximately 30 minutes.
A ventilated seat has a fan
that pulls or pushes air
through the seat. The air is
not cooled.
The passenger seat may take
longer to heat up.
Auto Heated and Ventilated
Seats
If the vehicle is equipped with
auto heated or ventilated
seats, and the engine is
running, this feature will
automatically activate the
heated or ventilated seats at
the level required by the
vehicle's interior temperature.
The active high, medium, low,
or off heated or ventilated
seat level will be indicated bythe manual heated and
ventilated seat buttons on the
center stack. Use the manual
heated and ventilated seat
buttons on the center stack to
turn auto heated or ventilated
seats off. If the passenger
seat is unoccupied, the auto
heated or ventilated seats
feature will not activate that
seat. To enable or disable auto
heated or ventilated seats,
select Settings > Vehicle >
Climate and Air Quality > Auto
Cooled or Auto Heated Seats
> ON or OFF. If equipped with
a heated steering wheel, the
auto heated steering wheel
activation will follow the
heated seat auto activation
and the heated wheel
indicator will follow the state
of the steering wheel heat.
Remote Start Heated and
Ventilated Seats
If equipped, the heated seats
will turn on automatically
during a remote start if it is
cold outside and the ventilated
seats will turn on automatically
if it is hot outside. If equipped,
the heated steering wheel will
turn on automatically during a
remote start if it is cold
outside. The heated and
ventilated seat indicators and
heated steering wheel
indicator may come on during
this operation.
The heated and ventilated
seats and heated steering
wheel may cancel when the
vehicle is started. These
features can be manually
selected after the ignition is
turned on and engine is
running.
The temperature performance
of an unoccupied seat may be
reduced. This is normal.
To enable or disable remote
start heated or ventilated
seats, select Settings >
Vehicle > Remote Lock,
Unlock, and Start > Remote
Start Auto Heat Seats or

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 55
Remote Start Auto Cool Seats
> ON or OFF. See Remote
Vehicle Start018.
Rear Seats
Rear Seat Reminder
If equipped, the message
REAR SEAT REMINDER LOOK
IN REAR SEAT displays under
certain conditions indicating
there may be an item or
passenger in the rear seat.
Check before exiting the
vehicle.
This feature will activate when
a second row door is opened
while the vehicle is on or up to
10 minutes before the vehicle
is turned on. There will be an
alert when the vehicle is
turned off. The alert does not
directly detect objects in the
rear seat; instead, under
certain conditions, it detects
when a rear door is opened
and closed, indicating that
there may be something in the
rear seat. The feature is active only once
each time the vehicle is turned
on and off, and will require
reactivation by opening and
closing the second row doors.
There may be an alert even
when there is nothing in the
rear seat; for example, if a
child entered the vehicle
through the rear door and left
the vehicle without the vehicle
being shut off.
The feature can be turned on
or off. Select Settings > Rear
Seat Reminder > ON or OFF.
Manually Folding the
Seatbacks
Caution
Folding a rear seat with the
seat belts still fastened may
cause damage to the seat or
the seat belts. Always
unbuckle the seat belts and
return them to their normal
stowed position before
folding a rear seat. 1. Place the front seatbacks
in the upright position. See
Reclining Seatbacks 047.
2. Lower the rear head restraint. See Head
Restraints 045.3. Pull on the lever on the top
of the seatback to unlock it
and fold the seatback
forward.
For outboard seatbacks, a
tab near the seatback
lever moves forward when
the seatback is unlocked.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
56 Seats and Restraints
Raising the Seatbacks
{Warning
If either seatback is not
locked, it could move
forward in a sudden stop or
crash. That could cause
injury to the person sitting
there. Always push and pull
on the seatbacks to be sure
they are locked.
{Warning
A seat belt that is
improperly routed, not
properly attached,
or twisted will not provide
the protection needed in a
crash. The person wearing
the belt could be seriously
injured. After raising the rear
seatback, always check to
be sure that the seat belts
are properly routed and
attached, and are not
twisted.To raise the seatback:
1. Push the seatback rearward until it locks in
the upright position.
For outboard seats, a tab
near the seatback lever
retracts when the
seatback is locked in place.
2. Make sure the rear seat belts are in the belt guide
and are not twisted or
caught between the seat
cushion and the seatback.Heated Rear Seats
{Warning
If temperature change or
pain to the skin cannot be
felt, the seat heater may
cause burns. See the
Warning under Heated and
Ventilated Front Seats 053.
If equipped, the rear heated
seat buttons are on the rear
of the center console.
With the engine running, press
MorLto heat the left
outboard or right outboard
seat. Press the button once
for the highest setting. With
each press of the button, the
seat will change to the next
lower setting, and then to the
off setting. The indicator lights
on the buttons indicate three
for the highest setting and
one for the lowest.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 57
If the heated rear seats are on
the highest setting, the level
may automatically be lowered
after approximately
30 minutes.
Seat Belts
This section describes how to
use seat belts properly, and
some things not to do.
{Warning
Do not let anyone ride
where a seat belt cannot be
worn properly. In a crash,
if you or your passenger(s)
are not wearing seat belts,
injuries can be much worse
than if you are wearing seat
belts. You can be seriously
injured or killed by hitting
things inside the vehicle
harder or by being ejected
from the vehicle. In addition,
anyone who is not buckled
up can strike other
passengers in the vehicle.(Continued)
Warning (Continued)
It is extremely dangerous to
ride in a cargo area, inside or
outside of a vehicle. In a
collision, passengers riding
in these areas are more
likely to be seriously injured
or killed. Do not allow
passengers to ride in any
area of the vehicle that is
not equipped with seats and
seat belts.
Always wear a seat belt, and
check that all passenger(s)
are restrained properly too.
This vehicle has indicators as
a reminder to buckle the seat
belts. See Seat Belt
Reminders 0123.
Why Seat Belts Work
When riding in a vehicle, you
travel as fast as the vehicle
does. If the vehicle stops
suddenly, you keep going until
something stops you. It could
be the windshield, the
instrument panel, or the seat
belts!
When you wear a seat belt,
you and the vehicle slow down
together. There is more time
to stop because you stop over
a longer distance and, when
worn properly, your strongest
bones take the forces from

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22

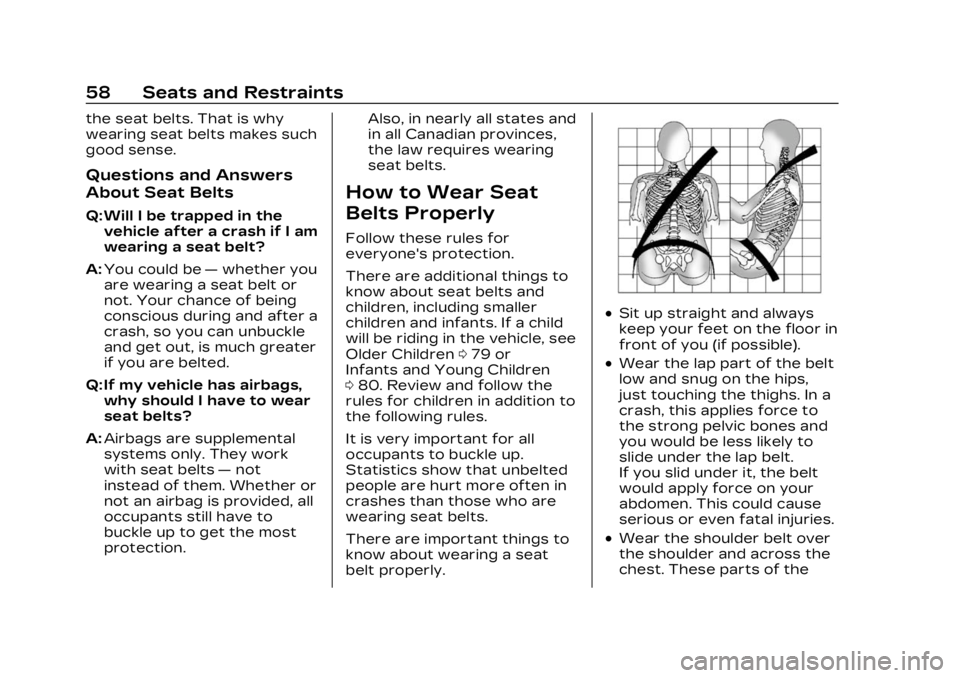

58 Seats and Restraints
the seat belts. That is why
wearing seat belts makes such
good sense.
Questions and Answers
About Seat Belts
Q: Will I be trapped in thevehicle after a crash if I am
wearing a seat belt?
A: You could be —whether you
are wearing a seat belt or
not. Your chance of being
conscious during and after a
crash, so you can unbuckle
and get out, is much greater
if you are belted.
Q: If my vehicle has airbags, why should I have to wear
seat belts?
A: Airbags are supplemental
systems only. They work
with seat belts —not
instead of them. Whether or
not an airbag is provided, all
occupants still have to
buckle up to get the most
protection. Also, in nearly all states and
in all Canadian provinces,
the law requires wearing
seat belts.
How to Wear Seat
Belts Properly
Follow these rules for
everyone's protection.
There are additional things to
know about seat belts and
children, including smaller
children and infants. If a child
will be riding in the vehicle, see
Older Children
079 or
Infants and Young Children
0 80. Review and follow the
rules for children in addition to
the following rules.
It is very important for all
occupants to buckle up.
Statistics show that unbelted
people are hurt more often in
crashes than those who are
wearing seat belts.
There are important things to
know about wearing a seat
belt properly.
.Sit up straight and always
keep your feet on the floor in
front of you (if possible).
.Wear the lap part of the belt
low and snug on the hips,
just touching the thighs. In a
crash, this applies force to
the strong pelvic bones and
you would be less likely to
slide under the lap belt.
If you slid under it, the belt
would apply force on your
abdomen. This could cause
serious or even fatal injuries.
.Wear the shoulder belt over
the shoulder and across the
chest. These parts of the

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Seats and Restraints 59
body are best able to take
belt restraining forces. The
shoulder belt locks if there is
a sudden stop or crash.
{Warning
You can be seriously injured,
or even killed, by not
wearing your seat belt
properly.
Never allow the lap or
shoulder belt to become loose
or twisted.Never wear the shoulder belt
under both arms or behind
your back.
