CADILLAC XT6 2023 Owner's Guide

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
30 Keys, Doors, and Windows
Kick Zone
To operate, move your foot in
a forward kicking motion under
the left side of the rear
bumper, at the location of the
projected logo, then pull it
back. Then step back. The kick
must come within 14 cm (6 in)
of the rear bumper to activate.
.Do not sweep your foot side
to side.
.Do not keep your foot under
the bumper; the liftgate will
not activate.
.Do not touch the liftgate
until it has stopped moving.
.This feature may be
temporarily disabled under
some conditions. If the
liftgate does not respond to
the kick, open or close the
liftgate by another method
or start the vehicle. The
feature will be re-enabled.
When closing the liftgate using
this feature, there will be a
short delay. The taillamps will
flash and a chime will sound.
Step away from the liftgate
before it starts moving.
Projected Logo
If equipped, a vehicle logo will
be projected for one minute
onto the ground near the rear
bumper when an remote key is
detected within approximately
2 m (6 ft) from the rear
bumper. The projected logo
may not be visible under
brighter daytime conditions.
1. 1 m (3 ft) Hands-Free Operation Detection Zone
2. 2 m (6 ft) Projected Logo Detection Zone
The projected logo shows
where to kick toward the rear
bumper.
The projected logo will not be
restarted using the same
remote key unless it has been
out of range for longer than
20 seconds.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
Keys, Doors, and Windows 31
If an remote key is again
detected within approximately
2 m (6 ft) of the liftgate,
or another kick has been
detected, the one-minute
timer will be reset.
The projected logo will not
work under these conditions:
.The vehicle battery is low.
.The transmission is not in
P (Park).
.Hands Free Liftgate/Trunk
Control is set to Off in
vehicle settings. To view
available settings for this
feature, touch the Settings
icon on the infotainment
home page. Select“Vehicle”
to display the list of available
options and select “Comfort
and Convenience”.
.Power liftgate is turned off.
.The vehicle remains parked
for 72 hours or more, with
no remote key use or
Keyless Access operation.
To re-enable, press any
button on the remote key or
open and close a
vehicle door.
The projected logo will not
work for a single remote key
when a remote key:
.Has been left within
approximately 5 m (15 ft) of
the liftgate for several
minutes.
.Has been left inside the
vehicle and all vehicle doors
are closed.
.Has approached the area
outside of the liftgate five
times within 10 minutes. Lens Cleaning
If equipped, use a soft clean
cloth to clean the lens.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
32 Keys, Doors, and Windows
Hands-Free Liftgate and Projected Logo Availability
ActionHands-Free Liftgate Projected Logo
Remote key entering projected
logo detection zone Operative
On for one minute
Remote key left inside
projected logo detection zone
for minimum of 10 minutes Operative
Off until remote key button
press or a door is opened and
closed
Remote key brought in and out
of projected logo detection
zone five times or more within
10 minutes Operative
Off for one hour or until remote
key button press or a door is
opened and closed
Vehicle remains parked for
more than 72 hours Operative
Off until remote key button
press or a door is opened and
closed
Vehicle battery is low Non-operative Off
Transmission is not in P (Park) Non-operative Off
Power liftgate is turned off Non-operative Off
Hands-free liftgate is disabled
in vehicle settings Non-operative
Off

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
Keys, Doors, and Windows 33
Vehicle Security
This vehicle has
theft-deterrent features;
however, they do not make
the vehicle impossible to steal.
Vehicle Alarm System
This vehicle has an anti-theft
alarm system.
The indicator light, on the
instrument panel near the
windshield, indicates the
status of the system.
Off :Alarm system is
disarmed. On Solid :
Vehicle is secured
during the delay to arm the
system.
Fast Flash : Vehicle is
unsecured. A door, the hood,
or the liftgate is open.
Slow Flash : Alarm system is
armed.
Arming the Alarm System
1. Close the liftgate and the hood. Turn off the vehicle.
2. Lock the vehicle in one of three ways:
.Use the remote key.
.Use the Keyless Access
system.
.With a door open, press
the inside
Q.
3. After 30 seconds the alarm system will arm, and
the indicator light will begin
to slowly flash indicating
the alarm system is
operating. Pressing
Qon
the remote key a second
time will bypass the 30-second delay and
immediately arm the alarm
system.
The vehicle alarm system will
not arm if the doors are locked
with the key.
If the driver door is opened
without first unlocking with
the remote key, the horn will
chirp and the lights will flash
to indicate pre-alarm. If the
vehicle is not started, or the
door is not unlocked by
pressing
Kon the remote key
during the 10-second
pre-alarm, the alarm will be
activated.
The alarm will also be
activated if a passenger door,
the liftgate, or the hood is
opened without first disarming
the system. When the alarm is
activated, the turn signals
flash and the horn sounds for
about 30 seconds. The alarm
system will then re-arm to
monitor for the next
unauthorized event.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
34 Keys, Doors, and Windows
Disarming the Alarm
System
To disarm the alarm system or
turn off the alarm if it has
been activated:
.PressKon the remote key.
.Unlock the vehicle using the
Keyless Access system.
.Start the vehicle.
To avoid setting off the alarm
by accident:
.Lock the vehicle after all
occupants have left the
vehicle and all doors are
closed.
.Always unlock a door with
the remote key or use the
Keyless Access system.
Unlocking the driver door with
the key will not disarm the
system or turn off the alarm.
How to Detect a Tamper
Condition
IfKis pressed and the horn
chirps and the lights flash
three times, the alarm was
activated while the alarm
system was armed.
If the alarm system has been
activated, a message will
appear on the DIC.
Power Sounder,
Inclination Sensor, and
Intrusion Sensor
In addition to the standard
theft-deterrent system
features, this system may also
have an inclination sensor, an
intrusion sensor, and power
sounder.
The power sounder provides
an audible alarm that is
different from the vehicle’s
horn. It has its own power
source, and can sound an
alarm when the vehicle’s
battery is compromised. The inclination sensor can set
off the alarm if it senses
movement of the vehicle, such
as a change in vehicle
orientation.
The intrusion sensor monitors
the vehicle interior, and can
set off the alarm if it senses
an unauthorized entry into the
vehicle’s interior. Do not allow
passengers or pets to remain
in the vehicle when the
intrusion sensor is activated.
Before arming the
theft-deterrent system and
activating the intrusion sensor:
.Make sure all doors and
windows are completely
closed.
.Secure any loose items such
as a sunshades.
.Make sure there are no
obstructions blocking the
sensors in the front
overhead console.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
Keys, Doors, and Windows 35
Inclination and Intrusion
Sensors Disable Switch
It is recommended that the
inclination and intrusion
sensors be deactivated if pets
are left in the vehicle or if the
vehicle is being transported.
With the vehicle turned off,
press
oin the overhead
console. The indicator light will
come on momentarily,
indicating that the sensor has
been disabled until the next
time the alarm system is
armed.
Steering Column Lock
If equipped, the steering
column lock is a
theft-deterrent device. This
feature locks the steering
column when the vehicle is
turned off and the driver door
is opened, or when the driver
door is opened and then the
vehicle is turned off. The
steering column unlocks when
the vehicle is turned on. The Driver Information Center
(DIC) may display one of these
messages:
.A message to service the
steering column lock
indicates that an issue has
been detected with the
column lock feature and the
vehicle should be serviced.
.A message that the steering
column is locked indicates
that the engine is running,
but the steering column is
still locked. It is normal for
the column to be locked
during a remote start, but
the column should unlock
after the brake pedal is
pressed and the vehicle is
started. No message will
display during a remote
start.
.A message that the steering
wheel must be turned and
the vehicle must be started
again indicates that the
column lock mechanism is
bound, the column locking
device was unable to unlock
the steering column, and thevehicle did not start. If this
happens, immediately turn
the steering wheel from side
to side to unbind the column
lock. If this does not unlock
the steering column, turn the
vehicle off and open the
driver door to reset the
system. Then turn the
vehicle on and immediately
turn the steering wheel side
to side for about 15 seconds.
In some cases, it may take
significant force to unbind
the column.
To keep the steering column
from binding, straighten the
front wheels before turning
off the vehicle.
Immobilizer
See Radio Frequency
Statement 0477.
Immobilizer Operation
This vehicle has a passive
theft-deterrent system.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
36 Keys, Doors, and Windows
The system does not have to
be manually armed or
disarmed.
The vehicle is automatically
immobilized when the vehicle
is turned off.
The immobilization system is
disarmed when the ignition is
on or in accessory mode and a
valid remote key is present in
the vehicle.
The security light, in the
instrument cluster, comes on if
there is a problem with arming
or disarming the
theft-deterrent system.
The system has one or more
remote keys matched to an
immobilizer control unit in your
vehicle. Only a correctly
matched remote key will startthe vehicle. If the remote key
is ever damaged, you may not
be able to start your vehicle.
When trying to start the
vehicle, the security light may
come on briefly when the
ignition is turned on.
If the engine does not start
and the security light stays on,
there is a problem with the
system. Turn the ignition off
and try again.
If the vehicle will not change
ignition modes (accessory
mode, on, off), and the remote
key appears to be undamaged,
try another remote key. Or,
you may try placing the
remote key in the remote key
pocket located in the center
console. See Remote Key
Operation
09.
If the ignition mode will not
change with the other remote
key or in the remote key
pocket, your vehicle needs
service. If the ignition does
change modes, the first
remote key may be faulty. See your dealer who can service
the theft-deterrent system
and have a new remote key
programmed to the vehicle.
It is possible for the
immobilizer system to learn
new or replacement remote
keys. Up to eight remote keys
can be programmed for the
vehicle. To program additional
remote keys, see
“Programming Remote Keys to
the Vehicle”
under Remote
Key Operation 09.
Do not leave the remote key
or device that disarms or
deactivates the
theft-deterrent system in the
vehicle.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22

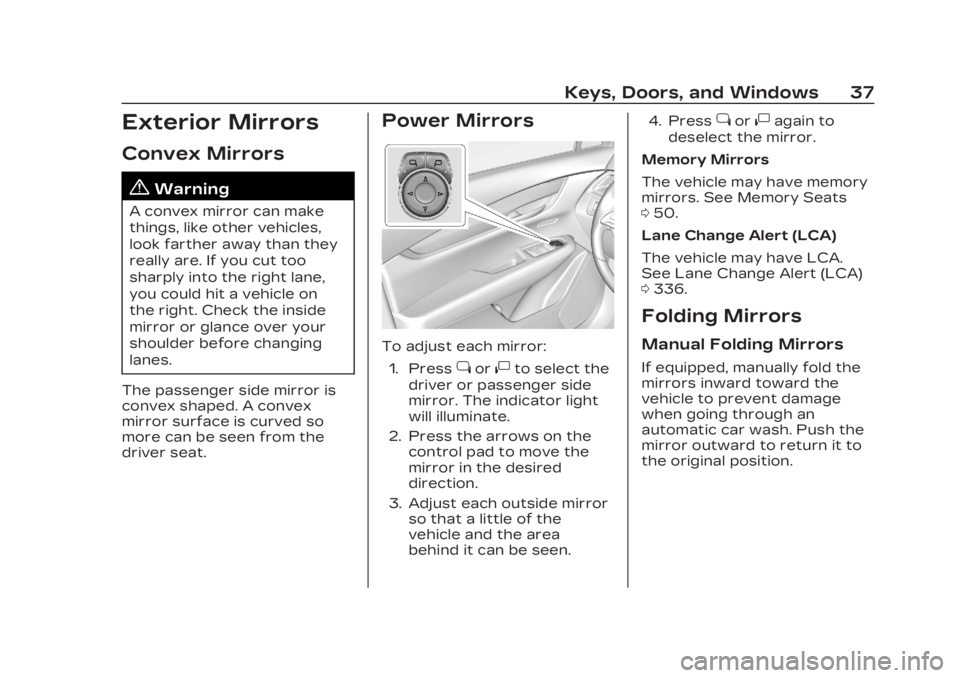

Keys, Doors, and Windows 37
Exterior Mirrors
Convex Mirrors
{Warning
A convex mirror can make
things, like other vehicles,
look farther away than they
really are. If you cut too
sharply into the right lane,
you could hit a vehicle on
the right. Check the inside
mirror or glance over your
shoulder before changing
lanes.
The passenger side mirror is
convex shaped. A convex
mirror surface is curved so
more can be seen from the
driver seat.
Power Mirrors
To adjust each mirror: 1. Press
jor|to select the
driver or passenger side
mirror. The indicator light
will illuminate.
2. Press the arrows on the control pad to move the
mirror in the desired
direction.
3. Adjust each outside mirror so that a little of the
vehicle and the area
behind it can be seen. 4. Press
jor|again to
deselect the mirror.
Memory Mirrors
The vehicle may have memory
mirrors. See Memory Seats
0 50.
Lane Change Alert (LCA)
The vehicle may have LCA.
See Lane Change Alert (LCA)
0 336.
Folding Mirrors
Manual Folding Mirrors
If equipped, manually fold the
mirrors inward toward the
vehicle to prevent damage
when going through an
automatic car wash. Push the
mirror outward to return it to
the original position.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
38 Keys, Doors, and Windows
Power Folding Mirrors
If equipped, press{to power
fold the mirrors. Press
{again
to unfold.
Resetting the Power
Folding Mirrors
Reset the power folding
mirrors if:
.The mirrors are accidentally
obstructed while folding.
.They are accidentally
manually folded/unfolded.
.The mirrors do not stay in
the unfolded position.
.The mirrors vibrate at
normal driving speeds.
Fold and unfold the mirrors
one time using the mirror
controls to reset them to their
normal position. A noise may
be heard during the resetting
of the power folding mirrors.
This sound is normal after a
manual folding operation.
Remote Mirror Folding
If equipped, press and holdQ
on the remote key for
approximately one second to
remotely fold the exterior
mirrors. Press and hold
Kon
the remote key for
approximately one second to
unfold. See Remote Key
Operation 09.
This feature is turned on or off
through vehicle settings. To
view available settings for this
feature, touch the Settings
icon on the infotainment home
page. Select “Vehicle”to display the list of available
options and select
“Comfort
and Convenience”.
Heated Mirrors
K: Press to heat the mirrors.
See “Rear Window Defogger”
under Dual Automatic Climate
Control System 0228.
Automatic Dimming
Mirror
If the vehicle has the
automatic dimming mirror, the
driver outside mirror
automatically adjusts for the
glare of headlamps
behind you.
Reverse Tilt Mirrors
If equipped with reverse tilt
mirrors and memory seats, the
passenger and/or driver
mirror tilts to a preselected
position when the vehicle is in
R (Reverse). This allows the
curb to be seen when parallel
parking.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/23/22
Keys, Doors, and Windows 39
The mirror(s) may move from
their tilted position when:
.The vehicle is shifted out of
R (Reverse), or remains in
R (Reverse) for about
30 seconds.
.The vehicle is turned off.
.The vehicle is driven in
R (Reverse) above a set
speed.
To view available settings
from the infotainment screen,
touch Settings > Vehicle >
Comfort and Convenience.
Interior Mirrors
Interior Rearview
Mirrors
Adjust the rearview mirror for
a clear view of the area behind
the vehicle.
Do not spray glass cleaner
directly on the mirror. Use a
soft towel dampened with
water.
Automatic Dimming
Rearview Mirror
If equipped, automatic
dimming reduces the glare of
headlamps from behind. The
dimming feature comes on
when the vehicle is started.
Rear Camera Mirror
If equipped, this automatic
dimming mirror provides a
wide angle camera view of the
area behind the vehicle.
Pull the tab to turn on the
display. Push the tab to turn it
off. When off the mirror is automatic dimming. Adjust the
mirror for a clear view of the
area behind the vehicle while
the display is off.
PressVto scroll through the
adjustment options.
Press
tanduto adjust the
settings using the indicators
on the mirror. The indicators
will remain visible for
five seconds after the last
button activation, and the
settings will remain saved.
