Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
188 Infotainment System
.2D North Up: 2D map with
North pointing up. In this
mode, the current location
icon will shift as the vehicle
turns left and right.
Touch the icon to change the
map type. The icon and label
will also update accordingly.
Depending on the zoom level
of the 2D Heading Up and 3D
Heading Up maps, the system
may automatically switch to
the 2D North Up map.
When in AGV, the entire route
can be viewed in 2D North Up
by touching the traffic bar.
The map will zoom out and
readjust to display the full
route. When in 2D North Up
Route View, the Recenter icon
will appear in the middle of the
display. Touch either the
Recenter icon or the traffic
bar again to return to the
previous view, either 2D or 3D. Lane Guidance
The map will display the lane
information for the upcoming
maneuver if it is available.
Junction View
When a vehicle is on the
highway and approaching the
exit, an image displays the lane
that the vehicle must stay in
to complete the next
maneuver.
Quick-Turn View
When the vehicle is
approaching a turn with the
next turn following in quick
succession, a quick-turn list
appears below the primaryturn indicator. An audio
prompt will announce the
quick turn.
Auto-Zoom
When approaching a
maneuver, the map will
automatically zoom in to show
both the vehicle icon and the
upcoming maneuver to give a
better view of the maneuver.
Once the maneuver is
complete, the system will
zoom back to the previous
zoom level. Touch
Aon the
map to access Settings, then
touch Map Preferences to
access Auto-Zoom. This
feature can be enabled or
disabled.
Directions
Touch the menu option next to
the next turn street name to
display Directions.
Directions displays the turns
and directions from the
current location to the final
destination.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
196 Infotainment System
Once voice recognition is
started, both the infotainment
display and instrument cluster
show the selections and visual
dialog content. These displays
can be turned on or off in the
Tutorial Mode under Settings
0210.
There are three voice prompt
modes supported:
.Informative verbal prompts:
This type of prompt will
provide more information
regarding the supported
actions.
.Short prompts: This type of
prompt will provide simple
instructions about what can
be stated.
.Auto informative prompts:
This type of prompt plays
during the first few speech
sessions, then automatically
switches to the short
prompt after some
experience has been gained
through using the system. If a command is not spoken,
the voice recognition system
says a help prompt.
Prompts and Infotainment
Displays
While a voice recognition
session is active, there may be
corresponding options
showing on the displays.
A selection can be made by
manually touching the option,
or by speaking the number for
the option to select. Manual
interaction in the voice
recognition session is
permitted. Interaction during a
voice session may be
completed entirely using voice
commands while some manual
commands may expedite a
task. If a selection is made
using a manual control, the
voice recognition dialog will
progress in the same way as if
the selection were made using
a voice command. Once the
system completes the task,
or the session is terminated,
the voice recognition dialog
stops.
An example of this type of
manual intervention is
touching an entry of a
displayed number list instead
of speaking the number
associated with the entry
desired.
Canceling Voice
Recognition
.Touch or say
“Cancel”or
“Exit” to terminate the voice
recognition session and
show the display where
voice recognition was
initiated.
.Pression the steering
wheel controls to terminate
the voice recognition
session and show the display
where voice recognition was
initiated.
Natural Language Commands
Most languages do not
support natural language
commands in sentence form.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Driving and Operating 243
.The Antilock Brake System
(ABS) allows steering while
braking.
Off-Road Recovery
The vehicle's right wheels can
drop off the edge of a road
onto the shoulder while
driving. Follow these tips:1. Ease off the accelerator and then, if there is
nothing in the way, steer
the vehicle so that it
straddles the edge of the
pavement. 2. Turn the steering wheel
about one-eighth of a turn,
until the right front tire
contacts the
pavement edge.
3. Turn the steering wheel to go straight down the
roadway.
Loss of Control
Skidding
There are three types of skids
that correspond to the
vehicle's three control
systems:
.Braking Skid —wheels are
not rolling.
.Steering or Cornering Skid —
too much speed or steering
in a curve causes tires to slip
and lose cornering force.
.Acceleration Skid —too
much throttle causes the
driving wheels to spin.
Defensive drivers avoid most
skids by taking reasonable
care suited to existing conditions, and by not
overdriving those conditions.
But skids are always possible.
If the vehicle starts to slide,
follow these suggestions:
.Ease your foot off the
accelerator pedal and steer
the way you want the vehicle
to go. The vehicle may
straighten out. Be ready for
a second skid if it occurs.
.Slow down and adjust your
driving according to weather
conditions. Stopping
distance can be longer and
vehicle control can be
affected when traction is
reduced by water, snow, ice,
gravel, or other material on
the road. Learn to recognize
warning clues
—such as
enough water, ice, or packed
snow on the road to make a
mirrored surface —and slow
down when you have any
doubt.
.Try to avoid sudden
steering, acceleration,
or braking, including

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
248 Driving and Operating
Caution
Do not drive through
standing water if it is deep
enough to cover the wheel
hubs, axles, or exhaust pipe.
Deep water can damage the
axle and other vehicle parts.
If the standing water is not
too deep, drive slowly through
it. At faster speeds, water
splashes on the ignition
system and the vehicle can
stall. Stalling can also occur if
you get the exhaust pipe
under water. While the
exhaust pipe is under water,
you will not be able to start
the engine. When going
through water, the brakes get
wet, and it might take longer
to stop. See Driving on Wet
Roads 0248.
After Off-Road Driving
Remove any brush or debris
that has collected on the
underbody or chassis, or under the hood. These
accumulations can be a fire
hazard.
After operation in mud or
sand, have the brake linings
cleaned and checked. These
substances can cause glazing
and uneven braking. Check the
body structure, steering,
suspension, wheels, tires, and
exhaust system for damage
and check the fuel lines and
cooling system for any
leakage.
More frequent maintenance
service is required. See
Maintenance Schedule
0454.
Driving on Wet Roads
Rain and wet roads can
reduce vehicle traction and
affect your ability to stop and
accelerate. Always drive
slower in these types of
driving conditions and avoid
driving through large puddles
and deep-standing or flowing
water.
{Warning
Wet brakes can cause
crashes. They might not
work as well in a quick stop
and could cause pulling to
one side. You could lose
control of the vehicle.
After driving through a large
puddle of water or a car/
vehicle wash, lightly apply
the brake pedal until the
brakes work normally.
Flowing or rushing water
creates strong forces.
Driving through flowing
water could cause the
vehicle to be carried away.
If this happens, you and
other vehicle occupants
could drown. Do not ignore
police warnings and be very
cautious about trying to
drive through flowing water.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
402 Vehicle Care
a TPC specification code
molded onto the sidewall.
Original equipment all-season
tires can be identified by the
last two characters of this
TPC code, which will be“MS.”
Consider installing winter tires
on the vehicle if frequent
driving on snow or ice-covered
roads is expected. All-season
tires provide adequate
performance for most winter
driving conditions, but they
may not offer the same level
of traction or performance as
winter tires on snow or
ice-covered roads. See Winter
Tires 0402.
Winter Tires
This vehicle was not originally
equipped with winter tires.
Winter tires are designed for
increased traction on snow
and ice-covered roads.
Consider installing winter tires
on the vehicle if frequent
driving on ice or snow covered
roads is expected. See your
dealer for details regarding winter tire availability and
proper tire selection. Also, see
Buying New Tires
0419.
With winter tires, there may
be decreased dry road
traction, increased road noise,
and shorter tread life. After
changing to winter tires, be
alert for changes in vehicle
handling and braking.
If using winter tires:
.Use tires of the same brand
and tread type on all four
wheel positions.
.Use only radial ply tires of
the same size, load range,
and speed rating as the
original equipment tires.
Winter tires with the same
speed rating as the original
equipment tires may not be
available for H, V, W, Y, and ZR
speed rated tires. If winter
tires with a lower speed rating
are chosen, never exceed the
tire's maximum speed
capability.
Tire Sidewall Labeling
Useful information about a
tire is molded into its
sidewall. The examples
show a typical passenger
vehicle tire and a compact
spare tire sidewall.
Passenger Tire Example
(1) Tire Size:The tire size
is a combination of letters
and numbers used to
define a particular tire's
width, height, aspect ratio,
construction type, and

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22

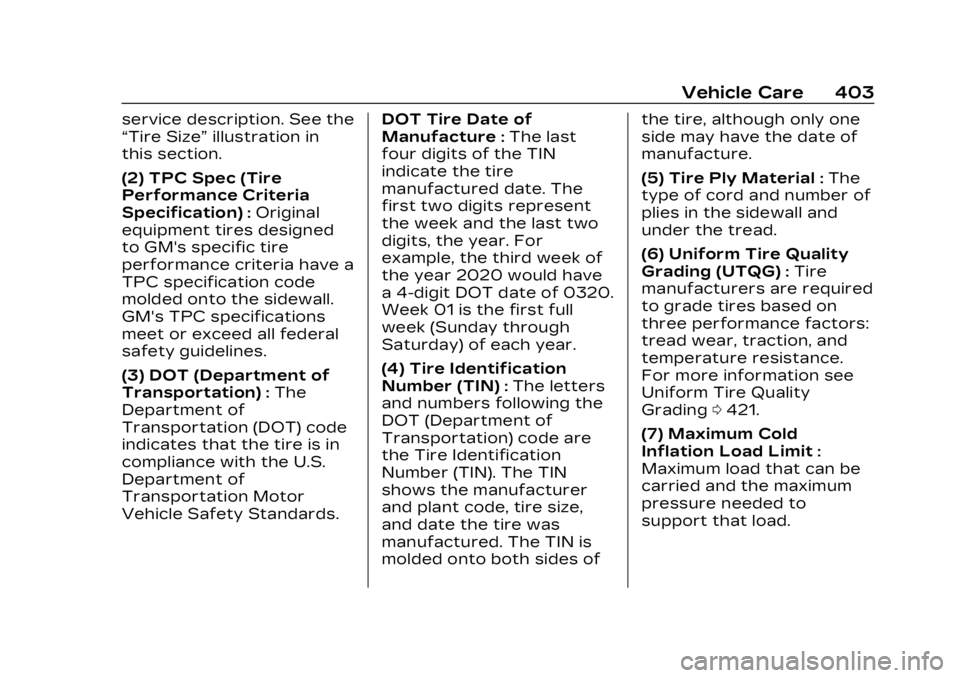

Vehicle Care 403
service description. See the
“Tire Size”illustration in
this section.
(2) TPC Spec (Tire
Performance Criteria
Specification)
:Original
equipment tires designed
to GM's specific tire
performance criteria have a
TPC specification code
molded onto the sidewall.
GM's TPC specifications
meet or exceed all federal
safety guidelines.
(3) DOT (Department of
Transportation)
:The
Department of
Transportation (DOT) code
indicates that the tire is in
compliance with the U.S.
Department of
Transportation Motor
Vehicle Safety Standards. DOT Tire Date of
Manufacture
:The last
four digits of the TIN
indicate the tire
manufactured date. The
first two digits represent
the week and the last two
digits, the year. For
example, the third week of
the year 2020 would have
a 4-digit DOT date of 0320.
Week 01 is the first full
week (Sunday through
Saturday) of each year.
(4) Tire Identification
Number (TIN)
:The letters
and numbers following the
DOT (Department of
Transportation) code are
the Tire Identification
Number (TIN). The TIN
shows the manufacturer
and plant code, tire size,
and date the tire was
manufactured. The TIN is
molded onto both sides of the tire, although only one
side may have the date of
manufacture.
(5) Tire Ply Material
:The
type of cord and number of
plies in the sidewall and
under the tread.
(6) Uniform Tire Quality
Grading (UTQG)
:Tire
manufacturers are required
to grade tires based on
three performance factors:
tread wear, traction, and
temperature resistance.
For more information see
Uniform Tire Quality
Grading 0421.
(7) Maximum Cold
Inflation Load Limit
:
Maximum load that can be
carried and the maximum
pressure needed to
support that load.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
404 Vehicle Care
Compact Spare Tire Example
(1) Tire Ply Material:The
type of cord and number of
plies in the sidewall and
under the tread.
(2) Temporary Use Only
:
The compact spare tire or
temporary use tire should
not be driven at speeds
over 80 km/h (50 mph). The
compact spare tire is for
emergency use when a
regular road tire has lost
air and gone flat. If the
vehicle has a compact spare tire, see Compact
Spare Tire
0433 and
If a Tire Goes Flat 0425.
(3) Tire Identification
Number (TIN)
:The letters
and numbers following the
DOT (Department of
Transportation) code are
the Tire Identification
Number (TIN). The TIN
shows the manufacturer
and plant code, tire size,
and date the tire was
manufactured. The TIN is
molded onto both sides of
the tire, although only one
side may have the date of
manufacture.
(4) Maximum Cold
Inflation Load Limit
:
Maximum load that can be
carried and the maximum
pressure needed to
support that load. (5) Tire Inflation
:The
temporary use tire or
compact spare tire should
be inflated to 420 kPa
(60 psi). For more
information on tire
pressure and inflation see
Tire Pressure 0408.
(6) Tire Size
:A
combination of letters and
numbers define a tire's
width, height, aspect ratio,
construction type, and
service description. The
letter “T”as the first
character in the tire size
means the tire is for
temporary use only.
(7) TPC Spec (Tire
Performance Criteria
Specification)
:Original
equipment tires designed
to GM's specific tire
performance criteria have a
TPC specification code
molded onto the sidewall.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Vehicle Care 405
GM's TPC specifications
meet or exceed all federal
safety guidelines.
Tire Designations
Tire Size
The example shows a
typical passenger vehicle
tire size.
Passenger (P-Metric) Tire
(1) Passenger (P-Metric)
Tire
:The United States
version of a metric tire
sizing system. The letter
"P" as the first character in
the tire size means a
passenger vehicle tire
engineered to standards
set by the U.S. Tire and Rim
Association. (2) Tire Width
:The 3-digit
number indicates the tire
section width in millimeters
from sidewall to sidewall.
(3) Aspect Ratio
:A 2-digit
number that indicates the
tire height-to-width
measurements. For
example, if the tire size
aspect ratio is 75, as
shown in item (3) of the
illustration, it would mean
that the tire's sidewall is
75 percent as high as it
is wide.
(4) Construction Code
:A
letter code is used to
indicate the type of ply
construction in the tire. The
letter "R" means radial ply
construction; the letter "D"
means diagonal or bias ply
construction.
(5) Rim Diameter
:
Diameter of the wheel in
inches. (6) Service Description
:
These characters
represent the load index
and speed rating of the
tire. The load index
represents the load
carrying capacity a tire is
certified to carry. The
speed rating is the
maximum speed a tire is
certified to carry a load.
Tire Terminology and
Definitions
Air Pressure:The amount
of air inside the tire
pressing outward on each
square inch of the tire. Air
pressure is expressed
in kPa (kilopascal) or psi
(pounds per square inch).
Aspect Ratio
:The
relationship of a tire's
height to its width.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
Vehicle Care 409
Warning (Continued)
Overinflated tires, or tires
that have too much air,
can result in:
.Unusual wear
.Poor handling
.Rough ride
.Needless damage from
road hazards
The Tire and Loading
Information label on the
vehicle indicates the
original equipment tires
and the correct cold tire
inflation pressures. The
recommended pressure is
the minimum air pressure
needed to support the
vehicle's maximum load
carrying capacity. See
Vehicle Load Limits 0252. How the vehicle is loaded
affects vehicle handling
and ride comfort. Never
load the vehicle with more
weight than it was
designed to carry.
When to Check
Check the pressure of the
tires once a month or more.
Do not forget the spare,
if the vehicle has one. The
compact spare cold tire
pressure should be at
420 kPa (60 psi). See
Compact Spare Tire
0433.
How to Check
Use a good quality
pocket-type gauge to
check tire pressure. Proper
tire inflation cannot be
determined by looking at
the tire. Check the tire
inflation pressure when the
tires are cold, meaning the vehicle has not been driven
for at least three hours or
no more than 1.6 km (1 mi).
Remove the valve cap from
the tire valve stem. Press
the tire gauge firmly onto
the valve to get a pressure
measurement. If the cold
tire inflation pressure
matches the recommended
pressure on the Tire and
Loading Information label,
no further adjustment is
necessary. If the inflation
pressure is low, add air
until the recommended
pressure is reached. If the
inflation pressure is high,
press on the metal stem in
the center of the tire valve
to release air.
Recheck the tire pressure
with the tire gauge.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-16405819) -
2023 - CRC - 3/22/22
420 Vehicle Care
performance may be
adversely affected if all the
tires are not replaced at
the same time. If proper
rotation and maintenance
have been done, all four
tires should wear out at
about the same time.
However, if it is necessary
to replace only one axle set
of worn tires, place the
new tires on the rear axle.
See Tire Rotation0417.
{Warning
Tires could explode
during improper service.
Attempting to mount or
dismount a tire could
cause injury or death.
Only your dealer or
authorized tire service
center should mount or
dismount the tires.
{Warning
Mixing tires of different
sizes (other than those
originally installed on the
vehicle), brands, tread
patterns, or types may
cause loss of vehicle
control, resulting in a
crash or other vehicle
damage. Use the correct
size, brand, and type of
tire on all wheels.
{Warning
Using bias-ply tires on
the vehicle may cause the
wheel rim flanges to
develop cracks after
many miles of driving.
A tire and/or wheel could
fail suddenly and cause a
crash. Use only radial-ply
tires with the wheels on
the vehicle. Winter tires with the same
speed rating as the original
equipment tires may not be
available for H, V, W, Y and
ZR speed rated tires. Never
exceed the winter tires’
maximum speed capability
when using winter tires
with a lower speed rating.
If the vehicle tires must be
replaced with a tire that
does not have a TPC Spec
number, make sure they
are the same size, load
range, speed rating, and
construction (radial) as the
original tires.
The Tire and Loading
Information label indicates
the original equipment tires
on the vehicle. See Vehicle
Load Limits
0252.
