220 DRIVING AND OPERATING
carbon monoxide (CO) from the
exhaust can get into the vehicle.
SeeEngine Exhaust 0182.
Safety Chains
Always attach chains between the
vehicle and the trailer. Cross the safety
chains under the tongue of the trailer
to help prevent the tongue from
contacting the road if it becomes
separated from the hitch. Leave
enough slack so the rig can turn.
Never allow safety chains to drag on
the ground.
Trailer Brakes
Does the trailer have its own brakes?
Be sure to read and follow the
instructions for the trailer brakes so
they are installed, adjusted, and
maintained properly.
Because the vehicle has antilock
brakes, do not tap into the vehicle's
brake system. If this is done, both
brake systems will not work well or
at all.
Conversions and
Add-Ons
Add-On Electrical
Equipment
{Warning
The Data Link Connector (DLC) is
used for vehicle service and
Emission Inspection/Maintenance
testing. See Malfunction Indicator
Lamp (Check Engine Light) 0120.
A device connected to the DLC —
such as an aftermarket fleet or
driver-behavior tracking device —
may interfere with vehicle systems.
This could affect vehicle operation
and cause a crash. Such devices
may also access information stored
in the vehicle’s systems.
Caution
Some electrical equipment can
damage the vehicle or cause
components to not work and would
not be covered by the vehicle
warranty. Always check with your
dealer before adding electrical
equipment.
Add-on equipment can drain the
vehicle's 12-volt battery, even if the
vehicle is not operating.
The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see Servicing
the Airbag-Equipped Vehicle 079
and Adding Equipment to the
Airbag-Equipped Vehicle 079.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 221
Vehicle Care
General Information
General Information . . . . . . . . . . . . . 222
Accessories andModifications . . . . . . . . . . . . . . . . . . . 222
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . . . . . . 223
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . . . . . . 224
Engine Cover . . . . . . . . . . . . . . . . . . . . . . 227
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 228
Engine Oil Life System . . . . . . . . . . . 230
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Engine Air Cleaner/Filter . . . . . . . . . 231
Cooling System . . . . . . . . . . . . . . . . . . . 233
Engine Coolant . . . . . . . . . . . . . . . . . . . 234
Engine Overheating . . . . . . . . . . . . . . 237
Overheated Engine Protection Operating Mode . . . . . . . . . . . . . . . . . 238
Power Steering Fluid . . . . . . . . . . . . . 238
Washer Fluid . . . . . . . . . . . . . . . . . . . . . 239
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . 241
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
All-Wheel Drive . . . . . . . . . . . . . . . . . . 242 Starter Switch Check . . . . . . . . . . . . . 243
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . . . . . 243
Wiper Blade Replacement . . . . . . . 244
Windshield Replacement . . . . . . . . 244Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . . . . . 245
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . . . . . 245
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . . . . . 245
LED Lighting . . . . . . . . . . . . . . . . . . . . . 245
Back-Up Lamps . . . . . . . . . . . . . . . . . . . 245
License Plate Lamp . . . . . . . . . . . . . . 246
Replacement Bulbs . . . . . . . . . . . . . . . 247
Electrical System
Electrical System Overload . . . . . . 247
Fuses and Circuit Breakers . . . . . . 248
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Instrument Panel Fuse Block . . . . 251
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254 All-Season Tires . . . . . . . . . . . . . . . . . . 255
Winter Tires . . . . . . . . . . . . . . . . . . . . . . 255
Low-Profile Tires . . . . . . . . . . . . . . . . . 256
Summer Tires . . . . . . . . . . . . . . . . . . . . 256
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 256
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . . . . . . . 257
Tire Pressure Monitor System . . . 258
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . . . . . . 259
Tire Inspection . . . . . . . . . . . . . . . . . . . 262
Tire Rotation . . . . . . . . . . . . . . . . . . . . . 262
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Buying New Tires . . . . . . . . . . . . . . . . 264
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Wheel Replacement . . . . . . . . . . . . . . 266
Tire Chains . . . . . . . . . . . . . . . . . . . . . . . 266
If a Tire Goes Flat . . . . . . . . . . . . . . . . 267
Tire Changing . . . . . . . . . . . . . . . . . . . . . 268
Compact Spare Tire . . . . . . . . . . . . . . 272
Jump Starting
Jump Starting . . . . . . . . . . . . . . . . . . . . . 273
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . . . . . 276
Recreational Vehicle Towing . . . . 276

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
222 VEHICLE CARE
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . . . . . . 278
Interior Care . . . . . . . . . . . . . . . . . . . . . . 282
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . 285General Information
For service and parts needs, visit your
dealer. You will receive genuine parts
and trained and supported service
people.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered by
the vehicle warranty.
Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the vehicle warranty.Damage to vehicle components
resulting from modifications or the
installation or use of non-GM certified
parts, including control module or
software modifications, is not covered
under the terms of the vehicle
warranty and may affect remaining
warranty coverage for affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle using
genuine GM Accessories installed by a
dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 079.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 223
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have the
proper knowledge, service manual,
tools, or parts. Always follow
owner’s manual procedures and
consult the service manual for your
vehicle before doing any
service work.
If doing some of your own service
work, use the proper service manual.
It tells you much more about how to
service the vehicle than this
manual can.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Airbag System
Check 080.
Keep a record with all parts receipts
and list the mileage and the date of
any service work performed.
Caution
Even small amounts of
contamination can cause damage to
vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.
Hood
To open the hood:
1. Pull the hood release lever with this symbol on it. It is inside the
vehicle on the lower side of the
instrument panel.
2. Go to the front of the vehicle tofind the secondary hood release
handle. The handle is under the
front edge of the hood near the
center. Push the handle to the
right and at the same time raise
the hood.
Before closing the hood, be sure all
the filler caps are on properly. Then
bring the hood from full open to
within 15 cm (6 in) from the closed
position, pause, then push the front
center of the hood with a swift, firm
motion to fully close the hood.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
224 VEHICLE CARE
Engine Compartment Overview
3.6L V6 Engine

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 225
1.Engine Air Cleaner/Filter 0231.
2. Power Steering Fluid Reservoir (Under Engine Cover). See Power
Steering Fluid 0238.
3. Engine Oil Fill Cap. See Engine
Oil 0228.
4. Engine Oil Dipstick (Out of View). See Engine Oil0228.
5. Engine Cover 0227.
6. Engine Cooling Fans (Out of View). See Cooling System 0233.
7. Brake Fluid Reservoir. See Brakes 0240.
8. Engine Coolant Surge Tank and Pressure Cap. See Engine
Coolant 0234.
9. Battery 0242 (Battery Cover not
Shown).
10. Remote Positive (+) Terminal (Battery Cover not Shown). See
Jump Starting 0273.
11. Engine Compartment Fuse
Block 0248.
12. Remote Negative (−) Terminal (Out of View). See Jump
Starting 0273. 13. Windshield Washer Fluid
Reservoir. See Washer
Fluid 0239.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
226 VEHICLE CARE

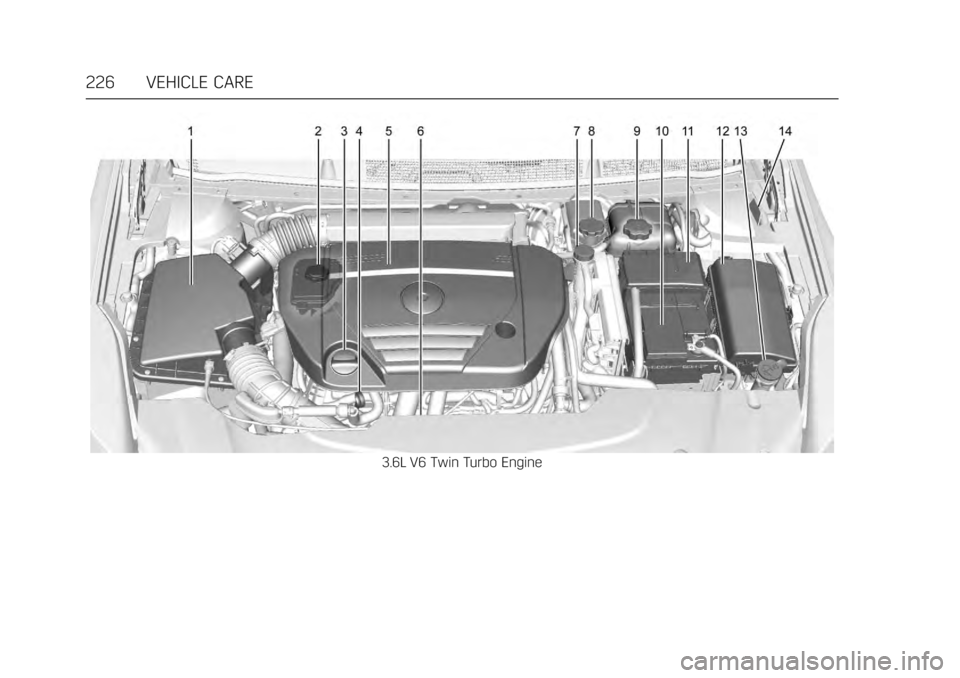

3.6L V6 Twin Turbo Engine

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 227
1.Engine Air Cleaner/Filter 0231.
2. Power Steering Fluid Reservoir (Under Engine Cover). See Power
Steering Fluid 0238.
3. Engine Oil Fill Cap. See Engine
Oil 0228.
4. Engine Oil Dipstick. See Engine
Oil 0228.
5. Engine Cover 0227.
6. Engine Cooling Fans (Out of View). See Cooling System 0233.
7. Charged Air Coolant Reservoir and Pressure Cap. See Engine
Coolant 0234.
8. Brake Fluid Reservoir. See Brakes 0240.
9. Engine Coolant Surge Tank and Pressure Cap. See Engine
Coolant 0234.
10. Battery 0242 (Battery Cover not
Shown).
11. Remote Positive (+) Terminal (Battery Cover not Shown). See
Jump Starting 0273.
12. Engine Compartment Fuse
Block 0248. 13. Windshield Washer Fluid
Reservoir. See Washer
Fluid 0239.
14. Remote Negative (−) Terminal (Out of View). See Jump
Starting 0273.
Engine Cover
3.6L V6 Engine
1. Engine Oil Fill Cap
2. Engine Cover Bolt
3. Engine Cover
To remove:
1. Remove the oil fill cap (1).
2. Remove the engine cover bolt (2). 3. Raise the engine cover (3) to
release it from the retainers.
4. Lift and remove the engine cover.
5. Reverse Steps 1–4 to reinstall the engine cover.
3.6L V6 Engine Twin Turbo Engine
1. Engine Oil Fill Cap
2. Engine Cover
3. Engine Cover Bolt
To remove:
1. Remove the oil fill cap (1).
2. Remove the engine cover bolt (3).
3. Raise the engine cover (2) to release it from the retainers.

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
228 VEHICLE CARE
4. Lift and remove the engine cover.
5. Reverse Steps 1–4 to reinstall theengine cover.
Engine Oil
To ensure proper engine performance
and long life, careful attention must
be paid to engine oil. Following these
simple, but important steps will help
protect your investment:
.Use engine oil approved to the
proper specification and of the
proper viscosity grade. See
“Selecting the Right Engine Oil” in
this section.
. Check the engine oil level regularly
and maintain the proper oil level.
See “Checking Engine Oil” and
“When to Add Engine Oil” in this
section.
. Change the engine oil at the
appropriate time. See Engine Oil
Life System 0230.
. Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.
Checking Engine Oil
Check the engine oil level regularly,
every 650 km (400 mi), especially prior
to a long trip. The engine oil dipstick
handle is a loop. See Engine
Compartment Overview 0224 for the
location.
{Warning
The engine oil dipstick handle may
be hot; it could burn you. Use a
towel or glove to touch the dipstick
handle.
If a low oil Driver Information Center
(DIC) message displays, check the oil
level.
Follow these guidelines:
. To get an accurate reading, park
the vehicle on level ground. Check
the engine oil level after the
engine has been off for at least
two hours. Checking the engine oil
level on steep grades or too soon
after engine shutoff can result in
incorrect readings. Accuracy improves when checking a cold
engine prior to starting. Remove
the dipstick and check the level.
. If unable to wait two hours, the
engine must be off for at least
15 minutes if the engine is warm,
or at least 30 minutes if the
engine is not warm. Pull out the
dipstick, wipe it with a clean paper
towel or cloth, then push it back
in all the way. Remove it again,
keeping the tip down, and check
the level.
When to Add Engine Oil
3.6L V6 Engine

Cadillac XTS Owner Manual (GMNA-Localizing-MidEast-10292881) - 2017 -
crc - 7/1/16
VEHICLE CARE 229
3.6L V6 Twin Turbo Engine
If the oil is below the cross-hatched
area at the tip of the dipstick and the
engine has been off for at least
15 minutes, add 1 L (1 qt) of the
recommended oil and then recheck
the level. See “Selecting the Right
Engine Oil” later in this section for an
explanation of what kind of oil to use.
For engine oil crankcase capacity, see
Capacities and Specifications 0299.
Caution
Do not add too much oil. Oil levels
above or below the acceptable
operating range shown on the
dipstick are harmful to the engine.
If you find that you have an oil
level above the operating range, i.e.,
the engine has so much oil that the
oil level gets above the
(Continued)
Caution (Continued)
cross-hatched area that shows the
proper operating range, the engine
could be damaged. You should
drain out the excess oil or limit
driving of the vehicle and seek a
service professional to remove the
excess amount of oil.
See Engine Compartment Overview
0 224 for the location of the engine oil
fill cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back in when through.
Selecting the Right Engine Oil
Selecting the right engine oil depends
on both the proper oil specification
and viscosity grade. See Recommended
Fluids and Lubricants 0295.
Specification
Ask for and use engine oils that meet
the dexos1™ specification. Engine oils
that have been approved by GM as meeting the dexos1 specification are
marked with the dexos1 approved
logo. See www.gmdexos.com.
Caution
Failure to use the recommended
engine oil or equivalent can result
in engine damage not covered by
the vehicle warranty.
Viscosity Grade
Use SAE 5W-30 viscosity grade
engine oil.
Cold Temperature Operation: In an
area of extreme cold, where the
temperature falls below −29 °C (−20 °
F), an SAE 0W-30 oil may be used. An
oil of this viscosity grade will provide
easier cold starting for the engine at
extremely low temperatures. When
selecting an oil of the appropriate
