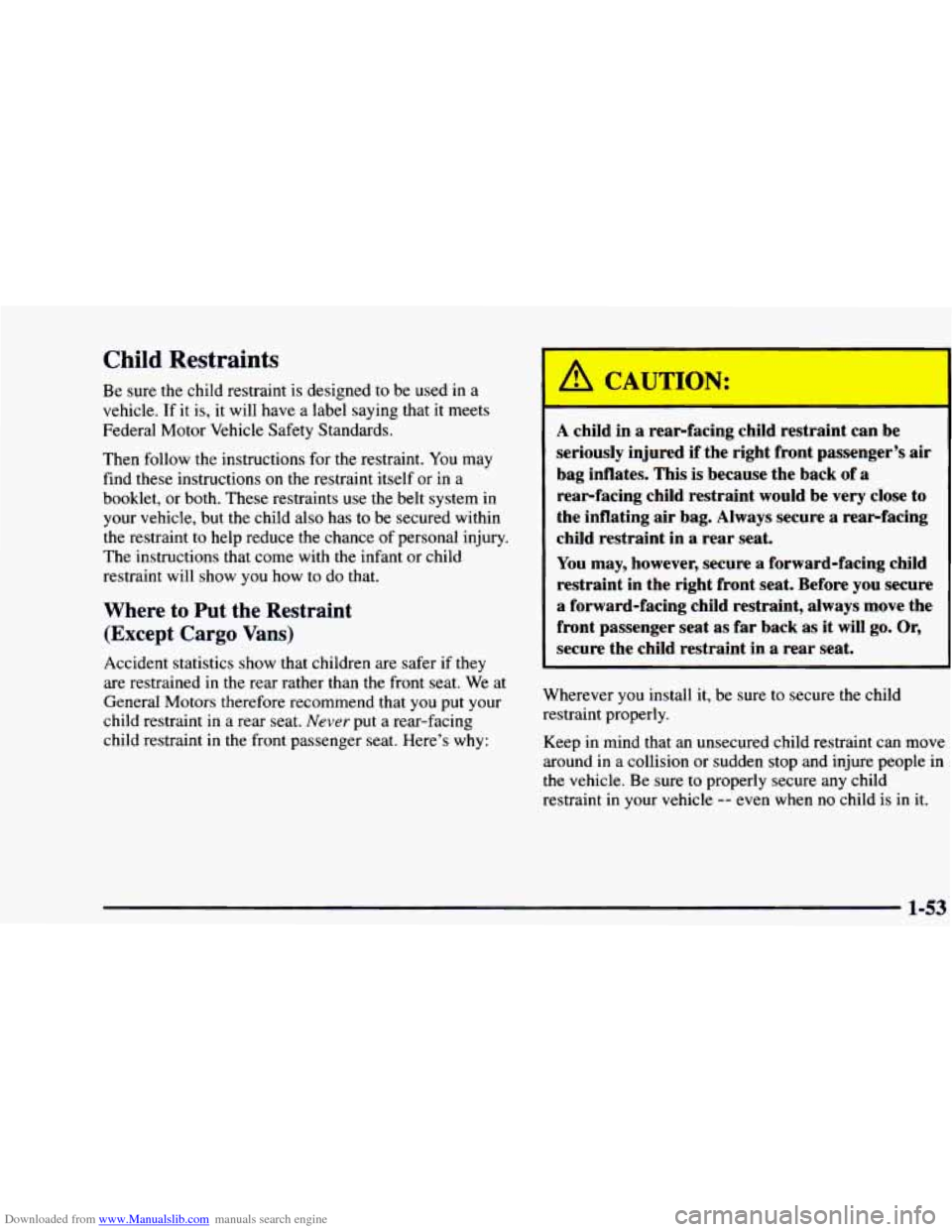

Downloaded from www.Manualslib.com manuals search engine Child Restraints
Be sure the child restraint is designed to be used in a
vehicle. If it is, it will have a label saying that it meets
Federal Motor Vehicle Safety Standards.
Then follow the instructions for the restraint.
You may
find these instructions on
the restraint itself or in a
booklet, or both. These restraints use the belt system in
your vehicle, but the child also has to be secured within
the restraint to help reduce the chance of personal injury.
The instructions that come with the infant or child
restraint will show you how to do
that.
Where to Put the Restraint
(Except Cargo Vans)
Accident statistics show that children are safer if they
are restrained in the rear rather
than the front seat. We at
General Motors therefore recommend that
you put your
child restraint in a rear seat.
Never put a rear-facing
child restraint
in the front passenger seat. Here’s why:
A child in a rearfacing child restraint can be
seriously injured if
the right front passenger’s air
bag inflates. This is because the back
of a
rear-facing child restraint would be very close to
the inflating air bag. Always secure a rearfacing
child restraint in a rear seat.
You may, however, secure a forward-facing child
restraint in the right front seat. Before
you secure
a forward-facing child restraint, always move the
front passenger seat as far back as it will go. Or,
secure the child restraint in a rear seat.
Wherever you install it, be sure to secure the child
-estraint properly.
Keep in mind that an unsecured child restraint can move
around
in a collision or sudden stop and injure people in
the vehicle. Be sure to properly secure any child
restraint
in your vehicle -- even when no child is in it.
1-53
Page 62 of 404

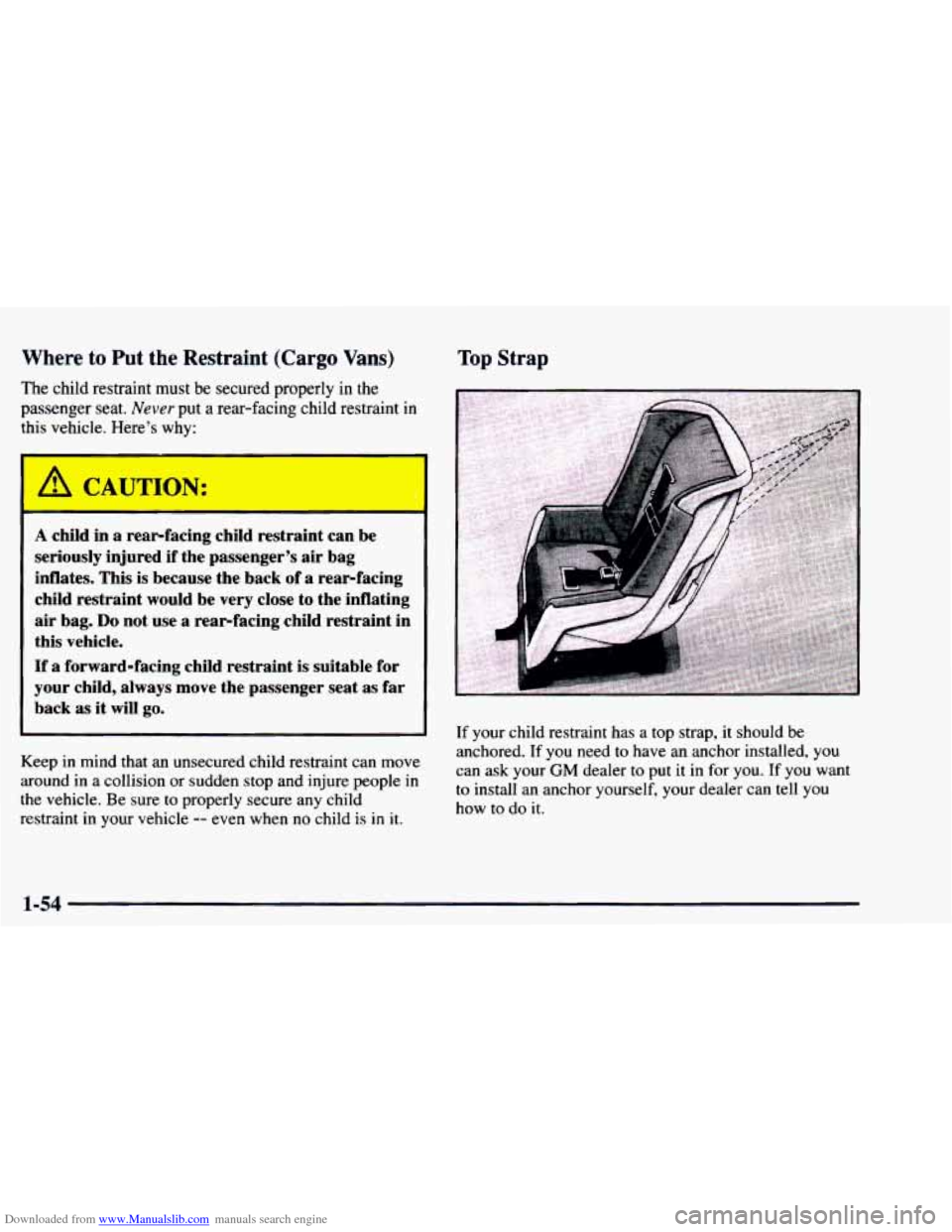

Downloaded from www.Manualslib.com manuals search engine Where to Put the Restraint (Cargo Vans)
The child restraint must be secured properly in the
passenger seat. Never put a rear-facing child restraint in
this vehicle. Here’s
why:
A child in a rearfacing child restraint can be
seriously injured if the passenger’s air bag
inflates. This is because the back of
a rearfacing
child restraint would be very close to the inflating
air bag.
Do not use a rearfacing child restraint in
this vehicle.
Top Strap
If a forward-facing child restraint is suitable for
your child, always move the passenger seat as far
back
as it will go.
Keep in mind that an unsecured child restraint can move
around in a collision or sudden stop and injure people
in
the vehicle. Be sure to properly secure any child
restraint
in your vehicle -- even when no child is in it.
If your child restraint has a top strap, it should be
anchored.
If you need to have an anchor installed, you
can ask your
GM dealer to put it in for you. If you want
to install an anchor yourself, your dealer can tell you
how to do it.
1-54
Page 63 of 404

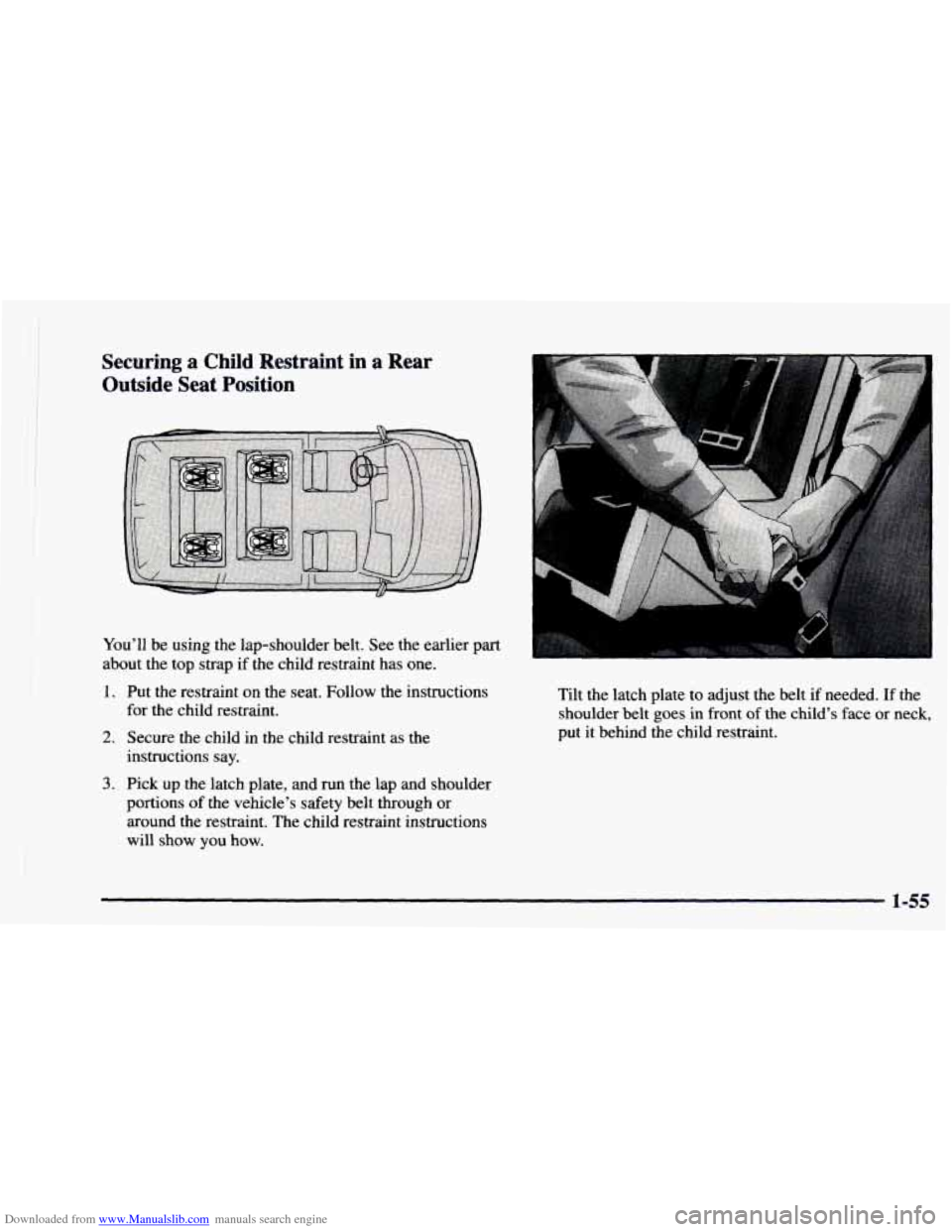

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in a Rear
Outside Seat Position
You’ll be using the lap-shoulder belt. See the earlier part
about the
top strap if the child restraint has one.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
2. Secure the child in the child restraint as the
instructions say.
3. Pick up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how. Tilt the latch
plate to adjust the belt if needed. If the
shoulder belt goes
in front of the child’s face or neck,
put it behind the child restraint.
1-55
Page 64 of 404

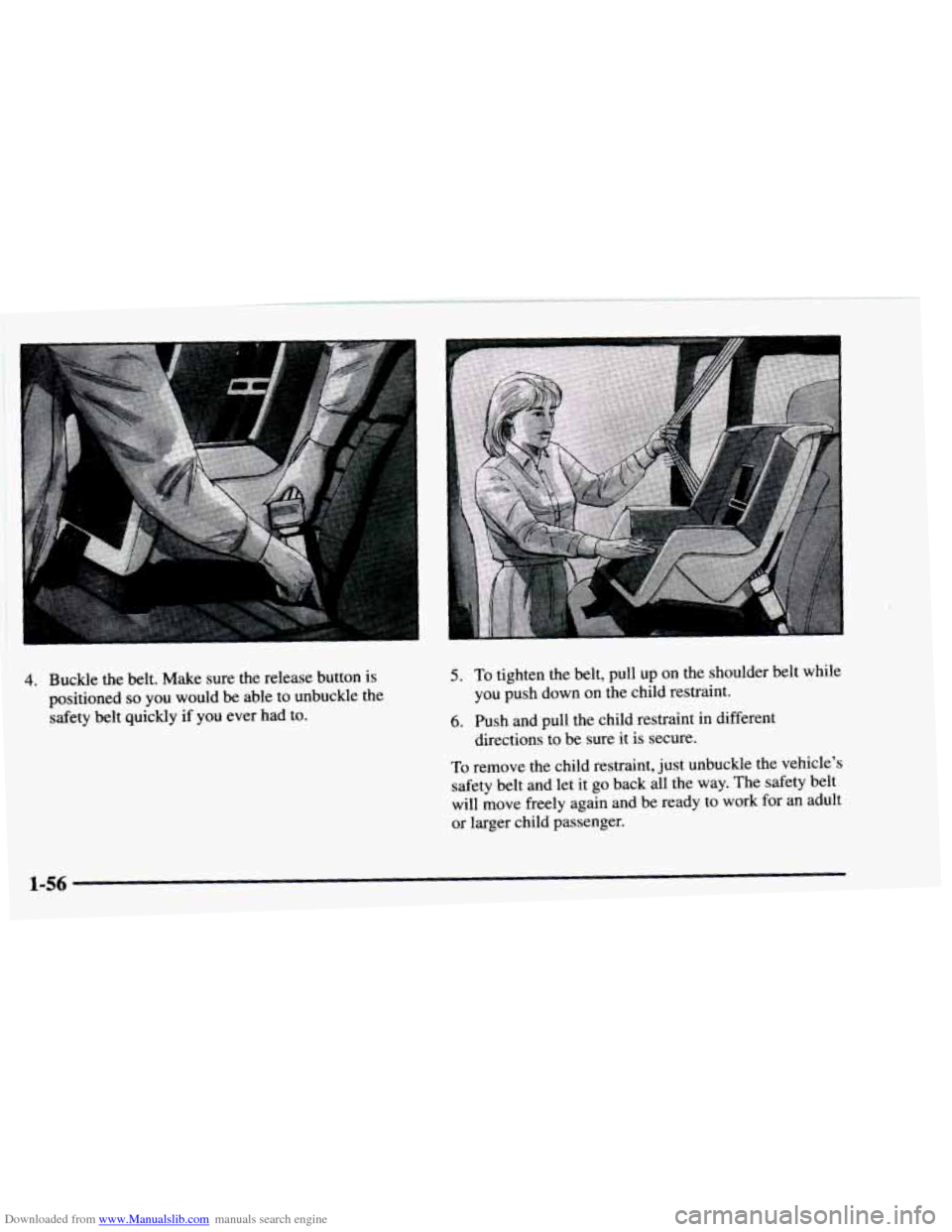

Downloaded from www.Manualslib.com manuals search engine 4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
I
5. To tighten the belt, pull up on the shoulder belt while
6. Push and pull the child restraint in different
you push down on the
child restraint.
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the
way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
1-56
Page 65 of 404

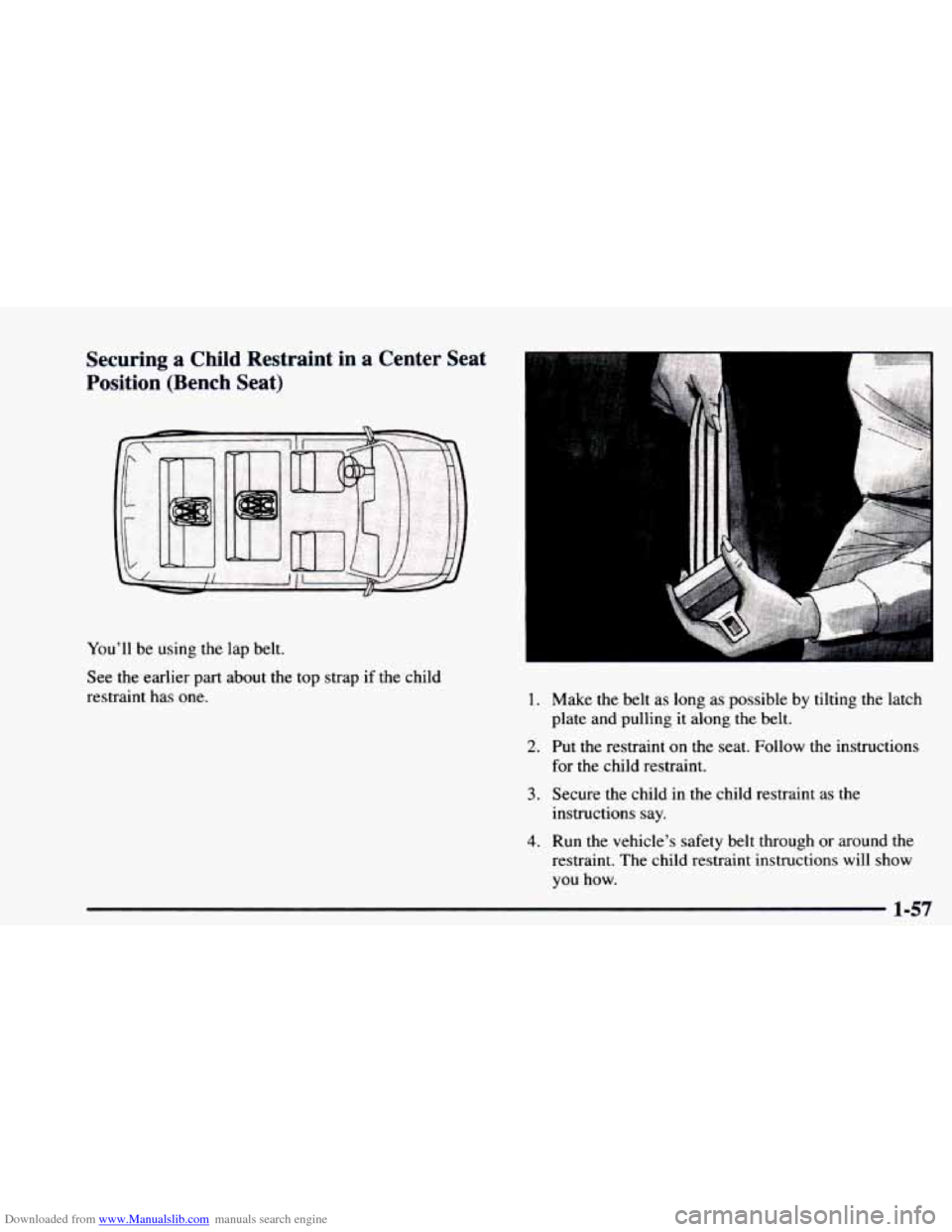

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in a Center Seat
Position (Bench Seat)
You'll be using the lap belt.
See the earlier part about the top strap if the child
restraint has one.
1.
2.
3.
4.
Make the belt as long as possible by tilting the latch
plate and pulling
it along the belt.
Put the restraint on the seat. Follow the instructions
for the child restraint.
Secure the child in the child restraint as the
instructions
say.
Run the vehicle's safety belt through or around the
restraint. The child restraint instructions will show
you how.
1-57
Page 66 of 404

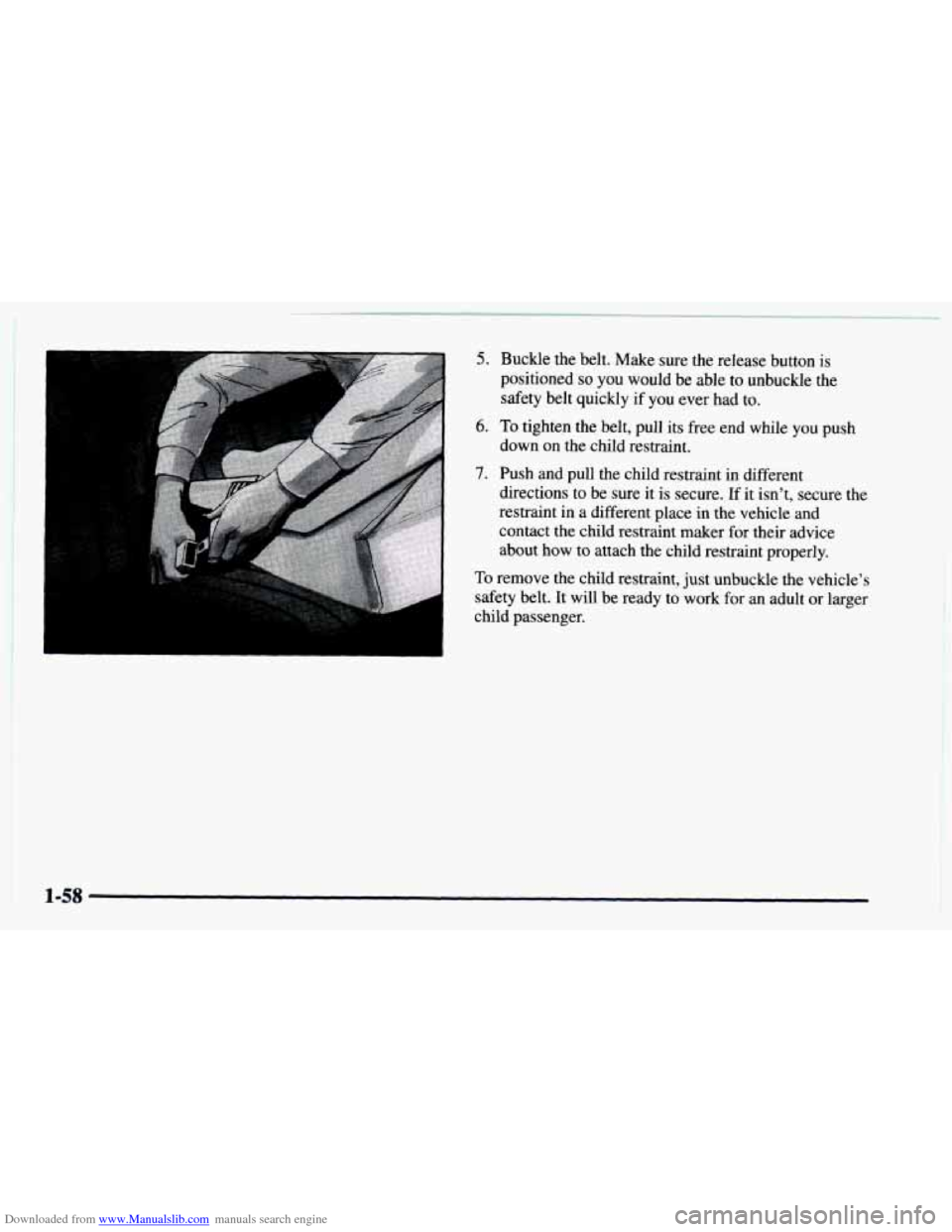

Downloaded from www.Manualslib.com manuals search engine 5. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if
you ever had to.
6. To tighten the belt, pull its free end while you push
down on the child restraint.
7. Push and pull the child restraint in different
directions
to be sure it is secure. If‘it isn’t, secure the
restraint in a different place in the vehicle and
contact the child restraint maker for their advice
about
how to attach the child restraint properly.
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It will be ready to work for an adult
or larger
child passenger.
Page 67 of 404

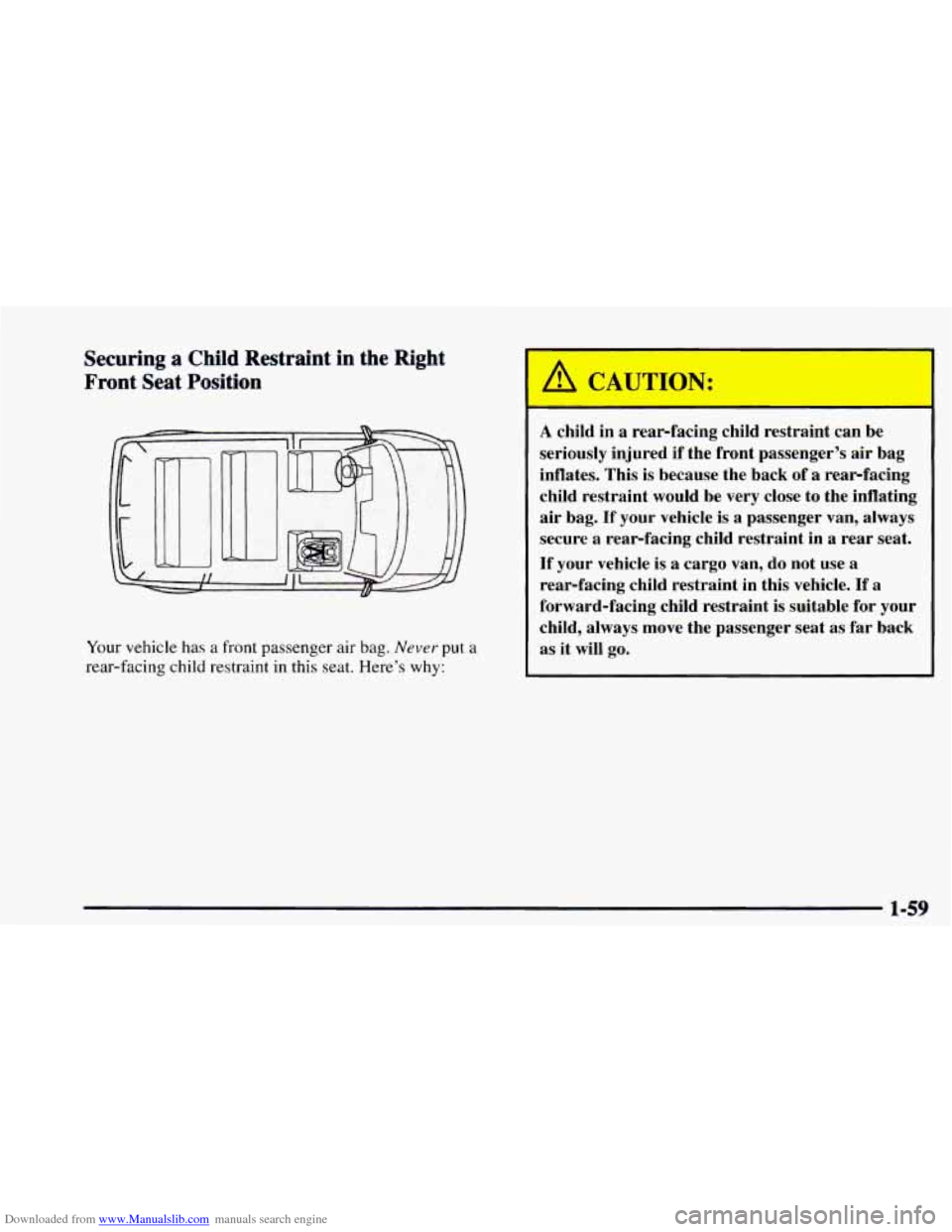

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in the Right
Front
Seat Position
Your vehicle has a front passenger air bag. Never put a
rear-facing child restraint in this seat. Here’s why:
I / CAUTION:
A child in a rear-facing child restraint can be
seriously injured
if the front passenger’s air bag
inflates. This
is because the back of a rear-facing
’ child restraint would be very close to the inflating
~ air bag. If your vehicle is a passenger van, always
secure a rear-facing child restraint in a rear seat.
If your vehicle is a cargo van, do not use a
rear-facing child restraint in this vehicle. If a
forward-facing child restraint is suitable for your
child, always move the passenger seat as
far back
as it will go.
1-59
Page 68 of 404

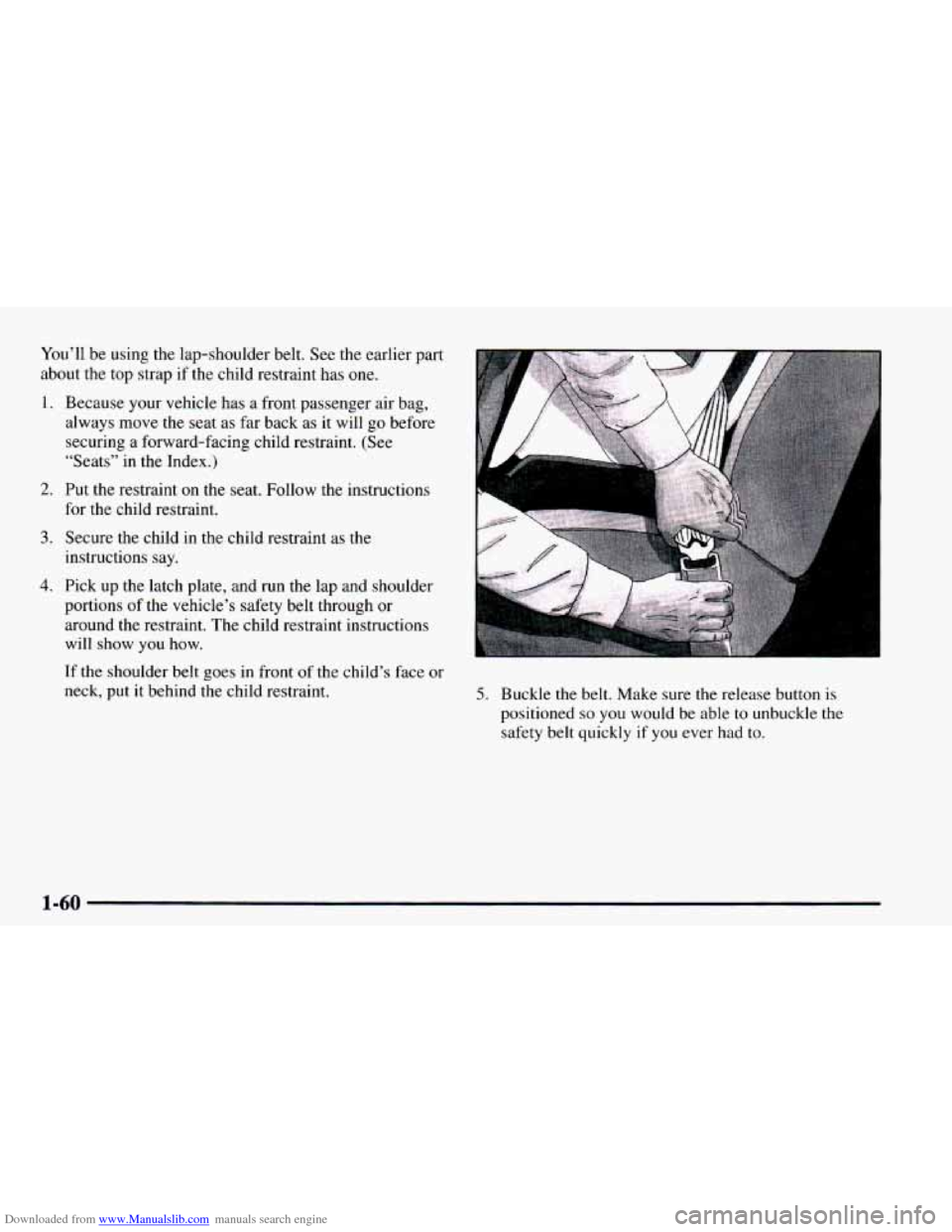

Downloaded from www.Manualslib.com manuals search engine You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has
one.
1. Because your vehicle has a front passenger air bag,
always move the seat
as far back as it will go before
securing a forward-facing child restraint, (See
“Seats’’
in the Index.)
2. Put the restraint on the seat. Follow the instructions
for the child restraint.
3. Secure the child in the child restraint as the
instructions say.
4. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show
you how.
If the shoulder belt goes in front of the child’s face or
neck, put
it behind the child restraint.
a
5. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-60
Page 69 of 404

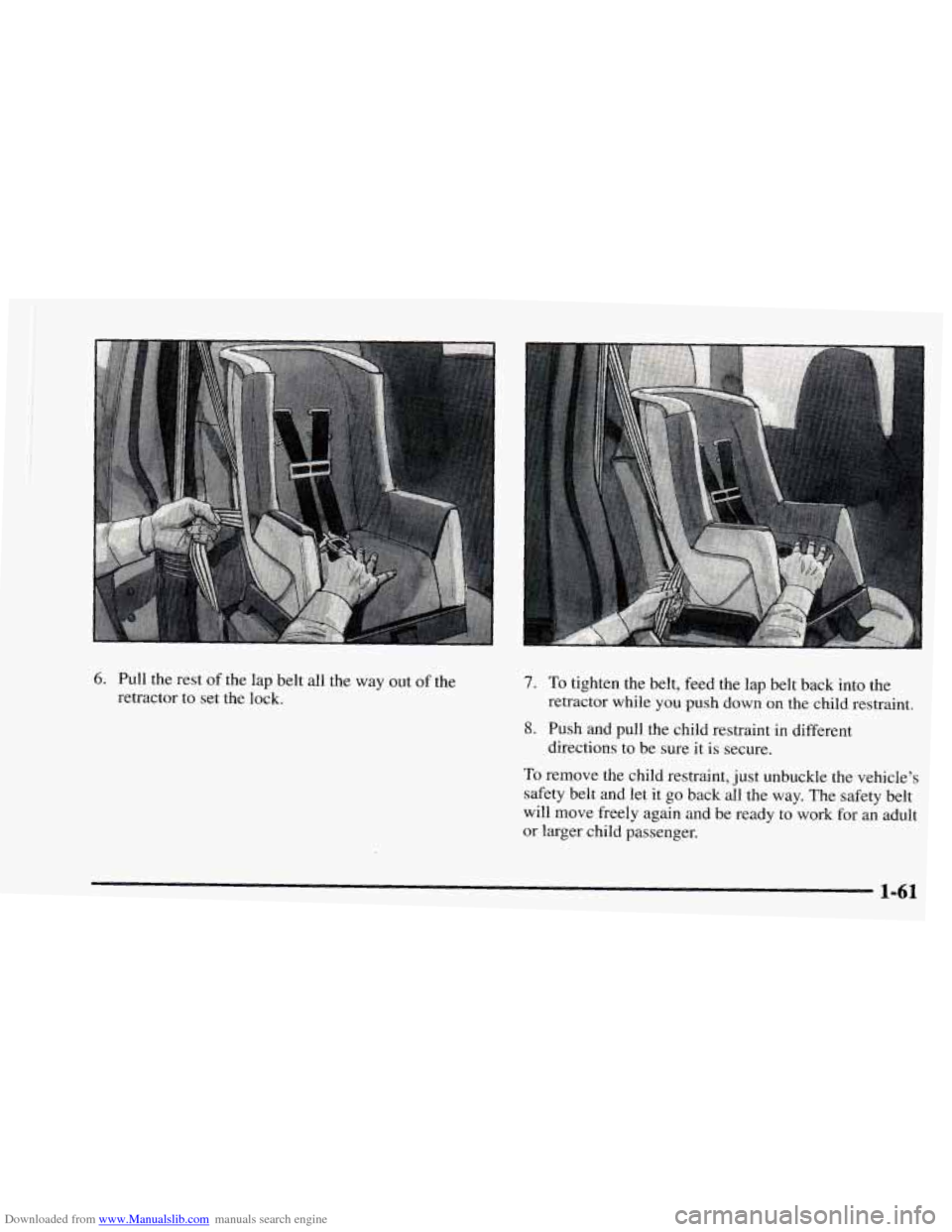

Downloaded from www.Manualslib.com manuals search engine 6. Pull the rest of the lap belt all the way out of the
retractor to set the lock. 7. To tighten the belt, feed the lap belt back into the
8. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger. retractor
while you push down
on the child restraint.
directions to be sure it is secure.
1-61
Page 70 of 404

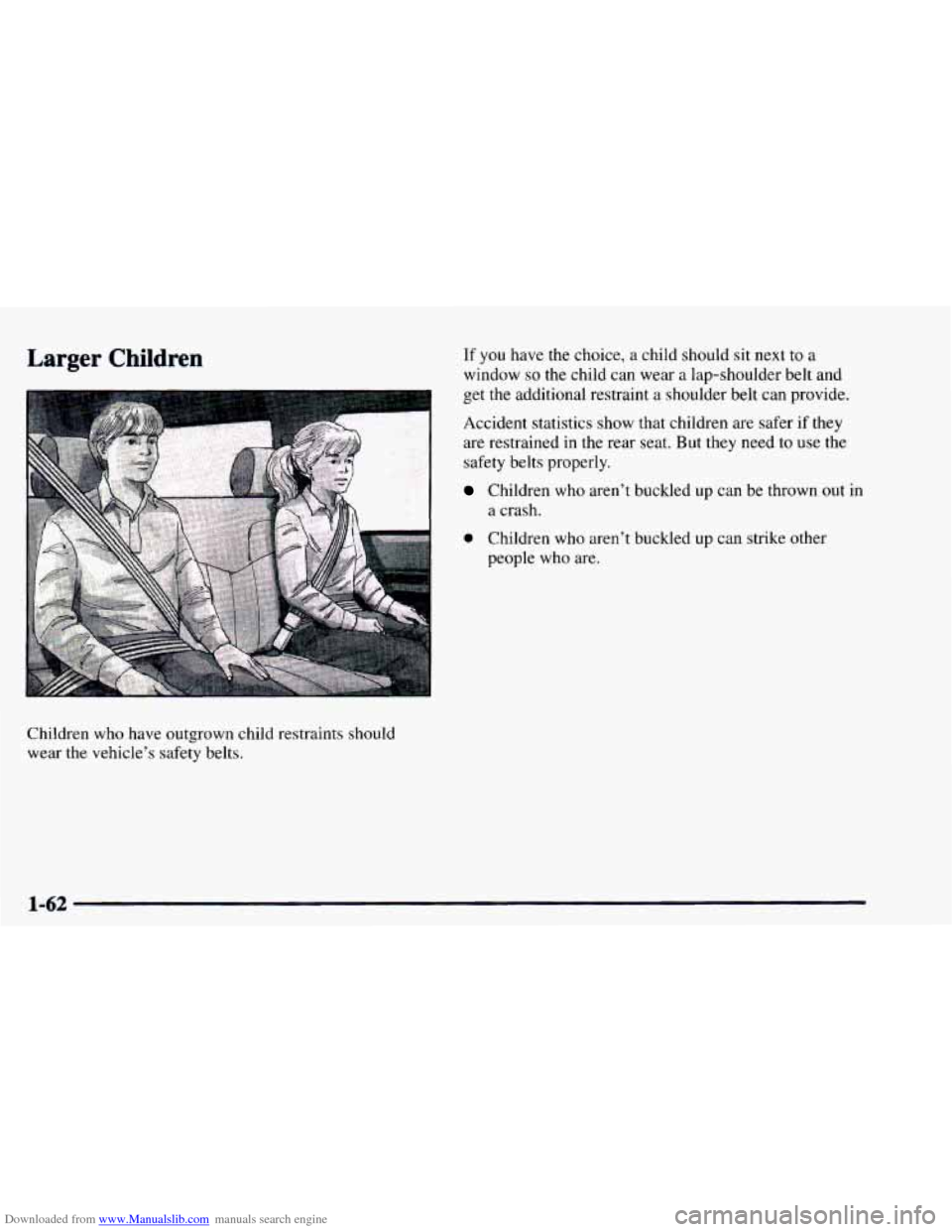

Downloaded from www.Manualslib.com manuals search engine Larger Children
Children who have outgrown child restraints should wear the vehicle’s safety belts.
If you have the choice, a child should sit next to a
window
so the child can wear a lap-shoulder belt and
get
the additional restraint a shoulder belt can provide.
Accident statistics show that children are safer if they
are restrained
in the rear seat. But they need to use the
safety belts properly.
Children who aren’t buckled up can be thrown out in
0 Children who aren’t buckled up can strike other
a
crash.
people who are.
