Page 71 of 404

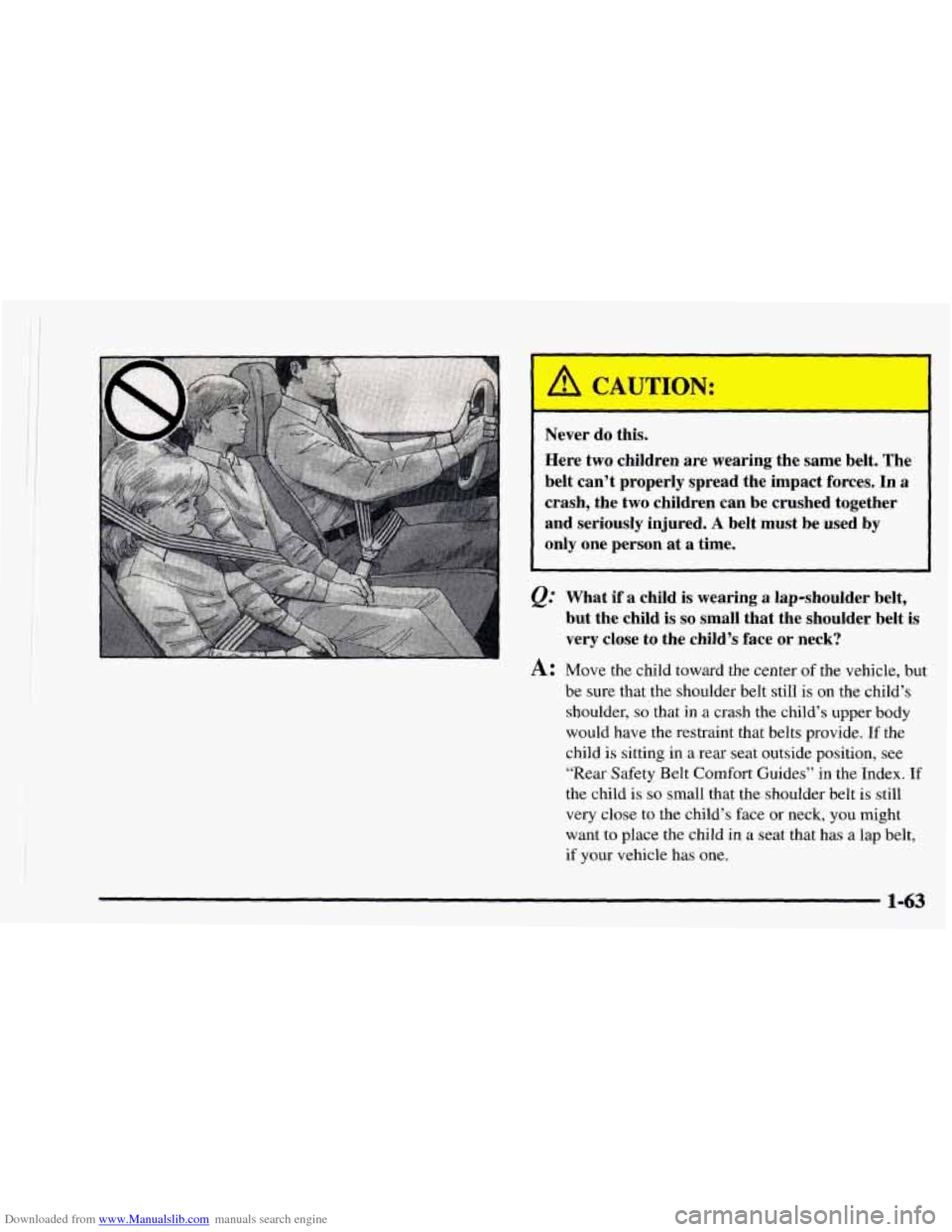

Downloaded from www.Manualslib.com manuals search engine I- Never do this.
Here two children are wearing the same belt. The
belt can’t properly spread the impact forces.
In a
crash, the two children can be crushed together
and seriously injured.
A belt must be used by
only one person at
a time.
&.” What if a child is wearing a lap-shoulder belt,
but the child is
so small that the shoulder belt is
very close to the child’s face or neck?
A: Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child’s
shoulder,
so that in a crash the child’s upper body
would have the restraint that belts provide.
If the
child is sitting in a rear seat outside position, see
“Rear Safety Belt Comfort Guides” in the Index.
If
the child is so small that the shoulder belt is still
very close to the child’s face or neck, you might
want to place the child in a seat that has
a lap belt,
if your vehicle has one.
1-63
Page 72 of 404

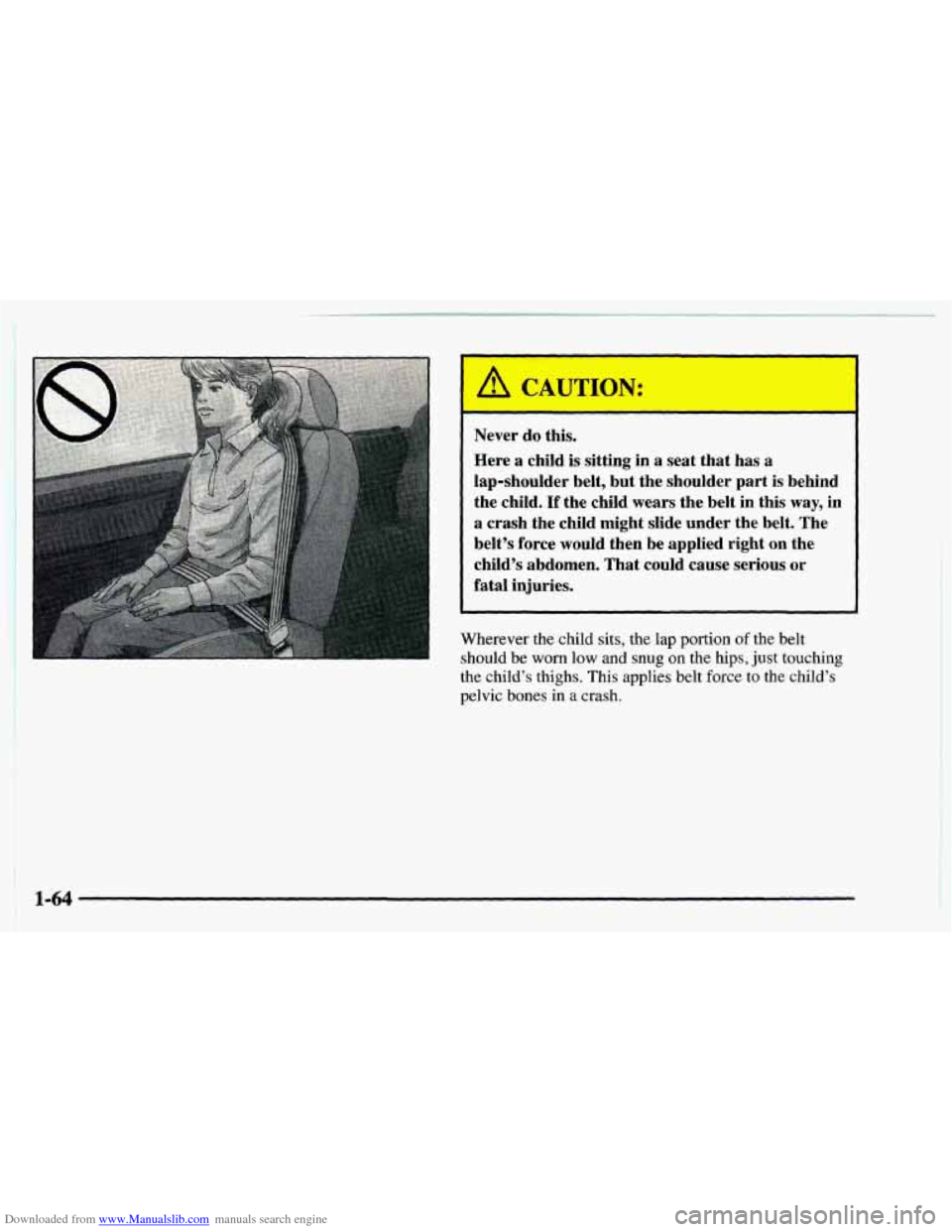

Downloaded from www.Manualslib.com manuals search engine Never do this.
Here
a child is sitting in a seat that has a
lap-shoulder belt, but the shoulder part is behind
the child. If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt’s force would then be applied right
on the
child’s abdomen. That could cause serious
or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should
be worn low and snug on the hips, just touching
the child’s thighs. This applies belt force
to the child’s
pelvic
bones in a crash.
1-64
Page 73 of 404

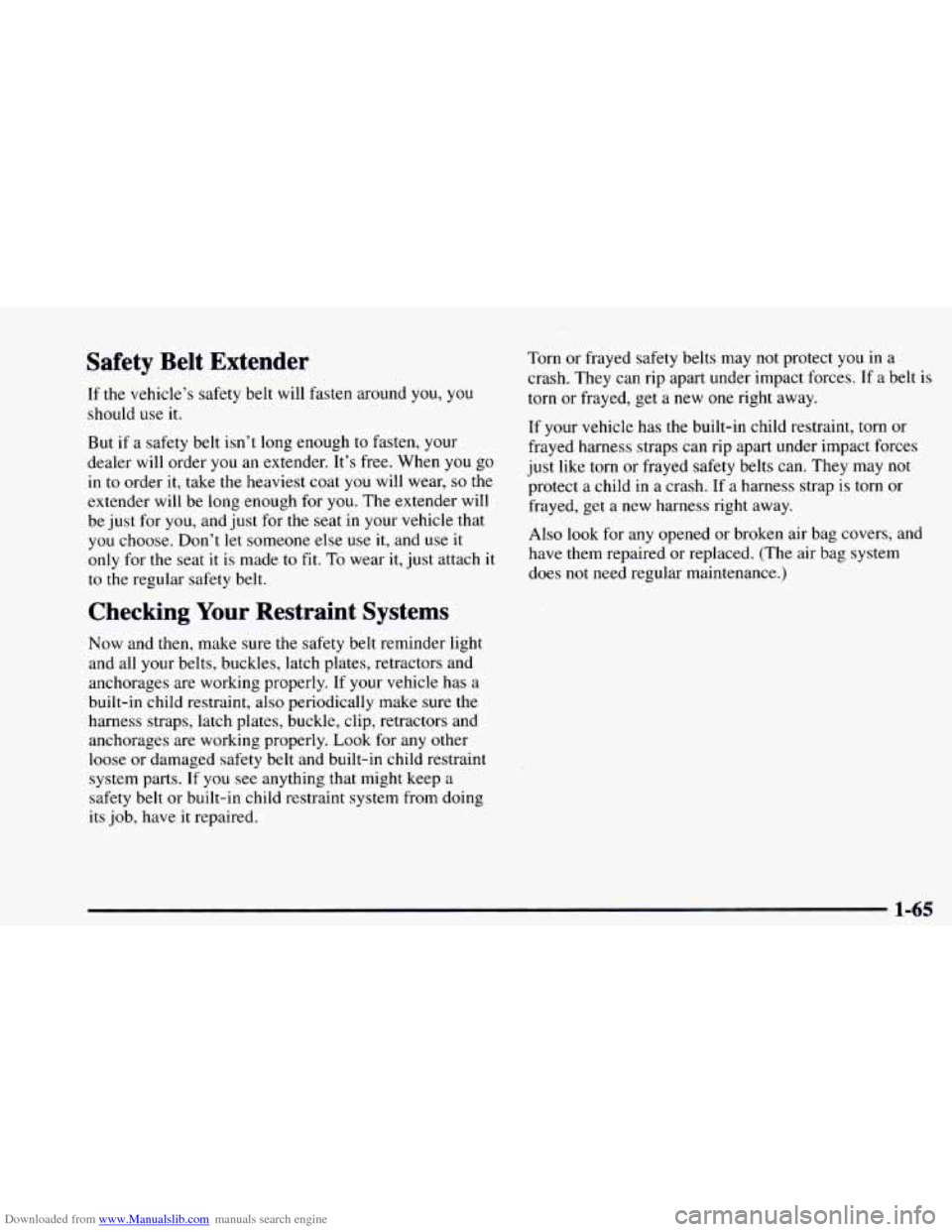

Downloaded from www.Manualslib.com manuals search engine Safety Belt Extender
If the vehicle’s safety belt will fasten around you, you
should use it.
But if a safety belt isn’t long enough to fasten, your
dealer will order you an extender. It’s free. When
you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for
you. The extender will
be just for
you, and just for the seat in your vehicle that
you choose. Don’t let someone else use it, and use it
only for
the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. If your vehicle has a
built-in child restraint, also periodically make sure the
harness straps, latch plates, buckle, clip, retractors and
anchorages are working properly.
Look for any other
loose or damaged safety belt and built-in child restraint
system parts. If
you see anything that might keep a
safety belt or built-in child restraint system from doing
its job, have it repaired. Torn
or frayed safety belts may not protect
you in a
crash. They can rip apart under impact forces. If a belt
is
torn or frayed, get a new one right away.
If your vehicle has the built-in child restraint, torn or
frayed harness straps can rip apart under impact forces
just like torn or frayed safety belts can. They may
not
protect a child in a crash. If a harness strap is torn or
frayed, get a new harness right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
1-65
Page 74 of 404

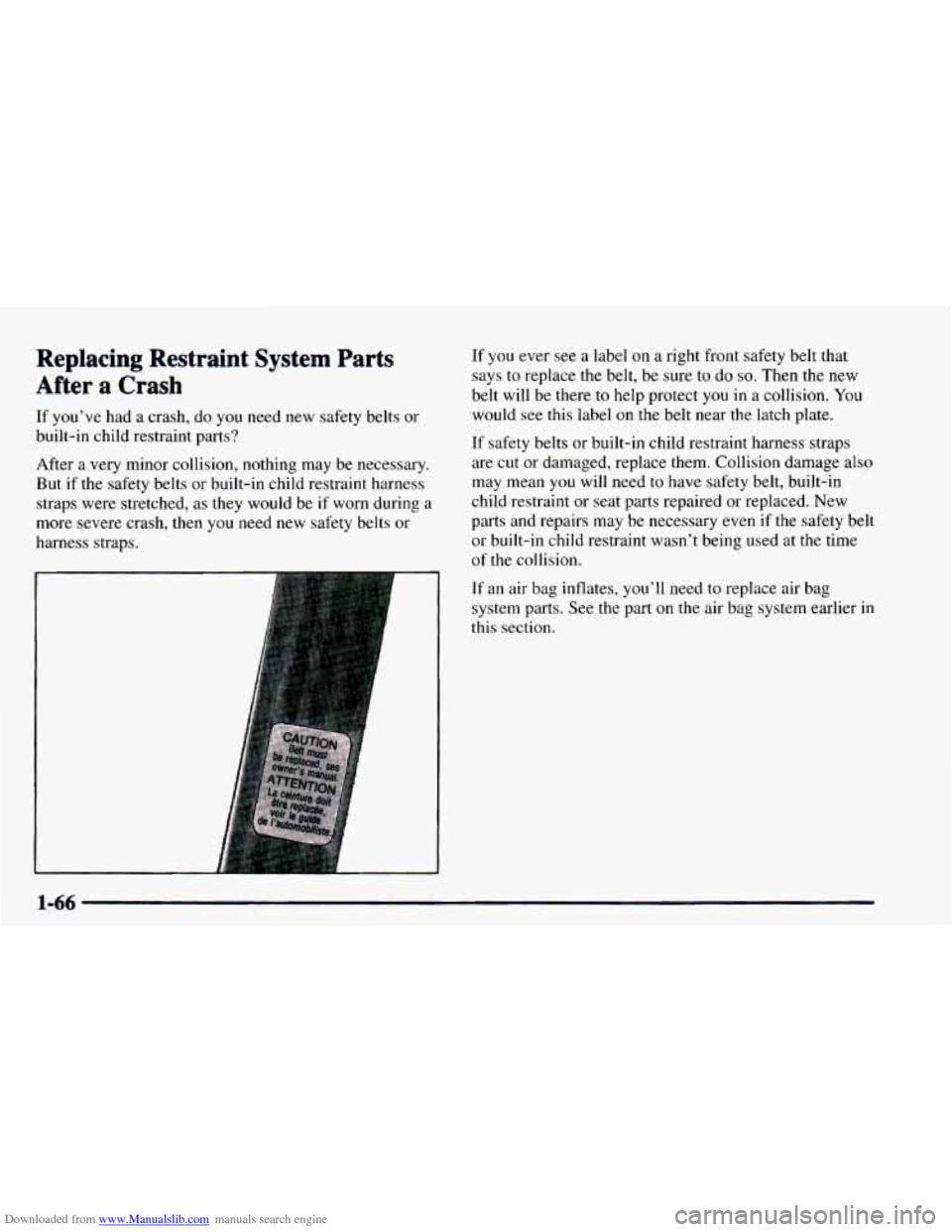

Downloaded from www.Manualslib.com manuals search engine Replacing Restraint System Parts
After a Crash
If you’ve had a crash, do you need new safety belts or
built-in child restraint parts?
After a very minor collision, nothing may be necessary.
But if the safety belts
or built-in child restraint harness
straps were stretched, as they would be if worn during a
more severe crash, then you need new safety belts
or
harness straps. If
you ever see a label
on a right front safety belt that
says to replace the belt, be
sure to do so. Then the new
belt will be there to help protect you in
a collision. You
would see this label on the belt near the latch plate.
If safety belts or built-in child restraint harness straps
are cut or damaged, replace them. Collision damage also
may mean
you will need to have safety belt, built-in
child restraint or seat parts repaired or replaced. New
parts and repairs may be necessary even
if the safety belt
or built-in child restraint wasn’t being used at the time
of
the collision.
If an air bag inflates, you’ll need
to replace air bag
system parts. See
the part on the air bag system earlier in
this section.
1-66
Page 75 of 404

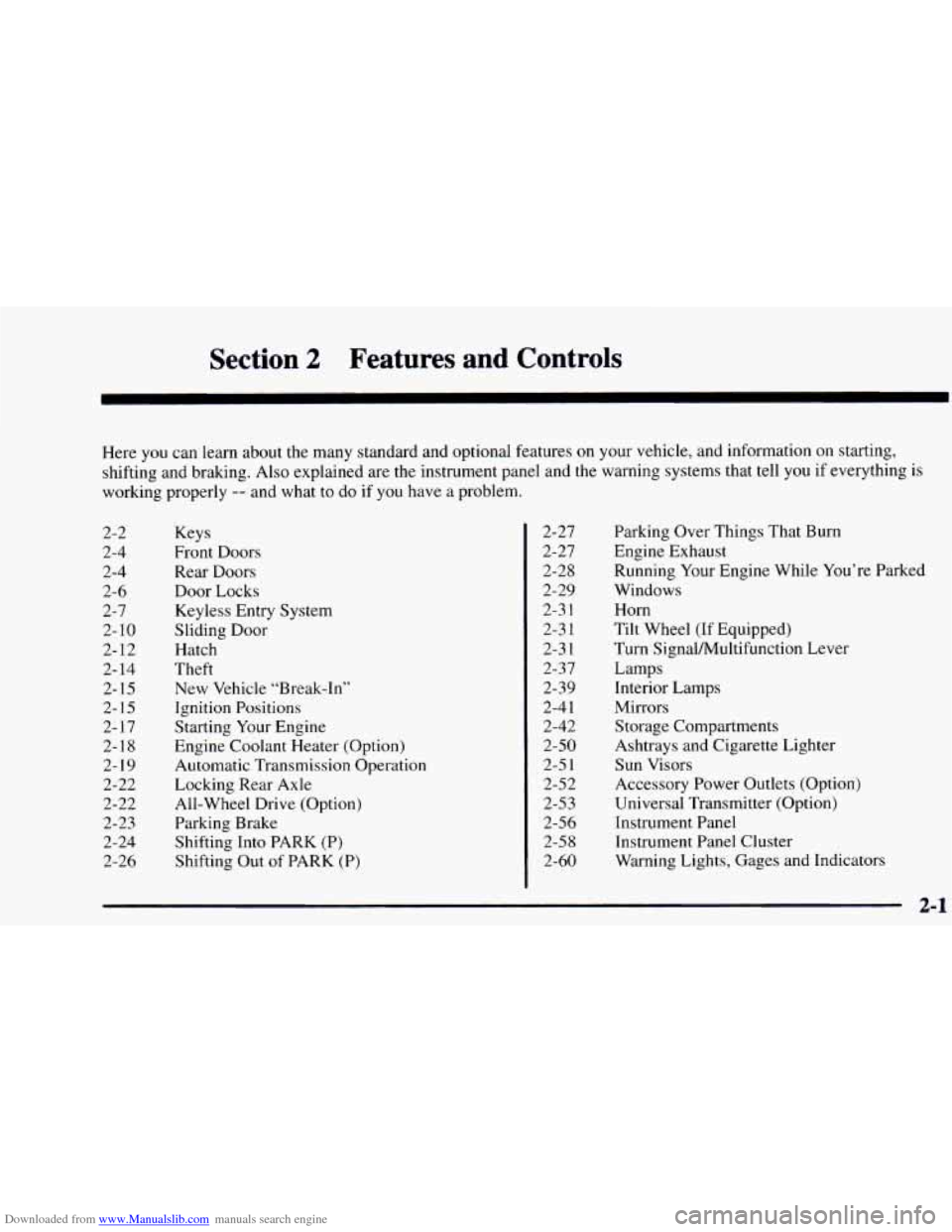

Downloaded from www.Manualslib.com manuals search engine Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2-2
2-4 2-4
2- 6
2-7
2-
10
2- 12
2-
14
2- 15
2-15
2- 17
2-1 8
2- 19
2-22
2-22
2-23
2-24
2-26 Keys
Front
Doors
Rear Doors
Door Locks
Keyless Entry System
Sliding Door
Hatch
Theft New Vehicle “Break-In”
Ignition Positions
Starting Your Engine
Engine Coolant Heater (Option)
Automatic Transmission Operation
Locking Rear Axle All-Wheel Drive (Option)
Parking Brake
Shifting Into PARK (P)
Shifting Out
of PARK (P) 2-27
2-27
2-28
2-29
2-3
1
2-3 1
2-3 1
2-37
2-39
2-4
1
2-42
2-50
2-5
1
2-52
2-5
3
2-56
2-58
2-60 Parking
Over Things That Burn
Engine Exhaust
Running Your Engine While You’re Parked
Windows
Horn
Tilt Wheel (If Equipped)
Turn Signal/Multifunction Lever
Lamps Interior Lamps
Mirrors Storage Compartments
Ashtrays and Cigarette Lighter
Sun Visors
Accessory Power Outlets (Option)
Universal Transmitter (Option)
Instrument Panel
Instrument Panel Cluster
Warning Lights, Gages and Indicators
2-1
Page 76 of 404

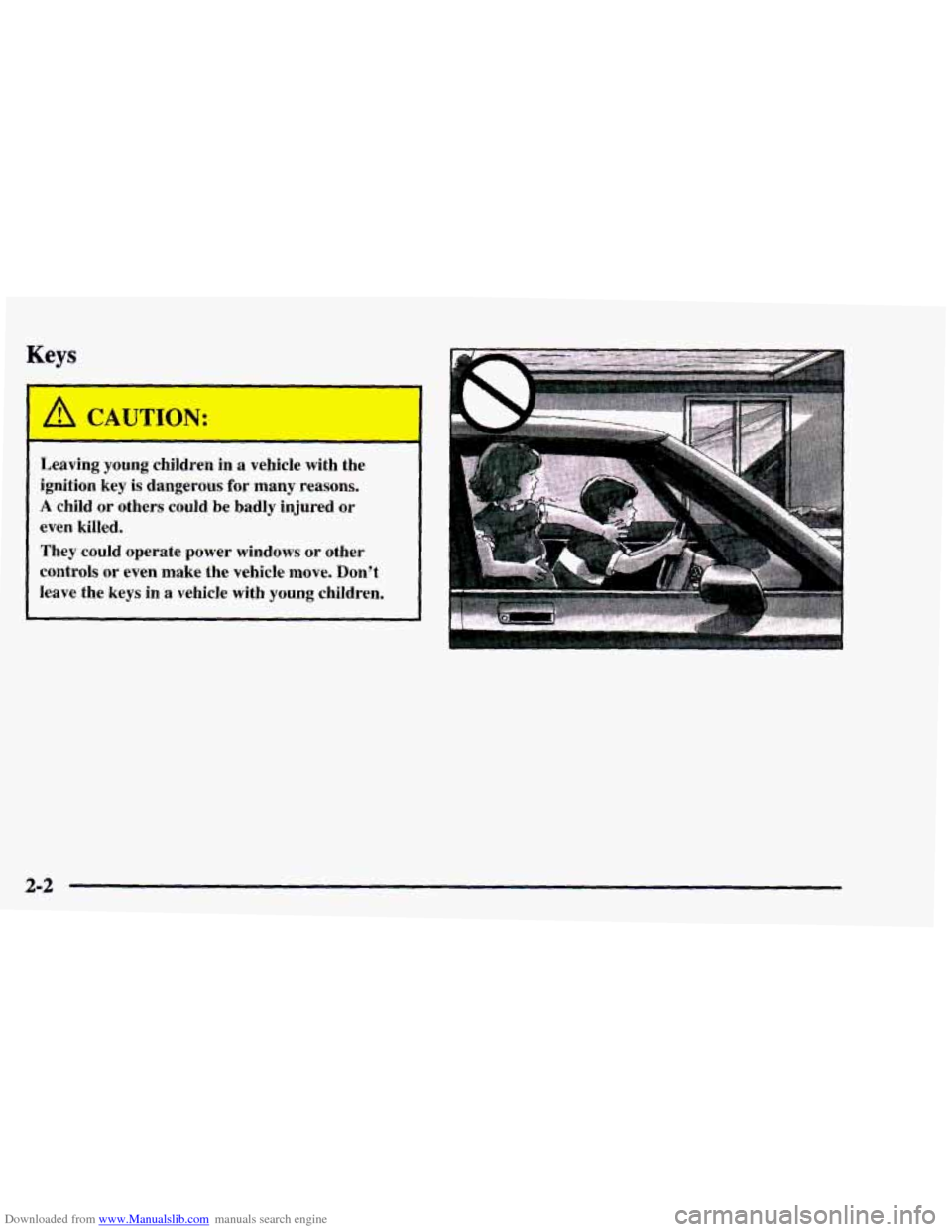

Downloaded from www.Manualslib.com manuals search engine Keys
A CAUTION:
Leaving young children in a vehicle --I with the
ignition key
is dangerous for many reasons.
A child or others could be badly injured or
even killed.
They could operate power windows or other
controls
or even make the vehicle move. Don’t
leave the keys in a vehicle with young children.
I
‘CL’
2-2
Page 77 of 404

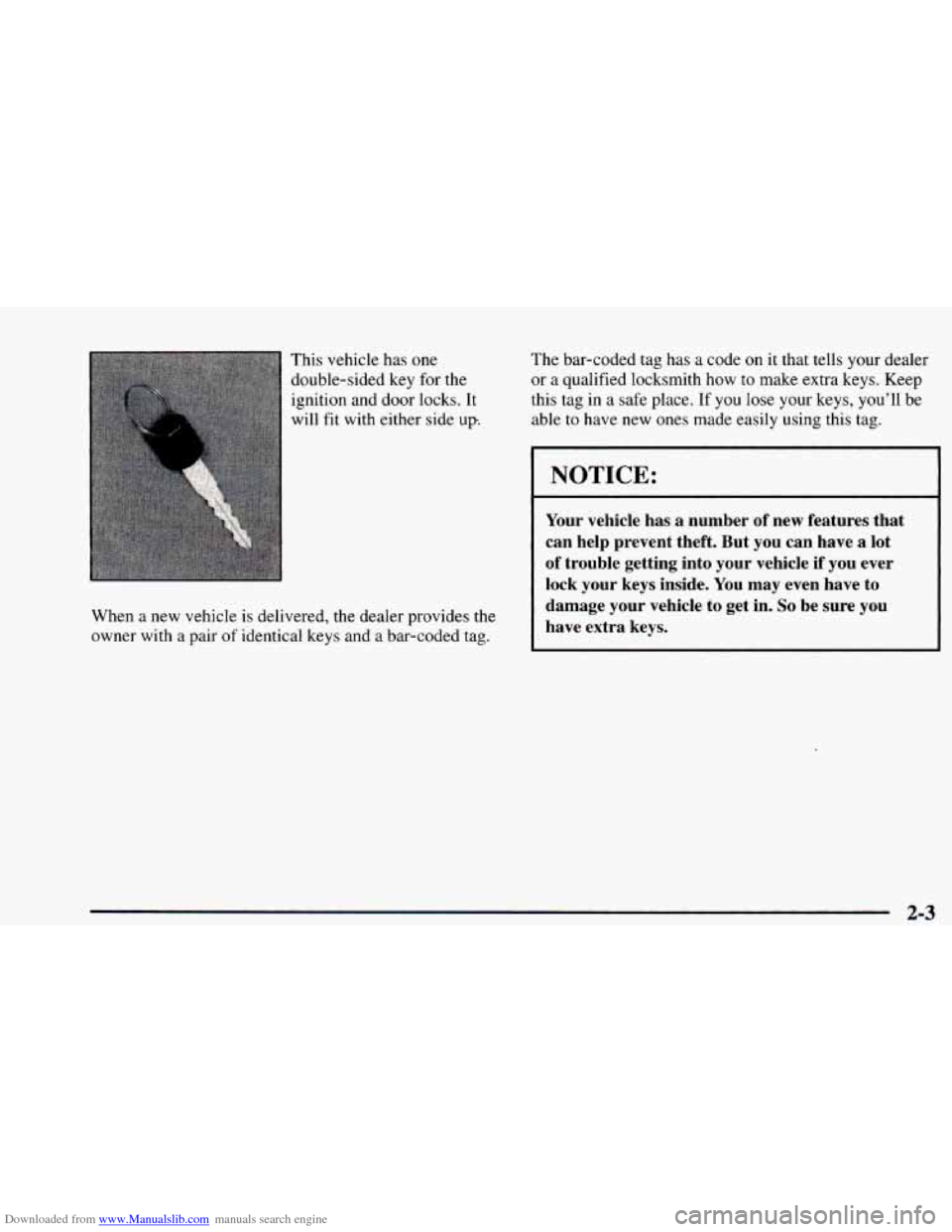

Downloaded from www.Manualslib.com manuals search engine This vehicle has one
double-sided key for the
ignition and door locks. It
will fit with either side
up.
The bar-coded tag has a code on it that tells your dealer
or a qualified locksmith how to make extra keys. Keep
this tag
in a safe place. If you lose your keys, you’ll be
able to have new ones made easily using this tag.
When
a new vehicle is delivered, the dealer provides the
owner with a pair
of identical keys and a bar-coded tag.
I NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot
of trouble getting into your vehicle if you ever lock your keys inside. You may even have to
damage your vehicle to get in.
So be sure you
have extra keys.
2-3
Page 78 of 404

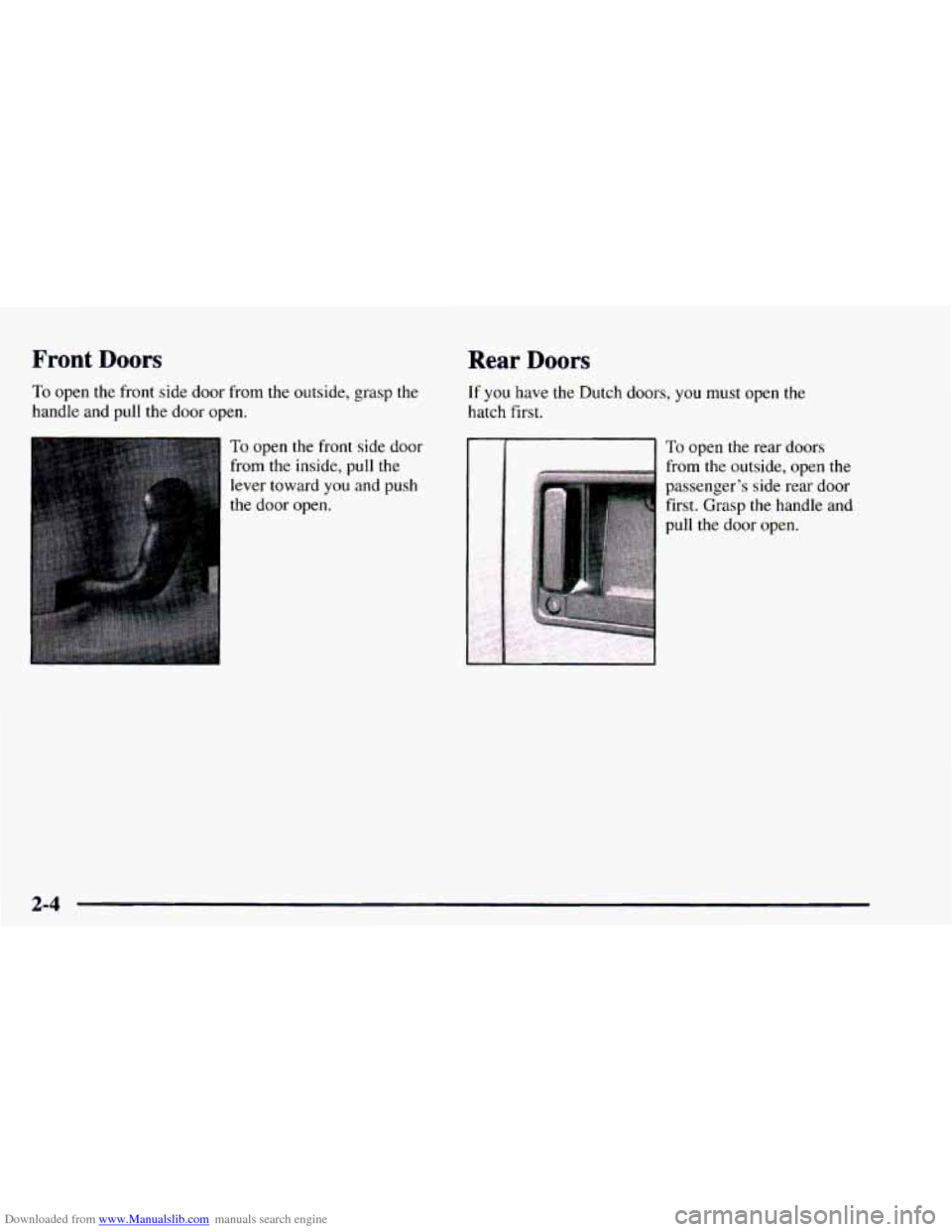

Downloaded from www.Manualslib.com manuals search engine Front Doors
To open the front side door from the outside, grasp the
handle and pull the door open.
To open the front side door
from the inside, pull the
lever toward
you and push
the door open.
Rear Doors
If you have the Dutch doors, you must open the
hatch first.
CI To open the rear doors
from the outside, open the
passenger’s side rear door
first. Grasp the handle and
pull the door open.
2-4
Page 79 of 404

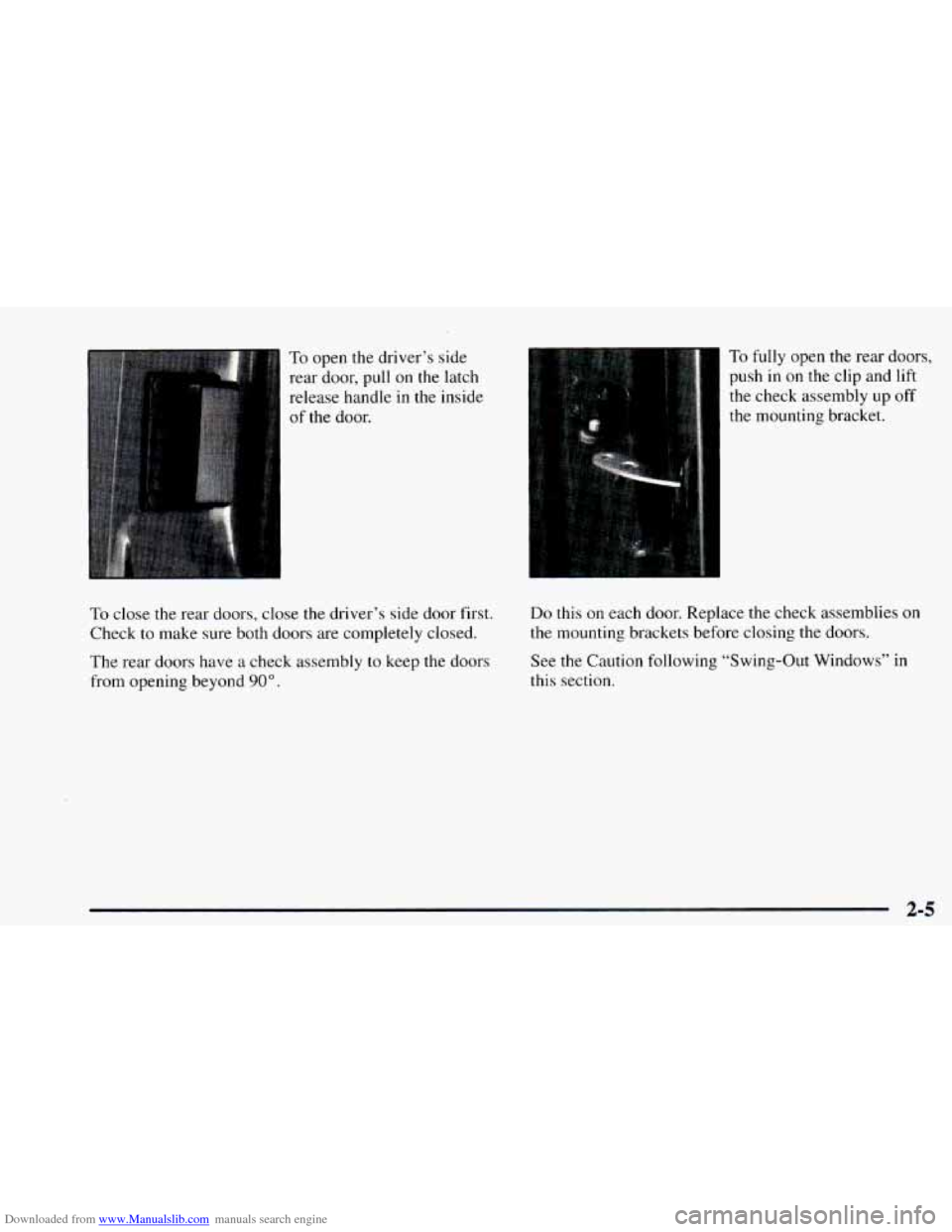

Downloaded from www.Manualslib.com manuals search engine To open the driver’s side
rear door, pull
on the latch
release handle
in the inside
of the door.
To fully open the rear doors,
push in on the clip and lift
the check assembly up
off
the mounting bracket.
To close the rear doors, close the driver’s side door first.
Check
to make sure both doors are completely closed.
The rear doors have a check assembly
to keep the doors
from opening beyond
90”.
Do this on each door. Replace the check assemblies on
the mounting brackets before closing the doors.
See the Caution following “Swing-Out Windows”
in
this section.
2-5
Page 80 of 404

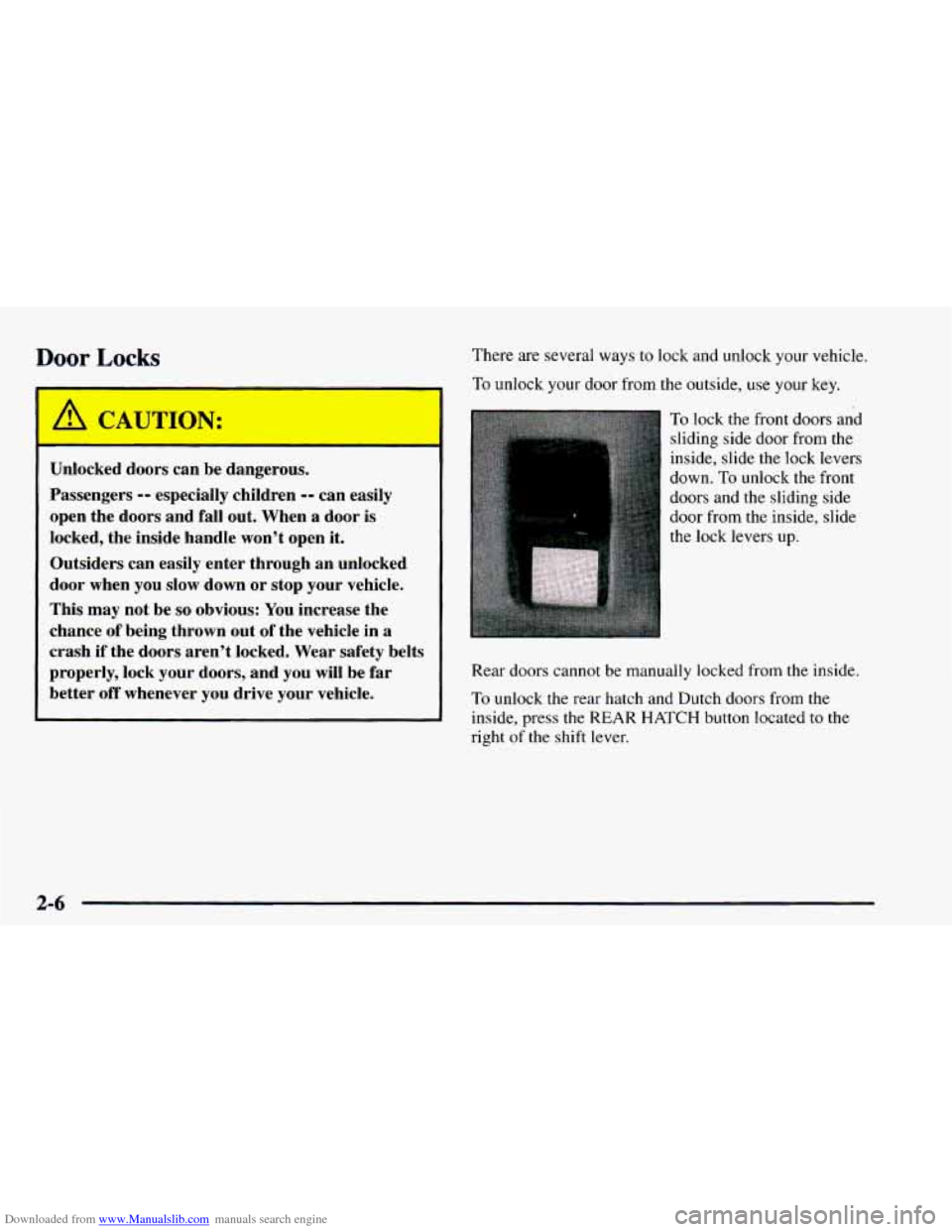

Downloaded from www.Manualslib.com manuals search engine Door Locks
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall out. When
a door is
locked, the inside handle won’t open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be
so obvious: You increase the
chance of being thrown out
of the vehicle in a
crash if the doors aren’t locked. Wear safety belts
properly, lock your doors, and you will be far
better
off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
To unlock your door from the outside, use your key.
To lock the front doors and
sliding side door from the
inside, slide the lock levers
down.
To unlock the front
doors and
the sliding side
door from the inside, slide
the lock levers up.
Rear doors cannot be manually locked from the inside.
To unlock the rear hatch and Dutch doors from the
inside, press the
REAR HATCH button located to the
right of the shift lever.
2-6
