service indicator CHEVROLET ASTRO 1998 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Malfunction Indicator Lamp (Service Engine Soon Light)
1
Your vehicle is equipped
with a computer which
monitors operation
of the
fuel, ignition and emission SERVICE
ENGINE
SOON
control systems.
This system is called OBD
I1 (On-Board
Diagnostics-Second Generation) and is intended to
assure that emissions are at acceptable levels for the life
of the vehicle, helping to produce a cleaner
environment. The SERVICE ENGINE
SOON light
comes on to indicate that there is a problem and service
is required. Malfunctions often will be indicated by the
system before any problem is apparent. This may
prevent more serious damage
to your vehicle. This
system
is also designed to assist your service technician
in correctly diagnosing any malfunction.
0
0
NOTICE:
If you keep driving your vehicle with this light
on, after a while, your emission controls may not
work
as well, your fuel economy may not be as
good and your engine may not run as smoothly.
This could lead to costly repairs that may not be
covered by your warranty.
This light should come on, as a check to show you it is
working, when the ignition is
on and the engine is not
running.
If the light doesn’t come on, have it repaired.
This light will also come
on during a malfunction in one
of two ways:
Light Flashing -- A misfire condition has been
detected.
A misfire increases vehicle emissions and
may damage the emission control system
on your
vehicle. Dealer or qualified service center diagnosis
and service may be required.
Light On Steady -- An emission control system
malfunction has been detected
on your vehicle.
Dealer or qualified service center diagnosis and
service may be required.
2-62

Downloaded from www.Manualslib.com manuals search engine 3.
4.
5.
Press and hold the TAPE AUX button for five
seconds. The tape symbol
on the display will flash
for two seconds.
Insert the scrubbing action cleaning cassette while
the tape symbol is flashing.
Eject
the cleaning cassette after the manufacturer’s
recommended cleaning time.
When the cleaning cassette has been ejected, the cut tape
detection feature is active again.
You may also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head. This type of cleaning cassette will
not
eject on its own. A non-scrubbing action cleaner may
not clean as thoroughly as the scrubbing type cleaner.
The use
of a non-scrubbing action, dry-type cleaning
cassette is not recommended.
After you clean the player, press and hold EJECT for
five seconds
to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
Cassettes are subject
to wear and the sound quality
may degrade over time. Always make sure the cassette
tape is in good condition before
you have your tape
player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen a
clean, soft cloth in a mild, neutral detergent solution and
clean it, wiping from the center
to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge
of the hole and the outer edge.
Care of Your Compact Disc Player
The use of CD lens cleaner discs is not advised, due to
the risk of contaminating the lens of the CD optics with
lubricants internal
to the CD mechanism.
Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged.
If the mast should ever become
slightly bent,
you can straighten it out by hand. If the
mast is badly bent, as
it might be by vandals, you should
replace
it.
Check every once in a while to be sure the mast is still
tightened to the fender.
3-30

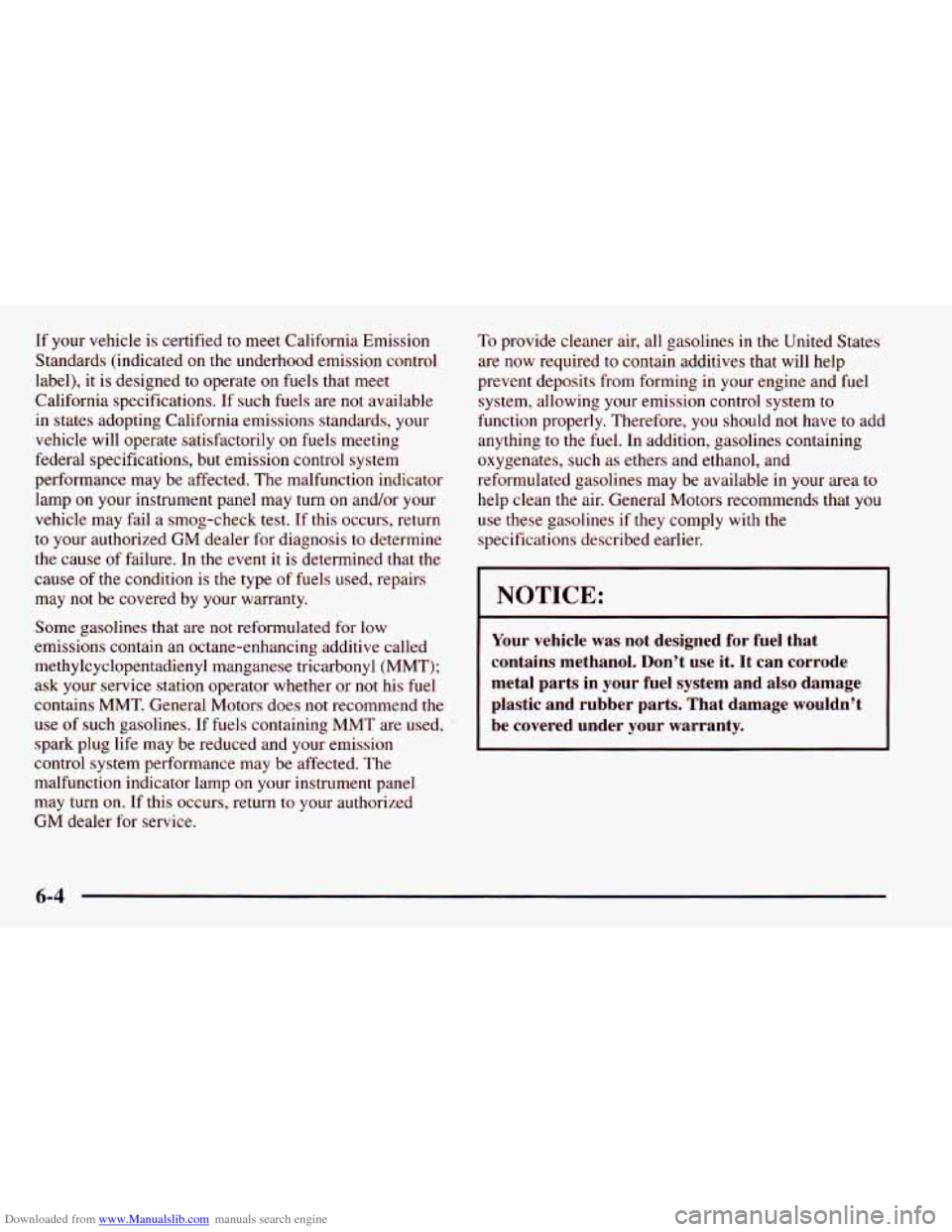

Downloaded from www.Manualslib.com manuals search engine If your vehicle is certified to meet California Emission
Standards (indicated on the underhood emission control
label), it is designed to operate on fuels that meet
California specifications.
If such fuels are not available
in states adopting California emissions standards, your
vehicle will operate satisfactorily on fuels meeting
federal specifications, but emission control system
performance may be affected. The malfunction indicator
lamp on your instrument panel may turn
on and/or your
vehicle may fail a smog-check test. If this occurs, return
to your authorized
GM dealer for diagnosis to determine
the cause of failure. In the event it
is determined that the
cause
of the condition is the type of fuels used, repairs
may not be covered by your warranty.
Some gasolines that
are not reformulated for low
emissions contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl (MMT);
ask your service station operator whether or not his fuel
contains MMT. General Motors does not recommend the
use
of such gasolines. If fuels containing MMT are used,
spark plug life may be reduced and your emission
control system performance may be affected. The
malfunction indicator lamp on your instrument panel
may turn
on. If this occurs, return to your authorized
GM dealer for service. To provide cleaner air, all
gasolines in the United States
are now required to contain additives that will help
prevent deposits from forming in your engine and fuel
system, allowing your emission control system
to
function properly. Therefore, you should not have to add
anything
to the fuel. In addition, gasolines containing
oxygenates, such as ethers and ethanol, and
reformulated gasolines may be available
in your area to
help clean the air. General Motors recommends that
you
use these gasolines if they comply with the
specifications described earlier.
NOTICE:
Your vehicle was not designed for fuel that
contains methanol. Don’t use it. It can corrode
metal parts in your fuel system and also damage
plastic and rubber parts. That damage wouldn’t
be covered under your warranty.
6-4

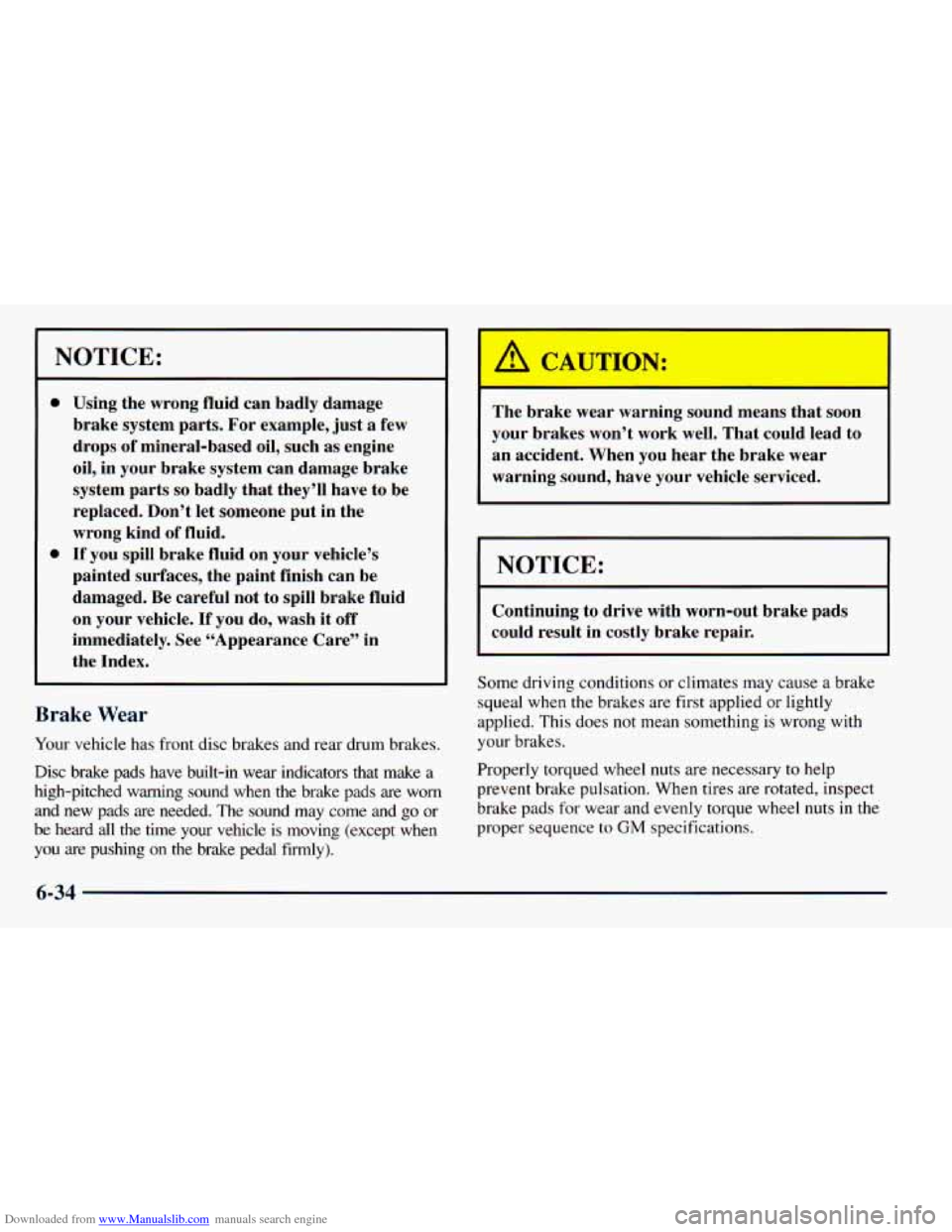

Downloaded from www.Manualslib.com manuals search engine Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops of mineral-based oil, such as engine
oil, in your brake system can damage brake
system parts
so badly that they’ll have to be
replaced. Don’t let someone put in the
wrong kind of fluid.
If
you spill brake fluid on your vehicle’s
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake fluid
on your vehicle. If you do, wash it off
immediately. See “Appearance Care” in
the Index.
Brake Wear
Your vehicle has front disc brakes and rear drum brakes.
Disc brake pads have built-in wear indicators that make a
high-pitched warning sound when the brake pads are
worn
and new pads are needed. The sound may come and go or
be heard all the time your vehicle is moving (except when
you are pushing on the brake pedal firmly).
A CAUTION:
The brake wear warning sound means that soon
your brakes won’t work well. That could lead to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
I NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.
Some driving conditions or climates
may ca---e a brake
squeal when the brakes are first applied
or llgntly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly torque wheel nuts in the
proper sequence
to GM specifications.
6-34

Downloaded from www.Manualslib.com manuals search engine High-Beam Headlamps .......................... 2-32
Highway Hypnosis
.............................. 4-20
Hill and Mountain Roads
......................... 4-21
Hitches. Trailer
................................. 4-32
Hood Checking Things Under
......................... 6-7
Prop
....................................... 6-10
Release
...................................... 6-8
Horn
......................................... 2-30
Hydroplaning
................................ 4- I6
Ignition Positions .............................. 2- 16
Ignition Transmission Lock Check
................. 7-44
Inflation, Tire
.................................. 6-43
Inside Daymight Rearview Mirror
................. 2-40
Inspections .................................... 7-45
Brakesystem
................................ 7-46
DriveAxle
.................................. 7-46
Exhaust Systems
............................. 7-45
Radiator and Heater Hose
...................... 7-45
Steering
.................................... 7-45
Suspension
.................................. 7-45
Throttle System
.............................. 7-46
Transfer Case (All-Wheel Drive)
................ 7-46
Instrument Panel
............................... 2-54
Brightness Control
............................ 2-37
Cleaning
.................................... 6-53
Cluster
..................................... 2-56
FuseBlock
.................................. 6-61
Interior Lamps
................................. 2-38
Jack, Tire
............... ............... 5-24
Jump Starting
................................... 5-3
Key Lock Cylinders Service ..................... 7-42
Keyless Entry System
............................ 2-7
Keys
.......................................... 2-2
Labels CertificationiTire
............................. 4-26
Service Parts Identification
..................... 6-59
Tire-Loading Information
....................... 4-26
Vehicle Identification Number
................... 6-59
Dome
...................................... 2-39
Exterior
.................................... 2-37
Interior
..................................... 2-38
OnReminder
................................ 2-37
Latches. Seatback
................................ 1-5
Leaving Your Vehicle
............................. 2-7
Leaving Your Vehicle
with the Engine Running ....... 2-25
Lighter
....................................... 2-48
Lights
Air Bag Readiness ....................... 1-27. 2-58
Anti-Lock Brake System Warning
............ 2-61. 4-7
Brake System Warning
......................... 2-60
Charging System
............................. 2-59
CheckGages
................................ 2-66
Daytime Running Lamps Indicator
............... 2-66
Safety Belt Reminder
..................... 1 - 13. 2-58
Security
.................................... 2-65
Service Engine Soon
.......................... 2-62
Loading Your Vehicle
........................... 4-26
Locks Cylinders
................................... 7-42
Door
........................................ 2-6
Ignition Transmission Lock Check
............... 7-44
Lamps
9-5

Downloaded from www.Manualslib.com manuals search engine Locks (Continued) Key Lock Cylinder Service
..................... 7-42
PowerDoor
.................................. 2-6
Sliding Door Child Security
..................... 2- 1 1
Lubricants and Fluids ............................ 7-47
Lubrication Service. Body
........................ 7-42
Luggagecarrier
................................ 2-47
Lumbar Controls
............................ 1-3
Maintenance. Normal Replacement Parts
........... 6-69
Maintenance Record
............................ 7-49
Maintenance Schedule
............................ 7- I
Long Trip/Highway ........................... 7-29
Long Trip/Highway Definition
................... 7-6
Long Trip/Highway Intervals
..................... 7-7
Owner Checks and Services
..................... 7-41
Periodic Maintenance Inspections
................ 7-45
Recommended Fluids and Lubricants
............. 7-47
Scheduled Maintenance Services
.................. 7-4
Short Trip/City
................................ 7-8
Short Trip/City Definition
....................... 7-5
Short Trip/City Intervals ........................ 7-5
Maintenance. Underbody
......................... 6-57
Maintenance When Trailer Towing
................. 4-36
Malfunction Indicator Lamp
...................... 2-62
ManualFrontSeat
............................... 1-2
Manual Lumbar Support
.......................... 1-3
Methanol ...................................... 6-4
Mirrors
....................................... 2-40
Convex Outside
.............................. 2-41
Inside Day/Night Rearview
..................... 2-40
Outside
..................................... 2-40
Visor Vanity
................................. 2-49 MMT
......................................... 6-4
Model Reference
................................. vi
Mountain Roads
................................ 4-21
Net. Convenience
.............. ........ 2-47
Neutral
....................................... 2-20
New Vehicle Break-In
........................... 2-15
Nightvision
................................... 4-14
Normal Maintenance Replacement Parts
............. 6-69
Odometer
.................................... 2-57
Odometer. Trip
................................. 2-57
Off-Road Recovery
............................. 4-10
Oil. Engine
.................................... 6-10
Opener. Garage Door
............................ 2-44
Outside Mirror
................................. 2-40
Overhead Console
.............................. 2-43
Overheating Engine
............................. 5-13
Owner Checks and Services
....................... 7-41
Owner Publications. Ordering
.............. 8- 11. 8- 12
Paint Spotting. Chemical ........................ 6-57
Park
......................................... 2-19
Shifting Into
................................. 2-23
Shifting Out of
............................... 2-26
Parking AtNight
.................................... 2-14
Brake
...................................... 2-22
Brake Mechanism Check
....................... 7-44
Lots
....................................... 2-14
With
a Trailer ................................ 4-36
Over
Things That
Burn ........................ 2-26
9-6
