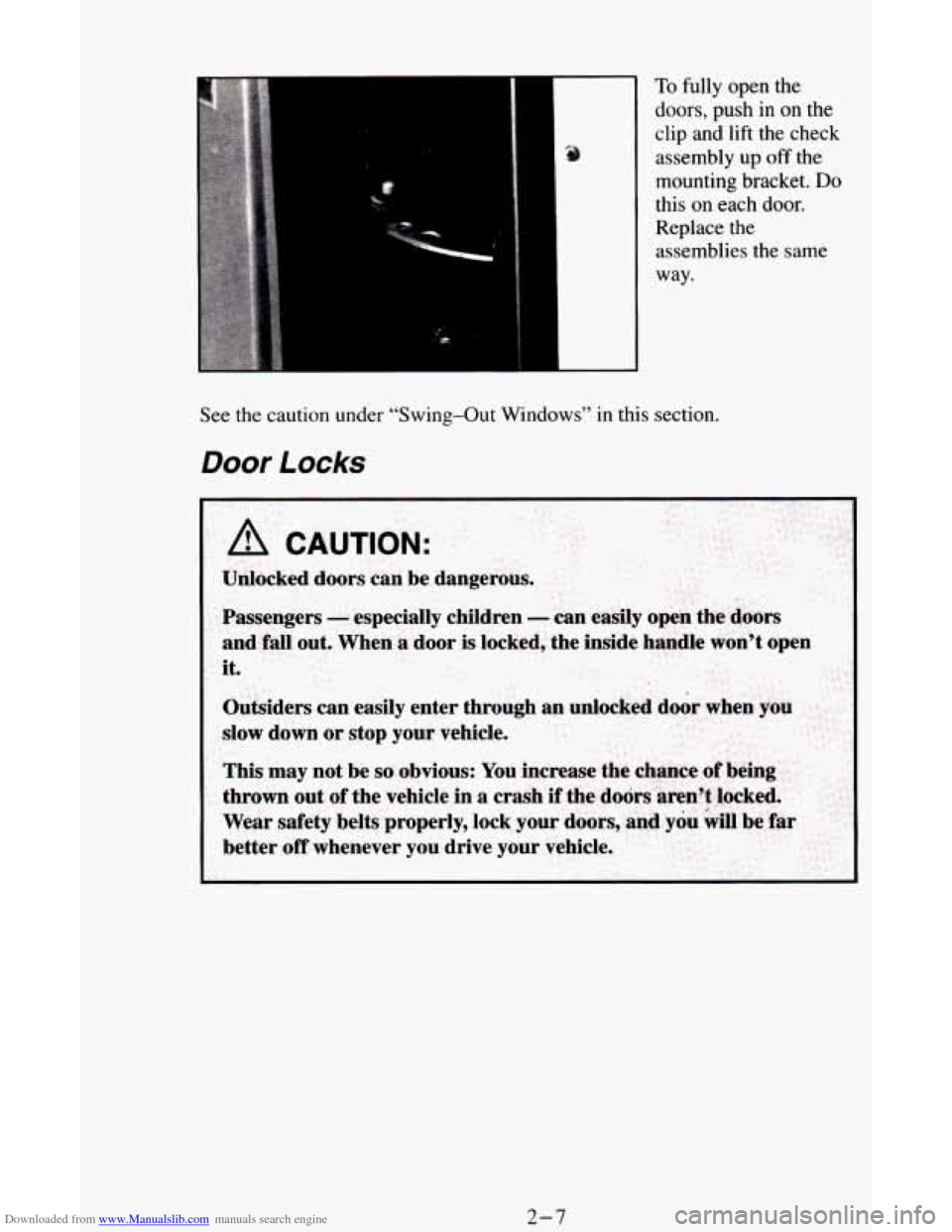

To fully open the
doors, push in on the
clip and lift the check
assembly up off the
mounting bracket.
Do
this on each door.
Replace the assemblies
the same
way.
See the caution under “Swing-Out Windows” in this section.
Door Locks
A CAUTION:
Unlocked doors can be dangerous.
2-7
Page 62 of 342
Downloaded from www.Manualslib.com manuals search engine There are several ways to lock and unlock your vehicle:
From
the outside: Use
your door key.
From the inside:
To
lock front doors and sliding side door, slide
the lock levers down.
To unlock the front
doors and the sliding
side door from the
inside: Slide the lock
levers up.
Rear doors cannot be manually locked from the inside.
To unlock the rear hatch and Dutch doors from the inside: Push the top of
the
HATCH REL switch.
2-8
Page 63 of 342
Downloaded from www.Manualslib.com manuals search engine Rear Hatch and Dutch Doors Release
If you have this option, your vehicle must be in either PARK (P) or
NEUTRAL
(N) to release the hatch and unlock the Dutch doors. If your
battery is dead, the hatch and doors will not open, even from the outside
with a key.
To release the hatch
and unlock the doors
from the inside of the
vehicle, press the
HATCH REL switch
on the instrument
panel. It is located on
the driver’s side of the
steering column. The
hatch will release with
or without the key in
the ignition.
Then, pull up on the hatch handle and open the doors.
To release the hatch using the optional Keyless Entry hand held transmitter,
see “Keyless Entry System” in the Index.
To release the hatch
and unlock the doors
from the outside of the
vehicle, put the key in
the lock and turn
clockwise. Then, pull
up on the hatch and
open the right rear
door first. Grasp the
handle and pull the
door open.
The hatch and doors will automatically lock when
the hatch is shut.
If the hatch is partially closed, the rear doors will lock and you will need to
use the key or HATCH
REL switch to unlock them.
Also, see the Caution under “Swing Out Windows”, located in this section.
2-9
Page 64 of 342
Downloaded from www.Manualslib.com manuals search engine Power Door Locks
If your vehicle has
power door locks,
push the power door
lock switch to lock or
unlock all the doors at
once.
The power door lock switch will not lock or unlock the rear hatch and Dutch
doors.
You must use the HATCH REL switch. See “Rear Hatch and Dutch
Doors Release’’ in this section.
Every vehicle with power door locks has
a pulse lock system. A pulse lock
system works like this:
If the sliding door is open and you push the power door lock switch, the
sliding door will not lock immediately. After
you close the door, the system
comes on and, in about five seconds, locks the sliding door.
All models have overriding door locks. When
a door is locked, the door
handle will not work the latch. This will help stop a door from being
accidentally opened. However, power door locks do
not affect the operation
of the hatch.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your door and set the
locks from inside. Then get
out and close the door.
Keyless Entry System
If your vehicle has this option, you can lock and unlock your doors or hatch
from up to
30 feet (9 m) away using the key chain transmitter supplied with
your vehicle.
Your Keyless Entry System operates on a radio frequency subject to Federal
Communications Commission (FCC) Rules.
2- 10
Page 65 of 342
Downloaded from www.Manualslib.com manuals search engine This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Should interference to this system occur, try this:
0 Check to determine if battery replacement is necessary. See the
instructions on battery replacement.
has a maximum range.
Check the distance. You may be too far from your vehicle. This product
Check the location. Other vehicles or objects may be blocking the
See your GM dealer or a qualified technician Tor service.
signal.
Changes or modifications to this system by other than an authorized service
facility could void authorization to use this equipment.
Operation
When you press UNLOCK, the driver’s door will unlock automatically. If
you press
UNLOCK again within five seconds, all doors will unlock. All
doors will lock when
DOOR is pressed. Pressing REAR will unlock the
hatch.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another transmitter from
unlocking your vehicle. If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring any remaining
transmitters with you when you go to your dealer. When the dealer matches
the replacement transmitter to your vehicle, the remaining transmitters must
also be matched. Once the new transmitter is coded, the lost transmitter will
not unlock your vehicle.
You can match a transmitter to as many different vehicles as
you own,
provided they are equipped with
exactly the same model system. (General
Motors offers several different models
of these systems on their vehicles.)
Each vehicle can have only two transmitters matched
to it.
aee your dealer to match transmitters to another vehicle.
2-11
Page 66 of 342

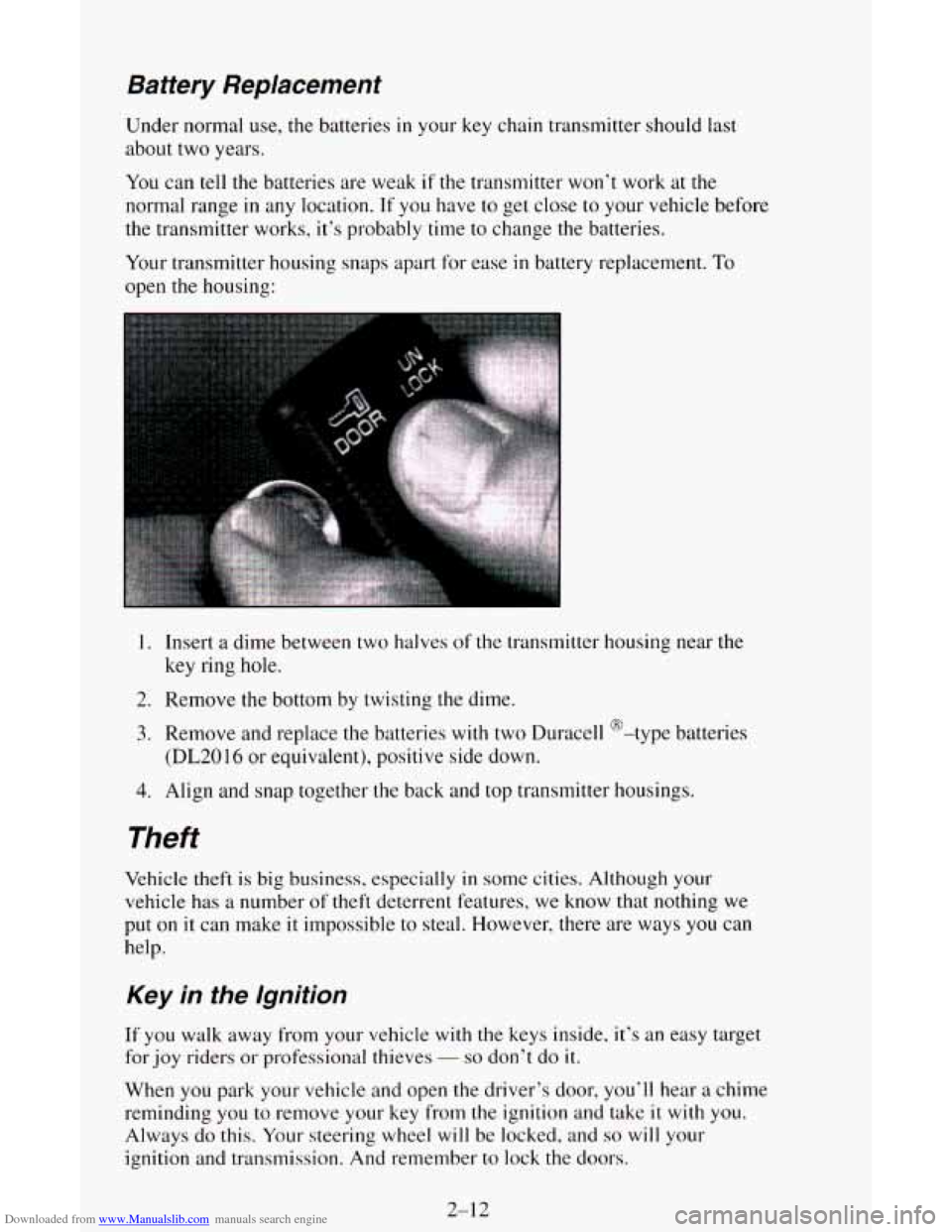

Downloaded from www.Manualslib.com manuals search engine Battery Replacement
Under norlnal use, the batteries in your key chain transmitter should last
about two years.
You can
tell the batteries are weak if the transmitter won’t work at the
normal range in any location. If you have to get close to your vehicle before
the transmitter works,
it’s probably time to change the batteries.
Your transmitter housing snaps apart for ease
in battery replacement. To
open the housing:
1. Insert a dime between two halves of the transmitter housing near the
key ring
hole.
2. Remove the bottom by twisting the dime.
3. Remove and replace the batteries with two Duracell @-type batteries
(DL2016 or equivalent), positive side down.
4. Align and snap together the back and top transmitter housings.
Theft
Vehicle theft is big business, especially in some cities. Although your
vehicle has
a number of theft deterrent features, we know that nothing we
put on
it can make it impossible to steal. However, there are ways you can
help.
Key in fhe lgnition
If you walk away from your vehicle with the keys inside, it’s an easy target
for joy riders or professional thieves
- so don’t do it.
When you park your vehicle and open the driver’s door, you’ll hear a chime
reminding
you to remove your key from the ignition and take it with you.
Always
do this. Your steering wheel will be locked, and so will your
ignition and transmission. And remember to lock the doors.
2-12
Page 67 of 342

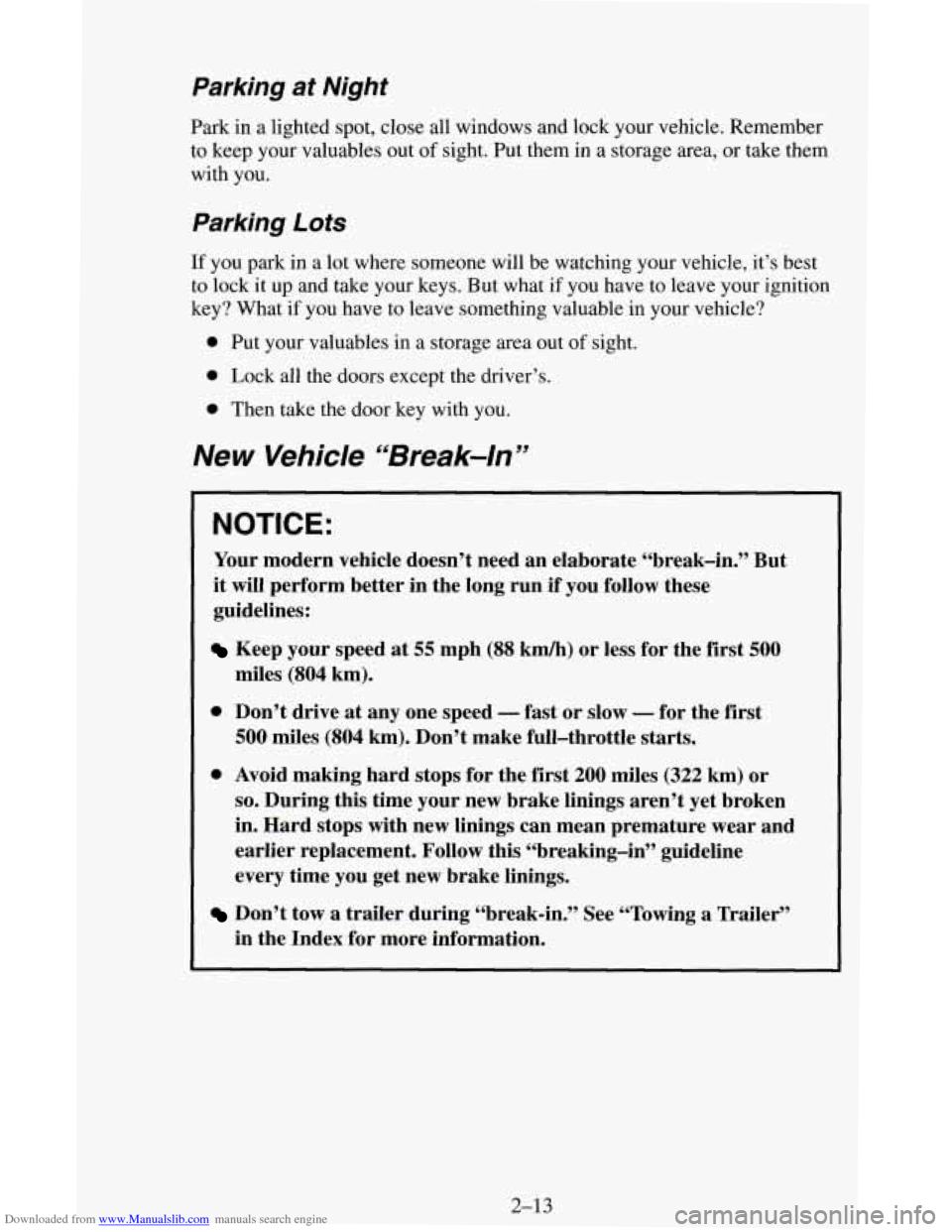

Downloaded from www.Manualslib.com manuals search engine Parking at Night
Parking
Lots
If you park in a lot where someone will be watching your vehicle, it’s best
to lock it up and take your keys. But what
if you have to leave your ignition
key? What if you have to leave something valuable in your vehicle?
0 Put your valuables in a storage area out of sight.
0 Lock all the doors except the driver’s.
0 Then take the door key with you.
New Vehicle “Break-In”
NOTICE:
Your modern vehicle doesn’t need an elaborate “break-in.” But
it will perform better in the long run if you follow these
guidelines:
Keep your speed at 55 mph (88 kmh) or less for the first 500
miles (804 km).
0 Don’t drive at any one speed - fast or slow - for the first
500 miles (804 km). Don’t make full-throttle starts.
0 Avoid making hard stops for the first 200 miles (322 km) or
so. During this time your new brake linings aren’t yet broken
in. Hard stops with new linings can mean premature wear and
earlier replacement. Follow this “breaking-in” guideline
every time you get new brake linings.
Don’t tow a trailer during “break-in.” See “Towing a Trailer”
in the Index for more information.
2-13
Page 68 of 342

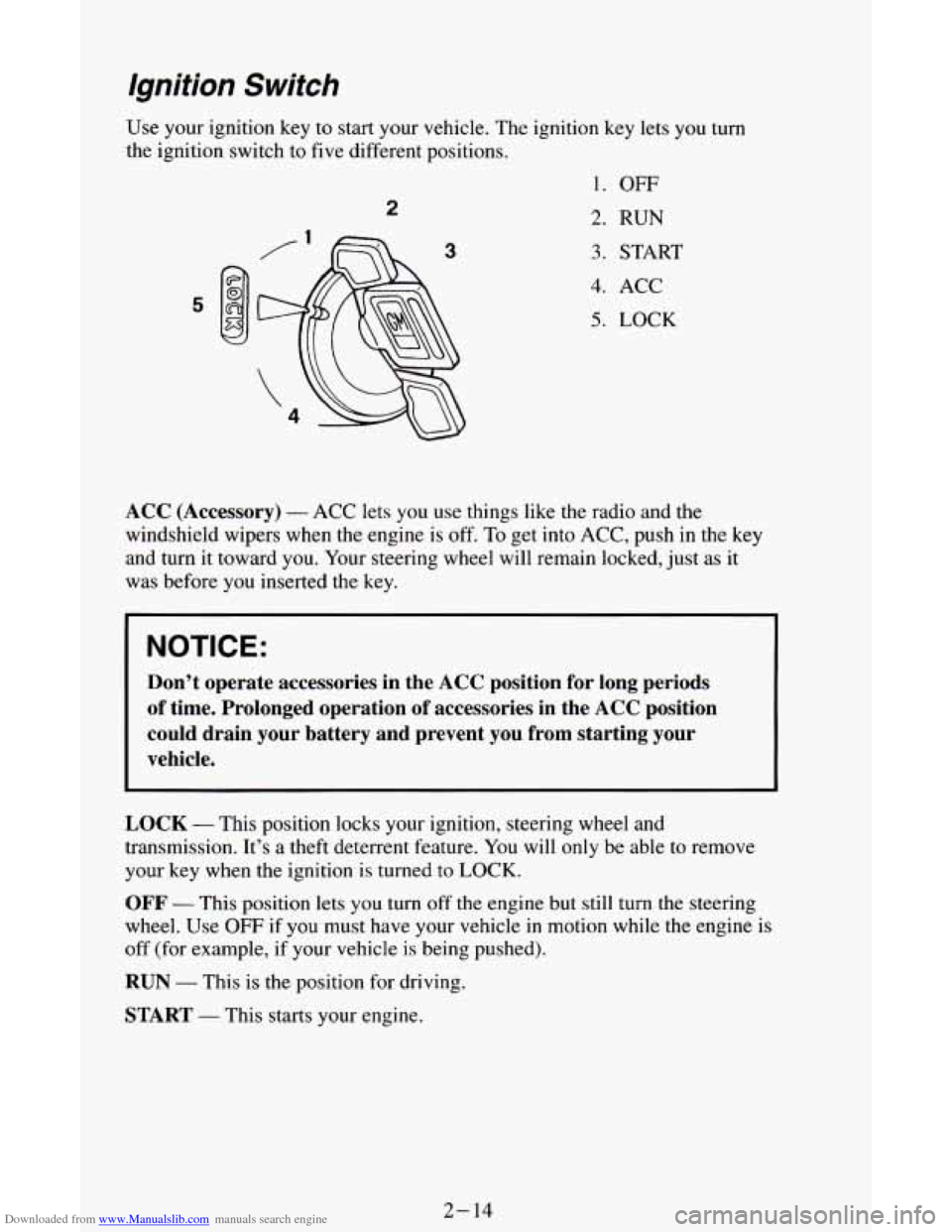

Downloaded from www.Manualslib.com manuals search engine Ignition Switch
2
Use your ignition key to start your vehicle. The ignition key lets you turn
the ignition switch to five different positions.
1. OFF
2. RUN
3. START
4. ACC
5. LOCK 5
ACC (Accessory) - ACC lets you use things like the radio and the
windshield wipers when the engine is
off. To get into ACC, push in the key
and turn it toward you. Your steering wheel will remain locked, just
as it
was before you inserted
the key.
NOTICE:
Don’t operate accessories in the ACC position for long perio\
ds
of time. Prolonged operation of accessories in the ACC position
could drain your battery and prevent you from starting your
vehicle.
LOCK
- This position locks your ignition, steering wheel and
transmission. It’s
a theft deterrent feature. You will only be able to remove
your key when the ignition is turned
to LOCK.
OFF - This position lets you turn off the engine but still turn the steering
wheel. Use
OFF if you must have your vehicle in motion while the engine is
off (for example, if your vehicle is being pushed).
RUN - This is the position for driving.
START - This starts your engine.
2- 14
Page 69 of 342

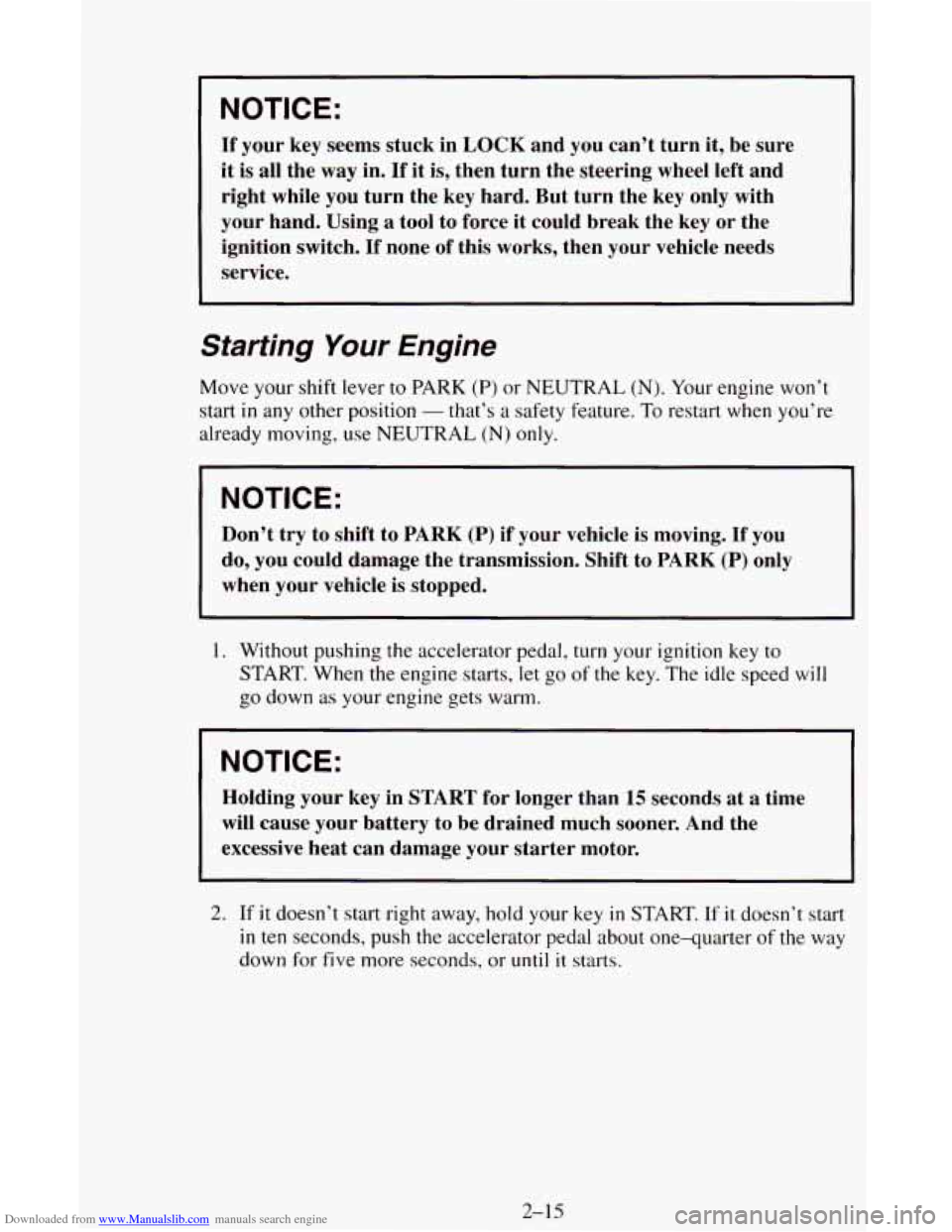

Downloaded from www.Manualslib.com manuals search engine NOTICE:
If your key seems stuck in LOCK and you can’t turn it, be sure
it is
all the way in. If it is, then turn the steering wheel left and
right while you turn the key hard. But turn the key only with
your hand. Using
a tool to force it could break the key or the
ignition switch.
If none of this works, then your vehicle needs
service.
Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t
start
in any other position - that’s a safety feature. To restart when you’re
already moving, use
NEUTRAL (N) only.
NOTICE:
Don’t try to shift to PARK (P) if your vehicle is moving. If you
do, you could damage the transmission. Shift to PARK
(P) only
when your vehicle is stopped.
1. Without pushing the accelerator pedal, turn your ignition key to
START. When the engine starts, let go of the key. The idle speed will
go down
as your engine gets warm.
NOTICE:
Holding your key in START for longer than 15 seconds at a time
will cause your battery
to be drained much sooner. And the
excessive heat can damage your starter motor.
2. If it doesn’t start right away, hold your key in START. If it doesn’t start
in ten seconds, push the accelerator pedal about one-quarter of the way
down
for five more seconds, or until it starts.
2-15
Page 70 of 342

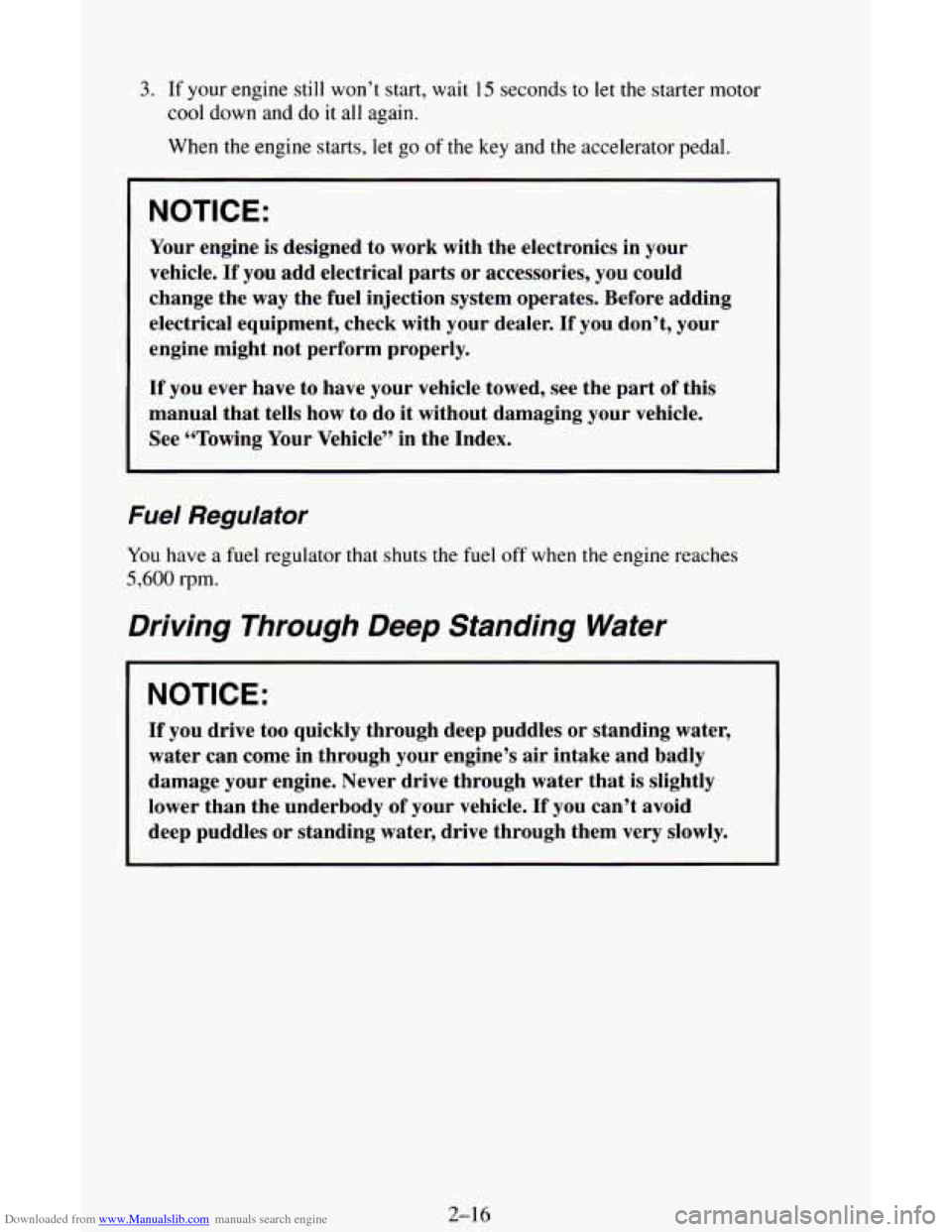

Downloaded from www.Manualslib.com manuals search engine 3. If your engine still won’t start, wait 15 seconds to let the starter motor
cool down and do it all again.
When the engine starts,
let go of the key and the accelerator pedal.
NOTICE:
Your engine is designed to work with the electronics in your
vehicle.
If you add electrical parts or accessories, you could
change the
way the fuel injection system operates. Before adding
electrical equipment, check with your dealer. If you don’t, your
engine might not perform properly.
If you ever have to have your vehicle towed, see the part of this
manual that tells how to do it without damaging your vehicle.
See “Towing Your Vehicle” in the Index.
Fuel Regulator
You have a fuel regulator that shuts the fuel off when the engine reaches
5,600 rpm.
Driving Through Deep Standing Water
NOTICE:
If you drive too quickly through deep puddles or standing water,
water can come in through your engine’s air intake and badly
damage your engine. Never drive through water that is slightly \
lower than the underbody
of your vehicle. If you can’t avoid
deep puddles or standing water, drive through them very slowly.
2-16
