CHEVROLET AVALANCHE 2007 2.G Owners Manual

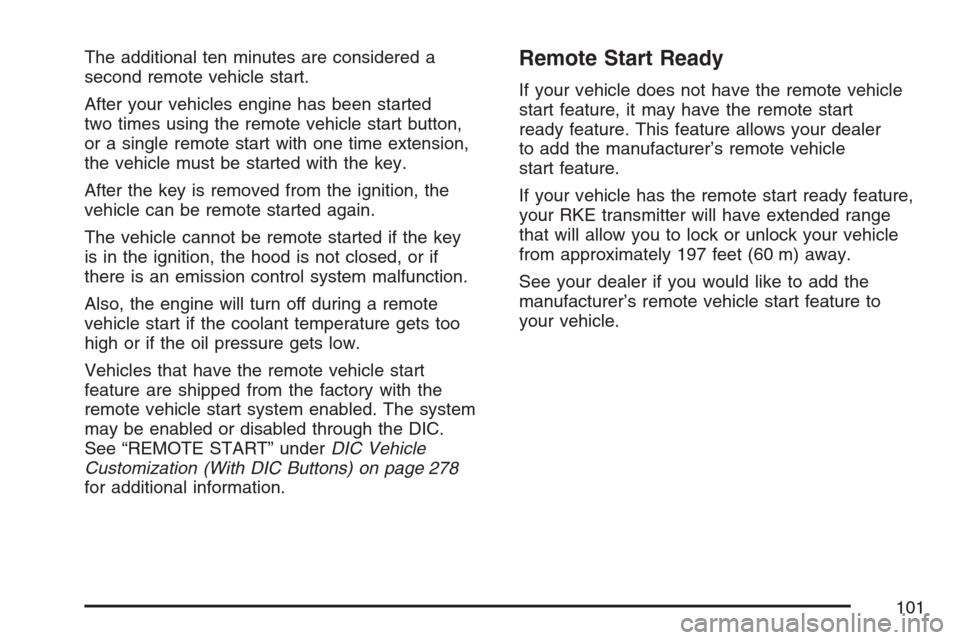

The additional ten minutes are considered a
second remote vehicle start.
After your vehicles engine has been started
two times using the remote vehicle start button,
or a single remote start with one time extension,
the vehicle must be started with the key.
After the key is removed from the ignition, the
vehicle can be remote started again.
The vehicle cannot be remote started if the key
is in the ignition, the hood is not closed, or if
there is an emission control system malfunction.
Also, the engine will turn off during a remote
vehicle start if the coolant temperature gets too
high or if the oil pressure gets low.
Vehicles that have the remote vehicle start
feature are shipped from the factory with the
remote vehicle start system enabled. The system
may be enabled or disabled through the DIC.
See “REMOTE START” underDIC Vehicle
Customization (With DIC Buttons) on page 278
for additional information.Remote Start Ready
If your vehicle does not have the remote vehicle
start feature, it may have the remote start
ready feature. This feature allows your dealer
to add the manufacturer’s remote vehicle
start feature.
If your vehicle has the remote start ready feature,
your RKE transmitter will have extended range
that will allow you to lock or unlock your vehicle
from approximately 197 feet (60 m) away.
See your dealer if you would like to add the
manufacturer’s remote vehicle start feature to
your vehicle.
101

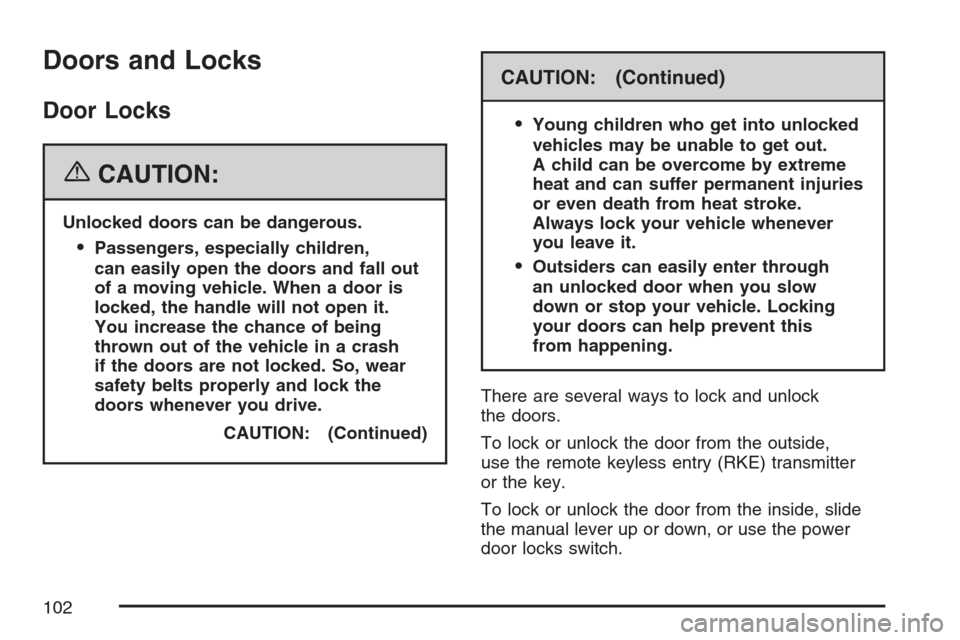

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children,
can easily open the doors and fall out
of a moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash
if the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through
an unlocked door when you slow
down or stop your vehicle. Locking
your doors can help prevent this
from happening.
There are several ways to lock and unlock
the doors.
To lock or unlock the door from the outside,
use the remote keyless entry (RKE) transmitter
or the key.
To lock or unlock the door from the inside, slide
the manual lever up or down, or use the power
door locks switch.
102

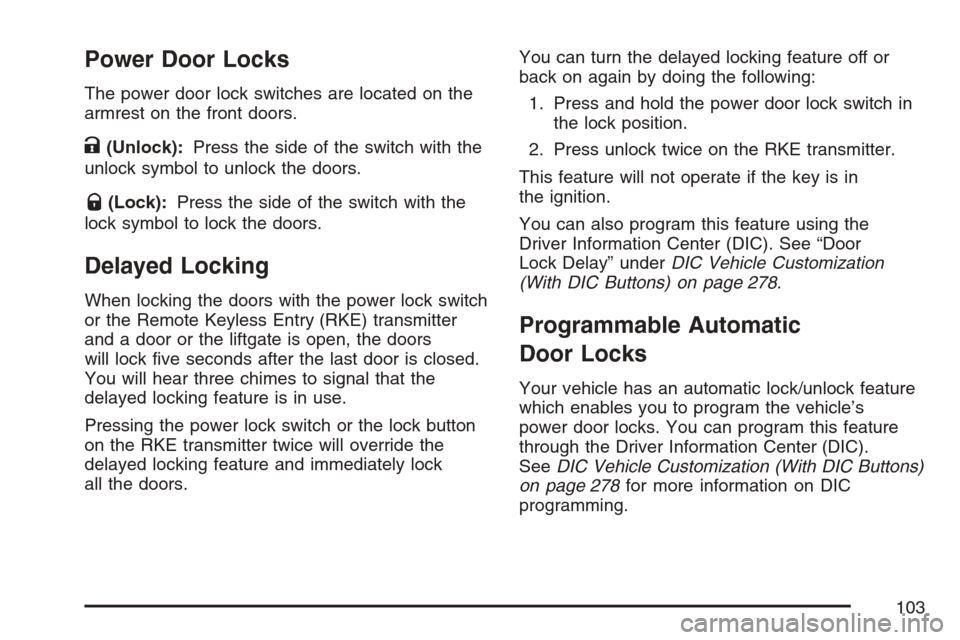

Power Door Locks
The power door lock switches are located on the
armrest on the front doors.
K(Unlock):Press the side of the switch with the
unlock symbol to unlock the doors.
Q(Lock):Press the side of the switch with the
lock symbol to lock the doors.
Delayed Locking
When locking the doors with the power lock switch
or the Remote Keyless Entry (RKE) transmitter
and a door or the liftgate is open, the doors
will lock ve seconds after the last door is closed.
You will hear three chimes to signal that the
delayed locking feature is in use.
Pressing the power lock switch or the lock button
on the RKE transmitter twice will override the
delayed locking feature and immediately lock
all the doors.You can turn the delayed locking feature off or
back on again by doing the following:
1. Press and hold the power door lock switch in
the lock position.
2. Press unlock twice on the RKE transmitter.
This feature will not operate if the key is in
the ignition.
You can also program this feature using the
Driver Information Center (DIC). See “Door
Lock Delay” underDIC Vehicle Customization
(With DIC Buttons) on page 278.
Programmable Automatic
Door Locks
Your vehicle has an automatic lock/unlock feature
which enables you to program the vehicle’s
power door locks. You can program this feature
through the Driver Information Center (DIC).
SeeDIC Vehicle Customization (With DIC Buttons)
on page 278for more information on DIC
programming.
103

Rear Door Security Locks
Your vehicle has rear door security locks.
These prevent passengers from opening the
rear doors from the inside.
The rear door security
locks are located on
the inside edge of
each rear door. You
must open the rear
doors to access them.
The label showing
lock and unlock
positions is located
near the lock.
To set the locks, do the following:
1. Insert the key into the security lock slot
and turn it so the slot is in the horizontal
position.
2. Close the door.When you want to open a rear door when the
security lock is on, do the following:
1. Unlock the door using the remote keyless
entry transmitter, if the vehicle has one,
the power door lock switch, or by lifting
the rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the
following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot
and turn it so the slot is in the vertical position.
Lockout Protection
This feature protects you from locking your key
in the vehicle when the key is in the ignition and
a door is open.
If the power lock switch is pressed when a door
is open and the key is in the ignition, all of
the doors will lock and then the driver’s door
will unlock.Security Lock Label
shown
104

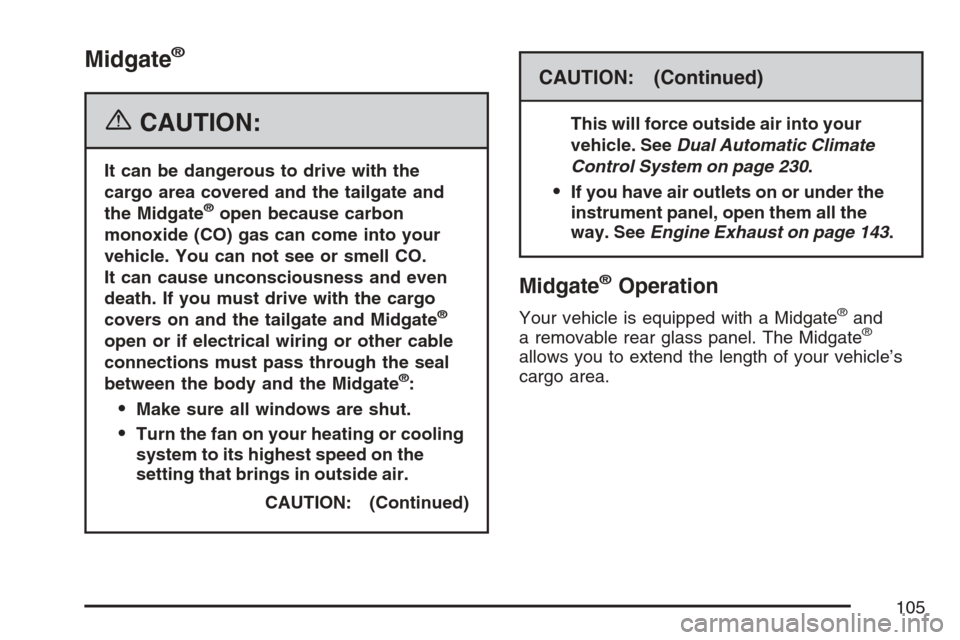

Midgate®
{CAUTION:
It can be dangerous to drive with the
cargo area covered and the tailgate and
the Midgate
®open because carbon
monoxide (CO) gas can come into your
vehicle. You can not see or smell CO.
It can cause unconsciousness and even
death. If you must drive with the cargo
covers on and the tailgate and Midgate
®
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the Midgate
®:
Make sure all windows are shut.
Turn the fan on your heating or cooling
system to its highest speed on the
setting that brings in outside air.
CAUTION: (Continued)
CAUTION: (Continued)
This will force outside air into your
vehicle. SeeDual Automatic Climate
Control System on page 230.
If you have air outlets on or under the
instrument panel, open them all the
way. SeeEngine Exhaust on page 143.
Midgate®Operation
Your vehicle is equipped with a Midgate®and
a removable rear glass panel. The Midgate®
allows you to extend the length of your vehicle’s
cargo area.
105

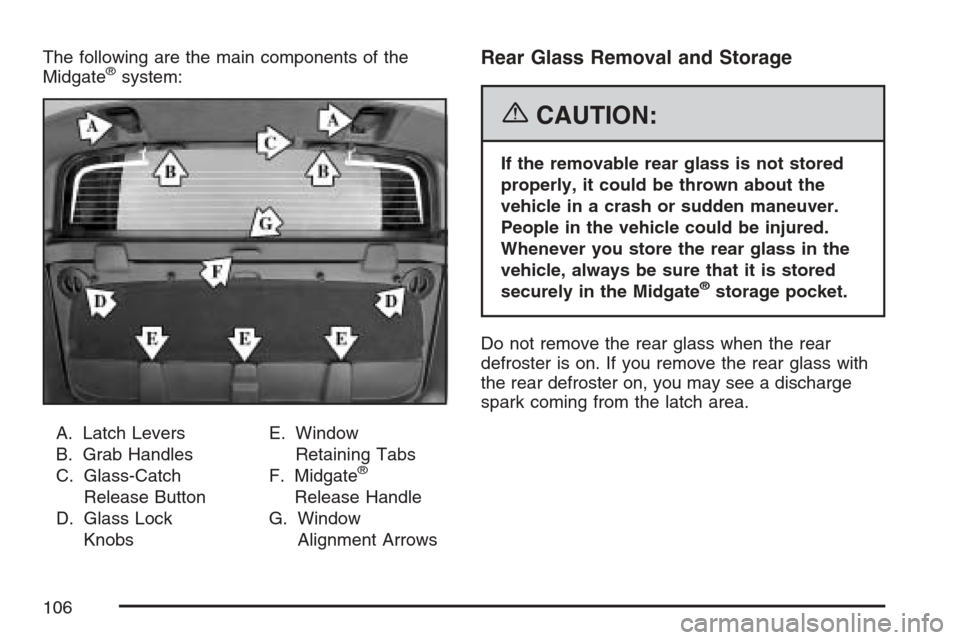

The following are the main components of the
Midgate®system:
A. Latch Levers
B. Grab Handles
C. Glass-Catch
Release Button
D. Glass Lock
KnobsE. Window
Retaining Tabs
F. Midgate
®
Release Handle
G. Window
Alignment Arrows
Rear Glass Removal and Storage
{CAUTION:
If the removable rear glass is not stored
properly, it could be thrown about the
vehicle in a crash or sudden maneuver.
People in the vehicle could be injured.
Whenever you store the rear glass in the
vehicle, always be sure that it is stored
securely in the Midgate
®storage pocket.
Do not remove the rear glass when the rear
defroster is on. If you remove the rear glass with
the rear defroster on, you may see a discharge
spark coming from the latch area.
106

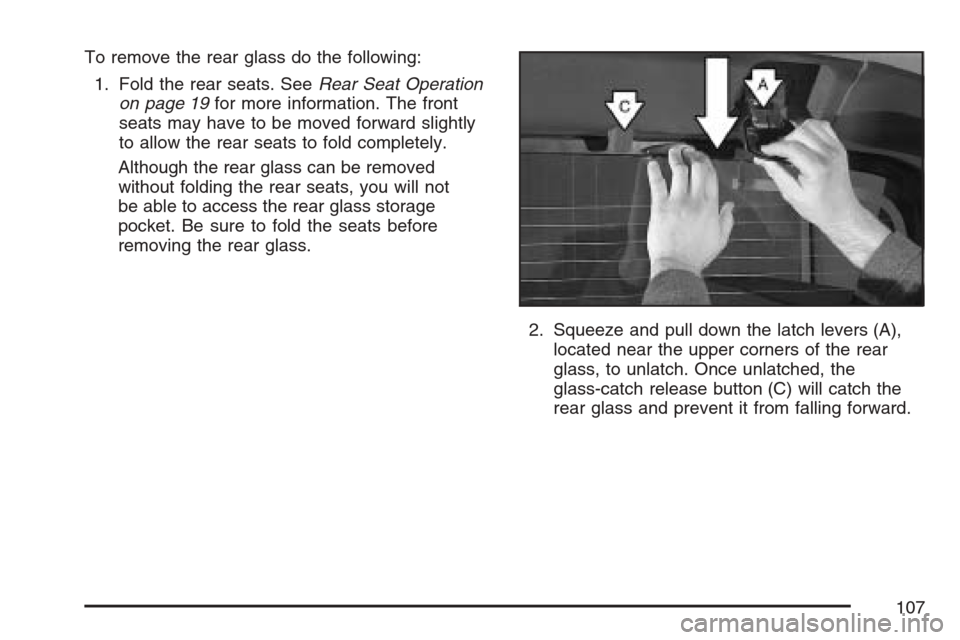

To remove the rear glass do the following:
1. Fold the rear seats. SeeRear Seat Operation
on page 19for more information. The front
seats may have to be moved forward slightly
to allow the rear seats to fold completely.
Although the rear glass can be removed
without folding the rear seats, you will not
be able to access the rear glass storage
pocket. Be sure to fold the seats before
removing the rear glass.
2. Squeeze and pull down the latch levers (A),
located near the upper corners of the rear
glass, to unlatch. Once unlatched, the
glass-catch release button (C) will catch the
rear glass and prevent it from falling forward.
107

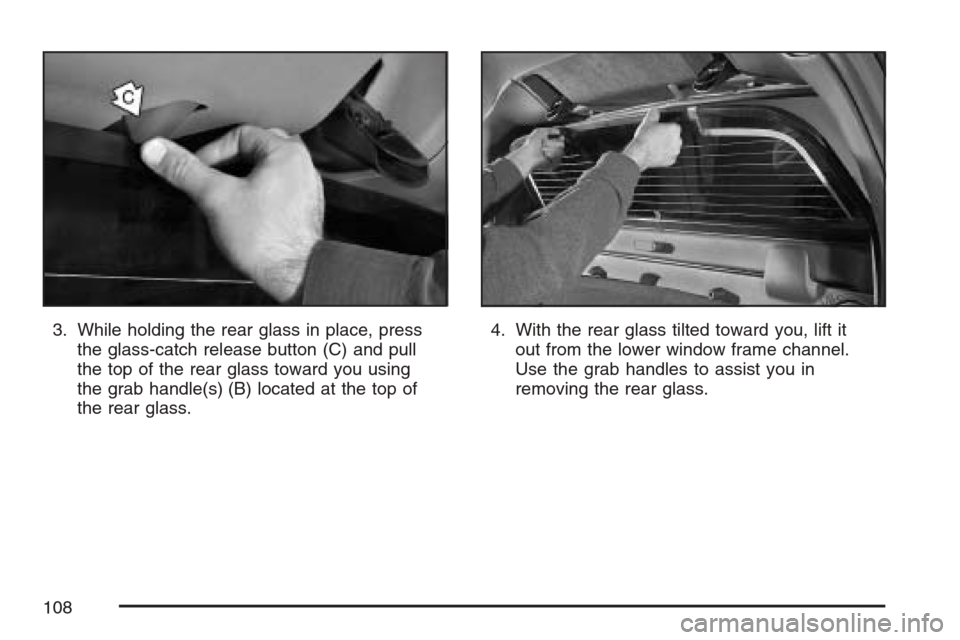

3. While holding the rear glass in place, press
the glass-catch release button (C) and pull
the top of the rear glass toward you using
the grab handle(s) (B) located at the top of
the rear glass.4. With the rear glass tilted toward you, lift it
out from the lower window frame channel.
Use the grab handles to assist you in
removing the rear glass.
108

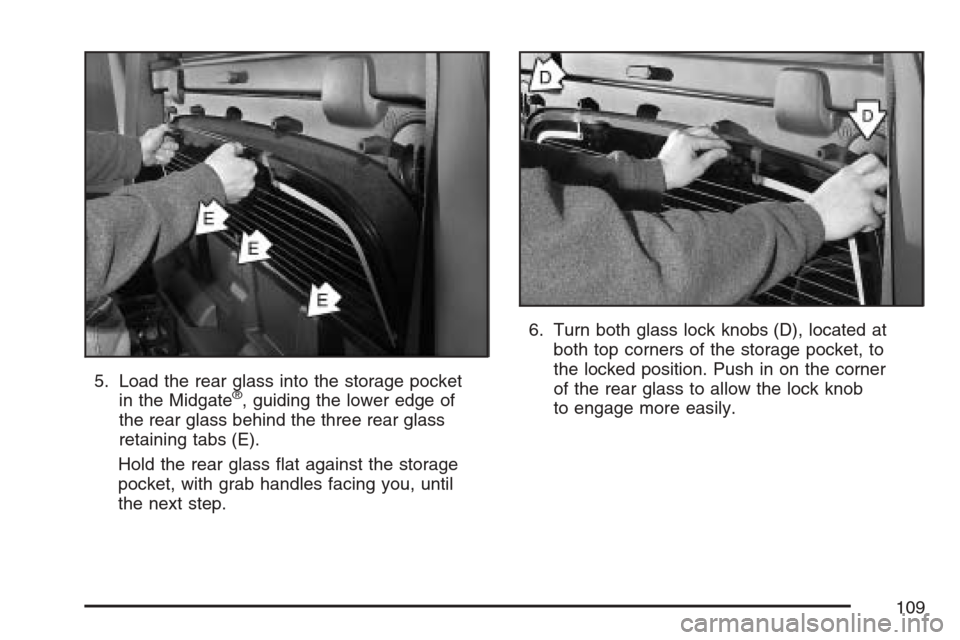

5. Load the rear glass into the storage pocket
in the Midgate®, guiding the lower edge of
the rear glass behind the three rear glass
retaining tabs (E).
Hold the rear glass at against the storage
pocket, with grab handles facing you, until
the next step.6. Turn both glass lock knobs (D), located at
both top corners of the storage pocket, to
the locked position. Push in on the corner
of the rear glass to allow the lock knob
to engage more easily.
109

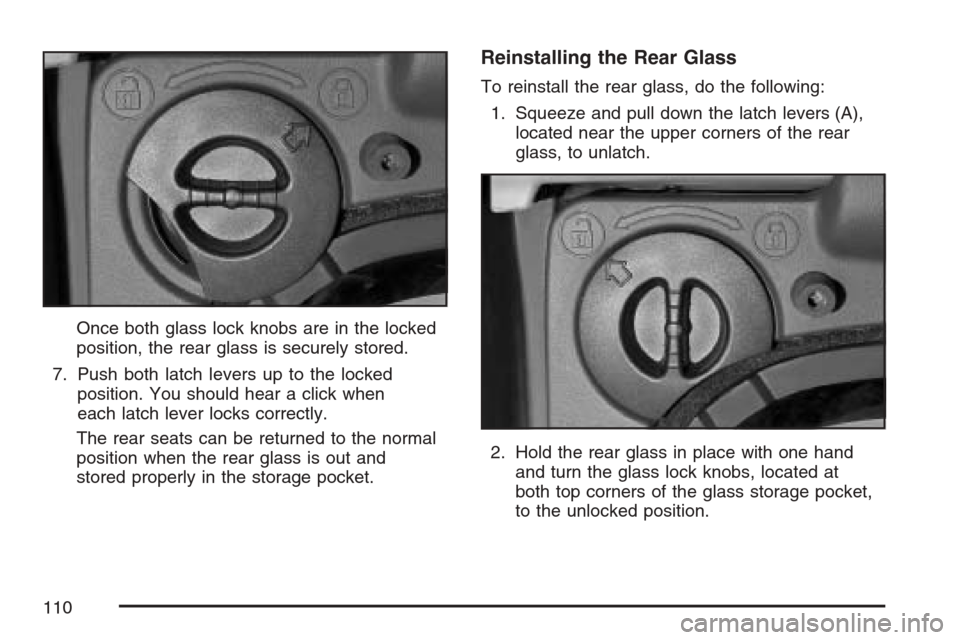

Once both glass lock knobs are in the locked
position, the rear glass is securely stored.
7. Push both latch levers up to the locked
position. You should hear a click when
each latch lever locks correctly.
The rear seats can be returned to the normal
position when the rear glass is out and
stored properly in the storage pocket.
Reinstalling the Rear Glass
To reinstall the rear glass, do the following:
1. Squeeze and pull down the latch levers (A),
located near the upper corners of the rear
glass, to unlatch.
2. Hold the rear glass in place with one hand
and turn the glass lock knobs, located at
both top corners of the glass storage pocket,
to the unlocked position.
110
