CHEVROLET AVEO 2002 Service Repair Manual

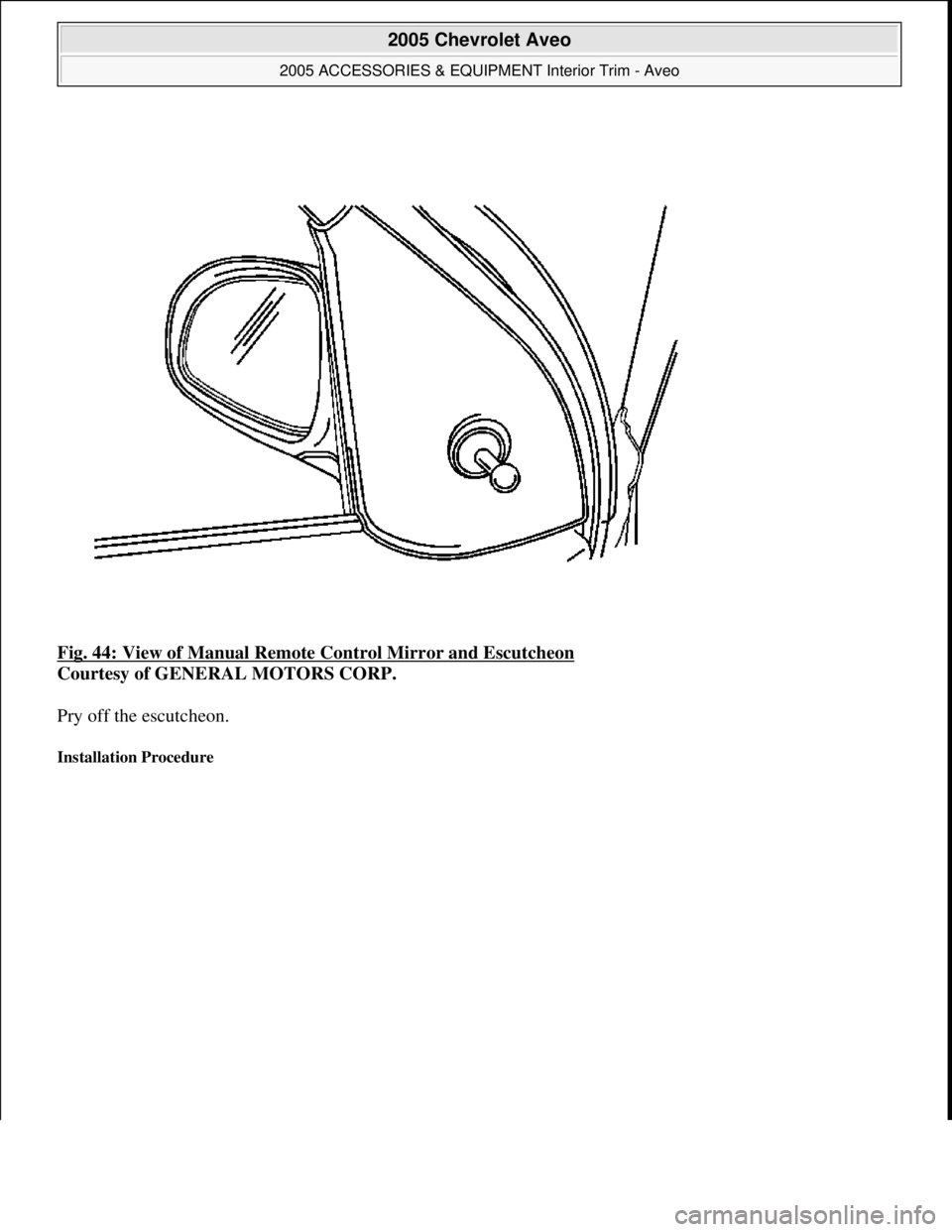

Fig. 44: View of Manual Remote Control Mirror and Escutcheon
Courtesy of GENERAL MOTORS CORP.
Pry off the escutcheon.
Installation Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:27 PMPage 44 © 2005 Mitchell Repair Information Company, LLC.

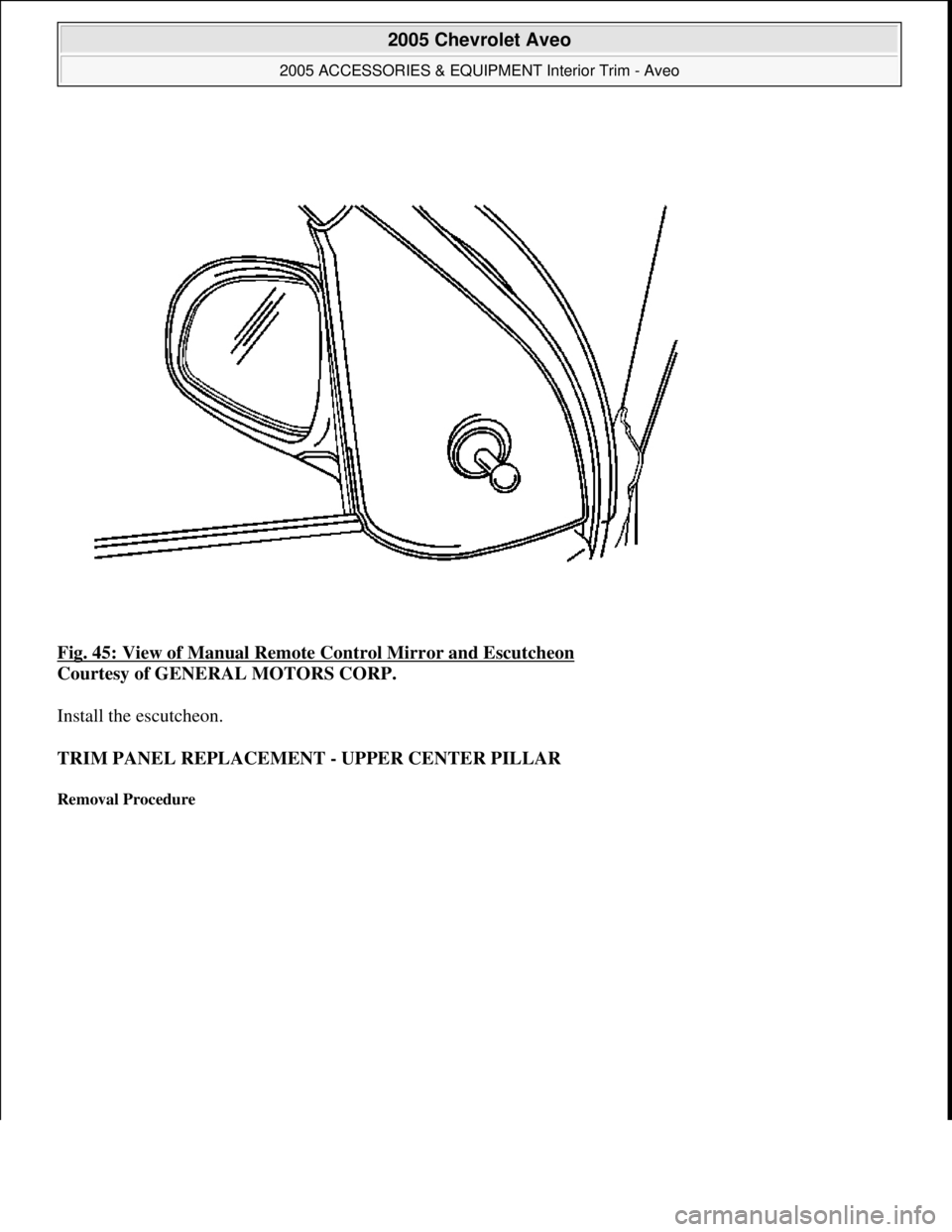

Fig. 45: View of Manual Remote Control Mirror and Escutcheon
Courtesy of GENERAL MOTORS CORP.
Install the escutcheon.
TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR
Removal Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:27 PMPage 45 © 2005 Mitchell Repair Information Company, LLC.

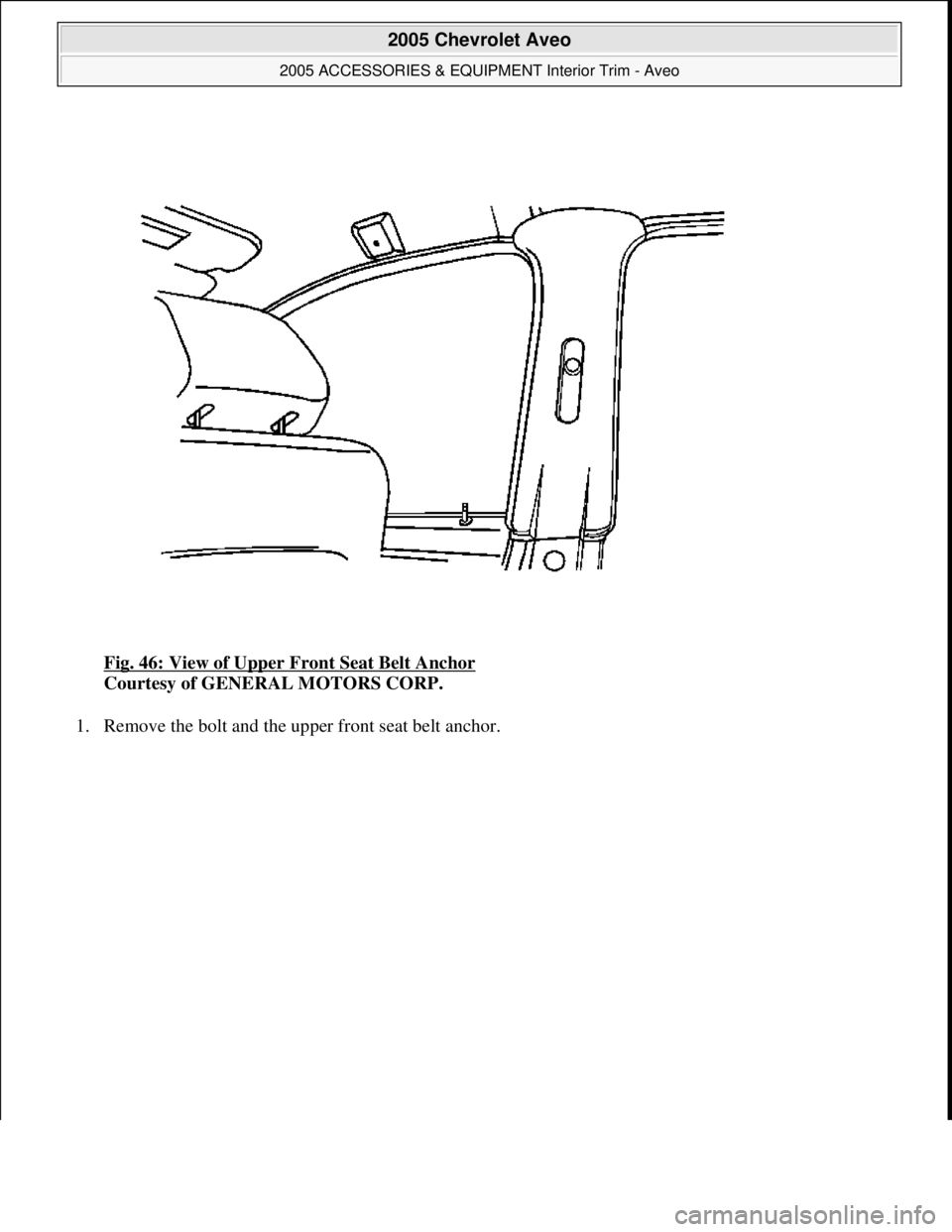

Fig. 46: View of Upper Front Seat Belt Anchor
Courtesy of GENERAL MOTORS CORP.
1. Remove the bolt and the upper front seat belt anchor.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:27 PMPage 46 © 2005 Mitchell Repair Information Company, LLC.

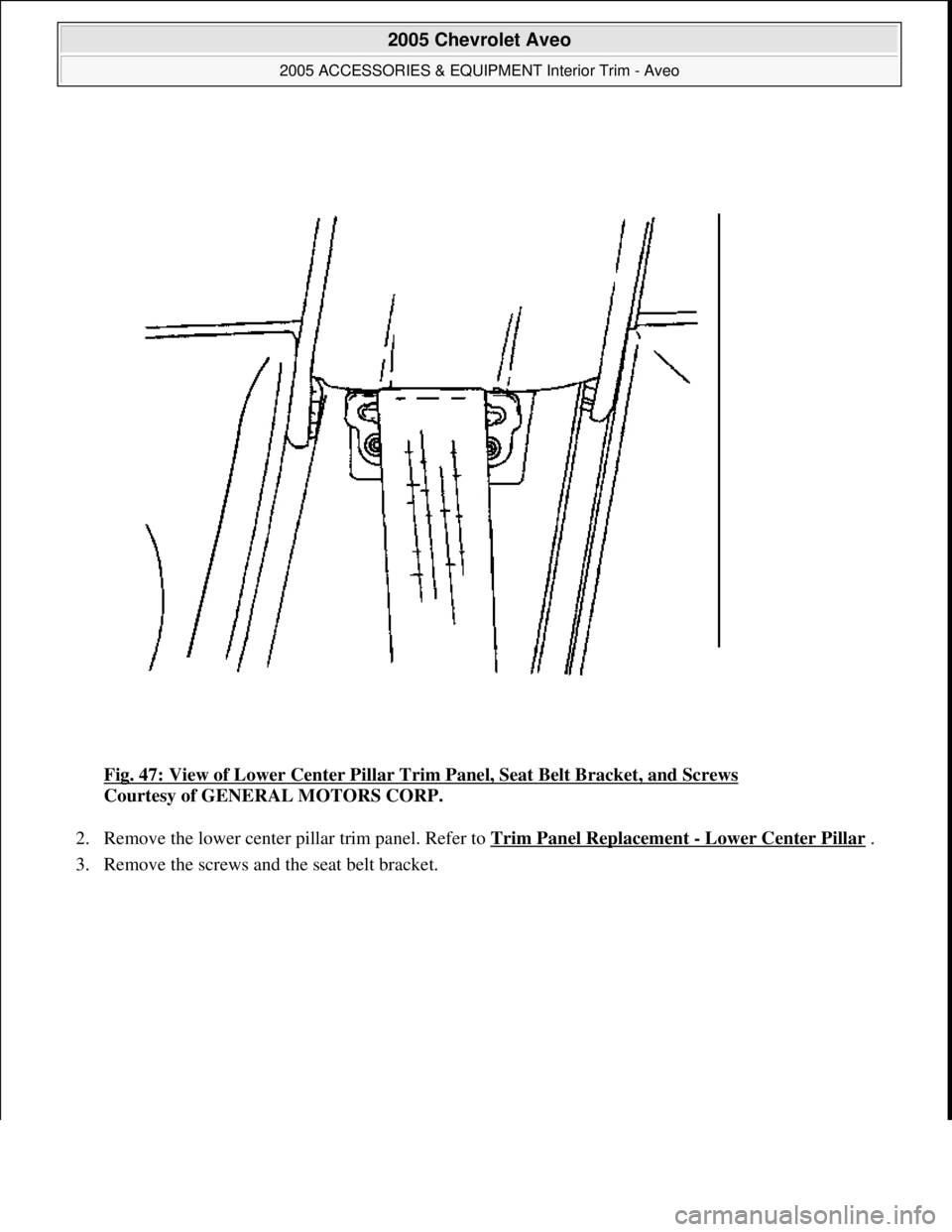

Fig. 47: View of Lower Center Pillar Trim Panel, Seat Belt Bracket, and Screws
Courtesy of GENERAL MOTORS CORP.
2. Remove the lower center pillar trim panel. Refer to Trim Panel Replacement
- Lower Center Pillar .
3. Remove the screws and the seat belt bracket.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:27 PMPage 47 © 2005 Mitchell Repair Information Company, LLC.

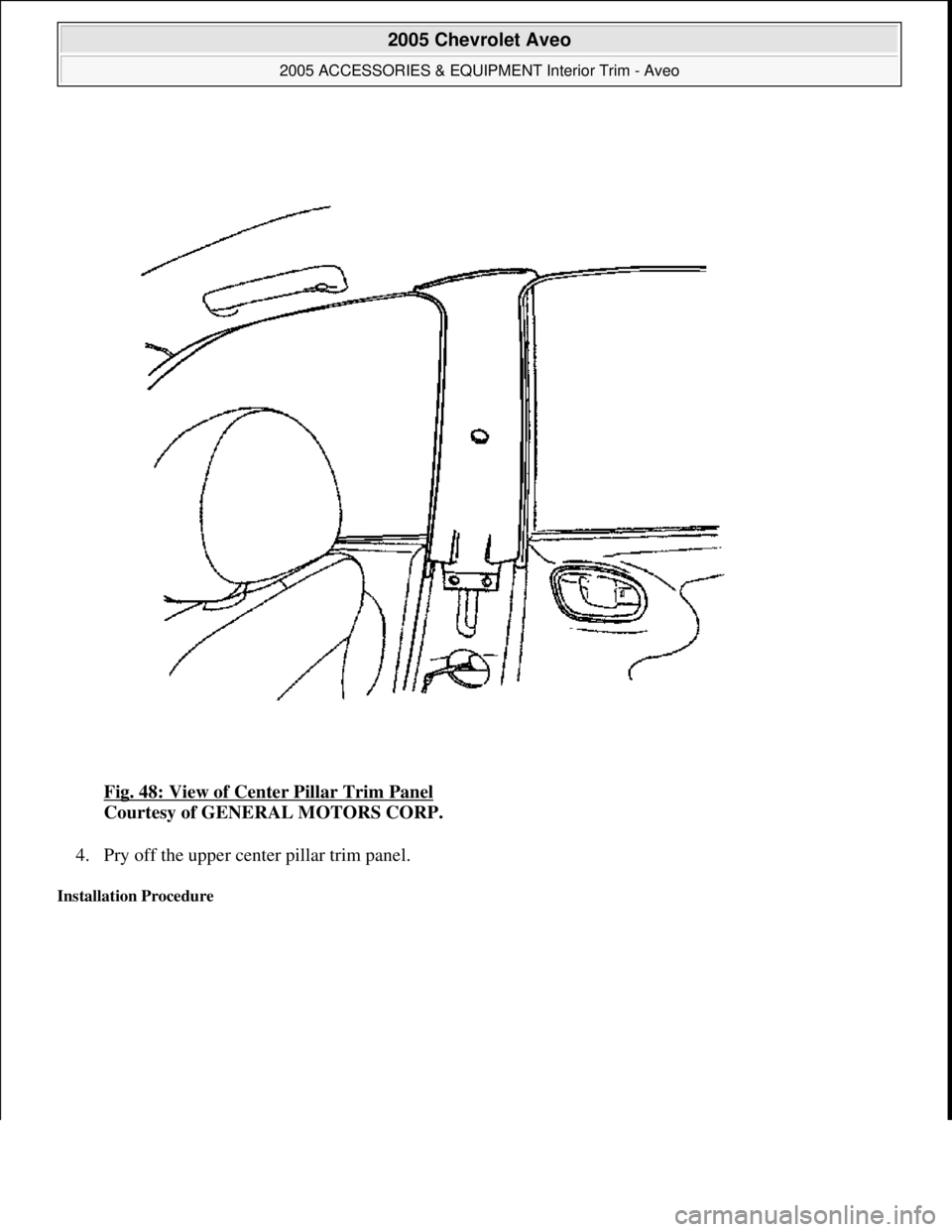

Fig. 48: View of Center Pillar Trim Panel
Courtesy of GENERAL MOTORS CORP.
4. Pry off the upper center pillar trim panel.
Installation Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:27 PMPage 48 © 2005 Mitchell Repair Information Company, LLC.

Fig. 49: View of Center Pillar Trim Panel
Courtesy of GENERAL MOTORS CORP.
1. Install the upper center pillar trim panel.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:27 PMPage 49 © 2005 Mitchell Repair Information Company, LLC.

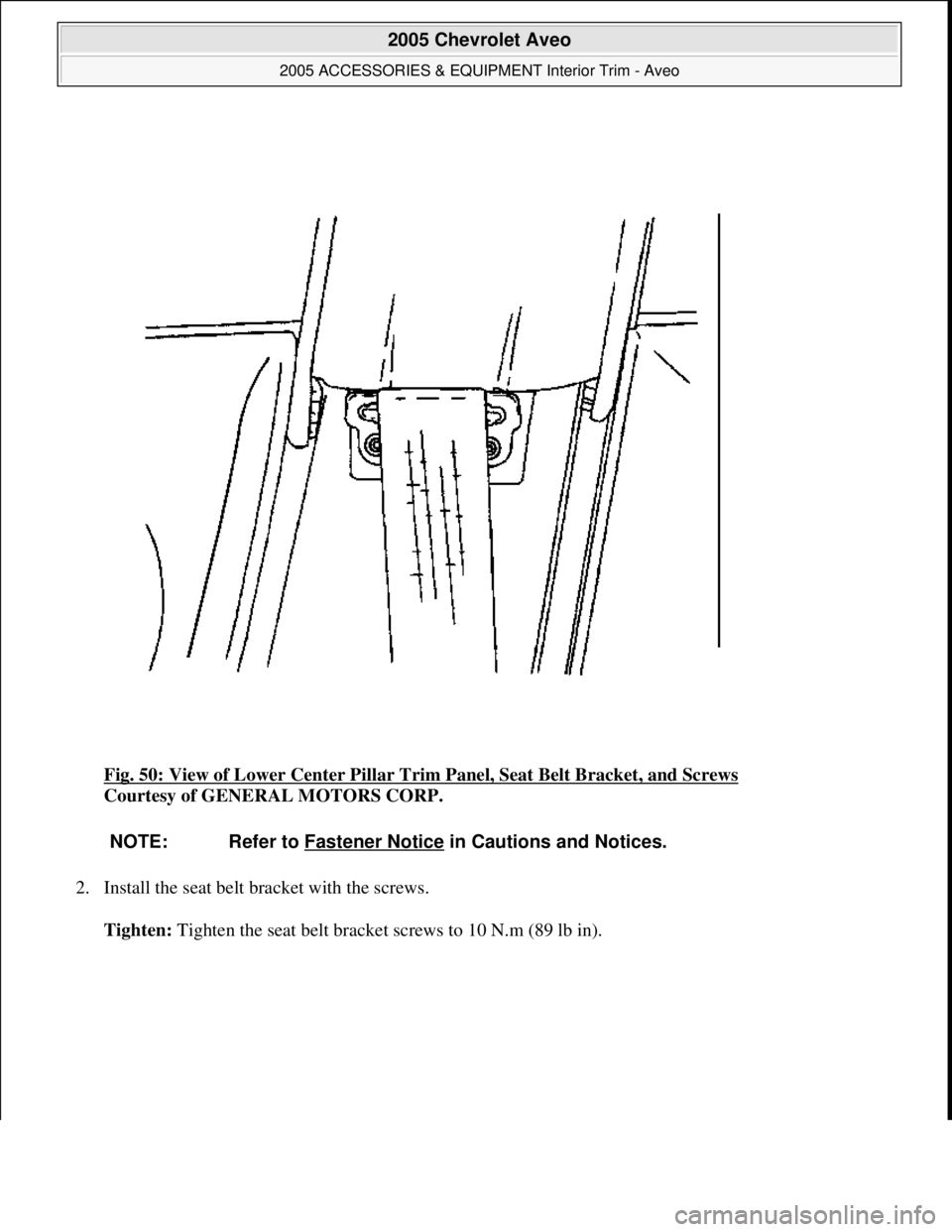

Fig. 50: View of Lower Center Pillar Trim Panel, Seat Belt Bracket, and Screws
Courtesy of GENERAL MOTORS CORP.
2. Install the seat belt bracket with the screws.
Tighten: Ti
ghten the seat belt bracket screws to 10 N.m (89 lb in).
NOTE: Refer to Fastener Notice in Cautions and Notices.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:27 PMPage 50 © 2005 Mitchell Repair Information Company, LLC.

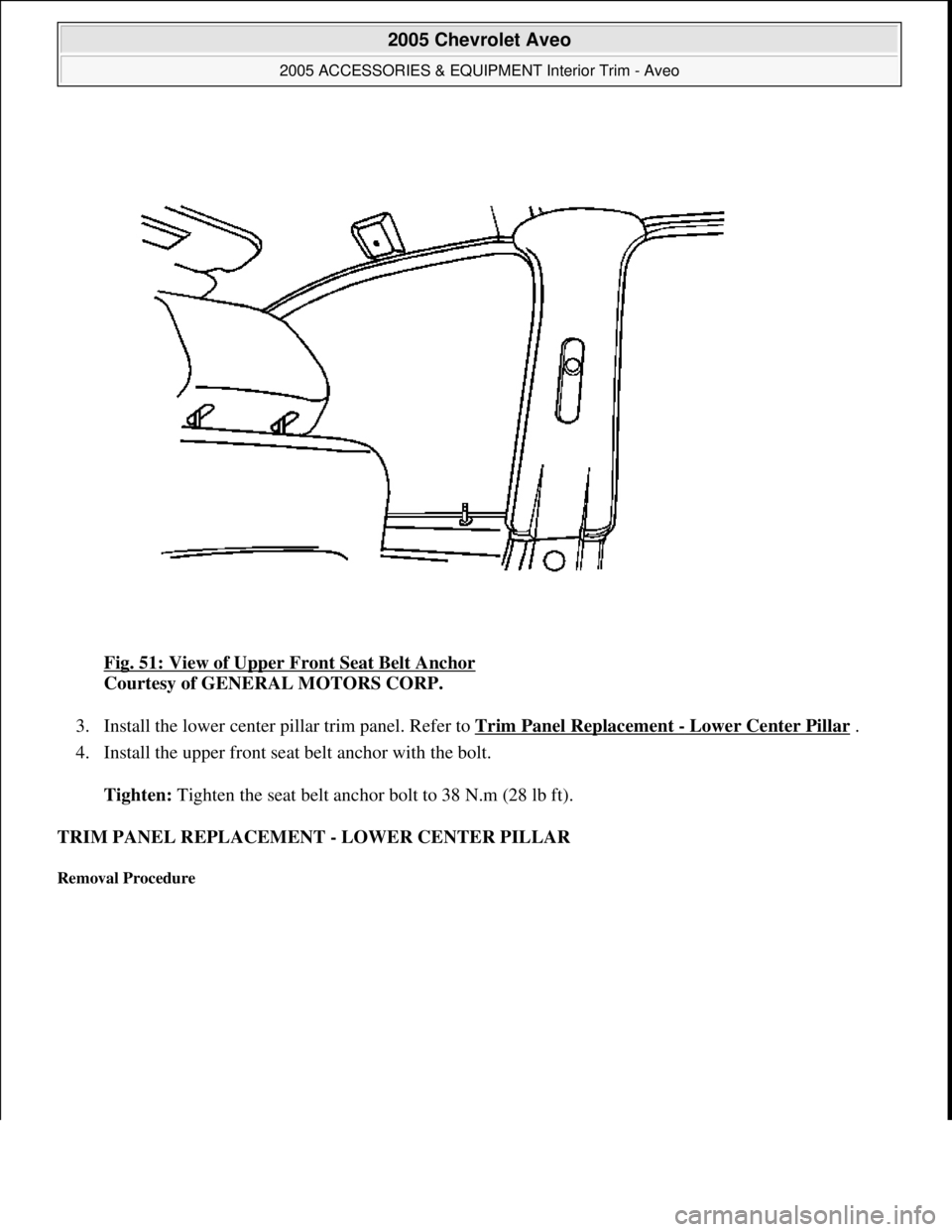

Fig. 51: View of Upper Front Seat Belt Anchor
Courtesy of GENERAL MOTORS CORP.
3. Install the lower center pillar trim panel. Refer to Trim Panel Replacement
- Lower Center Pillar .
4. Install the upper front seat belt anchor with the bolt.
Tighten: Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR
Removal Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:28 PMPage 51 © 2005 Mitchell Repair Information Company, LLC.

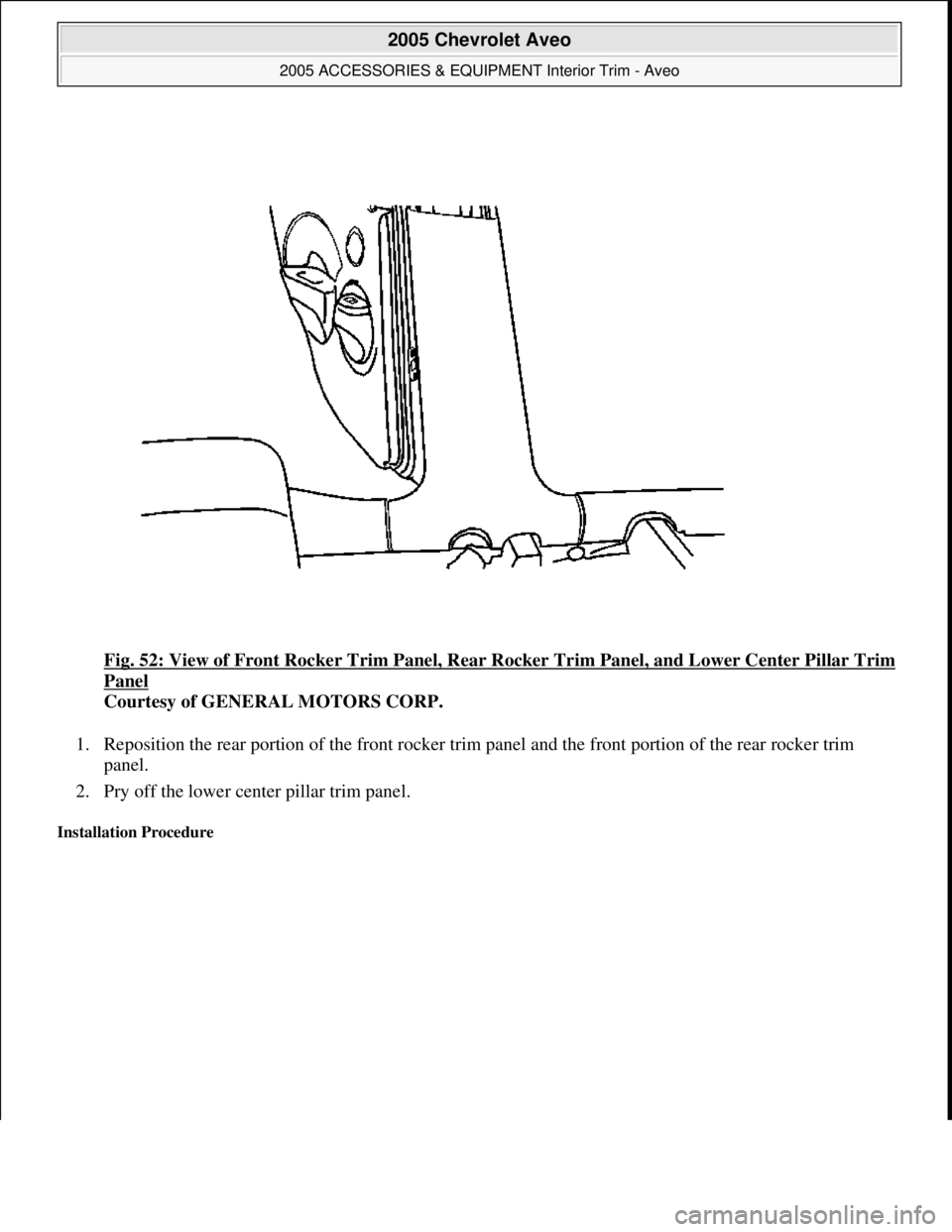

Fig. 52: View of Front Rocker Trim Panel, Rear Rocker Trim Panel, and Lower Center Pillar Trim
Panel
Courtesy of GENERAL MOTORS CORP.
1. Reposition the rear portion of the front rocker trim panel and the front portion of the rear rocker trim
panel.
2. Pry off the lower center pillar trim panel.
Installation Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:28 PMPage 52 © 2005 Mitchell Repair Information Company, LLC.

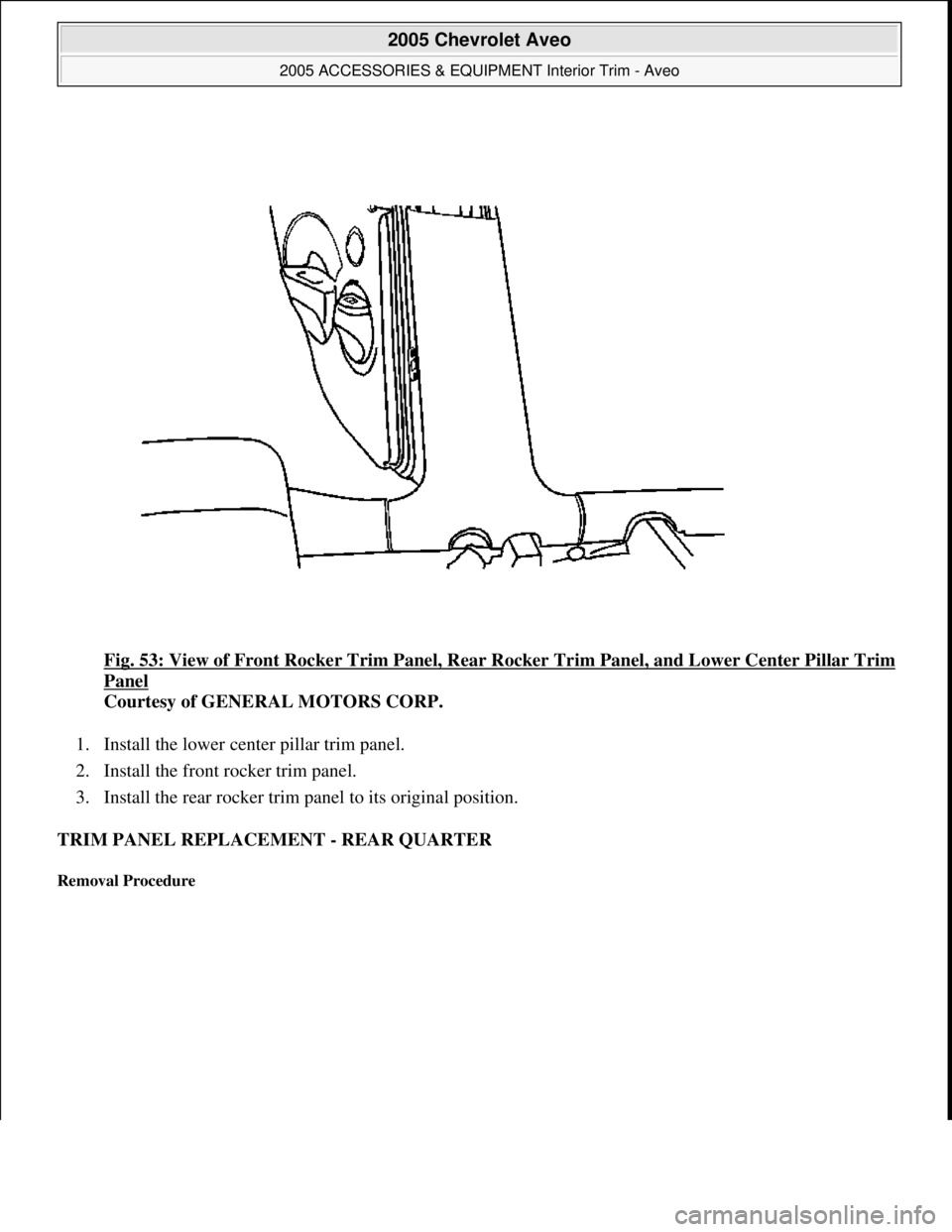

Fig. 53: View of Front Rocker Trim Panel, Rear Rocker Trim Panel, and Lower Center Pillar Trim
Panel
Courtesy of GENERAL MOTORS CORP.
1. Install the lower center pillar trim panel.
2. Install the front rocker trim panel.
3. Install the rear rocker trim panel to its original position.
TRIM PANEL REPLACEMENT - REAR QUARTER
Removal Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
