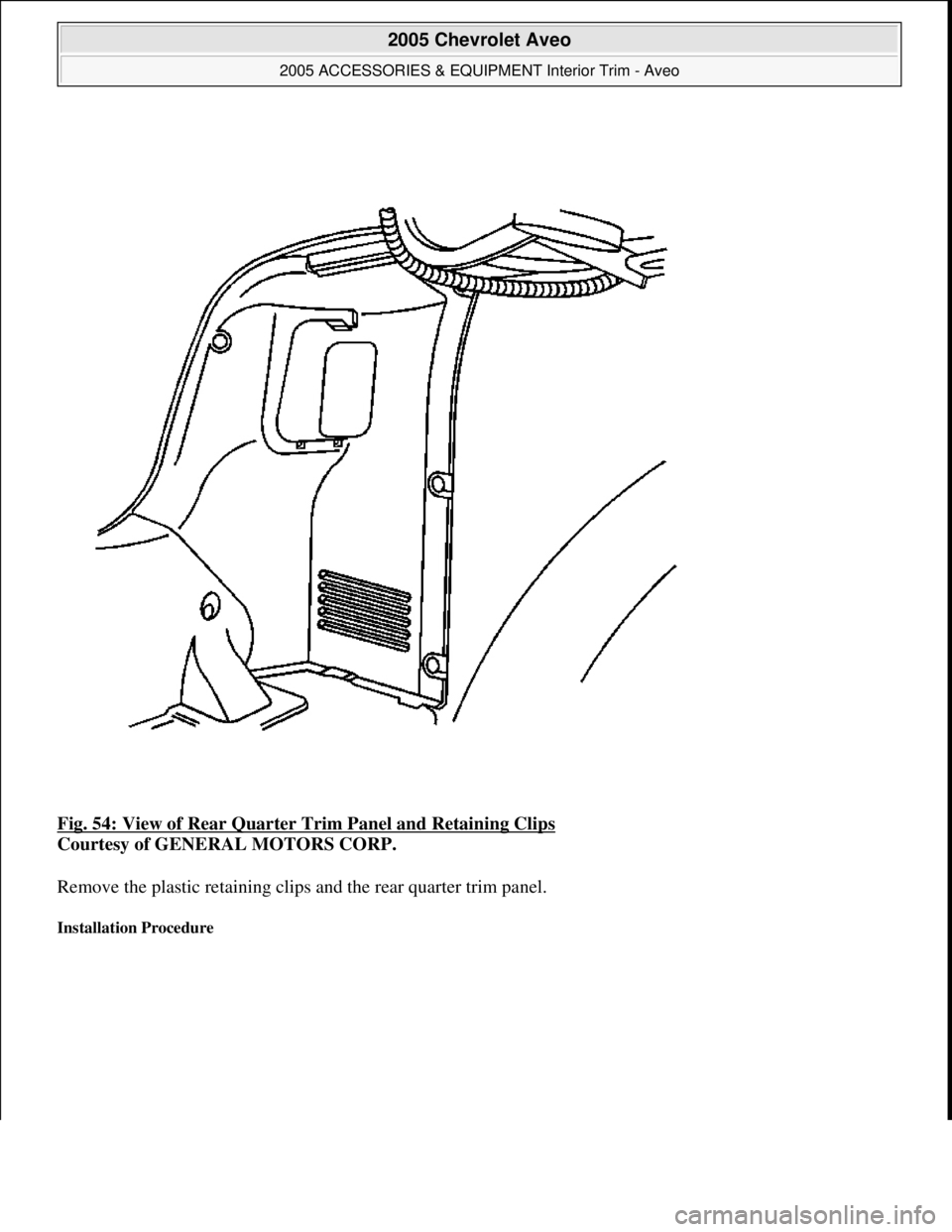

Fig. 54: View of Rear Quarter Trim Panel and Retaining Clips
Courtesy of GENERAL MOTORS CORP.
Remove the plastic retaining clips and the rear quarter trim panel.
Installation Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:28 PMPage 54 © 2005 Mitchell Repair Information Company, LLC.

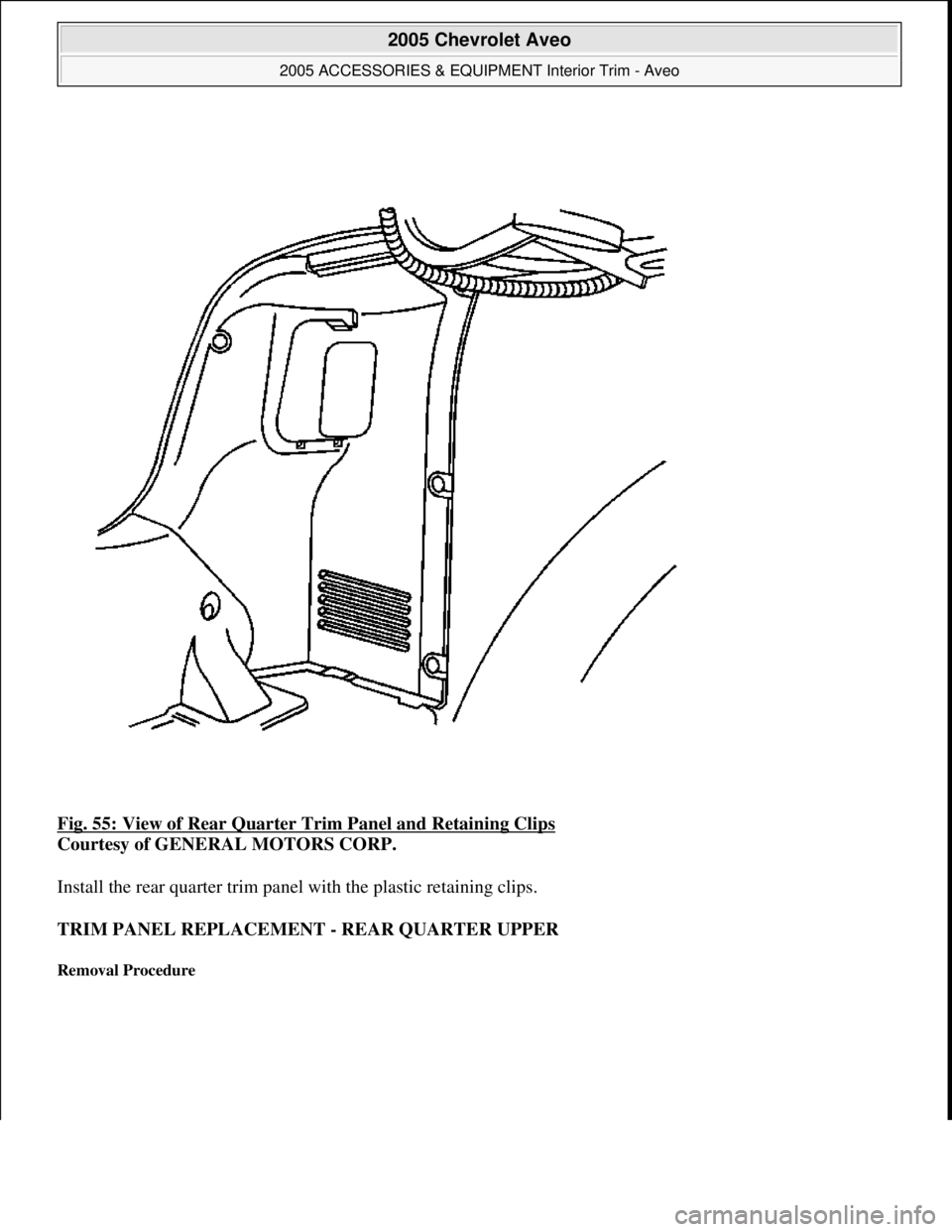

Fig. 55: View of Rear Quarter Trim Panel and Retaining Clips
Courtesy of GENERAL MOTORS CORP.
Install the rear quarter trim panel with the plastic retaining clips.
TRIM PANEL REPLACEMENT - REAR QUARTER UPPER
Removal Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:28 PMPage 55 © 2005 Mitchell Repair Information Company, LLC.

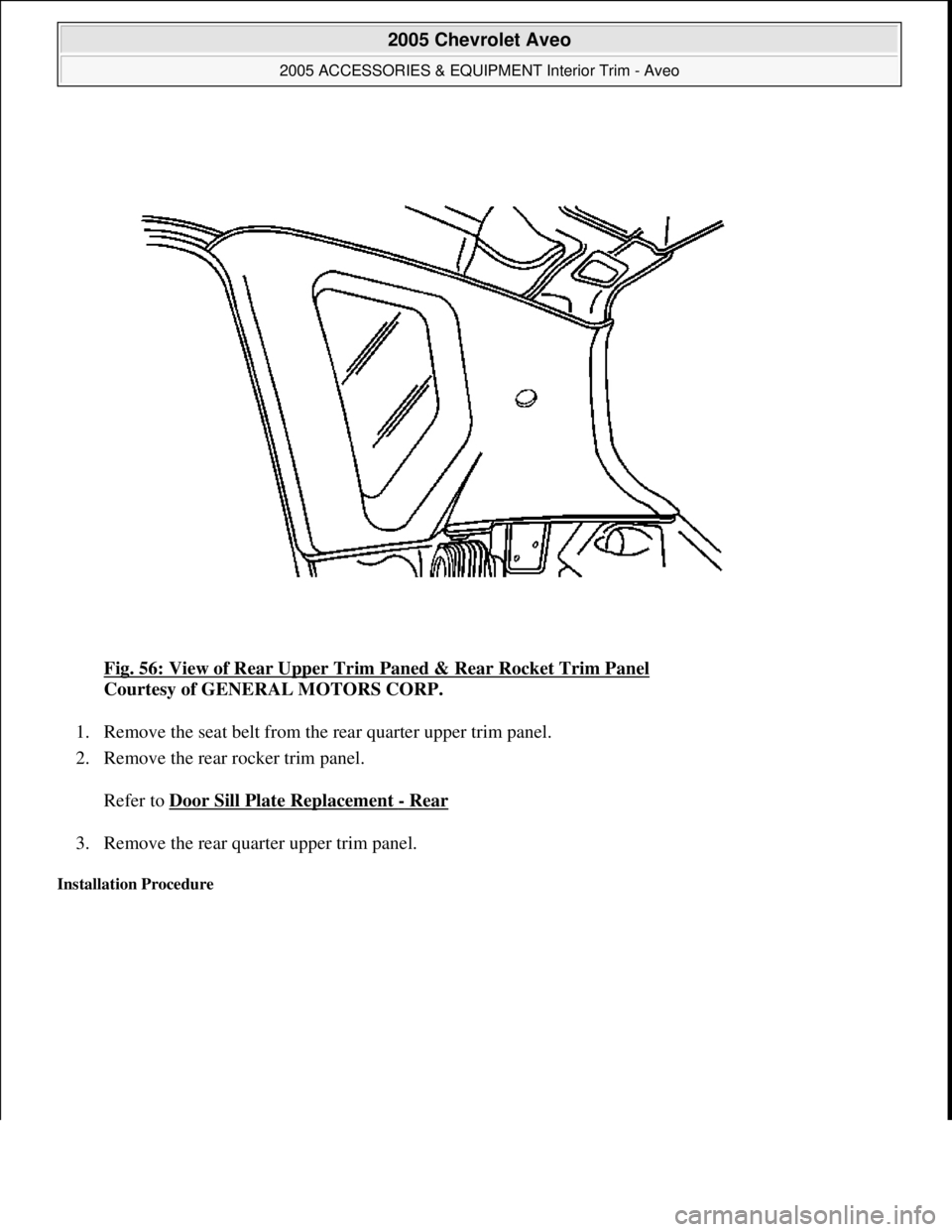

Fig. 56: View of Rear Upper Trim Paned & Rear Rocket Trim Panel
Courtesy of GENERAL MOTORS CORP.
1. Remove the seat belt from the rear quarter upper trim panel.
2. Remove the rear rocker trim panel.
Refer to Door Sill Plate Replacement
- Rear
3. Remove the rear quarter upper trim panel.
Installation Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:28 PMPage 56 © 2005 Mitchell Repair Information Company, LLC.

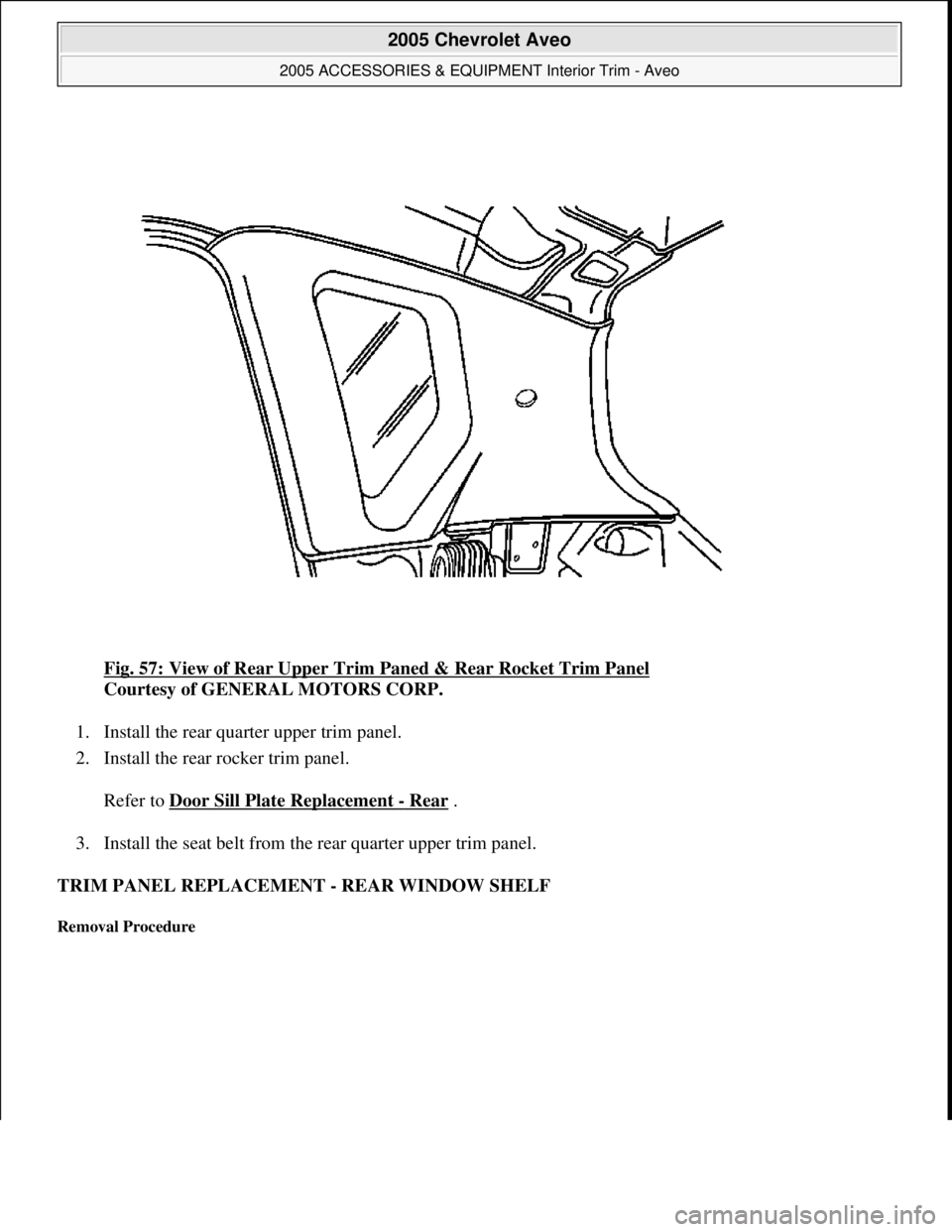

Fig. 57: View of Rear Upper Trim Paned & Rear Rocket Trim Panel
Courtesy of GENERAL MOTORS CORP.
1. Install the rear quarter upper trim panel.
2. Install the rear rocker trim panel.
Refer to Door Sill Plate Replacement
- Rear .
3. Install the seat belt from the rear quarter upper trim panel.
TRIM PANEL REPLACEMENT - REAR WINDOW SHELF
Removal Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:28 PMPage 57 © 2005 Mitchell Repair Information Company, LLC.

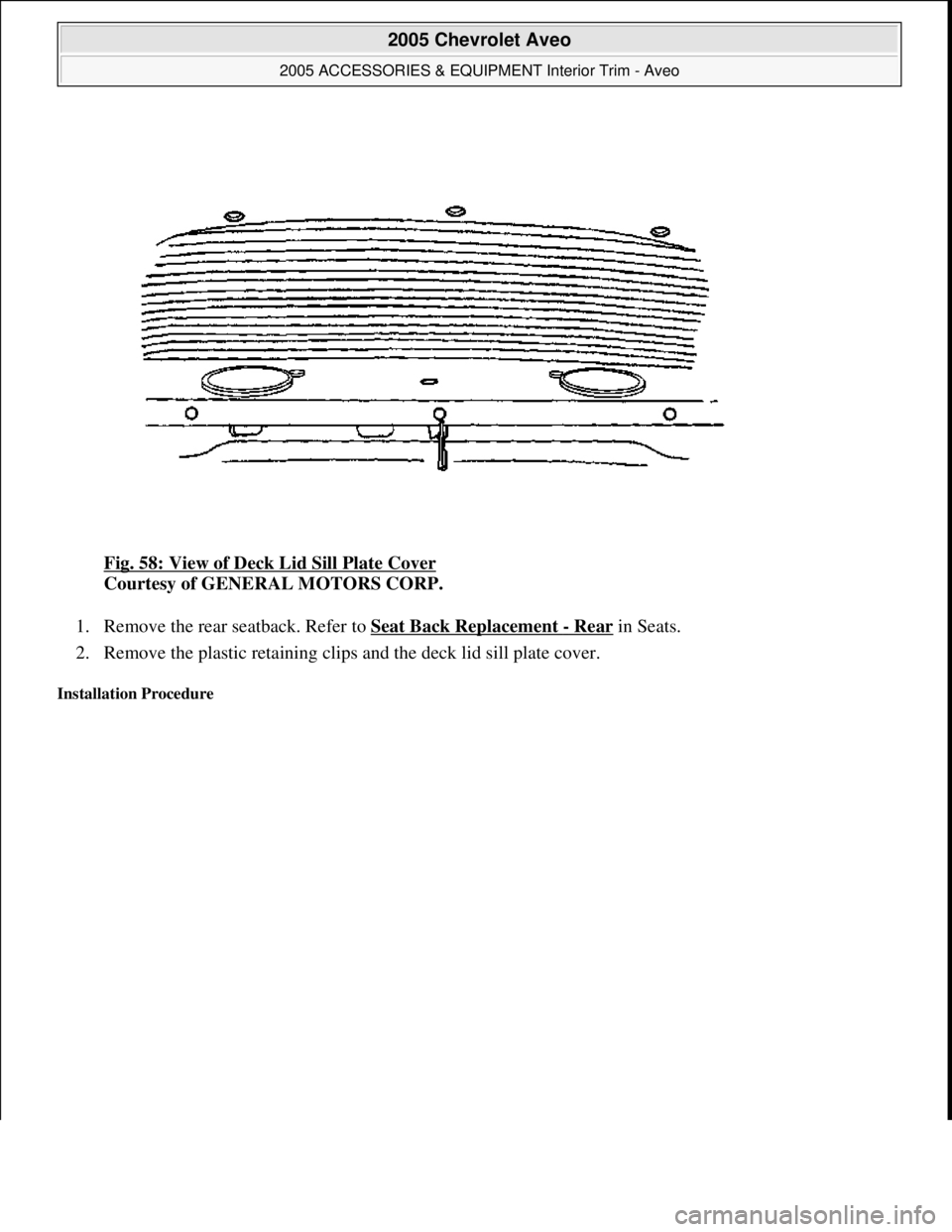

Fig. 58: View of Deck Lid Sill Plate Cover
Courtesy of GENERAL MOTORS CORP.
1. Remove the rear seatback. Refer to Seat Back Replacement
- Rear in Seats.
2. Remove the plastic retaining clips and the deck lid sill plate cover.
Installation Procedure

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:28 PMPage 58 © 2005 Mitchell Repair Information Company, LLC.

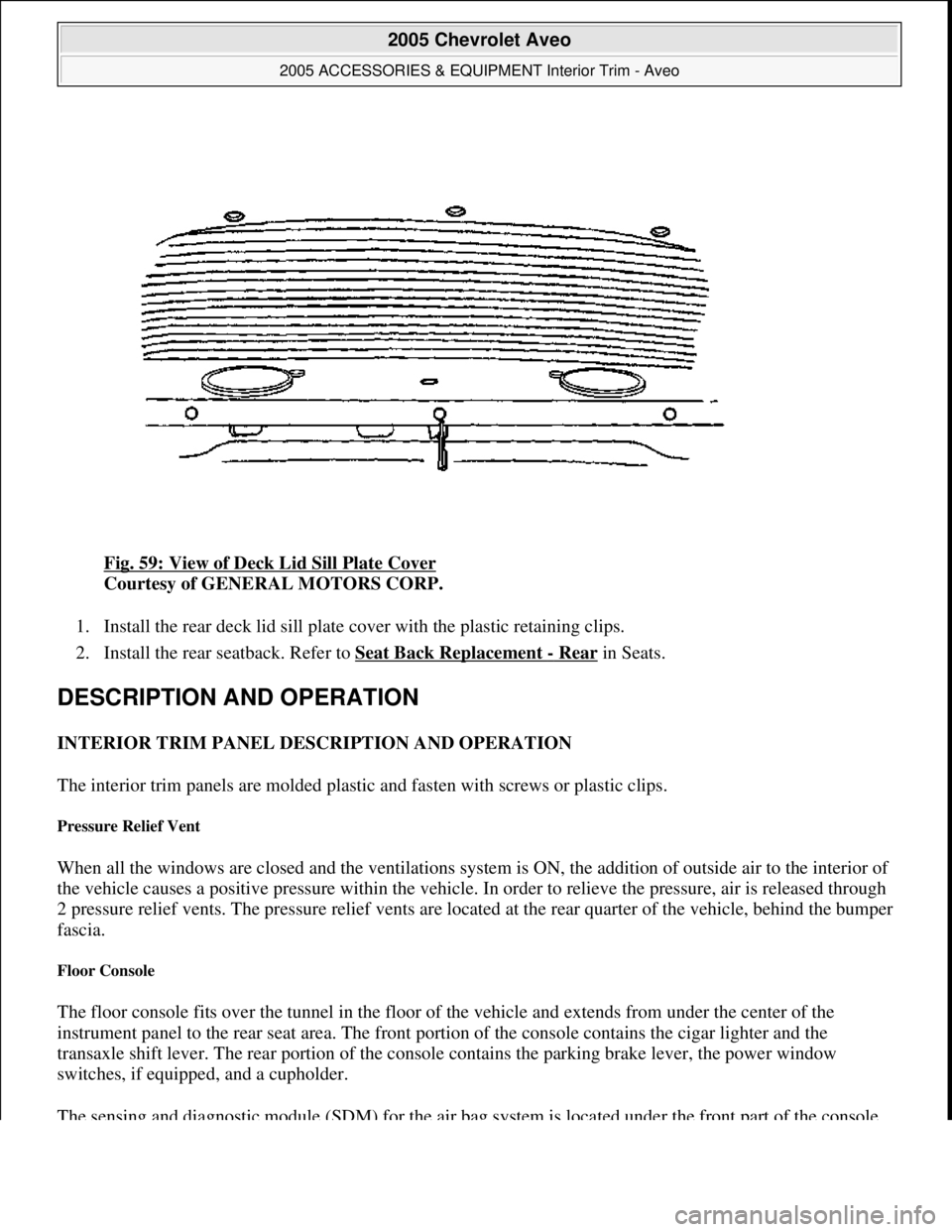

Fig. 59: View of Deck Lid Sill Plate Cover
Courtesy of GENERAL MOTORS CORP.
1. Install the rear deck lid sill plate cover with the plastic retaining clips.
2. Install the rear seatback. Refer to Seat Back Replacement
- Rear in Seats.
DESCRIPTION AND OPERATION
INTERIOR TRIM PANEL DESCRIPTION AND OPERATION
The interior trim panels are molded plastic and fasten with screws or plastic clips.
Pressure Relief Vent
When all the windows are closed and the ventilations system is ON, the addition of outside air to the interior of
the vehicle causes a positive pressure within the vehicle. In order to relieve the pressure, air is released through
2 pressure relief vents. The pressure relief vents are located at the rear quarter of the vehicle, behind the bumper
fascia.
Floor Console
The floor console fits over the tunnel in the floor of the vehicle and extends from under the center of the
instrument panel to the rear seat area. The front portion of the console contains the cigar lighter and the
transaxle shift lever. The rear portion of the console contains the parking brake lever, the power window
switches, if equipped, and a cupholder.
The sensin
g and diagnostic module (SDM) for the air bag system is located under the front part of the console.

2005 Chevrolet Aveo
2005 ACCESSORIES & EQUIPMENT Interior Trim - Aveo
Microsoft
Friday, July 31, 2009 1:08:28 PMPage 59 © 2005 Mitchell Repair Information Company, LLC.

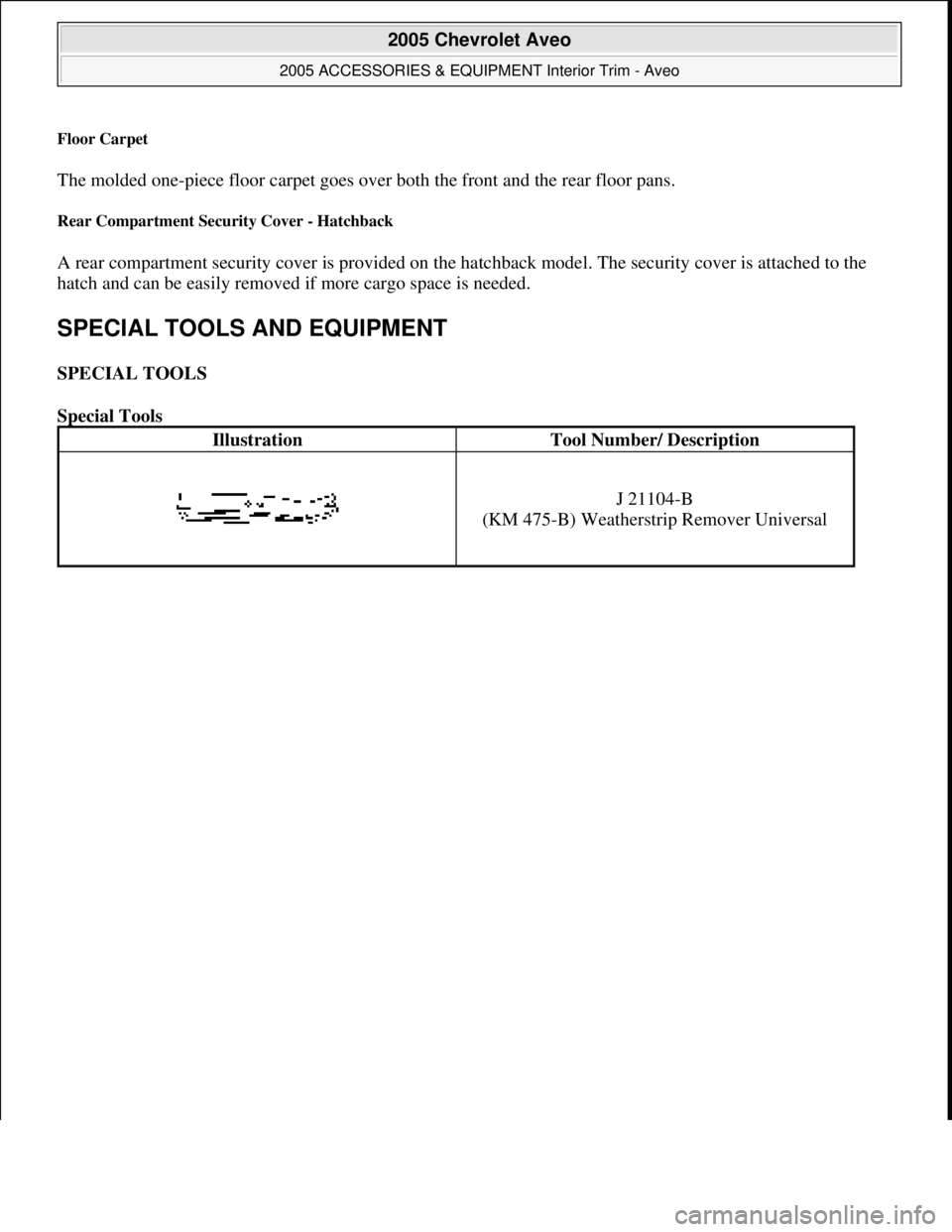

Floor Carpet
The molded one-piece floor carpet goes over both the front and the rear floor pans.
Rear Compartment Security Cover - Hatchback
A rear compartment security cover is provided on the hatchback model. The security cover is attached to the
hatch and can be easily removed if more cargo space is needed.
SPECIAL TOOLS AND EQUIPMENT
SPECIAL TOOLS
Special Tools
IllustrationTool Number/ Description
J 21104-B
(KM 475-B) Weatherstrip Remover Universal
