Page 201 of 334

CHEVROLET AVEO 2004 1.G Owners Manual A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-20.
B. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-15.
C. Engine Oil Dipstick. See “Checking

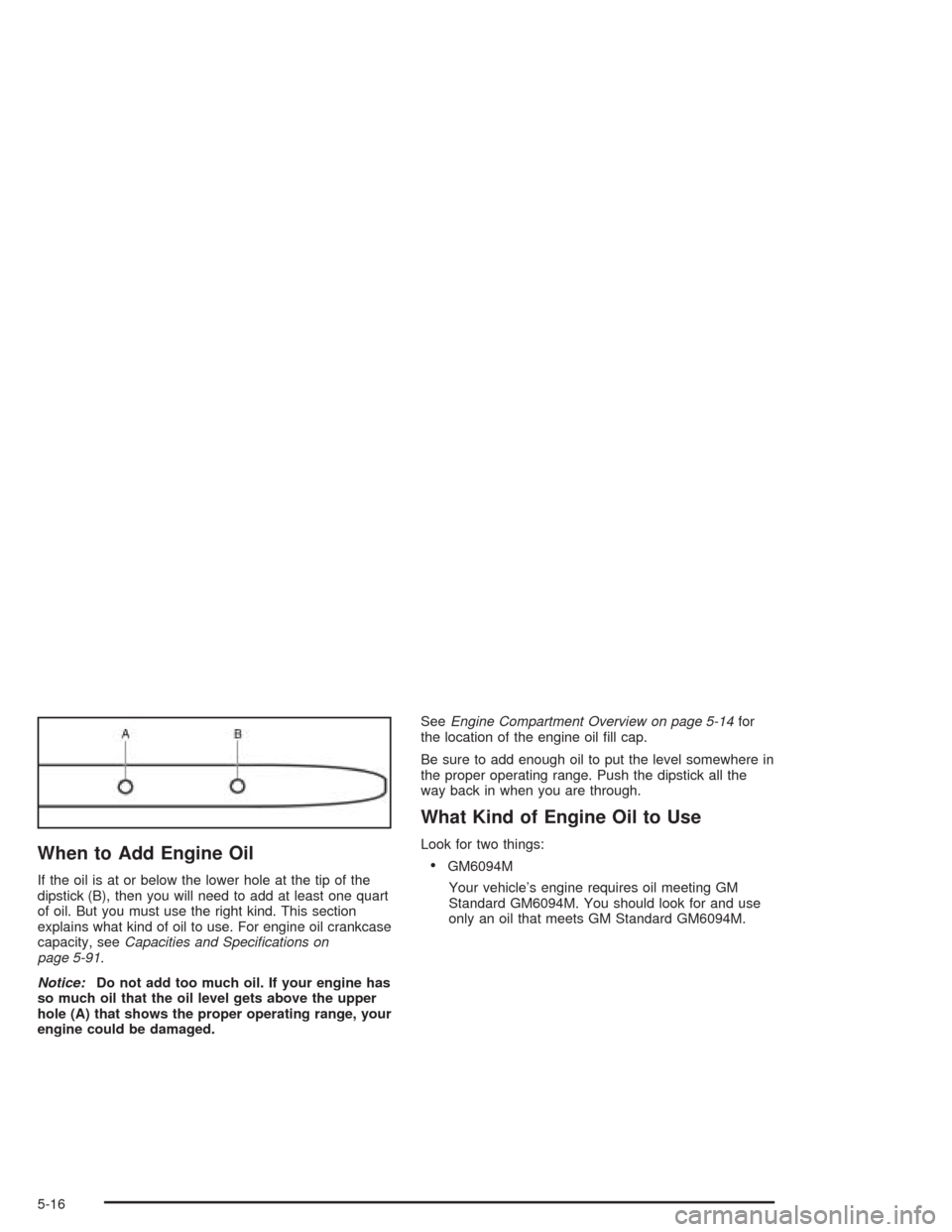

Page 202 of 334

CHEVROLET AVEO 2004 1.G Owners Manual When to Add Engine Oil
If the oil is at or below the lower hole at the tip of the
dipstick (B), then you will need to add at least one quart
of oil. But you must use the right kind. This section
expla

Page 203 of 334

CHEVROLET AVEO 2004 1.G Owners Manual •SAE 5W-30
As shown in the viscosity chart, SAE 5W-30 is best
for your vehicle. However, if it is going to be 0°F
(–18°C) or above and SAE 5W-30 is not available,
you may use SAE 10W-30.
These n

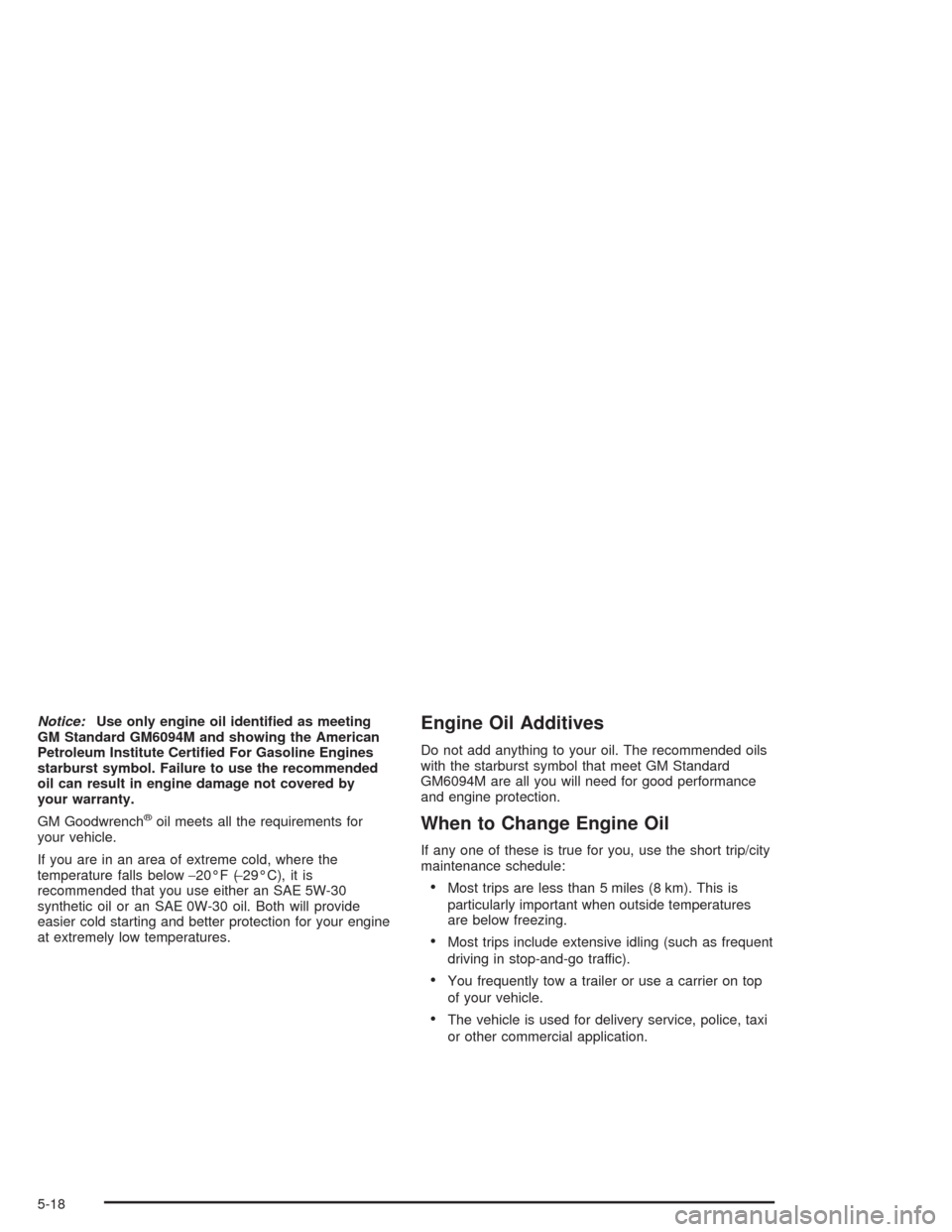

Page 204 of 334

CHEVROLET AVEO 2004 1.G Owners Manual Notice:Use only engine oil identi�ed as meeting
GM Standard GM6094M and showing the American
Petroleum Institute Certi�ed For Gasoline Engines
starburst symbol. Failure to use the recommended
oil can

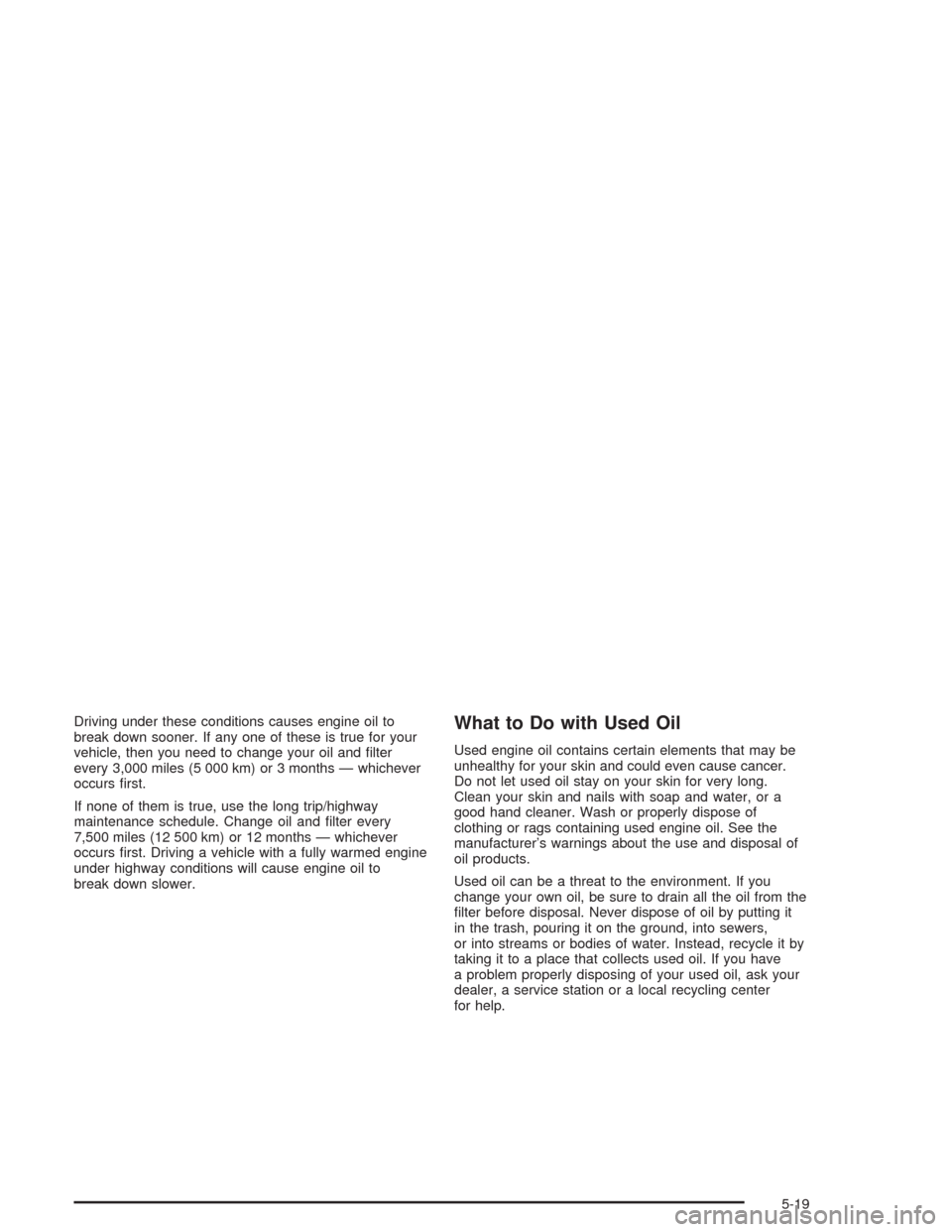

Page 205 of 334

CHEVROLET AVEO 2004 1.G Owners Manual Driving under these conditions causes engine oil to
break down sooner. If any one of these is true for your
vehicle, then you need to change your oil and filter
every 3,000 miles (5 000 km) or 3 mont

Page 206 of 334

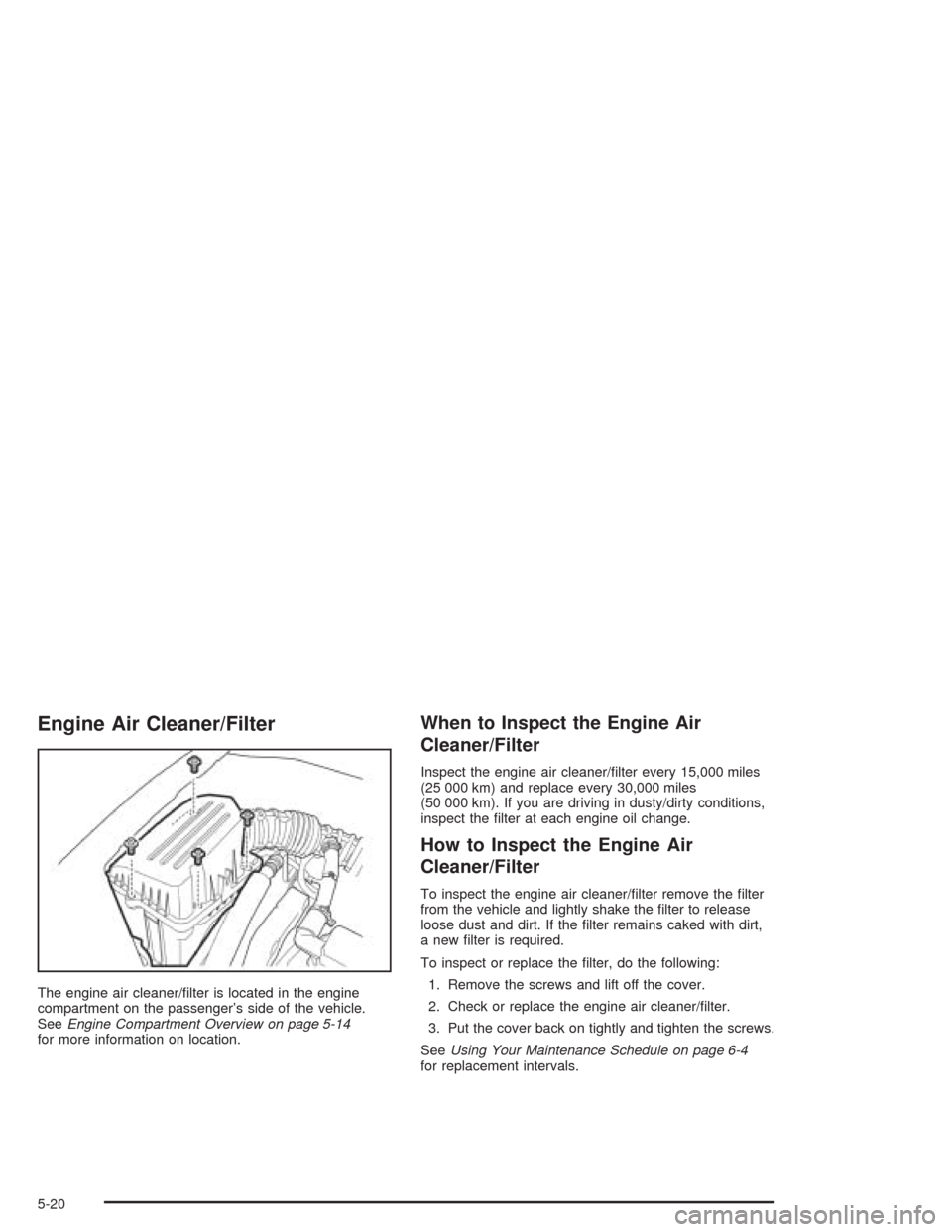

CHEVROLET AVEO 2004 1.G Owners Manual Engine Air Cleaner/Filter
The engine air cleaner/filter is located in the engine
compartment on the passenger’s side of the vehicle.
SeeEngine Compartment Overview on page 5-14
for more information

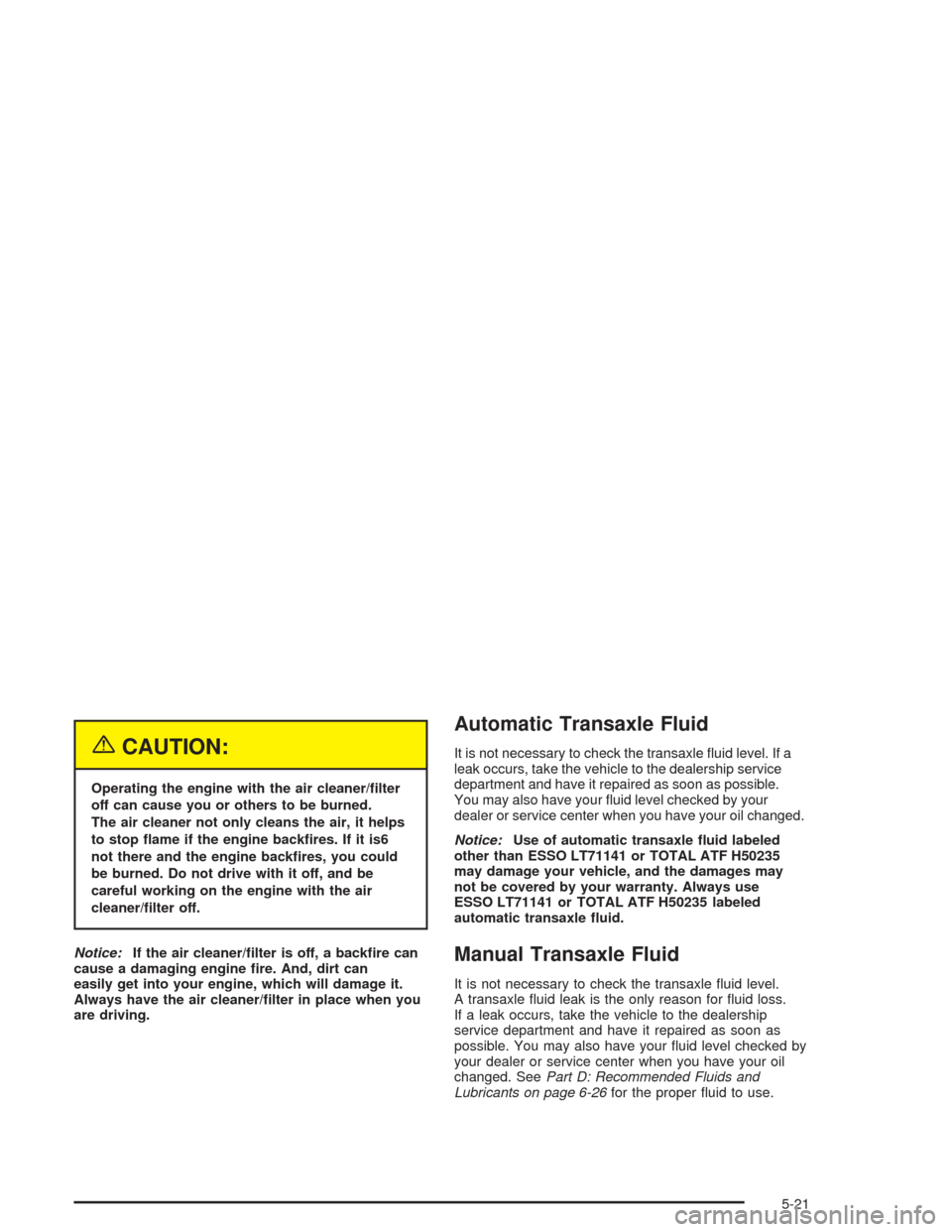

Page 207 of 334

CHEVROLET AVEO 2004 1.G Owners Manual {CAUTION:
Operating the engine with the air cleaner/�lter
off can cause you or others to be burned.
The air cleaner not only cleans the air, it helps
to stop �ame if the engine back�res. If it is6
not

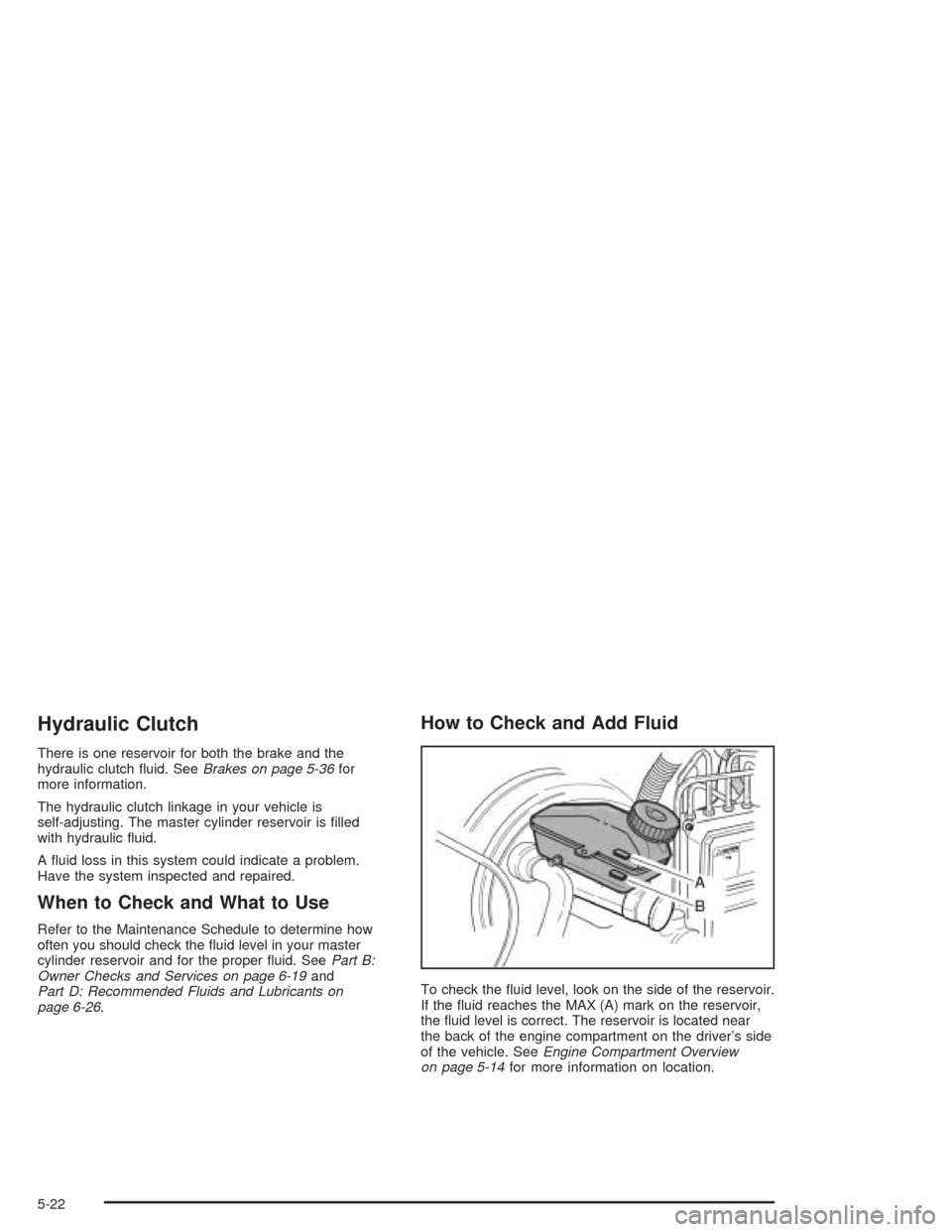

Page 208 of 334

CHEVROLET AVEO 2004 1.G Owners Manual Hydraulic Clutch
There is one reservoir for both the brake and the
hydraulic clutch fluid. SeeBrakes on page 5-36for
more information.
The hydraulic clutch linkage in your vehicle is
self-adjusting.

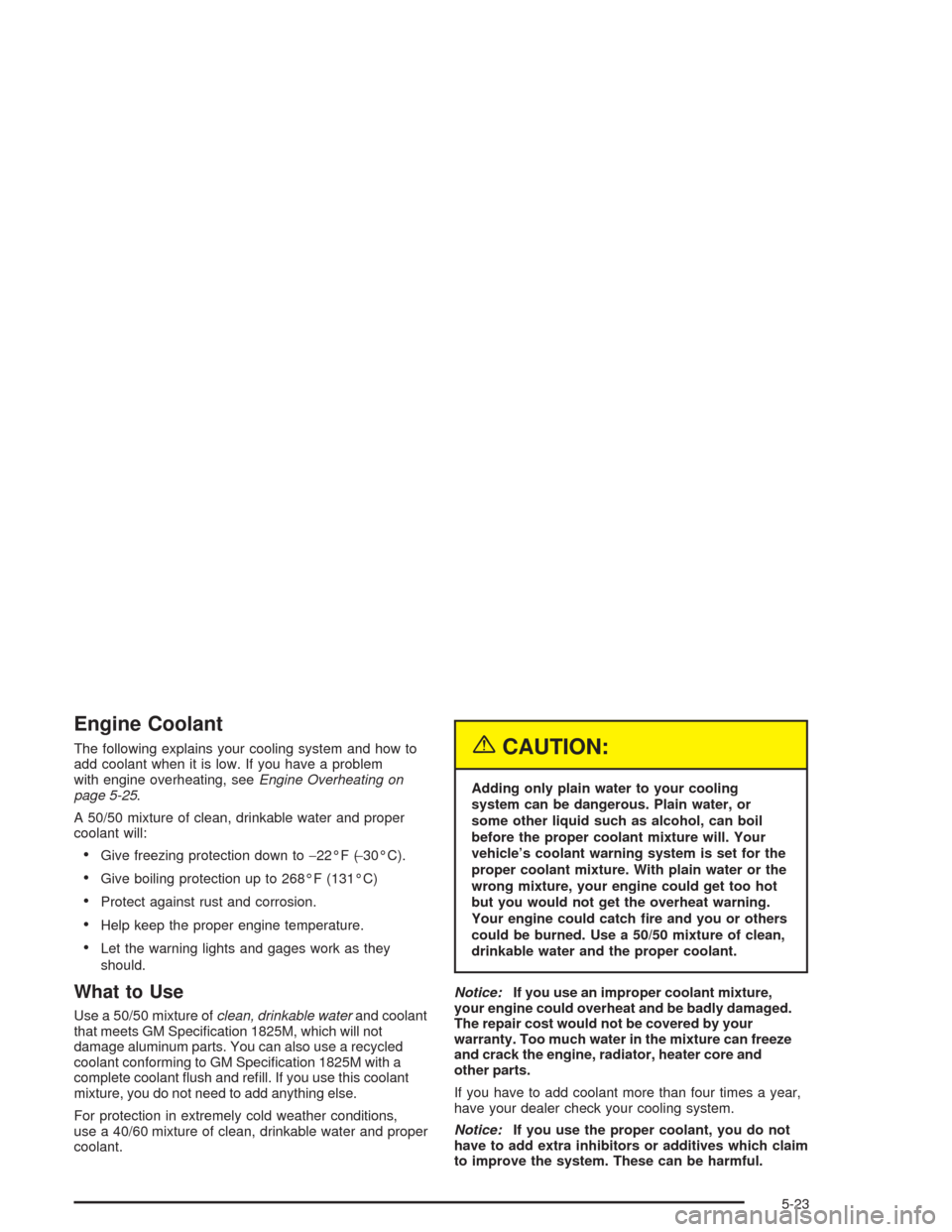

Page 209 of 334

CHEVROLET AVEO 2004 1.G Owners Manual Engine Coolant
The following explains your cooling system and how to
add coolant when it is low. If you have a problem
with engine overheating, seeEngine Overheating on
page 5-25.
A 50/50 mixture of c

Page 210 of 334

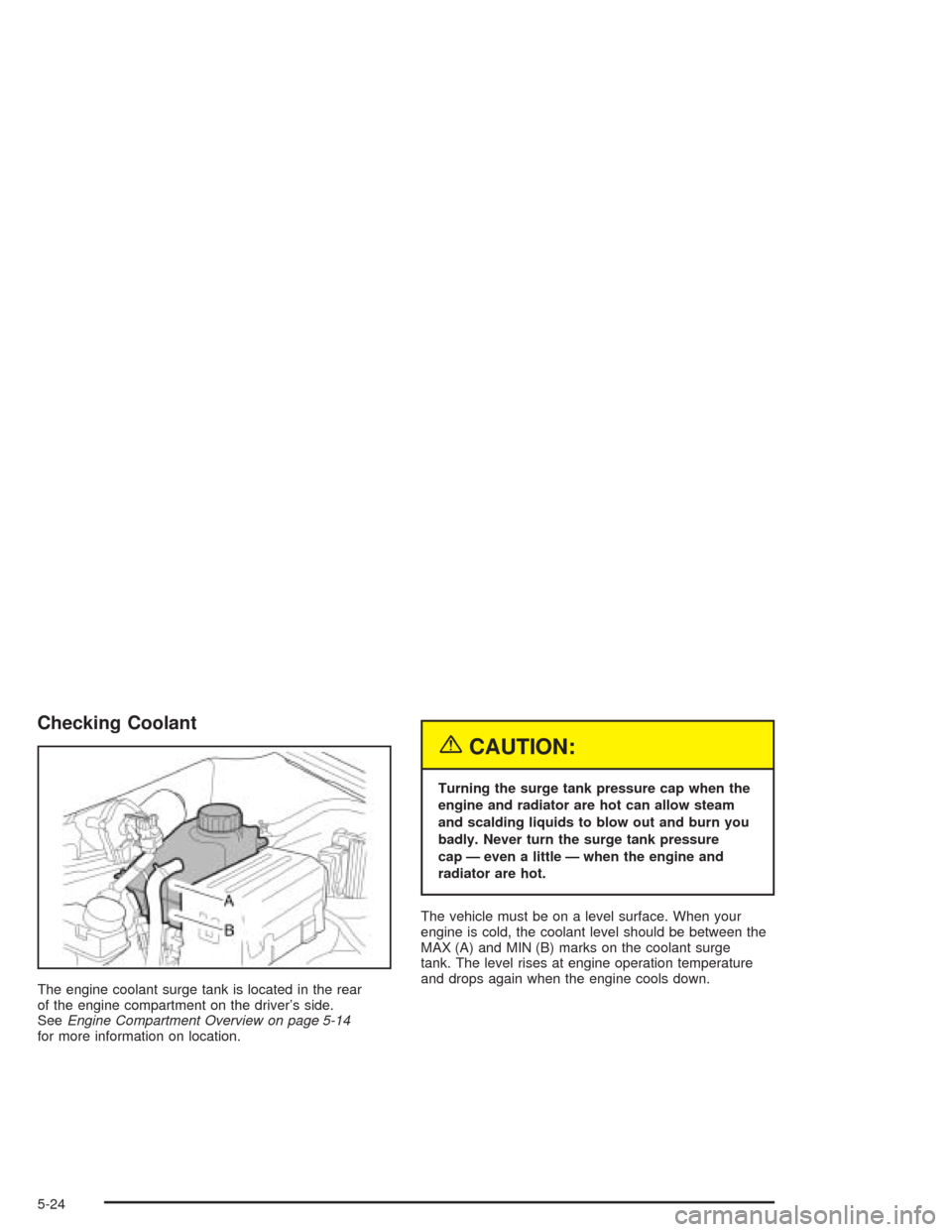

CHEVROLET AVEO 2004 1.G Owners Manual Checking Coolant
The engine coolant surge tank is located in the rear
of the engine compartment on the driver’s side.
SeeEngine Compartment Overview on page 5-14
for more information on location.
{C
