CHEVROLET AVEO 2007 1.G Owners Manual

Cruise Control Light
If your vehicle has
cruise control, this light
comes on whenever
you set your cruise
control.
The light will go out when the cruise control is
turned off. SeeCruise Control on page 141
for more information.
Highbeam On Light
This light comes on
whenever the highbeam
headlamps are on.
SeeHeadlamp High/Low-Beam Changer on
page 138for additional information.
Daytime Running Lamps (DRL)
Indicator Light
This light will come on
when the Daytime
Running Lamps (DRL)
are on.
A flashing DRL light indicates a possible burned
out headlamp, or that the vehicle may need service
to repair a defective DRL relay. See your dealer.
SeeDaytime Running Lamps (DRL) on
page 145for more information.
171

Door Ajar Light
The door ajar light will
come on whenever a
door is opened,
regardless of the ignition
position.
If the key is in the ignition while the driver’s door
is open, you will also hear a warning chime.
Fuel Gage
United States HatchbackCanada Hatchback
United States SedanCanada Sedan
172

Your fuel gage tells you about how much fuel you
have left when the ignition is turned to ON.
When the tank nears empty, the low fuel warning
light will come on. You still have a little fuel
left, but you should get more soon. SeeLow Fuel
Warning Light on page 172for more information.
Here are four things that some owners ask
about. None of these show a problem with your
fuel gage:
•At the service station, the gas pump shuts off
before the gage reads full.
•It takes a little more or less fuel to fill up than
the gage indicated. For example, the gage
may have indicated the tank was half full, but
it actually took a little more or less than
half the tank’s capacity to fill the tank.
•The indicator moves a little when you turn a
corner or speed up.
•The gage goes back to empty when you turn
off the ignition.
Low Fuel Warning Light
This light comes on
when the vehicle is low
on fuel.
The low fuel warning light comes on when there is
approximately 1.7 gallons (6.0 liters) of fuel
remaining in the tank.
To turn the light off, add fuel to the fuel tank. See
Filling the Tank on page 269.
173

Secondary Information Center (SIC)
Secondary Information Center (SIC) (Hatchback Only)
United States shown, Canada similar
174

The secondary information center (SIC) displays
some of the warning lights and indicators. The SIC
is located in the center of the instrument panel,
above the center air outlets. The digital clock
is also located in the center of the SIC. SeeClock
(Hatchback Only) on page 174andInstrument
Panel Overview on page 132for more information.
Clock (Hatchback Only)
Your vehicle has a digital clock. The clock is
located in the secondary instrument cluster on
the center of the instrument panel, above
the center air outlets. When the ignition is turned
to ACC or ON, the time is displayed in the
digital clock. There are two adjusting buttons for
the digital clock:
H (Hour):To go forward one hour, press the
H button once. To go forward more than one hour,
press and hold the button until the correct hour
is reached.M (Minute):To go forward one minute, press
the M button once. To go forward more than
one minute, press and hold the button until the
correct minute is reached.
After disconnecting the battery or replacing the
fuse, reset the clock.
Safety Belt Reminder Light
The safety belt light will
come on and stay on
until the driver’s
safety belt is buckled.
This light will come on briefly when you turn on
the ignition as a check to show you it is working.
175

Airbag Readiness Light
There is an airbag readiness light on the
Secondary Information Center (SIC), which shows
the airbag symbol. The system checks the
airbag’s electrical system for malfunctions. The
light tells you if there is an electrical problem. The
system check includes the airbag sensor, the
airbag modules, the wiring and the crash sensing
and diagnostic module. For more information
on the airbag system, seeAirbag System
on page 68.
This light will come on
when you start your
vehicle, and it will flash
for a few seconds.
Then the light should go
out. This means the
system is ready.If the airbag readiness light stays on after you
start the vehicle or comes on or flashes when you
are driving, your airbag system may not work
properly. Have your vehicle serviced right away by
your dealer.
{CAUTION:
If the airbag readiness light stays on after
you start your vehicle, it means the airbag
system may not be working properly. The
airbags in your vehicle may not inate in
a crash, or they could even inate without
a crash. To help avoid injury to yourself
or others, have your vehicle serviced right
away if the airbag readiness light stays on
after you start your vehicle.
The airbag readiness light should flash for a few
seconds when you turn the ignition to ON. If
the light does not come on then, have it fixed so it
will be ready to warn you if there is a problem.
176

Passenger Airbag Status Indicator
(Hatchback)
Your vehicle has a passenger airbag status
indicator.If you have a hatchback, the airbag off symbol will
be visible in the Secondary Information Center
(SIC) during the system check.
When the ignition key is turned to ON or START,
the passenger airbag status indicator will light
for several seconds as a system check. Then, after
several more seconds, if the off symbol is lit on
the passenger airbag status indicator, it means
that the passenger sensing system has turned off
the right front passenger’s frontal airbag and
side impact airbag (if equipped). SeePassenger
Sensing System on page 77for more on this,
including important safety information.
United
States – HatchbackCanada – Hatchback
177

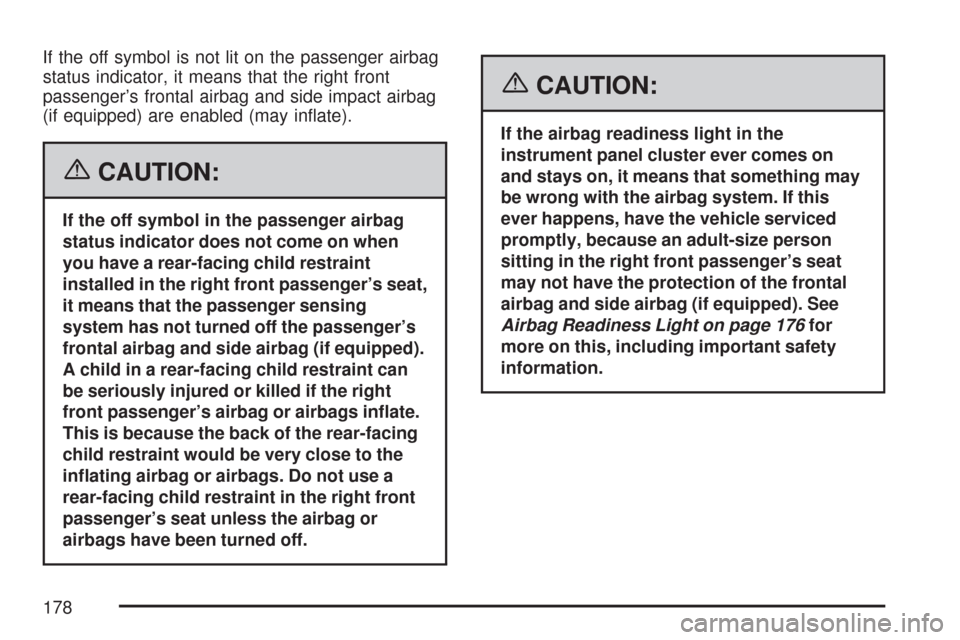

If the off symbol is not lit on the passenger airbag
status indicator, it means that the right front
passenger’s frontal airbag and side impact airbag
(if equipped) are enabled (may inflate).
{CAUTION:
If the off symbol in the passenger airbag
status indicator does not come on when
you have a rear-facing child restraint
installed in the right front passenger’s seat,
it means that the passenger sensing
system has not turned off the passenger’s
frontal airbag and side airbag (if equipped).
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag or airbags inate.
This is because the back of the rear-facing
child restraint would be very close to the
inating airbag or airbags. Do not use a
rear-facing child restraint in the right front
passenger’s seat unless the airbag or
airbags have been turned off.
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
be wrong with the airbag system. If this
ever happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger’s seat
may not have the protection of the frontal
airbag and side airbag (if equipped). See
Airbag Readiness Light on page 176for
more on this, including important safety
information.
178

Charging System Light
The charging system
light will come on briefly
when you turn on the
ignition, and the engine
is not running, as a
check to show you it is
working.
Then it should go out when the engine is started.
If it stays on, or comes on while you are driving,
you may have a problem with the electrical
charging system. Have it checked by your dealer.
Driving while this light is on could drain your
battery.
If you must drive a short distance with the light on,
be certain to turn off all your accessories, such
as the radio and air conditioner.
Anti-Lock Brake System Warning
Light
Your vehicle may have
the Anti-Lock Brake
System (ABS).
This light will come on when the ignition is turned
to ON and may stay on for several seconds.
That is normal.
If the light stays on, turn the ignition to LOCK. If the
light comes on, stop as soon as possible and turn
the ignition off. Then start the engine again to reset
the system. If the light still stays on, or comes on
again while you are driving, your vehicle needs
service. See your dealer/retailer. If the regular
brake system warning light is not on, you still have
brakes, but you do not have anti-lock brakes. If the
regular brake system warning light is also on, you
do not have anti-lock brakes and there is a problem
with your regular brakes. SeeBrake System
Warning Light on page 163.
179

The ABS warning light will come on briefly when
you turn the ignition to ON. This is normal. If
the light does not come on then, have it fixed so it
will be ready to warn you if there is a problem.
Hold Mode Light
If your vehicle has this
feature, this light will
come on when the hold
mode is active.
If the HOLD mode light flashes, have your vehicle
checked. See “Hold Mode” underAutomatic
Transaxle Operation on page 112for additional
information on this feature.
Malfunction Indicator Lamp
Check Engine Light
Your vehicle has a
computer which
monitors operation of
the fuel, ignition,
and emission control
systems.
This system is called OBD II (On-Board
Diagnostics-Second Generation) and is intended
to assure that emissions are at acceptable
levels for the life of the vehicle, helping to produce
a cleaner environment. The Check Engine light
comes on to indicate that there is a problem and
service is required. Malfunctions often will be
indicated by the system before any problem is
apparent. This may prevent more serious damage
to your vehicle. This system is also designed to
assist your service technician in correctly
diagnosing any malfunction.
Notice:If you keep driving your vehicle with
this light on, after awhile, the emission controls
might not work as well, your vehicle’s fuel
180
