CHEVROLET AVEO 2007 1.G Owners Manual

✍NOTES
131

Instrument Panel Overview
Hatchback Shown
132

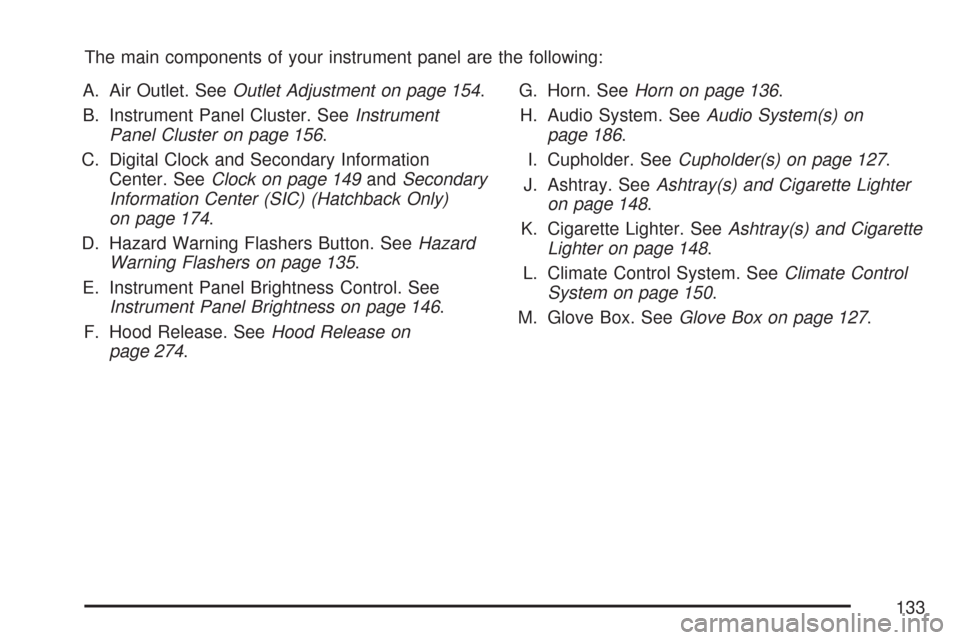

The main components of your instrument panel are the following:
A. Air Outlet. SeeOutlet Adjustment on page 154.
B. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 156.
C. Digital Clock and Secondary Information
Center. SeeClock on page 149andSecondary
Information Center (SIC) (Hatchback Only)
on page 174.
D. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 135.
E. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 146.
F. Hood Release. SeeHood Release on
page 274.G. Horn. SeeHorn on page 136.
H. Audio System. SeeAudio System(s) on
page 186.
I. Cupholder. SeeCupholder(s) on page 127.
J. Ashtray. SeeAshtray(s) and Cigarette Lighter
on page 148.
K. Cigarette Lighter. SeeAshtray(s) and Cigarette
Lighter on page 148.
L. Climate Control System. SeeClimate Control
System on page 150.
M. Glove Box. SeeGlove Box on page 127.
133

Sedan Shown
134

The main components of your instrument panel
are the following:
A. Air Outlet. SeeOutlet Adjustment on page 154.
B. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 156.
C. Digital Clock. SeeClock on page 149.
D. Hood Release. SeeHood Release on
page 274.
E. Horn. SeeHorn on page 136.
F. Audio System. SeeAudio System(s) on
page 186.
G. Climate Control System. SeeClimate Control
System on page 150.
H. Ashtray. SeeAshtray(s) and Cigarette Lighter
on page 148.
I. Cupholder. SeeCupholder(s) on page 127.
J. Cigarette Lighter. SeeAshtray(s) and Cigarette
Lighter on page 148.
K. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 135.
L. Glove Box. SeeGlove Box on page 127.Hazard Warning Flashers
Your hazard warning flashers let you warn others.
They also let police know you have a problem.
Your front and rear turn signal lamps will flash on
and off.
The hazard warning
flasher button is located
in the center of the
instrument panel on the
sedan. It is located
to the right of the
climate control system
on the hatchback.
Your hazard warning flashers work no matter what
position your key is in, and even if the key is
not in the ignition switch.
Press the button to make the front and rear turn
signal lamps flash on and off. Press the button
again to turn the flashers off.
When the hazard warning flashers are on, your
turn signals will not work.
135

Other Warning Devices
If you carry reflective triangles, you can set them
up at the side of the road about 300 feet
(100 m) behind your vehicle.
Horn
Press near or on the horn symbols on the steering
wheel pad to sound the horn.
Tilt Wheel
Your vehicle has a tilt wheel which allows you to
adjust the steering wheel before you drive.
You can raise it to the highest level to give your
legs more room when you exit and enter the
vehicle.The tilt wheel lever is
located underneath the
steering column
slightly to the left.
To tilt the steering wheel, hold the wheel and push
the lever down. Then, move the wheel to a
comfortable position and pull the lever up to lock
the wheel in place.
136

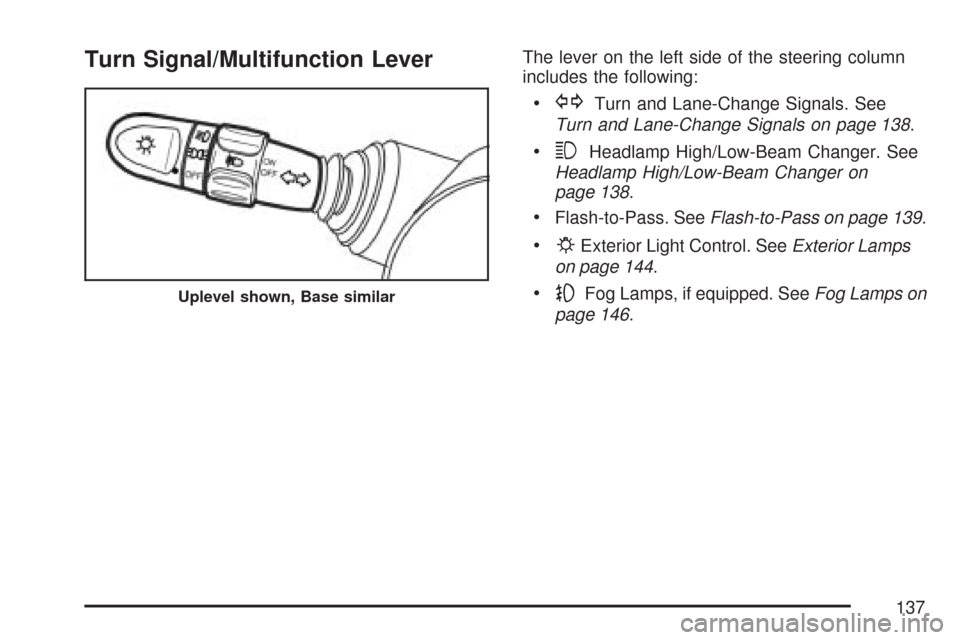

Turn Signal/Multifunction LeverThe lever on the left side of the steering column
includes the following:
•GTurn and Lane-Change Signals. See
Turn and Lane-Change Signals on page 138.
•3Headlamp High/Low-Beam Changer. See
Headlamp High/Low-Beam Changer on
page 138.
•Flash-to-Pass. SeeFlash-to-Pass on page 139.
•PExterior Light Control. SeeExterior Lamps
on page 144.
•-Fog Lamps, if equipped. SeeFog Lamps on
page 146.Uplevel shown, Base similar
137

Turn and Lane-Change Signals
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is finished, the lever will
return automatically.
An arrow on the
instrument panel
cluster will flash in the
direction of the turn
or lane change.
To signal a lane change, just raise or lower the
lever until the arrow starts to flash. Hold it
there until you complete your lane change. The
lever will return by itself when you release it.
As you signal a turn or a lane change, if the arrows
flash rapidly, a signal bulb may be burned out
and other drivers will not see your turn signal.If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when
you signal a turn, check for burned-out bulbs and
then check the fuse. SeeFuses and Circuit
Breakers on page 356.
Headlamp High/Low-Beam Changer
To change the headlamps from low beam to
high beam, push the turn signal/multifunction lever
away from you.
When the high beams
are on, this light on the
instrument panel cluster
also will be on if the
ignition is turned to ON.
To change the headlamps from high beam to low
beam, pull the turn signal lever toward you.
138

Flash-to-Pass
This feature lets you use your high-beam
headlamps to signal a driver in front of you that
you want to pass.
To use it, pull the turn signal/multifunction lever
toward you until the high-beam headlamps
come on, then release the lever to turn them off.
Windshield Wipers
Use this lever located on the right side of the
steering wheel to operate the windshield wipers.
The ignition must be turned to ON to operate
the windshield wipers.
HI (High Speed):Move the lever to this position
for wiping at high speed.
LO (Low Speed):Move the lever to this position
for steady wiping at low speed.
Sedan shown, Hatchback similar
139

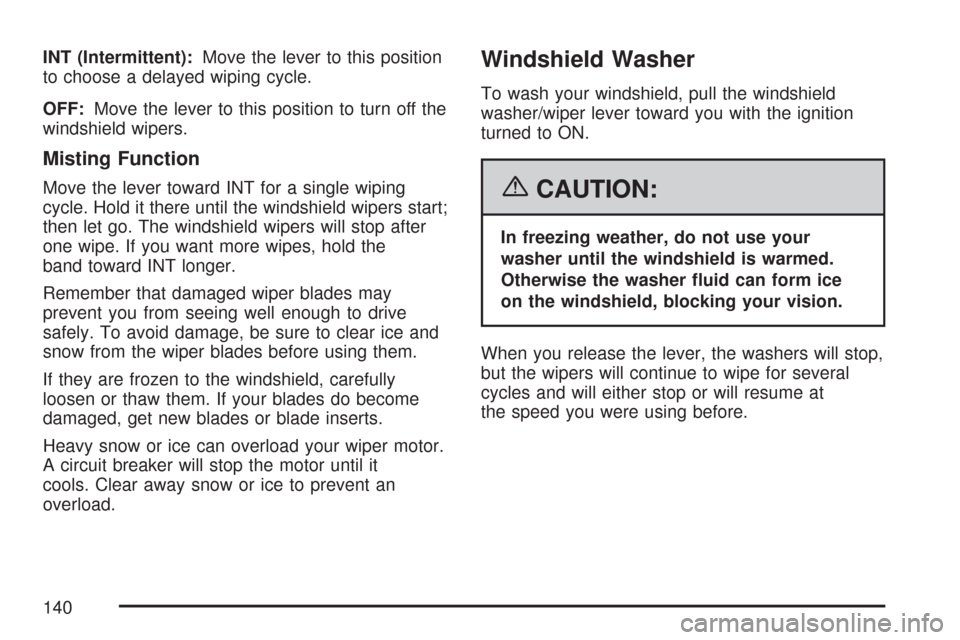

INT (Intermittent):Move the lever to this position
to choose a delayed wiping cycle.
OFF:Move the lever to this position to turn off the
windshield wipers.
Misting Function
Move the lever toward INT for a single wiping
cycle. Hold it there until the windshield wipers start;
then let go. The windshield wipers will stop after
one wipe. If you want more wipes, hold the
band toward INT longer.
Remember that damaged wiper blades may
prevent you from seeing well enough to drive
safely. To avoid damage, be sure to clear ice and
snow from the wiper blades before using them.
If they are frozen to the windshield, carefully
loosen or thaw them. If your blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wiper motor.
A circuit breaker will stop the motor until it
cools. Clear away snow or ice to prevent an
overload.
Windshield Washer
To wash your windshield, pull the windshield
washer/wiper lever toward you with the ignition
turned to ON.
{CAUTION:
In freezing weather, do not use your
washer until the windshield is warmed.
Otherwise the washer uid can form ice
on the windshield, blocking your vision.
When you release the lever, the washers will stop,
but the wipers will continue to wipe for several
cycles and will either stop or will resume at
the speed you were using before.
140
