Page 81 of 436

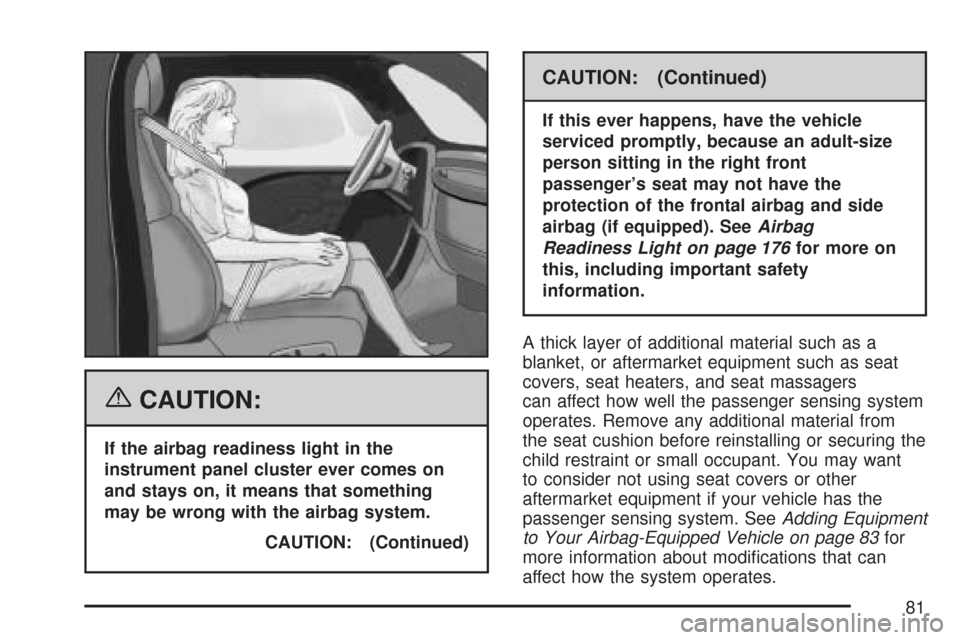

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system.
CAUTION: (Continued)
CAUTION: (Continued)
If this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of the frontal airbag and side
airbag (if equipped). SeeAirbag
Readiness Light on page 176for more on
this, including important safety
information.
A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers, seat heaters, and seat massagers
can affect how well the passenger sensing system
operates. Remove any additional material from
the seat cushion before reinstalling or securing the
child restraint or small occupant. You may want
to consider not using seat covers or other
aftermarket equipment if your vehicle has the
passenger sensing system. SeeAdding Equipment
to Your Airbag-Equipped Vehicle on page 83for
more information about modifications that can
affect how the system operates.
81
Page 82 of 436

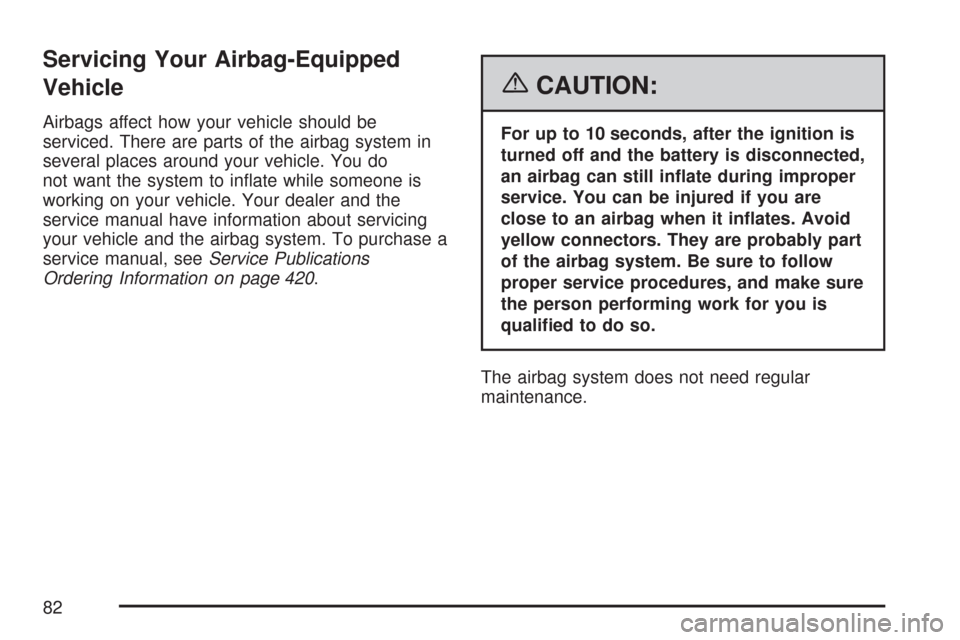

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inflate while someone is
working on your vehicle. Your dealer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 420.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still in ate during improper
service. You can be injured if you are
close to an airbag when it in ates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
quali ed to do so.
The airbag system does not need regular
maintenance.
82
Page 83 of 436
Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the
exterior of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors. If
you have any questions about this, you should
contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 402.
Q:Because I have a disability, I have to get
my vehicle modi ed. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, or airbag wiring can affect
the operation of the airbag system. If you have
questions, call Customer Assistance. The
phone numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual.
SeeCustomer Satisfaction Procedure on
page 402.
Your dealer/retailer and the service manual have
information about the location of the airbag
sensors, sensing and diagnostic module and
airbag wiring.
83
Page 84 of 436

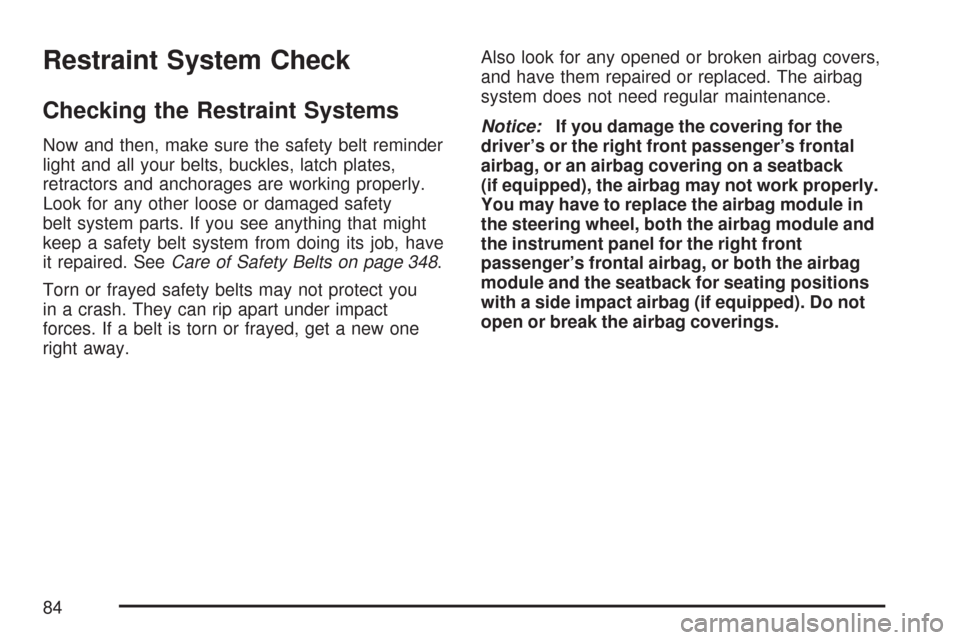

Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors and anchorages are working properly.
Look for any other loose or damaged safety
belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it repaired. SeeCare of Safety Belts on page 348.
Torn or frayed safety belts may not protect you
in a crash. They can rip apart under impact
forces. If a belt is torn or frayed, get a new one
right away.Also look for any opened or broken airbag covers,
and have them repaired or replaced. The airbag
system does not need regular maintenance.
Notice:If you damage the covering for the
driver’s or the right front passenger’s frontal
airbag, or an airbag covering on a seatback
(if equipped), the airbag may not work properly.
You may have to replace the airbag module in
the steering wheel, both the airbag module and
the instrument panel for the right front
passenger’s frontal airbag, or both the airbag
module and the seatback for seating positions
with a side impact airbag (if equipped). Do not
open or break the airbag coverings.
84
Page 85 of 436

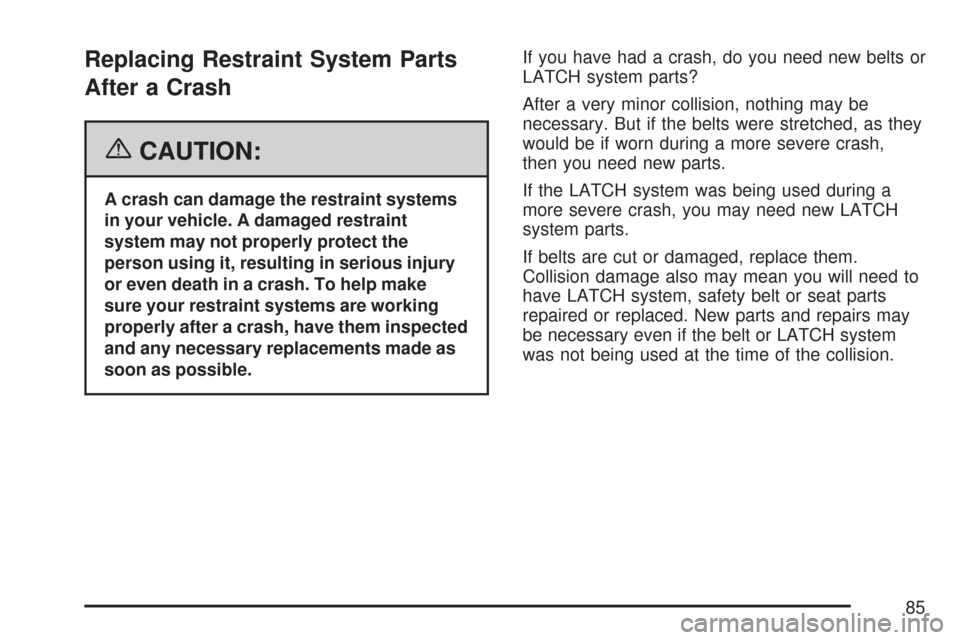

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them inspected
and any necessary replacements made as
soon as possible.If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.
If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
85
Page 86 of 436

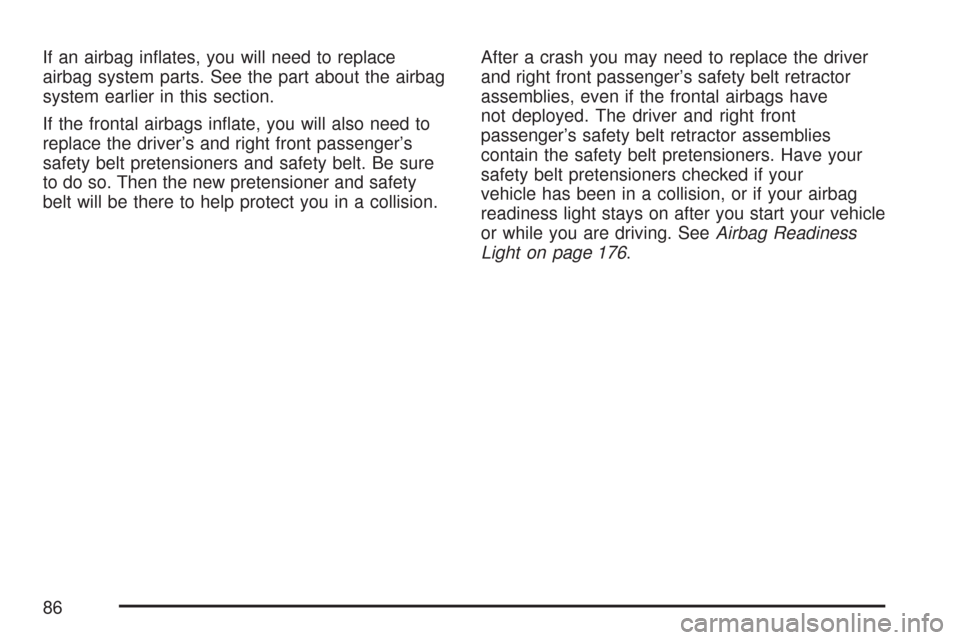

If an airbag inflates, you will need to replace
airbag system parts. See the part about the airbag
system earlier in this section.
If the frontal airbags inflate, you will also need to
replace the driver’s and right front passenger’s
safety belt pretensioners and safety belt. Be sure
to do so. Then the new pretensioner and safety
belt will be there to help protect you in a collision.After a crash you may need to replace the driver
and right front passenger’s safety belt retractor
assemblies, even if the frontal airbags have
not deployed. The driver and right front
passenger’s safety belt retractor assemblies
contain the safety belt pretensioners. Have your
safety belt pretensioners checked if your
vehicle has been in a collision, or if your airbag
readiness light stays on after you start your vehicle
or while you are driving. SeeAirbag Readiness
Light on page 176.
86
Page 87 of 436

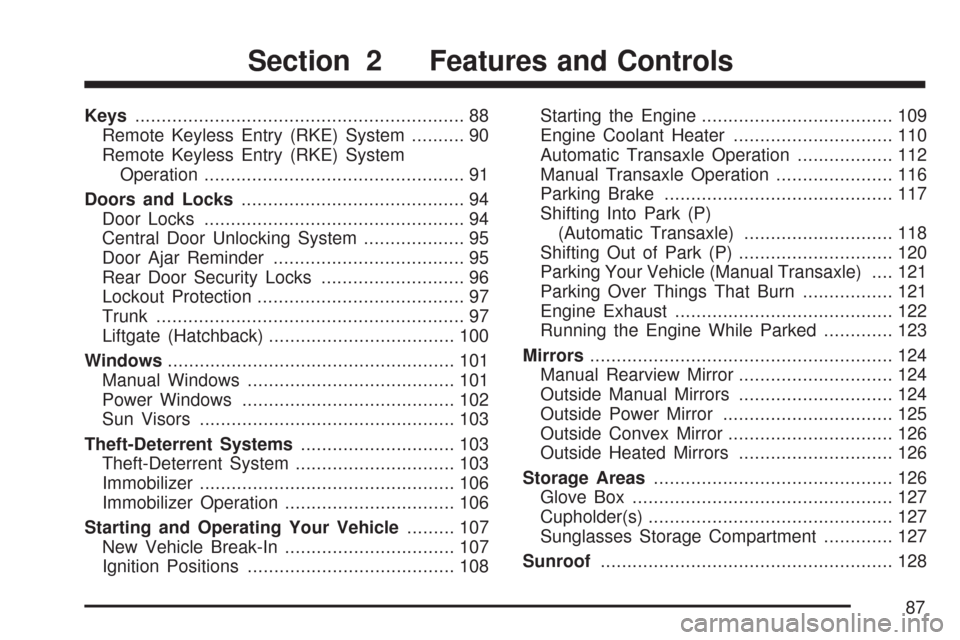

Keys.............................................................. 88
Remote Keyless Entry (RKE) System.......... 90
Remote Keyless Entry (RKE) System
Operation................................................. 91
Doors and Locks.......................................... 94
Door Locks................................................. 94
Central Door Unlocking System................... 95
Door Ajar Reminder.................................... 95
Rear Door Security Locks........................... 96
Lockout Protection....................................... 97
Trunk.......................................................... 97
Liftgate (Hatchback)................................... 100
Windows...................................................... 101
Manual Windows....................................... 101
Power Windows........................................ 102
Sun Visors................................................ 103
Theft-Deterrent Systems............................. 103
Theft-Deterrent System.............................. 103
Immobilizer................................................ 106
Immobilizer Operation................................ 106
Starting and Operating Your Vehicle......... 107
New Vehicle Break-In................................ 107
Ignition Positions....................................... 108Starting the Engine.................................... 109
Engine Coolant Heater.............................. 110
Automatic Transaxle Operation.................. 112
Manual Transaxle Operation...................... 116
Parking Brake........................................... 117
Shifting Into Park (P)
(Automatic Transaxle)............................ 118
Shifting Out of Park (P)............................. 120
Parking Your Vehicle (Manual Transaxle).... 121
Parking Over Things That Burn................. 121
Engine Exhaust......................................... 122
Running the Engine While Parked............. 123
Mirrors......................................................... 124
Manual Rearview Mirror............................. 124
Outside Manual Mirrors............................. 124
Outside Power Mirror................................ 125
Outside Convex Mirror............................... 126
Outside Heated Mirrors............................. 126
Storage Areas............................................. 126
Glove Box................................................. 127
Cupholder(s).............................................. 127
Sunglasses Storage Compartment............. 127
Sunroof....................................................... 128
Section 2 Features and Controls
87
Page 88 of 436
Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The
windows will function with the keys in the
ignition and they could be seriously
injured or killed if caught in the path of a
closing window. Do not leave the keys in
a vehicle with children.
88
Page 89 of 436
One key is used for the
ignition, the doors and
all other locks.
When a new vehicle is delivered, the dealer
removes the key tag and gives it to the first owner.
The tag has a code on it that tells your dealer
how to make extra keys. For vehicle security, keep
the key tag in a safe place and also record the
key number somewhere other than inside of
the vehicle. If you lose your key, you will be able
to have a new one made easily using the tag.Your vehicle may have an electronic immobilizer
designed to protect your car against theft. If
so, only keys with the correct electronic code can
be used to start the vehicle. SeeImmobilizer
Operation on page 106for additional information.
Even if a key has the same profile, it will not
start the engine if the electronic code is incorrect.
If you need a new key, contact your dealer
who can obtain the correct key code. Also see
Roadside Assistance Program on page 408.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle to
get in. Be sure you have spare keys.
89
Page 90 of 436

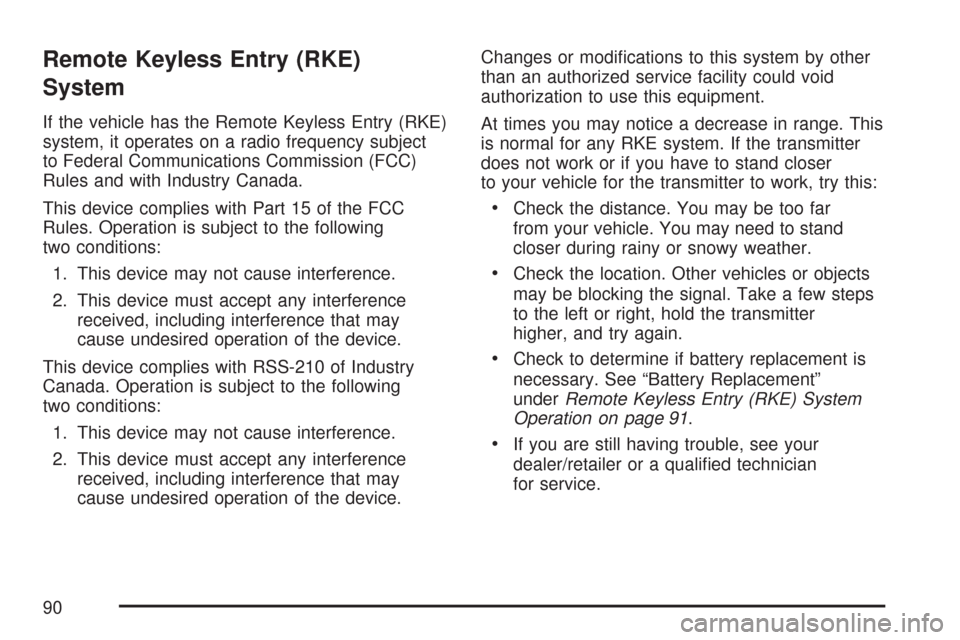

Remote Keyless Entry (RKE)
System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.Changes or modifications to this system by other
than an authorized service facility could void
authorization to use this equipment.
At times you may notice a decrease in range. This
is normal for any RKE system. If the transmitter
does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
•Check the distance. You may be too far
from your vehicle. You may need to stand
closer during rainy or snowy weather.
•Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
•Check to determine if battery replacement is
necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 91.
•If you are still having trouble, see your
dealer/retailer or a qualified technician
for service.
90
