Page 91 of 436
Remote Keyless Entry (RKE)
System Operation
You can lock and unlock your vehicle’s doors from
about 20 ft (6 m) away using the Remote
Keyless Entry (RKE) transmitter.The following functions may be available if your
vehicle has the RKE system:Hatchback
Q(Lock):Press this button to lock all of the
doors. If all of the doors and the trunk or liftgate are
closed, the hazard lamps will flash once and the
horn will chirp to indicate that locking has occurred
and that the theft-deterrent system is active.
K(Unlock):Press this button to unlock all of
the doors. The hazard lamps will flash twice
to indicate that unlocking has occurred and that
the theft-deterrent system is deactivated.
HatchbackSedan
91
Page 92 of 436

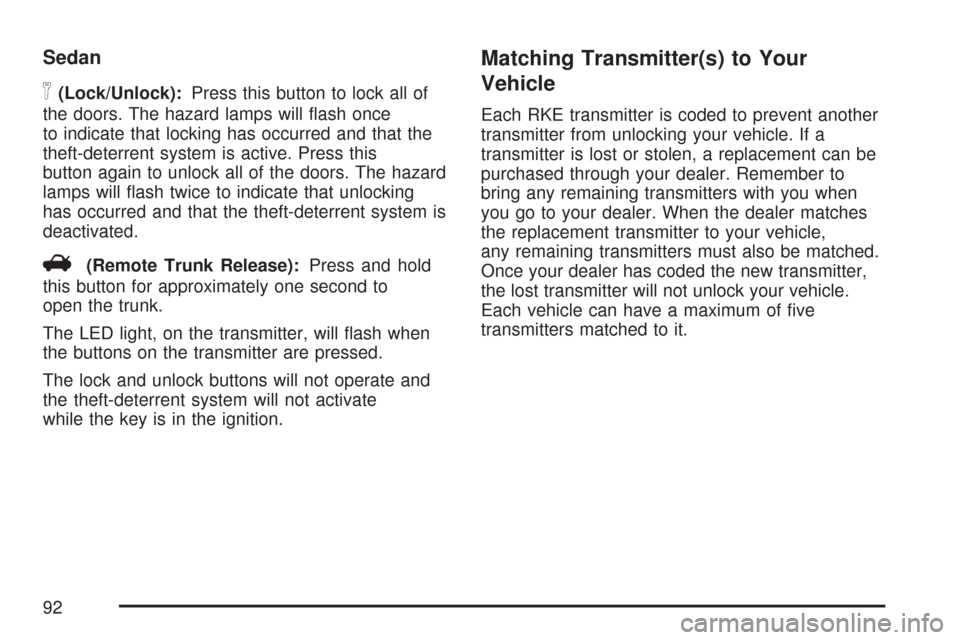

Sedan
n(Lock/Unlock):Press this button to lock all of
the doors. The hazard lamps will flash once
to indicate that locking has occurred and that the
theft-deterrent system is active. Press this
button again to unlock all of the doors. The hazard
lamps will flash twice to indicate that unlocking
has occurred and that the theft-deterrent system is
deactivated.
V(Remote Trunk Release):Press and hold
this button for approximately one second to
open the trunk.
The LED light, on the transmitter, will flash when
the buttons on the transmitter are pressed.
The lock and unlock buttons will not operate and
the theft-deterrent system will not activate
while the key is in the ignition.
Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to
bring any remaining transmitters with you when
you go to your dealer. When the dealer matches
the replacement transmitter to your vehicle,
any remaining transmitters must also be matched.
Once your dealer has coded the new transmitter,
the lost transmitter will not unlock your vehicle.
Each vehicle can have a maximum of five
transmitters matched to it.
92
Page 93 of 436
Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about two years.
The battery is weak if the LED fails to illuminate or
if the transmitter will not work at the normal
range in any location. If you have to get close to
your vehicle before the transmitter works, it is
probably time to change the battery.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.To replace the battery in the RKE transmitter, do
the following:
1. Remove the screw from the back of the cover
and open the cover of the transmitter.
2. Pull the transmitter out of the cover and
carefully detach the sticker from the unit.
Keep the sticker clean.
3. Remove the battery and replace it with the
new one. Make sure the positive side of the
battery faces up. Use one three-volt, CR1620,
or equivalent, type battery.
4. Attach the sticker and put the transmitter unit
in the cover.
5. Put the two halves back together and replace
the screw. Make sure the cover is on tightly,
so water will not get in.
6. Test the transmitter operation.
HatchbackSedan
93
Page 94 of 436

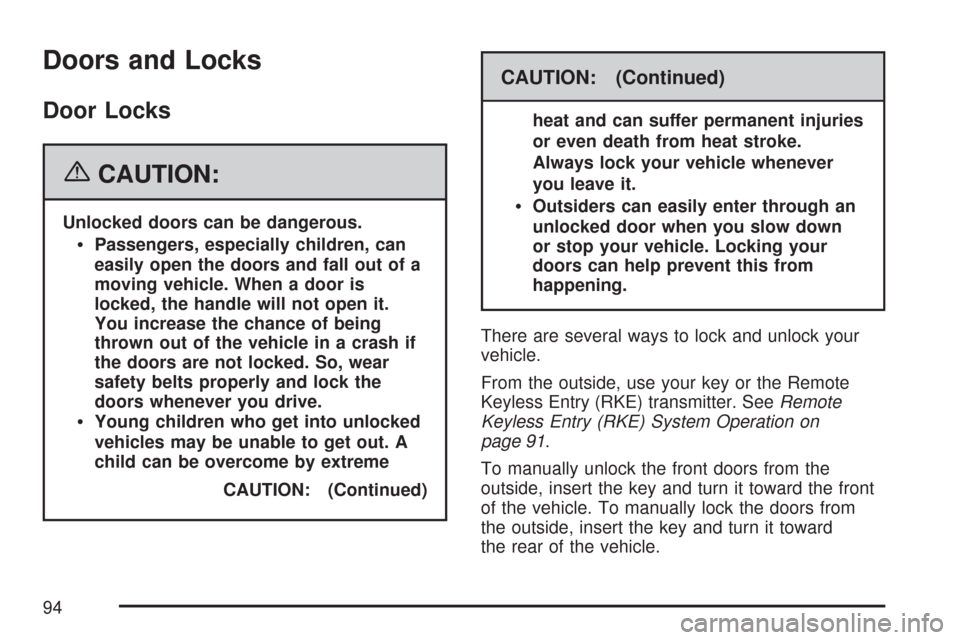

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A
child can be overcome by extreme
CAUTION: (Continued)
CAUTION: (Continued)
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle.
From the outside, use your key or the Remote
Keyless Entry (RKE) transmitter. SeeRemote
Keyless Entry (RKE) System Operation on
page 91.
To manually unlock the front doors from the
outside, insert the key and turn it toward the front
of the vehicle. To manually lock the doors from
the outside, insert the key and turn it toward
the rear of the vehicle.
94
Page 95 of 436

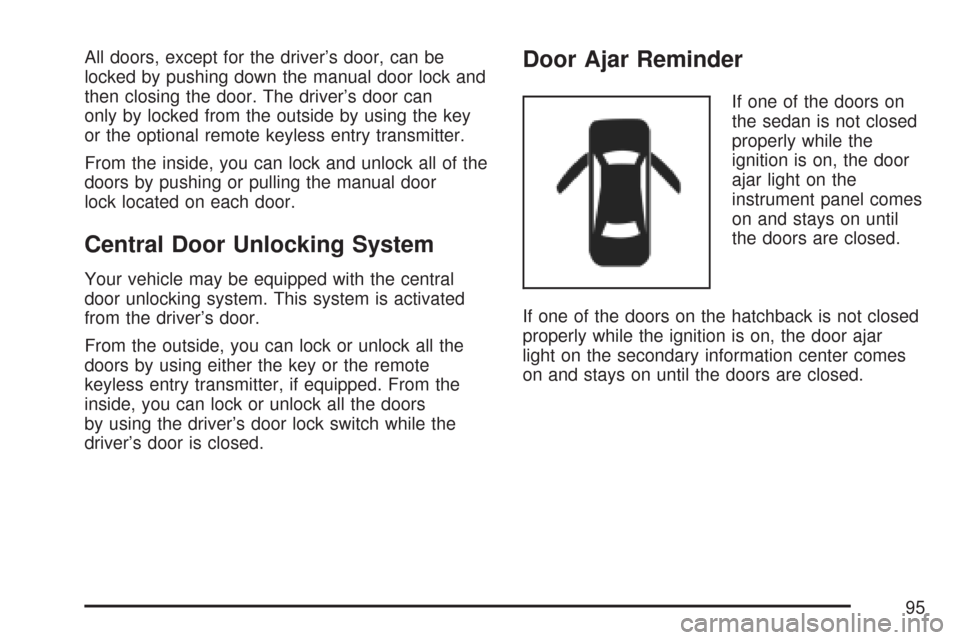

All doors, except for the driver’s door, can be
locked by pushing down the manual door lock and
then closing the door. The driver’s door can
only by locked from the outside by using the key
or the optional remote keyless entry transmitter.
From the inside, you can lock and unlock all of the
doors by pushing or pulling the manual door
lock located on each door.
Central Door Unlocking System
Your vehicle may be equipped with the central
door unlocking system. This system is activated
from the driver’s door.
From the outside, you can lock or unlock all the
doors by using either the key or the remote
keyless entry transmitter, if equipped. From the
inside, you can lock or unlock all the doors
by using the driver’s door lock switch while the
driver’s door is closed.
Door Ajar Reminder
If one of the doors on
the sedan is not closed
properly while the
ignition is on, the door
ajar light on the
instrument panel comes
on and stays on until
the doors are closed.
If one of the doors on the hatchback is not closed
properly while the ignition is on, the door ajar
light on the secondary information center comes
on and stays on until the doors are closed.
95
Page 96 of 436
Rear Door Security Locks
Your vehicle has rear
door security locks on
each rear door that
prevent passengers
from opening the
rear doors from
the inside.
Using the Rear Door Security Lock
1. Move the lever up to lock.
2. Close the door.
3. Do the same thing to the other rear door lock.
Notice:Pulling the inside door handle while
the rear door security locks are engaged could
damage your vehicle. Do not pull the inside
door handle while the rear door security locks
are engaged.
The rear doors on your vehicle cannot be opened
from the inside while this feature is in use.
Opening a Rear Door When the
Security Lock is On
1. Unlock the door from the inside.
2. Open the door from the outside.
If you do not cancel the security lock, adults or
older children who ride in the rear will not be able
to open the rear door from the inside. You
should let adults and older children know how to
cancel the locks.
Canceling the Rear Door Security Lock
1. Unlock the door from the inside and open
the door from the outside.
2. Move the lever down to unlock.
3. Do the same for the other rear door.
The rear door locks can now be locked and
unlocked normally.
96
Page 97 of 436

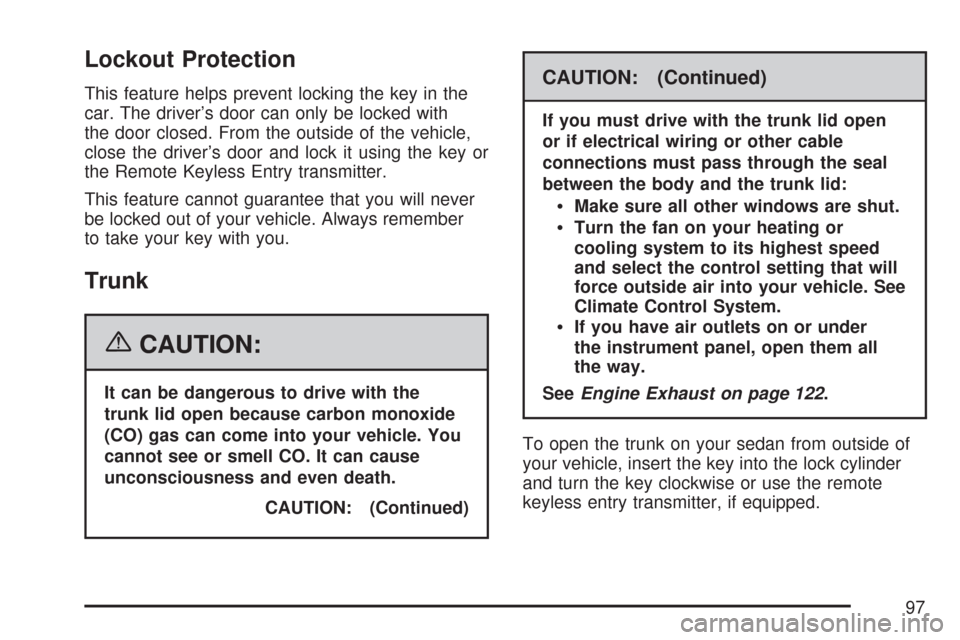

Lockout Protection
This feature helps prevent locking the key in the
car. The driver’s door can only be locked with
the door closed. From the outside of the vehicle,
close the driver’s door and lock it using the key or
the Remote Keyless Entry transmitter.
This feature cannot guarantee that you will never
be locked out of your vehicle. Always remember
to take your key with you.
Trunk
{CAUTION:
It can be dangerous to drive with the
trunk lid open because carbon monoxide
(CO) gas can come into your vehicle. You
cannot see or smell CO. It can cause
unconsciousness and even death.
CAUTION: (Continued)
CAUTION: (Continued)
If you must drive with the trunk lid open
or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle. See
Climate Control System.
If you have air outlets on or under
the instrument panel, open them all
the way.
SeeEngine Exhaust on page 122.
To open the trunk on your sedan from outside of
your vehicle, insert the key into the lock cylinder
and turn the key clockwise or use the remote
keyless entry transmitter, if equipped.
97
Page 98 of 436
Remote Trunk Release
If your vehicle has a
trunk release button
located on the driver’s
door, you can open
the trunk from inside
your vehicle by pressing
the release button.
When closing the trunk, close from the center to
ensure it fully latches.If your vehicle has a
trunk release lever
located on the outboard
side of the driver’s
seat, you can open the
trunk from inside
your vehicle by pulling
the release lever.
Trunk Release ButtonTrunk Release Lever
98
Page 99 of 436
Emergency Trunk Release Handle
Notice:Do not use the emergency trunk
release handle as a tie-down or anchor point
when securing items in the trunk as it
could damage the handle. The emergency
trunk release handle is only intended to aid a
person trapped in a latched trunk, enabling
them to open the trunk from the inside.
There is a glow-in-the-dark emergency trunk
release handle located on the underside of the
trunk lid. This handle will glow following exposure
to light. Pull the release handle down to open
the trunk from the inside.
99
Page 100 of 436

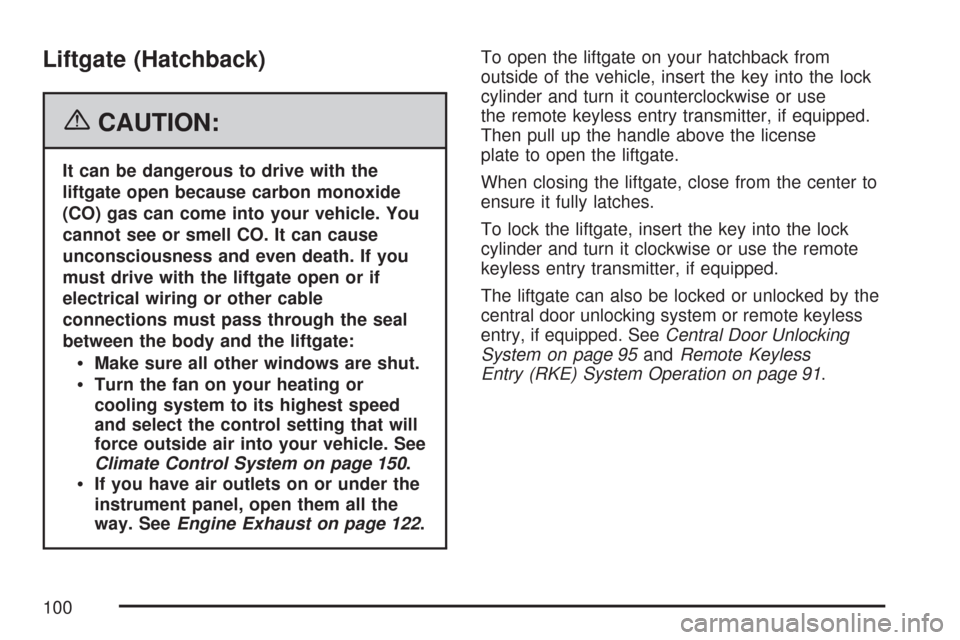

Liftgate (Hatchback)
{CAUTION:
It can be dangerous to drive with the
liftgate open because carbon monoxide
(CO) gas can come into your vehicle. You
cannot see or smell CO. It can cause
unconsciousness and even death. If you
must drive with the liftgate open or if
electrical wiring or other cable
connections must pass through the seal
between the body and the liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle. See
Climate Control System on page 150.
If you have air outlets on or under the
instrument panel, open them all the
way. SeeEngine Exhaust on page 122.To open the liftgate on your hatchback from
outside of the vehicle, insert the key into the lock
cylinder and turn it counterclockwise or use
the remote keyless entry transmitter, if equipped.
Then pull up the handle above the license
plate to open the liftgate.
When closing the liftgate, close from the center to
ensure it fully latches.
To lock the liftgate, insert the key into the lock
cylinder and turn it clockwise or use the remote
keyless entry transmitter, if equipped.
The liftgate can also be locked or unlocked by the
central door unlocking system or remote keyless
entry, if equipped. SeeCentral Door Unlocking
System on page 95andRemote Keyless
Entry (RKE) System Operation on page 91.
100
