CHEVROLET AVEO 2008 1.G Owners Manual

Outside Power Mirror
For sedan models,
the control for the power
mirrors is located on
the instrument panel, left
of the steering wheel.
To adjust the mirrors, do the following:
1. Select the mirror you want to adjust by moving the
selector switch to L for the driver’s side mirror or
R for the passenger’s side mirror.
2. To adjust the mirror, press the corresponding edges
located on the four-way control pad to move the
mirror in the direction that you want it to go - up,
down, left or right. The ignition must be turned to
ON/RUN to adjust the mirrors.For hatchback models, the
control for the power mirror
is located on the driver’s
door panel, above the
power window buttons.
1. Select the mirror you want to adjust by pressing the
left side of the selector switch for the driver’s side
mirror or the right side for the passenger’s side
mirror.
2. To adjust each mirror, press the corresponding
edges located on the four-way control pad to
move the mirror in the direction that you want it to
go. The ignition must be turned to ON/RUN to
adjust the mirrors.
The outside rearview mirrors can be folded flat against
the side of the vehicle by pushing them toward the
vehicle’s doors.
2-33

Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The passenger side mirror is convex. A convex mirror’s
surface is curved so more can be seen from the
driver’s seat. It also makes things, like other vehicles,
look farther away than they really are.
Outside Heated Mirrors
If your vehicle has this feature, when you operate
the rear window defogger, the heated driver’s and
passenger’s outside power mirrors are warmed to
help clear them of ice, snow, and condensation.
See “Rear Window and Outside Mirror Defogger”
underClimate Control System on page 3-20for
more information.
Storage Areas
Your vehicle has shopping hooks on each front seatback
for your convenience. Lift the headrest to access the
hooks.
Glove Box
To open the glove box, lift up on the lever.
2-34

Cupholder(s)
There are two cupholders located in the center
instrument panel, below the climate control system.
To use the cupholder, push in on its outer edge. Then
pull out the cupholder. After use, push in the cupholder
until it latches.
There is also a cupholder located in the rear of the
center console.
Sunglasses Storage Compartment
If your vehicle has this feature, the sunglasses storage
compartment is located above the driver’s door.
To open, pull down and hold the upper part of the
cover. To close the compartment, let go of the cover
and the compartment will automatically close.
2-35

Sunroof
If the vehicle has this
feature, the switch is
located on the headliner
between the sun visors.
The sunroof will only operate when the ignition is turned
to ON/RUN. The sunroof can be opened to a vent
position or it can be opened all of the way.
You must manually open and close the sunshade.To open the sunroof to the vent position, open the
sunshade. Then press and hold the driver’s side of
the switch. To close the sunroof, press and hold
the passenger’s side of the switch until the sunroof
reaches the desired position.
To fully open the sunroof, open the sunshade. Then
press and hold the passenger’s side of the switch.
To close the sunroof, press and hold the driver’s side
of the switch. The sunroof will stop if the switch is
released during operation.
In both the vent and fully open positions, the air flow
can be adjusted by pushing and holding the switch until
the sunroof moves to the desired position.
The sunroof cannot be opened or closed if the vehicle
has an electrical failure.
2-36

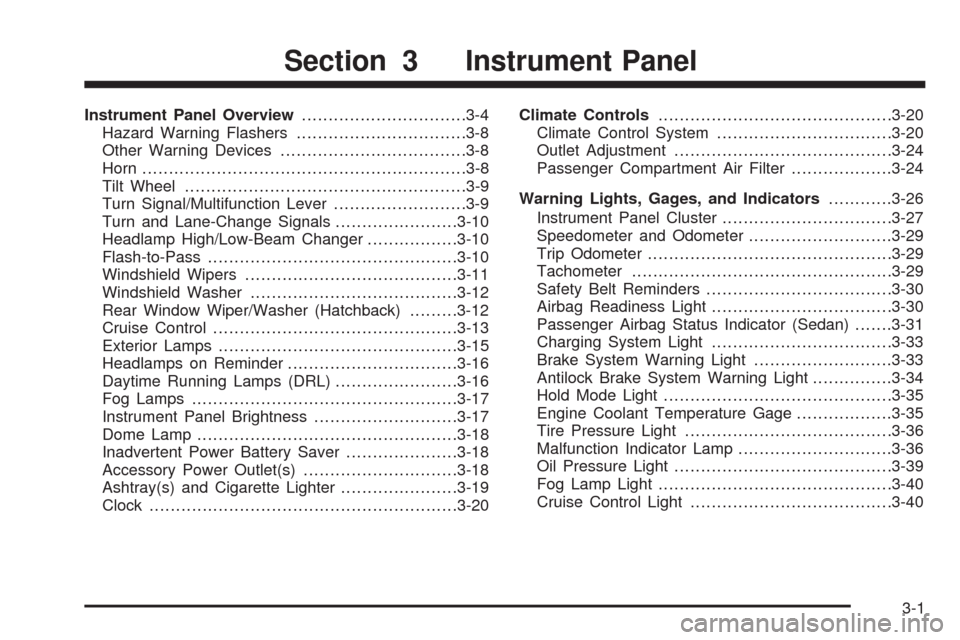

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-8
Other Warning Devices...................................3-8
Horn.............................................................3-8
Tilt Wheel.....................................................3-9
Turn Signal/Multifunction Lever.........................3-9
Turn and Lane-Change Signals.......................3-10
Headlamp High/Low-Beam Changer.................3-10
Flash-to-Pass...............................................3-10
Windshield Wipers........................................3-11
Windshield Washer.......................................3-12
Rear Window Wiper/Washer (Hatchback).........3-12
Cruise Control..............................................3-13
Exterior Lamps.............................................3-15
Headlamps on Reminder................................3-16
Daytime Running Lamps (DRL).......................3-16
Fog Lamps..................................................3-17
Instrument Panel Brightness...........................3-17
Dome Lamp.................................................3-18
Inadvertent Power Battery Saver.....................3-18
Accessory Power Outlet(s).............................3-18
Ashtray(s) and Cigarette Lighter......................3-19
Clock..........................................................3-20Climate Controls............................................3-20
Climate Control System.................................3-20
Outlet Adjustment.........................................3-24
Passenger Compartment Air Filter...................3-24
Warning Lights, Gages, and Indicators............3-26
Instrument Panel Cluster................................3-27
Speedometer and Odometer...........................3-29
Trip Odometer..............................................3-29
Tachometer.................................................3-29
Safety Belt Reminders...................................3-30
Airbag Readiness Light.................................
.3-30
Passenger Airbag Status Indicator (Sedan).......3-31
Charging System Light..................................3-33
Brake System Warning Light..........................3-33
Antilock Brake System Warning Light...............3-34
Hold Mode Light...........................................3-35
Engine Coolant Temperature Gage..................3-35
Tire Pressure Light.......................................3-36
Malfunction Indicator Lamp.............................3-36
Oil Pressure Light.........................................3-39
Fog Lamp Light............................................3-40
Cruise Control Light......................................3-40
Section 3 Instrument Panel
3-1

Highbeam On Light.......................................3-40
Daytime Running Lamps (DRL) Indicator Light.....3-40
Door Ajar Light.............................................3-41
Fuel Gage...................................................3-41
Low Fuel Warning Light.................................3-42
Secondary Information Center (SIC).................3-43
Secondary Information Center (SIC)
(Hatchback Only).......................................3-43
Clock (Hatchback Only).................................3-44
Safety Belt Reminders...................................3-44
Airbag Readiness Light..................................3-45
Passenger Airbag Status Indicator
(Hatchback)..............................................3-46
Charging System Light..................................3-47
Antilock Brake System Warning Light...............3-48
Hold Mode Light...........................................3-48
Malfunction Indicator Lamp.............................3-49Oil Pressure Light.........................................3-52
Fog Lamp Light............................................3-53
Cruise Control Light......................................3-53
Door Ajar Light.............................................3-53
Audio System(s).............................................3-54
AM-FM Radio (Single Display, Base Level).......3-55
AM-FM Radio (Double Display, Base Level).....3-56
Radio with CD (MP3/WMA)............................3-60
Radio with Six-Disc CD (MP3/WMA)................3-66
Using an MP3 (Radio with CD Player).............3-72
Using an MP3 (Radio with Six-Disc Player)......3-75
Audio Steering Wheel Controls.......................3-78
Radio Reception...........................................3-79
Care of Your CDs.........................................3-79
Care of the CD Player...................................3-79
Fixed Mast Antenna (Hatchback).....................3-80
Backglass Antenna (Sedan)...........................3-80
Section 3 Instrument Panel
3-2

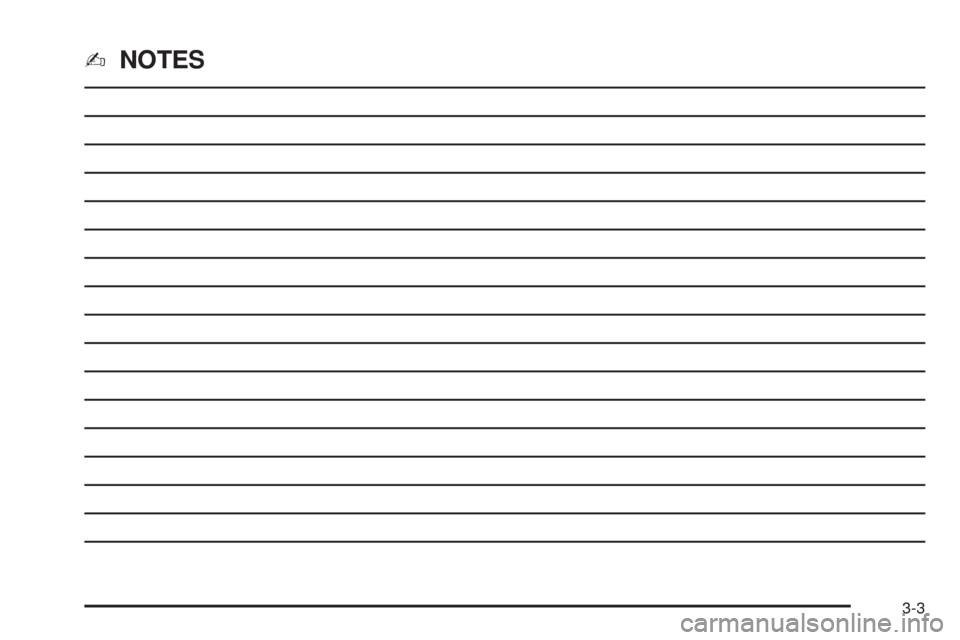

✍NOTES
3-3

Instrument Panel Overview
Hatchback shown
3-4

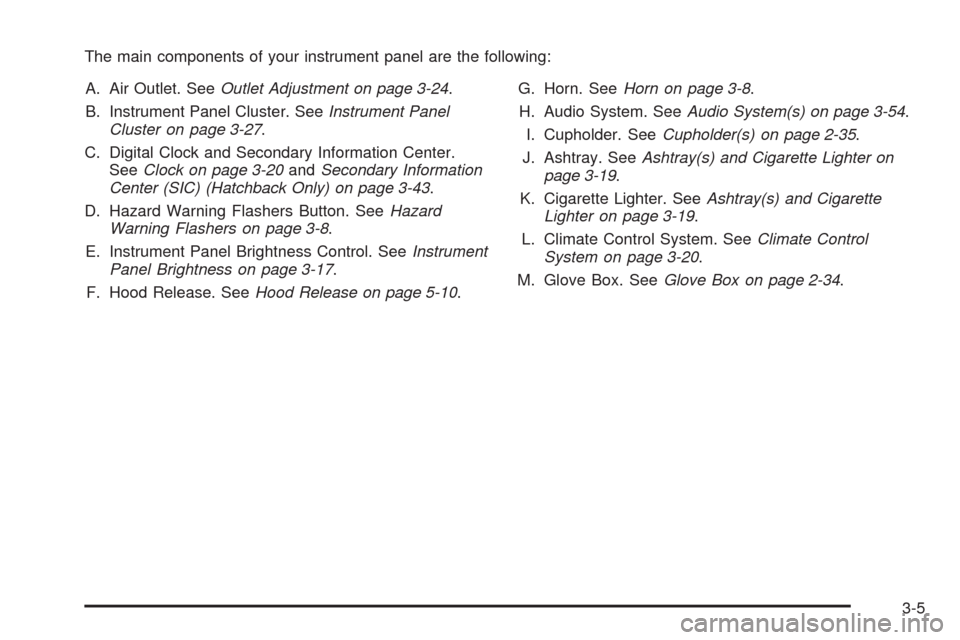

The main components of your instrument panel are the following:
A. Air Outlet. SeeOutlet Adjustment on page 3-24.
B. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-27.
C. Digital Clock and Secondary Information Center.
SeeClock on page 3-20andSecondary Information
Center (SIC) (Hatchback Only) on page 3-43.
D. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 3-8.
E. Instrument Panel Brightness Control. SeeInstrument
Panel Brightness on page 3-17.
F. Hood Release. SeeHood Release on page 5-10.G. Horn. SeeHorn on page 3-8.
H. Audio System. SeeAudio System(s) on page 3-54.
I. Cupholder. SeeCupholder(s) on page 2-35.
J. Ashtray. SeeAshtray(s) and Cigarette Lighter on
page 3-19.
K. Cigarette Lighter. SeeAshtray(s) and Cigarette
Lighter on page 3-19.
L. Climate Control System. SeeClimate Control
System on page 3-20.
M. Glove Box. SeeGlove Box on page 2-34.
3-5

Sedan shown
3-6
