CHEVROLET AVEO 2009 1.G Owners Manual

The cruise control buttons are located on the right side
of the steering wheel.
I/O(On/Off):Press to turn the cruise control on
or off.
RES+ (Resume/Accelerate):Press to make the
vehicle accelerate or resume to a previously set speed.
SET– (Set/Coast):Press to set the speed or make
the vehicle decelerate.
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when you are
not using cruise, you might hit a button and go
into cruise when you do not want to. You could be
startled and even lose control. Keep the cruise
control switch off until you want to use cruise
control.
1. Press
I/Oto turn cruise control on.
2. Accelerate to the speed desired.
3. Press the SET– button and release it. The cruise
control light comes on in the instrument panel
cluster to show that the cruise control is on.
4. Take your foot off the accelerate pedal.
3-11

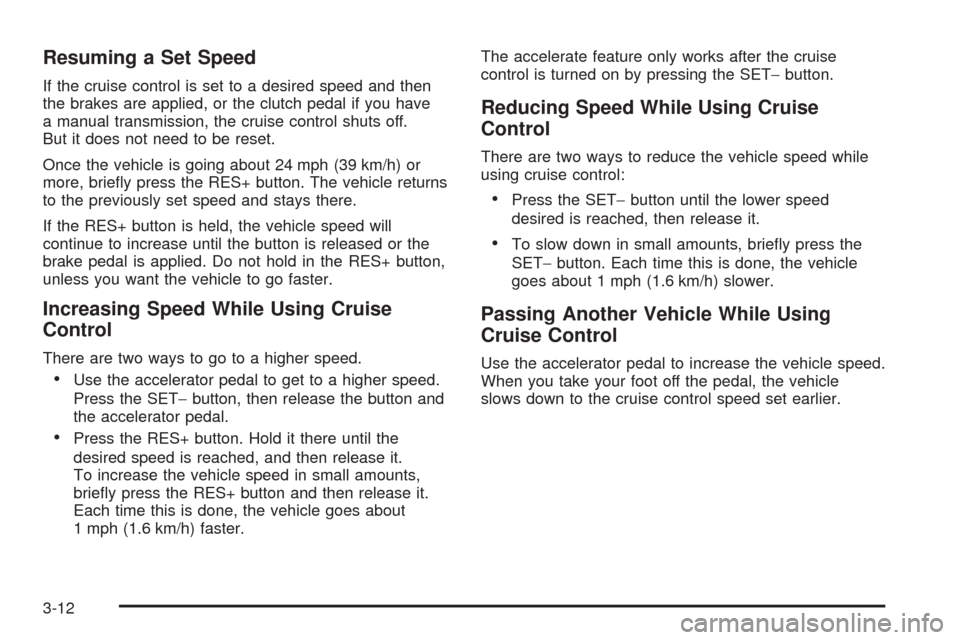

Resuming a Set Speed
If the cruise control is set to a desired speed and then
the brakes are applied, or the clutch pedal if you have
a manual transmission, the cruise control shuts off.
But it does not need to be reset.
Once the vehicle is going about 24 mph (39 km/h) or
more, briey press the RES+ button. The vehicle returns
to the previously set speed and stays there.
If the RES+ button is held, the vehicle speed will
continue to increase until the button is released or the
brake pedal is applied. Do not hold in the RES+ button,
unless you want the vehicle to go faster.
Increasing Speed While Using Cruise
Control
There are two ways to go to a higher speed.
Use the accelerator pedal to get to a higher speed.
Press the SET−button, then release the button and
the accelerator pedal.
Press the RES+ button. Hold it there until the
desired speed is reached, and then release it.
To increase the vehicle speed in small amounts,
briey press the RES+ button and then release it.
Each time this is done, the vehicle goes about
1 mph (1.6 km/h) faster.The accelerate feature only works after the cruise
control is turned on by pressing the SET−button.
Reducing Speed While Using Cruise
Control
There are two ways to reduce the vehicle speed while
using cruise control:
Press the SET−button until the lower speed
desired is reached, then release it.
To slow down in small amounts, briey press the
SET−button. Each time this is done, the vehicle
goes about 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase the vehicle speed.
When you take your foot off the pedal, the vehicle
slows down to the cruise control speed set earlier.
3-12

Using Cruise Control on Hills
How well the cruise control works on hills depends upon
the vehicle speed, load, and the steepness of the
hills. When going up steep hills, you might have to step
on the accelerator pedal to maintain the vehicle’s
speed. When going downhill, you might have to brake
or shift to a lower gear to keep the vehicle’s speed
down. When the brakes are applied the cruise control
turns off.
Ending Cruise Control
There are two ways to turn off the cruise control:
Step lightly on the brake pedal, or press the clutch
pedal, if you have a manual transmission.
PressI/Oon the cruise control pad.
Erasing Speed Memory
The cruise control set speed memory is erased when
the cruise control or the ignition is turned off.
Exterior Lamps
The lever on the left side of the steering column
operates the exterior lamps.
The exterior lamp band has three positions:
3(Headlamps):Turns on the headlamps, together
with the following:
Taillamps
License Plate Lamp
Instrument Panel Lights
Parking Lamps
The headlamps automatically turn off when the ignition
key is turned to LOCK/OFF or ACC/ACCESSORY.Uplevel shown, Base similar
3-13

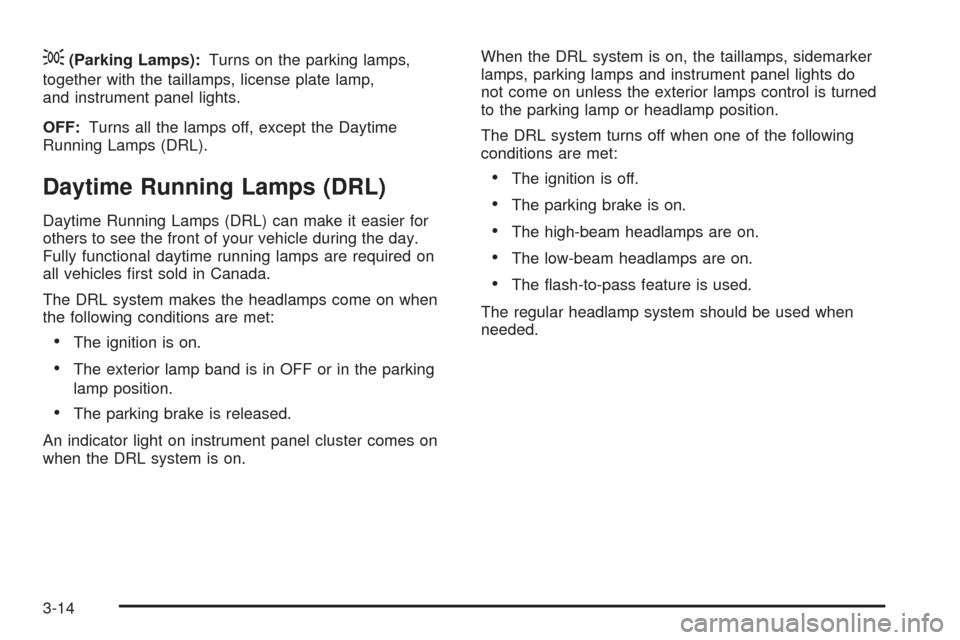

;(Parking Lamps):Turns on the parking lamps,
together with the taillamps, license plate lamp,
and instrument panel lights.
OFF:Turns all the lamps off, except the Daytime
Running Lamps (DRL).
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
Fully functional daytime running lamps are required on
all vehicles rst sold in Canada.
The DRL system makes the headlamps come on when
the following conditions are met:
The ignition is on.
The exterior lamp band is in OFF or in the parking
lamp position.
The parking brake is released.
An indicator light on instrument panel cluster comes on
when the DRL system is on.When the DRL system is on, the taillamps, sidemarker
lamps, parking lamps and instrument panel lights do
not come on unless the exterior lamps control is turned
to the parking lamp or headlamp position.
The DRL system turns off when one of the following
conditions are met:
The ignition is off.
The parking brake is on.
The high-beam headlamps are on.
The low-beam headlamps are on.
The ash-to-pass feature is used.
The regular headlamp system should be used when
needed.
3-14

Fog Lamps
For vehicles with fog lamps, they are controlled by
the
#band located on the middle of the turn signal/
multifunction lever.
To use the fog lamps, the ignition must be turned to
ON/RUN and the low-beam headlamps or parking lamps
must be on.
Turn the band to
#to turn the fog lamps on. The band
automatically returns to its starting position when
released. The fog lamp indicator light comes on in the
instrument panel cluster. SeeFog Lamp Light on
page 3-35.
To turn the fog lamps off, turn the band to
#again.
The fog lamp indicator light will go off.
The fog lamps will also turn off when the high-beam
headlamps are turned on. When the high-beam
headlamps are turned off, the fog lamps will turn on
again.
Some localities have laws that require the headlamps
to be on along with the fog lamps.
Instrument Panel Brightness
This feature controls the brightness of the instrument
panel lights.
The thumbwheel for this feature is located on the
instrument panel to the left of the steering column.
Turn the thumbwheel to brighten or dim the lights.
3-15

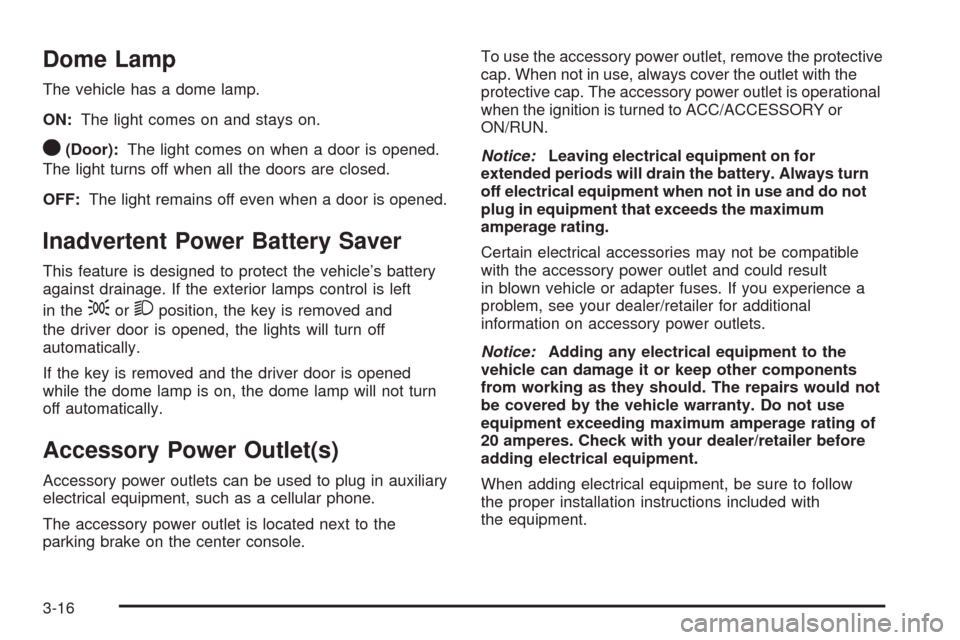

Dome Lamp
The vehicle has a dome lamp.
ON:The light comes on and stays on.
O(Door):The light comes on when a door is opened.
The light turns off when all the doors are closed.
OFF:The light remains off even when a door is opened.
Inadvertent Power Battery Saver
This feature is designed to protect the vehicle’s battery
against drainage. If the exterior lamps control is left
in the
;or2position, the key is removed and
the driver door is opened, the lights will turn off
automatically.
If the key is removed and the driver door is opened
while the dome lamp is on, the dome lamp will not turn
off automatically.
Accessory Power Outlet(s)
Accessory power outlets can be used to plug in auxiliary
electrical equipment, such as a cellular phone.
The accessory power outlet is located next to the
parking brake on the center console.To use the accessory power outlet, remove the protective
cap. When not in use, always cover the outlet with the
protective cap. The accessory power outlet is operational
when the ignition is turned to ACC/ACCESSORY or
ON/RUN.
Notice:Leaving electrical equipment on for
extended periods will drain the battery. Always turn
off electrical equipment when not in use and do not
plug in equipment that exceeds the maximum
amperage rating.
Certain electrical accessories may not be compatible
with the accessory power outlet and could result
in blown vehicle or adapter fuses. If you experience a
problem, see your dealer/retailer for additional
information on accessory power outlets.
Notice:Adding any electrical equipment to the
vehicle can damage it or keep other components
from working as they should. The repairs would not
be covered by the vehicle warranty. Do not use
equipment exceeding maximum amperage rating of
20 amperes. Check with your dealer/retailer before
adding electrical equipment.
When adding electrical equipment, be sure to follow
the proper installation instructions included with
the equipment.
3-16

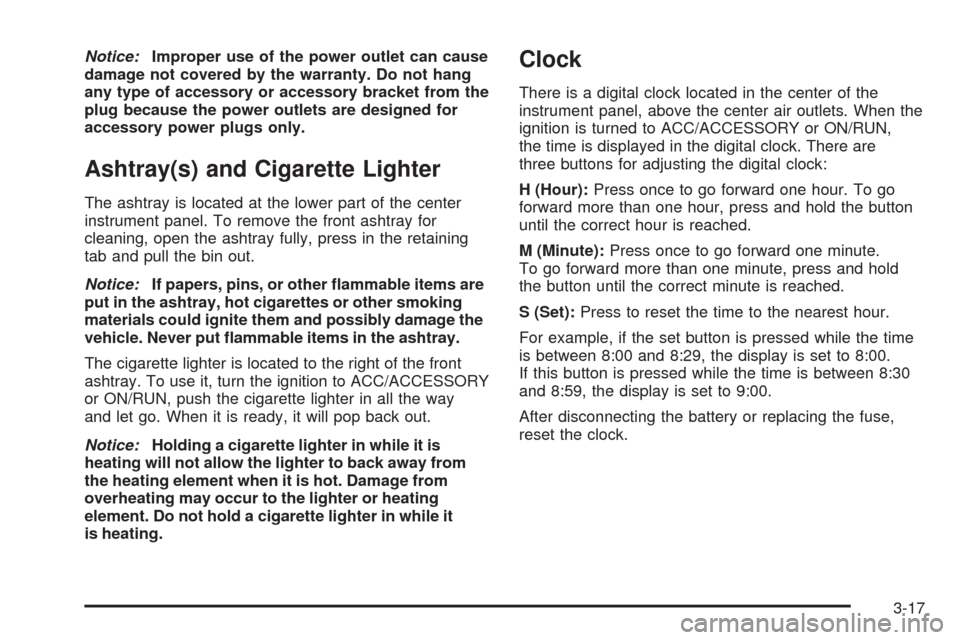

Notice:Improper use of the power outlet can cause
damage not covered by the warranty. Do not hang
any type of accessory or accessory bracket from the
plug because the power outlets are designed for
accessory power plugs only.
Ashtray(s) and Cigarette Lighter
The ashtray is located at the lower part of the center
instrument panel. To remove the front ashtray for
cleaning, open the ashtray fully, press in the retaining
tab and pull the bin out.
Notice:If papers, pins, or other ammable items are
put in the ashtray, hot cigarettes or other smoking
materials could ignite them and possibly damage the
vehicle. Never put ammable items in the ashtray.
The cigarette lighter is located to the right of the front
ashtray. To use it, turn the ignition to ACC/ACCESSORY
or ON/RUN, push the cigarette lighter in all the way
and let go. When it is ready, it will pop back out.
Notice:Holding a cigarette lighter in while it is
heating will not allow the lighter to back away from
the heating element when it is hot. Damage from
overheating may occur to the lighter or heating
element. Do not hold a cigarette lighter in while it
is heating.
Clock
There is a digital clock located in the center of the
instrument panel, above the center air outlets. When the
ignition is turned to ACC/ACCESSORY or ON/RUN,
the time is displayed in the digital clock. There are
three buttons for adjusting the digital clock:
H (Hour):Press once to go forward one hour. To go
forward more than one hour, press and hold the button
until the correct hour is reached.
M (Minute):Press once to go forward one minute.
To go forward more than one minute, press and hold
the button until the correct minute is reached.
S (Set):Press to reset the time to the nearest hour.
For example, if the set button is pressed while the time
is between 8:00 and 8:29, the display is set to 8:00.
If this button is pressed while the time is between 8:30
and 8:59, the display is set to 9:00.
After disconnecting the battery or replacing the fuse,
reset the clock.
3-17

Climate Controls
Climate Control System
The heating, cooling, and ventilation for the vehicle can
be controlled with this system.
A. Temperature Control
B. Fan Control
C. Air Delivery Mode
ControlD. Air Conditioning (A/C)
E. Recirculation
F. Rear Window
DefoggerA. Temperature Control
B. Fan Control
C. Air Delivery Mode
ControlD. Rear Window
Defogger
E. Outside Air/
Recirculation
Climate Control System with Heater and
Air Conditioning
Climate Control System with Heater Only
3-18

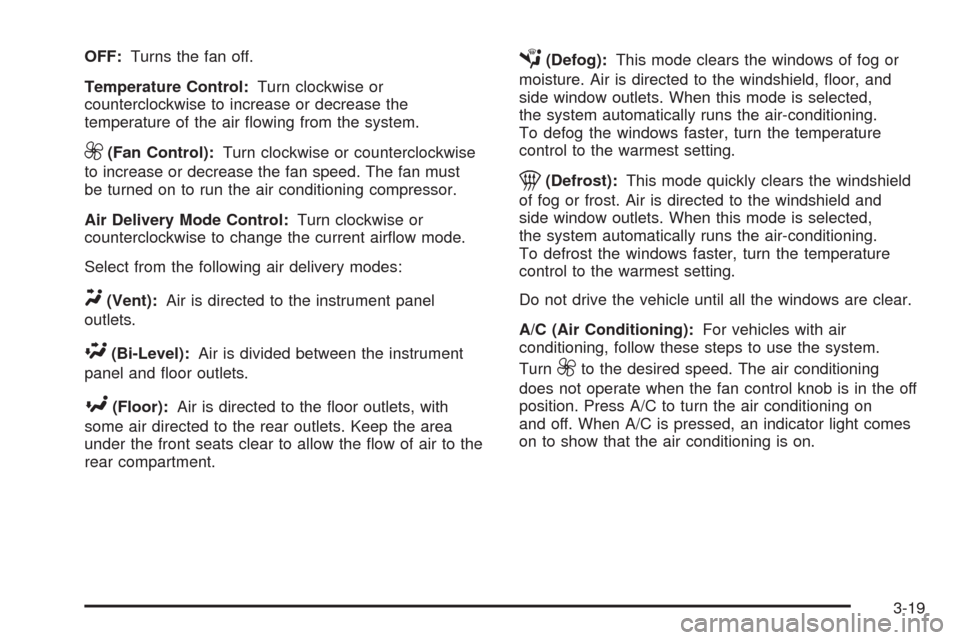

OFF:Turns the fan off.
Temperature Control:Turn clockwise or
counterclockwise to increase or decrease the
temperature of the air owing from the system.
9(Fan Control):Turn clockwise or counterclockwise
to increase or decrease the fan speed. The fan must
be turned on to run the air conditioning compressor.
Air Delivery Mode Control:Turn clockwise or
counterclockwise to change the current airow mode.
Select from the following air delivery modes:
Y(Vent):Air is directed to the instrument panel
outlets.
\(Bi-Level):Air is divided between the instrument
panel and oor outlets.
[(Floor):Air is directed to the oor outlets, with
some air directed to the rear outlets. Keep the area
under the front seats clear to allow the ow of air to the
rear compartment.
É(Defog):This mode clears the windows of fog or
moisture. Air is directed to the windshield, oor, and
side window outlets. When this mode is selected,
the system automatically runs the air-conditioning.
To defog the windows faster, turn the temperature
control to the warmest setting.
1(Defrost):This mode quickly clears the windshield
of fog or frost. Air is directed to the windshield and
side window outlets. When this mode is selected,
the system automatically runs the air-conditioning.
To defrost the windows faster, turn the temperature
control to the warmest setting.
Do not drive the vehicle until all the windows are clear.
A/C (Air Conditioning):For vehicles with air
conditioning, follow these steps to use the system.
Turn
9to the desired speed. The air conditioning
does not operate when the fan control knob is in the off
position. Press A/C to turn the air conditioning on
and off. When A/C is pressed, an indicator light comes
on to show that the air conditioning is on.
3-19

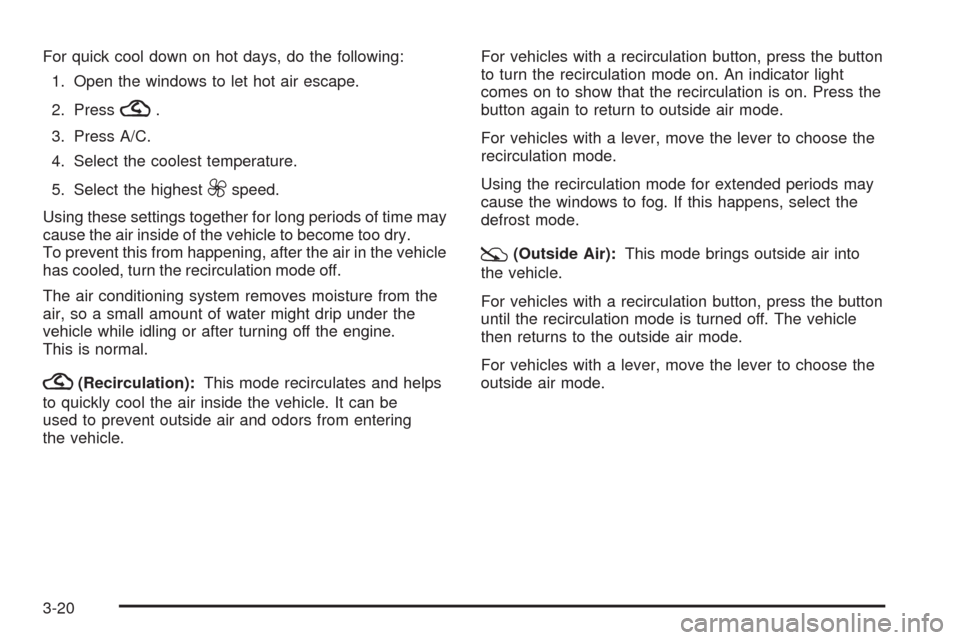

For quick cool down on hot days, do the following:
1. Open the windows to let hot air escape.
2. Press
?.
3. Press A/C.
4. Select the coolest temperature.
5. Select the highest
9speed.
Using these settings together for long periods of time may
cause the air inside of the vehicle to become too dry.
To prevent this from happening, after the air in the vehicle
has cooled, turn the recirculation mode off.
The air conditioning system removes moisture from the
air, so a small amount of water might drip under the
vehicle while idling or after turning off the engine.
This is normal.
?(Recirculation):This mode recirculates and helps
to quickly cool the air inside the vehicle. It can be
used to prevent outside air and odors from entering
the vehicle.For vehicles with a recirculation button, press the button
to turn the recirculation mode on. An indicator light
comes on to show that the recirculation is on. Press the
button again to return to outside air mode.
For vehicles with a lever, move the lever to choose the
recirculation mode.
Using the recirculation mode for extended periods may
cause the windows to fog. If this happens, select the
defrost mode.
:(Outside Air):This mode brings outside air into
the vehicle.
For vehicles with a recirculation button, press the button
until the recirculation mode is turned off. The vehicle
then returns to the outside air mode.
For vehicles with a lever, move the lever to choose the
outside air mode.
3-20
