CHEVROLET AVEO 2011 1.G Owner's Guide

Black plate (25,1)Chevrolet Aveo Owner Manual - 2011
In Brief 1-25

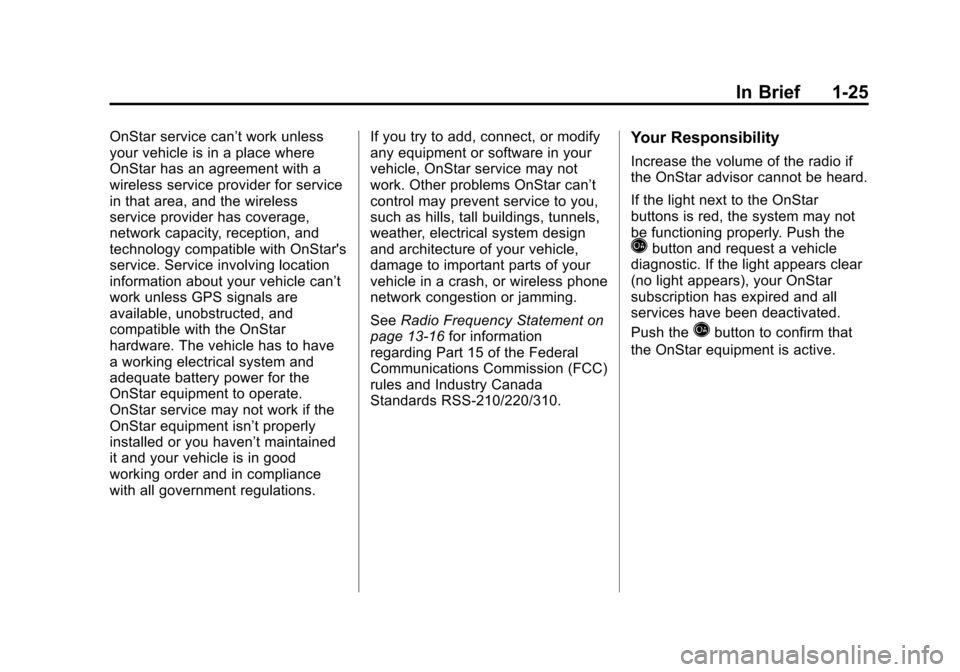

OnStar service can’t work unless
your vehicle is in a place where
OnStar has an agreement with a
wireless service provider for service
in that area, and the wireless
service provider has coverage,
network capacity, reception, and
technology compatible with OnStar's
service. Service involving location
information about your vehicle can’t
work unless GPS signals are
available, unobstructed, and
compatible with the OnStar
hardware. The vehicle has to have
a working electrical system and
adequate battery power for the
OnStar equipment to operate.
OnStar service may not work if the
OnStar equipment isn’t properly
installed or you haven’t maintained
it and your vehicle is in good
working order and in compliance
with all government regulations.If you try to add, connect, or modify
any equipment or software in your
vehicle, OnStar service may not
work. Other problems OnStar can’t
control may prevent service to you,
such as hills, tall buildings, tunnels,
weather, electrical system design
and architecture of your vehicle,
damage to important parts of your
vehicle in a crash, or wireless phone
network congestion or jamming.
See
Radio Frequency Statement on
page 13‑16 for information
regarding Part 15 of the Federal
Communications Commission (FCC)
rules and Industry Canada
Standards RSS-210/220/310.Your Responsibility
Increase the volume of the radio if
the OnStar advisor cannot be heard.
If the light next to the OnStar
buttons is red, the system may not
be functioning properly. Push the
Qbutton and request a vehicle
diagnostic. If the light appears clear
(no light appears), your OnStar
subscription has expired and all
services have been deactivated.
Push the
Qbutton to confirm that
the OnStar equipment is active.

Black plate (26,1)Chevrolet Aveo Owner Manual - 2011
1-26 In Brief
2NOTES

Black plate (1,1)Chevrolet Aveo Owner Manual - 2011
Keys, Doors and Windows 2-1
Keys, Doors and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . 2-3
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . 2-3
Door Locks . . . . . . . . . . . . . . . . . . . 2-5
Central Door Unlocking System . . . . . . . . . . . . . . . . . . . . . . 2-6
Door Ajar Reminder . . . . . . . . . . . 2-6
Safety Locks . . . . . . . . . . . . . . . . . . 2-6
Doors
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Liftgate (Hatchback) . . . . . . . . . . 2-9
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . 2-10
Anti-Theft Alarm System . . . . . 2-10
Immobilizer . . . . . . . . . . . . . . . . . . 2-12
Immobilizer Operation . . . . . . . 2-12
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . 2-13
Manual Mirrors . . . . . . . . . . . . . . . 2-13
Power Mirrors . . . . . . . . . . . . . . . . 2-13
Heated Mirrors . . . . . . . . . . . . . . . 2-14
Interior Mirrors
Manual Rearview Mirror . . . . . . 2-14
Windows
Windows . . . . . . . . . . . . . . . . . . . . . 2-14
Manual Windows . . . . . . . . . . . . 2-15
Power Windows . . . . . . . . . . . . . 2-15
Sun Visors . . . . . . . . . . . . . . . . . . . 2-16
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-16

Black plate (2,1)Chevrolet Aveo Owner Manual - 2011
2-2 Keys, Doors and Windows
Keys and Locks
Keys
{WARNING
Leaving children in a vehicle with
the ignition key is dangerous for
many reasons. Children or others
could be badly injured or even
killed. They could operate the
power windows or other controls
or even make the vehicle move.
The windows will function with the
keys in the ignition and children
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave the keys in
a vehicle with children.
The key can be used for the ignition,
doors, and all other locks.
The key has a key code tag that the
dealer or qualified locksmith can
use to make new keys. Store this
information in a safe place, not in
your vehicle.Your vehicle may have an electronic
immobilizer designed to protect your
car against theft. If so, only keys
with the correct electronic code can
be used to start the vehicle. See
Immobilizer Operation on page 2‑12
for additional information. If a
replacement key or an additional
key is needed, it must be purchased
from your dealer or certified
locksmith.
Notice:
If the keys get locked in
the vehicle, it may have to be
damaged to get them out. Always
carry a spare key.
In an emergency, contact Roadside
Assistance. See Roadside
Assistance Program on page 13‑6
for more information.

Black plate (3,1)Chevrolet Aveo Owner Manual - 2011
Keys, Doors and Windows 2-3

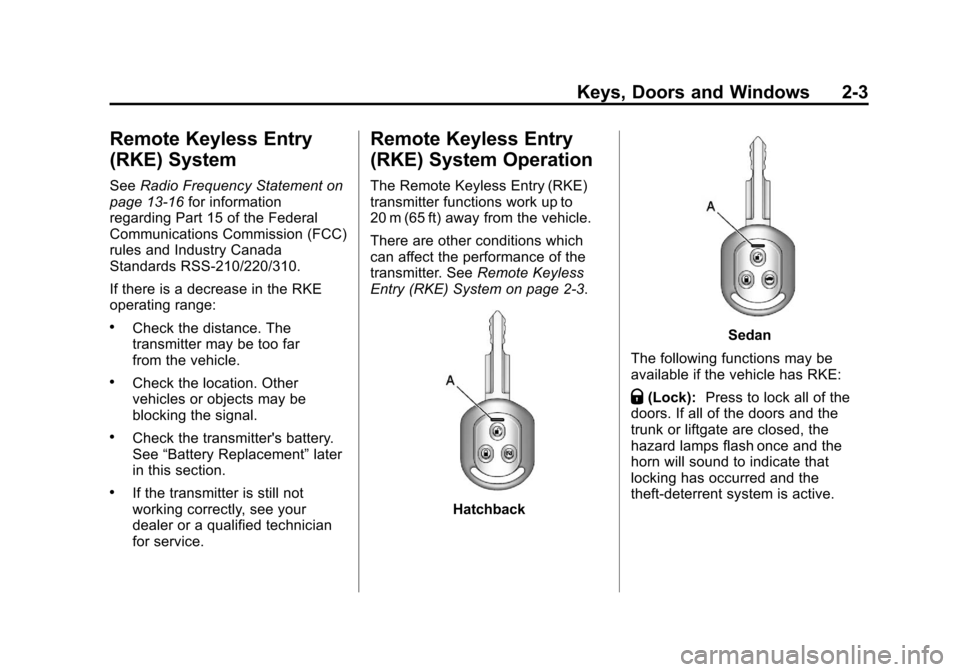

Remote Keyless Entry
(RKE) System
SeeRadio Frequency Statement on
page 13‑16 for information
regarding Part 15 of the Federal
Communications Commission (FCC)
rules and Industry Canada
Standards RSS-210/220/310.
If there is a decrease in the RKE
operating range:
.Check the distance. The
transmitter may be too far
from the vehicle.
.Check the location. Other
vehicles or objects may be
blocking the signal.
.Check the transmitter's battery.
See “Battery Replacement” later
in this section.
.If the transmitter is still not
working correctly, see your
dealer or a qualified technician
for service.
Remote Keyless Entry
(RKE) System Operation
The Remote Keyless Entry (RKE)
transmitter functions work up to
20 m (65 ft) away from the vehicle.
There are other conditions which
can affect the performance of the
transmitter. See Remote Keyless
Entry (RKE) System on page 2‑3.
Hatchback
Sedan
The following functions may be
available if the vehicle has RKE:
Q(Lock): Press to lock all of the
doors. If all of the doors and the
trunk or liftgate are closed, the
hazard lamps flash once and the
horn will sound to indicate that
locking has occurred and the
theft-deterrent system is active.

Black plate (4,1)Chevrolet Aveo Owner Manual - 2011
2-4 Keys, Doors and Windows
K(Unlock):Press to unlock
all of the doors. The hazard
lamps flash twice to indicate that
unlocking has occurred and that
the theft-deterrent system is
deactivated. If the doors are not
opened within 30 seconds, the
doors will lock again.
3(Panic) (Hatchback): Press to
sound the panic alarm. The hazard
lamps will flash and the panic alarm
will stay on for about 30 seconds.
Press any of the buttons on the
transmitter to turn off the alarm.
V(Remote Trunk Release)
(Sedan): Press and hold for
approximately one second to open
the trunk.
The LED light (A) on the transmitter
flashes when the buttons on the
transmitter are pressed. If the light
does not flash, see “Battery
Replacement” in this section.
The buttons do not operate and the
theft-deterrent system does not
activate if the key is in the ignition.
Programming Transmitters to
the Vehicle
Only RKE transmitters programmed
to the vehicle will work. If a
transmitter is lost or stolen, a
replacement can be purchased and
programmed through your dealer.
When the replacement transmitter
is programmed to the vehicle, all
remaining transmitters must also be
programmed. Any lost or stolen
transmitters no longer work once
the new transmitter is programmed.
Each vehicle can have up to
five transmitters programmed to it.
Battery Replacement
Replace the battery if the LED on
the transmitter does not flash when
you press the buttons.
Notice: When replacing the
battery, do not touch any of the
circuitry on the transmitter. Static
from your body could damage the
transmitter. To replace the battery:
1. Remove the screw from the back
of the cover and open the cover
of the transmitter.
2. Pull the transmitter out of the cover and carefully turn the
circle cover of the transmitter
unit toward open.
3. Remove the battery.
4. Insert the new battery, positive side facing up.
Use one three-volt, CR1620,
or equivalent, type battery.
5. Turn the circle cover of the transmitter unit toward close and
put the transmitter unit in the
cover.
6. Put the two halves back together and replace the screw. Make
sure the cover is on tightly, so
water will not get in.
7. Test the transmitter operation.

Black plate (5,1)Chevrolet Aveo Owner Manual - 2011
Keys, Doors and Windows 2-5
Door Locks
{WARNING
Unlocked doors can be
dangerous.
.Passengers, especially
children, can easily open
the doors and fall out of a
moving vehicle. When a door
is locked, the handle will not
open it. The chance of being
thrown out of the vehicle in
a crash is increased if the
doors are not locked. So, all
passengers should wear
safety belts properly and the
doors should be locked
whenever the vehicle is
driven.(Continued)
WARNING (Continued)
.Young children who get into
unlocked vehicles may be
unable to get out. A child can
be overcome by extreme heat
and can suffer permanent
injuries or even death from
heat stroke. Always lock the
vehicle whenever leaving it.
.Outsiders can easily enter
through an unlocked door
when you slow down or stop
the vehicle. Locking the doors
can help prevent this from
happening. There are several ways to lock and
unlock the vehicle.
From the outside, use your key or
the Remote Keyless Entry (RKE)
transmitter. See
Remote Keyless
Entry (RKE) System Operation on
page 2‑3.
To manually unlock the front
doors from the outside, insert the
key and turn it counterclockwise.
To manually lock the doors, insert
the key and turn it clockwise.
All doors, except for the driver door,
can be locked by pushing down the
manual door lock and then closing
the door. On vehicles with power
locks, the driver door can only by
locked from the outside by using the
key or the optional RKE transmitter.
From the inside, all of the doors can
be locked and unlocked by pushing
or pulling the manual door lock
located on each door.

Black plate (6,1)Chevrolet Aveo Owner Manual - 2011
2-6 Keys, Doors and Windows
Central Door Unlocking
System
The vehicle may be equipped with
the central door unlocking system.
This system is activated from the
driver door.
From the outside, lock or unlock all
the doors by using either the key or
the RKE transmitter, if equipped.
From the inside, lock or unlock all
the doors by using the driver door
lock switch.
Door Ajar Reminder
If one of the doors, trunk, or liftgate
is not closed properly while the
ignition is on, the door ajar light on
the instrument panel comes on and
stays on until the doors are closed.
Safety Locks
The vehicle has safety locks on
each rear door that prevent
passengers from opening the rear
doors from the inside.Using the Safety Locks
1. Move the lever up to lock.
2. Close the door.
3. Repeat Steps 1 and 2 to the
other rear door lock.
Notice: Pulling the inside door
handle while the rear door
security locks are engaged could
damage your vehicle. Do not pull
the inside door handle while the
rear door security locks are
engaged.
The rear doors on the vehicle
cannot be opened from the inside
while this feature is in use.

Black plate (7,1)Chevrolet Aveo Owner Manual - 2011
Keys, Doors and Windows 2-7
Opening a Rear Door When the
Safety Lock is On
1. Unlock the door from the inside.
2. Open the door from the outside.
If you do not cancel the safety lock,
adults or older children who ride in
the rear will not be able to open the
rear door from the inside.
Canceling the Safety Locks
1. Unlock the door from the insideand open the door from the
outside.
2. Move the lever down to unlock.
3. Repeat Steps 1 and 2 to the other rear door lock.
The rear door locks can now be
locked and unlocked normally.Doors
Trunk
{WARNING
Exhaust gases can enter the
vehicle if it is driven with the
liftgate, trunk/hatch open, or with
any objects that pass through the
seal between the body and the
trunk/hatch or liftgate. Engine
exhaust contains Carbon
Monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
If the vehicle must be driven with
the liftgate, or trunk/hatch open:
.Close all of the windows.
.Fully open the air outlets on
or under the instrument
panel. (Continued)
WARNING (Continued)
.Adjust the Climate Control
system to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See Climate
Control System in the Index.
.If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
For more information about
carbon monoxide, see Engine
Exhaust on page 9‑24.
To open the trunk on a sedan from
outside of the vehicle, insert the key
into the lock cylinder and turn the
key clockwise or use the RKE
transmitter, if equipped. See Remote
Keyless Entry (RKE) System
Operation on page 2‑3.

Black plate (8,1)Chevrolet Aveo Owner Manual - 2011
2-8 Keys, Doors and Windows
Remote Trunk Release
This feature allows the trunk to be
opened from inside the vehicle. The
vehicle may have either a release
button or a release lever.
The vehicle may have a release
button on the driver door. Press it to
open the trunk.The vehicle may have a trunk
release lever on the outboard side
of the driver seat. Pull the lever to
open the trunk.
When closing the trunk, close from
the center to ensure that it fully
latches.
Emergency Trunk Release
Handle
Notice:Do not use the
emergency trunk release handle
as a tie-down or anchor point
when securing items in the trunk
as it could damage the handle. The emergency trunk release
handle is only intended to aid a
person trapped in a latched trunk,
enabling them to open the trunk
from the inside.
There is a glow-in-the-dark
emergency trunk release handle on
the underside of the trunk lid. This
handle will glow following exposure
to light. Pull the release handle
down to open the trunk from the
inside.
