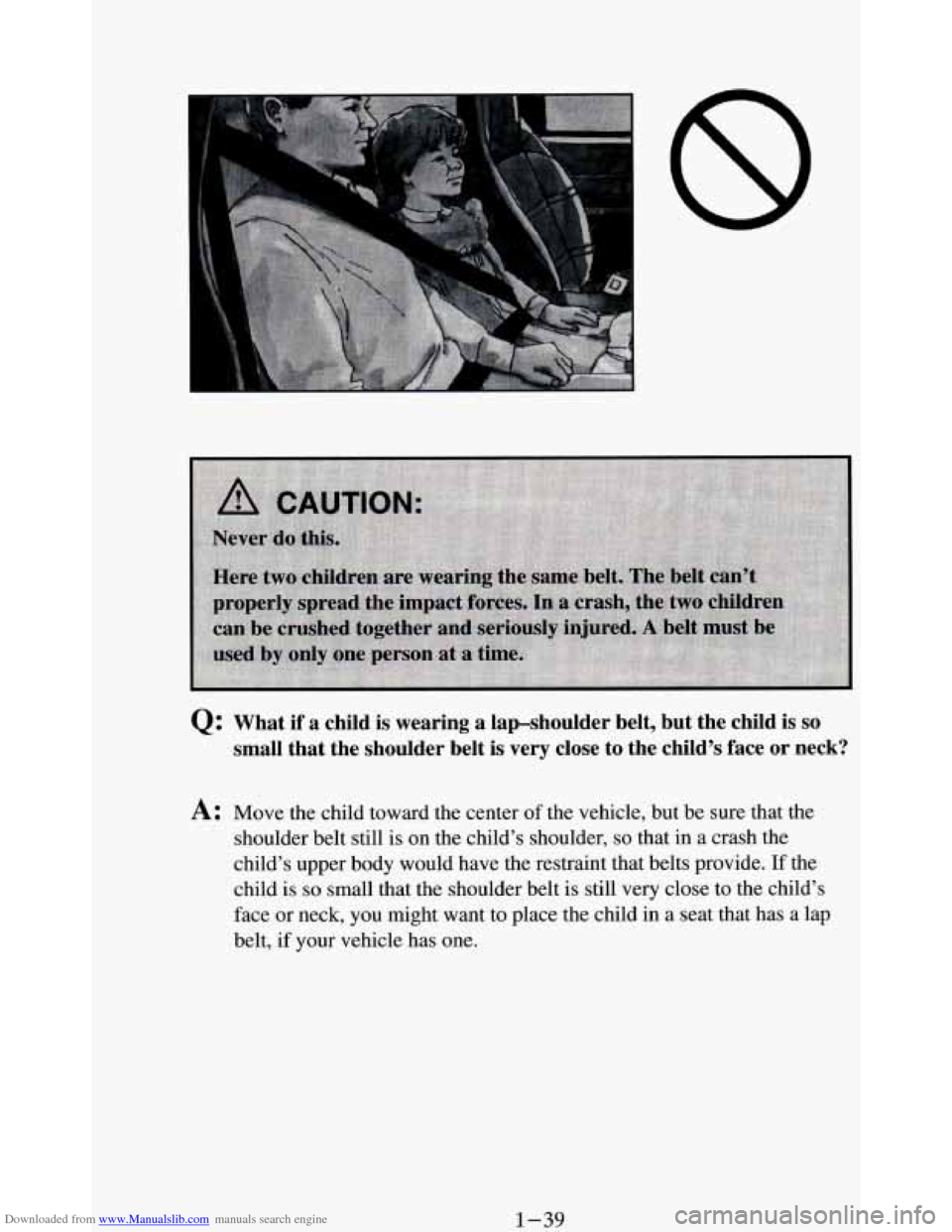

Downloaded from www.Manualslib.com manuals search engine Q: What if a child is wearing a lap-shoulder belt, but the child is so
small that the shoulder belt is very close to the child's face or neck?
A: Move the child toward the center of the vehicle, but be sure that the
shoulder belt still is on the child's shoulder,
so that in a crash the
child's upper body would have the restraint that belts provide.
If the
child is
so small that the shoulder belt is still very close to the child's
face or neck, you might want to place the child in a seat that has a lap
belt, if your vehicle has one.
1-39

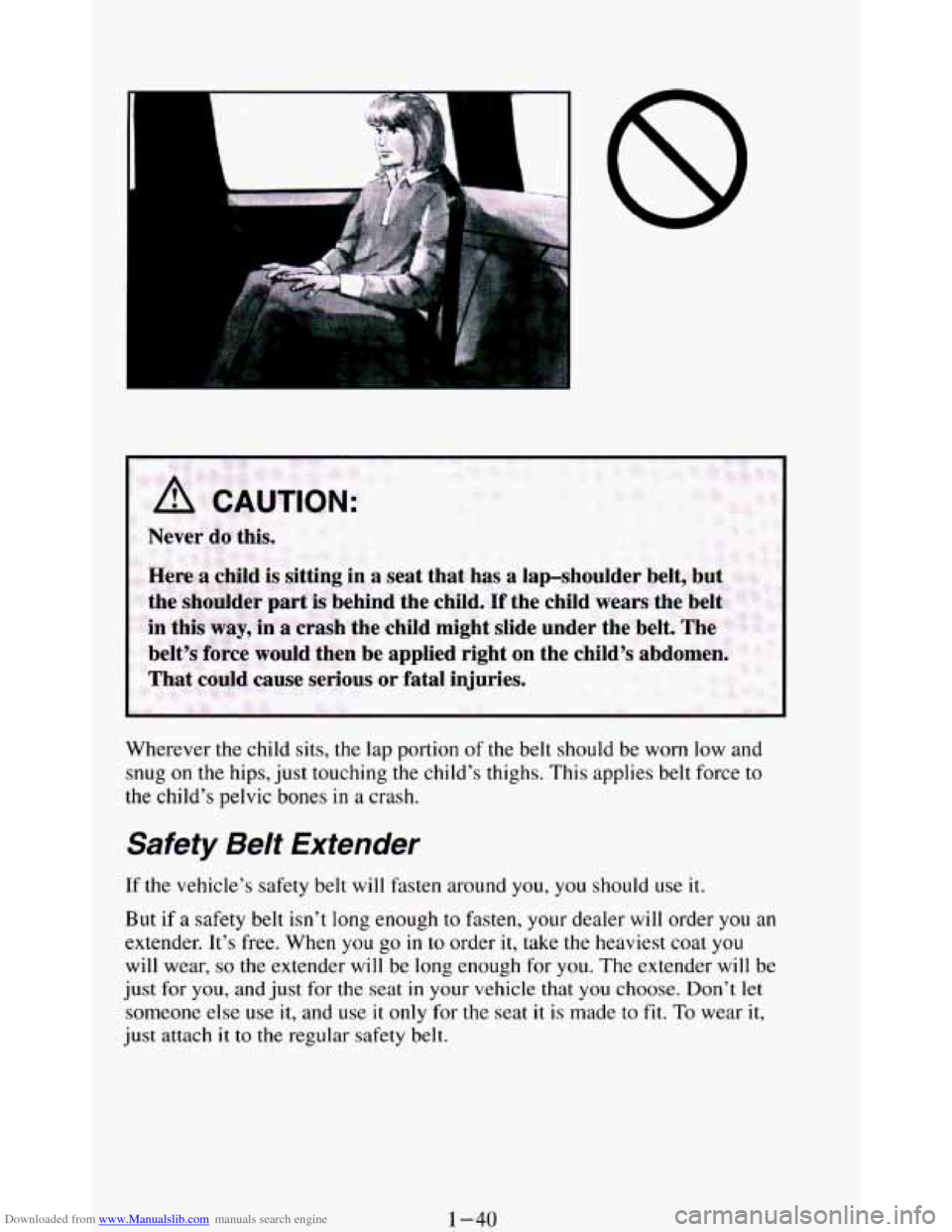

Downloaded from www.Manualslib.com manuals search engine I .That could cause serious or fatal injuries.
Wherever the child sits, the lap portion of the belt should be worn low and
snug
on the hips, just touching the child's thighs. This applies belt force to
the child's pelvic bones in a crash.
Safety Belt Extender
If the vehicle's safety belt will fasten around you, you should use it.
But
if a safety belt isn't long enough to fasten, your dealer will order you an
extender. It's free. When you go in to order it, take the heaviest coat you
will wear, so the extender will be long enough for you. The extender will be
just for you,
and just for the seat in your vehicle that you choose. Don't let
someone else use it, and use
it only for the seat it is made to fit. To wear it,
just attach
it to the regular safety belt.
1-40

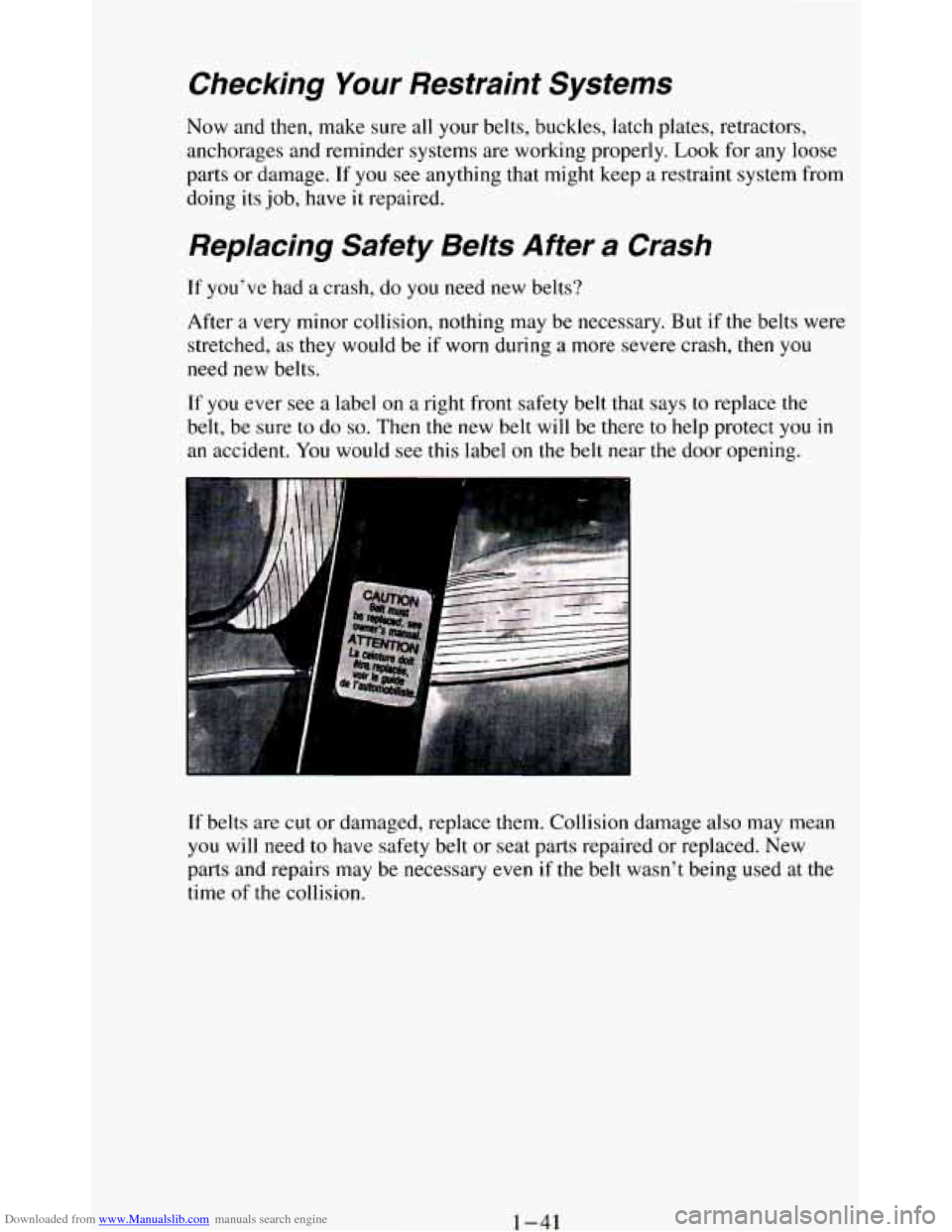

Downloaded from www.Manualslib.com manuals search engine Checking Your Restraint Systems
Now and then, make sure all your belts, buckles, latch plates, retractors,
anchorages and reminder systems are working properly.
Look for any loose
parts or damage. If you see anything that might keep a restraint system from
doing its job, have it repaired.
Replacing Safety Belts After a Crash
If you’ve had a crash, do you need new belts?
After a very minor collision, nothing may be necessary. But if the belts were
stretched, as they would be if worn during a more severe crash,
then you
need new belts.
If you ever see a label on a right front safety belt that says to replace the
belt, be sure to do
so. Then the new belt will be there to help protect you in
an accident. You would see this label on the belt near the door opening.
If belts are cut or damaged, replace them. Collision damage also may mean
you will need to have safety belt or seat parts repaired or replaced. New
parts and repairs may be necessary even if
the belt wasn’t being used at the
time
of the collision.
1-41

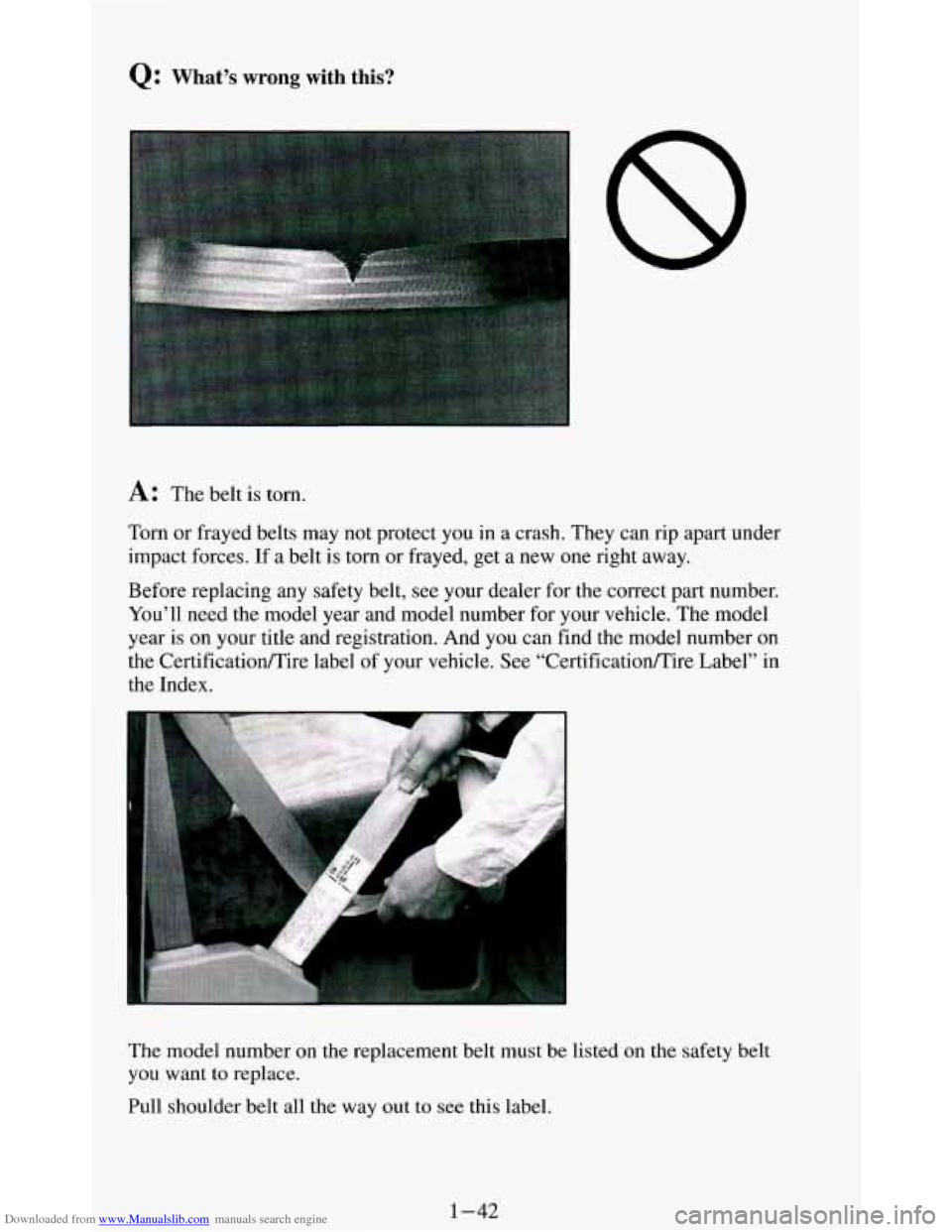

Downloaded from www.Manualslib.com manuals search engine Q: What’s wrong with this?
I
A: The belt is torn.
Torn or frayed belts may not protect you in a crash. They can rip apart under
impact forces. If a belt
is torn or frayed, get a new one right away.
Before replacing any safety belt, see your dealer for the correct part number.
You’ll need the model year and model number for your vehicle. The model
year is on your title and registration. And you can find the model number on
the Certificatioflire label
of your vehicle. See “CertificationK‘ire Label” in
the Index.
r
The model number on the replacement belt must be listed on the safety belt
you want to replace.
Pull shoulder belt all the way
out to see this label.
1-42

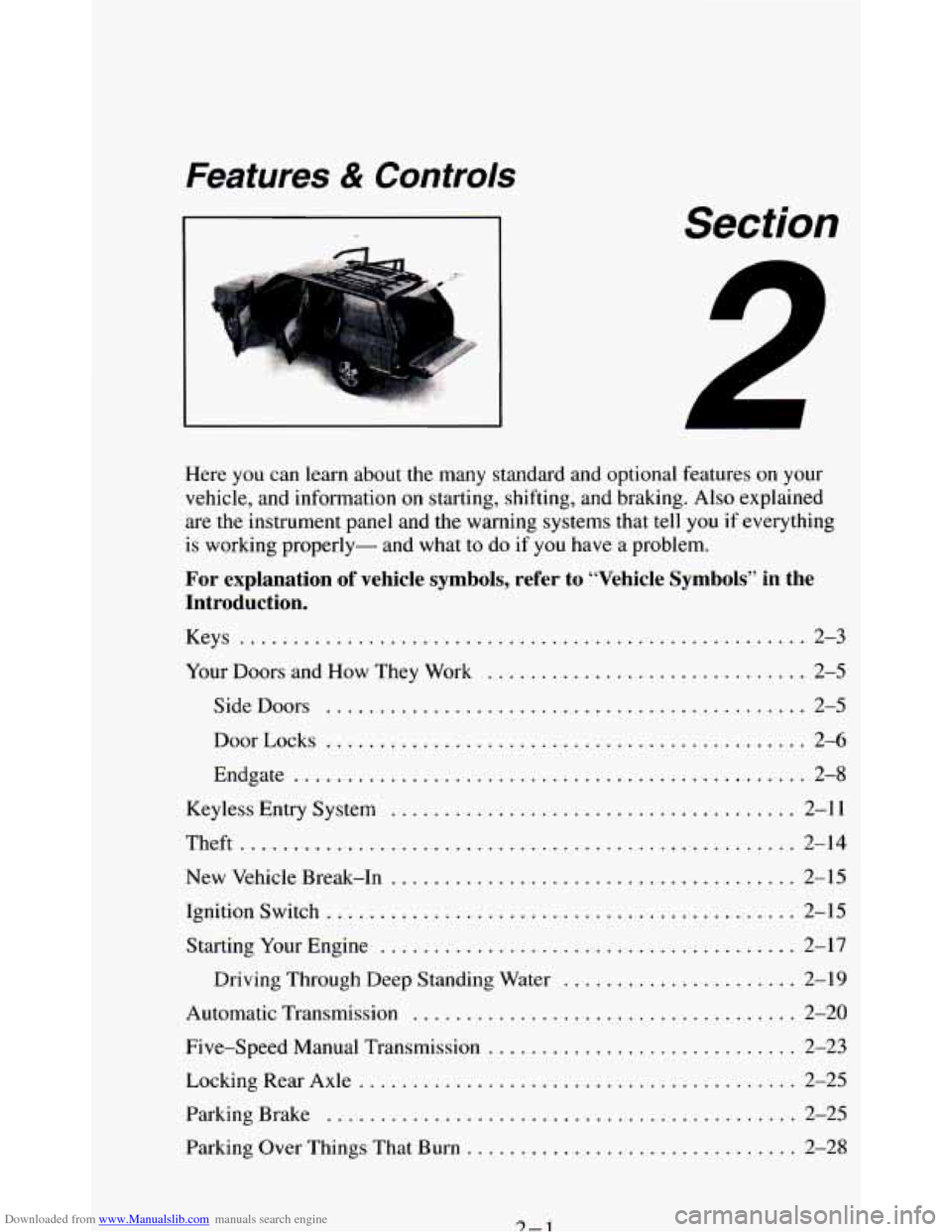

Downloaded from www.Manualslib.com manuals search engine Features & Controls
Section
Here you can learn about the many standard and optional features on your
vehicle, and information on starting, shifting, and braking. Also explained
are the instrument panel and the warning systems
that tell you if everything
is working properly- and what to do if you have a problem.
For explanation of vehicle symbols, refer to "Vehicle Symbols" in the
Introduction.
Keys ..................................................... 2-3
Your Doors and
How They Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
SideDoors
............................................. 2-5
DoorLocks ...................... ..................... 2-6
Endgate
................................................ 2-8
Keyless
Entry System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 1
Theft .................................................... 2-14
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Ignitionswitch
............................................ 2-15
Starting Your Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
Driving Through Deep Standing Water
. . . . . . . . . . . . . . . . . . . . . . 2-19
Automatic Transmission
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Five-Speed Manual Transmission
. . . . . . . . . . . . . . , , . . . . . . . . . . . . . 2-23
Locking Rear Axle
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . , . . . . . 2-25
ParkingBrake
............................................ 2-25
Parking Over Things That Burn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
3-1

Downloaded from www.Manualslib.com manuals search engine EngineExhaust ........................................... 2-29
Running Your Engine While You’re Parked
................... 2-30
Four-WheelDrive
......................................... 2-31
Manual Transfer Case
.................................... 2-31
Electronic Transfer Case
.................................. 2-33
Windows
................................................ 2-35
Horn
.................................................... 2-37
Tiltwheel
............................................... 2-37
Turn Signal/Multifunction Lever
.............................. 2-38
Turn Signal and Lane Change Indicator
...................... 2-38
Headlight High-Low Beam
............................... 2-40
Windshield Wipers
...................................... 2-41
Windshield Washer
...................................... 2-42
Rear Window Wiper/Washer
.............................. 2-43
Cruise Control
.......................................... 2-44
Lights
................................................. 2-49
Mirrors
.................................................. 2-53
Accessory Power Outlet
..................................... 2-56
Cigarette LightedAshtrays
................................... 2-57
Storage Compartments
...................................... 2-58
Instrument Cluster ......................................... 2-65
Warning Lights. Gages
and Indicators ....................... 2-67
Luggagecarrier
........................................... 2-78
Trailer Wiring Harness
...................................... 2-80
2-2

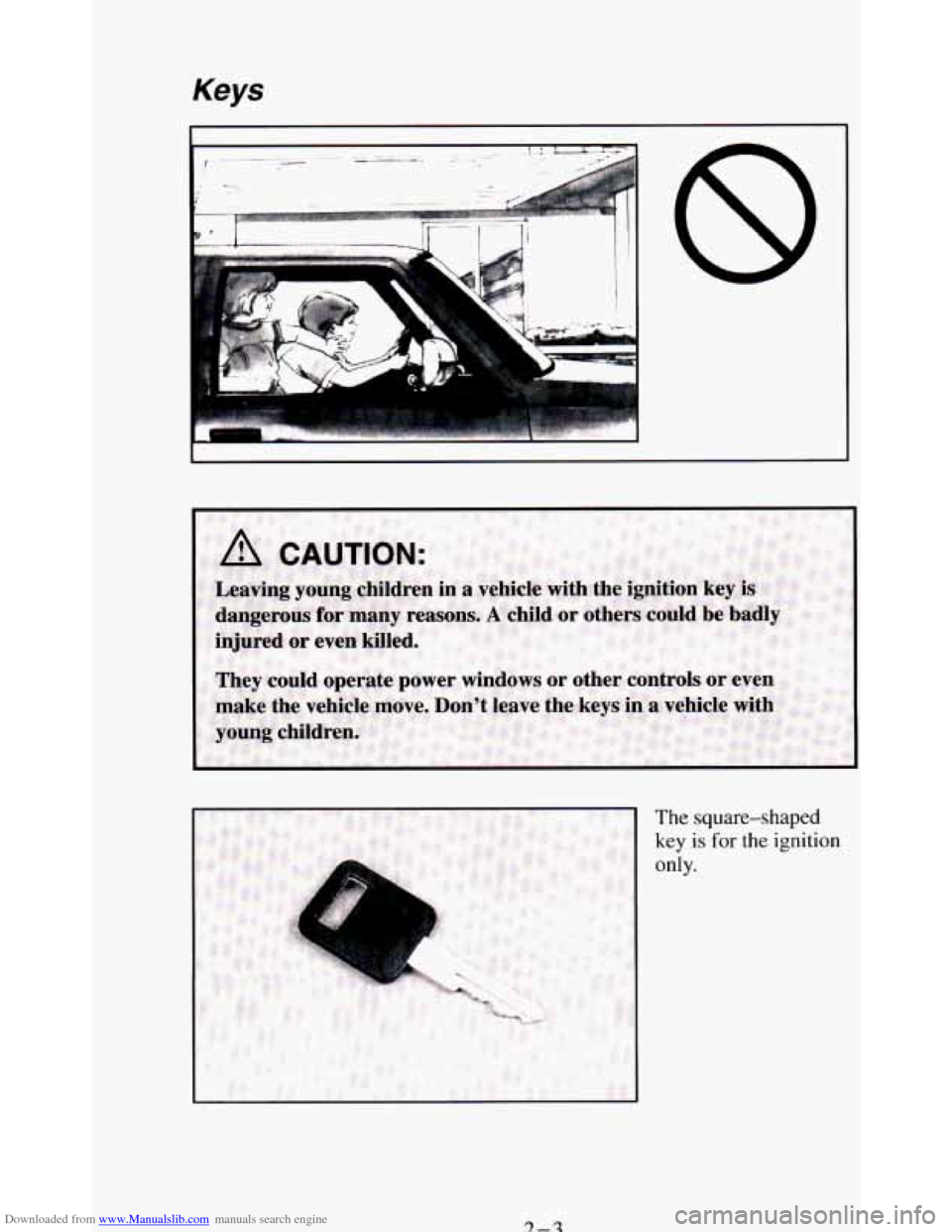

Downloaded from www.Manualslib.com manuals search engine Keys
The square-shaped
key is for the ignition
only.

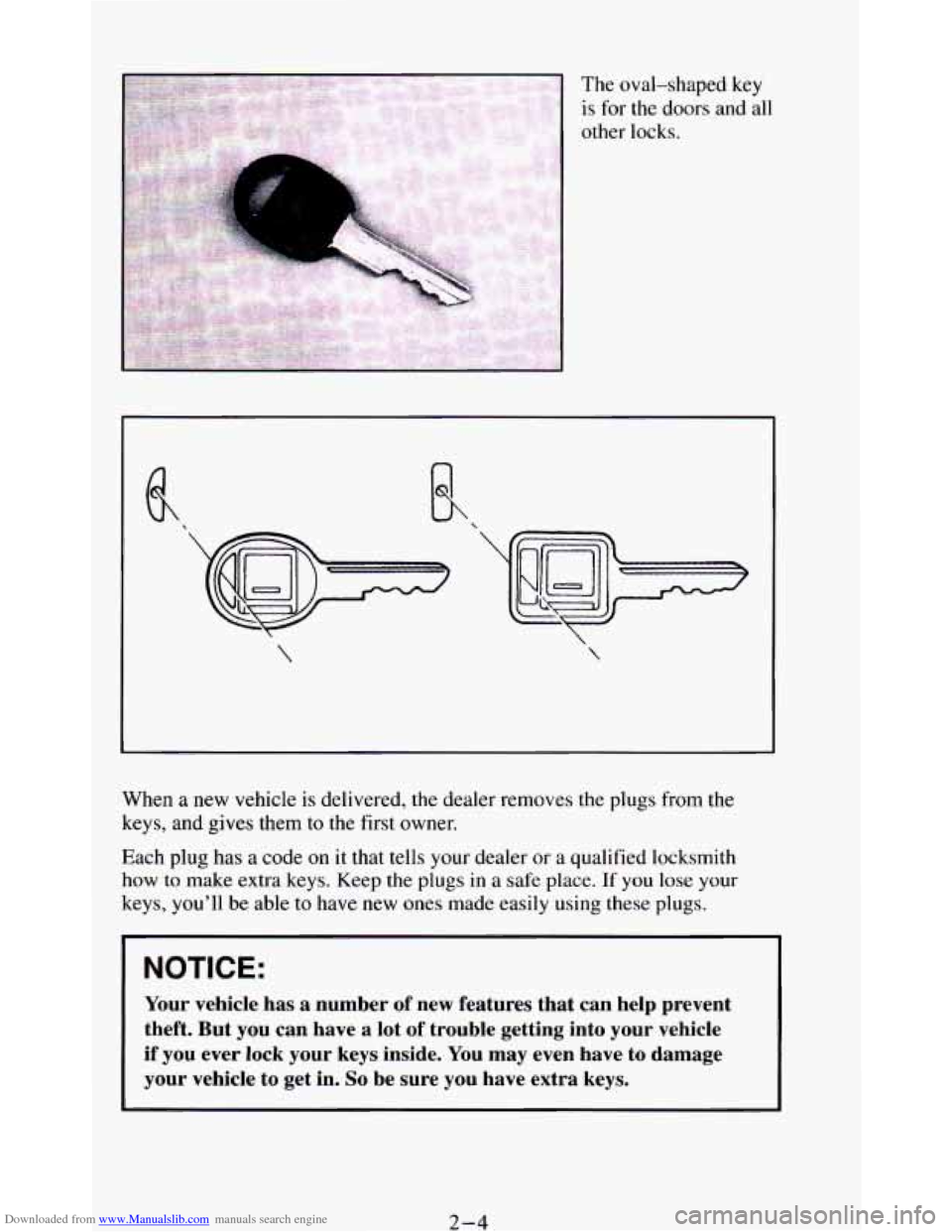

Downloaded from www.Manualslib.com manuals search engine The oval-shaped key
is for the doors and all
other locks.
When
a new vehicle is delivered, the dealer removes the plugs from the
keys, and gives them to the first owner.
Each plug has a code
on it that tells your dealer or a qualified locksmith
how to make extra keys. Keep the plugs in a safe place. If you lose your
keys, you'll be able to have new ones made easily using these
plugs.
I NOTICE:
Your vehicle has a number of new features that can help prevent
theft. But you can have a lot of trouble getting into your v\
ehicle
if you ever lock your keys inside. You
may even have to damage
your vehicle to get in.
So be sure you have extra keys.
2-4

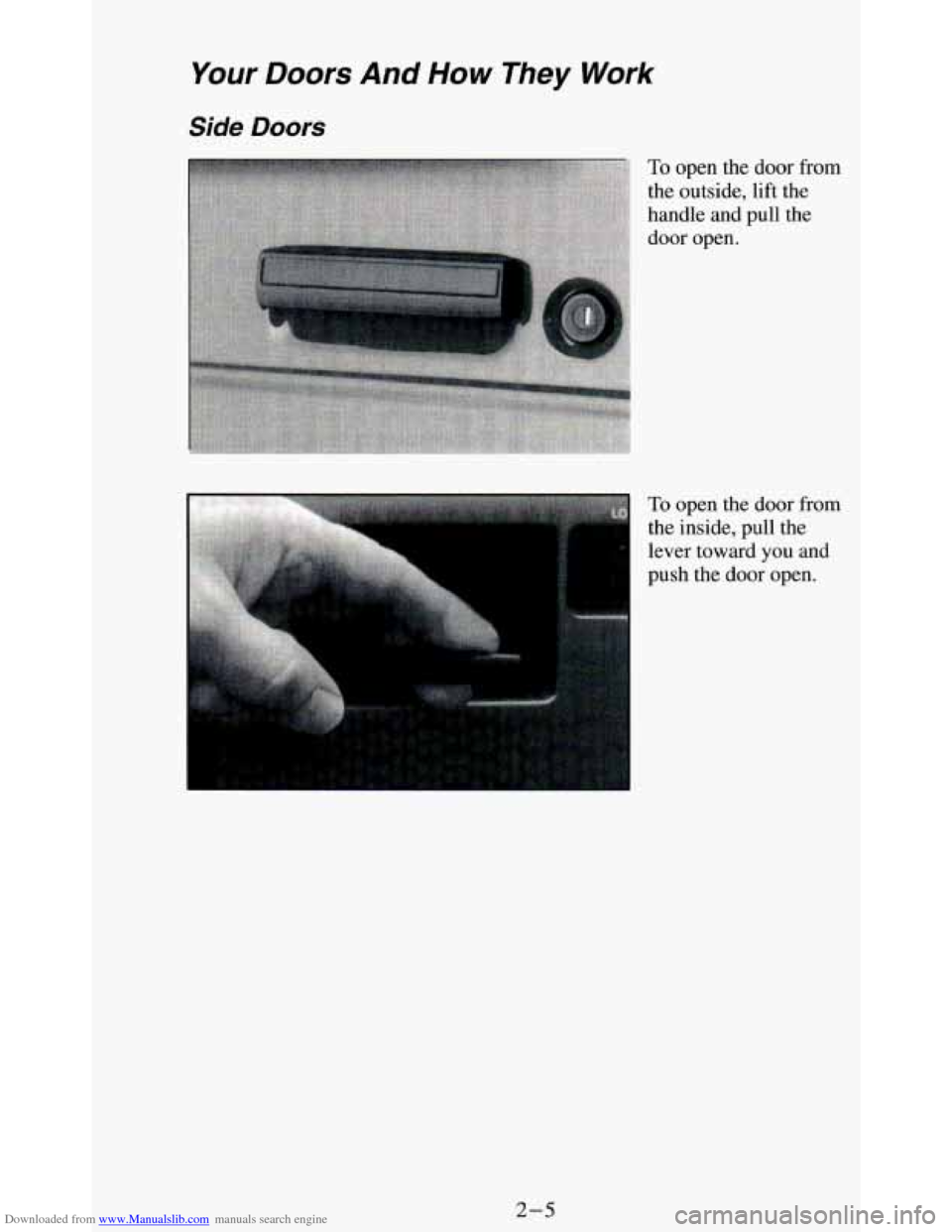

Downloaded from www.Manualslib.com manuals search engine Your Doors And How They Work
Side Doors
To open the door f~
the outside, lift the
handle and pull the
door open.
*om
To open the door from
the inside, pull the
lever toward you and
push the door open.
2-5

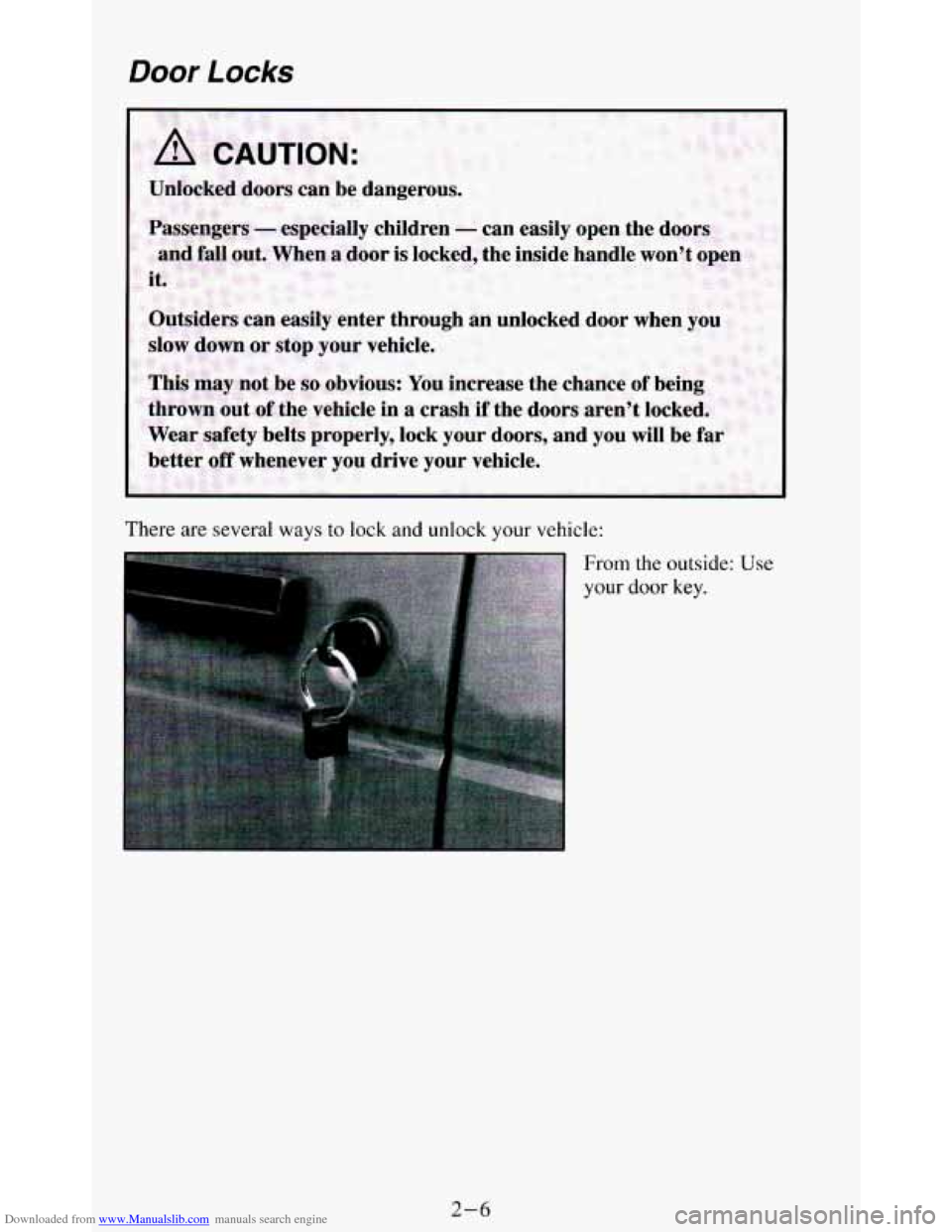

Downloaded from www.Manualslib.com manuals search engine Door Locks
There are several ways to lock and unlock your vehicle:
From the outside: Use
your door key.
