CHEVROLET BLAZER 1995 2.G Workshop Manual

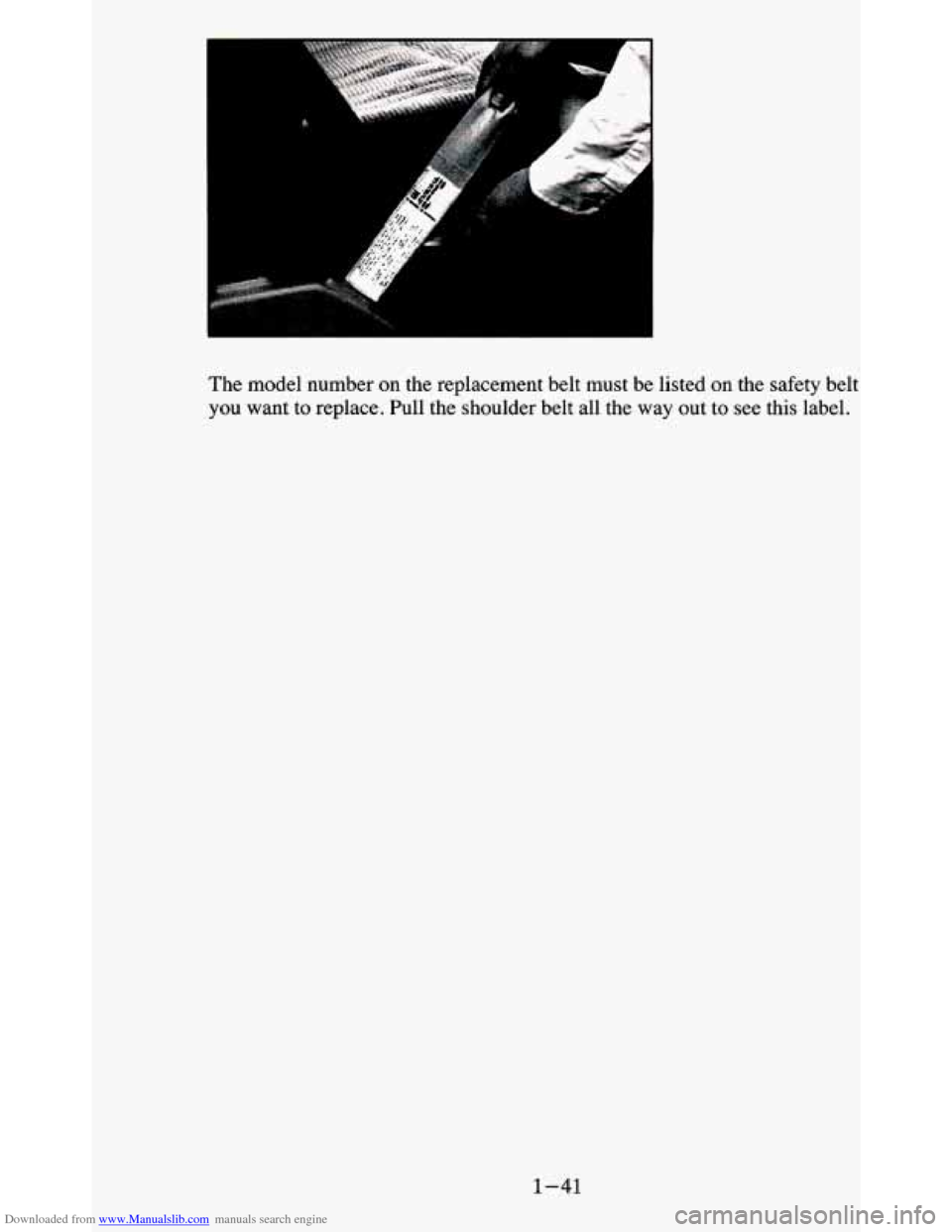

Downloaded from www.Manualslib.com manuals search engine The model number on the replacement belt must be listed on the safety belt
you want to replace. Pull the shoulder belt all the way out to see this label.
1-41

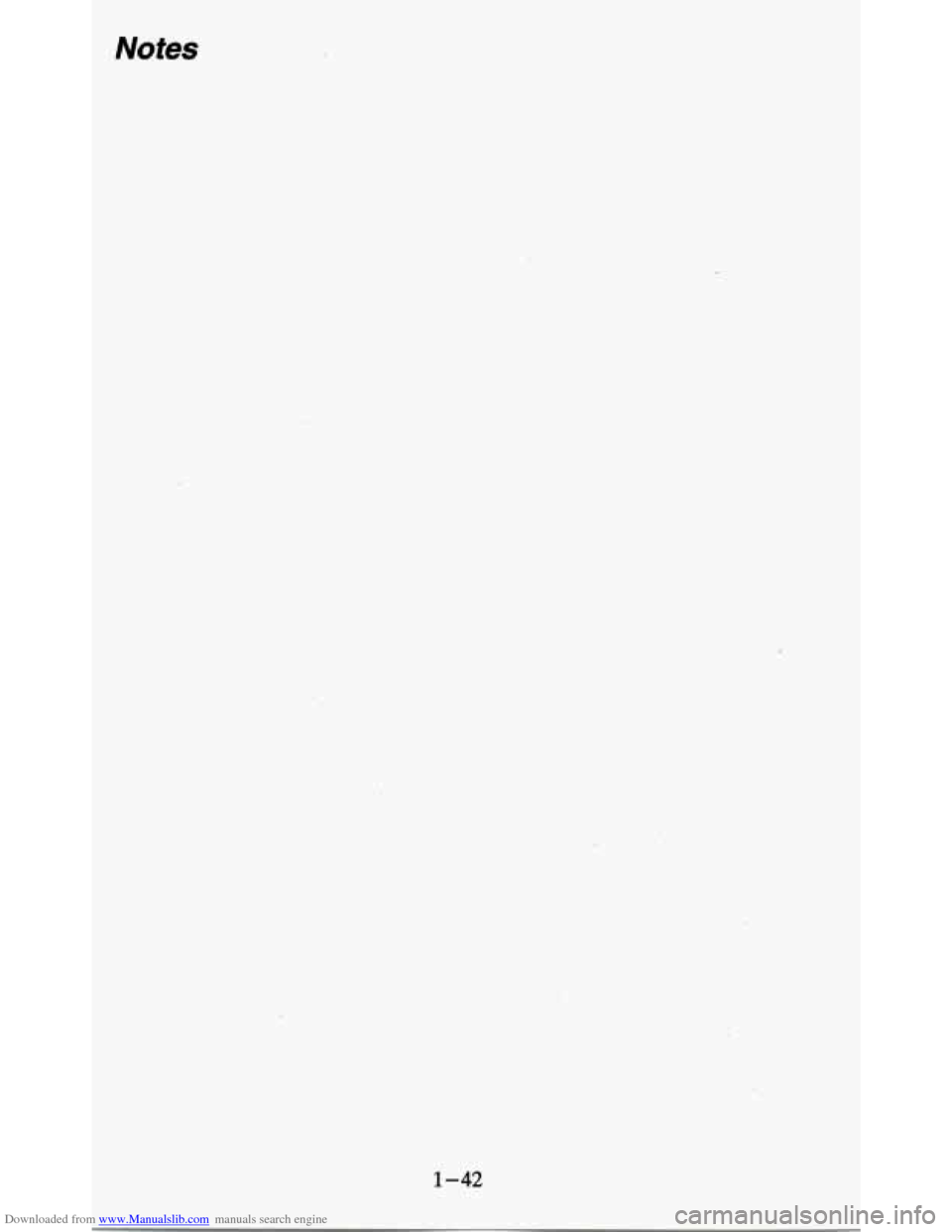

Downloaded from www.Manualslib.com manuals search engine Notes
1-42

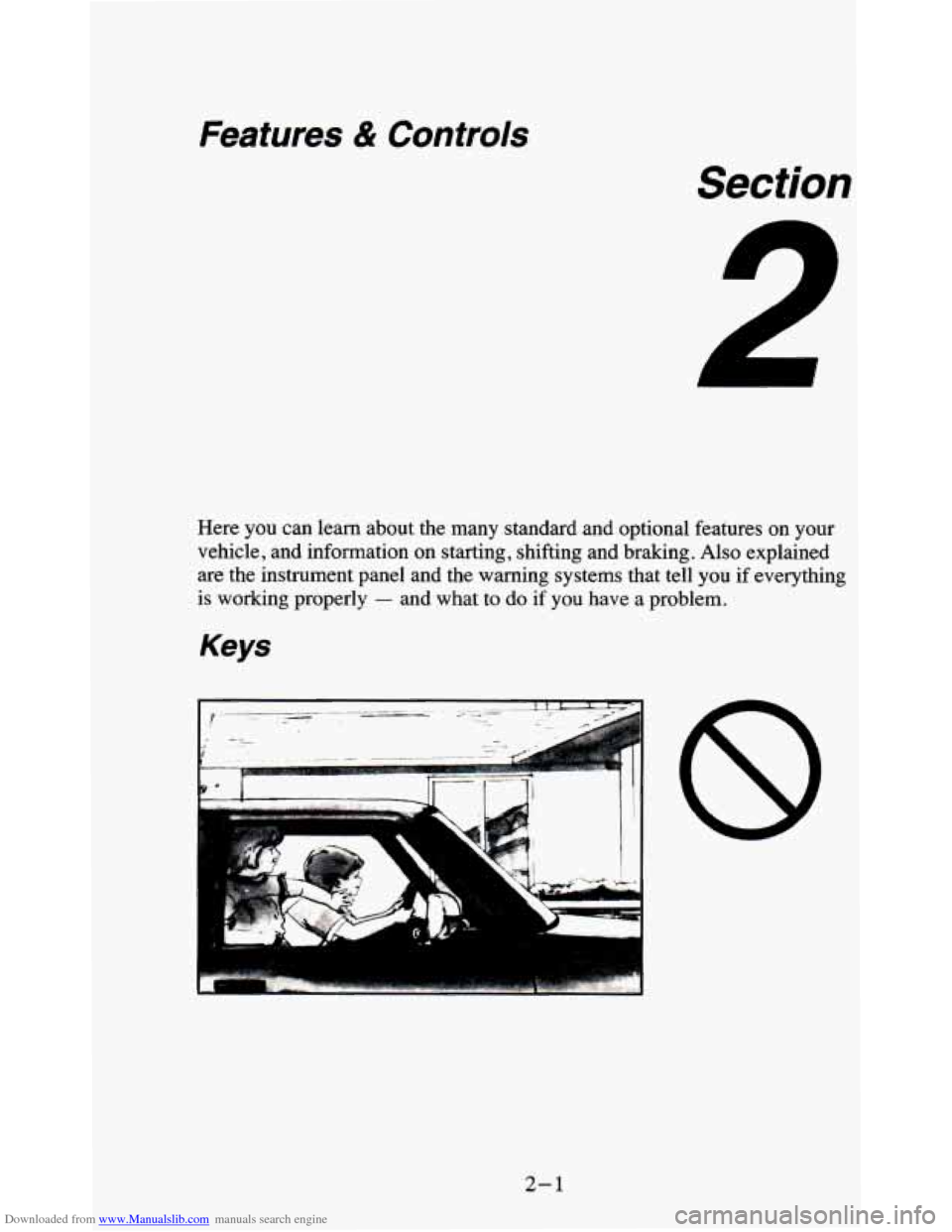

Downloaded from www.Manualslib.com manuals search engine Features & Controls
Section
Here you can learn about the many standard and optional features on your
vehicle, and information on starting, shifting and braking.
Also explained
are the instrument panel and the warning systems that tell you if everything
is working properly
- and what to do if you have a problem.
Keys
2-1

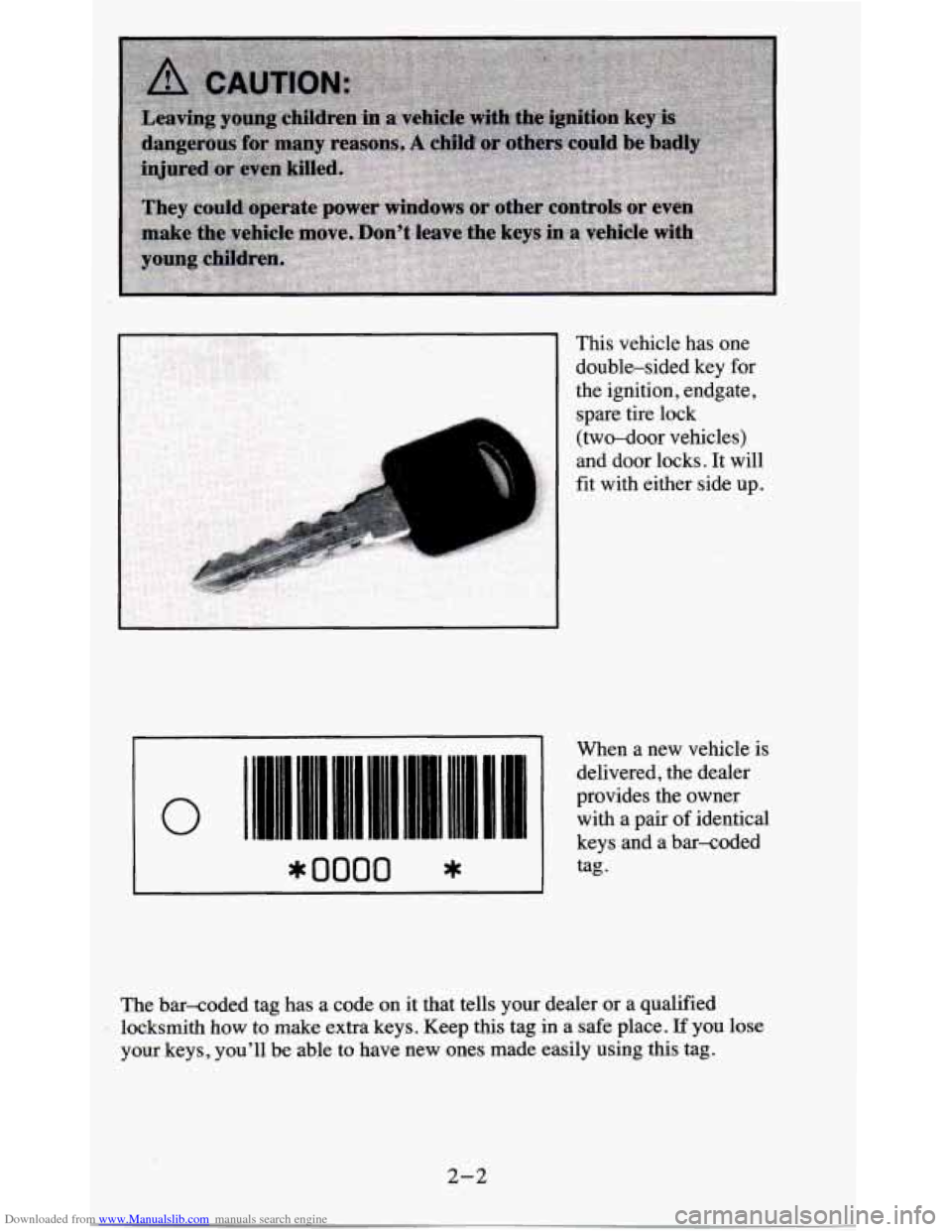

Downloaded from www.Manualslib.com manuals search engine This vehicle has one
double-sided key for
the ignition, endgate,
spare tire lock
(two-door vehicles)
and door locks. It will
fit with either side up.
0
* 0000 *
provides the owner
with a pair
of identical
keys and a bar-coded
tag.
The bar-coded tag has a code on it that tells your dealer or a qualified
locksmith
how to make extra keys. Keep this tag in a safe place. If you lose
your keys, you’ll be able to have new ones made easily using this tag.
2-2

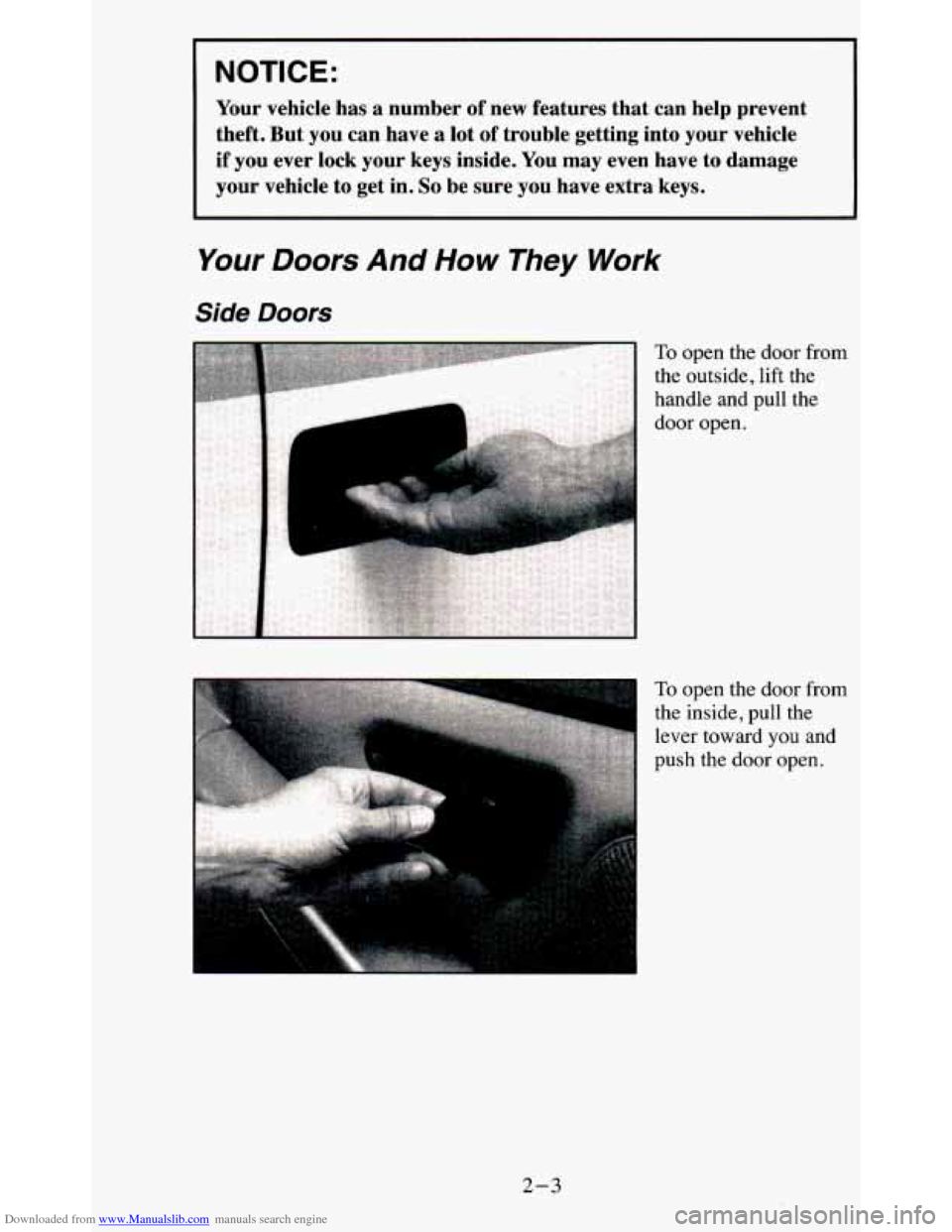

Downloaded from www.Manualslib.com manuals search engine I NOTICE:
Your vehicle has a number of new features that can help prevent
theft. But you can have a lot of trouble getting into your v\
ehicle
if you ever lock your keys inside. You may even have to damage
your vehicle to get in.
So be sure you have extra keys.
Your Doors And How They Work
Side Doors
To open the door from
the inside, pull the
lever toward you and
push the door open.
2-3

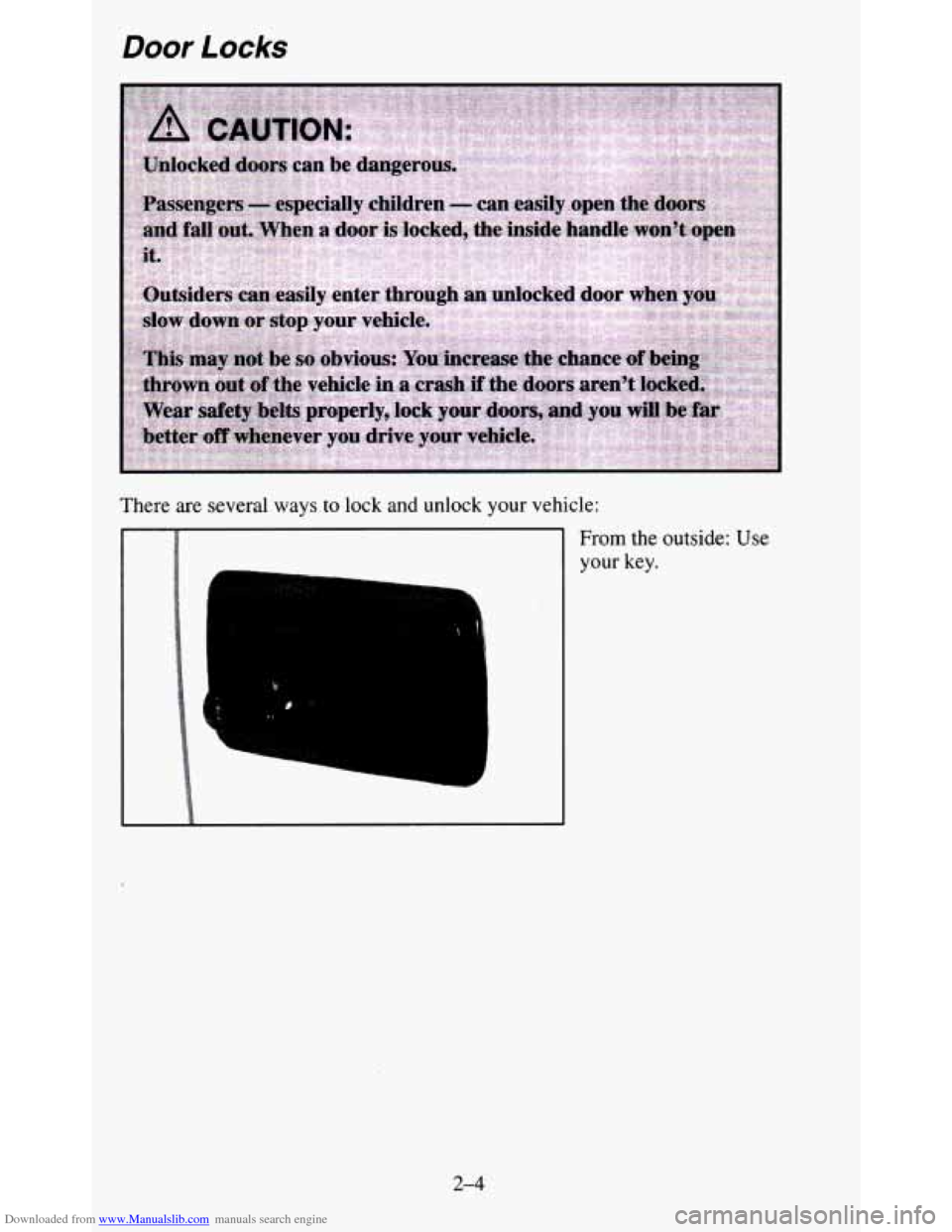

Downloaded from www.Manualslib.com manuals search engine Door Locks
There are several ways to lock and unlock your vehicle:
1
1
i.
3 I
1
1
From the outside: Use
your key.
2-4

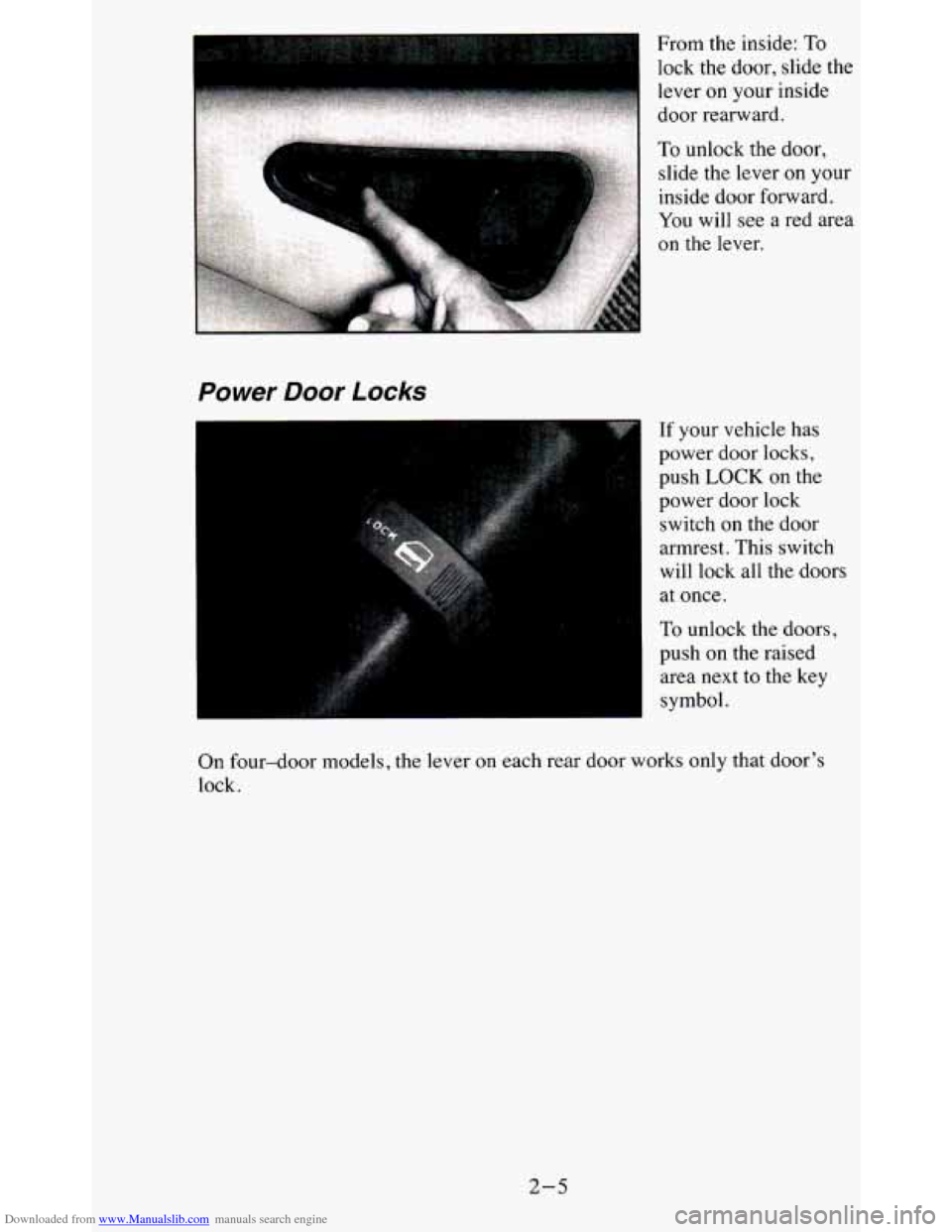

Downloaded from www.Manualslib.com manuals search engine Power Door Locks
If your vehicle has
power door locks,
push
LOCK on the
power door lock
switch on the door
armrest. This switch
will lock all the doors
at once.
To unlock the doors,
push on the raised
area next to the key symbol.
On four-door models, the lever on each rear door works only that door's
lock.
2-5

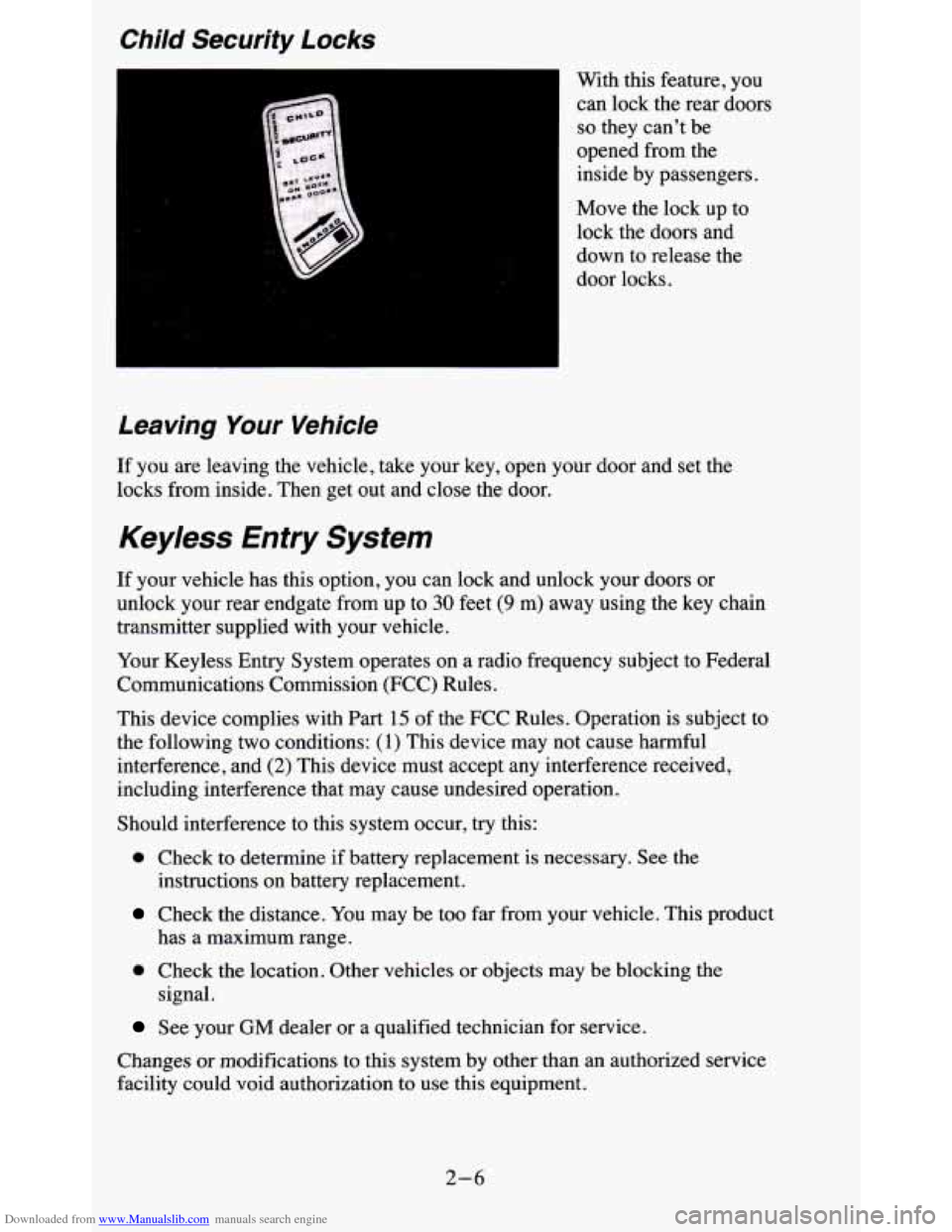

Downloaded from www.Manualslib.com manuals search engine Child Security Locks
7
With this feature, you
can lock the rear doors
so they can’t be
opened from the
inside by passengers.
Move the lock up to
lock the doors and
down to release the
door locks.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your door and set th\
e
locks from inside. Then get out and close the door.
Keyless Entry System
If your vehicle has this option, you can lock and unlock your doors or
unlock your rear endgate from up to
30 feet (9 m) away using the key chain
transmitter supplied with your vehicle.
Your Keyless Entry System operates on a radio frequency subject to Federal
Communications Commission (FCC) Rules.
This device complies with Part
15 of the FCC Rules. Operation is subject to
the following
two conditions: (1) This device may not cause harmful
interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Should interference
to this system occur, try this:
0 Check to determine if battery replacement is necessary. See the
Check the distance. You may be too far from your vehicle. This product
instructions on battery replacement.
has a maximum range.
0 Check the location. Other vehicles or objects may be blocking the
signal.
See your GM dealer or a qualified technician for service.
Changes
or modifications to this system by other than an authorized service
facility could void authorization to use this equipment.
2-6

Downloaded from www.Manualslib.com manuals search engine Operation
When you press UNLOCK, the driver’s door will unlock automatically. If
you press UNLOCK again within five seconds, all doors will unlock. All
doors will lock when LOCK is pressed.
The endgate glass will unlock when the REAR button is pressed. Vehicles
with automatic transmissions must have the transmission in PARK
(P).
Vehicles with manual transmission must have the parking brake engaged.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another transmitter from
unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember
to bring any remaining
transmitters with you when you go to your dealer. When the dealer matches
the replacement transmitter to your vehicle, the remaining transmitters must
also be matched. Once the
new transmitter is coded, the lost transmitter will
not unlock your vehicle.
You can match a transmitter to as many different vehicles as you own,
provided they are equipped with
exactly the same model system. (General
Motors offers several different models of these systems on their vehicles.)
Each vehicle can have only two transmitters matched to it.
See your dealer to match transmitters to another vehicle.
Battery Replacement
Under normal use, the batteries in your key chain transmitter should last
about two years.
You can tell the batteries are weak if the transmitter won’t work at the
normal range in any location.
If you have to get close to your vehicle before
the transmitter works, it’s probably time to change the batteries.
2-7

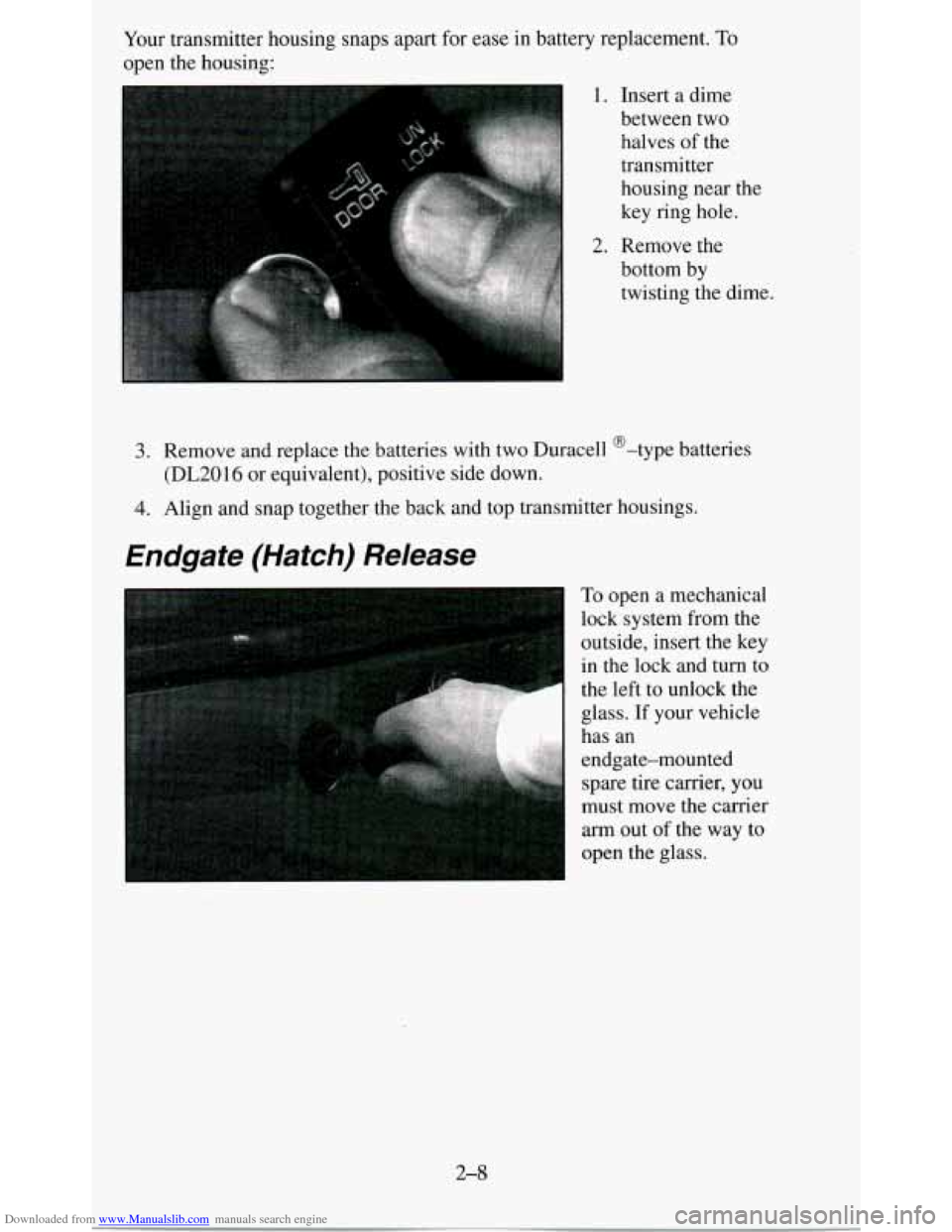

Downloaded from www.Manualslib.com manuals search engine Your transmitter housing snaps apart for ease in battery replacement. To
open the housing:
I 1. Insert a dime
between two halves
of the
transmitter
housing near the key ring hole.
2. Remove the
bottom by
twisting the dime.
3. Remove and replace the batteries with two Duracell @-type batte\
ries
(DL2016 or equivalent), positive side down.
4. Align and snap together the back and top transmitter housings. \
Endgate (Hatch) Release
To open a mechanical
lock system from the
outside, insert the key in the lock and turn to
the left to unlock the
glass.
If your vehicle
has an
endgate-mounted spare tire carrier, you
must move the carrier
arm out of the way to
open the glass.
2-8
